MD Accessories
(click on pictures for larger view)
Attention Manufacturers: I am willing to insert or replace
table entries for you, please make them conform to the standard accessory table entry
format. Descriptions should be fact-filled and free of
advertising hype and hyperbole (e.g. adjectives such as "perfect",
"ideal", "excellent"). Strive to inform the reader and allow them to
make an educated choice. Avoid information that is likely to need
frequent revision (e.g. exhaustive listings of features, frequently
changing prices, etc); the intention is to give a pointer to a product
page on your site that has complete information. (And thank you for
your contribution to the MD community!).
Japan-Direct will purchase and ship any equipment
currently available in Japanese shops. Contact them for details.
MiniDisc-UK.co.uk
specializes in Minidisc accessories (primarily Sony and Aiwa
microphones).
Planet
Minidisc carries several MD accessories (cases, adapters, etc).
The Radio Shack 61-1065 is a seven-day, six-event digitally program-
mable timer. It runs not on the wall power that it connects but on its own
AA battery, so it continues to keep time during power failures and disconnections. It is about $29.95.
Printers
Name
Desc.
Price
Connectors
Dimensions

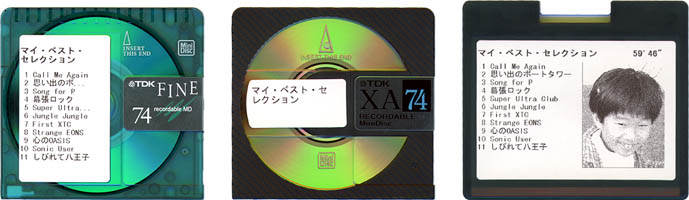

Seiko Smart Label Printer 220
MD Label Printer
?
?
?
Features:
Software used for the Smart Label Printer can also function with PC connectable Sony MD units (e.g. MDS-PC2).
Features:
Also can interface with Panasonic digital cameras for creation of labels.
Links:
Panasonic's Japanese page for this unit.
MiniDisc Now has a scanned in Panasonic catalog with pictures of the unit.
Specs:
Name
Desc.
Price
Connectors
Dimensions

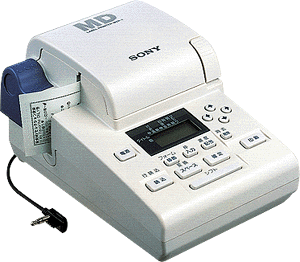

Sony MZP-1
MD Label Printer
MSRP JPY 18,000
Cable to Sony MD walkman
117.2 x 92.6 x 193.5mm, 7.3Kg
Features:
MD Label printer that reads in disc and track names from Sony MD portables and automatically
prints them on special labels*. Editing of read in names is also
possible, allowing one to produce "original labels".
Compatible with Sony MD portables except the MZ-1, MZ-2P, MZ-F40 and MZ-B3.
(Note Sony MD portable connector in photograph).
(*Labels are specially made for Sony MDs).
Palm Pilot
OmniRemote, ~$30 software for titling MDs on an IR compatible deck (Jaime Balli).
Maker
Desc.
Price
Dimensions
Pass (UK)
MD-Remote
�60.00
?
Description: The MD-Remote connects to a Sony MZ-R3/30/35/37, and provides larger sized buttons for most of the main controls: Stop, Pause, Record, Play, Forward & Backward Search. There is an "Interlock" mode to prevent accidental activation of recording. The MD-Remote has recently been revised to be smaller and lighter, and the DIN breakout connecter has been replaced with a 3.5mm minijack.
Links:
The official Pass MD-Remote page, with general/ordering information on the unit.
Maker
Desc.
Price
Dimensions
Studio Z
ZephIR Remote for Macintosh
$75
?
Description: The ZephIR is a hardware and software package for IR
universal remote control from a Macintosh (includes ADB port IR
interface). Fully scriptable with Applescript, create and manage playlists, Channel Guides, upload and download IR codes from free online library.

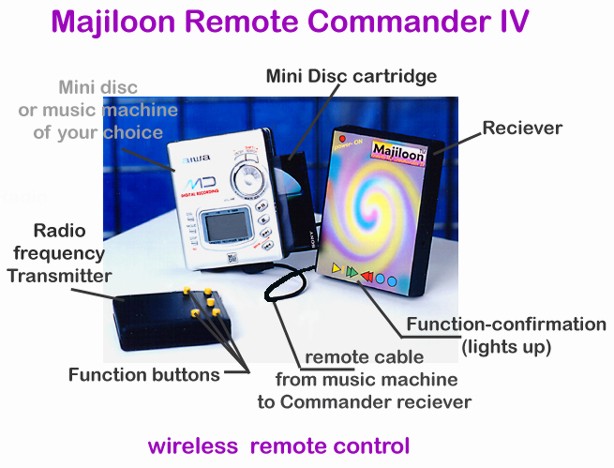

Description: Working functions include: start up, fast
forward, skip ahead, pause, back skip, and rewind; 200-foot range,
compatible with all portable MD equipment (the portable's wired
factory remote is surrendered and incorporated into the Majiloon
wireless remote). Volume control is possible through programming of
buttons.

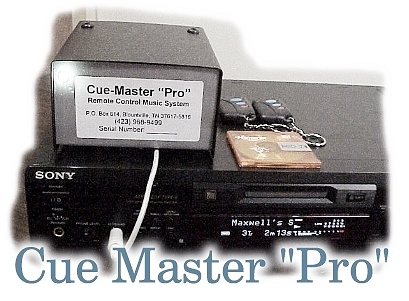

Description: 2 Key-chain sized remote controls w/3 buttons
each, receiver unit. Up to 100' range Play/pause,Skip
Forward, Skip Back, Fade Out/In, Stop. *Price
includes Sony MDS-JE630 Recorder. $529 without
Sony MD system.
Perfect for magicians, hypnosis shows, singers,
entertainers that use music in their shows.
([email protected]).
Description:
Can control 8 TV/VCR/HIFI units, timer function for use with all compatible component systems (i.e. set an MD recorder to start and stop recording at preset times), up to 8 timers can be set. Unit can also emit an FM signal to control Philips power controls.

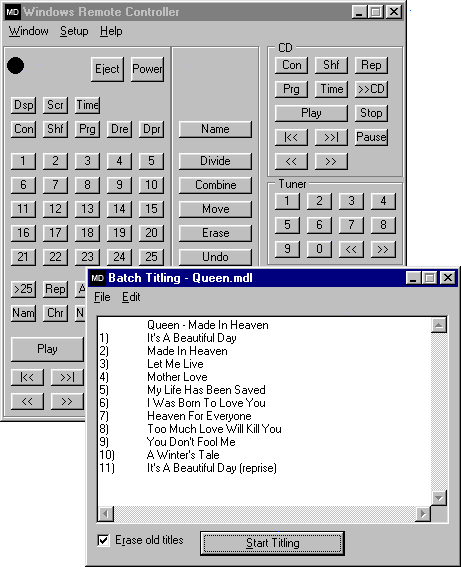

Description:
Hardware & software solution, which allow you to control SONY
audio devices (MD, CD, Tuner, Amplifier, TV, Video ..) and
titling MDs from your computer (running Windows 95, 98 or NT).
You can control and title MDs in realtime from your PC
keyboard or write titles to text file (or load titles from
CDDB
internet database) and then send them to MD in batch mode.
You can also write scripts (sequence of commands) for controlling SONY devices.
WinRemote work only with SONY MiniDisc decks (not with portables).
It's fully compatible with modern decks (MDS-JA50ES, MDS-JA30ES,
MDS-W1, MDS-JB920, MDS-JE700, MDS-JE520, MDS-JE510, MDS-JE500,
MDS-S38,MDS-S37)
and you can use it with older MD decks too (MDS-303, MDS-S35, ...) but
titling from text file is slower and realtime titling isn't available
on older units.
WinRemote can be used with SONY mini systems (DHC-MD515, DHC-MD313,
DHC-MD5, ...) where you can controll all components (MD, CD, Tuner, Amplifier, ...)

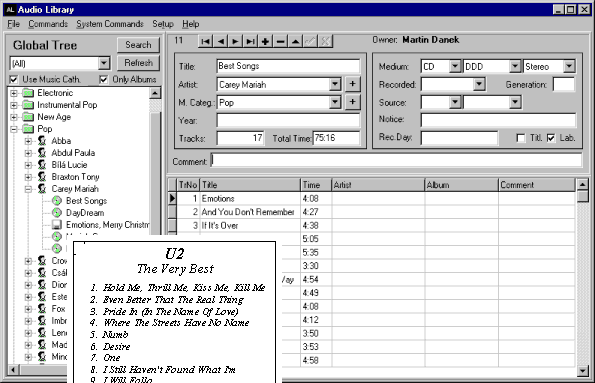

Description:
AudioLib is database application designate for storing informations of audio recordings
(especially on MDs and CDs).
It's 32bit Windows95/NT application, which allow you to:
Store informations of your audio recordings
Search for specific Album, Track, Singer, ...
Title MiniDisc directly from database (with WinRemote hardware)
Print labels for MDs and CDs
Load CD tracks info from CDDB internet database
Replicate data with other users of AudioLib
So with AudioLib you can:
Download tracks info from CDDB database (or enter titles manually)
Print labels for MDs (or CDs)
Title MD (in SONY MD deck) - send titles to MD directly from this database
And you can do it all in one program during about 2 minutes
(and what's more: you have stored informations about your MDs in
database).

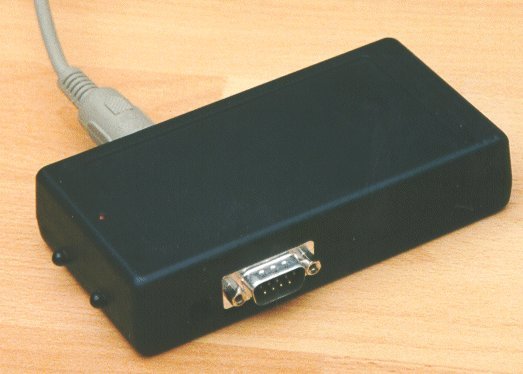

Description:EASYTITLE2 is back in production (10/01).
PC/AT keyboard hardware adapter that allows fast and
comfortable MD titling and controlling on modern SONY MD decks as well as controlling of
other audio devices like CD Player, Amplifier, Tuner, Tape, VCR, TV, etc.
Works with same decks as SONY RM-D10P but provides deep keyboard buffer for fast typing
speed and useful Shift, CapsLock and BackSpace
keys as well as other additional functionality. Features almost 400 configurable shortcut
keys (it is easy to create a custom keyboard layout), build in countdown timer, build in
repeatable countdown timer, 16 configurable (containing up to 8 commands) macros, 3 extra
long (containing up to 1023 commands) macros, learning of shortcuts and macros from other
remotes. Powered by four R6 (AA) batteries or by AC adapter.
Optional serial interface allows on-line and off-line titling and controlling from a
computer.
Update: EasyTitle Version 2 has been released (August 6, 1999), with several added features including an optional serial port, for PC controlled titling.
Sony Japan offers a sophisticated RM-IA9K remote, with stylus and touch sensitive LCD,
this device allows MD/CD/Tuner station titling as well as full control
of the DHC-MD919/MD717 bookshelf systems.
Name
Desc.
Price
Connectors
Dimensions

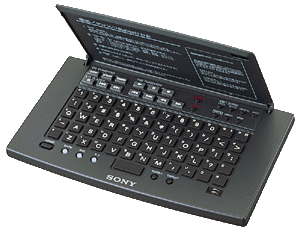

Sony RM-D10P
Keyboard Remote Control
JPY7500
185 x 105 x 15-30 mm
Description:QWERTY keyboard-layout based remote control for titling and
editing. Though too small to touch type on, and lacking even 1 key
rollover, makes MD titling much quicker. Works only in
conjunction with the modern MD decks: MJ-L1, DHC-MD99/ MD77/ MD5/ ??,
CMT-M11C, MXD-D1, and MDS-S37/ JE500/ JE510/ JE700/ 503/ J3000/

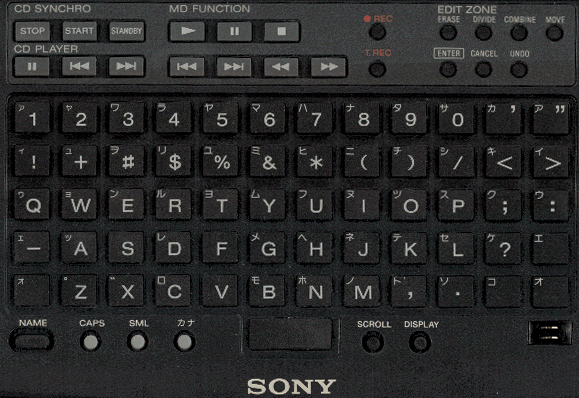

JA30ES/ JA50ES. A picture
of the layout is available.
Availability:Hitmall sells this
device in North America. Also available from Nic Boyde.
Compatibility with MDS-302/303/S30/S35:
Trying the RM-D10P with the S30 (small-box version of the MDS-302), this is
what happens:
(1) MD function keys (play, pause, stop, etc.) work.
(2) Edit zone keys (erase, divide, combine, move, etc.) do not work.
(3) "Name" key works, but the alphanumeric labeling keys do not work.
-Stuart Kiang
Name
Desc.
Price
Connectors
Dimensions

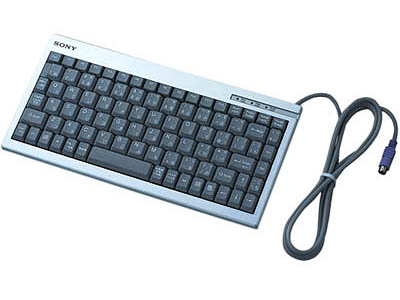

Sony KB-10
Titling Keyboard
JPY6000
PS/2
289 x 144 x 29 mm
Description:QWERTY PS/2 keyboard for titling. Its just nice because its small and sony.
Links:
A machine translation of Sony's very brief descripion
Compatibility:
Should work with any MD system with a PS/2 input jack. It will also work with modern PCs.
Microphones
Proceeds from this banner donated to Yaldeinu, The Kadimah Orphanage & Home for Boys
Oade Brothers Audio offers a variety of microphones,
including some excellent for stealth work.

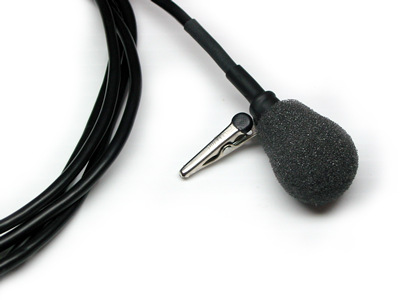

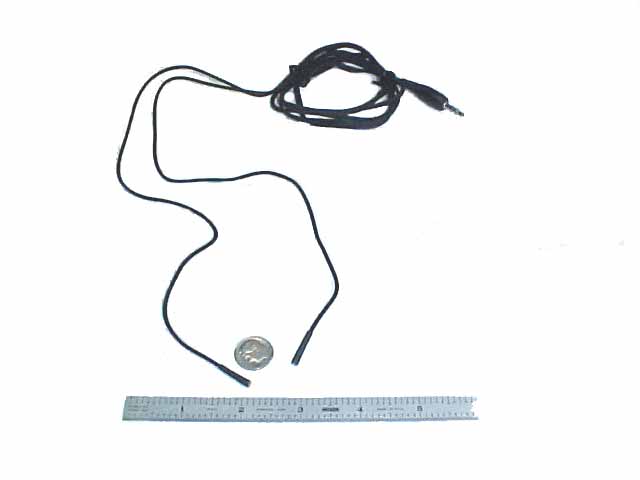

Description:
Small, high quality stealth mount microphones. Excellent entry
level mics for MD concert tapers. Comparison files available on request.
Core Sound can be reached by phone in the USA at: 1-201-801-0812.

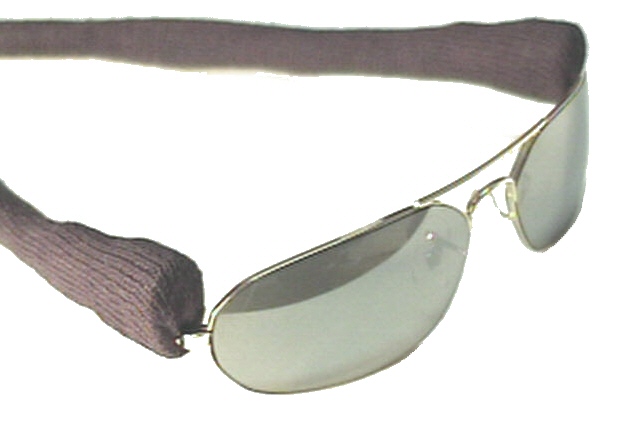

Description:
Small, high quality stealth mount microphones. These mic have
matched and modified capsules that provide high sound quality and lower
distortion, especially when recording very loud performances. Binaurals are
omnidirectional. Stealth Cardioids are directional. The HEBs use Danish
Pro Audio 4061 capsules. Comparison files available on request.
Core Sound can be reached by phone in the USA at: 1-201-801-0812.
Links:Extensive information and order forms on Len Moskowitz's Binaural Mic
Page and Cardioid Mic Page.

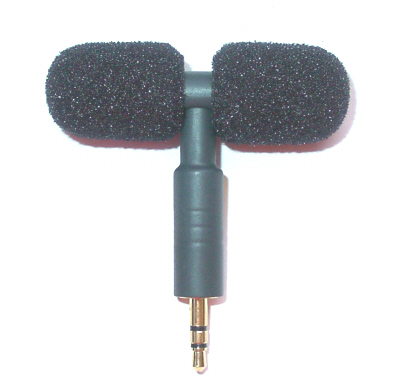

Description: A small, omni-directional single point stereo
microphone that can be easily plugged into any recorder (DAT, Mini Disc
or analog) that has "plug in power" at the microphone input
jack. Used for recording lectures, business meetings, rehearsals, and
musical performances where stereo separation is not critical but excellent
sound quality is.

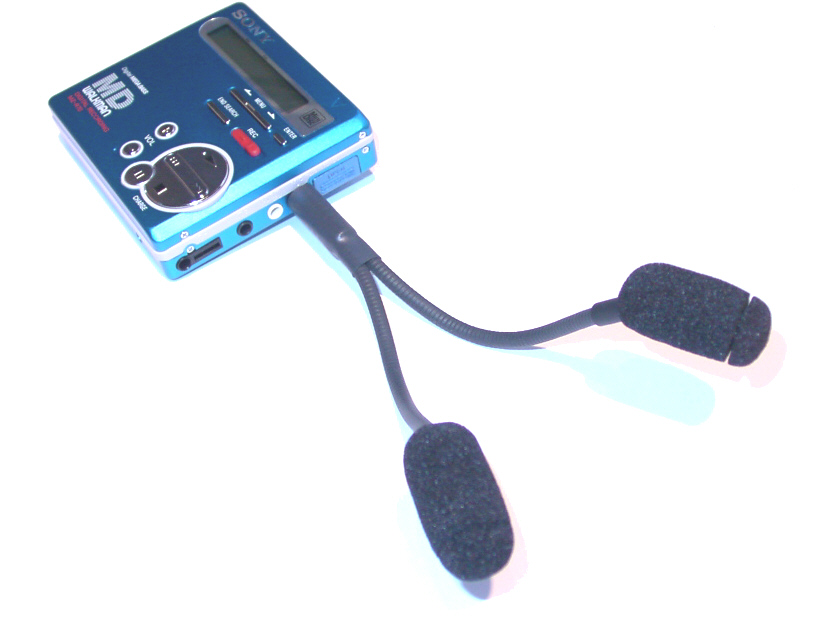

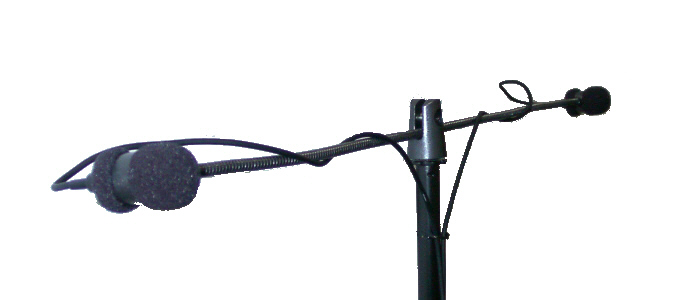

Description: A small cardioid single point stereo microphone
with flexible arms that can be easily plugged into any recorder (DAT,
Mini Disc or analog) that has "plug in power" at the microphone
input jack. Used for recording lectures, business meetings, rehearsals,
and musical performances where excellent stereo separation and sound
quality are required.

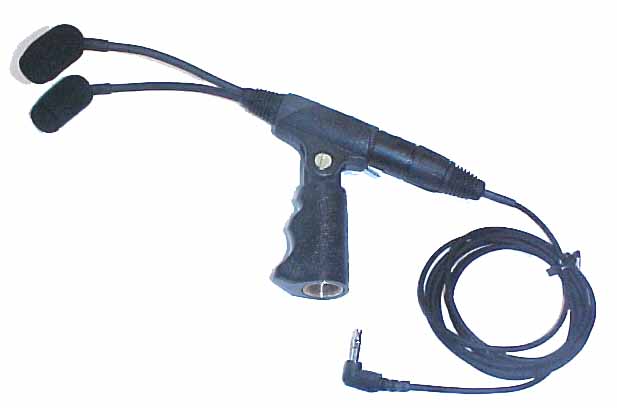

Handheld Cardioid Single Point Stereo "T" microphone
$179 with cable, hand grip/mic stand mount
Description: A small hand held or mic stand mounted cardioid
single point stereo microphone with flexible arms that can be easily
plugged into any recorder (DAT, Mini Disc or analog) that has "plug
in power" at the microphone input jack. Used for recording lectures,
business meetings, rehearsals, and musical performances where excellent
stereo separation and sound quality are required. Easy to hold or mount
to mic stand.

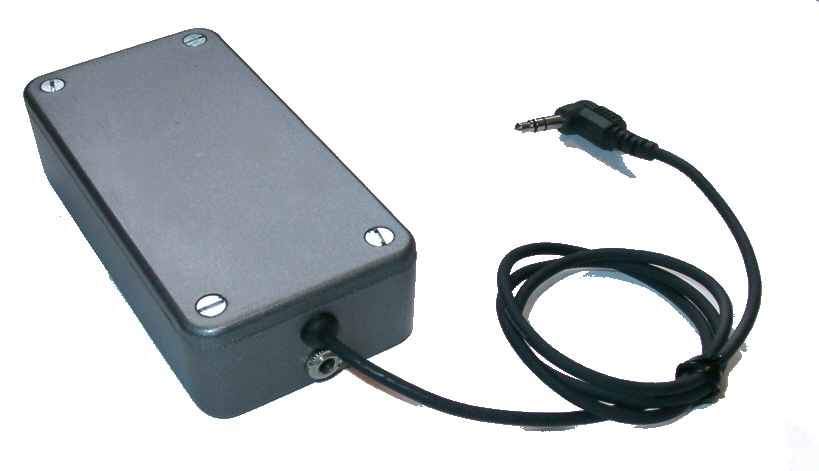

Small: $79; $109 with built-in power module for loud recordings
Large: $89: $119 with built-in power module for loud recordings
6.5" X 3 7/8" X 1 5/8"
7 7/8" X 3 13/16" X 1 1/2"

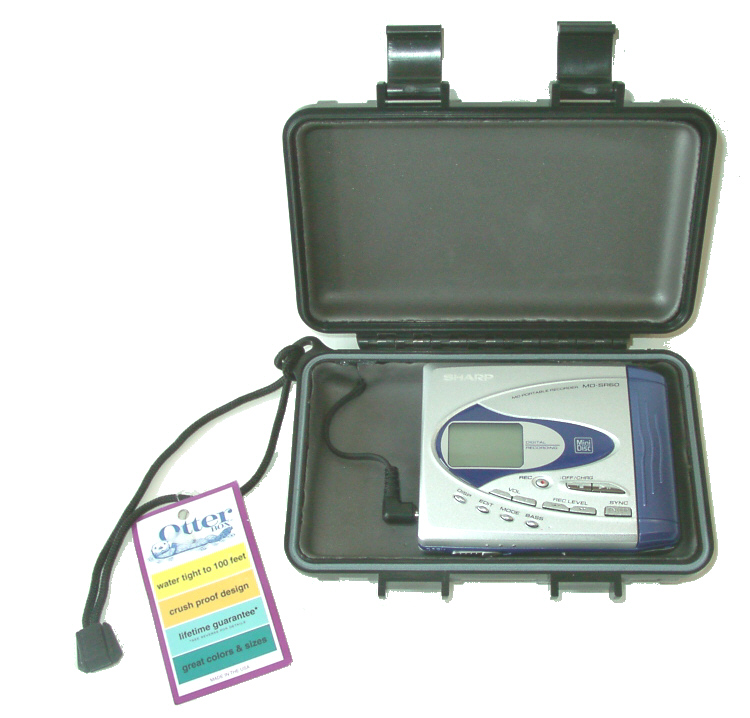

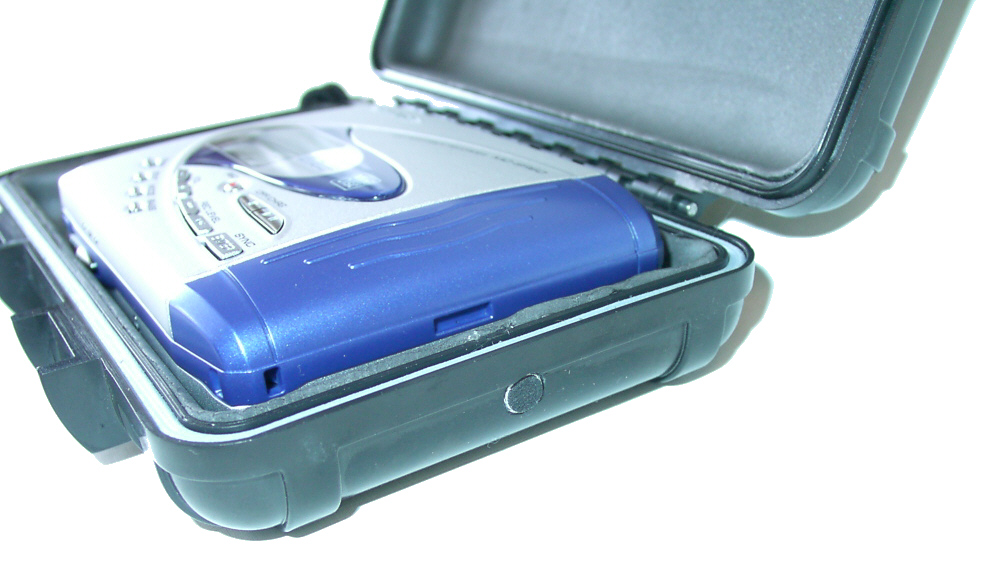

Description: A single point stereo microphone that is built
into a water resistant "Otter Box" Just place MD recorder
in box, plug in mic cable and go. Excellent stereo separation. Used
for recording lectures, business meetings, rehearsals and musical performances
where good stereo separation and sound quality is preferred. Version
with power module used for recording of loud sounds.
Description: Intended for MD or DAT recording as well as television,
FM and field applications. Compact, lightweight design is perfect for
camera-mount use. Closely-matched elements provide the spatial impact
and realism of a live sound field. Excellent channel separation. Switchable

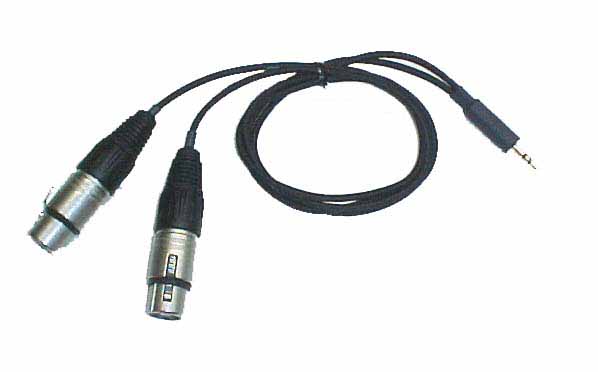

low-frequency roll-off. Includes a 1.7' (0.5 m) cable (XLRF-type to
stereo 3.5 mm mini-plug); and a 10' (3 m) cable (XLRF-type to two mono
3.5 mm mini-plugs). Internal battery operation only.
Description: Designed for professional broadcast and recording,
MD and DAT field use. Compact, lightweight design. Closely matched elements
provide the spatial impact and realism of a live sound field. Switchable
low frequency roll-off. Operates on battery or phantom power. Includes
a 16.5' (5 m) cable (5-pin XLRF to two standard 3-pin XLRM connectors).
$59 no clips - $69 w/clips
$119 no clips - $139 w/clips
$199 no clips - $219 w/clips
$149 no clips - $169 w/clips
Description: Small, high quality Binaural (Omni-directional)
microphone systems. Premium versions have interchangeable elements available
with various pickup patterns.
$99 no clips - $119 w/clips
$159 no clips - $179 w/clips
$199 no clips - $219 w/clips
$229 no clips - $249 w/clips
$139 no clips - $159 w/clips
$149 no clips - $169 w/clips

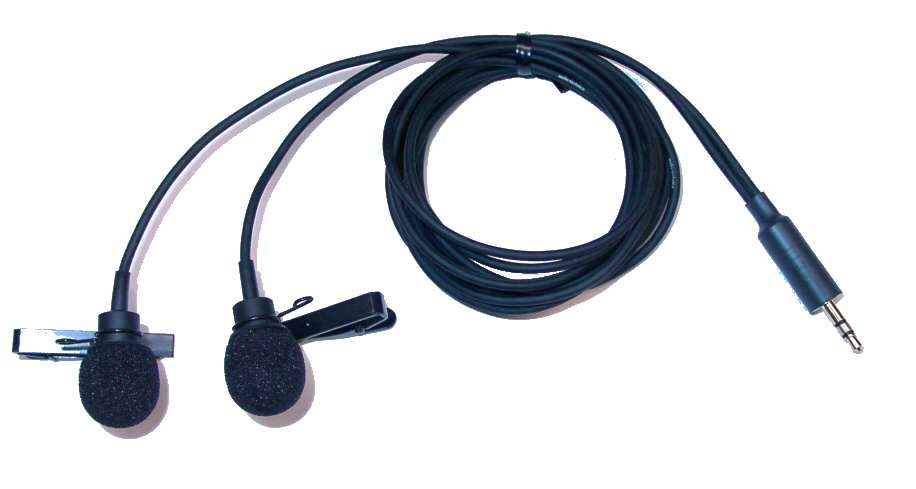

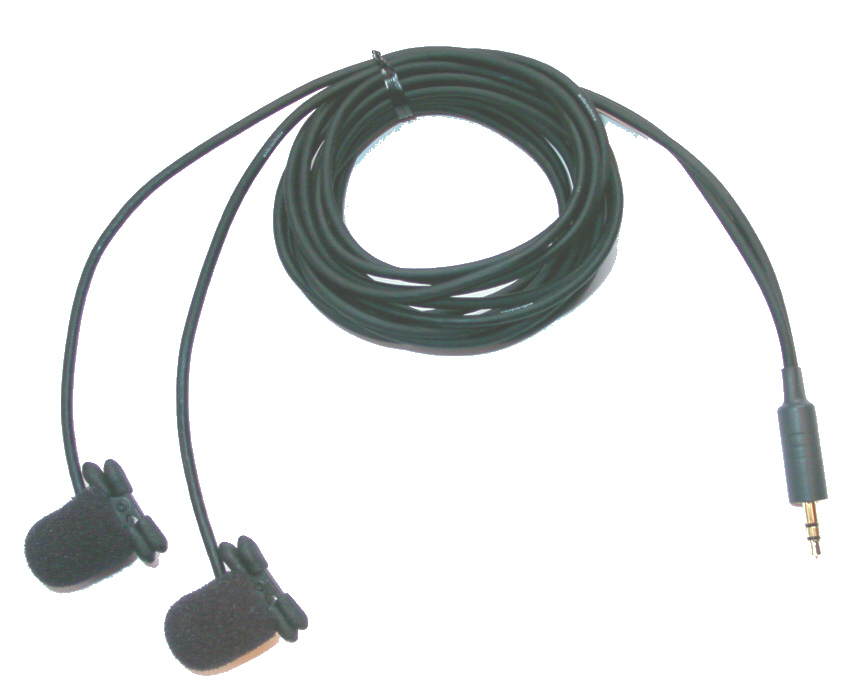

Description: Small, high quality Cardioid and Shotgun microphone
systems for live recording in less than ideal situations (noisy audiences,
bad acoustics, far from the source, etc.). Premium versions have interchangeable
elements available with various pickup patterns.
Universal microphone power supply (mono)
Universal microphone power supply w/level (mono)

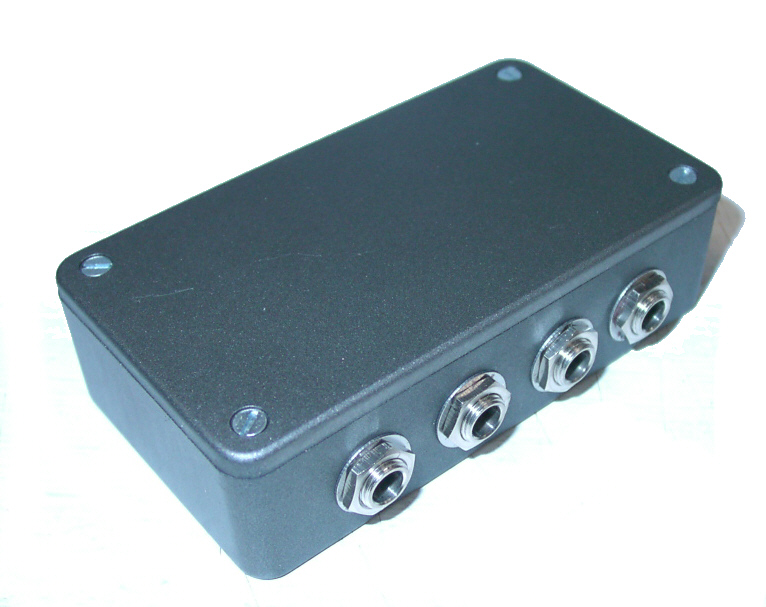

Universal microphone power supply 4 channel
Low power computer microphone power supply (mono)
$55
$70
$99
$20

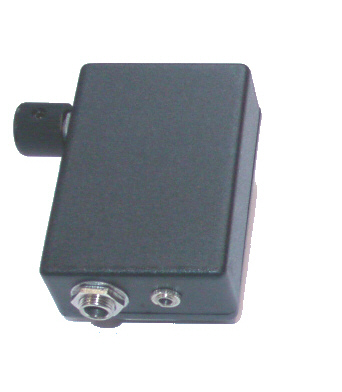

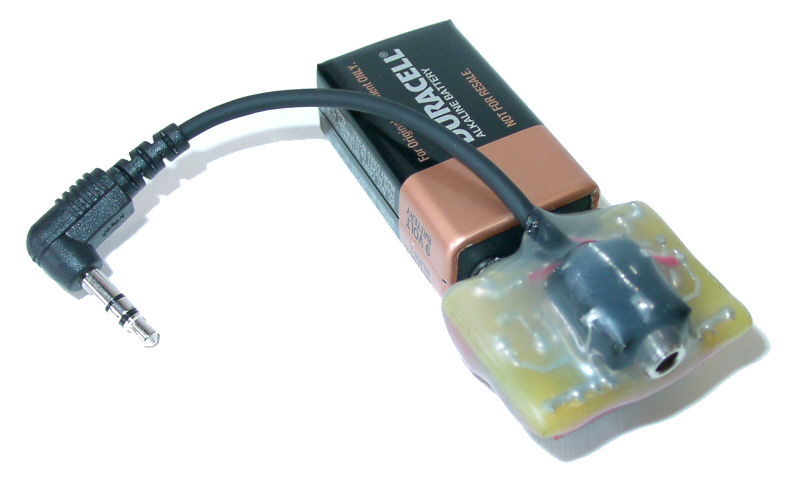

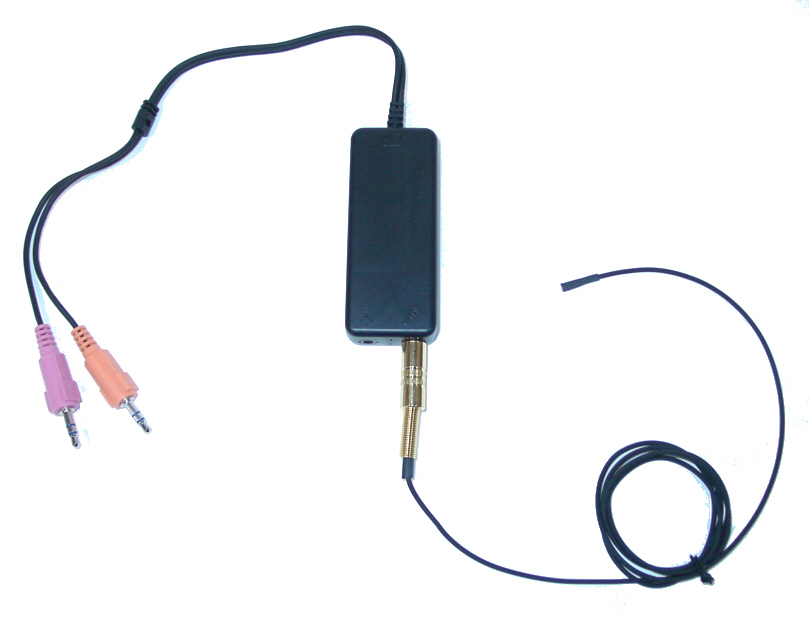

Description: Battery modules (mic power supplies) are needed
to power electret type microphones in loud recording situations or when
plug-in power is not available and will allow the user to plug their
mics into the line input or mic input of a MD, DAT, computer or other
device. Some modules also available with a built-in output level control.
Deluxe Metal Battery Modules
Premium Metal Battery Modules
Slimline Deluxe Metal Battery Modules
Slimline Premium Metal Battery Modules

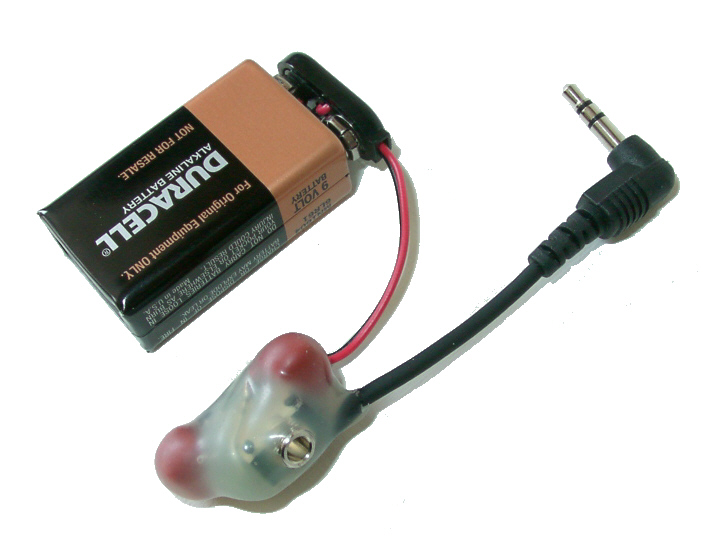

Mini Deluxe Battery Modules
Mini Premium Battery Modules
$59
$79
$59
$79
$49
$69

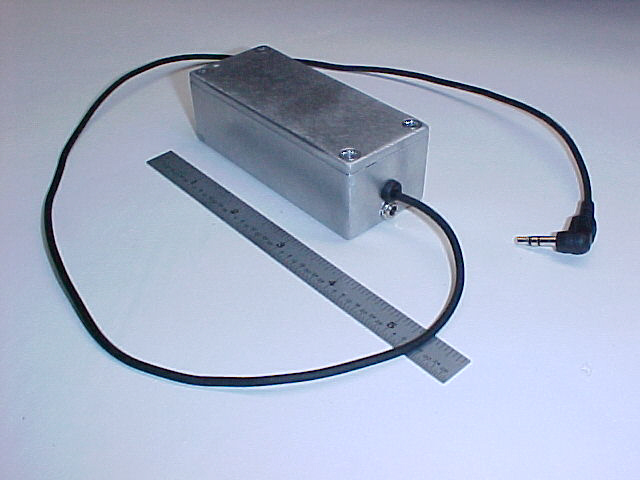

Description: Stereo battery modules (mic power supplies) are
needed to power electret type microphones in loud recording situations
or when plug-in power is not available and will allow the user to plug
their mics into the line input or mic input of a MD, DAT, computer or
other device. Premium versions include user selectable bass filters
to reduce excessive bass content often found in live recordings. Some
modules also available with a built-in output level control --
handy for users with Sony portables since recording level cannot be
changed during recording in non-AGC mode. (Photo)

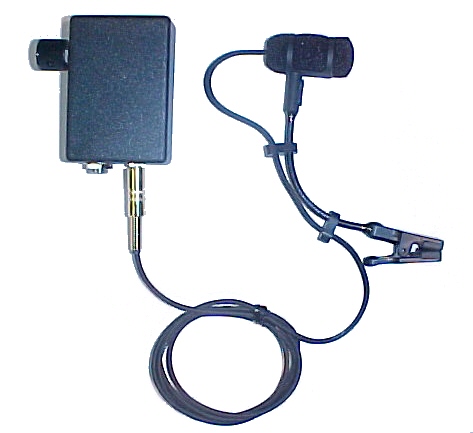

Description: Clip-on microphone, suitable for many musical instruments.
Mic capsule mounted on a flexible gooseneck that can be positioned in any
direction. Based on Audio Technica PRO 35X series microphone. Includes
battery pack with volume control/power switch and belt clip. Long life
600 hour battery. Also available with with Audio Technica and Samson wireless
systems.
moulded 1/8' plug, with tough durable outer casing.
Windshield:Premium 30 pore per inch, foam.
Maker
Desc.
Price
Dimensions
Reactive Sounds

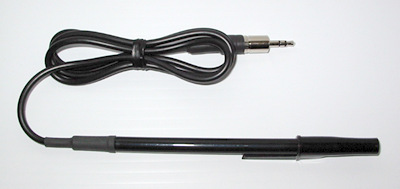

MD Pen Microphone
$40
irregular, 3' cable
Description:
Unit is a ballpoint pen modified to hold an omni-directional
microphone element. Intended for personal hands free dictation, memo
recording, or as a portable microphone for sound projects. Designed
to operate with Minidisc, DAT, and personal dictation recorders that
provide plug-in power on the 'mic-in' port. (Can be used with most
video cameras as well, but check your unit before purchasing).
Samples:
A 30sec mp3
demo recording of the 'pen mic' and a Sharp MS-722 MD.
Metal shielded 1/8" plug with durable outer casing.
Maker
Desc.
Price
Dimensions
Reactive Sounds

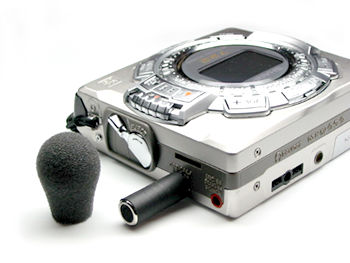

the 'Reporter' Microphone
$24.95
1.75 inches
Description:
This is a miniature hi-fi microphone that can be
used with any MD recorder. Can also operate
DAT and personal dictation recorders that provide plug-in power on the
'mic-in' port. This unit is ideal for reporters, journalists,
students, law enforcement officials and lectures.
Maximum Input Sound Level: 105 dB SPL (120db when used with our
juice box)
Metal shielded 1/8" plug with durable outer casing
Windshield:Premium 30 pore per inch, foam.
Maker
Desc.
Price
Dimensions
Radio Shack
Stereo Hands-Free Tie-Clip Electric Mic
$29.99
Description:
Tiny clip-on dual mic has 30-18,000Hz response and a 4-ft. cord that
plugs into a compact on/off switch, also with clothing
clip. 16-ft. cord with two 1/8 " plugs at other end. Includes battery
(#23-105). Microphone can be plugged directly into an MD unit,
bypassing the included amplifier.
Description:

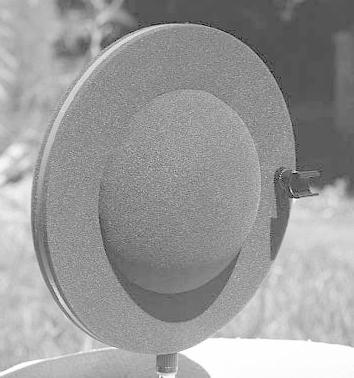

These disks are used for making more lifelike stereo recordings by modeling the human head-transfer-function. (Note: the prices appear to
have foam in them as well.)

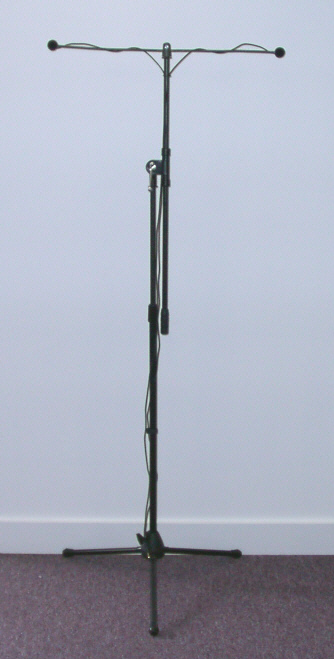

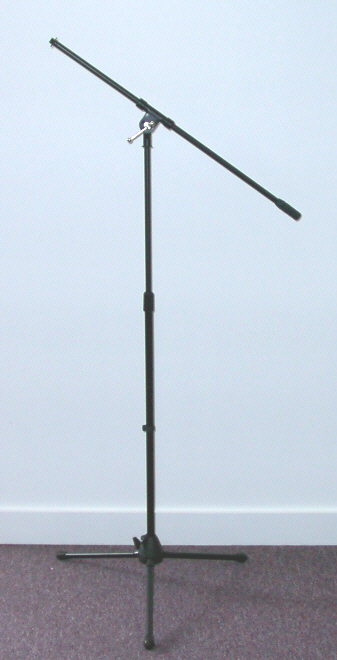

Description: Portable high quality tripod microphone stand
with boom arm-stand extends to 67" and boom is 28" long for a total
of about 8 feet in height. Stand is 39" long when folded.

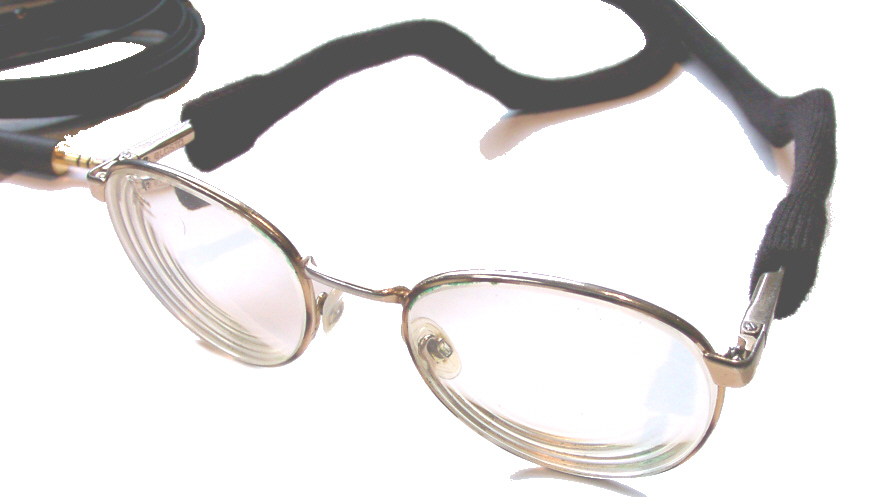

Description: Small, high quality microphones mounted completely
inside a set of Croakies. This mounting option is available on
most binaural mics system and on the Premium Slimline microphone systems.

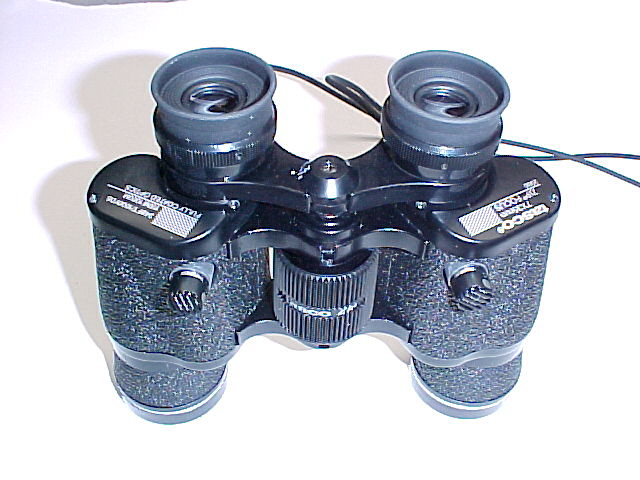

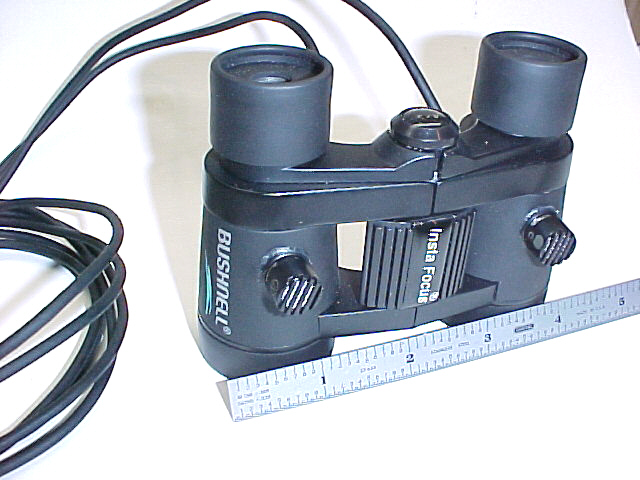

Description: Binocular mounting system is a convenient, hands-free
mounting system for our Cardioid and Premium Binaural microphones. Binoculars
are worn hung around the neck while recording.
Description: This microphone adapter consists of a flexible
microphone "gooseneck", mounted to a standard microphone adapter (also
available with shock mount). Microphones mount on the ends of the goosenecks.
Available for Sound Professionals microphones or in universal version
for other manufacturer's microphones.

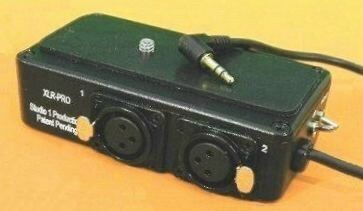

Manufacturers Description:"The XLR-PRO gives you the ability to have XLR audio inputs on your camcorder to connect to professional audio equipment, audio mixers and professional mics. Run long balanced audio lines and get superb noise free audio." Mounts under camcorder, with easy access controls; Rubber pad on top prevents the XLR-PRO from turning or slipping; Has a threaded hole in the bottom of the XLR-PRO so it can mount on your tripod; 2 - locking XLR Audio Inputs; 2 - 1/8" Audio Inputs; Record any combination of the two inputs onto separate audio tracks (using the stereo right and left audio tracks); Custom shielded transformers that cause virtually no insertion loss; Ground Selection Switch; Stereo/Mono Output Switch; Mic/Line Level Switch for each input channel; Voltage Blocking Circuit to handle the "Plug-In Power" Mic Jacks found on some cameras; passive device, no power required; Works with video cameras, DAT recorders and mini-disc recorders.

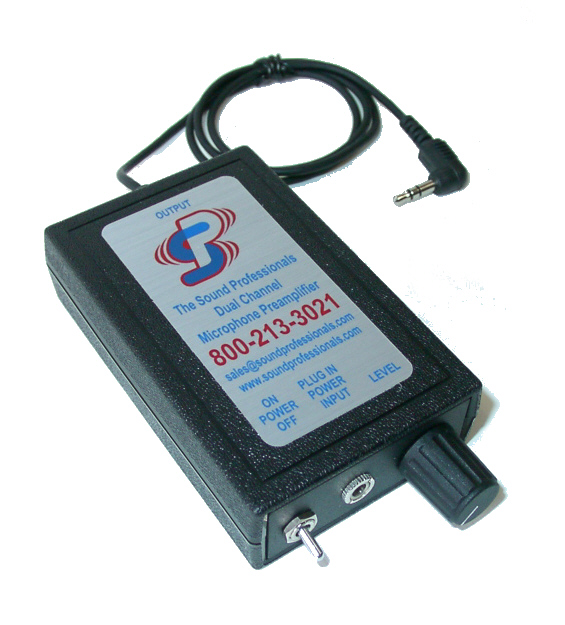

Description: Microphone preamplifier for use with recorders
that have no mic input (Sony MZ-R500) or with recorders that have no
mic sensitivity switch (many new Sony models)

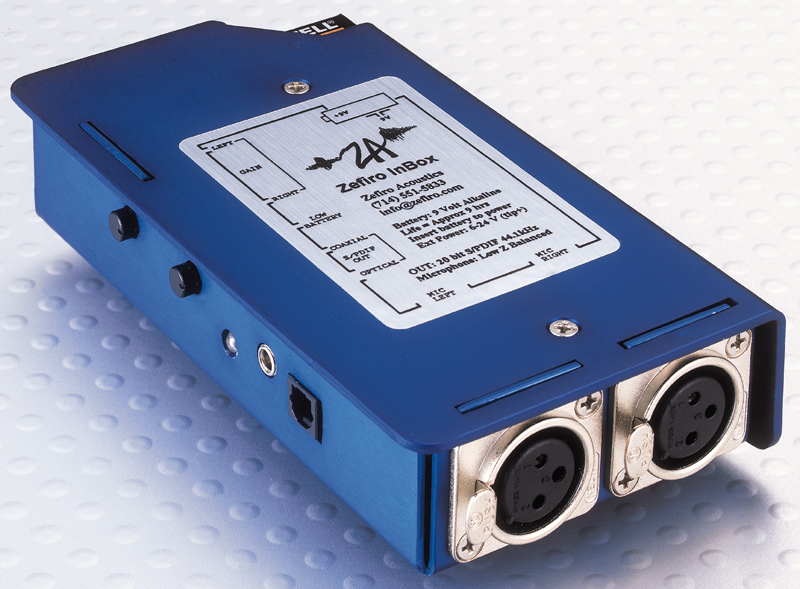

Zefiro/Denecke AD-20 "InBox" high quality mic preamp and A/D converter
$349
$449 with 9vdc "plug-in-power" and miniplug input modification
3 X 5.75 X 1.25
Description: External A/D convertor for DAT deck,
MD recorder or digital I/O card. This handheld portable 20 bit Analog
to Digital converter has a built in low noise stereo microphone preamplifier.
The InBox has stereo balanced inputs on two XLR jacks and digital outputs
with both optical (TOSLINK) and coaxial S/PDIF (on a 1/8th inch mini
jack). Runs on 9 volt battery for about 8 hours. Modified version accepts
mini mics directly without adapters.
If you are having driver/software problems with your digital output sound card, you might check to see if it uses the same chipset as the DiO 2448 (US$150). Doug Coene found the drivers for the DiO fixed the problems he was experiencing with his digital output sound card (downloads available at the M-Audio website.
Out: TOSlink, coax, line (stereo). In: TOSlink, coax. Digital I/O is 24 bit/96kHz full-duplex

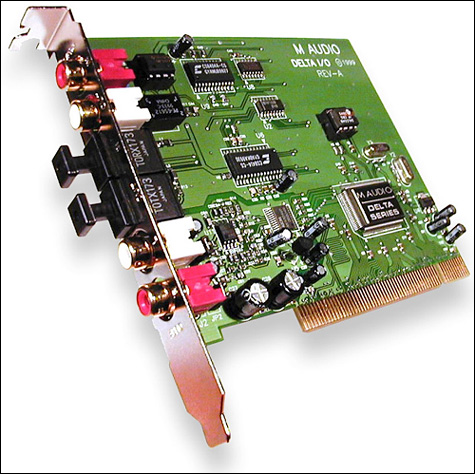

Description: Half-size PCI card; analog is configurable as +4dB or
-10dB; built-in digital mixer allows the D/A converter to monitor digital
inputs or act as its own independent stereo output; measured D/A specs:
101dB (A-weighted) dynamic range; 0.002% THD @ 0dBFS; all data paths support
up to 24 bit/96kHz performance. Drivers include: Windows 95/98, Windows
NT, ASIO, ASIO2, Direct Sound, EASI, Multi-card 95/98 & Multi-card NT
(up to 3 in a system), Gigasampler, Mac Sound Manager and Mac ASIO. Minimum
System Requirements for PC: Windows 95, 98 or NT; Pentium 200 MMX; 64 MB
of PC100 RAM; UDMA EIDE HDD. Macintosh Compatible Minimum System Requirements for Mac: G4, G3
or G3 accelerator; 128 MB RAM for 96kHz operation; 96 MB RAM for 48kHz operation.
4 speaker line out, 24 bit SPDIF IN/OUT (w/ optical module kit)
Description: Small adapter with 2 digital
connectors detaches from top inner corner of card as shipped and mounts in extra port
opening found on back of PC case. Internal cable connects digital outputs to the
soundcard. Soundcard itself has front and rear stereo analog outs and mic and line in and
standard MIDI/joystick port. Soundcard is based on Trident 4DWAVE chip and includes
onboard wavetable synth. DirectEverything compatible 3D card.

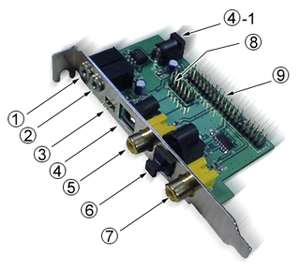

Digital Bracket II (SB DB II) for SB Live and Live Value
$25
2 coax out (main and rear), 1 TOSlink optical out, and 1 coax
in.
Description: Internal ribbon cable connects
to the SB Live soundcard. There are MIDI in and out that work only with SB Live and not
Value and require purchase of an inexpensive cable pair. There is also a 12V power
pass-thru for powering an optional external box from internal PC power (e.g. Hoontech
4-channel S/PDIF digital amp or SB ADC box).
Digital Bracket III (SB DB III) for SB Live and Live Value
$36
1 coax , 1 TOSlink optical, and 1 AES/EBU output and 1 coax, 1
TOSlink optical, and 1 AES/EBU input plus two coax for front and rear to S/PDIF Digital
Amp
Description: Actually two parts separate to
connect to the SB Live or Live Value soundcard. One part goes in slot opening and one part
goes in port opening with included screws. Bracket also has digital input from CD digital
out.
SoundTrack 4DWAVE-NX soundcard (w/NX DB I digital output
interface)
$47
1 coax out and 1 TOSlink optical out
Description: Small adapter with 2 digital
connectors detaches from top inner corner of card as shipped and mounts in extra port
opening found on back of PC case. Internal cable connects digital outputs to the
soundcard. Soundcard itself has front and rear stereo analog outs and mic and line in and
standard MIDI/joystick port. Soundcard is based on Trident 4DWAVE chip and includes
onboard wavetable synth. DirectEverything compatible 3D card.
1 coax , 1 TOSlink optical, and 1 AES/EBU output and 1 coax, 1
TOSlink optical, and 1 AES/EBU input

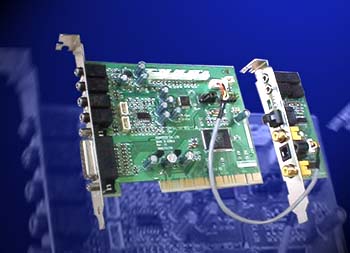

Description: Internal cable connects XG DB
I bracket to the Digital-XG card. Soundcard itself has front and rear stereo analog outs
and mic and line in and standard MIDI/joystick port. Also has internal digital CD
connector and analog connectorsfor CD, Internet phone, sound from video,
& aux. Soundcard is based on Yamaha YMF744B chip with XG wavegenerator.
DirectEverything compatible 3D card.
Concerning the problem of Windows sounds being output on USB
connected audio interfaces during recording:
In Winamp at least, you can choose the output device it uses: open
the Preferences window (Ctrl+P is the quickest way), click on
Plugins-> Output, double-click on the waveOut plugin, and choose "USB
Audio Device" for output. Then you can go about your business in
Windows with the "bings and such" going to your soundcard while
Winamp plays to the Xitel DG-x [or whatever USB interface you are
using]. Then when you finish your MD recording, change Winamp back to
Wave Mapper output. -Richard Rudie
Name
Desc.
Price
Connectors
Dimensions
CatchSound PC Link
USB to TOSLink digital audio output device
$140
In: USB Out: TOSlink (optical digital)
Description:
Connects from your PC's USB port to the optical port on your MD recorder. Compatible with Windows 98/2000 and Macintosh computers. Includes Jet-Audio internet music player software and optical cable (TOSlink/miniplug ends).
In: 1/8" stereo analog (mic, line level) Out: 1/8" stereo analog
Description:
High quality analog audio input to Macs/PCs/laptops. Connects to USB port, full duplex I/O support. Can be ordered direct from the manufacturer.
parallel port to Sony remote jack titler/controller
$60 ($40 w/o cable)
In: parallel Out: Sony remote connector
Description:
Unit interfaces the personal computer with a portable Sony Minidisc recorder (not compatible with all models, check the Mironics website before ordering). Unit's primary function is high-speed titling of MiniDiscs using your computer's mouse and keyboard, it also serves to assist in PC-to-MD recordings by having recording control of the MD unit. (Audio signal must be transferred by a separate cable.) Software interfaces with Winamp for recording functionality.
V2 includes music cataloging capabilites and macros.
Links:
Mironics' official website for the MiniDisc Suite, complete with order information and even instructions on how to build your own hardware connector to use with their software.
Name
Desc.
Price
Connectors
Dimensions
Xitel MDPORT-DG2
USB to TOSLink digital audio output device
Street $60
In: USB Out: TOSlink (optical digital)
Description:
USB to TOSlink device. Generally compatible with all MD units. Sony
includes this unit with their MZ-RxxxDPC portable MD recorders with
USB PC Link kits.
Links:
Xitel's official page for this unit. (However, Blair Aakre reports
that contrary to the Xitel web site, the MDPort-DG2 does work with the
latest version of MacOS X, 10.1.2.)
This item is available from Minidisco.
Name
Desc.
Price
Connectors
Dimensions
Xitel MDPORT-DG1
USB to TOSLink digital audio output device
$100
In: USB Out: TOSlink (optical digital)
Description:
USB to TOSlink device. Not compatible with Sharp or JVC MD units, or
the Sony MZ-R3, MZ-R5, MZ-R30, MZ-R37, MZ-R55 units (because the DG1's
optical output is turned off when no audio is being output, and the
synchronization delay to reaquire the S/PDIF stream causes certain MD
units to clip the beginning of the recording). Sony includes this
unit with their MZ-RxxxDPC portable MD recorders
with USB PC Link kits.
Description:
USB to analog (audio line level) device (incorporates D/A converter).
Sony includes this unit with their MZ-RxxxPC and
MZ-RxxPC portable MD recorders w/USB PC link kits.

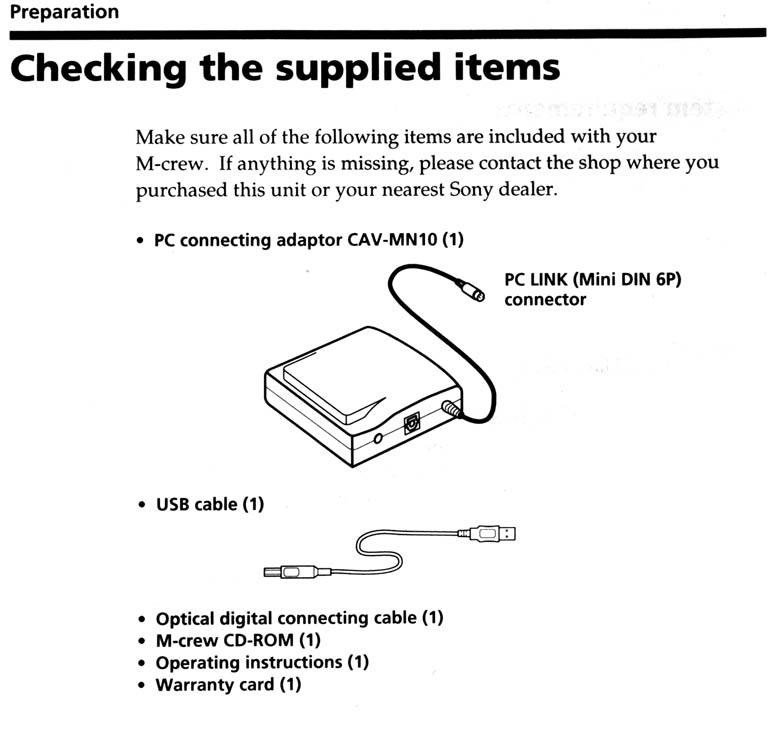

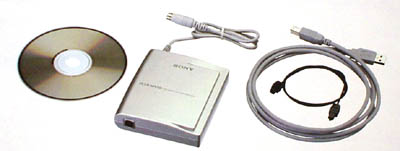

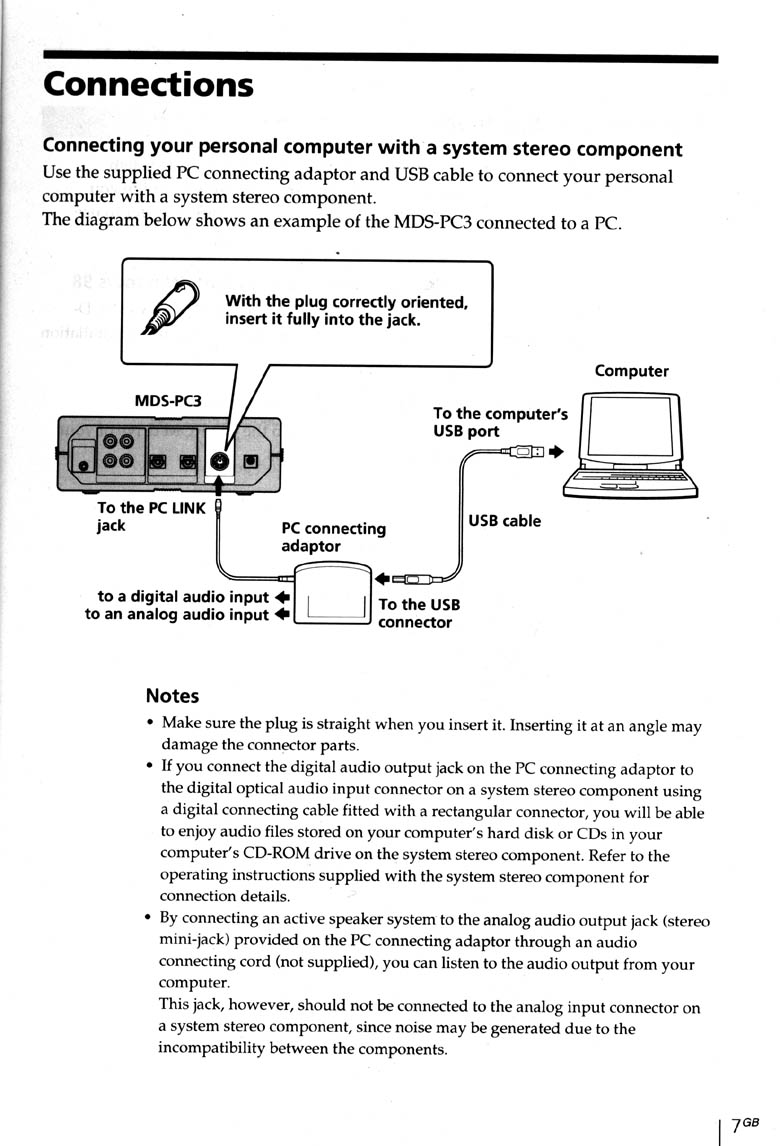

PC to MD deck USB adapter w/digital audio transport
MSRP: JPY15,000
IN: USB OUT: Control-A1, TOSLink (optical digital)
DIM
Features:
Software/Hardware PC to MD linking kit. Allows PC control of titling,
editing and recording of PC audio (digitally, from USB port of PC). PC
can be used to control other components (Tuner, CD player, etc) within
the HiFi system. Kit includes: Software CD-ROM, USB cable, TOSLink
cable, USB to TOSLink/Control-A1 adapter box. Compatible with Sony
MXD-D40, MDS-JE470 and MDS-PC3. Kit cannot transfer HiFi audio back
to PC. All transfers conducted in realtime.

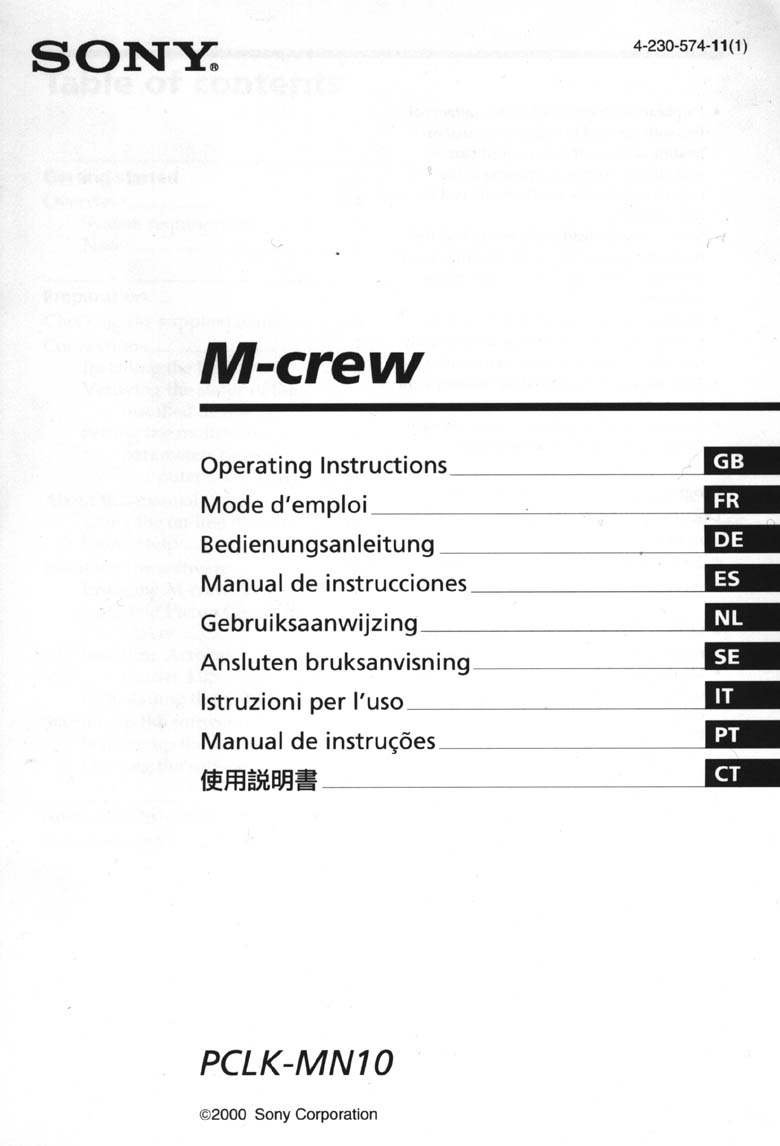

Manuals: PCLK-MN10 Software manual (PDF). See also scanned pages 123 from M-Crew manual outlining how to connect the Sony MDS-PC3 to a PC.
IN: RS232 Serial connector OUT: Control-A1 (1/8th" phone jack)
DIM
Features:
Software/Hardware PC to Sony MD Deck link kit for PC control of titling and
editing. Allows recording from CD to MD if CD is also a Sony Control-A1
device. Hardware includes: (?). Compatible with Control-A1 equipped MD decks.
The PCLK-MD1/MD2 Sony PC link kits are identical hardware and only differ in their software. -Marco Rossen
Software Updates:
SonyMods.com has an archived collection of all available PCLK-MD1 software versions (also available locally from us).
Musique is a third party software package for use with the Sony
PCLK-MD1. Musique requires the Sony CAV-50 or
CAV-1/2 (RS232/Control-A1 adapter included with the PCLK-MD1). Brian Conte has further details on S-Link and
CAV signalling protocols.
Features:
Software/Hardware package allows titling (using Kanji, Kana, and Roman
alphabet) and basic MD unit control from a PC. Works only with Sharp
MD-MT831 and MT-MT832 portables. Software package is in Japanese.
Software also allows a library (i.e. database) of MDs to be assembled.

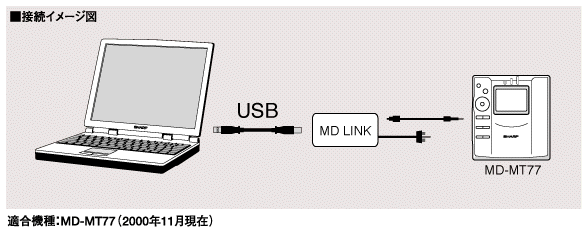

Features:
Software/Hardware package allows titling (using Kanji, Kana, and Roman
alphabet), digital music downloading, and basic MD unit control from a
PC. Works only with Sharp MD-MT77 portable. Software package is in
Japanese. Software also allows a library (i.e. database) of MDs to be
assembled.
Description:
Enables the conversion between coaxial digital S/PDIF (phono/RCA jack)
and optical digital (TOSlink) protocol found on most digital audio
equipment. The unit may be used to convert in both directions,
simultaneously, using a 9volt / 300mA mains adaptor which can be
obtained from a local Tandy/Maplin /RS comps store.
Description:
Digital Format Translator. Accepts RCA (coaxial) or TOS-Link (optical)
digital input and provides simultaneous RCA and TOS-Link output.
Useful for connecting a CD with coax digital output to an MD recorder
with optical input.
Opto-Coax converter:
toslink to cinch/spdif order no.:34 07 90-44
price 69.95DM = $38.86
Coax-Opto converter:
cinch/spdif to toslink order no.:34 08 63-44
price 69.95DM = $38.86
Both come in nice alu-cases, 90mmx66mmx35mm.
Maker
Description
Price
Dimensions
Sound Professionals
Digital format converters
$35

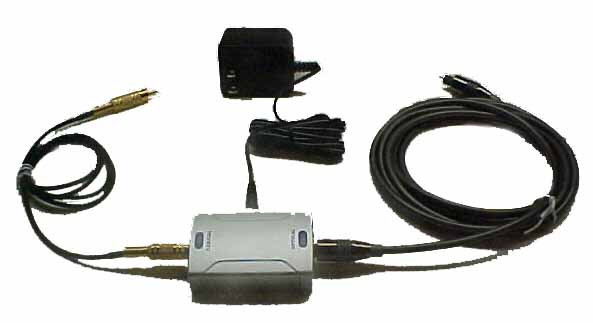

Description: Digital Format converters. Different models available
to convert optical to coaxial or coaxial to optical. Useful for connecting
a CD or sound card with coax digital output to an MD recorder with optical
input.
Description: Digital Format converter. Accepts RCA (coaxial)
or TOSLINK (optical) digital input and provides simultaneous RCA and
TOSLINK output. Useful for connecting a CD or sound card with coax digital
output to an MD recorder with optical input.
Midiman C03 digital format converter and SCMS management system
$199
Description: The CO3 is an AES/EBU, S/PDIF, optical converter
that features simultaneous conversion in all directions and an SCMS
management system. SCMS (Serial Copy Management System) button sets
copy protection: pass-thru, no copy protection, force "original",
or force "1st generation."
Description: These are inserted in MD equipment to clean
the lens and head. A note in the
FAQ indicates that some users have reported good results with
these discs.
Description: These are inserted in MD equipment to clean
the lens. A note in the
FAQ indicates that some users have reported good results with
these discs.
Cleaner discs are available from:
AudioSource
1327 N. Carolan Ave.
Burlingame, CA 94010
415-348-8114
Cases
Proceeds from this banner are donated to Amnesty International
The AMD Movelt-1 Sports Case, available at Planet Minidisc, is intended for upper-arm fitting of MD gear.
Boblbee's MD Harness Pocket holds your portable MD unit and provides a handy hand/belt strap.
Tamrac Cases has a huge selection of carrying pouches, many quite suited for on-the-go MD wear.
Plano's Stowaway organizer box (photo) is a rugged, stackable, $5 solution for storing
up to 75 MDs in their jewel cases with little wasted space (available
in the tackle box section of K-mart and other fine retailers).
Description:
Cheap and cheerful small sets of drawers and boxes. Ready
assembled, unfinished beech/spruce plywood. They come in a range of sizes
and styles, some obviously sized for cassette or CD. The drawers in the
smaller (cassette) sized 'Moppe' are just the right height for MDs on their
edge. In the store they suggest various ways the drawers can be painted and
finished, including fitting handles.
User Comments: Watch out when shopping in Ikea, it can be
addictive. I bought a Moppe when I went in for something else! I got
the version with six different sized drawers, and now it is storing
all my MD's (40, with plenty of room for more) my leads, microphone,
headphones and even my portable when I am not using it! -Alison
Clayton
Links:Ikea (has store locator).
Moppe page (smallest size drawers shown).
Maker
Desc.
Price
Dimensions
MiniDiscHolders
racks for recorded and pre-recorded MDs
$25-$75
various

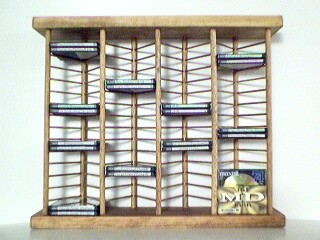

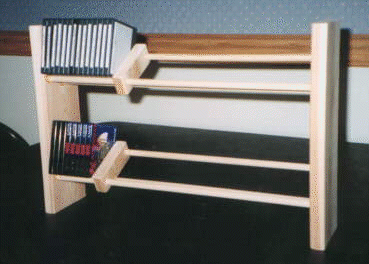

Description:
Wooden or black MD racks, holding between 20 and 200 MiniDiscs each.
Description:
MD4CPNM - Hardcover case. Has zipper along the side. Room for MD unit, earbuds, extra battery, and 4-6 blank MDs.

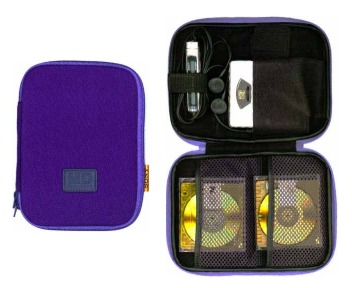

MD4SCPN - Softcover Neoprene case. Room for MD unit, discs, and earbud phones. Warning: This case may be too small for larger MD units.
Description: Made of leather, waterproof
and specially made for each model of MD. An
MD add on pack
is also available that lets you carry 5 discs with
you all the time.

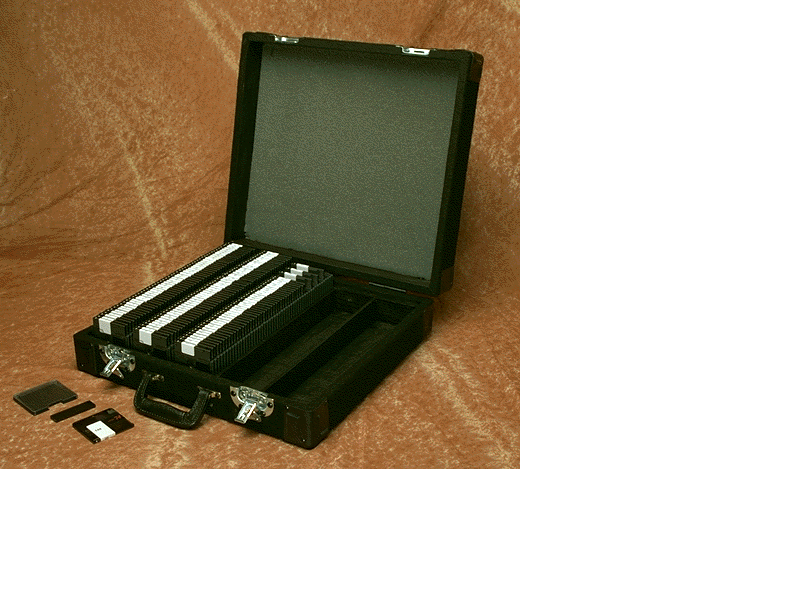

Description: Holds 250 MDs (in their jackets), 50 per row, 5 rows wide. Black
finish, recessed latches, removable lid. Colorado Sound N' Light,
7301 N. Broadway,
Denver, CO 80221,
(303) 429-0418,
Fax 429-1242, or email Jim Baxter [email protected]. Major credit
cards accepted. Customer support: 1 888 429-0418.
User comments:Very durable construction, idea for mobile
use (DJing, etc). Unique MD holding system uses the standard MD jackets placed upside down
in rows with an insert that raises the MD from the jacket so that it may be easily grasped.
Heavy and a bit expensive, but recommended. -eaw
Maker
Desc.
Price
Dimensions
Silicon Sports
MD (floppy) Carrying Case
$19-$25
User's description:
These are made for floppy 3.5" discs but MDs fit in them nicely. Made
of a durable squishy neoprene with a hefty zipper and a pull string
suitable as a carrying handle, they come in black/black black/blue and
black/purple and in two sizes: the Floppy Wetsuit 10 (for 10 floppies)
that will comfortably hold 6 MDs in their protective cases, and the
Floppy Wetsuit 30 that holds 15 MDs. The 10's can be purchased at
Office Depot and are about US$19, the 30's were special ordered from a
specialty stationary store for US$25. -Ebert
([email protected])
Manufacturer: Silicon Sports, 127
Independence Drive, Menlo Park, CA 94025 USA. Phone # 415-327-7900.
Fax # 415-327-7962.
Maker
Desc.
Price
Dimensions
Case Logic
DK40 diskette (floppy) organizer
User's description:
Meant to hold 40 3.5" floppy disks, but will do just as well with MD's
if you get rid of their plastic jackets (otherwise you can't put 40 MD's
in the case and still zipper it shut). It also comes in 10 and 20 disk
capacity sizes.
Available from:Colorado Sound N' Light,
7301 N. Broadway,
Denver, CO 80221,
(303) 429-0418,
Fax 429-1242, or email Jim Baxter [email protected]
Maker
Desc.
Price
Dimensions
Ferrero Rocher
Chocolates
~$3.50
Description:
Italian chocolate in a plastic box which holds 27 MDs without their
cover or 8 with covers and 11 without.
Comments:
Following the article about the German fellow using Ferrero Rochers' boxes as
MD cases, I noticed that the 375g boxes (30 Rochers) sold by Ferrero in
France are the ideal solution to store 20 MDs with their cases. -Xav
I noticed in the supermarket the other day that they have changed to design
of these chocolate boxes that make good MD cases. They have rounded off all
the edges and corners, so now square MDs will not fit as well as before.
The chocolates still taste okay though! Alison Clayton
Maker
Description
Price
Dimensions
Woodworks DJ Cases and Racks (www.djcases.com)
Mini Disc (Floppy) Carrying Case
$70 - $100
Variable
Description: Our Mini Disc Cases are
available in 3 sizes: MDC-120 & MDC-160 (4 Row) and the MDC-200 (5
Row). They feature a fully foam lined lid to keep mini discs in
place. Manufacturer: Woodworks DJ Cases and Racks, 35 Humphrey Road,
Buffalo, NY 14207 - Visit our website today at www.djcases.com or
Toll Free 1-888-DJCASES (352-2737).
User Comments:On request, they furnished a 5 row case (at the
standard price) with custom divider spacings for holding MDs without
their sleeves. Such a case will hold ~72MDs per row, or ~360MDs
total. -eaw

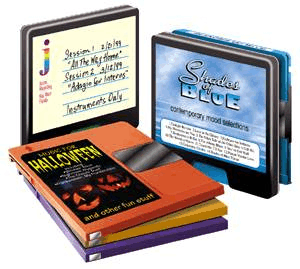

Labels
Ultimate Label Printer Pro, a $25 Mac/PC package for
making media labels (MD, CD, DAT, etc.) includes preformatted layouts
for MD labels.
Chris Cooper has
created a MiniDisc jacket label template for use with Filemaker Pro,
it prints 4 labels at a time on Avery label sheets.
Ross Harmes has made a site for his 17 labels,
one for each of his MD recordings.
CompilationMaker is an add-on software for CATraxx (a
music library management package), and can be used to make MD covers.
Remco Poelstra has made a site offering his 6 MD labels,
with tools and templates for making and uploading your own.
Multicomp "Label Once". Scott Aronian comments:
This is an excellent label for use on MiniDisc slip cases (aka jackets). The label
has a shiny, non-porous surface, designed for writing on with a permanent
ink marker like the Sharpie Ultra Fine Point. But unlike most surfaces
this one can be erased with a vinyl eraser. The labels are self-adhesive
and fit perfectly on the slip-case.
I bought a 50 label pack (part #MSK50) at Staples Office Supply for
$5.99. They are called "Label Once" and made by Multicomp for 3.5" floppy
disks. Multicomp, P.O. Box 2761, Abilene, Texas 79604, Phone
800-541-4351, Fax 915-675-5944, Email [email protected]
Maker
Desc.
Price
Dimensions
PressIT
MD Printer Labels
GBP 7.10
Description:
PRESSIT, the company that makes the CD labels and applicator, now also manufacturer labels for ZIP, JAZ, VHS, Audio Cassette, 3.5" Floppy & MINIDISC.
There are two types of label packs available for each format:
MiniDisc Labels (180) White
MiniDisc Labels (60) Re-Writeable White (includes Red marker, Black marker, and eraser pen)
Links: PressIT's website. PressIT labels can be purchased from Transco (UK).
Name
Desc.
Price
Dimensions
Neato MiniDisc Labels
MD Printer Labels
24 for $9.95 100 for $29.95
Features: Use MediaFACE software to design your MiniDisc labels (the software is freely available). Use the Neato special printing sheets to print your labels, and then simply stick the labels onto your discs.
Specs:
Compatible with most inkjet/laser printers.
Each set consists of three pressure-sensitive labels: one MiniDisc label plus one sleeve face label plus one sleeve edge label.
Maker
Desc.
Price
Dimensions
Canford Audio
MD Printer Labels
GBP 13.38
Description:
Die-cut labels supplied on sheets for use in laser printers (not
recommended for inkjet printers), or, specifically for inkjet
printers. Supplied in packs of 25 sheets, 16
labels per sheet.
52-021 Laser labels (pack of 25 sheets) GBP13.38
52-022 Inkjet labels (pack of 25 sheets) GBP13.38
Both prices exclude shipping (and also VAT within the UK).
Available from Canford Audio, Washington, Tyne & Wear, England.
UK sales: 0191 415 0525 [email protected],
Export sales: +44 191 415 0044 [email protected].
Cables
Sony has Japanese their MDLink Walkman Link Cableused for connecting portable Sony MD
players to MD-Link bookshelf systems to provide MD name copy and track
marking during analog MD->MD copying.
TOSlink and miniplug optical cables can be purchased in the UK at
Tempo (search on "optical") and DigitalChoice
(accessories->audio lead->2nd page).

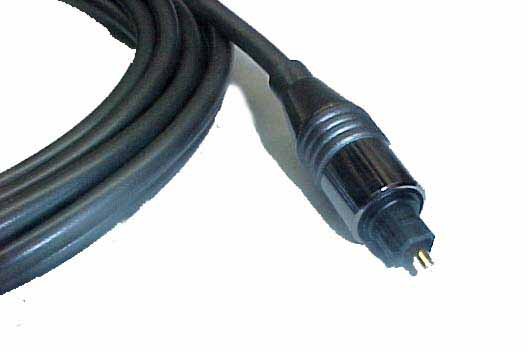

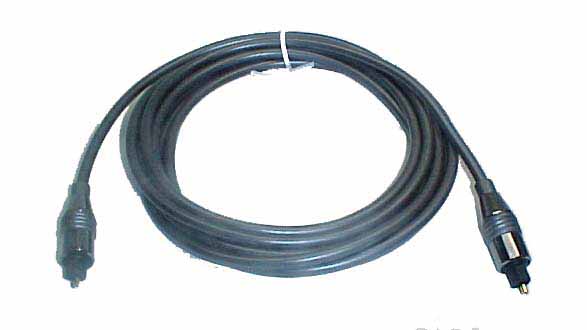

Description: Optical
fiber cable with TOS Link connectors at both ends. Available from Core
Sound, The Sound Professionals, and MCM Electronics (1-800-543-4330).

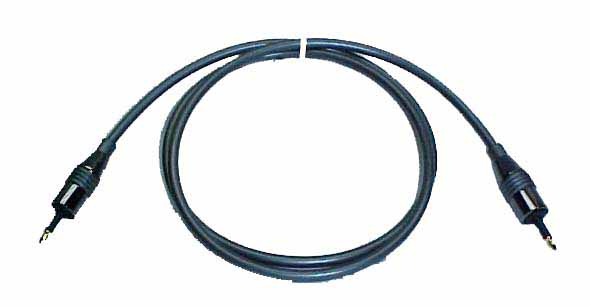

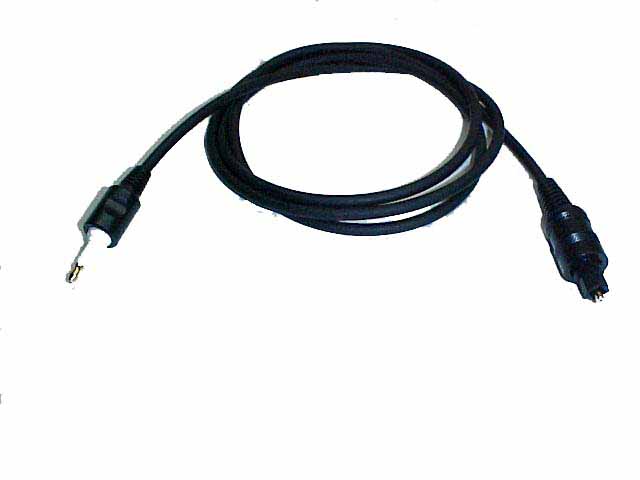

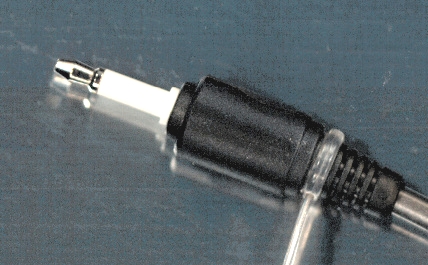

Description:
Digital optical audio cables have two connector types: the small,
squarish "TOS-link" connector (see TOS-link entry above) and the
optical miniplug (shown left). The optical mini-plug has the same
connector dimensions as a normal (electrical) mini-plug. You can buy
optical cables with any combination of these two [male] connectors at
the ends. Optical cables are usually limited to maximum lengths of 10
to 15 meters. The Sony part numbers for the 1.5 meter optical cables
are as follows: TOS-link/TOS-link: POC-15HG or POC-15A or POC-15SP,
TOS-link/miniplug: POC151HG or POC-MZ1 or POC-15AB, miniplug/miniplug:
POC152HG or POC-MZ2 or POC-15B. These cables can be ordered from Sony
Parts at: Sony Electronics Inc., National Parts Center, 8281 N.W.
107th Terrace, Kansas City, Missouri 64153, phone: 800-488-7669
(parts), 816-891-7550 ext 33 (publications/manuals). Also vailable
from MCM Electronics (1-800-543-4330), Core Sound and The Sound Professionals.

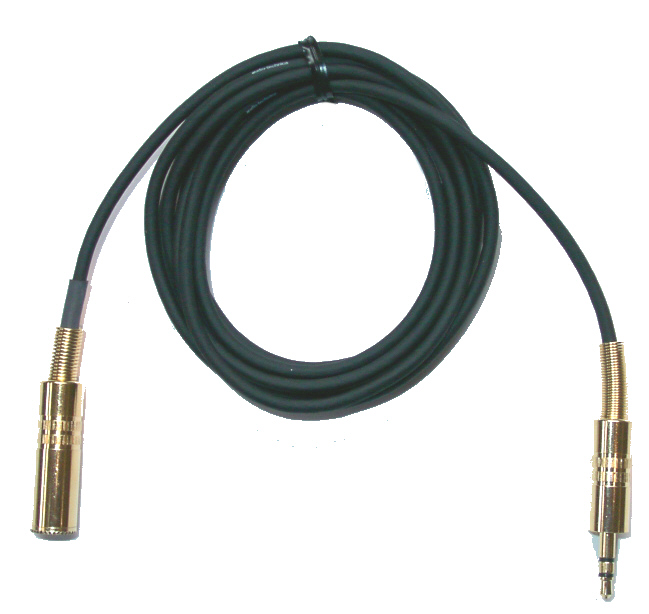

Description: Custom manufactured high quality stereo extension
cable with gold plated mini plug and jack. Also available male to male
or with right angle plug on one end and in custom lengths.

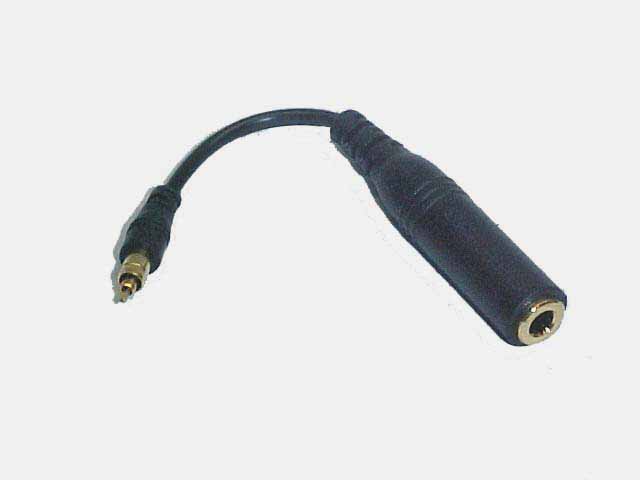

Description: Stereo headphone adapter -1/8" female inline
jack to micro male plug - connects standard headphones to remote controls
on some earlier Sony MD units.
Description: Headphone/microphone extension cable (connector
saver) -plugs into headphone or microphone jack of portable recorder
to save wear on recorder's delicate jacks - right angle stereo mini
plug to straight stereo gold plated mini jack.

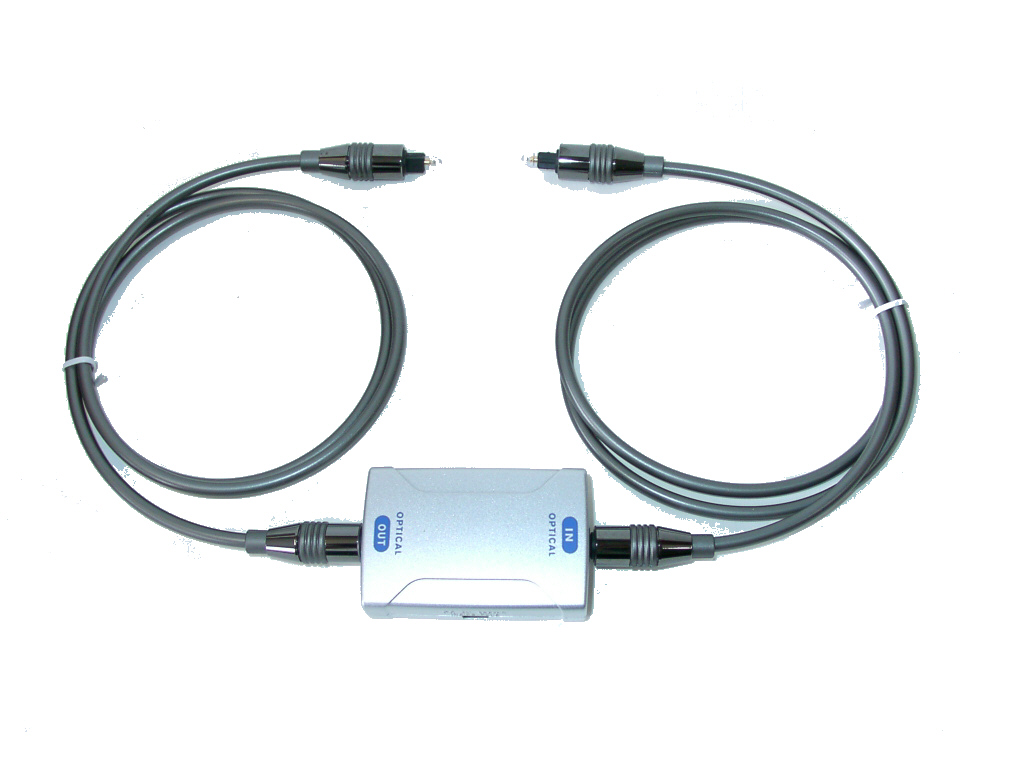

Description: Toslink cable remote switcher/booster. Allows
switching between multiple fiber optical inputs and outputs from
across the room. Active circuitry boost digital signal for long
cable runs.
Description:
Koss Porta Pro Jr. phones look like full-size foam earpad
phones but cleverly fold up into a 3.5 x 2.5" bundle. They develop
strong bass and have an spl around 105dB (compared to 90-96dB for most
headphones).

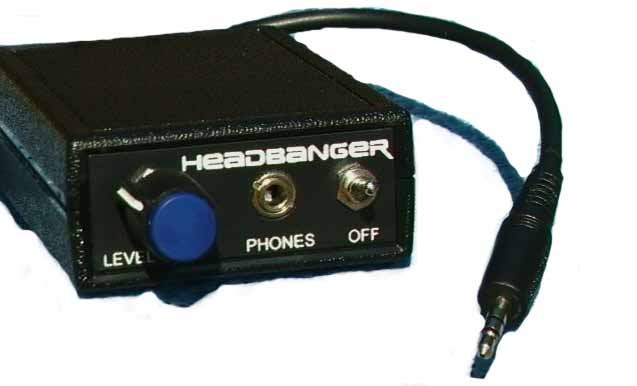

Description: Commercial version of the "Laff's Headbanger"
headphone amplifier as seen on the Mini Disc Community pages. High output/low
noise/wide frequency response/long battery life. Premium model includes
output level control for use with line outputs or headphone outputs.
Description: Rack Mount kit for Sony MDS-JE500, allows unit to
be mounted in commercial equipment racks.
The side screws of the JE500 are removed and the ears mount with new
screws provided. Same ear fits left or right sides because
of dual mounting points per ear. Color: Black.
Available from Colorado Sound N' Light,
7301 N. Broadway,
Denver, CO 80221,
(303) 429-0418,
Fax 429-1242, or email Jim Baxter [email protected]
Note:For attaching the ears to the unit, CSL provides #8
self-tapping black anodizied screws for greater strength. The proper
size machine screws can be found in a good local hardware store but
CSL does not express any warranty as to the fitness of a machine screw
for supporting the load of the machine in a rack mount configuration.
Cassette Adapters
Maker
Desc.
Price
Dimensions
Recoton
Cassette Adapter
Street $17
Description:
A cassette adapter that allows use of MD players, CD players etc. in car
stereos that only have cassette capability.
User comments: There are frequently problems with the use
of cassette-with-a-headphone-jack type adapters in newer Chrysler, GM,
and Ford automobiles. The reason for this is that car stereo
manufacturers are beginning to use smaller heads in their cassette
decks. These smaller heads do make proper contact with most of the
aforementioned cassette adapters - even Sony's does not work properly.
Finally, at Best Buy I found a brand called Recoton and it
advertises that it ``Works with all stereos, 100% garaunteed.'' It was
cheaper than Sony's, in less fancy packaging, but it worked
great for me.
Professional Use Housings
Maker
Desc.
Price
Dimensions
Weight

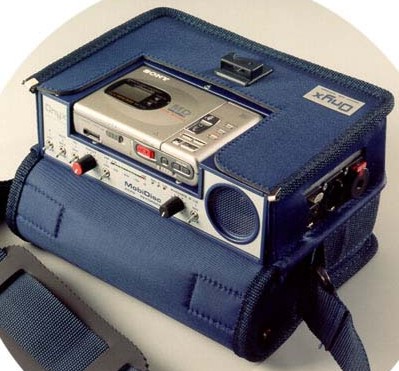

Onyx
MobiDisc
??
??
??
Description:"Featuring a mono XLR balanced mic/line input with 48V phantom power, the MobiDisc also offers a mono XLR balanced line output, a built-in monitor loudspeaker and a 1/4-inch jack headphone socket. The front panel is easy to use and includes control switches for power, I/0 selection, high-pass filter (150Hz - 12dB/oct.) and LS on/off. A recording level control with LED PPM, LED indicators to monitor the charging and condition of the internal battery and a monitor volume control are also located on the front panel. In spite of the use of a stereo MiniDisc Walkman, the MobiDisc is a fully mono system. The input signal is recorded on both (L+R) channels of the MiniDisc. Output (line out, LED level meter, headphones and loudspeaker) is the summed signal of both (L+R) channels of the MiniDisc. The MobiDisc is powered by an internal Ni-MH rechargeable battery, which provide three to four hours of working time. The battery can be recharged in four hours by the internal intelligent charging circuit."

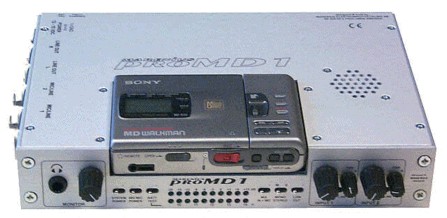

Description:
Adapter unit, compatible with Sony MZ-R30, MZ-R55, or equivalent. Includes two low-noise microphone amplifiers, PPM meters, lead-acid battery, monitor speaker, headphones amplifier. Housed in all-metal case for external electromagnetic noise shielding.
Links:

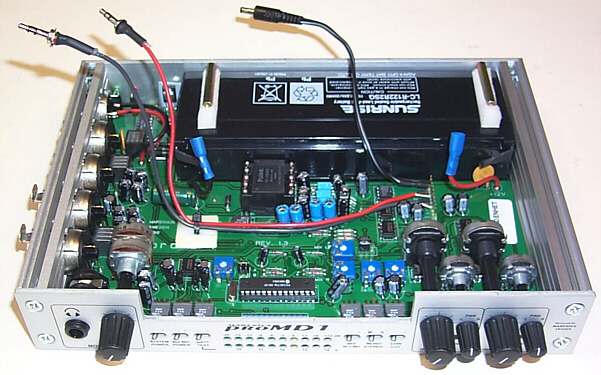

Marenius has an English page for this unit.
they have designed (and its insides), it is available from
Marenius in Sweden (price?).
Maker
Desc.
Price
Dimensions
Weight
ASC
MD-Report!
GBP295 (GBP445 w/MZ-R35 fitted)
215x146x73mm
2.6kg with battery and MZ-R35 fitted

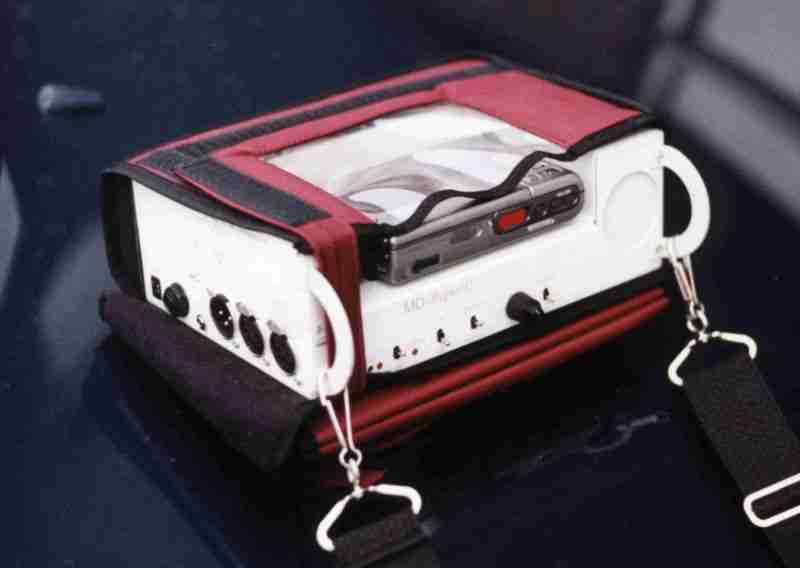

Description: The ASC MD-Report!, made by ASC in the U.K. takes the standard Sony MZ-R3/R30/R50
or Denon DMP-R70 and puts it in a strong steel chassis with professional
XLR input/output connectors, a large rechargeable battery, mains
adapter, and a built-in 'confidence' monitor amp and speaker.
The whole unit is enclosed in a soft nylon case with shoulder
strap and a zip pocket for mics, leads etc. Canford Audio are
a stockist with an established export sales office: telephone
+44 191 415 0044 or fax +44 191 416 0392. For ASC telephone +44
118 981 1000 or fax +44 118 981 9813.
Links:
A reprinted Pro Audio Review article praises the MD-Report.
This unit can be purchased from PASS.
Maker
Desc.
Price
Dimensions
Weight
PMI Audio
MD Report Junior
?
?
?
Description: Stereo Balanced Inputs on Neutrik XLR
Connectors, Inputs Mic/Line Switchable, 48 V AB Phantom Power, Stereo
Line Output on 3.5MM Jack Socket, Powerful Headphone Amplifier with
Level Control, Headphone Output on 1/4" Jack Socket, Monitoring
Switchable Between Source (Input) and MD (Tape), Mono Switch Feeds
Single Input to Both Tracks of Recorder, Operates for Hours on 2 x 9V
Batteries, Battery Low Warning LED, Lightweight Aluminium Chassis,
Rugged Padded Soft Nylon Carrying Case (fanny pak) with Detachable
Zipped Pouch for Accessories, Suitable for Use with DENON DMP-R70,
Sony MZ-R3/30/35/50/55, TCD-D7/D8, PCM-M1, Sharp MDMS200H.
Description:
Made in the UK, the
PASS MD-Report! is the original Professional MD Conversion Kit. The
strong steel chassis houses and protects the MD or DAT recorder, whilst
the fitted soft, padded, nylon carrying case with strong shoulder strap
and large zipped accessory pocket, offers good overall protection
against the elements.
Now in MKIV version, the PASS MD-Report! Provides XLR Mic/Line Inputs,
48v Phantom Power, Mono XLR Output, Stereo Output, Powerful Headphone
Amplifier on 1/4" Jack and built-in monitor speaker. Powering options
are: Rechargeable Battery, 4 x 'D' Cell or AC mains via supplied
adapter.
The PASS MD-Report! is suitable for use with Sony MZ-R3/30/35/37/55,
Sharp MDMS200H/ MDMT16/20, Denon DMP-R70 etc. and can be supplied as a
Kit comprising Chassis, Soft case, Battery & PSU/Charger
or Package fitted with Sony MZ-R37 or Sharp MD-MT16E for
or Bundled with Beyer MCE58 or Audio Technica AT804 reporter's
mic, cable and blank disc.
For Worldwide Sales Contact PASS Limited - Tel: +44 (0)116 269 3767,
Fax: +44 (0)116 269 3769,
or click below and go to the PASS Home Page.
The DAT Store, Los Angeles,
California (310) 828-6487 has 120VAC->100VAC stepdown transformers for
running Japanese equipment on US mains. ~$20.
SCMS Fiddling
The Prospec MSP730 (in Japanese) is an apparently legal
SCMS stripper being sold in Japan for JPY 16,800. (Available
through Melting-Pot.com) David Jansen reports his
experiences with the Prospec MSP730 SCMS stripper. Unit has been
discontinued in Japan, apparently due to copyright issues.
The Friend-Chip D4-2 Copy Con converts coaxial to XLR and vice versa, as well as having the option to remove the SCMS bit from recordings.
Name
Desc.
Price
Connectors
Dimensions

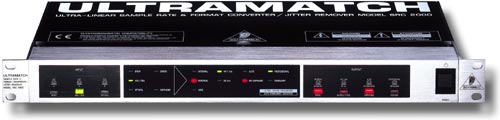

Behringer Ultramatch SRC2000 Intro: 2000
digital sample rate/format converter
US$140
IN: XLR, RCA, optical OUT: XLR, RCA, optical
DIM
Features:
Accepts sampling frequencies from 25 kHz to 60 kHz, Selectable input (XLR, RCA, optical), Converts into output frequencies 44.1 kHz or 32 kHz, The output signal format can be specified -- no incompatibilities, All outputs (XLR, RCA, optical) are concurrently active (splitter, signal distribution), Enables manipulation of Emphasis and copy prohibit bits, Transformer balanced In-/ Outputs, No ground loops even through RCA (coaxial) inputs, Reliable operation even on week input signals (as found when using damaged cables), Removes Jitter and corrects detuned or wrong Sample Rates, Can be used to change incorrect Emphasis coding, Removes copy prohibit bit, Self configuring digital Anti-Aliasing filter, THD under 0.001%, Noise below -95 dBFS, Universal external synchronization via separate Wordclock input, Extremely fast tracking allows even for Varispeed applications, Automatically resynchronizes varying sample rates, Master units (CD-Player, DAT) can be used in slave mode, Corrects unformatted passages on DAT and other media, Manufactured under ISO9000 certified management system,
Links:
Behringer's official page for this unit includes full technical specifications and a PDF downloadable manual.
Description:Note: Technolab products have been discontinued due to legal action.
Connected between a digital source and target, it resets the copy
protection bits to 00 (unrestricted copying). Handles 32 to 48 kHz
input and
converts between coax and optical i/o. Note that this unit strips out
the CD track markers too, you'll need the $350 version to retain them.
Maker
Desc.
Price
Dimensions
Hucht
Elektroniklabor, Index Copyprocessor ICP 1-CE
SCMS Stripper
DM598, DM298, DM198
Description:A reader comments: If you want to make digital copies between two MD or DAT decks, you can
eliminate the SCMS by using an "Index Copyprocessor ICP 1-CE" from Hucht
Elektroniklabor in Berlin. It costs DM 598 and has two inputs (one
Toslink/optical and one coax/RCA) and two outputs (one Toslink/optical
and one coax/RCA) plus AES/EBU in and out. Needs external power
supply. Error flag LED on front, emulates DAT/MD start id's,
CD, MD and DAT start id's will pass through.
If you want, they can even build in your MD or DAT deck an anti-SCMS
system. This costs DM 298. You need however to send in your deck so they
can build it in. I have one built in my Sony DAT DTC-2000ES and it also
works perfectly and tranparently.
They also have a kit for you to build in yourself this anti-SCMS system.
The kit just needs 5V - 80mA from your deck. This costs DM 198. The
advantage is if you live out of Europe you don't have to send in your
deck. You do have to build it in yourself though.
Also available is the Hucht Copy Processor MK 3:
Kills scms 100%, Optical+Coax in, Opt.+Coax out,
can be used as coax-opto-coax converter too.
Error flag led on front, up to 24 audio bits.
CD, MD and DAT start id's will pass through.
Has internal 220V transformer.
Price 400DM = $222
I highly recommend these. They are sold by:
BR Elektronik
Gotenstrasse 20
10829 Berlin
Germany
Tel/fax: + 49 30 781 44 07
Tritronics provides
online parts
sales for nearly all Sony MD gear. (Follow Shopping->Consumer login)
Sony Components at one time had brief parts brochures for MD audio
manufacturers (the Sony pages are gone and have subsequently been
hosted locally, for purposes of illustration only), giving English
information on MD optical pickups, loading units, mechanism kits, magnetic heads, and
spindle
motors. All their component
brochures make interesting browsing.
Folks in the UK can order hard-to-find spares for the Sharp MD-MS702
from Willow Vale
Electronics in Reading.
Sharp brand transmitters and receivers can be ordered from Linus P Sweers for $10, including shipping (or $12
if outside USA). (see Sharp's Page for the part).
Reichelt.de is a good source for inexpensive optical transmitters, receivers and
cables (search for LWL TOS in the search
entry).
Hero Electronics sell
Optical Transmitters and Receivers for home-constructors who wish to
build convertors. Hero are currently offering the GP1F32T for GBP 8.75
and the GP1F32R for GBP 10.25 or both together for GBP 12.40. There is
a delivery charge of GBP 2.50 for addresses outside the UK:
Hero Electronics Ltd, Dunstable Street, Ampthill, Beds. MK45
2JS phone: 01525 405015 email: [email protected]
If you live in northern Europe, try out Elfa in Sweden. They carry
a tremendous amount of electronic stuff, similar to Maplin UK.
The p.n. for various parts :
75-360-06 TOTX173 Toslink transmitter $10
75-360-14 TORX173 Toslink receiver $10
46-905-33 Square plug $5
55-953-50 Optical wire $4/meter
You also need a 8.2 kOhm resistor for the transmitter.
They also have two mini-size transmitter and receiver modules, which don't
require any plugs, you just plug the wire in directly.
[email protected]
