Aiwa Bookshelf

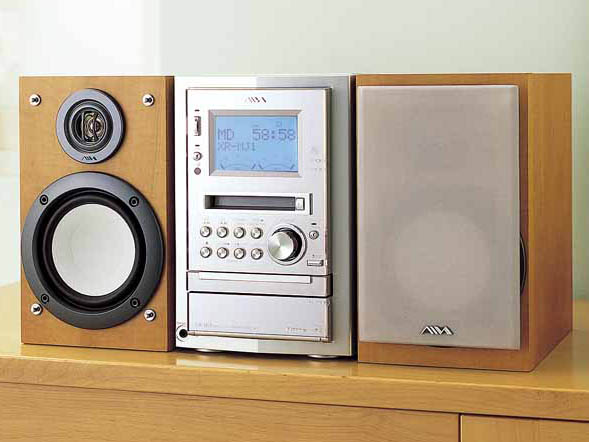

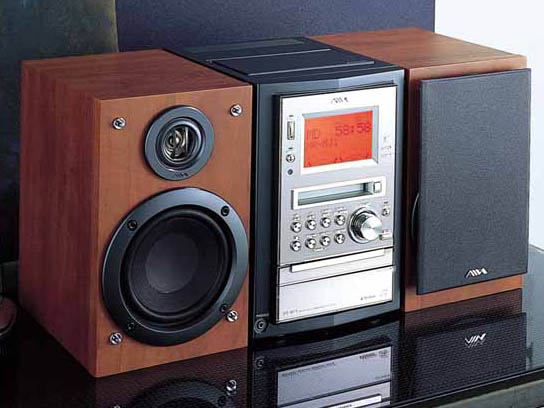

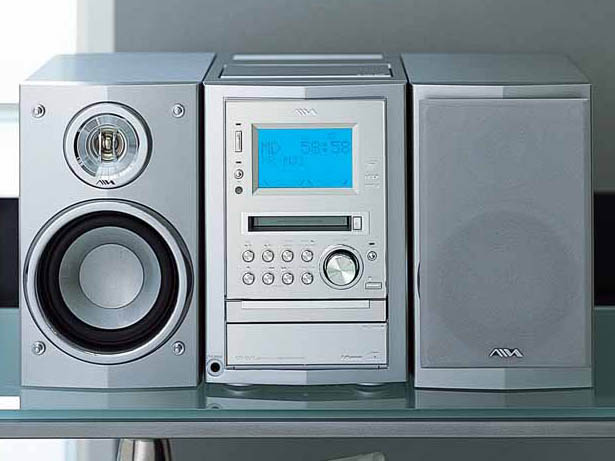

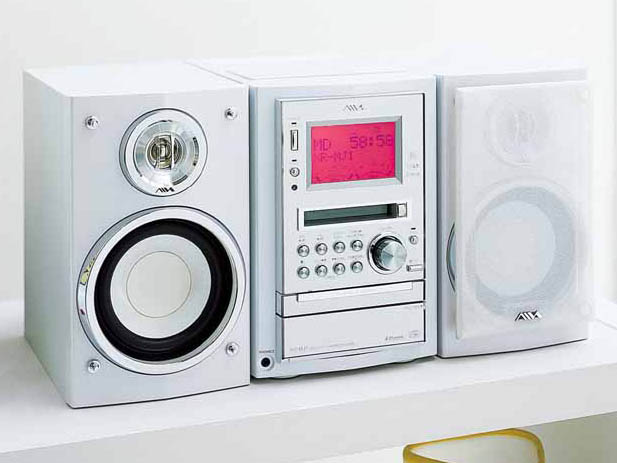

Aiwa XR-MJ1

PictureNameDescPriceConnectorsDimensions
Aiwa XR-MJ1AM/FM/MDLP/CD/Cassette bookshelf system
Intro: 9/2003
Est: ¥33,000
Availability:
In: line. Out: headphones, subwooferMain unit: 160w x 299.7d x 235h mm, 5.3kg. Speaker (x1): 143 x 226 x 234mm, 2.3kg

Features:

  • ATRAC DSP Type-S.
  • 4X CD->MD dubbing. Simultaneous CD->MD->Cassette (realtime) dubbing. 1-track recording. Syncho-recording.
  • No mono recording.
  • Scale-Factor edit.
  • Recording-time remaining display.
  • Random, repeat, and 25 track program play modes.
  • Titling while recording possible.
  • "Direct play function" will start unit when PLAY button is pressed in power-off state.
  • Daily, weekly recording timer (radio/aux). Daily, weekly play timer. Sleep timer (10-100 minutes, 10 min step).
  • "i-Bass" information age-ready bass boost function.
  • IR remote.
  • Available in silver, white, black and wood finish.

Links:

Specs: 20W x 2

Reviews:

    Aiwa ADN-1

    PictureNameDescPriceConnectorsDimensions
    Aiwa ADN-1CD/NetMD bookshelf system
    Intro: 3/2003
    ``OPEN''
    Availability:
    Out: line, headphones. Data: USBMain unit: 79.2 x 221 x 192mm, 1.3kg. Speaker(x1): 100.5 x 221 x 192mm, 1.2kg

    Features:

    • NetMD bookshelf system with 32X download speed (LP4 mode)
    • 4X CD->MD copying (SP & LP modes)
    • CD and MD slot exposed by motorized front panel, activated by a "touch sensor" button
    • Unit appears to be nearly (if not exactly) a clone of the Sony LAM-Z10.

    Links:

    Include Accessories: SonicStage 1.5 CD-ROM, USB cable, remote control

    Specs: Amp: 2W+2W (JEITA)

    Reviews:

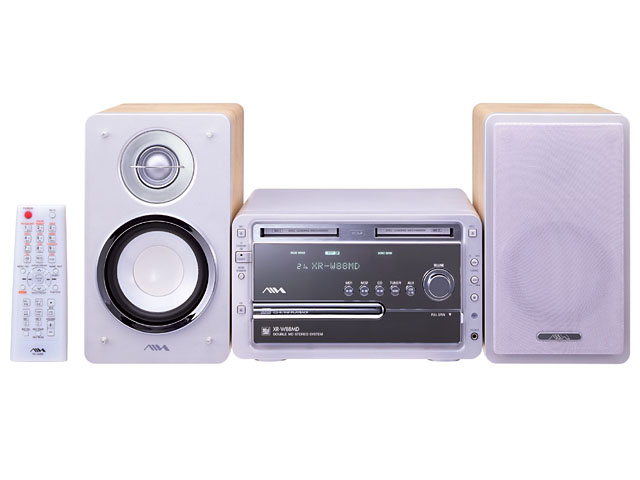

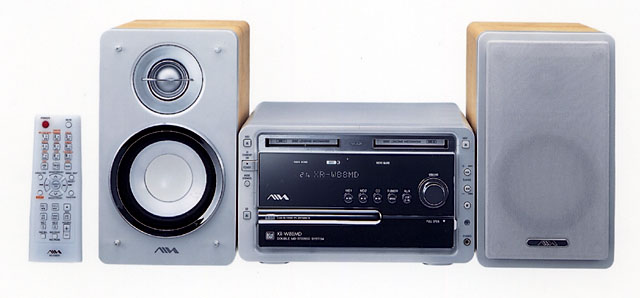

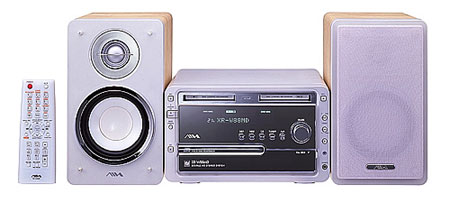

      Aiwa XR-W88MD

      PictureNameDescPriceConnectorsDimensions
      Aiwa XR-W88MDCD/double-MDLP bookshelf system
      Intro: 2/2003
      Street: ¥50,000
      Availability:
      In: line, optical. USB. Out: line, subwoofer pre-out, headphones244 x 315.7 x 147mm (speaker: 142 x 222 x 244mm), 10.6Kg

      Features:

      • MDLP support.
      • Double MD drives can be used for extended length recording and playback, as well as various editing functions.
      • 2X CD->MD copying.
      • One track and synchro record modes.
      • Remaining recording time display.
      • 2X high speed playback mode.
      • Scale Factor edit
      • Opening/Closing type control panel
      • Titling IR remote (can title while recording is underway)
      • Not NetMD, yet AVWatch mentions USB input, indicating support for realtime audio transfer from PC or possibly simply playback of PC audio through unit's amp and speakers.
      • Randon/Repeat/25 Track program play modes for CD/MD.
      • No indication that MD->MD copying is possible (how in their right minds can they leave that off a double drive system!?)

      Links:

      Specs: Amp: 20W+20W

      Reviews:

        Aiwa XR-FD3

        PictureNameDescPriceConnectorsDimensions
        XR-FD1 variant
        Aiwa XR-FD3MD bookshelf system
        Intro: 11/2001

        Availability:
        IN: auxiliary analog
        OUT: headphones
        main unit: 170W x 166H x 327D mm, 4.1kg
        speaker: 155W x 250H x 218D mm, 2.4kg

        Features: MDLP/Group function compatible. Tone control (bass/middle/treble), direct play function starts MD, CD, or radio operation at the touch of a button, 3-way timer (record, playback, sleep), CD-R/RW playback.

        Links: Aiwa's official English page for the XR-FD3. Aiwa also sells the same main unit paird with a simpler pair of speakers, re-named the XR-FD1.

        Specs: 25W+25W output. 100VAC. FM frequency range 76-108 MHz (TV channels 1-3).

        Reviews:

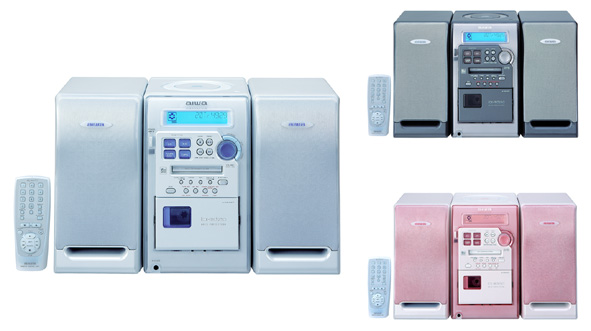

          Aiwa LCX-MD250

          PictureNameDescPriceConnectorsDimensions
          Aiwa LCX-MD250MD bookshelf system
          Intro: 4/2001
          ¥39,000
          Availability:
          IN: auxiliary
          OUT: headphones
          system: 420W x 263H x 245D mm, 6.5kg

          Features: CD/MD/Cassette/Tuner. 2X CD-to-MD dubbing speed, simultaneous CD-to-MD and CD-to-Cassette recording, multi-jog dial, titles can be entered while recording, double-speed playback function, 12 different colors may be chosen for the LCD (each audio source may also have its own color selected), unit is available in white, pink, and black.

          Links:

          Specs: 7W x 2 output. 10cm full-range speaker. 100VAC, World-band FM frequency range (76MHz - 108MHz).

          Reviews:

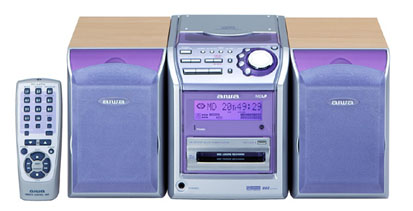

            Aiwa XR-MD310

            PictureNameDescPriceConnectorsDimensions
            Aiwa XR-MD310MD mini system
            Intro: 11/2000
            ¥50,000
            Availability:
            IN: aux analog, optical digital
            OUT: line, headphones, woofer
            376W x 175H x 284D (mm), 7.0kg

            Features: CD/MD/Tuner. QSurround, three LCD display colors (purple, blue, orange), 2X CD-to-MD recording speed, wooden speaker construction, three-way timer (record, playback, sleep), jog dial for changing settings and MD titling,

            Links: Aiwa's official English page for the XR-MD310.

            Specs: 15W + 15W output, world-band radio (76-108MHz), 100VAC.

            Reviews:

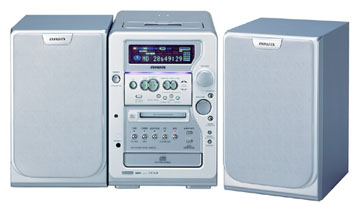

              Aiwa XR-MD520

              PictureNameDescPriceConnectorsDimensions
              Aiwa XR-MD520MD mini system
              Intro: 11/2000
              ¥56,000
              Availability:
              IN: video/aux analog, optical digital
              OUT: subwoofer, headphones
              485W x 257H x 333D (mm), 11.7kg

              Features: CD/MD/Cassette/Tuner. MDLP, 2X CD-to-MD dubbing speed, QSurround, jog dial for easy entering of MD track titles, simultaneous recording of CD to both MD and cassette, CD-RW playback support. Unique rotating control panel allows access to (1) basic operational panel, (2) "acrylic?" panel, and (3) edit panel.

              Links: Aiwa's official English page for the XR-MD520.

              Specs: 30W + 30W output, world-band radio (76-108MHz), 100VAC

              Reviews:

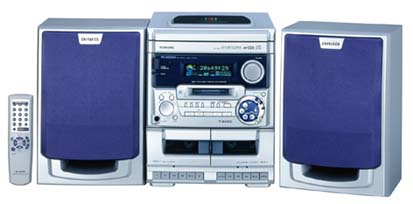

                Aiwa XR-HG2MD

                PictureNameDescPriceConnectorsDimensions
                Aiwa XR-HG2MDMD mini system
                Intro: 7/2000
                ¥44,800
                Availability:
                IN: Video/aux, digital in
                OUT: headphones, optical digital
                Main unit: 260 W x 329 H x 344 D (mm)/6.5kg
                Speakers (each): 220 W x 324 H x 200 D (mm)/2.2kg

                Features: 3 CD, 1 MD, dual cassette mini system. One-touch recording feature, 2X dubbing, random record feature that records CD tracks in a random order, can title MDs with the remote, simultaneous recording to MD and cassette,

                Links: Aiwa's English page for this unit.

                Specs: 15W+15W amplifier, 100VAC, world-band FM radio (FM 76-108 MHz),

                Reviews:

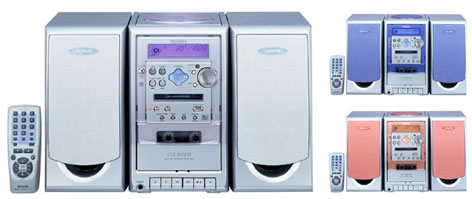

                  Aiwa LCX-MD210

                  PictureNameDescPriceConnectorsDimensions
                  Aiwa LCX-MD210CD/MD/cass bookshelf system
                  Intro: 1
                  ¥39,000
                  Availability:
                  aux in, headphones outfull unit: 420 W x 265 H x 248.5 D (mm)/6.7kg

                  Features: double-speed MD playback, worldband FM tuner and 3 settable colors of LCD illumination, available in blue, orange, or purple.

                  Links: Aiwa's English announcement for this unit. The T-Station has further information on this unit.

                  Specs: 14W output, 10cm speakers, will play CD-R/RW discs.

                  Reviews:

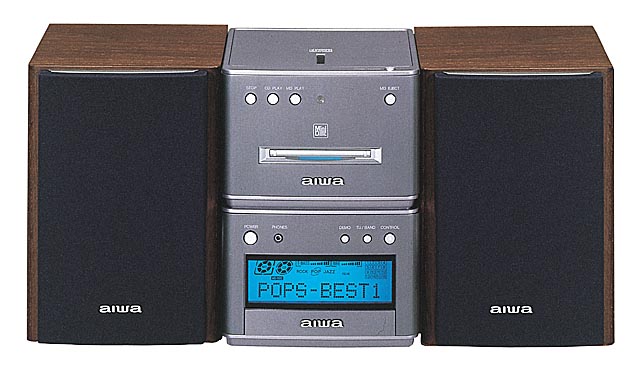

                    Aiwa XR-MD90

                    PictureNameDescPriceConnectorsDimensions
                    Aiwa XR-MD90AM/FM/CD/MD bookshelf system
                    Intro: 1

                    Availability:

                    Availability:
                    center: 5-5/8 x 8 x 7-3/4", 13.4lbs, speakers: 5-1/2 x 8 x 7-1/5", 5.5lbs

                    Features: Motorized operation drawer. Mono recording, optional double speed playback. 3 position equilizer (rock/pop/jazz), Super T-Bass (3 position). Subwoofer output.

                    Links: Aiwa's English summary page for the unit.

                    Specs: Amp: 16 Watts per channel.

                    Reviews:

                      Aiwa XR-MDS7

                      PictureNameDescPriceConnectorsDimensions
                      Aiwa XR-MDS7MD bookshelf system
                      Intro: 9
                      ¥59,800
                      Availability:
                      optical in, AUX inmain unit: 100 W x 210.2 H x 271.5 D mm, speaker: 100 W x 210.2 H x 271.5 D mm

                      Features: Multi-jog input capability, double speed playback, 3 preset equalizer settings, bass boost.

                      Links: Aiwa's Japanese page for this unit. The T-Station has further information on this unit.

                      Specs: 30W + 30W.

                      Reviews:

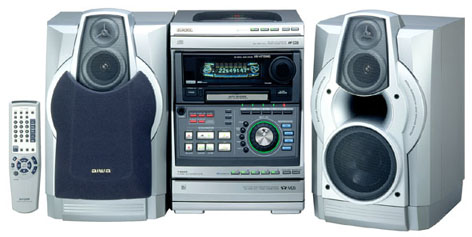

                        Aiwa XR-H770MD

                        PictureNameDescPriceConnectorsDimensions
                        Aiwa XR-H770MDMD bookshelf system
                        Intro: 9
                        ¥58,000
                        Availability:
                        Video/aux & digital in, digital out, headphonesunit: 260 W x 373 H x 385 D (mm), 11.5 kg
                        speaker: 240 W x 396 H x 319 D (mm), 6.5kg

                        Features: 3-CD, 5-MD, 1 cassette bookshelf system. Multi-amplifier system (110W), QSurround sound feature, direct digital recording from CD to MD, can input titles while recording.

                        Links: Aiwa's English page for this unit. The T-Station has further information on this unit.

                        Specs: Sampling rate converter input: 32/44.1/48 (kHz), FM 76-108 MHz (TV channels 1-3), AM 531-1602 kHz, 40W + 40W, Built-in subwoofer, 4-way system (magnetically shielded, EIAJ II), 20cm subwoofer, 12 woofer, 6cm tweeter, 2cm super tweeter, 100VAC.

                        Reviews:

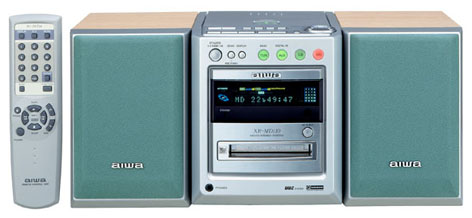

                          Aiwa XR-MD110

                          PictureNameDescPriceConnectorsDimensions
                          Aiwa XR-MD110CD/MD micro system
                          Intro: 9
                          ¥50,000
                          Availability:
                          aux in, digital in, line out, phones144 W x 170 H x280 D (mm)/3.9 kg

                          Features: CD player, MD player, radio. Virtual Stereo QSurround, pro-sound BBE, sampling rate converter for digital recording from BS/CS digital broadcasts and DAT, Music genre position switch (rock, pop, jazz), all standard MD-editing functions.

                          Links: Aiwa's English page for this unit.

                          Specs: 15W+15W output (1 kHz, 6 ohms, 10%, EIAJ), FM 76-108 MHz (TV 1-3 ch), AM 531-1602 kHz, 100VAC, Two-way bass reflex (magnetically shielded, EIAJ II), 10cm woofer, 2.2cm tweeter.

                          Reviews:

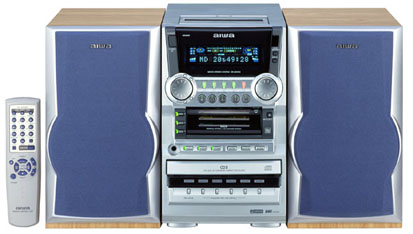

                            Aiwa XR-MD500

                            PictureNameDescPriceConnectorsDimensions
                            Aiwa XR-MD5003CD/3MD bookshelf system
                            Intro: 9
                            ¥65,000
                            Availability:
                            in: Video/aux, digital in
                            out: super woofer, phones
                            180 x 290 x 340 mm for main unit

                            Features: 3-MD changer, 3-CD changer, single cassette deck, tuner. Single hit recording function, MD/cassette simultaneous REC key can record from CD to both MD and cassette at the same time, Weekly timer recording for three programs, Double-speed playback function, Flexible CD/MD playback: program, random (all/one CDs or MDs), repeat (all/one CD or MDs/one track)

                            Links: Aiwa's English page for this unit.

                            Specs: 60W high-power amplifier (30W+30W), FM 76-108 Mhz, 13cm woofer, 6cm tweeter, power source 100VAC.

                            Reviews:

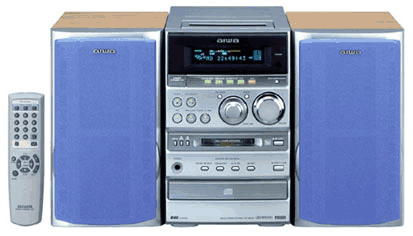

                              Aiwa XR-MD100

                              PictureNameDescPriceConnectorsDimensions
                              Aiwa XR-MD100Bookshelf MD System
                              Intro: 9
                              ¥58,000
                              Availability:
                              input: Video/aux, digital in
                              output: woofer, phones, CD digital out
                              175 W x 275 H x 333 D (mm)/6.0 kg

                              Features: Mini Disc (MD) deck, CD player, cassette deck, and tuner. 60W amplifier, BBE sound processing system, Direct recording (all programs/one program) from CD to MD, Simultaneous recording from CD to MD and cassette tape, Full MD/cassette editing functions, Monaural extended recording mode, Double-speed playback function, Multi jog dial, 30-track program playback/random playback.

                              Links: Aiwa's English page for this unit.

                              Specs: Frequency range: FM 76-108 Mhz (TV 1-3 ch), AM 531-1602 kHz, 30W+30W (1 kHz, 6 ohms, 10%, EIAJ), MD deck F characteristics: 20 - 20,000 Hz +0.2, -1.5dB, Sampling rate converter input: 32/44.1/48 (kHz), Power consumption: 65W.

                              Reviews:

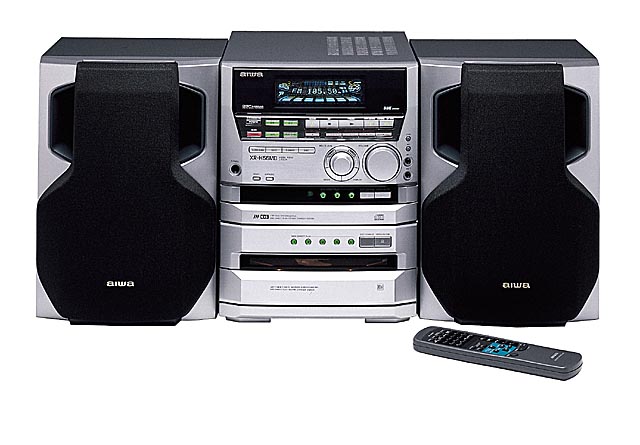

                                Aiwa XR-H66MD

                                PictureNameDescPriceConnectorsDimensions
                                Aiwa XR-H66MDCD/MD bookshelf system
                                Intro: 1
                                MSRP $700
                                Availability:
                                IN: line?, optical. OUT: line?, optical (from CD only)DIM

                                Features: 5 MD and 3 CD changer.

                                Links: Aiwa's Japanese page for the unit. Aiwa's English summary page for the unit.

                                Specs: Amp: 60 watts per channel.

                                Mis-features: A user has detailed the unit's shortcomings.

                                Reviews:

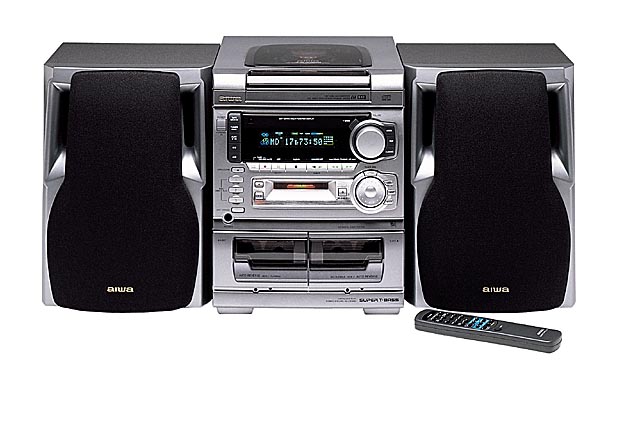

                                  Aiwa XR-H33MD

                                  PictureNameDescPriceConnectorsDimensions
                                  Aiwa XR-H33MDAM/FM/MD/CD bookshelf system
                                  Intro: 1

                                  Availability:
                                  IN: optical digital, OUT: optical digitalCenter: 11 x 13 x 10", 14lbs, speakers: 9 x 13 x 10", 8lbs

                                  Features: AM/FM/3CD/1MD/dual well auto reverse cassette in one unit. 32 station presets.

                                  Links: Aiwa's English page for the unit.

                                  Specs: Amp: 30watts per channel. ATRAC chip: CXD 2652 AR

                                  Reviews:

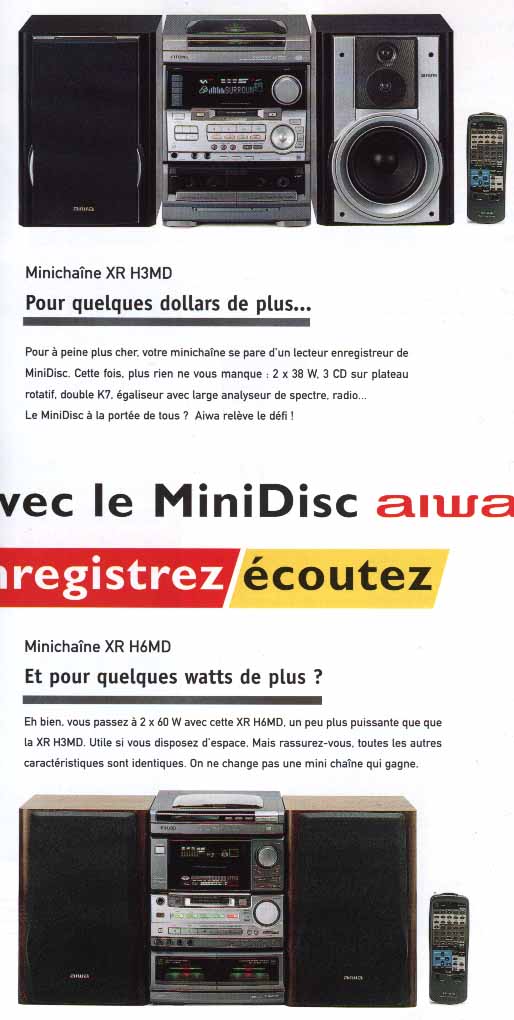

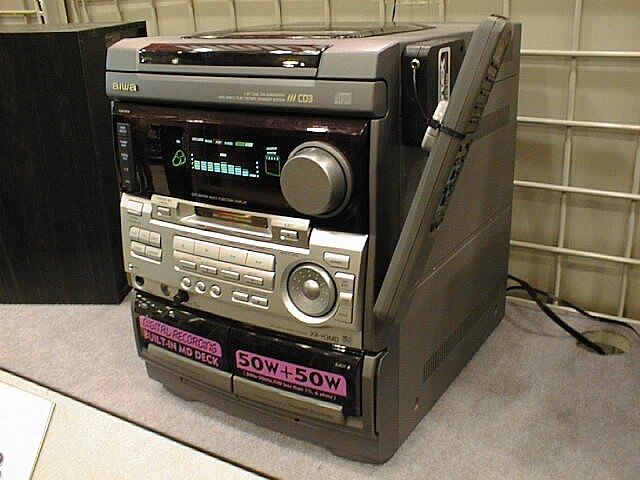

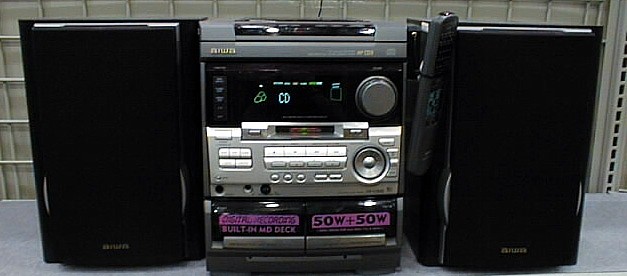

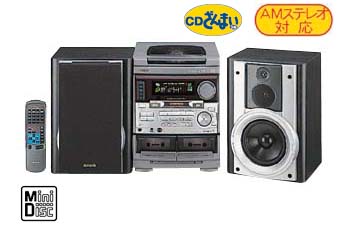

                                    Aiwa XR-H3MD

                                    PictureNameDescPriceConnectorsDimensions
                                    Aiwa XR-H3MDMD Bookshelf System
                                    Intro: 1
                                    Street: ¥41,200
                                    Availability:

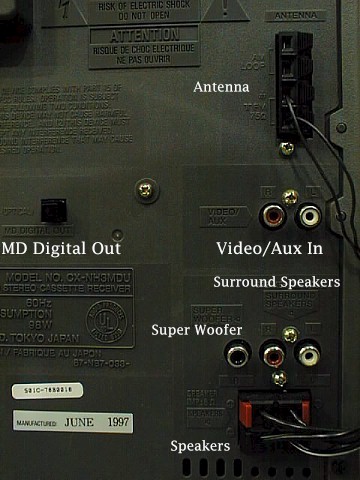

                                    in: line. out: optical, speakers (front+surround+super woofer)main unit: 260x340x346.5mm 6.8Kg, speaker: 235x335x250mm, 3.6Kg

                                    Features: First MD bookshelf system available in North America. MD/3-CD changer/2-Cassette ``basic'' bookshelf system. High speed (2x) MD playback mode. Mono recording. 3CD changer is convenient for editing to MD. ``Music genre position.'' Jog dial. Auto vocal fader/mic mixing function. ``AI/program edit''. Diary and sleep timer functions. Double cassette deck (playback 1 way + playback 1 way). Bass boost. Amp: 60 watts

                                    Problems: A user notes problems playing certain discs in the unit.

                                    Links: Aiwa's Japanese page for this unit. Best Buy's page for this unit. Tom Kroh contributes comments on the Aiwa XR-H3MD system. Scans of French adverts for the Aiwa H3 and H6 systems.

                                    Reviews:

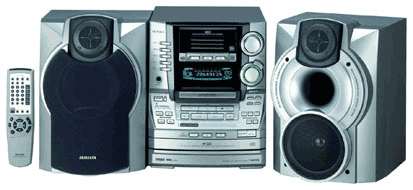

                                      Aiwa XR-H550MD

                                      PictureNameDescPriceConnectorsDimensions
                                      Aiwa XR-H550MD3MD/3CD bookshelf system
                                      Intro: 1
                                      ¥70,000
                                      Availability:
                                      out: optical digital
                                      in: video/aux analog
                                      260 W x 324 H x 387 D (mm)/10.1 kg

                                      Features: Alarm /sleep timer, Flexible editing/recording among CDs, MDs, or cassettes, Single hit recording function automatically records one track from a selected CD (up to 3), onto an MD, Direct REC key for easy recording, Three CDs to three MDs, 2X quick playback for efficient listening, built-in subwoofer speaker system, Easy character input with jog dial on the main unit and remote control, Monaural extended recording mode,.

                                      Links: Aiwa's English page for this unit.

                                      Specs: High-powered 110W amplifier, FM 76-108 Mhz (TV 1-3 ch), AM 531-1602 kHz, 50 - 15,000 Hz (normal), Speakers (Low freq.: 6 ohms, high freq.: 6 ohms), surround speakers (8-16 ohms), phones, CD digital out.

                                      Reviews:

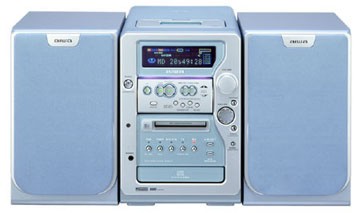

                                        Aiwa XR-MD510

                                        PictureNameDescPriceConnectorsDimensions
                                        Aiwa XR-MD510CD/MD/cass mini-component system
                                        Intro: 2
                                        ¥49,800
                                        Availability:
                                        video/aux in, digital in, headphones outsystem: 485 W x 257 H x 333 D (mm)/11.7 kg

                                        Features: Unique rotating control panel, virtual stereo QSURROUND, two different speaker grill colors, full MD recording and editing capability, 2X MD playback speed, variety of automatic track marking features, compatible with CD-R/RW discs.

                                        Links: Aiwa's English page for this unit. The T-Station also has further information on this unit.

                                        Specs: 60WE amplifier, world-band FM radio.

                                        Reviews:
