Sharp Boombox

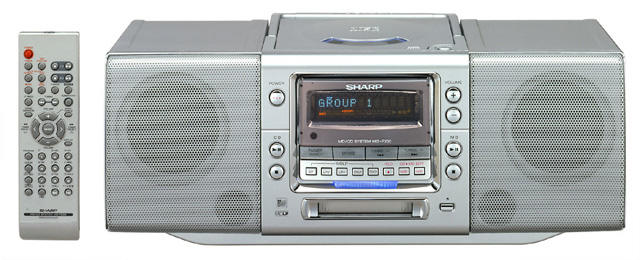

Sharp MD-F230

PictureNameDescPriceConnectorsDimensions
Sharp MD-F230Portable CD/MDLP/AM/FM boombox
Intro: 9/2002
Est: JPY27,000
Availability:
OUT: headphones203d x 410w x 158h mm, 4.0Kg

Features: MDLP and group mode support. 2X CD->MD dubbing. "Hypertrack" edit allows CD tracks to be selected for recording while listening. "Top Position" function allows one-button recording of the first CD track to MD (useful for CD singles). "AI timer" for clock and timer functions (wakeup timer, sleep timer, and timer recording [wherein recording start time, stop time, input source and volume may be set]). IR wireless remote uses cellphone alpha input technique for titling. Fluoroluminescent display shows MD/CD track and time info. Available in silver, blue and pink. AC operation only. 8cm full range speakers (4 ohms).

Included Accessories: Remote, AAx2 (for remote), AC power cord, AM loop antenna

Links:

Specs: Freq. resp. 20-20kHz, +1/-3dB. AM: 522-1629, FM: 76-108MHz (worldband). AC consumption: 23W

Reviews:

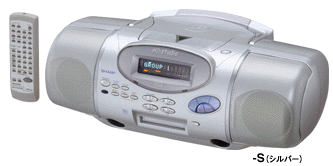

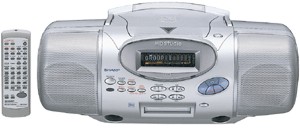

    Sharp MD-F220

    PictureNameDescPriceConnectorsDimensions
    Sharp MD-F220MD boombox
    Intro: 6/2001

    Availability:
    IN: -
    OUT: headphones
    232D x 435W x 158H mm, 4.1kg

    Features: MDLP and Group function support. CD->MD recording speed at 2X. CD-R/RW playback support, remote capable of titling discs, 40 channel FM presets, alarm clock and timer record,

    Links: Sharp's Japanese press release for the MD-F220. Sharp's official Japanese page for the MD-F220. The MD T-Station has further information on the MD-F220.

    Specs: 2.5W+2.5W output. FM frequency range of 76-108Mhz. 8cm full range speaker.

    Reviews:

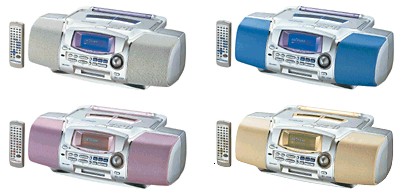

      Sharp MD-F120/F150

      PictureNameDescPriceConnectorsDimensions
      MD-F120
      MD-F150
      Sharp MD-F120
      Sharp MD-F150
      MD/CD/AM/FM boombox
      Intro: 10/2000
      ¥45,000
      Availability:
      IN: analog minijack
      OUT: headphones
      F120: 435 x 158 x ? mm, 4.0kg
      F150: 469 x 168 x 279mm, 5.5kg

      Features: MD/CD/Tuner (F150 also has cassette). MDLP, multicolor optical display (7 different colors) with four different modes (Initial, Fixed, Weekly, Random), 2X CD-to-MD recording speed, timer recording function.

      Links: Sharp's official Japanese press release for the MD-F120/150 models.

      Specs: 10W output for F150, 5W output for F120, 8cm full range speaker (x2), world-band radio (76-108MHz),

      Reviews:

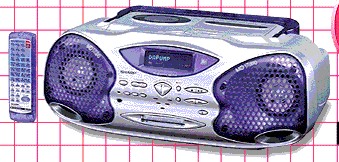

        Sharp MD-F100/F15

        PictureNameDescPriceConnectorsDimensions
        Sharp MD-F100
        Sharp MD-F15
        MD/CD/cass boombox
        Intro: 2/2000
        ¥42,000
        Availability:
        456mm (W) x 166mm (H) x 267mm (D)

        Features: 2X CD to MD recording, Sound Enhancer, availale in four different colors with matching display and remote colors (blue, red, purple, silver), world-band tuner.

        Links: Sharp's Japanese page for this unit. The T-Station has further information on this unit.

        Specs: Speaker output 5W+5W, low .23W power consumption when unit is off.

        Reviews:

          Sharp MD-F200

          PictureNameDescPriceConnectorsDimensions
          Sharp MD-F200AM/FM/Cass/CD/2MD Boombox
          Intro: 8/1999
          ¥68,000
          Availability:
          IN: line, optical. OUT: headphone520w x 207h x 315d mm, 7.7Kg

          Features: Dual MD drives (one is play only, one is rec/play), CD, cassette. High speed (2X) CD to MD and MD to MD copying (in MD to MD case, disc and track titles are also copied). Several "one touch" editing functions to simplify copying and editing. Mono recording mode. Timer recording (one time per day). World band FM tuner.

          Links: Sharp's Japanese page for this unit.

          Reviews:

            Sharp MD-F11

            PictureNameDescPriceConnectorsDimensions
            Sharp MD-F11Cassette/MD/CD boombox
            Intro: 3/1999
            ¥47,000
            Availability:

            Features: One-touch easy recording features between media types, spin-dial for quick titling of MDs, can title tracks while recording, capable of recording to MD in mono.

            Links: Sharp's Japanese page for this unit.

            Specs: Low power consumption of .3W in power off state, 24-bit ATRAC, speaker output 10W.

            Reviews:

              Sharp MD-F20

              PictureNameDescPriceConnectorsDimensions
              Sharp MD-F202MD/CD/FM/Cass boombox
              Intro: 9/1998
              ¥72,000
              Availability:
              IN: line (300mV), optical. OUT: headphone, line (1.8V)520 x 207 x 312mm, 7.8Kg

              Features: 2 MD drives, MD1 is play only, MD2 is play/record. Allows easy dubbing/editing from one MD to another, copying name and disc titles as well as audio. One touch recording for CD->MD, MD->MD, Tape->MD, CD->Tape, and MD->TAPE. Timer: 1 on/off per day.

              Links: Sharp's Japanese page for the unit. Sharp's other Japanese page for the unit.

              Specs: Tuner: FM: 76-108MHz, AM: 522-1629KHz, Freq. resp: 20-20kHz (+1/-3dB).

              Reviews:

                Sharp MD-F10

                PictureNameDescPriceConnectorsDimensions
                Sharp MD-F10MD/CD/FM Boombox
                Intro: 3/1998
                ¥45,000
                Availability:
                IN: line. OUT: Headphones450 x 192 x 277mm, 5.5Kg

                Features: World band tuner. One-button CD->MD recording. IR wireless remote. Display is Kana compatible. Integrated timer (provides timer recording). Silver.

                Links: Sharp's Japanese page for the unit.

                Specs: 20-20KHz +1/-3dB, Tuner: FM: 76-108MHz, AM: 522-1629KHz. Amp: 10 watts. Mono recording capability. AC power consumption: 30W.

                Reviews:

                  Sharp MD-F1

                  PictureNameDescPriceConnectorsDimensions
                  Sharp MD-F1MD/CD Boombox
                  Intro: 11/1997
                  MSRP ¥58,000
                  Availability:
                  in: optical, line. out: line, headphones434 x 264 (345 w/shield up) x 274mm, 6.2Kg

                  Features: MD/CD boombox. Fancy ``Electromotive Sealing Panel'' moves to reveal operating controls underneath. One touch CD to MD copying. Easy editing with ``Hyper Track Edit'' function, allows selection of CD tracks to record while listening to them. ``Pole position'' function moves track to desired location after recording(?). ATRAC compression and expansion done with high accuracy 24 bit calculations. Sampling rate converter. Timer recording and wakeup functions (1 operation/day). I/R remote control.

                  Specs: MD: 20-20kHz (+1/-3dB), FM: 76.0 - 108.0 (world tuner), AM: 522-1629, Speaker: 10cm full range X 2. Amp: 7.5 + 7.5W.

                  Links: Sharp's Japan Audio Fair '97 page showing pictures of their MD boombox and portable prototypes Sharp's Japanese page for the unit.

                  Reviews:

                    Sharp MD-ZV30

                    PictureNameDescPriceConnectorsDimensions
                    Sharp MD-ZV30Desktop MD System
                    Intro: 10/1996
                    MSRP ¥72,000
                    Street ¥51,800
                    Availability:
                    in: line, mic. out: line, headphone550x219x309 mm, 7.6Kg

                    Features: Similar to MD-Z10. Radio/MD/CD boombox. Direct CD->MD digital dubbing/editing. Normal MD track editing plus "program move", which would appear to allow you to rearrange the track order of up to 20 tracks in one step. Jog shuttle dial for entering text and editing. Auto-mark function. Stereo/Mono-recording. Titling: 40 character input per song, katakana input. Date and time stamp recording. Program play (up to 20 tracks across multiple discs), random play, all song repeat. Record/playback timer, sleep timer. 10cm full range speaker. Remote control included.

                    Features unique to ZV30: Microphone input jack. 3 CD changer, 6 mode SRS surround sound. 40 AM/FM presets.

                    Specs: Tuner: AM band: 522-1629KHz, FM band: 76.0-108MHz (world tuner). Amp: 7.5w+7.5w. Power: 36 watts, 100VAC.

                    Links:

                    Reviews:

                      User Manual: MD-ZV30

                      Sharp MD-Z10

                      PictureNameDescPriceConnectorsDimensions
                      Sharp MD-Z10Desktop MD System
                      Intro: 10/1996
                      MSRP ¥65,000
                      Street ¥46,800
                      Availability:
                      in: line. out: line, headphone550x219x309 mm, 6.9Kg

                      Features: Radio/MD/CD boombox. Direct CD->MD digital dubbing/editing. Normal MD track editing plus "program move", which would appear to allow you to set the track order of up to 20 tracks in one fell swoop. Jog shuttle dial for entering text and editing. Auto-mark function. Stereo/Mono-recording. Titling: 40 character input per song, katakana input. Date and time stamp recording. Program play (up to 20 tracks), random play, all song repeat. 10 AM/FM presets. Record/playback timer, sleep timer. 10cm full range speaker. Remote control included.

                      Specs: Tuner: AM band: 522-1629KHz, FM band: 76.0-108MHz (world tuner). Amp: 7.5w+7.5w. Power: 36 watts, 100VAC.

                      Reviews:

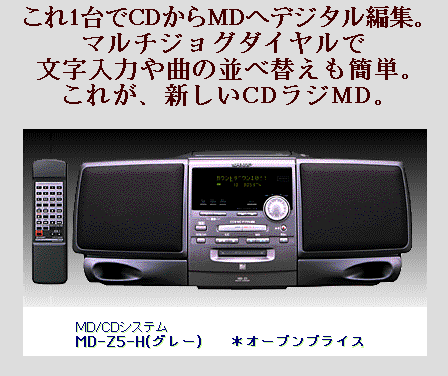

                        Sharp MD-Z5

                        PictureNameDescPriceConnectorsDimensions
                        Sharp MD-Z5Desktop MD System
                        Intro: 11/1995
                        street: ¥45,000
                        Availability:
                        in: ?, out: headphone, ?

                        Features: Radio/MD/CD boombox. Direct CD->MD digital dubbing/editing. Jog shuttle dial for entering text and editing.

                        Links: Sharp's Japanese Page for the unit.

                        Reviews:

                          Sharp MD-Z1

                          PictureNameDescPriceConnectorsDimensions
                          Sharp MD-Z1MD/CD/Radio boombox
                          Intro: 2/1994

                          Availability:

                          Availability:

                          Availability:

                          Features: Industry's first MD/CD/radio all-in-one unit. One-touch CD->MD dubbing.

                          Reviews:
