Microphones

Microphones


Proceeds from this banner donated to Yaldeinu, The Kadimah Orphanage & Home for Boys
  • MiniDisc-UK.co.uk specializes in Minidisc accessories (primarily Sony and Aiwa microphones).
PictureNameDescPriceConnectorsDimensions
Audio Technica AT825Single Point Stereo Microphone$319
Availability:

Description: Designed for professional broadcast and recording, MD and DAT field use. Compact, lightweight design. Closely matched elements provide the spatial impact and realism of a live sound field. Switchable low frequency roll-off. Operates on battery or phantom power. Includes a 16.5' (5 m) cable (5-pin XLRF to two standard 3-pin XLRM connectors).

Links: Audio Technica's AT825 technical data and specifications. The Sound Professionals carry the full line of Audio Technica microphones.

Reviews:

    PictureNameDescPriceConnectorsDimensions
    Audio Technica AT822Single Point Stereo Microphone$259
    Availability:

    Description: Intended for MD or DAT recording as well as television, FM and field applications. Compact, lightweight design is perfect for camera-mount use. Closely-matched elements provide the spatial impact and realism of a live sound field. Excellent channel separation. Switchable low-frequency roll-off. Includes a 1.7' (0.5 m) cable (XLRF-type to stereo 3.5 mm mini-plug); and a 10' (3 m) cable (XLRF-type to two mono 3.5 mm mini-plugs). Internal battery operation only.

    Links:

    Reviews:

      PictureNameDescPriceConnectorsDimensions
      Core Sound Low Cost Binaural and Stealth Cardoid MicrophonesLow Cost Binaural and Stealth Cardoid Microphones$75
      Availability:

      Description: Small, high quality stealth mount microphones. Excellent entry level mics for MD concert tapers. Comparison files available on request. Core Sound can be reached by phone in the USA at: 1-201-801-0812.

      Links:

      Reviews:

        PictureNameDescPriceConnectorsDimensions
        Core Sound Binaural MicrophonesBinaural Microphones$230
        Availability:

        Stealth Cardoid Microphones: Stealth Cardoid Microphones

        $250: $250

        High End Binaural (HEB) Microphones: High End Binaural (HEB) Microphones

        $900: $900

        Description: Small, high quality stealth mount microphones. These mic have matched and modified capsules that provide high sound quality and lower distortion, especially when recording very loud performances. Binaurals are omnidirectional. Stealth Cardioids are directional. The HEBs use Danish Pro Audio 4061 capsules. Comparison files available on request. Core Sound can be reached by phone in the USA at: 1-201-801-0812. Links:Extensive information and order forms on Len Moskowitz's Binaural Mic Page and Cardioid Mic Page.

        Links:

        Reviews:

          PictureNameDescPriceConnectorsDimensions
          Radio Shack Stereo Hands-Free Tie-Clip Electric MicStereo Hands-Free Tie-Clip Electric Mic$29.99
          Availability:

          Description: Tiny clip-on dual mic has 30-18,000Hz response and a 4-ft. cord that plugs into a compact on/off switch, also with clothing clip. 16-ft. cord with two 1/8 " plugs at other end. Includes battery (#23-105). Microphone can be plugged directly into an MD unit, bypassing the included amplifier.

          Links: Radio Shack has this item available for order from their website.

          Reviews:

            PictureNameDescPriceConnectorsDimensions
            Reactive Sounds Pen MicrophoneMono microphone mounted in a ball-point pen housing$40
            Availability:
            irregular, 3' cable

            Manufacturer's Description: Unit is a ballpoint pen modified to hold an omni-directional microphone element. Intended for personal hands free dictation, memo recording, or as a portable microphone for sound projects. Designed to operate with Minidisc, DAT, and personal dictation recorders that provide plug-in power on the 'mic-in' port. (Can be used with most video cameras as well, but check your unit before purchasing).

            Samples: A 30sec mp3 demo recording of the 'pen mic' and a Sharp MS-722 MD.

            Links: Reactive Sounds website.

            Specs (Electret microphone specifications):

            • Omni directional pick up pattern
            • Sensitivity: -35dB+- 4dB
            • Frequency range: 20-20,000 Hz ("flat")
            • 3ft shielded lightweight mic cable
            • Metal shielded 1/8" plug with durable outer casing.

            Reviews:

              PictureNameDescPriceConnectorsDimensions

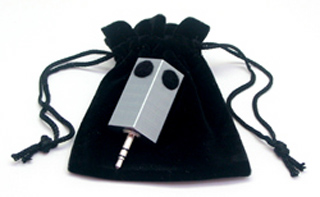

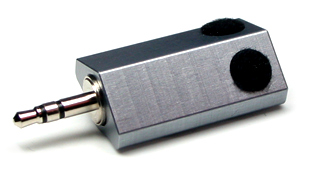

              Reactive Sounds Delta MicrophoneStereo plug-mounted microphone
              Intro: 9/2002
              US$60
              Availability:
              1/8" stereo phone plug1.25" x 3/4"

              Manufacturer's Description: This is a miniature stereo MD microphone. Can also operate with DAT, video cameras and personal dictation recorders that provide plug-in power on the 'mic-in' port. This unit is well-suited to reporters, journalists, students, law enforcement officials and lectures who wish to have right/left channel separation. Available in three anodized colors black, pewter and aluminum.

              The "Delta" mic is housed in an anodized, aircraft aluminum housing for durability, reliability, and RF (radio frequency) rejection. Two omni directional back electret microphone"s are set 600 apart for maximum stereo efficiency. This is an ideal situation for any stereo recording.

              Samples:

              Links:

              Specifications:

              • High Quality Electret microphone elements
              • Sensitivity: -42 dB (+- 3db)
              • Frequency Response: 20 - 20,000 Hz
              • Signal To Noise Ratio: 58 dB, 1 kHz at 1 Pa
              • Dynamic Range: 90dB
              • Anodized aluminum housing
              • Metal shielded 1/8" plug with durable outer casing

              Reviews:

                PictureNameDescPriceConnectorsDimensions

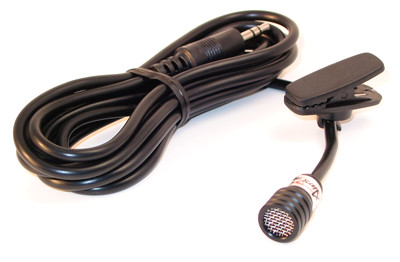

                Reactive Sounds Auris Stereo MicrophoneStereo MicrophoneUS$120
                Availability:
                Out: 1/8" stereo plug. 72" Dual Channel Cable length

                Manufacturer's Description: The Auris Stereo Microphone features a unique internal shock mount system to reduce handling noise. Machined from a non metallic polymer, which feels like velvet and is as tough as metal. The cable is securely held in place by a cable lock strain relief system, which makes the Auris system a very durable microphone. Auris comes with adjustable clothing clips and windscreens.

                Designed for Digital recorders such as MiniDisc, MP3, and any recorder featuring a microphone port for external microphones.

                Specifications:

                • Output connector: 3.5mm shielded Stereo mini plug

                • Cable length: 72" Dual Channel cable

                • Cable style: copper spiral wrap shield for rf rejection, O.D 3mm/side.

                • Dimensions: 0.43" (10.5mm)diameter x 0.73" (18.7mm)overall length

                • Power requirements: 2-10v DC supplied by external power from      recorder (Plug-in-power)

                • Case Material: Delrin� acetal resin
                • Case finish: Matte-black

                • Sensitivity: -42 dB (+- 3db)

                • Frequency Response: 20 - 20,000 Hz

                • Signal To Noise Ratio: 58 dB, 1 kHz at 1 Pa
                • Dynamic Range: 90dB
                • Maximum Input Sound Level: 105 dB SPL

                • Windshield: Premium 30 pore per inch foam

                Links: More information at: http://www.reactivesounds.com

                Reviews:

                  PictureNameDescPriceConnectorsDimensions
                  Reactive Sounds Auris Mono MicrophoneDual Channel Mono MicrophoneUS$60
                  Availability:
                  Out: 1/8" stereo plug. 72" cable length

                  Manufacturer's Description: The Auris Mono Microphone features a unique internal shock mount system to reduce handling noise. Machined from a non metallic polymer, which feels like velvet and is as tough as metal. The cable is securely held in place by a cable lock strain relief system, which makes the Auris system a very durable microphone. Auris comes with adjustable clothing clip and windscreen.

                  Designed for Digital recorders such as MiniDisc, MP3, and any recorder featuring a microphone port for external microphones.

                  Specifications:

                  • Output connector: 3.5mm Stereo mini plug

                  • Cable length: 72" superflex cable

                  • Cable style: copper spiral wrap shield for rf rejection, O.D 3mm

                  • Dimensions: 0.43" (10.5mm)diameter x 0.73" (18.7mm)overall length

                  • Power requirements: 2-10v DC supplied by external power from      recorder (Plug-in-power)

                  • Case Material: Delrin� acetal resin
                  • Case finish: Matte-black

                  • Sensitivity: -42 dB (+- 3db)

                  • Frequency Response: 20 - 20,000 Hz

                  • Signal To Noise Ratio: 58 dB, 1 kHz at 1 Pa
                  • Dynamic Range: 90dB
                  • Maximum Input Sound Level: 105 dB SPL

                  • Windshield: Premium 30 pore per inch foam

                  Links: More information at: http://www.reactivesounds.com

                  Reviews:

                    PictureNameDescPriceConnectorsDimensions
                    Reactive Sounds 'Reporter'Mono, plug-mounted microphone$24.95
                    Availability:
                    1.75 inches

                    Manufacturer's Description: This is a miniature monaural hi-fi microphone that can be used with any MD recorder. Can also be used with DAT and personal dictation recorders that provide plug-in power on the 'mic-in' port. This unit is well-suited to reporters, journalists, students, law enforcement officials and lectures.

                    Links: Reactive Sounds Website

                    Specifications:

                    • Electret microphone element

                    • Sensitivity: -42 dB (+- 3db)

                    • Frequency Response: 20 - 20,000 Hz

                    • Signal To Noise Ratio: 58 dB, 1 kHz at 1 Pa
                    • Dynamic Range: 90dB
                    • Maximum Input Sound Level: 105 dB SPL (120db when used with our juice box)
                    • Metal shielded 1/8" plug with durable outer casing

                    • Windshield:Premium 30 pore per inch, foam.

                    Reviews:

                      PictureNameDescPriceConnectorsDimensions
                      The Sound Professionals Mini Single Point Stereo "T" microphoneMini Single Point Stereo "T" microphone$49; $59 with clip; $69 with cable and clip
                      Availability:
                      1.5" X 1.75"

                      Description: A small, omni-directional single point stereo microphone that can be easily plugged into any recorder (DAT, Mini Disc or analog) that has "plug in power" at the microphone input jack. Used for recording lectures, business meetings, rehearsals, and musical performances where stereo separation is not critical but excellent sound quality is.

                      Links: The Sound Professionals "T" mic page

                      Reviews:

                        PictureNameDescPriceConnectorsDimensions
                        The Sound Professionals Micro Binaural MicrophonesMicro Binaural Microphones$99
                        Availability:

                        Description: Extremely small, high quality Binaural (Omni-directional) microphones.

                        Links: The Sound Professionals Binaural page; Binaural vs Cardioid FAQ

                        Reviews:

                          PictureNameDescPriceConnectorsDimensions
                          The Sound Professionals Lapel Microphones

                          Standard Omni-directional Lapel Microphone
                          Micro Omni-directional Lapel Microphone
                          Shure Cardioid Lapel Microphone
                          Audio Technica Cardioid Microphone

                          $39
                          $59
                          $79
                          $59


                          Availability:

                          Description: Small, high quality Cardioid lapel microphones.

                          Links: The Sound Professionals Lapel microphone page; Also used in Law Enforcement and Surveillance

                          Reviews:

                            PictureNameDescPriceConnectorsDimensions
                            The Sound Professionals Headphone mounted Cardioid MicrophonesHeadphone mounted Cardioid Microphones$79
                            Availability:

                            Description: Small, high quality Cardioid microphones mounted in Walkman style headphones.

                            Links: The Sound Professionals Cardioid page; Binaural vs Cardioid FAQ

                            Reviews:

                              PictureNameDescPriceConnectorsDimensions
                              The Sound Professionals Headphone mounted Binaural MicrophonesHeadphone mounted Binaural Microphones$69
                              Availability:

                              Description: Small, high quality Binaural (Omni-directional) microphones mounted in Walkman style headphones.

                              Links: The Sound Professionals Binaural page; Binaural vs Cardioid FAQ

                              Reviews:

                                PictureNameDescPriceConnectorsDimensions
                                The Sound Professionals Handheld Cardioid Single Point Stereo "T" microphoneHandheld Cardioid Single Point Stereo "T" microphone$179 with cable, hand grip/mic stand mount
                                Availability:


                                Description: A small hand held or mic stand mounted cardioid single point stereo microphone with flexible arms that can be easily plugged into any recorder (DAT, Mini Disc or analog) that has "plug in power" at the microphone input jack. Used for recording lectures, business meetings, rehearsals, and musical performances where excellent stereo separation and sound quality are required. Easy to hold or mount to mic stand.

                                Links: The Sound Professionals "T" mic page

                                Reviews:

                                  PictureNameDescPriceConnectorsDimensions
                                  The Sound Professionals Clip-on musical instrument microphoneClip-on musical instrument microphone$169.00
                                  Availability:

                                  Description: Clip-on microphone, suitable for many musical instruments. Mic capsule mounted on a flexible gooseneck that can be positioned in any direction. Based on Audio Technica PRO 35X series microphone. Includes battery pack with volume control/power switch and belt clip. Long life 600 hour battery. Also available with with Audio Technica and Samson wireless systems.

                                  Links: The Sound Professionals specialty mic page

                                  Reviews:

                                    PictureNameDescPriceConnectorsDimensions
                                    The Sound Professionals Cardioid Single Point Stereo "T" microphoneCardioid Single Point Stereo "T" microphone$159
                                    Availability:


                                    Description: A small cardioid single point stereo microphone with flexible arms that can be easily plugged into any recorder (DAT, Mini Disc or analog) that has "plug in power" at the microphone input jack. Used for recording lectures, business meetings, rehearsals, and musical performances where excellent stereo separation and sound quality are required.

                                    Links: The Sound Professionals "T" mic page

                                    Reviews:

                                      PictureNameDescPriceConnectorsDimensions
                                      The Sound Professionals Cardiod Microphones

                                      Standard Cardioid Microphones
                                      Premium Cardioid Microphones
                                      Slimline Cardioid Microphones
                                      Miniature Shotgun Microphones
                                      Premium Shure Cardioid Microphones
                                      Premium Shure Super-Cardioid Mics

                                      $99 no clips - $119 w/clips
                                      $159 no clips - $179 w/clips
                                      $199 no clips - $219 w/clips
                                      $229 no clips - $249  w/clips
                                      $139 no clips - $159 w/clips
                                      $149 no clips - $169 w/clips


                                      Availability:

                                      Description: Small, high quality Cardioid and Shotgun microphone systems for live recording in less than ideal situations (noisy audiences, bad acoustics, far from the source, etc.). Premium versions have interchangeable elements available with various pickup patterns.

                                      Links: The Sound Professionals Cardioid page; Binaural vs Cardioid FAQ

                                      Reviews:

                                        PictureNameDescPriceConnectorsDimensions
                                        (1024x768)
                                        The Sound Professionals Binaural MicrophonesStandard Binaural Microphones
                                        Deluxe Binaural Microphones
                                        Premium Binaural Microphones
                                        Shure Premium Binaural Microphones
                                        $59 no clips - $69 w/clips
                                        $119 no clips - $139 w/clips
                                        $199 no clips - $219 w/clips
                                        $149 no clips - $169 w/clips
                                        Availability:

                                        Description: Small, high quality Binaural (Omni-directional) microphone systems. Premium versions have interchangeable elements available with various pickup patterns.

                                        Links: The Sound Professionals Binaural page; Binaural vs Cardioid FAQ

                                        Reviews:

                                          PictureNameDescPriceConnectorsDimensions
                                          The Sound Professionals "Otter Box" Single Point Stereo microphone"Otter Box" Single Point Stereo microphone

                                          Small: $79; $109 with built-in power module for loud recordings

                                          Large: $89: $119 with built-in power module for loud recordings


                                          Availability:

                                          6.5" X 3 7/8" X 1 5/8"



                                          7 7/8" X 3 13/16" X 1 1/2"

                                          Description: A single point stereo microphone that is built into a water resistant "Otter Box" Just place MD recorder in box, plug in mic cable and go. Excellent stereo separation. Used for recording lectures, business meetings, rehearsals and musical performances where good stereo separation and sound quality is preferred. Version with power module used for recording of loud sounds.

                                          Links: The Sound Professionals "T" mic page

                                          Reviews:
