Device
Sharp MD-MT270/MT290
Historical source · MiniDisc.org archive
- Manufacturer
- Unknown
- Model / source grouping
- MD-MT270 / MT290
- Device type
- Unknown
- MDLP modes
- Unknown
- NetMD interface
- Unknown
- Hi-MD support
- Unknown
Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.
No directly linked document has been identified for this record. Search the manual library or consult the source below.
Accessories & internal parts
Source-referenced components. Check conditions before substituting parts.
Preserved historical reference
Original source · Original dates and notices remain in the article. Historical advice may no longer apply.
Sharp MD-MT270/MT290
All, notes, MD-DR77, IM-DR580/DR80, DR400/DR410/DR420, MD-MT270/MT290, DR470/DR480/DR7, MT170/MT180/MT190/MT200, IM-MT880/MT899, MD-MT770/MT888, MT88/MT99, MT80/MT90, MT77/MT877, MT66/MT866, MT50/SR50/SR60/SR70/SR75, MT831/MT832, MT15/MT16/MT20, MT821, MS721/MS722, MS701/MS702, MS200, MS100, M25, M20, M11
| Picture | Name | Desc | Price | Connectors | Dimensions |
|---|
(1228x941)
MT-MT290
(1280x1268)

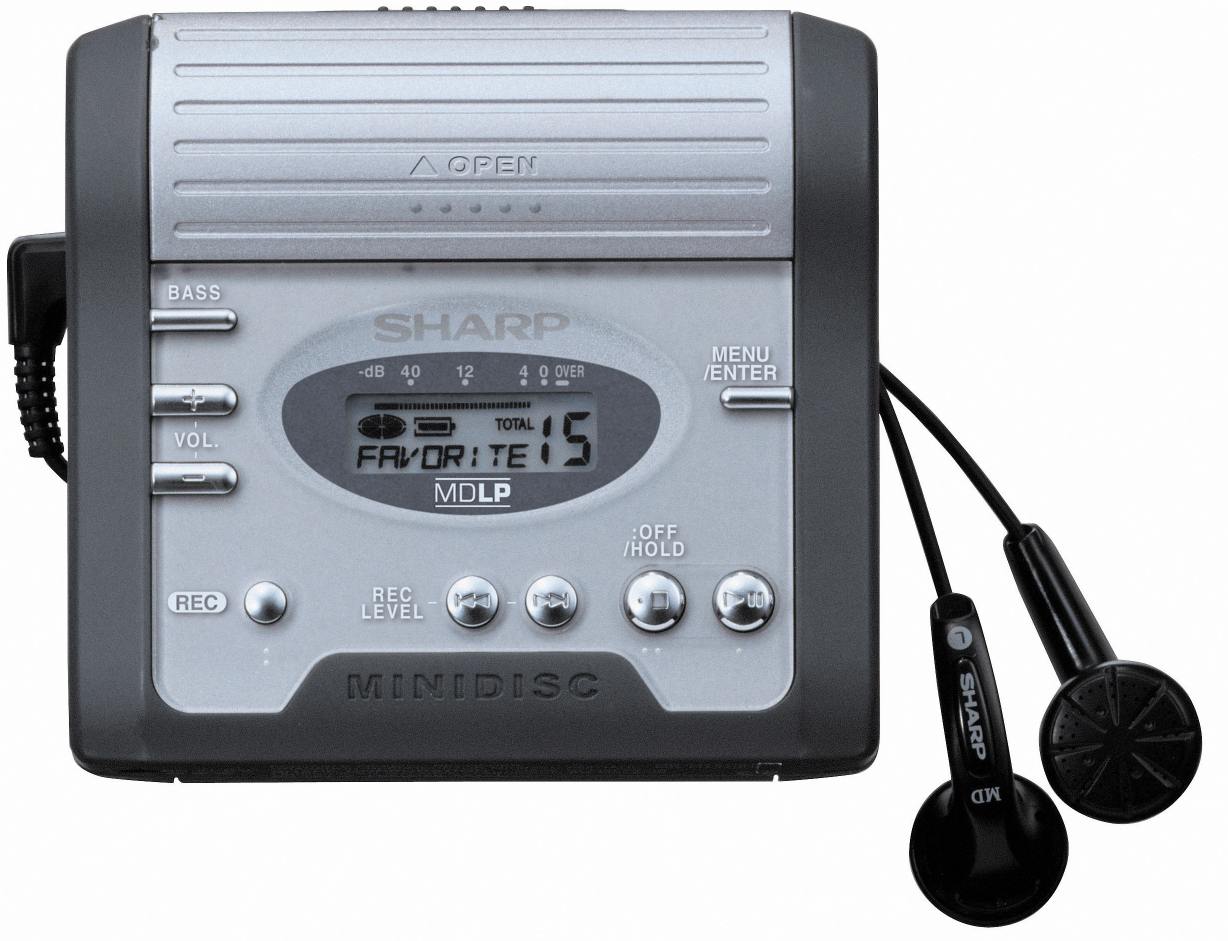

| Sharp MD-MT270

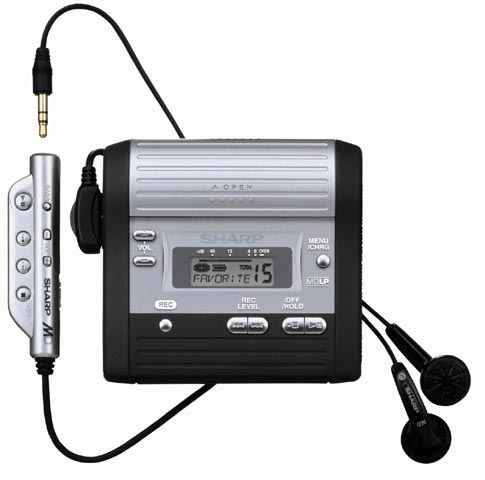

Sharp MD-MT290 | portable MDLP recorder
Intro: 2/2003 | Street: £100
Availability:
| In: line/optical, (mic: MT-MD290 only). Out: headphones, DC IN: 1.5V-5.0V | 83 x 28 x 77mm, 107g (body only), 134g w/battery |
Features:
- MDLP support
- 3-step X-Bass.
- In common with all modern Sharp portable recorders:
- Synchro recording for digital and analog (LINE/MIC) sources.
- Character Stamp (Sharp feature since MD-MS200 that
provides quick title text transfer from original to newly recorded disc)
- Recording level control may be adjusted while recording is underway.
- No automatic recording level setting.
Variants: MD-MT270 has no remote or microphone input, MD-MT290 has a non-LCD remote
and microphone input.
Links:
Included Accessories: Earphones, AC adapter, RCA cable. Europe: optical cable
Specs: Headphone amp: 10mW+10mW RMS @ 32 ohms (0.2%THD), Line out: 250mV (-12dB), Freq. Resp: 20-20kHz +/-3dB
Reviews:
| Battery Life | Play | Record |
| NiMH cell | 25/29/34 hr | 10/13/17 hr |
| AA x 1 | 33/44/52 hr | 8/11/16 hr |
|
