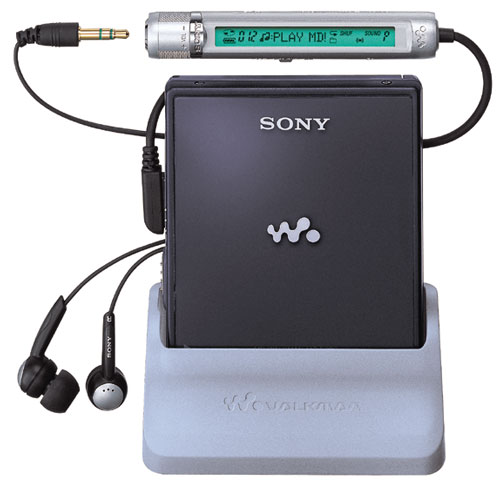

Features:

• New High Definition Digital amp IC (10dB less noise than MZ-E710 at low volumes).
• New "Quick start" function keeps audio data in memory, reducing startup time from dead stop to about 0.4 seconds.
• Aluminum body.
• ATRAC Type-S.
• 6-band equalizer.
• VPT ("Virtual Phone Technology") Acoustic Engine (cannot be used simultaneously w/6-band equalizer).
• One touch eject.
• Available in silver, blue, pink and brown.

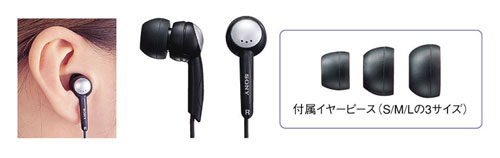

Included Accessories: MDR-EX51 earbuds, backlit 9-character Roman/Kana LCD remote, NiMH cell, charge stand, external AA cell case, carrying pouch, AC adapter

Links:

• Sony page
• GAZ Webshop (Japan) selling MZ-E620 and MZ-E720.

Specs: 5mW+5mW into 16 ohms

Reviews:

Features:

• ATRAC DSP Type-S.
• Headphone cord retracts into LCD-remote.
• Group mode functions.
• Available in silver, blue, green and pink.

Links:

• Aiwa Japan page
• Minidisc T-Station page

Reviews:

Features:

• E.A.S.S. GP shock protection
• Backlit LCD remote

Links:

• Aiwa/Sony (Japan)
• AVWatch (Japan)

Reviews:

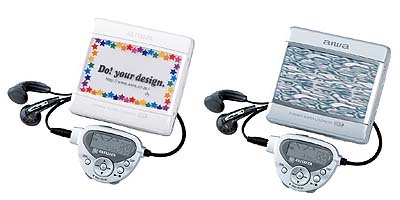

Features: Targeted at teenagers and young women in their 20s, users can create their own original MD player by placing a printed film, photo, or illustration inside the large front panel on the AM-HX300's main unit. MDLP long-time playback mode, MD Group function compatible, battery charger stand, program search function that automatically lists the names in Japanese kana and alphanumeric order (allowing users to view the titles on the remote control unit's LCD panel and select a favorite song), sentence repeat function, 25-track programming, 40-second/80-second (LP2)/160-second (LP4) skip-preventing memory.

Links: Aiwa's official Japanese page for the AM-HX300. T-Station has some further information on the AM-HX300.

Specs: 3.8mW+3.8mW output.

Reviews:

Features: Playback starts in approximately 0.6 seconds after start (unit achieves this short time by reading and storing the music data in the main unit's memory when the disc is first inserted, retained whether the power is turned on or off). MDLP long-time playback mode, MD Group function compatible, battery charger stand, program search function that automatically lists the names in Japanese kana and alphanumeric order (allowing users to view the titles on the remote control unit's LCD panel and select a favorite song), sentence repeat function, 25-track programming, 40-second/80-second (LP2)/160-second (LP4) skip-preventing memory.

Links:

• Aiwa's official English page for the AM-HX400 (local copy).
• T-Station has some further information on the AM-HX400.
• Minidisco sells this unit.

Specs: 3.8mW+3.8mW output.

Reviews:

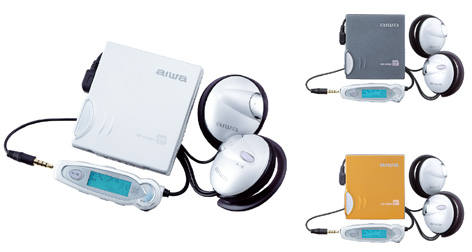

Features: Smallest and lightest portable MD player as of May 2001. MDLP compatible. Includes clip-type headphones that wrap behind one's ears, with pause and play buttons located on the headphone housing. 40-second anti-shock protection (160 seconds in LP4 mode), unit is recharged by being placed in recharging stand, sentence repeat function, LCD can be disabled to extend battery life, backlit LCD remote control,

Links: Aiwa's official English page for the AM-HX150. A Japanese press release covering the AM-HX150.

Specs: 8mW x 2 output. Times listed are for SP/LP2/LP4 modes.

Reviews:

Features: World's smallest and lightest portable MD player, with longest playback time (as of April 2001). MDLP and Group Function compatible. 40-second anti-shock protection, remote control has 10-character backlit LCD, sentence-repeat function, unit is recharged by placing it in recharge stand, power-saving mode to extend battery life (by disabling the LCD), programmable alarm functions, available in silver, black, and blue.

Links: Aiwa's official English page for the AM-HX100. The T-Station also has a page on the Aiwa AM-HX100.

Specs: 8mW per channel. 100V AC when using included AC adapter. Times listed are for SP/LP2/LP4.

Reviews:

Features: MDLP support. All-titanium body (first for Japanese market) with double the rigidity of aluminium. Sentence repeat function (to assist language learning): using any 0.5-second silence as an identifier, unit will repeat the "sentence" 9 times. "Digital tone processor" allows for bass/treble adjustment (-6 to +6). Alarm function (settable from 1 to 180 minutes), 25 track program play, power save mode ("PS"), as on previous Aiwa players. 10 chararcter backlight multi-jog remote. Track select during playback has been updated: when viewing the track list during playback, the tracks are displayed in sorted order (Japanese titles sorted in Japanese character sort order).

Accessories included: LCD remote control, stereo headphones, battery charger stand, AC adapter, nickel-hydrogen rechargeable battery, battery case, carrying case, clip for remote control unit, rechargeable battery carrying case.

Links: Aiwa's English and Japanese pages for the unit. JIJ Announcement (Japanese).

Specs: 8mW+8mW headphone output. 20-20,000Hz, +-1dB (with 10 ohm load). 1 bit DAC.

Reviews:

Features: 40-second anti-shock protection, backlit LCD remote, "Digital Tone Processor", "sentence repeat" function, alarm function (1 minute to 3 hours), 1-bit D/A converter, 25-track program mode, 3-point battery check indicator.

Links: Aiwa's Hong Kong website has a page for the AM-HX77. T-Station has an Aiwa AM-HX77 info page.

Reviews:

Features: Power-save function extends battery life (see battery table below). 25-track programmable playback function, digital tone processor (bass/treble control), 40-second anti-shock memory, and several alarm functions. A "sentence repeat" mode will loop a portion of audio that has at least half-second moments of silence at each end, supposedly this feature is useful when learning another language and using MiniDisc.

Links: Aiwa's official page for this unit. Josh Pelland wrote up a great in depth review of his player.

Specs: 8mW per channel.

Reviews:

Features: Available in three colors, power save feature allows unit to run for an extended period of time, backlit LCD remote control, alarm function, 40-second skip protection, three step base boost.

Links: Aiwa's English page for this unit.

Reviews:

Features: 25 track program play mode, 40-second anti-skip buffer, alarm function, program search, backlit LCD,

Reviews:

• Tim Yocum writes a review of the AM-HX55.

Links: Aiwa's English page for this unit. R.M.Morrien has started an Aiwa AM-HX55 page, with some good photos of the unit. Minidisco has a rotatable 3-D spinning image of this unit.

Specs: headphone output 8mW per channel (load impedance 16 ohms), NiMH battery DC1.2V, 1 AA alkaline battery DC1.5V, 100 VAC household current.

Features: Was smallest, lightest portable player with longest battery life for a short period of time (July 1999). Display of both the disc name and track number on the remote, programmable playback, backlit LCD remote control, 40-second skip preventing memory, alarm function,

Links: Aiwa's English page for this unit. Dave Bell has made a Aiwa AM-HX50 review. Ian McFarlane has made a review of the Aiwa AM-HX50 player. HiFi Choice magazine (UK) has a review.

Specs: Frequency range of 20 - 20,000Hz, �1dB (with 10 ohm load), headphone output 8mW per channel (load impedance 16 ohms),

Reviews:

Features: "Outdoor type" player, with carrying strap, neck strap, and corner bumpers. Unusual "Time Alarm" function can be set at designated time intervals, from 10 minutes to three hours, in one-minute increments. An electronic alarm sounds at the designated time. This function can also start MD playback at a selected time. Backlit remote with 10 character display shows MD disc name, track name and number, and functions. Program play (25 track), 40 sec shock memory.

Links: Aiwa's English and Japanese pages for the unit. MiniDisc World's review for this unit.

Reviews:

Features: ATRAC 4.5 Back-lit remote, song name search, 25 program play, 40 second shock memory. 8 hours playback on internal rechargeable cell.

Links:

• Aiwa's English page for the AM-HX30 portable player.
• The AM-HX30 is awarded the Etown Editor's pick position for best portable MD player.

Reviews:

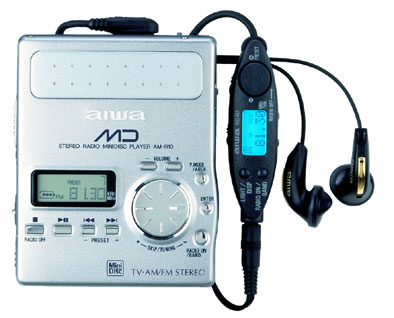

Features: Built in AM/FM/TV tuner (Euro/US models [do they exist?] have world band AM/FM tuners). Backlit remote, jog dial for track or radio station selection. Double speed playback option.

Tips: To set the radio's tuning band (Japan, Europe, US) try these steps: 1) Press ENTER. Within one second jog + on the TUNING jog shuttle. 2) Press PRESET + or - key to cycle through JPN,USA,EU. 3) Press ENTER to lock in your choice. [from [email protected]]

Links: Aiwa's English page for the unit.

Specs: Headphone amp: 10mW+10mW

Reviews:

Features: Jog dial for track selection, double speed playback mode, backlit remote. Program (up to 25 tracks), repeat 1, repeat all, and shuffle play modes. Silicon rubber cushions on ear caps for better fit and bass reproduction. 1 bit D/A. Battery life: Rechargeable LiIon: 7 hr, AAx3: 19 hr, both: 26 hr. Recharge time: 2hr.

Links: Aiwa's English page for the unit. Japan Direct's clear photos of the unit.

Specs: Headphone amp: 10mW+10mW

Reviews:

Features: Reportedly a clone of the Sharp MD-S10. ATRAC 1(?) 3 second shock memory. One step bass boost. PLSS (personal listening setting) changes sound so that headphone noise does not disturb others. Opens with button, not slide. Remote displays: track number, play mode (random, repeat), bass boost, PLSS, battery empty. Rechargeable 4.8v (NiCad?) battery life: pre-recorded MD: 100 minutes, recordable MD: 90 minutes. AC adapter can charge battery and operate the unit simultaneously. Full charge: 5 hours. Button press confirmation beep may be toggled by holding the DSL/PLSS button for 3 seconds while in playback or stop mode. Pushing the play button repeatedly toggles the play mode (normal, repeat, random).

Specs: THD: 0.07%, Headphone amp: 15mw+15mw

Reviews:

Features: Appears to be clone of the Casio XG-3. Top (clamshell) disc loading. Uses one AA battery or AA-shaped NiMH rechargeable battery (included) Backlit in-line remote. Unit has all controls on remote, main body has only "hold" button and "open" slider. Two level Bass Boost. Battery save feature (the 10 sec. buffer is switchable to autoPS (auto power save, or buffer off) or PS off (buffer on)). Includes headphones (standard style, not ear buds seen in Best Buy ads), drawstring bag, and AC adapter for playback and in-unit battery charging.

Variants: Unit has been rebadged and sold by several others, including Goodmans (UK) who sold it at two different times, each with different model numbers(!) (the GMD16RB and MD100).

Mis-features: No recharging while playing, no "mono" indicator on display (but plays mono discs fine), 3 (!) hours on an LR6 (AA) battery, 5 on the NiCad battery (?!).

Links: Apparently imported (and manufactured?) by Venturer Electronics 725 Dennison Street, Ontario L3R 1B8 Canada. Unit appeared in a Best Buy advertising flyer. Best Buy sells the MDP1 for $79 (for a brief period of time in November 2000, the unit was available for $49 with free shipping!).

User comments: Upon listening, it sounds great, plays great, and is pretty good all-around. My only gripe is that is has pretty short battery life. For anyone who is just getting into the MD hobby, or a budget-minded pro who wants a travel companion, this is the unit to get! If anyone would like to contact me, I can be reached at [email protected]. -Dave Cruz

Reviews:

User Manual: MDP-1

Features: 40 second shock memory [powersave off/on], 2 step bass boost, backlit remote, repeat, random, track skip and search.
MD info on remote: [Total # of tracks, total play time, disc name] or [Current track #, track time, track name].
Unit info on remote: 4 segment power, bass boost, play mode, volume, shock buffer status and 6 character text. No LCD on body. Unit accepts NiMH in AA formfactor, or AA cell.

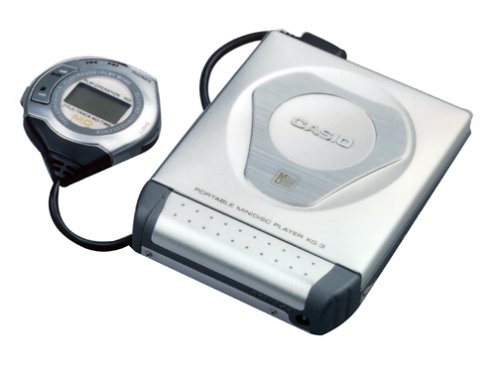

Links: Christopher Vallo's review of the unit. The Casio XG-3 MD player is spotted at Circuit City (search for "casio xg3").

Reviews:

Features: 40 second shock memory [2 step, settable], 24 track program play. 3 step bass boost.

Links: Puwa-risu's excellent Japanese MD site has info on this unit.

Reviews:

Features:

• Mindblowing 315 hour battery life (nearly two weeks continuous running!)
• 3 blinking LEDs indicate playback mode and battery condition.
• 4 Equalizer settings: "energy", "crystal", "subway", "heartful".
• "Active Clear Bass" 2 step bass boost.
• Available in green, pink and blue.

Links:

• JVC Press release
• AV Watch (Japan)
• Minidisc T-Station page

Specs: Amp: 3mW+3mW

Accessories: LCD remote, earphones, NiMH cell, charging stand, carrying pouch, AA cell case, manual

Reviews:

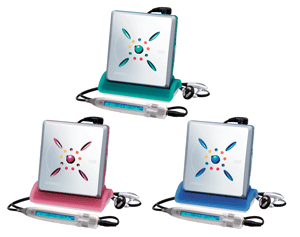

Features:

• Mono speaker built into case.
• Digital amp.
• 3 blinking LEDs indicate playback mode and battery condition.
• 4 Equalizer settings: "energy", "crystal", "subway", "heartful".
• "Active Clear Bass" 2 step bass boost.
• Simultaneous recharging (in charge stand) and playback possible.
• Available in green, pink and blue.

Links:

• JVC Press release
• AV Watch (Japan)
• Minidisc T-Station page

Specs: Amp: 3mW+3mW, Speaker amp: 95mW (Mono)

Accessories: LCD remote, earphones, NiMH cell, charging stand, carrying pouch, AA cell case, manual

Reviews:

Features: MDLP capable, group mode functions. Unit incorporates small speaker in charging stand. "A-B Repeat" function allows arbitrary section of disc to be repeated (intended for language learning). 7 step bass and treble controls. Multicolor "Rainbow Illumination" LED built into charging stand indicates when unit is charging. Sleep timer and timer alarm promote and prevent (resp.) missed train stops. Disc "one touch eject" mechanism. Colors: Silver, Blue, Pink.

Links:

• JVC announcement for unit (mech. trans).
• Minidisc T-Station page for unit.

Accessories: LCD remote, headphone, NiMH cell, charging stand (with speaker), AC adapter, carrying pouch

Specs: Headphone amp: 5mW+5mW, 20-20kHz +/-3dB

Reviews:

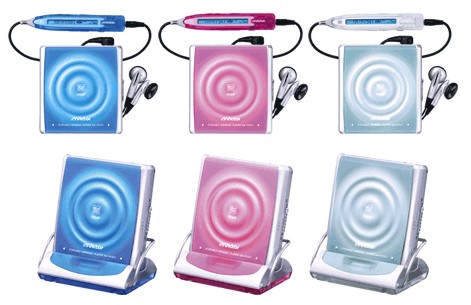

Features: MDLP and Group function support. Unit's body changes color as it charges. 40-second anti-shock protection (160 seconds in MDLP 4X mode), A-B Repeat function, 7 step Bass/Treble adjustments, Redesigned LCD remote, "Top-open" clam shell disc insertion.

Links: JVC's official Japanese page for the XM-PX501. MiniDisc T-Station has further information on the XM-PX501.

Included Accessories: LCD remote, headphones, NiMH rechargeable cell (BN-R129), Charging stand, AC adapter, carrying pouch

Specs: Headphone amp: 5mW+5mW, Dynamic Range: 20-20kHz (+/-3dB)

Reviews:

Features: MDLP and Group function support. A small speaker has been incorporated into the charging stand, to allow music playback without headphones. 40-second anti-shock protection (160 seconds in MDLP 4X mode), A-B Repeat function, 7 step Bass/Treble adjustments, Redesigned LCD remote, "Top-open" clam shell disc insertion.

Links: JVC's official Japanese page for the XM-PX601. Minidisc T-Station has further information on the XM-PX601.

Included Accessories: LCD remote, headphones, NiMH rechargeable cell (BN-R129), Charging stand with built-in speaker, AC adapter, carrying pouch

Specs: Headphone amp: 5mW+5mW (EIAJ/DC), Charging stand speaker amp: 170mW (EIAJ/AC), Dynamic range: 20~20kHz (+/-3dB)

Reviews:

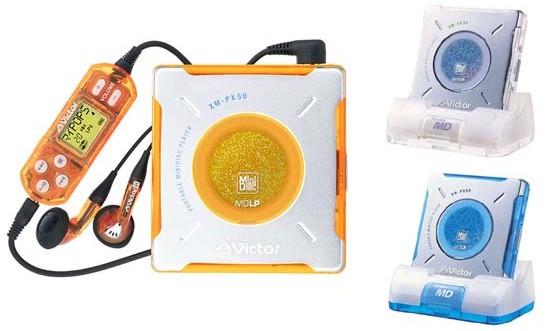

Features: MDLP support, Digital A.C.BASS circuitry, 7-level adjustable bass/treble control, backlit remote, 40 seconds anti-shock protection, alarm function, auto power off, charging stand lights up to indicate battery charge.

Links:

• JVC's official Japanese page for the XM-PX50.
• JVC UK press release.
• The JVC Appreciation Page has some photos of the XM-PX50.

Specs: Headphones amp: 3mW+3mW at 10% THD, 16 ohms

Reviews:

User Manual: XM-PX50

Service Manual: XM-PX50

Features: Lightest MD portable as of October 2000. Aluminum body, MDLP support, Digital A.C.BASS circuitry, 7-level adjustable bass/treble control, backlit remote, 40 seconds anti-shock protection, alarm function, auto power off, charging stand lights up to indicate battery charge.

Links: JVC's official Japanese page for the XM-PX50. The JVC Appreciation Page has some photos of the XM-PX50.

Specs: 5 mW headphones output.

Reviews:

User Manual: XM-PX70

Features: First MDLP portable player. Aluminum body and aluminum "lipstick" remote. Auto power off, defeatable beep.

Links: JVC's Japanese page for the unit.

Reviews:

Links: JVC's Japanese page for this unit.

Reviews:

Links: JVC's Japanese page for this unit.

Reviews:

Features: Available in pop candy colors ("navel orange", "blueberry", "lemon yellow"). LCD on remote. Repeat/Random play modes. Remote beep on/off. "Active Clear Bass" boost employing DSP. "Train" mode (less disturbing to those sitting nearby). 40 second shock memory.

Links: JVC's Japanese page for this unit (machine translation). A photo of Sanrio's Hello Kitty version of the unit.

Specs: Headphone amp: 5mW+5mW

Reviews:

Features: Magnesium alloy body, Lipstick style aluminum remote.

Links: JVC's Japanese page for this unit. An English translation of JVC's XM-PX5 player announcement. Tony Wang contributes an informative JVC XM-P5 review, and also sends in a substantial Panasonic SJ-MJ75 vs. JVC XM-PX5 comparison gallery.

Reviews:

User Manual: XM-PX5

Features: 40 second shock memory. "Active clear bass" (adjusts the boost level according to the signal level, giving strong bass without distortion, even when the volume setting is high). 10 character backlit LCD remote.

Links: Japanese announcement of Victor XM-P77

Reviews:

Features: 40 second shock memory, ``Active Clear Bass'' (adjusts the boost level according to the signal level, giving strong bass without distortion, even when the volume setting is high). LCD remote with ``jog control'', 10 character backlit main LCD and an unusual ``Favorite Track'' function that lets you set where you'd like an MD to start playback. Battery life: NiMH: 7 hrs, with AA cell added: 16 hrs.

Links: JVC's Japanese page for the unit. A user's comments on the unit with links to more photos. JVC Belgium's XM-P55 page. Tony Wang contributes an informative JVC XM-P5 MD player review.

Reviews:

User Manual: XM-P55

Features: 40 second shock memory, "Active Clear Bass" (adjusts the boost level according to the signal level, giving strong bass without distortion, even when the volume setting is high). LCD remote with "jog control", 10 character backlit main LCD and an unusual "Favorite Track'' function that lets you set where you'd like an MD to start playback. "Push eject" mechanism for disc removal. Body accepts two cells simultaneousy: a NiMH gumpack rechargeable and an AA cell. Battery life with both cells: 16 hrs (also operates on either cell alone).

Links: JVC's Japanese and European pages for the unit.

Reviews:

User Manual: XM-PJ1

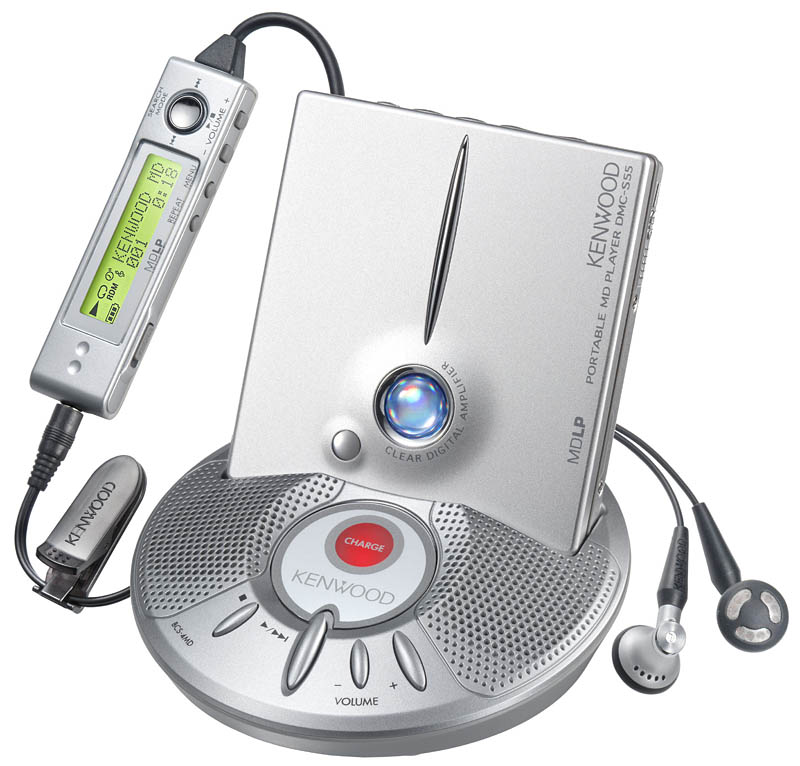

Features:

• Digital (1-Bit) amp.
• DMC-S77: Main body's front panel "active illumination" indicates playback and charging states. User settable to "Mellow" (slow), "Vivid" (fast), etc. illumination modes (plus "off").
• "Digital Clear PWM" power circuit produces lower noise.
• Mind blowing 230 hr battery life (NiMH+AA).
• Charging base with control buttons (stop, play, FF, volume, mode) and stereo speakers (DMC-S77's base also includes sleep timer and alarm clock).
• 2-line LCD remote.
• Jet-search (quick selection of desired track)
• Play modes: A-B repeat (for study and language learning), Intro, Random, Repeat (1, all, random, group)
• 180(!) second shock memory.
• Alarm and sleep timer (both units).
• Beep on/off.

Variants: DMC-S77's has fancy front panel illumiation and its base includes a timer, the DMC-S55 does not. DMC-S33 also belongs to this family of portables (similar, but has simple charging base).

Included Accessories: LCD remote w/clip, In-ear phones, Charging stand, NiMH battery w/case, AC adapter, external AA cell case, carrying case

Links:

• Kenwood
• AV-Watch
• Minidisc T-Station DMC-S77 page
• Minidisc T-Station DMC-S55 page

Reviews:

• Christopher's review on Minidisc T-Station.

Specs: 4.3mW+4.3mW into 16 ohms, 20Hz-20kHz (+0/-6dB)

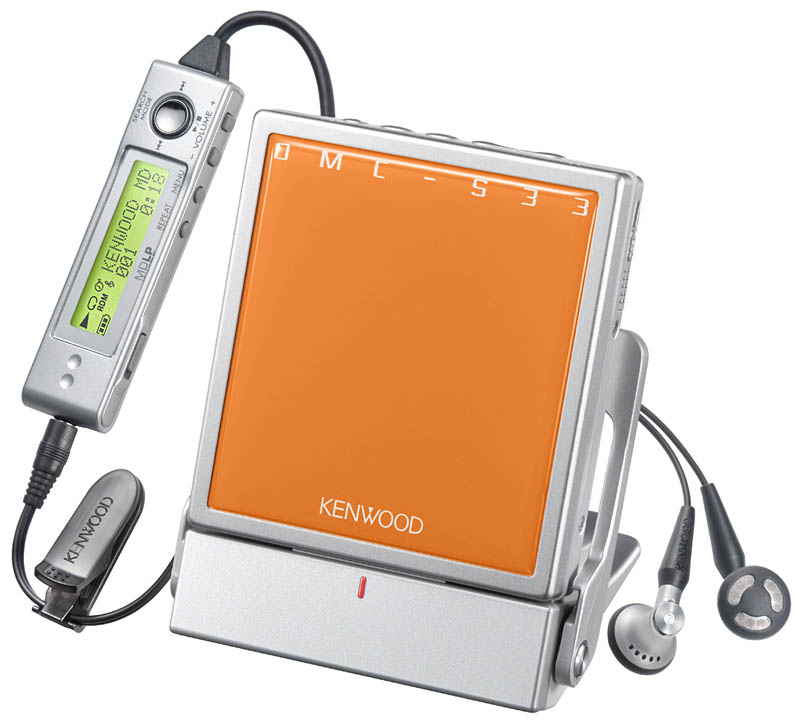

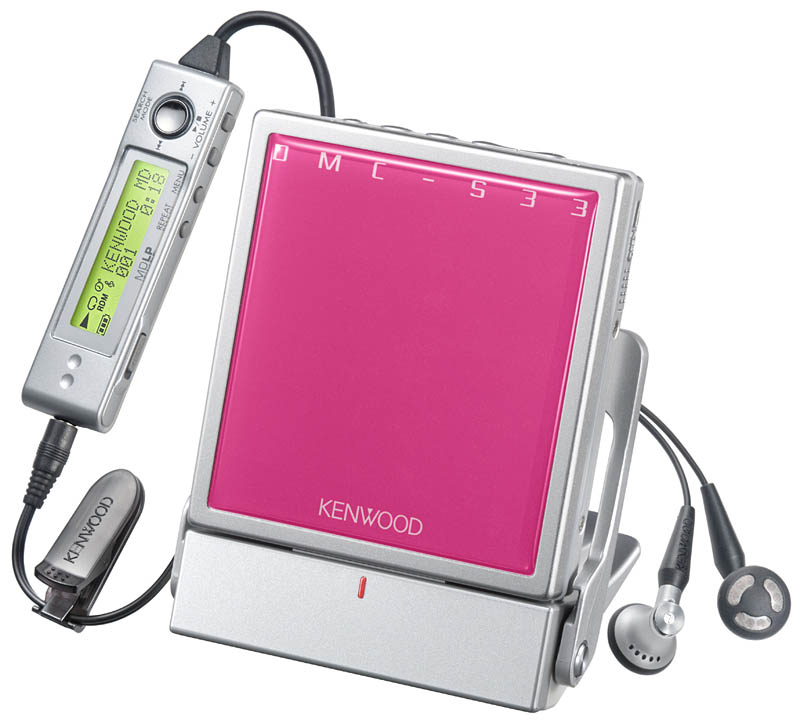

Features:

• Digital (1-Bit) amp.
• Charging base.
• 2-line LCD remote.
• Jet-search (quick selection of desired track)
• Play modes: A-B repeat (for study and language learning), Intro, Random, Repeat (1, all, random, group)
• 180(!) second shock memory.
• Alarm and sleep timer (both units).
• Beep on/off.

Included Accessories: LCD remote w/clip, In-ear phones, Charging stand, NiMH battery w/case, AC adapter, external AA cell case, carrying case

Links:

• Kenwood
• AV-Watch
• Minidisc T-Station DMC-S33 page

Specs: 4.3mW+4.3mW 20Hz-20kHz (+0/-6dB)

Reviews:

Features:

• Digital (1-Bit) amp
• Impressive 200 hour max (AA+NIMH) battery life.
• 5-pattern digital sound EQ, including user-preset.
• 2-line remote
• Folding charge stand.
• 20 minute quick charge 8hr LP4 playback.
• Alarm & sleep timer (1-120 minute settable).
• Group mode
• Jet-search (quick selection of desired track)
• Play modes: A-B repeat (for study and language learning), Intro, Random, Repeat (1, all, random, group)
• 180(!) second shock memory.

Included Accessories: LCD Remote w/clip, In-ear phones, recharge stand, AC adapter, NiMH cell, carrying case, external AA cell case

Links:

• Kenwood
• AV-Watch
• T-Station

Reviews:

Features: MDLP and group function support. Charging stand (without speakers). "D-Class" (digital) amplifier employed in DMC-"Q" series units (a full digitization of the audio circuit) reduces distortion and decreases power consumption. "D.P.A.C. (digital pulse axis control) function incorporated for high quality audio playback." Alarm timer (1-120 minutes), useful for avoiding missed train stops. Sleep timer (1-120 minutes), turns unit off automatically. Repeat, shuffle and intro play modes. "A-B" repeat allows reptition of audio sections up to 40 seconds long (handy for language learning, etc). Backlit LCD remote has 2 lines for displaying [track number and playback time] [disk name] [track name] [group name] [KENWOOD] [playback mode] in various combinations. Selectable (on/off) beep. Differences from DMC-Q55: no Digtal 3D effect, no Kanji support on remote, one type of headphone (earbuds).

Links:

• Kenwood Page for unit (mech. trans.)
• AVWatch coverage (mech. trans.)
• Minidisc T-Station coverage.

Included Accessories: LCD remote and clip, attachable AA cell holder, NiMH rechargeable battery (w/carrying case), headphones, charge stand, AC adapter, carrying pouch.

Specs: Headphone amp: 4.3mW+4.3mW (into 16 ohms), Charge stand amp: 35mW+35mW (into 6 ohms)

Reviews:

Features: MDLP and group function support. Charging stand (without speakers). Comes with two types of headphones: ear buds and "clip-on" phones. "D-Class" (digital) amplifier employed in DMC-"Q" series units (a full digitization of the audio circuit) reduces distortion and decreases power consumption. "D.P.A.C. (digital pulse axis control) function incorporated for high quality audio playback." Digital sound EQ and 3D effect with two user definable settings. Alarm timer (1-120 minutes), useful for avoiding missed train stops. Sleep timer (1-120 minutes), turns unit off automatically. Repeat, shuffle and intro play modes. "A-B" repeat allows reptition of audio sections up to 40 seconds long (handy for language learning, etc). Backlit LCD remote has 2 lines for displaying [track number and playback time] [disk name] [track name] [group name] [KENWOOD] [playback mode] in various combinations as well as Kanji titles. Selectable (on/off) beep. Differences from DMC-Q77: comes with two kinds of headphones, no speakers in charge stand.

Links:

• Kenwood Page for unit (mech. trans.)
• AVWatch coverage (mech. trans.)
• Minidisc T-Station coverage.

Included Accessories: LCD remote and clip, attachable AA cell holder, NiMH rechargeable battery (w/carrying case), headphones, charge stand, AC adapter, carrying pouch.

Specs: Headphone amp: 4.3mW+4.3mW (into 16 ohms), Charge stand amp: 35mW+35mW (into 6 ohms)

Reviews:

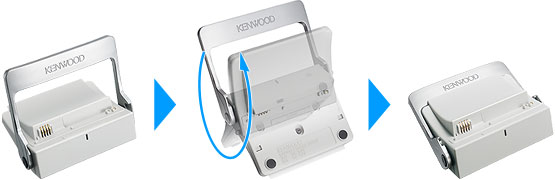

Features: MDLP and group function support. Folding charge stand with built-in stereo speaker (akin to the DMC-P55). "D-Class" (digital) amplifier employed in DMC-"Q" series units (a full digitization of the audio circuit) reduces distortion and decreases power consumption. "D.P.A.C. (digital pulse axis control) function incorporated for high quality audio playback." Digital sound EQ and 3D effect with two user definable settings. Alarm timer (1-120 minutes), useful for avoiding missed train stops. Sleep timer (1-120 minutes), turns unit off automatically. Repeat, shuffle and intro play modes. "A-B" repeat allows reptition of audio sections up to 40 seconds long (handy for language learning, etc). Backlit LCD remote has 2 lines for displaying [track number and playback time] [disk name] [track name] [group name] [KENWOOD] [playback mode] in various combinations as well as Kanji titles. Selectable (on/off) beep.

Links:

• Kenwood Page for unit (mech. trans.)
• AVWatch coverage (mech. trans.)
• Minidisc T-Station coverage.

Included Accessories: LCD remote and clip, attachable AA cell holder, NiMH rechargeable battery (w/carrying case), headphones, charge stand, AC adapter, carrying pouch.

Specs: Headphone amp: 4.3mW+4.3mW (into 16 ohms), Charge stand amp: 35mW+35mW (into 6 ohms)

Reviews:

Features: MDLP and Group function support. "Jet search" function allows 2X playback, 40 seconds anti-shock memory (160 seconds in MDLP 4X mode), seven-level bass and treble adjust, when docked in cradle unit's remote displays the remaining time needed for a full charge, remote capable of displaying track titles, "Intro play" mode can play the first 0.3, 1, or 2 seconds of each track (configurable).

Links: Kenwood's official Japanese page for the DMC-J33. Kenwood's original Japanese press release (trans) announcing the DMC-P33.

Included Accessories: Inner ear headphones, Backlit LCD remote, NiMH rechargeable cell, external AA cell case, rechargable battery carrying case, recharging stand

Reviews:

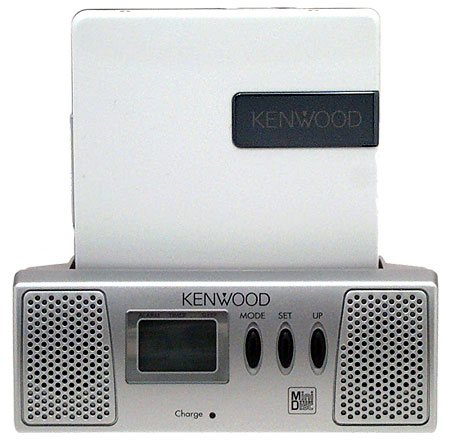

Features: MDLP and Group function support. "Jet search" function allows 2X playback, 40 seconds anti-shock memory (160 seconds in MDLP 4X mode), seven-level bass and treble adjust, when docked in cradle unit's remote displays the remaining time needed for a full charge, remote capable of displaying track titles, "Intro play" mode can play the first 0.3, 1, or 2 seconds of each track (configurable), charge stand includes built-in speakers and a timer function, allowing it to be used as an alarm clock.

Links: Kenwood's official Japanese page for the DMC-P55. Kenwood's original Japanese press release (trans) announcing the DMC-P55.

Reviews:

Features: MDLP, active power saving circuit activated when shocks to unit are not detected, 40 seconds anti-shock protection, defeatable audible headphones beep when pressing buttons, backlit remote, charge pond.

Links: Kenwood's Japanese press release for the DMC-M55. T's MD Comparison page lists the DMC-M55.

Reviews:

Features: Magnesium alloy body. "Battery Reminder Warning" reverses LCD information to indicate low battery level. 40 second shock memory.

Included Accessories: LCD remote, headphones, NiMH rechargeable cell, AC charger, battery, dry battery case, rechargeable battery case, carrying case

Links: A Japanese news announcement has information on the units. Kenwood press release.

Reviews:

Features: LCD on main body and remote. "Battery Reminder Warning" reverses LCD information to indicate low battery level. AA shaped rechargeable allows normal AA cell to be used when NiMH quits. 20 second shock memory.

Included Accessories: LCD remote, headphones, NiMH rechargeable cell, AC adapter, rechargeable battery carrying case

Links: A Japanese news announcement has information on the units. Kenwood press release.

Reviews:

Features: 10 second shock memory. Auto play mode starts play on disc insertion. Newly developed remote weights 8.2g, Uses AA cell sized rechargeable, or can accept Alkaline cell. LCD display also on main body. Button confirmation beep can be turned on/off. Dynamic bass boost (adjusts the boost level according to the signal level, giving strong bass without distortion, even when the volume setting is high). Hand strap can be attached, but is not included. Appears to be original to Kenwood (not a clone).

Links: Japanese announcement of Kenwood DMC-K3. Kenwood's Japanese announcement for the unit.

Reviews:

Features: All control buttons on main body are organized in a raised circular area for ease of operation while in a pocket or bag. Small LCD on body, plus backlit LCD remote. Playing time: 1 AA: 6 hours, NiMH cell (AA shaped): 5 hours, both together with external BC-C45 dry cell case: 14 hours. Recharge time: 4 hours. Available in red, silver and blue. Unit is unique to Kenwood (not a clone).

Links: Kenwood's Japanese announcement of the unit with pictures in all three colors.

Reviews:

Features: ATRAC 3.5 (CXD2536CR), sound quality reportedly among the best of the MD players. EL-Backlit LCD remote displays: up to 6 characters of title information, volume setting, remaining battery, repeat mode (1/all), as well as animated "running indicator" of spinning disc in 3D perspective. Remote uses shift key to reduce remote button count, for example: volume and display controls use the same keys. Normal stereo mini-jack for headphones (like the Sharp units). Battery life: 9.5 hours continuous playback on Lithium Ion rechargeable, 20 hours when combined with 3 alkaline cells (using separately available drycell case). 3 step digital bass boost. Unusual double jack for headphone/remote. Batteries charge in unit when connected to AC adapter. Uses Kenwood NB-L9, which is apparently OEM of Sony LIP-12 battery. Available in black or silver accent colors (case is silver). No English summary in operating manual. Unit is unique to Kenwood.

Precaution: Manual states: ``This unit is designed for domestic use only, and it is very dangerous to use the attached AC adapter abroad. Never use it outside of Japan.'' (However, if you have some other way to charge an LIP-12 (using an MZ-R2, MZ-R30, etc), then no problem).

Misfeatures: No shuffle play mode.

Links: Kenwood Japan's Page.

Availability: Nic Boyde and Sawada Denki sell this unit.

Reviews:

Features: Thought to be a clone of the shortly available Sharp MD-MT531/631 units. Aluminum body, MD jacket size.

Links: Onkyo's Japanese page for this unit.

Reviews:

Features:

• Digital amp.
• Normal, X-bass1, X-bass2, and Train modes can be combined with Surround-1, Surround-2, Surround-3 and unsurrounded modes giving 16 DSP modes in all.
• "Intro-scan" plays first 10 seconds of each track.
• "Favorite-track memory" remembers up to 16 favorite tracks from several MDs (how many?) and unit can be set to play only those.
• Backlit "skinny" design LCD remote.
• "Eco" (economy) mode turns LCD off.
• MDLP and Group mode support.

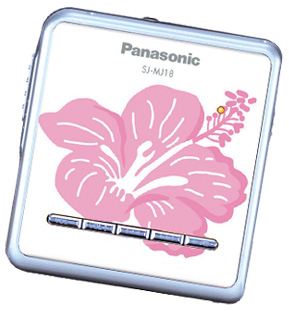

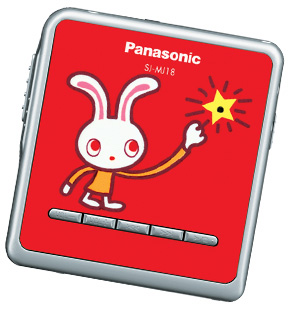

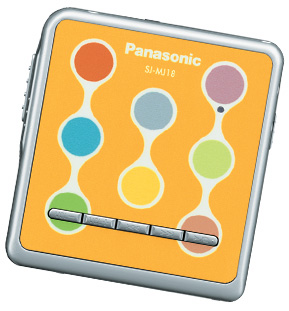

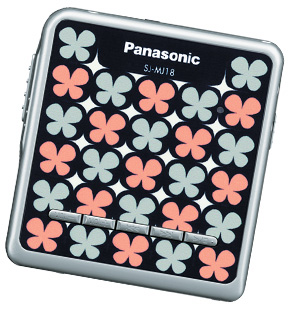

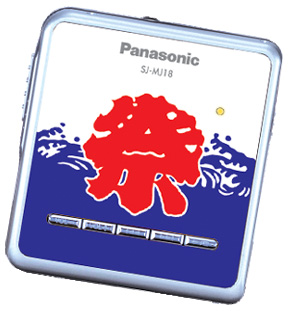

Variants:

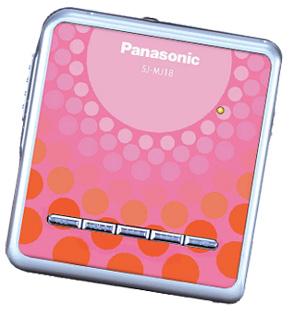

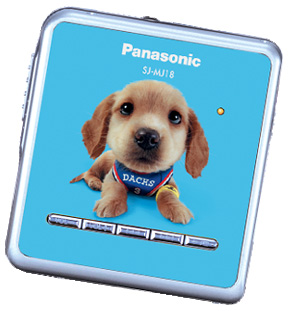

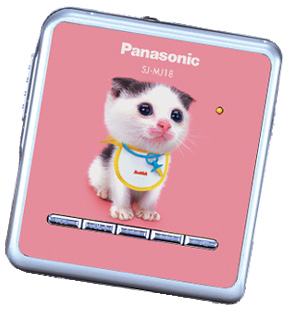

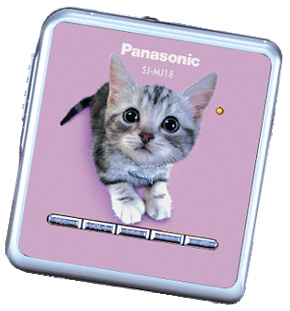

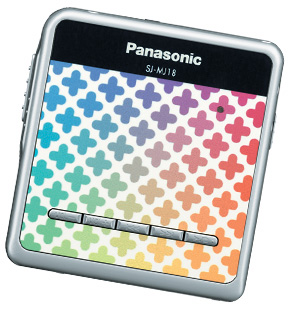

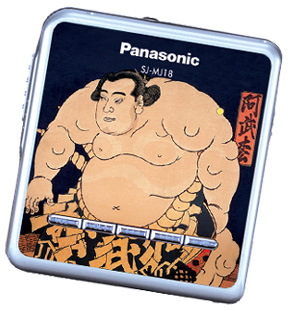

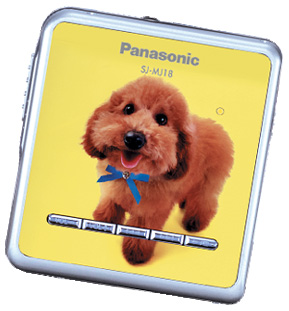

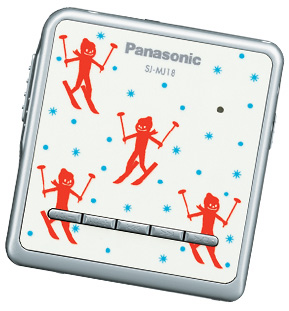

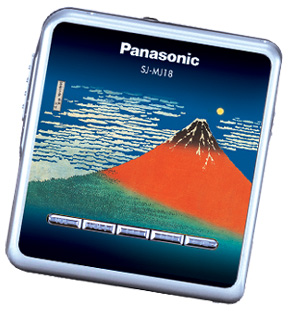

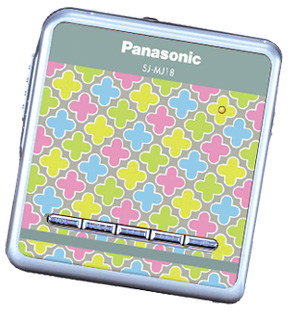

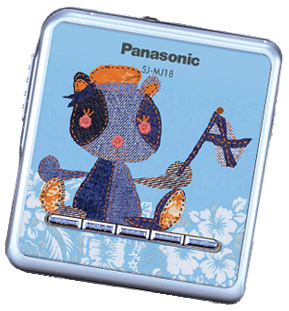

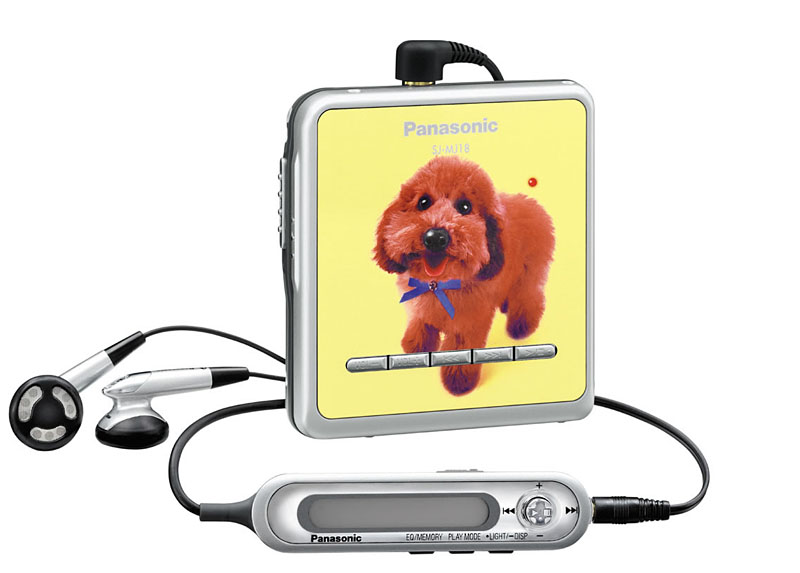

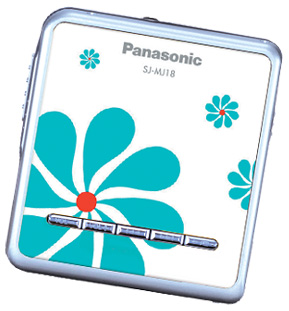

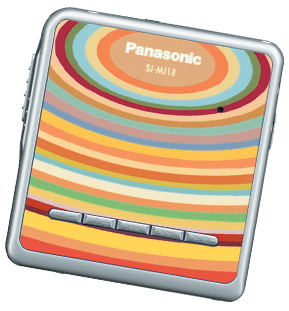

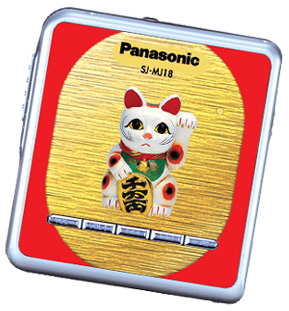

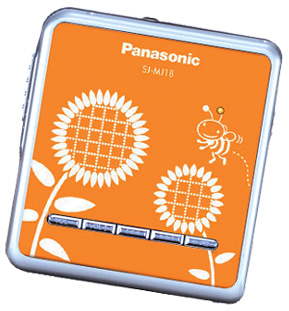

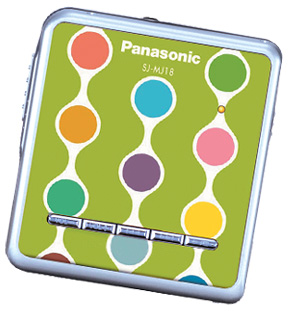

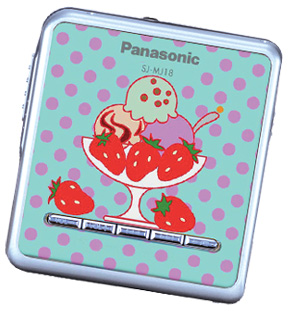

• SJ-MJ18 available in 20 different front panel patterns (limited sales reservation period [16 June - 25 July])

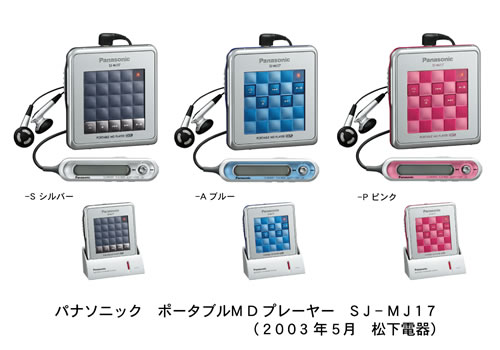

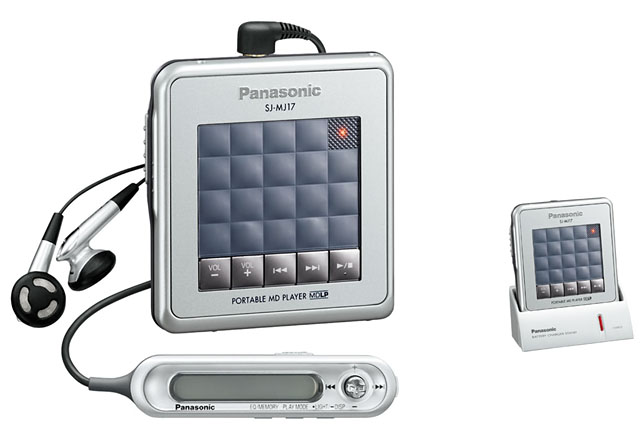

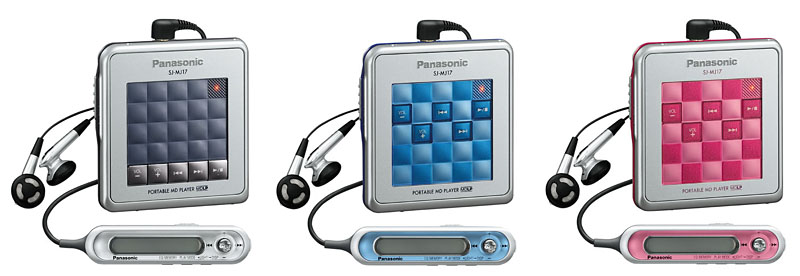

• SJ-MJ17 has "Chess Board" motif front panel with 2 different button layouts.

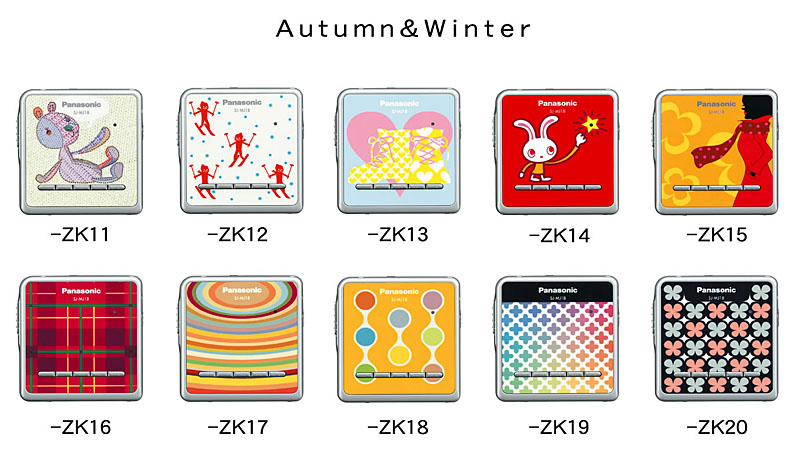

• Fall 2003 update: Panasonic adds 10 more designs for fall and winter ("ZK11 through ZK20"), sales reservation period: 16 Sep - 8 Dec 2003.

Included Accessories: Backlit LCD remote, earphones, NiMH cell, recharging stand, AA cell battery case, carrying case, instruction manual, warranty card

Links:

• Panasonic SJ-MJ18 page (Japan)
• Panasonic official SJ-MJ18 page.
• Panasonic official SJ-MJ17 page.
• Minidisc T-Station SJ-MJ18 page.
• Minidisc T-Station SJ-MJ17 page.
• Chinese tech news article on the unit.

Specs: headphone amp: 3.5mW+3.5mW

Reviews:

Features: Mind-blowing 193 hour battery life. LED indicator on body shows SP/LP2/LP4 playback mode. Charging cradle with LED indicator. Backlit "one finger" remote with battery level indicator. "Train" setting to reduce headphone noise that disturbs those nearby on the train. S-XBS (2 step bass boost). 1-track/all-track repeat and shuffle play modes. Intro-scan memory playback (plays first few seconds of each song). Couples to Panasonic "MD Network" components for label printing and [analog] audio transfer. Earbuds constructed with anti-bacterial material. Available in silver, blue, pink and yellow.

Links:

• Panasonic's page for the unit (mech. trans.)
• Minidisc T-Station coverage.

Specs: Headphone amp: 3mW+3mW

Reviews:

User Manual: J/E

Features: MDLP and Group function support, compatible with Panasonic's MD Network interconnection system. Anti-shock memory of 160 seconds in LP4 mode. Charging cradle is equipped with speakers. Slot-in loading mechanism with internal LED glow to help disc loading in low light conditions (?). Track scan plays only the first ten seconds of each track.

Links: Panasonic's official Japanese press release (trans) for the SJ-MJ50.

Specs: 3.5mW+3.5mW output.

Reviews:

User Manuals: SJ-MJ50, J

Service Manual: SJ-MJ50

Features: MDLP and Group function support, MD Network compatible. Anti-shock memory of 160 seconds in LP4 mode. Track scan plays only the first ten seconds of each track. Two-level bass boost, magnesium body.

Links: Panasonic's official Japanese press release (translation) for the SJ-MJ90.

Specs: 3.5mW+3.5mW output.

Reviews:

Features: World's longest battery life as of Aug 2001 at up to 147 hours using LP4 and and add-on AA battery. MDLP and Group function support. S-XBS bass boost circuit, Up to 160 Seconds anti shock system, Large Two Line Display 12 X 2, FL Backlit Stick LCD Remote with iterchangeable covers, Charging Stand supplied.

Links: Panasonic's original Japanese press release announcing the SJ-MJ10. AV-Land (UK) posts photos and information on the SJ-MJ10.

Specs: 3.5mW+3.5mW output. Dynamic range: 20Hz-20,000Hz (+0dB~-6dB)

Reviews:

User Manual: J/E

Features: Panasonic's first MDLP unit. World record breaking 104 hour battery life. Power cut alarm signals "pi-pi-pi-pi" for 2 seconds, 3 times, before power goes out.

Announcement commentary: (courtesy Leon) Audio section has identical spec to all Panasonic portables since the MR200 (3.5+3.5mW, 2-step S-XBS). Size is identical to the earlier MJ80 (12.7mm thick). Like the MJ80, it is possible to attach a hand strap to the MJ78. The MJ78 also has "smart change" (draws in disc when the lid is pushed closed, and one-touch eject). It seems that the MJ78 doesn't come with the charging stand - the specs say you need a separate adaptor in order to use AC power.

Links: Panasonic's Japanese press release for the unit (machine translation).

Specs: 3.5+3.5mW headphone amp.

Reviews:

User Manual: J

Features: Not MDLP compatible. 2-step bass boost, 40 second anti-shock protection, battery recharged by placing unit in charge stand. Unit includes hand strap. Available in three colors (blue, white, pink).

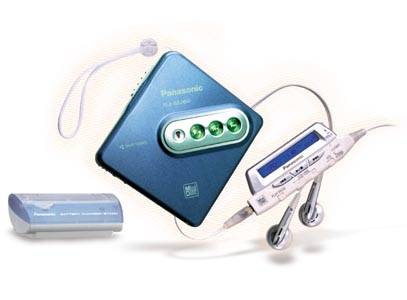

Links: Panasonic's official Japanese page for the SJ-MJ80 (more details, English translation).

Reviews:

Features: Lightest, smallest, and longest-playing MD portable as of it's release (November 2000). Does not have MDLP compatibility, recharges in charge stand, 40-second anti-shock protection, S-XBS two-level bass boost, audible low-battery alarm,

Links: Panasonic's Japanese press release for the SJ-MJ88. The MD T-Station has a page on the SJ-MJ88.

Reviews:

User Manual: J/E

Service Manual: SJ-MJ88

Features: Redesigned SJ-MJ35 unit. LCD backlit remote (w/ 9 character display, 7.7mm thin), One Push eject, "MD Network" support, Train mode, 2-level bass boost, 20 second anti-shock protection.

Links: Panasonic's official Japanese page for the SJ-MJ33. A second Panasonic Japanese page on the SJ-MJ33.

Reviews:

User Manual: J

Features: World's smallest size (71.3cc) and weight (60g) as of May 2000. Available in silver, blue, white, or red.

Variants: ``Will-MD'' SJ-MW1/2/3 portables are Panasonic SJ-MJ77 variants with frames on their lids so that stickers and photos can be inserted (different from the Panasonic, they come w/o a drycell case).

Links: Panasonic's Japanese announcement (and English machine translation) for this unit. T's MiniDisc Comparison Table has further information and photos on this unit.

Specs: Headphone output of 3.5mW+3.5mw,

Reviews:

User Manual: J

Features: "MD Network" capable. Magnesium alloy body, "Magic Mirror" feature to indicate presence of disk in player, 2-step bass boost, 20-second anti-shock memory.

Links: Panasonic's Japanese announcement for the release of this unit. The T-Station has information on this unit.

Specs: Nickel-Hydrogen battery.

Reviews:

User Manual: J

Features: One of the lightest portable MD players, weighing in at 61g (without battery). Entire unit body made of magnesium alloy, allows title information to be copied from it when coupled to an "MD Network" equipped Panasonic MD deck. 20 second shock memory (according to ZDNews)

Links: A Japanese news announcemnt for this unit. Leon Kuo writes favorable Panasonic SJ-MJ75 review. Tony Wang sends in a substantial Panasonic SJ-MJ75 vs. JVC XM-PX5 comparison gallery. ZDnet discusses the SJ-MJ75 versus an MP3 player.

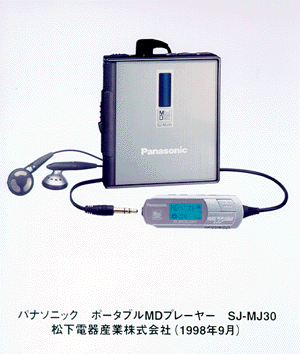

User Comments: See user comments under the SJ-MJ30 entry.

Reviews:

User Manuals: SJ-MJ75, J

Service Manual: SJ-MJ75

Features: The second release in the Panasonic "Shockwave" line of portable MD players. Has unique headphone design where the standard around-the-head strap is replaced by individual parts which clip to your ears. Made of pure titanium (about four times the hardness of aluminum). Uses previous MD technology, enhanced to reduce weight of the unit by 20% and dimensions by 15%. Unit does not accept external AA cell case.

Links: A Japanese news page announcing the approaching release of the unit. A Japanese press release for the unit. Another Japanese press release for this unit. Minidisco has a rotatable 3-D spinning image of this unit.

Specs: Headphone amp: 13mW+13mW

Reviews:

User Manual: J

Features: Was world's smallest, lightest MD player in January '99 (first player under 100g), employing Panasonic's newly developed thin-type optical pickup. Magnesium alloy body, 8.1mm thick EL back-lit remote. 40 second shock memory. Window on body reflects blue when no disc is inserted, or becomes see through when disc is present (using "magic mirror" technique).

Links:

• Panasonic's Japanese SJ-MJ70 press release.
• Asahi Net summary for the unit, in Japanese.
• MiniDisc World has a review for this unit.
• Sunday Times (UK) has a review for this unit.
• Minidisco has a rotatable 3-D spinning image of this unit.
• MiniDiscussion has collected user reviews for this unit.
• A user writes a comparison review between the Sony MZ-E35 and Panasonic SJ-MJ70.

Specs: Freq. Resp: 20-20kHz +0/-6dB. Headphone amp: 6mW+6mW

Reviews:

User Manual: J

Features: Unusual disc loading mechanism in which top cabinet lifts up during disc insertion and removal (effectively a slot-in/clamshell hybrid). 10 second shock memory. Had world's smallest EL backlit LCD remote (8.1mm) in Oct '98. Remaining battery power indicator function on remote. X-Bass and "train" tone settings. Repeat 1/all, shuffle play modes. Battery life: NiMH gumpack: 12 hr, AAx1: 19 hr, both: 34 hr. Accesories: earbuds, remote, cord-clip, AA cell, battery case, carrying case, battery charger, NiMH cell, NiMH case. Optional accesories: car adapter RP-AK15 (¥3800), DC IN adapter RP-WA10 (¥1500), AC adapter RP-AC11B (¥2700), cassette adapter SH-CDM10A (¥3700). (Note: When using car adapter or AC adapter, the DC IN adapter is necessary).

Links: Panasonic's Japanese announcement with photos. Sankei Japanese announcement of Panasonic's SJ-MJ30 portable player.

Specs: Headphone: 6mW+6mW. Freq. resp: 20-20kHz +0/-6dB

User Comments: I've taken apart my Panasonic MJ30 and MJ75 and was able to dig up some info on the web about the chips I saw. On each of these units, there's a Sanyo chip set (decode-only ATRAC chip and "RF head amp", as listed on press releases), and a Panasonic chip (listed simply as microcomputer). The first Sanyo chip set documented online has ATRAC chip LC89640, and was announced in November 97. The set that has LC89641 was announced in September 98. While the older set consumes 120mW when in use, the newer set only consumes 46mW. These Sanyo chips all incorporate digital bass boost. However, they don't include the DRAM for shock-resistant purposes. Instead, they support external DRAMs. The MJ30 has the LC89641 set. The MJ75, meanwhile, has a LC89642 set. Info about the MJ75's chip was not found online, but it's probably another evolution. The specifications for the microcomputers have also been found. The MJ30 uses MN101C15C, which has RAM 2048(x8bit) and ROM 48K(x8bit). The MJ75 uses MN101C28D, which has RAM 2048(x8bit) and ROM 64K(x8bit). I'd like to mention that the MJ75 takes apart really nicely. Remove the screws that hold the bottom cabinet, then the unit can be split into three parts: bottom cabinet, chassis, top lid + disc holder. No small bits and pieces to worry about. The circuitry/mechanism is also uncluttered, almost elegant. -Leon

The Panasonic NiCd 1.2V 600mAh which came with the UK version of Panasonic SJMJ-75 and the Panasonic NiMH 1.2V 1400mAh that came with the Panasonic SJMJ-70 are compatible with the Sony MZ-R/E900. Both can be recharged on Sony's charger and vice versa. Sony's own NiMH 1.2V 1350mAh battery can be used on Panasonic models and charger. Jon Choo

Reviews:

User Manual: J

Features: Titanium case with rubber protector and buckle lock closure. New headphones with VMSS ("virtual motion sound system") (x-bass like feature). Comes with elastic armband attachment strap. Apparently an evolution of (or internally identical to) SJ-MJ7 design. Battery life: AA alkaline cell: 8hr, NiMH rechargeable: 6hr, both together: 15hr. 15mw+15mw headphone amp. EL backlit LCD on remote. Included accessories: phones, AA cell, AA battery case, NiMH gumpack rechargeable battery, rechargeable battery case, NiMH battery charger, and carrying case.

Links: Panasonic's Japanese page for this unit. A Japanese page covering the Panasonic SJ-SW9MD portable MD player.

Reviews:

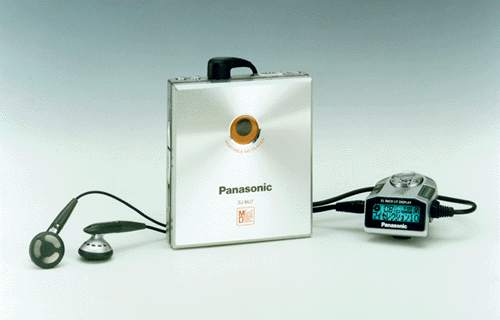

Features: Panasonic's first MD player. Player is ``MD Jacket'' size and the thickness of 2 MD cases stacked together. Magnesium case. EL backlit LCD on remote and main body lights up for 3 seconds when buttons are operated (up to 10 seconds when disc and track name are scrolled), displaying up to 10 characters with a 60 degree viewing angle. Cross shaped control key allows one finger operation. Skip, search, track select controls on remote and main unit. Repeat mode, random play mode, and bass boost on remote. "Inside phone" ear buds with flexible joint. Playback time 6 hours on NiMH gumpack rechargeable, 8 hours on AA cell, 15 hours on AA and rechargeable together. Included accessories: phones, AA cell, AA battery case, NiMH gumpack rechargeable battery and NiMH battery charger, carrying case. Headphone amp: 10mw + 10mw.

Links: Panasonic's English SJ-MJ7 page. Cosmo's Japanese announcement of this unit. Panasonic's official page for this unit. Peter Cho's brief review of the Panasonic SJ-MJ7. Tom Kroh's brief review of the unit. Tony Wang contributes a helpful Panasonic SJ-MJ75 player review.

Comments: The MJ5 has a matt finish front, similar to the Sony MZ-E30/E35. The MJ7 has a special finish, made by engraving many narrow concentric grooves (some frying pans have this circular groove design on their bottom), then coating it. However, having the MJ7 I wish I'd gone for the MJ5, as the coating is now a mass of scratches and dull patches (despite keeping the MJ7 in the protective neoprene bag). It looks like someone's been ice skating on it! The back of the MJ7 is the 'matt' style finish (same as the MJ5 I'd guess). -Martin Clinton

Reviews:

User Manual: J

Reviews:

User Manual: J/E

Service Manual: SJ-MJ55

Reviews:

User Manual: J/E

Features: ATRAC 2, 10sec shock memory, wired in-line remote, external pack (3)AA batteries, 3 position bass+treble boost, backlit display (under AC), AC power supply, earbud phones, leather-like case. Remote: Play/pause, stop, track fwd/rev, hold, volume.

Controls: Play, pause, stop, track fwd/rev, fast fwd/rev, shuffle, 10 sec introscan, 20 track program, display shows: (level meters, track #, time elapsed) or (disc title, total tracks, total time) or (date/time recorded, track #, time elapsed), hold, volume.

Evaluation: Very sturdy, good feel and quality. Dropped many times with no effect. Dated manufacture 7/93. Came with SONY SAMPLER disc. Battery states it is used with Sanyo, Saba and RCA models. Power draw is in excess of 400mah. -Chris V.

Reviews:

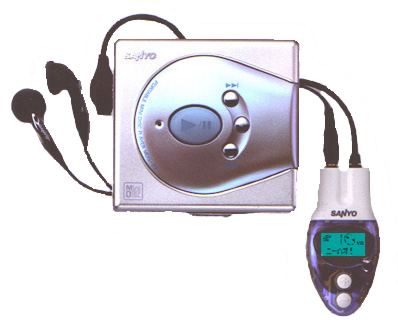

Features: 40-second shock buffer. 3-level bass boost, 5-level battery indicator, single/all repeat modes, Automatic Volume Limitation System (AVLS). Ability to set its greeting and power off messages using a titled disc and special button presses.

Links: Sanyo's Japanese page for this unit. A German page for the Sanyo MDG-P3 player.

Specs: A unique combination of two rechargeable nickel hydrogen batteries (NiMH) allows the player to achieve a very long battery life.

Reviews:

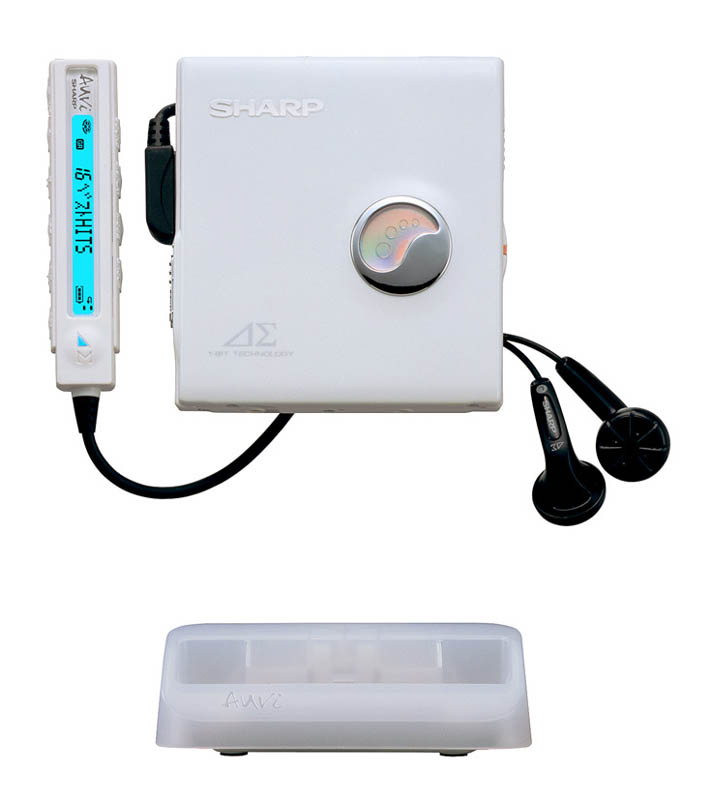

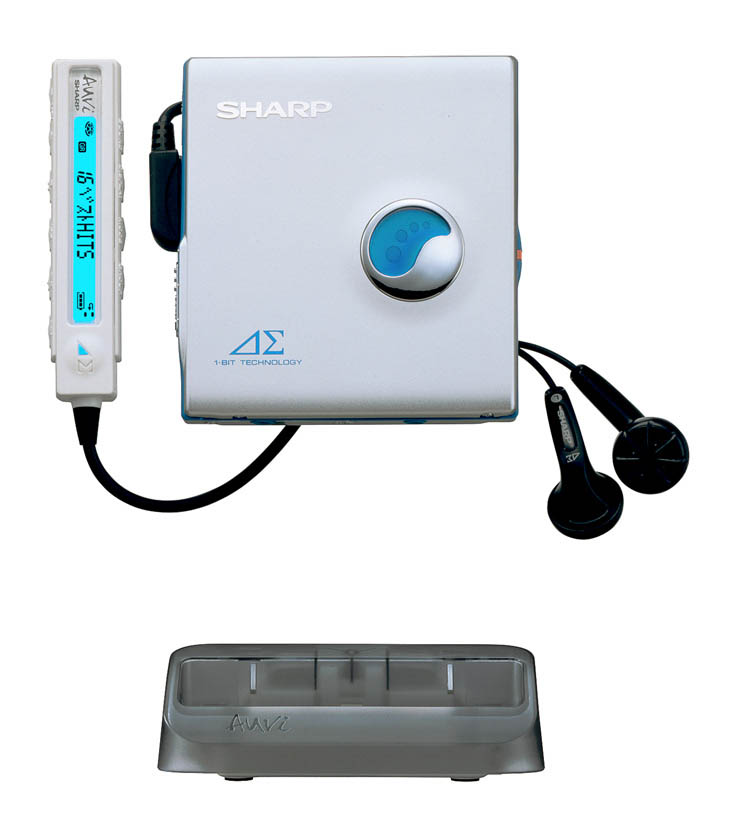

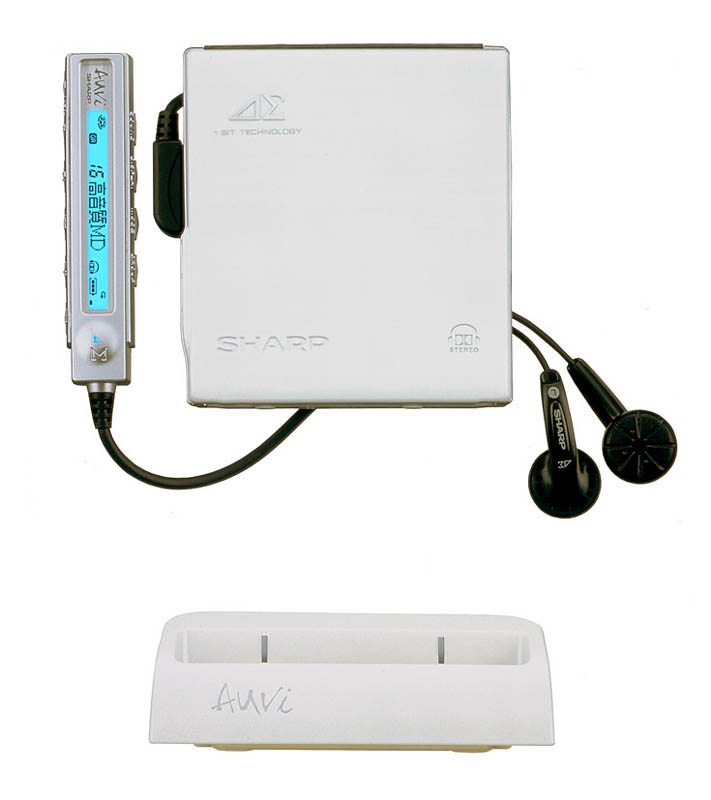

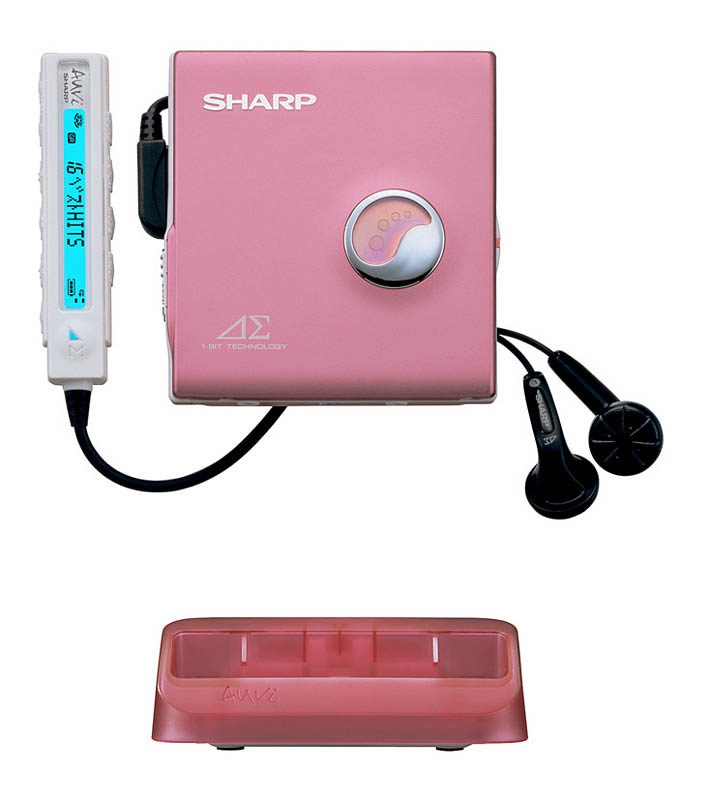

Features:

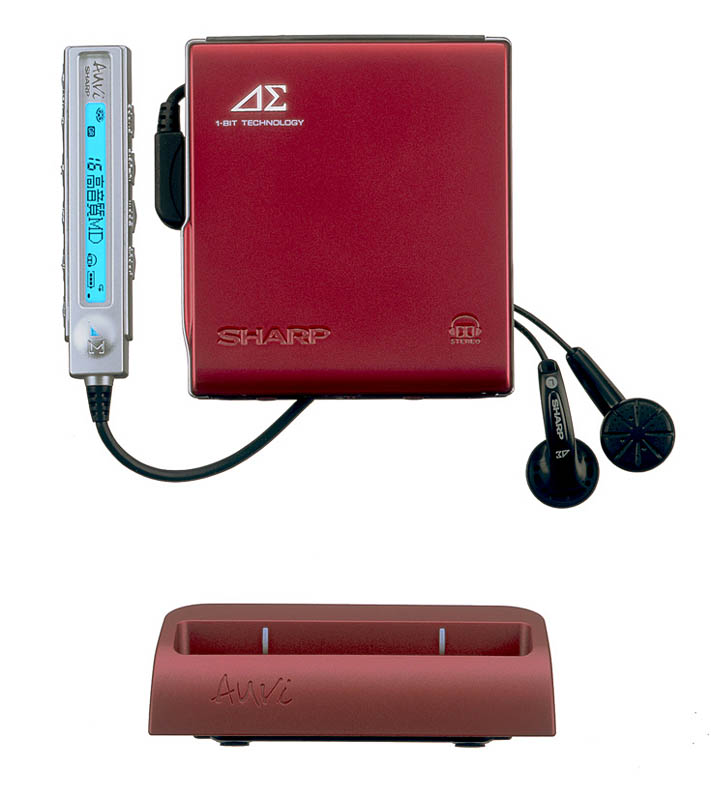

• Sharp 8th generation ATRAC chip features Delta-Sigma modulation and reduced power consumption.
• Digital amp.
• Many DSP modes (65 on MD-DS70, 50 on MD-DS30).
• MDLP "Navigation lights" on body has various blinking modes/colors for SP/LP2/LP4 playback.
• "Favorite reproduction" (bookmark) feature.
• MDLP group mode support.
• MD-DS70 features Dolby NR headphone system and digital X-Bass
• 100-240VAC adapter.

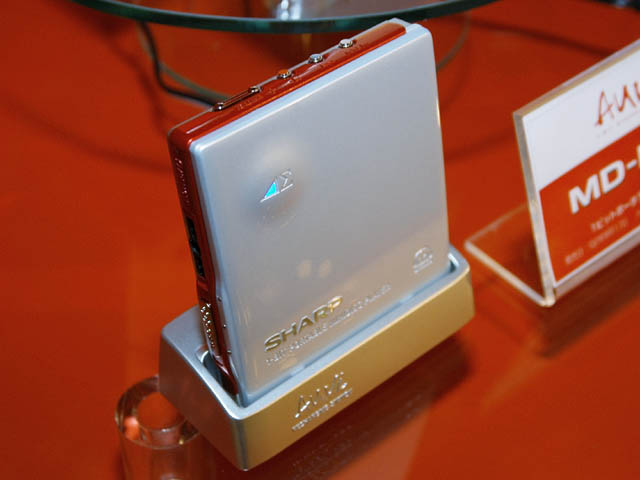

• Charging stand.
• Ridiculously long battery life. Units will play for over 8-days straight on one set of batteries!

Variants: MD-DS70: Dolby NR headphone system, 65 DSP modes (vs. 50 on MD-DS30), digital X-bass, Kanji display remote, marginally (~1%) better battery life

Included Accessories: LCD remote, headphone, NiMH rechargeable cell, AC adapter, external AA cell case, charge stand, manual

Links:

• Sharp product page
• Sharp press release
• Minidisc T-Station MD-DS70
• Minidisc T-Station MD-DS30

Reviews:

• Alex Tan's review.

Specs: 3.8mW+3.8mW into 32 ohms, 20Hz-20kHz +/-3dB

Features:

• One-bit digital amp
• Bookmark playback function (mark up to 10 tracks for playback)
• Intro-playback mode (plays first 9 seconds of each track)
• MDLP "navi" uses LED to indicate MDLP playback mode
• Digital X-bass
• Backlit LCD remote
• Charging stand
• Available in silver, blue, pink and green (remote and charging stand color match unit)
• Differences from MD-DS8: no Dolby headphone function, longer battery life, and larger and heavier than DS8.

Links:

• Sharp press release for the unit.
• Sharp product page for the unit.
• AVWatch (Japan) page for the unit.

Included Accessories: LCD remote, headphones, NiMH cell, AC adapter, AA cell case, charging stand, carrying pouch, playback connecting cord, manual

Specs: Headphone amp: 5mW+5mW into 32 ohms

Reviews:

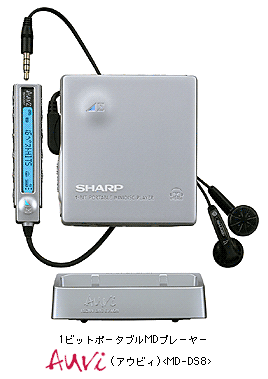

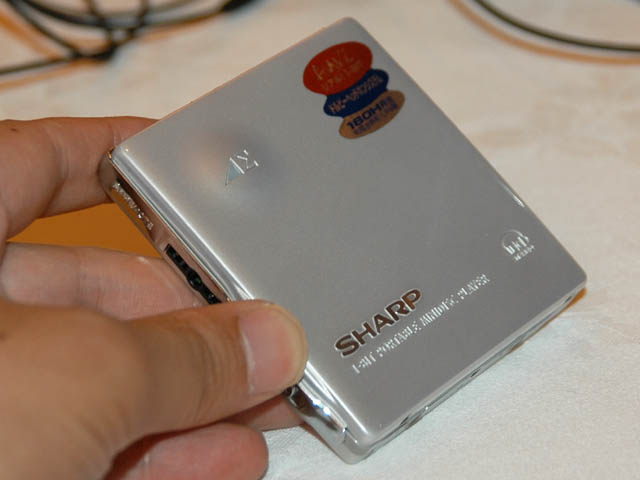

Features: World's first "mobile one-bit digital amplifier" equipped Minidisc player. Dolby headphone system (has "Studio, Live, Dome" sound effects settings). Odd 4 conductor headphone plug & jack (see photo) to accomodate 1 bit digital amp. Backlit slim design LCD remote. "Intro play" mode plays first 9 seconds of each track. "MDLP Navis" LED clarifies MDLP mode and charge state with blinking codes and colors (easy-to-carry handy reference quide available). Charging stand. Available in silver, gray, red

Links:

• Sharp Product Page for the unit (Japanese).
• Sharp's Japanese announcement (mech. translation pages 1 2)
• Chinese site PocketFad coverage and photos.

Reviews:

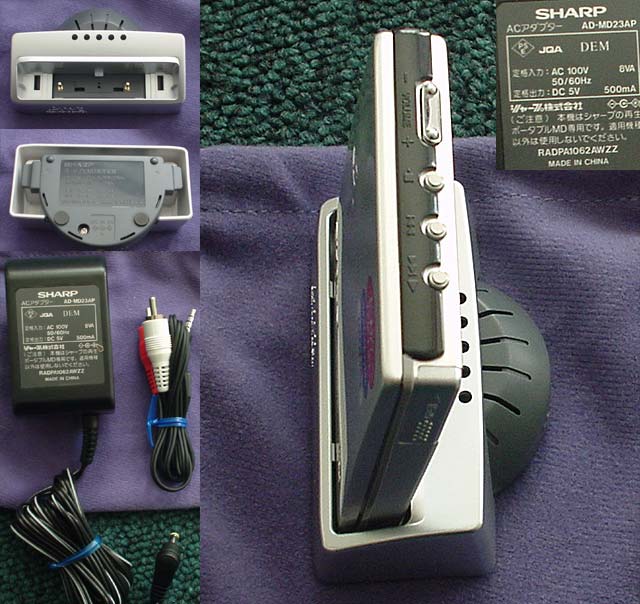

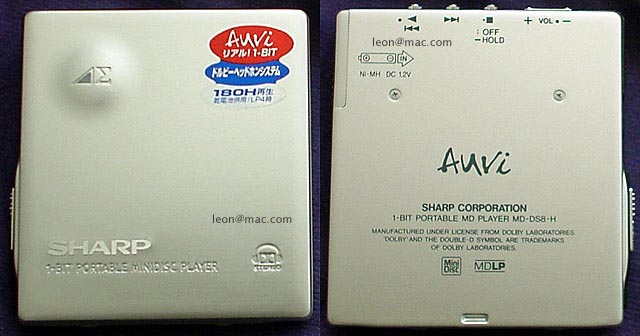

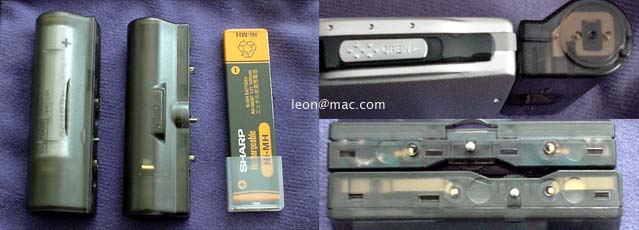

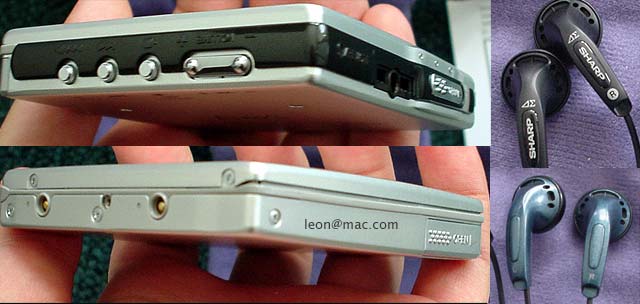

• Leon's Sharp MD-DS8 photo review.
• Sas-Seb's MD-DS8 review en Français has several good photos of the unit.
• Christoper's MD-DS8 photo gallery

Included Accessories: LCD remote, Headphone, NiMH battery, AC adapter, attachable AA case, charge stand, carrying case, manual

Specs: Headphone amp: 5mW+5mW into 32 ohms. Freq. Resp.: 20-20kHz +/-3dB

Features: MDLP and group mode support. Includes Dolby headphone system that mimics acoustics of speakers in various settings: "Studio", "Live", "Dome" (enjoyment factor unknown). Blinking LED indicates SP/LP2/LP4 playback mode. Recharging stand. Various playback modes include "intro play" (plays 5 seconds of each track), random, random-repeat, all-track/1-track repeat. Available in silver, blue and grey.

Included Accessories: LCD remote, Recharging stand, Headphones, Carrying case, NiMH rechargeable cell, AC adapter, attachable AA battery pack, Manual

Links:

• Sharp Japanese press-release (mech. trans [1, 2]).
• Minidisc T-Station coverage of the unit.

Specs: Headphone Amp: 5mW+5mW (32 ohms), Freq. Response: 20-20,000Hz (+/-3dB)

Reviews:

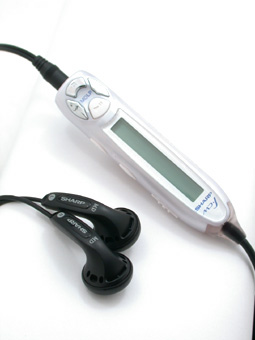

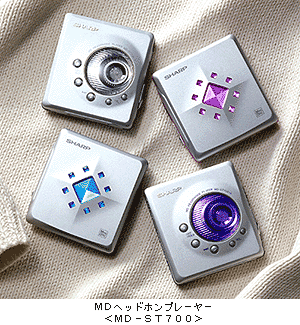

Features: MDLP capable, supports group mode. ``Two-Faced'' design, available in 4 colors: silver, blue, pink and cobalt. 3-LED display on unit, recharging cradle, "intro-playback" feature. 3-step X-bass boost

Links:

• Sharp's Japanese MD-ST700 MD player page
• Japanese press release.
• Press Release machine translation, page 1&2.

Included Accessories: LCD remote, AA battery case, headphone, recharging stand, NiMH rechargeable cell, rechargeable cell carrying case, AC adapter, carrying case, warranty card, instruction manual

Specs: Headphone amp: 5mW+5mW, Dynamic Range: 20-20kHz +/-3dB

Reviews:

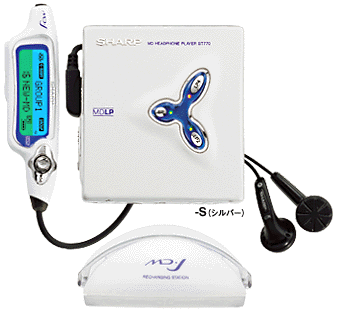

Features: World's smallest, longest running MD player at time of release. MDLP capable, 2 line LCD on remote.

Links:

• Sharp's Japanese MD-ST770 MD player page
• Japanese press release.
• Press Release machine translation, pages 1&2.
• Minidisc T-Station coverage of the unit.
• Available from Warehouse123.
• Available from GoldenShop (HK).

Included Accessories: LCD remote, AA battery case, headphone, recharging stand, NiMH rechargeable cell, rechargeable cell carrying case, AC adapter, carrying case, warranty card, instruction manual

Specs: Headphone amp: 5mW+5mW, Dynamic Range: 20-20kHz +/-3dB

Reviews:

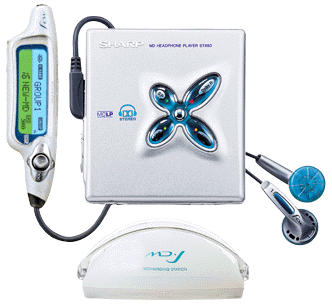

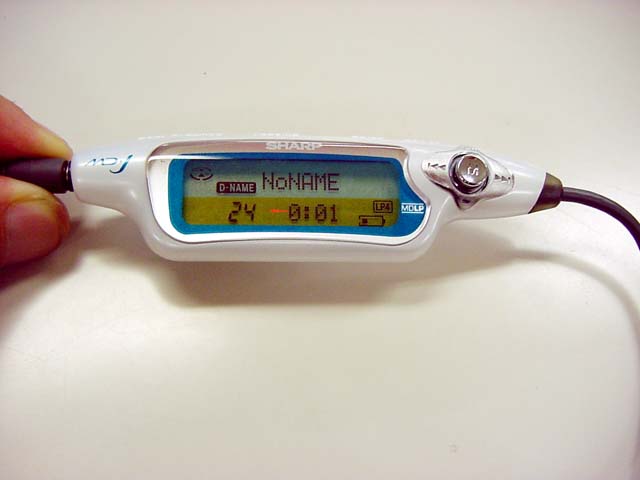

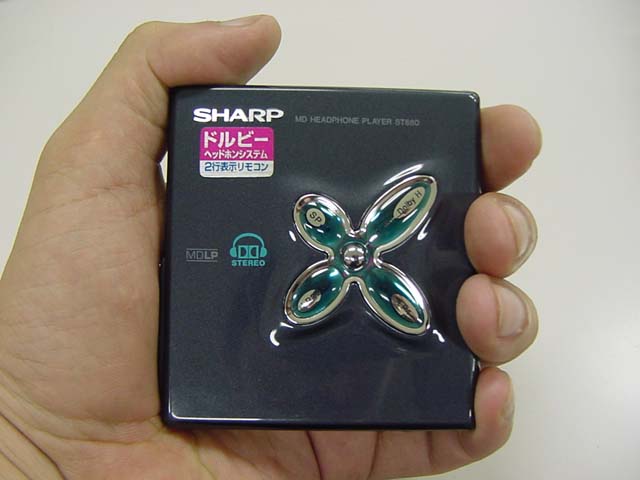

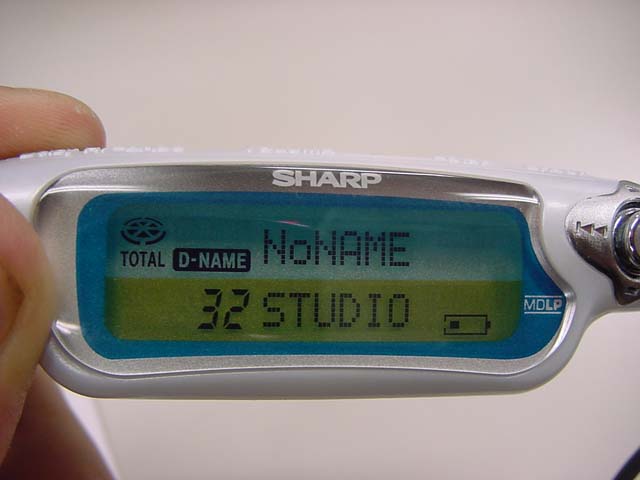

Features: MDLP capable, Group mode support, 2 line LCD on remote. "LED Navigation" system uses various colors and blink codes to represent SP, LP2, LP4, and mono playback modes. Includes Dolby spatializing system with 3 settings: "Studio" (small room), "Live" (studio size room with additional echo) and "Dome" (large hall).

Links:

• Sharp's Japanese MD-ST880 MD player page
• Japanese press release.
• Press Release machine translation, pages 1&2.
• AVWatch Japanese coverage.
• Minidisc T-Station coverage of the unit.
• Available from Warehouse123.
• Available from GoldenShop (HK).
• Graphical depiction of dolby headphones synthesizer system.
• MDMan.net's (Korea) clear snapshots of the Sharp MD-ST880 portable player.

Included Accessories: LCD remote, AA battery case, headphone, recharging stand, NiMH rechargeable cell, rechargeable cell carrying case, AC adapter, carrying case, warranty card, instruction manual

Specs: Headphone amp: 5mW+5mW, Dynamic Range: 20-20kHz +/-3dB

Reviews:

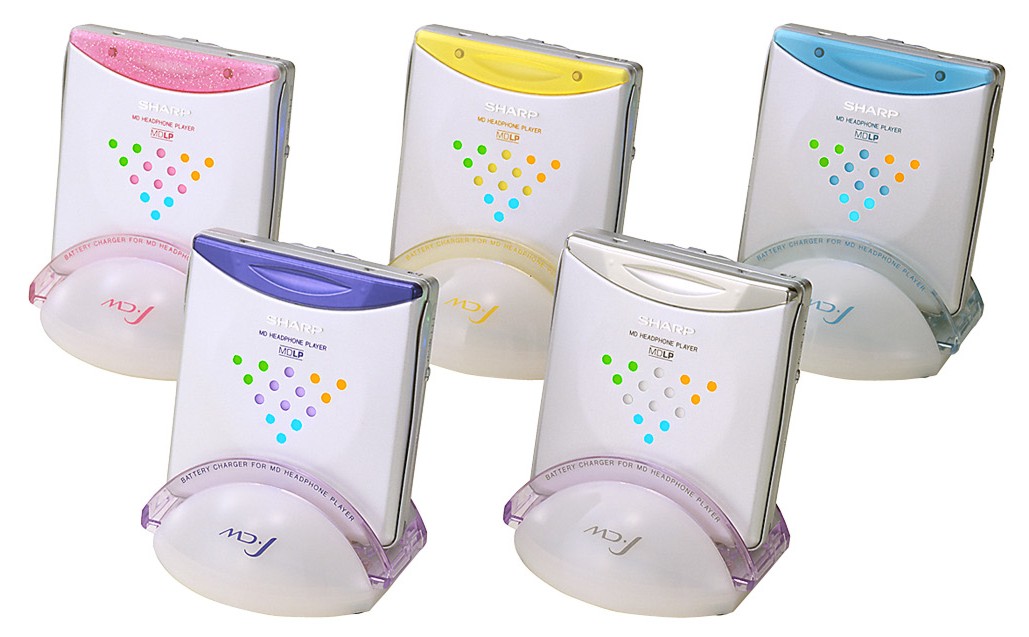

Features: MDLP compatible, with the long play mode indicated with colorful illuminated LEDs on unit body. Battery is recharged when unit is placed in charge stand. 160 second shock protection (in LP4 mode). "Song Intro" function plays five seconds of every track on the disc to help in finding a song. X-BASS low frequency boost. Available in blue, silver, pink, yellow, and cobalt. Hand strap attached to unit for easier and safter carrying.

Links: Sharp's official Japanese page for the MD-ST70. Another Japanese Sharp page outlines the specifications for hte MD-ST70. T's MiniDisc Comparison Tables list the MD-ST70's specs. The T-Station has a page for the MD-ST70.

Specs: 100V AC, 5V DC. (playback column lists Stereo/LP2/LP4 battery life times)

Reviews:

Features: Three different-colored LEDs indicate the current play mode the MD is in (SP, LP2, LP4). Battery recharges in charge stand, backlit LCD remote, 40-second anti-shock protection (provides 160-second protection in LP4 mode).

Links: Sharp's Japanese press release for the MD-ST77. The MiniDisc T-Station adds a page for the MD-ST77 to their site.

Specs:
(battery times shown show SP/LP2/LP4)

Reviews:

Features: Equipped with charge stand for easier recharging. X-Bass, remote can display Chinese characters,

Links: View Sharp's original Japanese press release (or read an English machine translation).

Specs: 5mW+5mW headphone output. DC 1.5V.

Reviews:

Features: Unit body composed of aluminum and plastic (colored pieces), optional Chinese character display remote control, 40-second anti-skip shock protection, can be placed in charging stand at any time for recharging, X-BASS boost, hand strap, available in plenty of colors.

Links: Sharp's Japanese page and press release for this unit.

Specs: Headphone output 5mW+5mW.

Reviews:

Features: World's smallest and thinnest player (as of 1 Feb 2000). Features charging stand, charging LED (flashes while charging, extinguishes when done).

Links: Sharp's Japanese page for this unit.

Reviews:

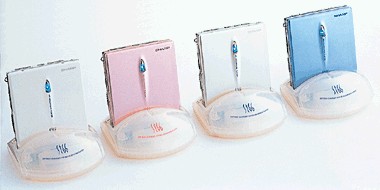

Features: Docking station for recharging unit's battery. MD-ST631 comes with Kanji capable remote and is first MD player with Kanji title display. Lithium-Ion battery, "MD Jacket size", 40 second shock protection, hand strap.

Included Accesories: LCD remote, headphones, LiIon cell, AC adapter, recharging stand, handstrap, dry cell case, carrying case, manual, warranty

Links: Sharp's Japanese page for these units. The MiniDisc T-Station has a review for Pioneer's PMD-MK1 portable MD player (a clone of the Sharp MD-ST531). The Korean MiniDisc page posts several Sharp MD-ST531 snapshots.

Specs: DC 3.6V Attached lithium ion, DC 3.3V Attached dry battery case, DC 4.5V Optional car power supply adaptor, DC 5.0V Attachment AC adaptor.

Reviews:

Features: Newly developed thin style slot-in loading mechanism. Die-cast body provides strength against compressive loads. Backlit LCD panel on remote and main body. 16Mbit DRAM for 40 second shock memory. Features 13 different equalization curves (POPS, CLUB, JAZZ, HEAVY, ROCK, DANCE, DOME, SYMPHO, VOCAL, SOFT, USER1, USER2, FLAT), 2 of which allow user setting of bass and treble adjustment in 7 steps each, plus 3 delay (surround/reverb?) settings. Large jog dial on body for for mode, tone, and track selection (DSP mode can also be selected from remote). Handstrap. Disc insertion slot cover flap shows "DISC IS INSIDE" if disc is already present, or "MINIDISC" otherwise. Two auto-start modes: 1) Start play upon disc insertion, 2) Restart play from head of current track when power applied (useful for in-car use). MD->MD edit function (copies audio [analog] and title information) when coupled to Sharp bookshelf systems with separately available AD-M5AC cable.

Links: Sharp's Japanese press release and product page for the unit. An English page on the MD-SS323. More Japanese page photos of the unit.

Specs:
Headphone amp: 5mW+5mW

Reviews:

Features: Slot-in MD players (units differ cosmetically) with 40 second shock memory. Body is aluminum and diecast one piece construction ("monocoque"), improving strength and impact resistance. Unit is 12% thinner and 18% less volume than previous MD-SS311 model. Backlit remote with "W" shuttle buttons. Units may be connected to Sharp MD decks for analog MD duplication that also transfers disc and track names. When connected to AC adapter, will charge and operate simultaneously. Play modes: random, repeat (1, all, random).

Links: Sharp's Japanese announcement and page for the unit (showing an animation of the remote and slot in loading).

Specs: Headphone amp: 5mW+5mW

Reviews:

Features: Clamshell disc loading. Backlit remote, 40 second shock memory. Can be connected to Sharp MD compo system for MD copying (analog) including track titles. Digital X-Bass. Autoplay option (MD starts playing upon insertion). Controls on back panel. Unique LiIon gumpack rechargeable cell that recharges in main unit with AC adapter, even while in use. Available in silver, blue and pink. (Kenwood model has carrying strap, Sharp does too?).

Links:

• Japanese info on Sharp's MD-ST521 MD player.
• Japanese announcement and photo of Pioneeer's PMD-R55 and PMD-P5 portables.
• Japanese info and pictures on Pioneer's PMD-P5 and 'R55 portables.
• Onkyo's photo and Japanese information for their MD-P20 clone of the unit.
• Japan Direct has some clear shots of the unit.
• Japanese info on Kenwood's DMC-K5, a clone.

Specs: Freq. Resp.: 20-20kHz +/-3dB, Headphone amp: 5mW+5mW into 16ohms.

Reviews:

Features: Slot in MD player with 40 second shock memory. Diecast aluminum case, 2.5 times stronger than the previous model. SS312 has special "W Shuttle" remote with small jog/shuttle dials and built in watch and alarm clock. Both unit's remotes are backlit. The W shuttle Remote will be released separately as the AD-S31RM in April (¥7,500), as will the Car Mounting Unit AD-S31CU (¥3,000). Playback times: AD-31BT LiIon: 10.5 hr, AAx1: 6.5 hr, both: 17 hr. Recharge time: 3.5 hr. MD-SS311 available in Blue, Silver and Yellow, MD-SS312 available in Blue and Grey.

Links: Sharp's Japanese page and news release that includes an animation of the slot-in loading and the 312's fancy remote. Nic Boyde's pages for the unit and his translation of the Sharp press release

Reviews:

Features: 40 second shock memory. Backlit LCD remote. Random play, all repeat, 1 repeat modes. Playback time: LiIon rechargeable: 8 hours, single AA alkaline cell: 6 hours, both together: 14 hours. Full recharge time: 3 hours.

Links: Sharp's Japanese press release for the unit. Nic Boyde's snapshots of the Sharp MD-ST601.

Specs: Amp: 5mW + 5mW into 32ohms. Freq resp.: 20-20kHz +/-3dB,

Reviews:

Features: Clamshell (not slot-in) disc loading. MD ''jacket size'' and thickness of 2 MD jackets. 40 second shock memory. Back lit remote. 8 hours playback on single LiIon battery. 6 hours on single AA cell, 14 hours on both together. Available in white, blue and yellow. Clear plastic ("skeleton") remote. Headphone amp: 5mW + 5mW (32ohms). Power: 3.6v (LiIon rechargeable), 1.5v (1 AA cell), 4.5v (car adapter), 5.0v (AC adapter). Includes: remote, LiIon rechargeable, AA case, headphones (button?) AC adapter, carrying case.

Links: Sharp's Japanese page and news release for the unit. Nic Boyde's page for the ST501 and Onkyo MD-P10 [Sharp MD-ST501 clone]. Nick Riley's photos and comments on the Sharp MD-ST501 portable player. Sharp's Audiofair Report with pictures and blurbs on the MD-ST501 portable player. Pioneer's Japanese announcement and photos of their PMD-P3 MD player (a Sharp ST501 clone). The PMD-RMX1 variant comes with fancy ``DJ'' headphones. Tugrul Tanyol has conducted a comparison of the Sony MZ-E35 and Sharp ST501 portable MD players.

Notes: Pioneer PDM-RMX1 includes ``Original Dynamic Headphones'' for DJ use.

Reviews:

Features: MD ``Jacket'' size slot-in players. Sharp ATRAC 5. New 1 chip LSI incorporating the [digitalized] RF section, signal processing encoder/decoder, digital servo, EFM processing and audio compression/decompression circuitry. The SS301, SS302 and SS401 have LCD equipped remotes but no LCD on the main body. The SS302 has an ``outdoor sports'' look. Coupled with Sharp bookshelf systems, provides ``MD->MD edit'', meaning text and audio can be copied. 6 hours playback on rectangular LiIon battery pack, or 4 hours on a single AA cell (using included case), or 10 hours on both together. 10 second shock memory. Random, all repeat, 1 repeat play modes. Includes backlit LCD remote, headphones, LiIon rechargeable, AC adapter, AA case (not included on US models, available separately for $20), carrying case. SS301 available in silver, yellow, and blue, SS302 and 401 in gray only.

Links: Sharp's pictures and Japanese information. Sharp's English page for their these portables. A user's review of the Sharp SS302. MiniDisc-Canada offers the hard-to-find Sharp external drycell case for the MD-MS70x and MD-S301 portables.

Specs: 20-20kHz +/-3dB, wow & flutter <.001% peak

Reviews:

User Manual: MD-SS301

Features: Allows "MD->MD Edit" function (as does SS70) when coupled with Sharp's MD deck (XV300 or XL10) via a special cable (AD-M4AC). The cable connects like the LCD remote headphones of an MD player, carrying the analog audio signal as well as the data displayed on the LCD. Thus, audio analog copy and title copy are done at the same time. 3 postion digital bass boost. 4 step battery life indicator. Random play. Auto play function starts playback when disc is inserted. Car adapter (AD-S50CK - separately sold) resumes play at beginning of last song in play when car is started. Katakana/roman display. Unit charges simply by placing in recharger base (like a portable phone). Provides 5 hours playback on LiIon rechargeable (AD-ST60BT), 13 hours on [separately sold] external battery case (AD-ST60BC) carrying four alkaline AA cells, 20 hours on both together. Charge time: 2.5 hours. Batteries can be charged while in use w/AC adapter. Available in silver, blue and green. Included accessories: Headphones w/LCD remote (AD-ST60RM), AC adapter, carrying case, rechargeable LiIon battery, manual, recharger base. World power (100-240V) AC adapter (AD-SS70AP) sold separately.

Links: Sharp's English summary page.

Reviews:

Features: Slot in design. Allows "MD->MD Edit" function (see ST60 above). 3 postion digital bass boost. 4 step battery life indicator. Katakana/roman display. Random play. Auto play function starts playback when disc is inserted. In car (AD-SS70CU [car mount base], AD-CT13 [cassette adapter], AD-CA20X [cigarette lighter power adapter] - all separately sold), resumes play at beginning of last song in play when car is started. Provides 10 hours playback on LiIon rechargeable (AD-MS10BT), 27 hours when coupled with (separately sold) external battery case (AD-SS70BC) carrying six (!) alkaline AA cells. Charge time: 3 hours. Available in silver, blue and grey.

Links: Sharp's English summary page for the SS70. Alan Jaffray's review of the SS70.

Reviews:

Features: All digital processing done on one chip to reduce power by 35% over previous model. Large LCD display on remote. Katakana/roman display. 3 step digital bass boost. Repeat and random play. Playback time: 4 hours on included lithium ion rechargeable (AD-S50BT), 10 hours on 3 alkalines (with optional AD-S50BC drycell case). 4 step "battery life" indicator. Comes in three colors. Has a big window on the lid so you can see the color of the MD case (and maybe the MD spinning if it's in a clear case?).

Links: Sharp Press Release Sharp Japan page for this unit. A user's review of the S50 unit. Excerpts from a What HiFi article mention the Sharp MD-S50.

Reviews:

Features: LCD display on remote. 3 step bass boost. Repeat and random play. Playback time: 2 hours on included lithium ion rechargeable, 5 hours on 3 AA alkalai cells (using separately available AA case), 4 hours on separately available AD-S20BH (high capacity) lithium ion rechargeable cell. This unit almost identical to older MD-S20. (MD-S20: 140g, AA cell battery case included).

Reviews:

Features: Very similar to Sharp MD-MS5 Smallest and lighest MD recorder at time of introduction.

Reviews:

Features: Similar to D10, but with no LCD display or controls on main unit. Random play, X-bass, remote control. Nicad rechargeable. Playback time: 100 min (premastered MD), 90 min (recordable MD). Recharge time: 5 hours. Does not accept drycells. Headphone amp: 15mW+15mW RMS. Power consumption 8 Watts. Model suffix BK=Black Color

Reviews:

Features: LCD display and controls on main unit. Random play, X-bass, remote control. Nicad rechargeable. Playback time: 100 min (premastered MD), 90 min (recordable MD). Recharge time: 5 hours. Does not accept drycells.

Reviews:

Features:

• Digital amp
• Charging stand
• 6 band equalizer
• ATRAC/ATRA3 DSP Type-S
• Available in silver, blue, pink and orange
• White, backlit stick-controller remote

Links:

• Sony (Japan)
• AV-Watch (Japan)

Accessories: Headphones, remote, NiMH cell and case, charging stand, AC adapter, carrying pouch

Reviews:

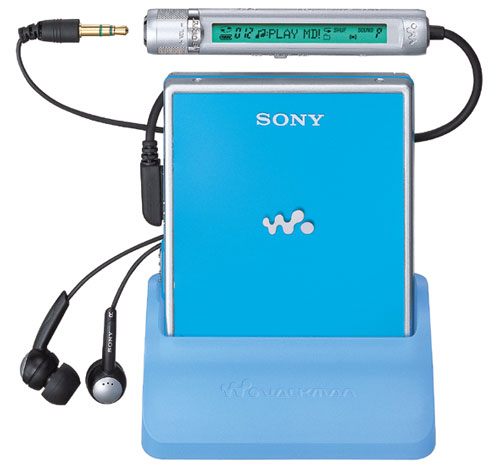

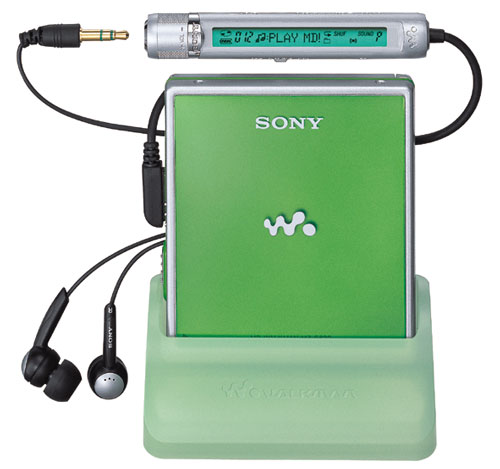

Features:

• ATRAC Type-S
• 6-band equalizer.
• One touch eject.
• Available in 5 colors.

Included Accessories: In-ear phones, backlit 9-character Roman/Kana LCD remote, NiMH cell, charge stand, external AA cell case, carrying pouch, AC adapter

Links:

• Sony page
• GAZ Webshop (Japan) selling MZ-E620 and MZ-E720.

Specs: 5mW+5mW into 16 ohms

Reviews:

Features:

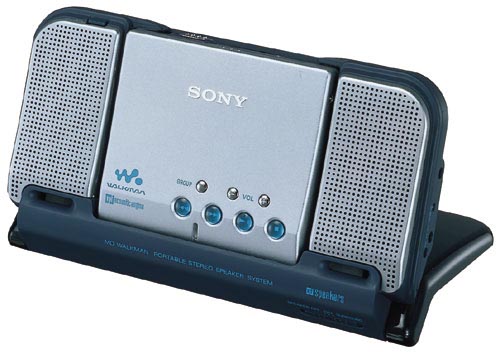

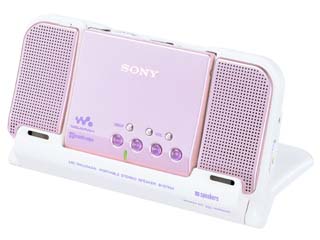

• First Sony with docking cradle incorporating speakers (following Panasonic, Kenwood and JVC)
• ATRAC DSP Type-S
• G-Protection
• 6-band equalizer
• VPT (Virtual Phone Technology) Acoustic Engine (DSP synthesizing room acoustics)
• Backlit LCD remote
• 3 color info LED
• AC Adapter accepts 100-240VAC

Links:

• Sony (Japan) page for the unit.
• AVWatch (Japan) page for the unit.

Specs:

Reviews:

User Manual: J

Features:

• Teenage girl-friendly colors.
• G-Protection
• ATRAC DSP Type-S
• 6-band equalizer
• Charge stand
• White backlit LCD remote ("new")
• 3 color info LED
• New (16) play modes (See Sony portables glossary for definition)

Links:

• Sony (Japan) page for unit
• AVWatch (Japan) page for the unit.

Specs: Headphone amp: 5mW+5mW into 16 ohms

Reviews:

User Manual: J

Features:

• Aluminum body
• G-Protection
• ATRAC Type-S
• Group and Bookmark function support
• 6 band equalizer with 4 presets and 2 user definable settings
• Backlit "new style" LCD remote
• New (16) play modes (See Sony portables glossary for definition)
• Charging Cradle
• Available in 4 color variations (silver, blue, orange, red)

Links:

• Sony (Japan) page for the unit.
• AVWatch (Japan) page for the unit.
• AVLand (UK) page for the unit.
• MDFR.com page for the unit.

Specs: 5mW+5mW

Reviews:

User Manual: J

Service Manual: MZ-E510

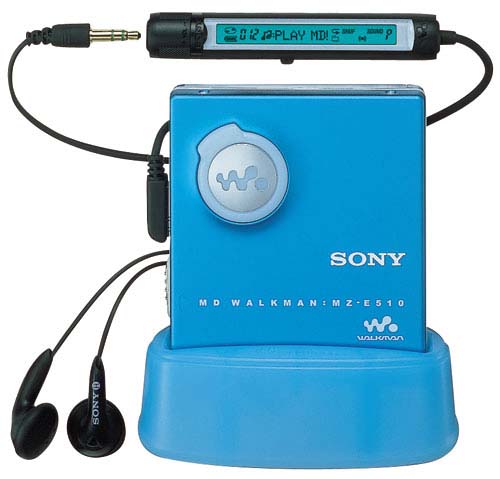

Features:

• ATRAC DSP Type-R
• G-Protection.
• Group mode support.
• Digital sound system presets.
• No remote.

Links:

• AVLand (UK) page for the unit.
• MDFR.com page for the unit.
• my-minidisc.com

Reviews:

User Manual: MZ-E310

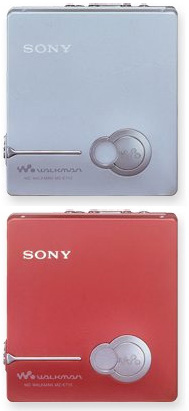

Features: Unit features several changes from previous (MZ-E707) model:

• Digital Amp
• 6 band equalizer.
• VPT (Virtual Phones Technology) uses DSP to provide "Studio, Club, Live, or Arena" effects.
• New (yet again) backlit LCD stick remote with jog lever and 6 character display.
• "Bookmark track" function allows up to 20 favorite tracks on a disk to be selected for playback. Selected tracks are forgotten when lid is opened.
• "New" Play modes, including program play.
• Digital Pitch Control (playback speed adjustable from -50% to +100% without pitch change).

Features common to previous units:

• G-protection.
• Personal disc memory (remembers equalizer settings on a per disc basis)
• Beep on/off selectable.
• One-touch eject.
• 3 color info LED.
• Melody timer (for avoiding missed train stops)

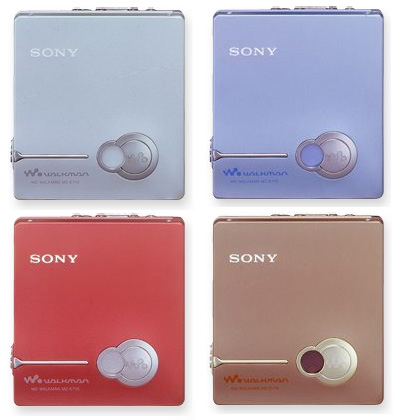

• Available in silver, blue, pink and brown.

Links:

• Sony's Japanese MZ-E710 page.
• Minidisc T-station MZ-E710 page.

Included Accessories: Rechargeable battery, Remote control, Headphones (earbuds), Recharging stand, Attachable drycell (AA) case, Carrying pouch, AC adapter.

Specs: Headphone amp: 5+5mW into 16 ohms (JEITA)

Reviews:

Service Manual: MZ-E710

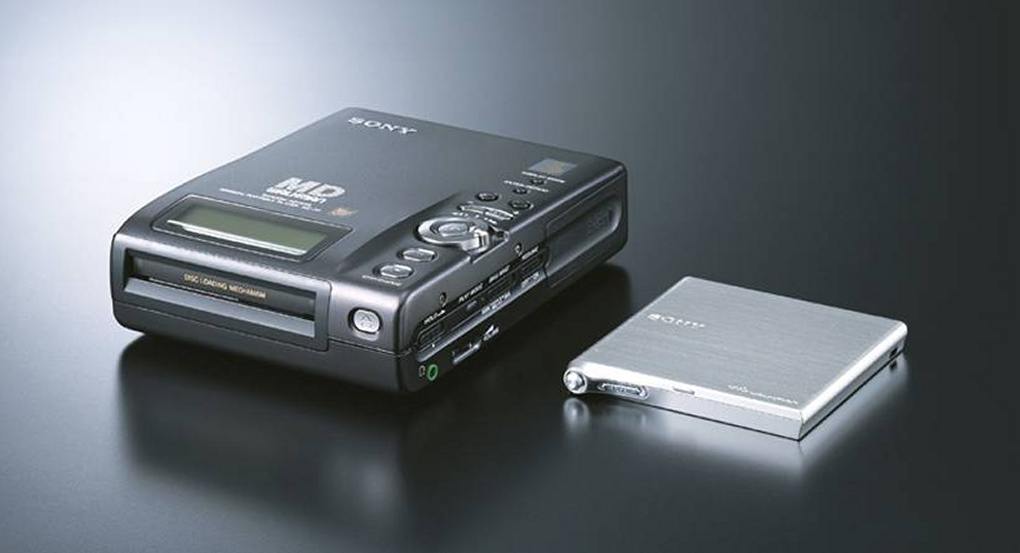

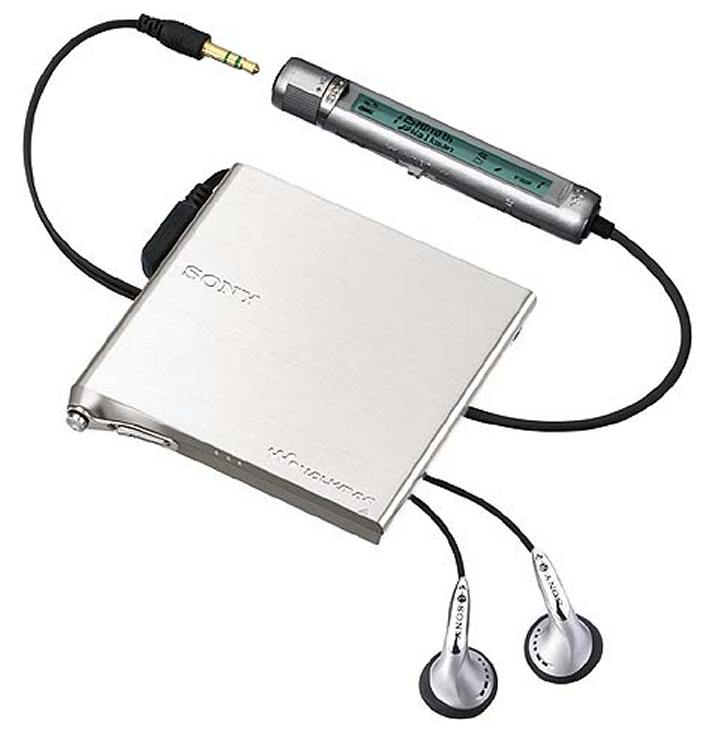

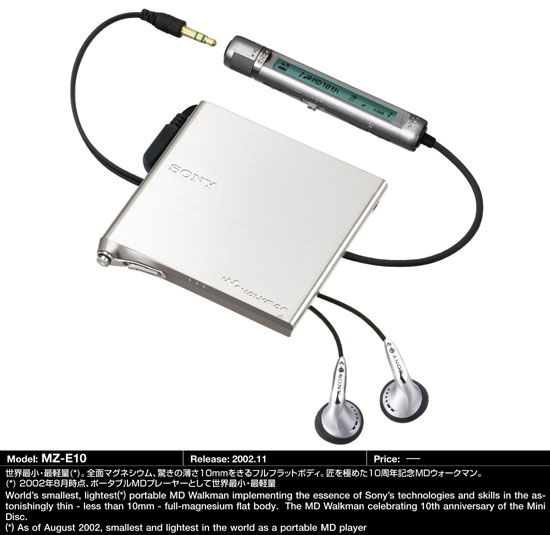

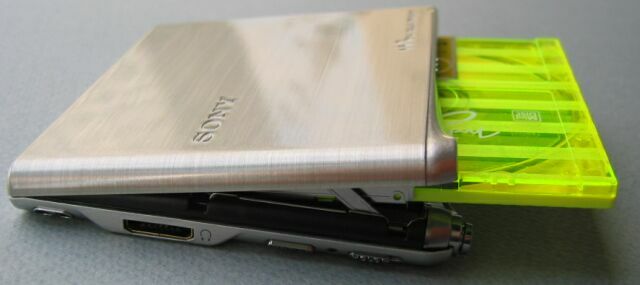

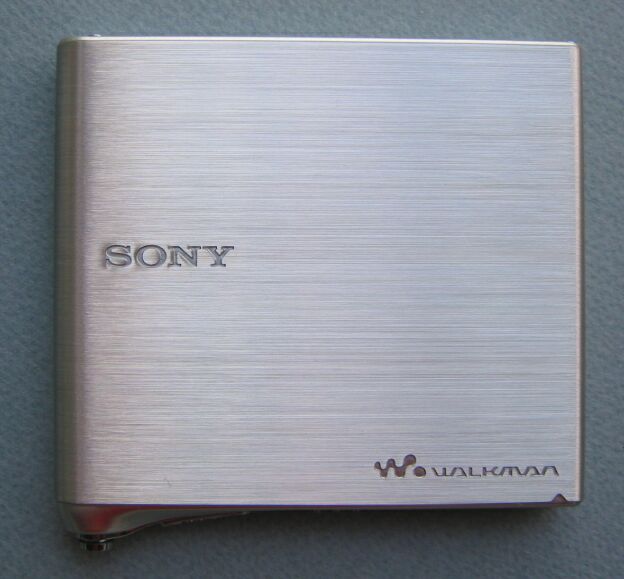

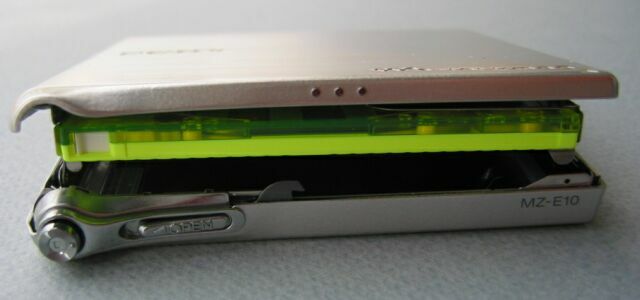

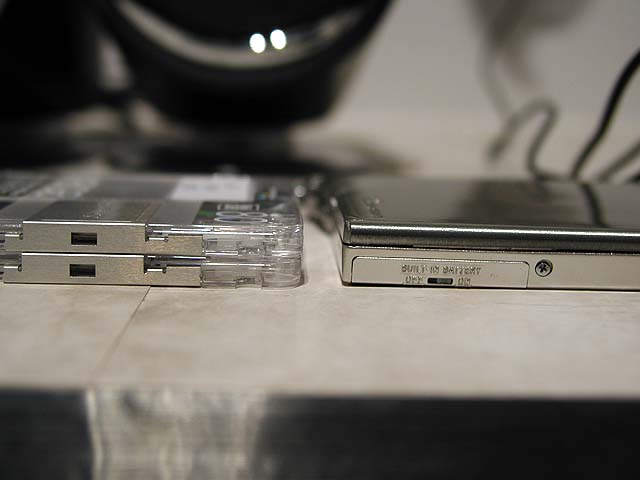

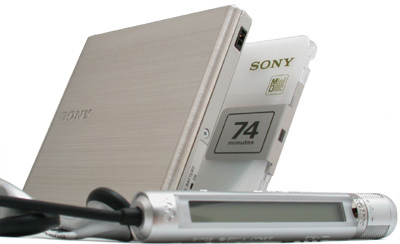

Features: Sony's 10th anniversary Minidisc player. Unit achieves new world firsts in weight and size.

• World's thinnest (10mm) and lightest (55g w/batt) MD player (as of 2 Sep 2002).

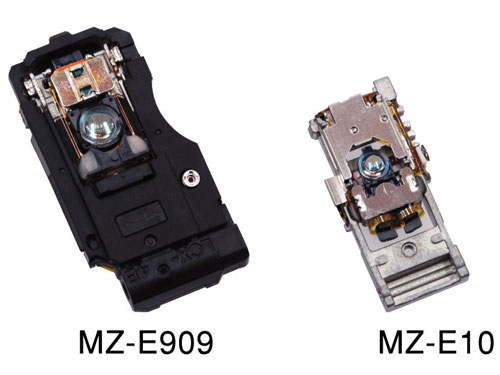

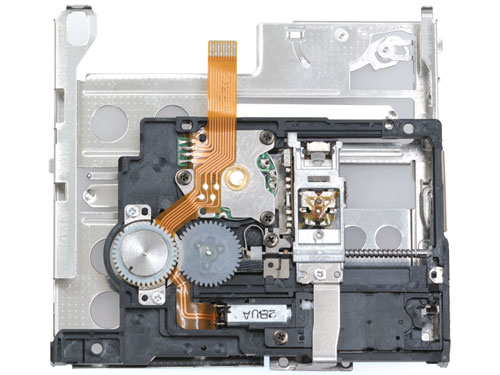

• New optical pickup and motor (30% thinner) and miniaturized main IC (33% smaller) [compared with MZ-E909].
• Charge stand has 3 color LED indicating charge or remaining battery.

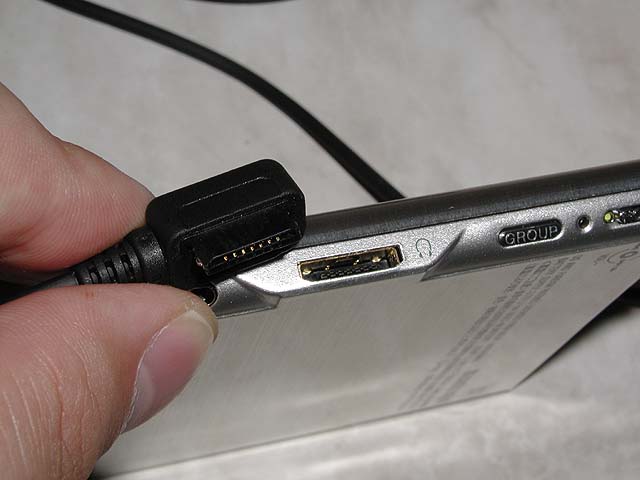

• New 3mm headphone jack (requires adapter for normal headphones!).
• Digital Amp
• "High grade" headphones (earbuds)

  Common to MZ-N10 and MZ-E10:

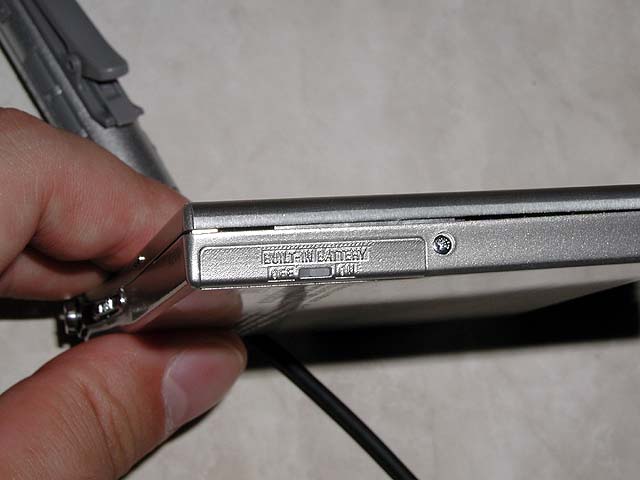

• Built-in 3mm Lithium Ion cell.
• Further thinning of the magnesium case.
• Backlit remote has 2-line display for Roman alphabet titles, 1-line for Kanji titles.
• "Virtual Headphone Technology Acoustic Engine" uses DSP to provide "Studio, Club, Live, or Arena" effects.
• Equalizer allows 7 steps of adjustment (-10dB to +10dB) in 6 frequency bands. Equalizer settings are established with one of four fixed presets ("Heavy, Pops, Jazz, Unique") or one of 2 custom (i.e. user defined) settings. Equalizer and "Virtual Headphone" cannot be used together.
• "Bookmark Track" function can remember up to 20 "favorite tracks" from an MD, and will play those tracks only. (Remembered tracks are forgotten when player is opened).
• "Digital Pitch Control" Adjustable playback speed from -50% to +100% (factor of 0.5x to 2.0x) in 13 steps without change of pitch.
• "New" Play mode (See Sony portables glossary).

Links:

• Sony's Japanese press release (mech. translations: Babelfish (courtesy Peter Ravn), Translingo).
• Sony Minidisc 10th anniversary page (mech. translation).
• AV-Land (UK) coverage (good photo).
• Minidisc T-Station coverage.
• Spanish coverage at Quesabesde.
• AV Watch page (mech. trans has coverage of the MZ-N10/E10 and LAM-10 units.

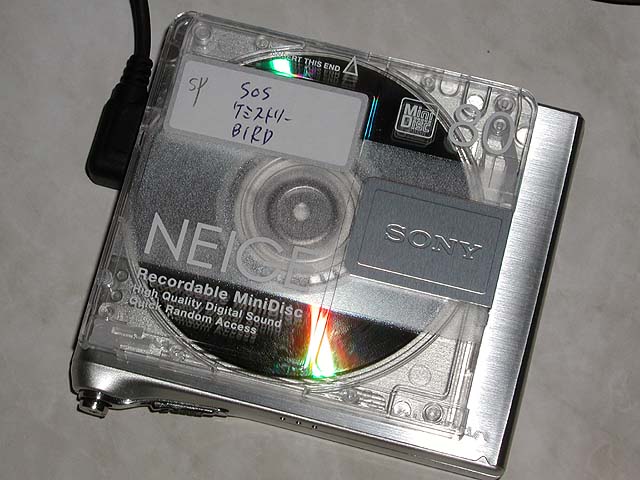

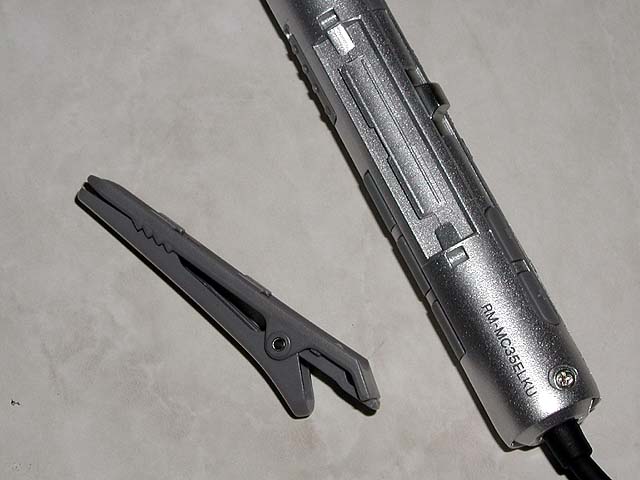

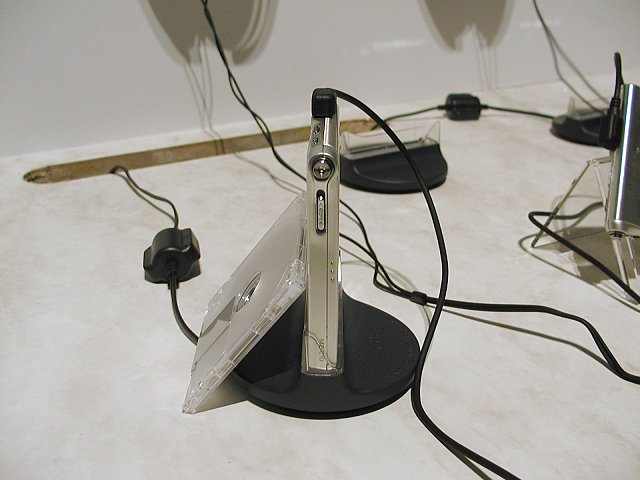

• PocketFad (Shenzhen China) has further photos of the unit.
• Japan-Direct page for the unit.

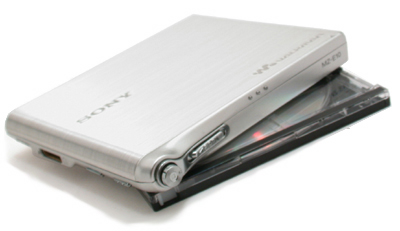

• Minidisco page for the unit.

Specs: Headphone amp: 5mW+5mW into 16 ohms. 20-20kHz +/-3dB

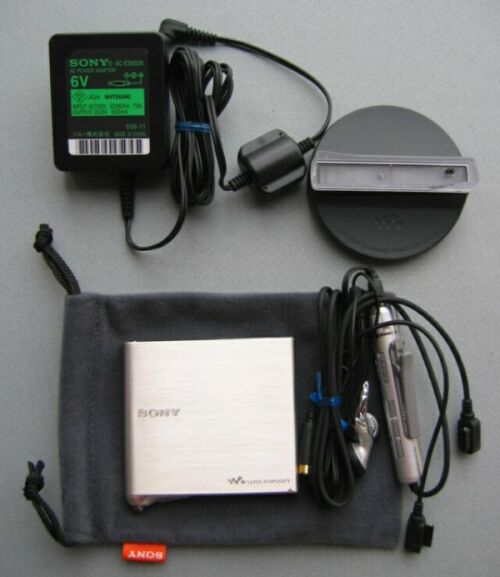

Included Accessories: (Japanese edition) Backlit remote, charging stand, AC adapter (for use with charging stand), carrying pouch, headphone adapter.

Reviews:

User Manual: MZ-E10

Service Manual: MZ-E10

Features:

• MDLP
• G-protection
• Group mode
• Digital Sound Preset
• 16 Play modes including program play
• 3-color info LED
• Back-lit LCD remote with 9 character display
• One-touch eject
• Beep on/off settable
• Index search

Links:

• Sony's Japanese MZ-E505 page.
• Found on Minidisc T-Station catalog scan (md_3.jpg).

Reviews:

User Manual: J/E

Service Manual: MZ-E505

Features: Wireless remote control. MDLP playback (SP/LP2/LP4), G-Protection shock memory (up to 160 seconds in LP4 mode), 7 step playback speed control, 8 step bass and treble adjustment, unit recharges in charging cradle, alarm clock function.

Links: Second try for wireless remotes: Terry Park points out a photo and Japanese info for the Sony MZ-E606 portable MD player, with a small, pocketable, wireless remote. ChinaByte has some information on the MZ-E606W.

Specs: 5mW+5mW output. 100V AC adapter.

Reviews:

User Manual: J

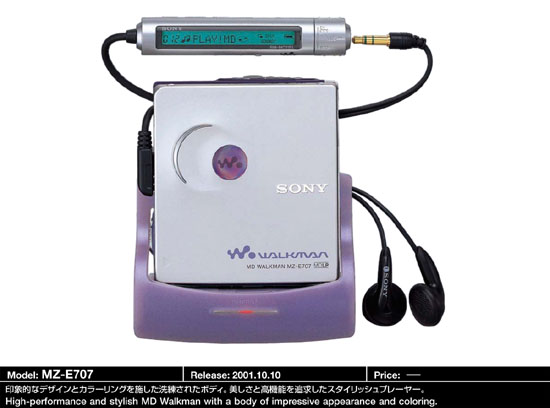

Features: MDLP playback (SP/LP2/LP4), G-Protection shock memory (up to 160 seconds in LP4 mode), 7 step playback speed control, 8 step bass and treble adjustment, unit recharges in charging cradle, alarm clock function.

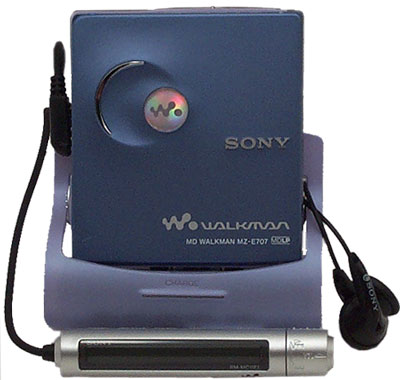

Links: Sony's official Japanese page (trans) for the MZ-E707. Minidisco has some further info and pictures of the MZ-E707.

Specs: 5mW+5mW output. 100V AC adapter.

Reviews:

Service Manual: MZ-E707

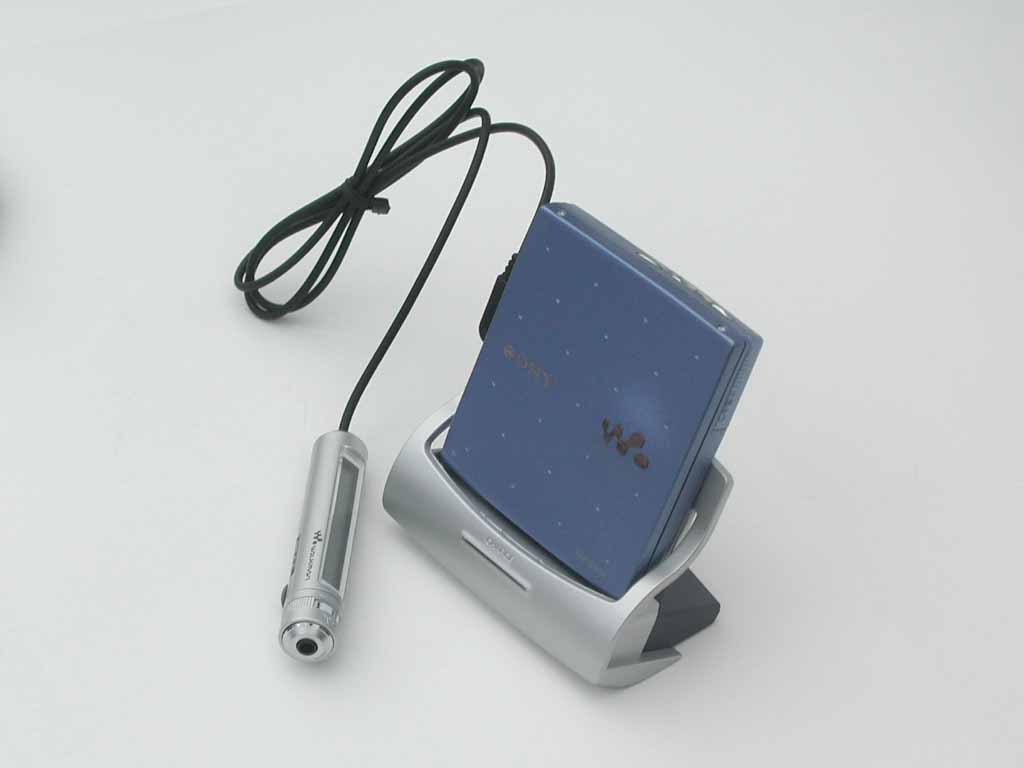

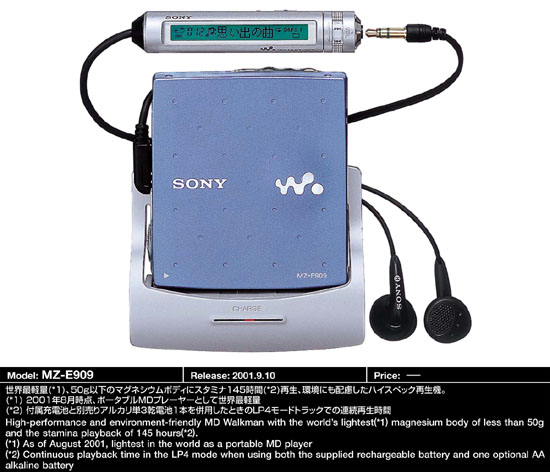

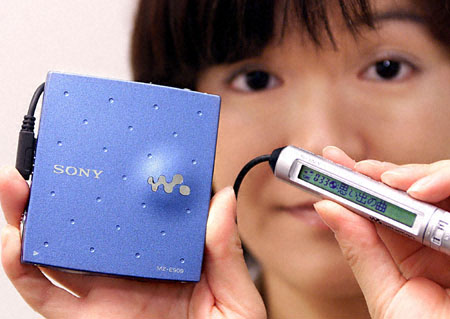

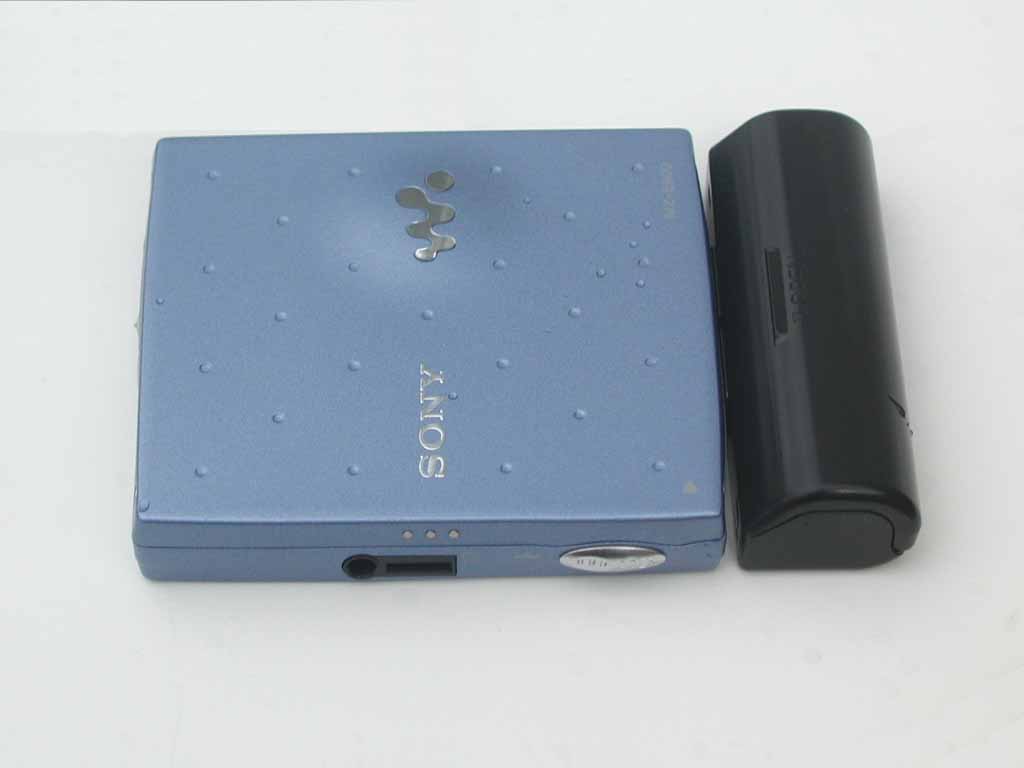

Features: MDLP playback (SP/LP2/LP4), ATRAC Type-R, G-Protection shock memory (up to 160 seconds in LP4 mode). Main body of unit composed of magnesium for lightness and rigidity. Remote control is capable of display Kanji Chinese characters (see picture at left), unit recharges in charging cradle.

Links:

• Sony's original Japanese press release (translation) for the MZ-E909.
• Sony's official Japanese page (translation) for the MZ-E909.
• MDMan (Korea) has a gallery of MZ-E909 photos.
• Japan-Direct also has a bunch of pictures of the MZ-E909.
• Impress Watch, a Japanese electronics news site, has a page with further info on the MZ-E909.
• Planet Minidisc's Sony 2002 portables feature comparison chart.

Specs: 3mW+3mW output. 100V AC adapter.

Reviews:

User Manual: MZ-E909

Service Manual: MZ-E909

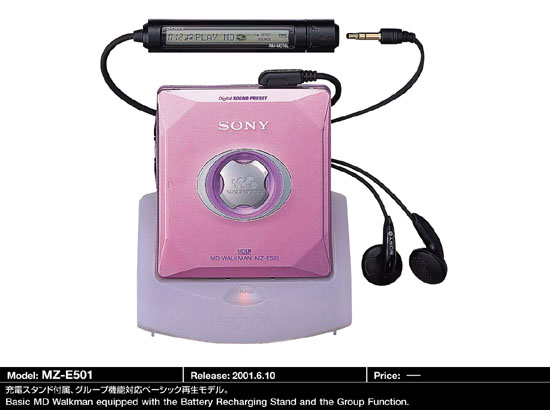

Features: MDLP and Group Function compatible. Eight-level bass and treble adjustment. Unit is recharged by placing it in the recharging stand. Available in silver, blue, pink, and yellow.

Links: Sony's Japanese press release for the MZ-E501 (machine trans.).

Specs: 1.5V DC. Times listed are for SP/LP2/LP4 modes.

Reviews:

User Manual: MZ-E501

Service Manual: MZ-E501
