Aiwa XR-FD1 / XR-FD3
| Name | XR-FD1 / XR-FD3 |
|---|---|
| Manufacturer | Aiwa |
| Released | 2001/08 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 170W x 166H x 327D mm |
| Weight | 4.1Kg |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | No |
| Voltage | 100 |
| Power cable | AC |
| Price (launch) | Not recorded |
| ¥50 000 | |
| - | |

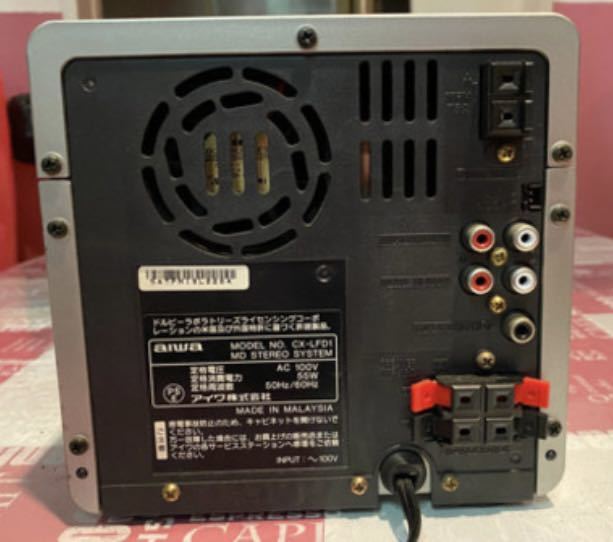

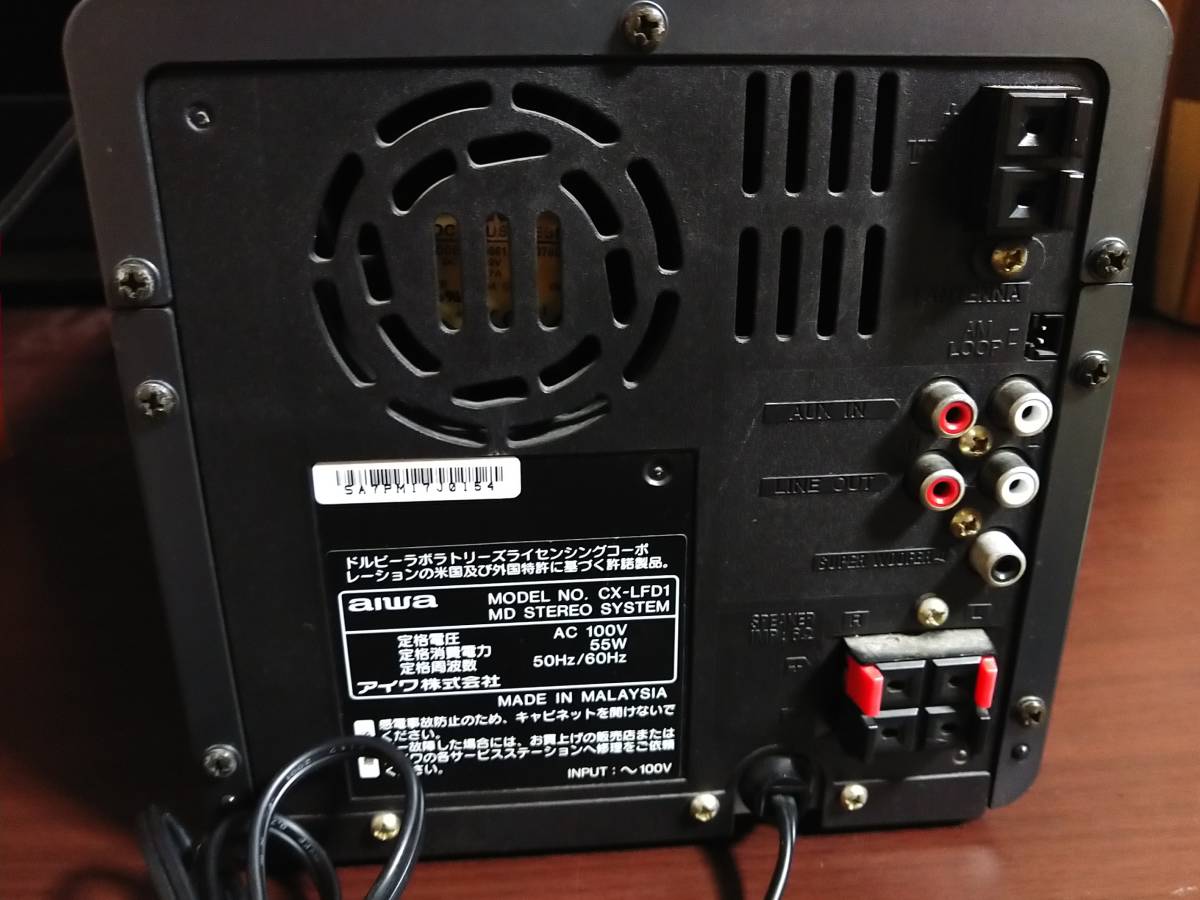

| Inputs | RCA in, CD |
| Outputs | 3.5mm headphone, Speaker amplifier |
| Control | Not recorded |

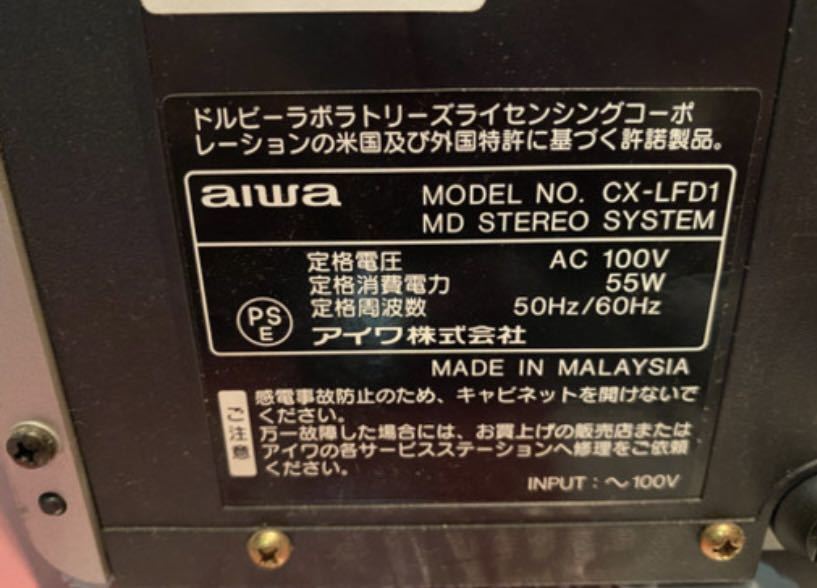

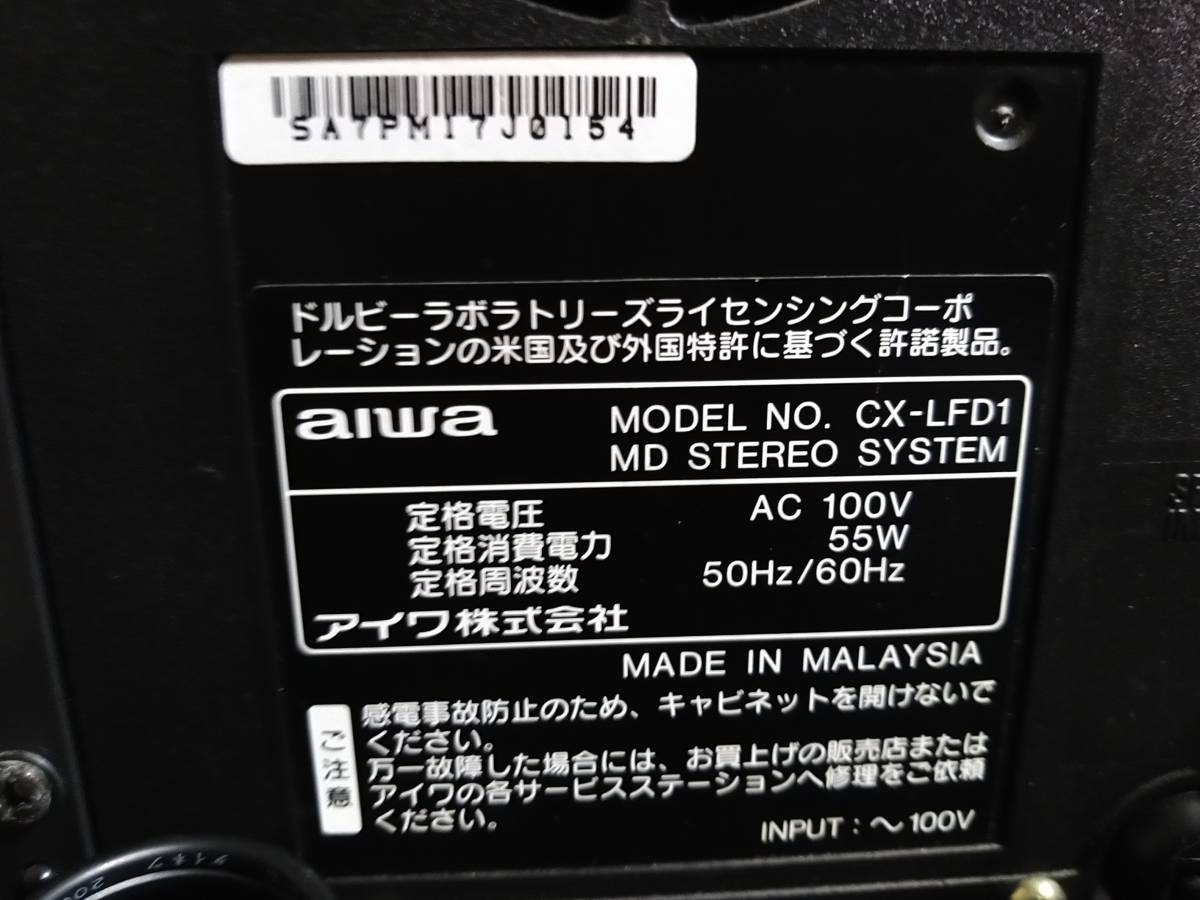

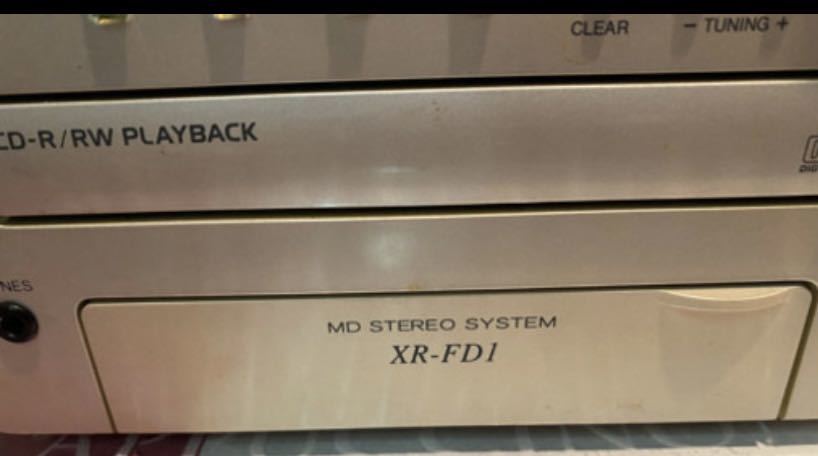

On the XR-FD1 system CX-LFD1 is stamped on the main body.

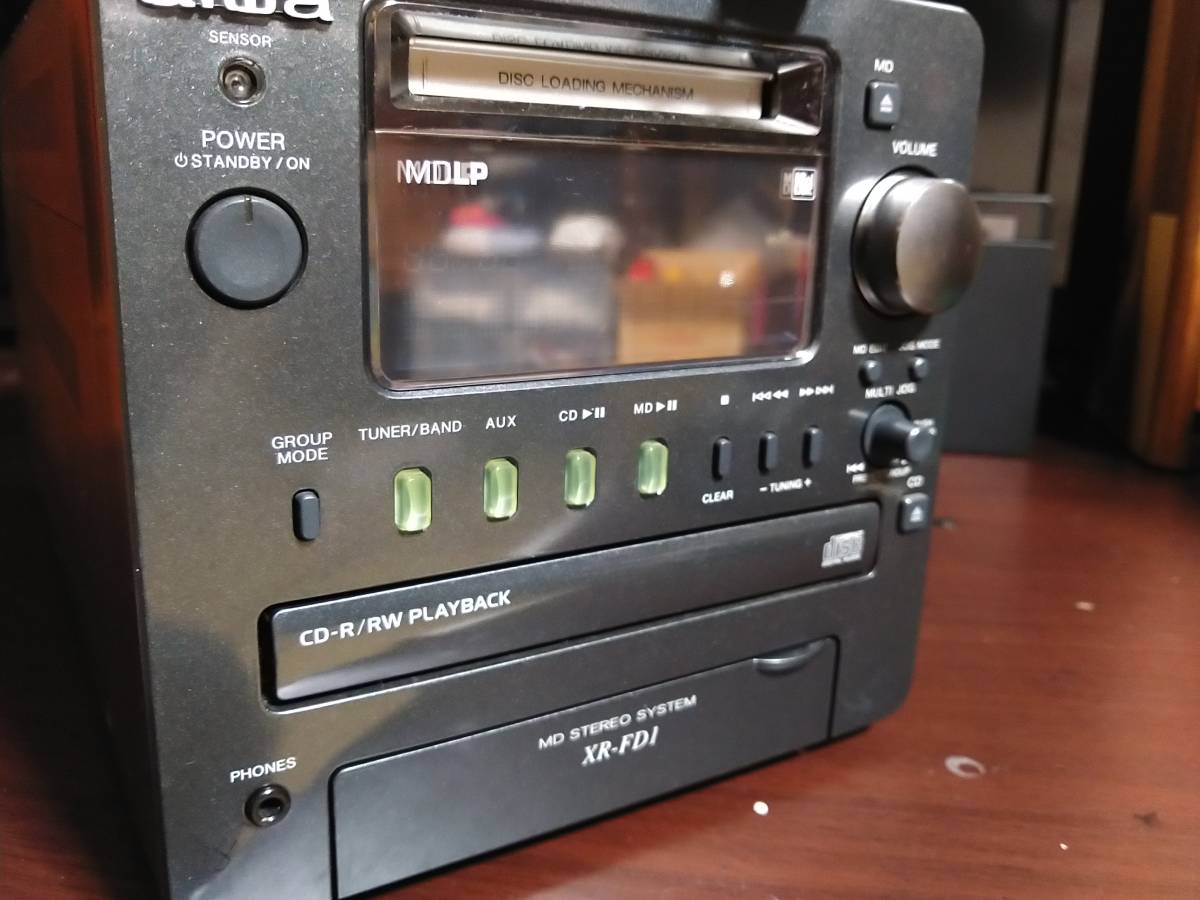

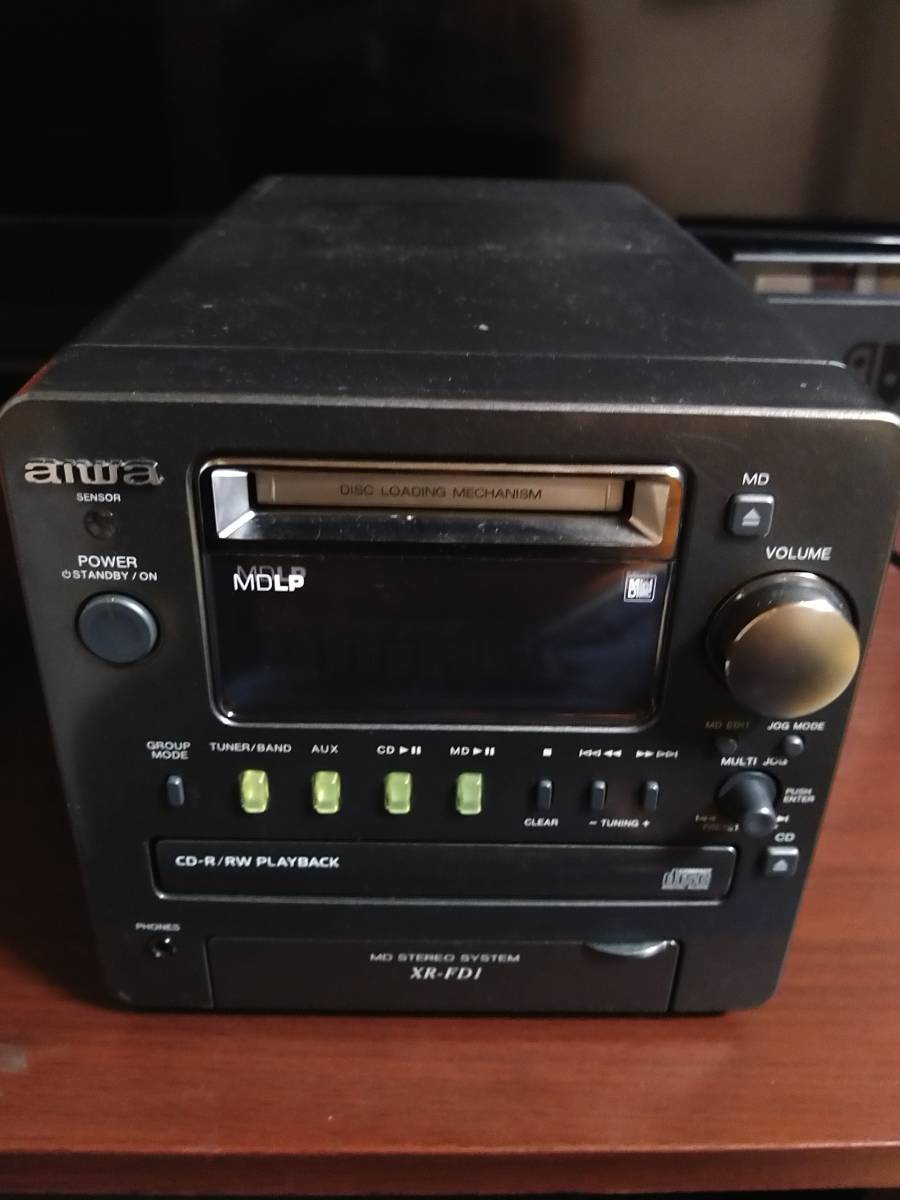

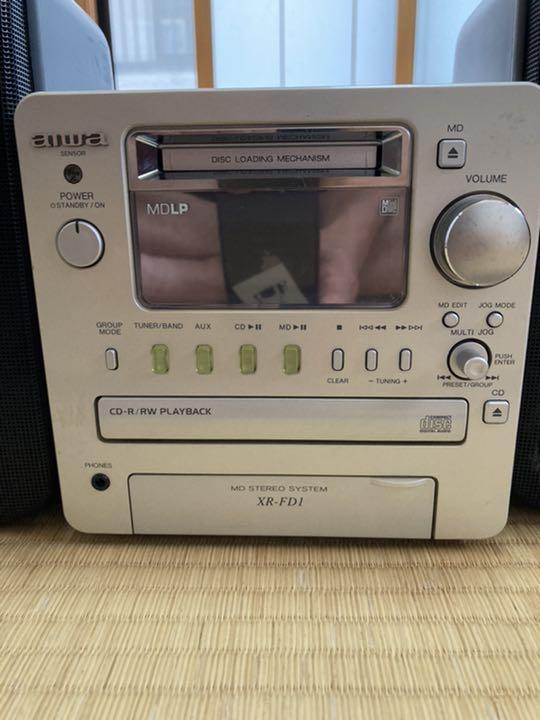

Features: MDLP/Group function compatible. Tone control (bass/middle/treble), direct play function starts MD, CD, or radio operation at the touch of a button, 3-way timer (record, playback, sleep), CD-R/RW playback.
■ Supports MDLP mode, CD → MD double speed dubbing
"Aiwa also sells the same main unit paired with a simpler pair of speakers, re-named the XR-FD1."
Content adapted from: Aiwa Press Release Aiwa Press Release (MiniDisc Wiki mirror) av.watch Minidisc.org Page Aiwa product page Aiwa product page (MiniDisc Wiki mirror)
Manuals
Repair
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email..
Additional specifications and references
| Manual | |
|---|---|
| Region | Japan |
