| Name | XR-H220MD |
|---|---|
| Manufacturer | Aiwa |
| Released | 1999/07 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 260 W x 324 H x 344 D |
| Weight | 7000 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 100 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| Not recorded | |
| - | |

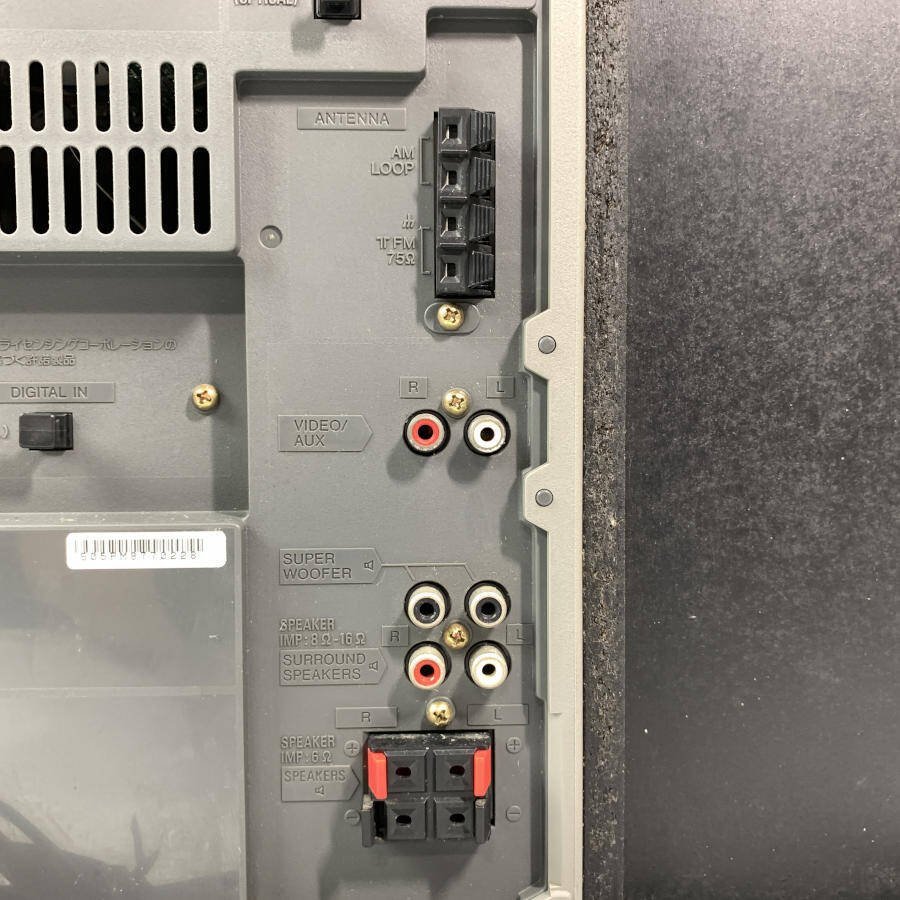

| Inputs | RCA in, Digital optical (TOSLINK), CD, Radio recording, Tape deck |
| Outputs | 1/4 inch headphone, Digital optical (TOSLINK) |
| Control | Not recorded |

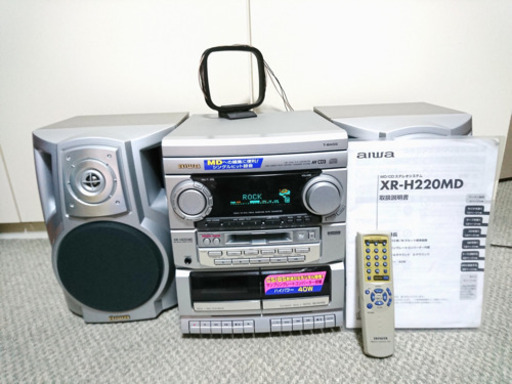

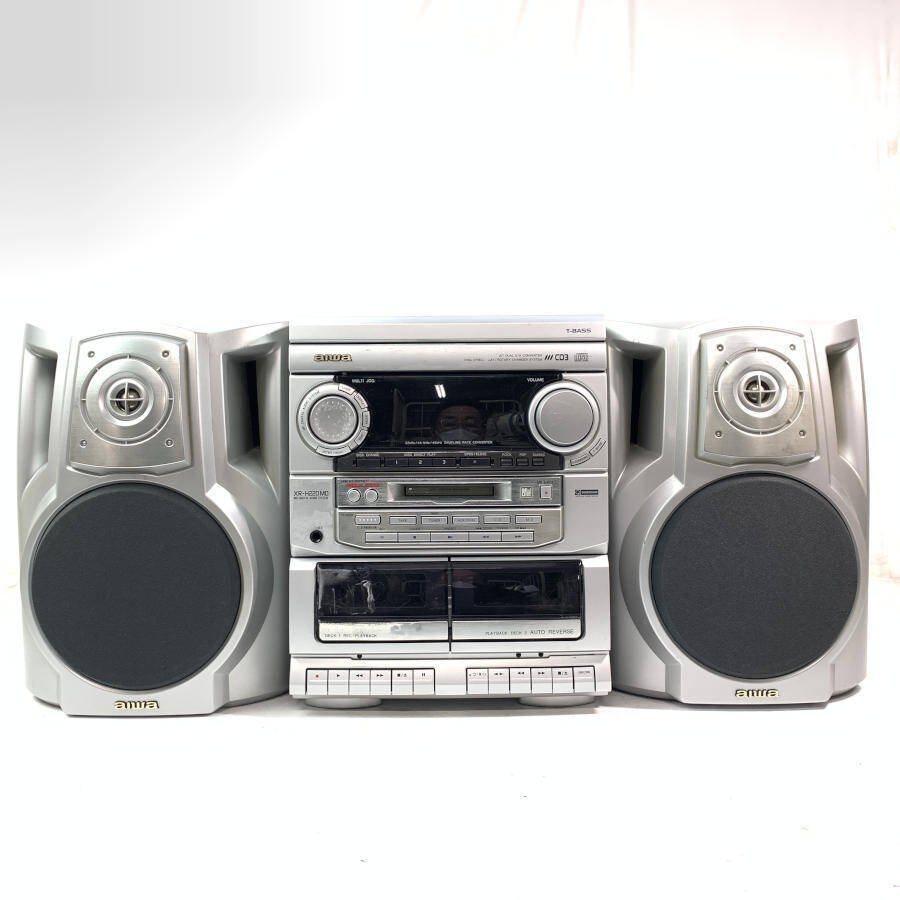

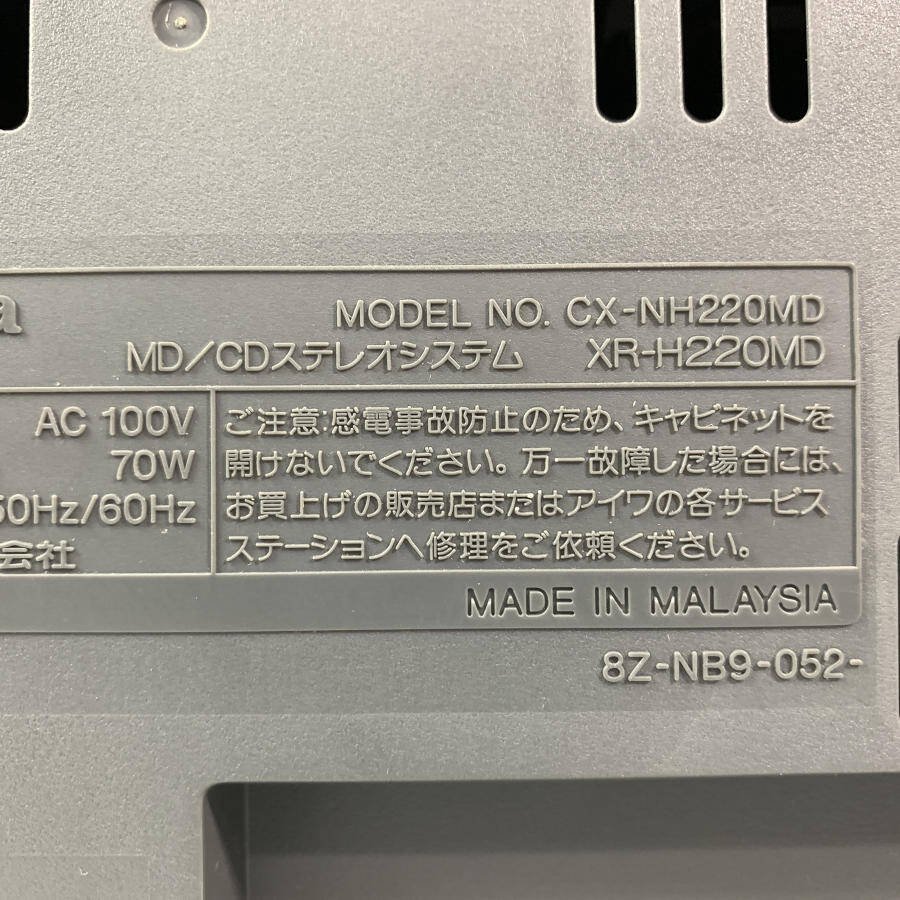

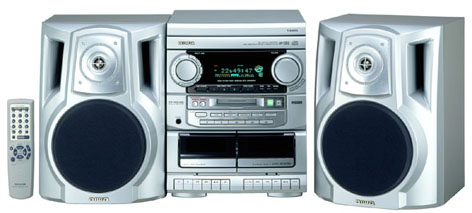

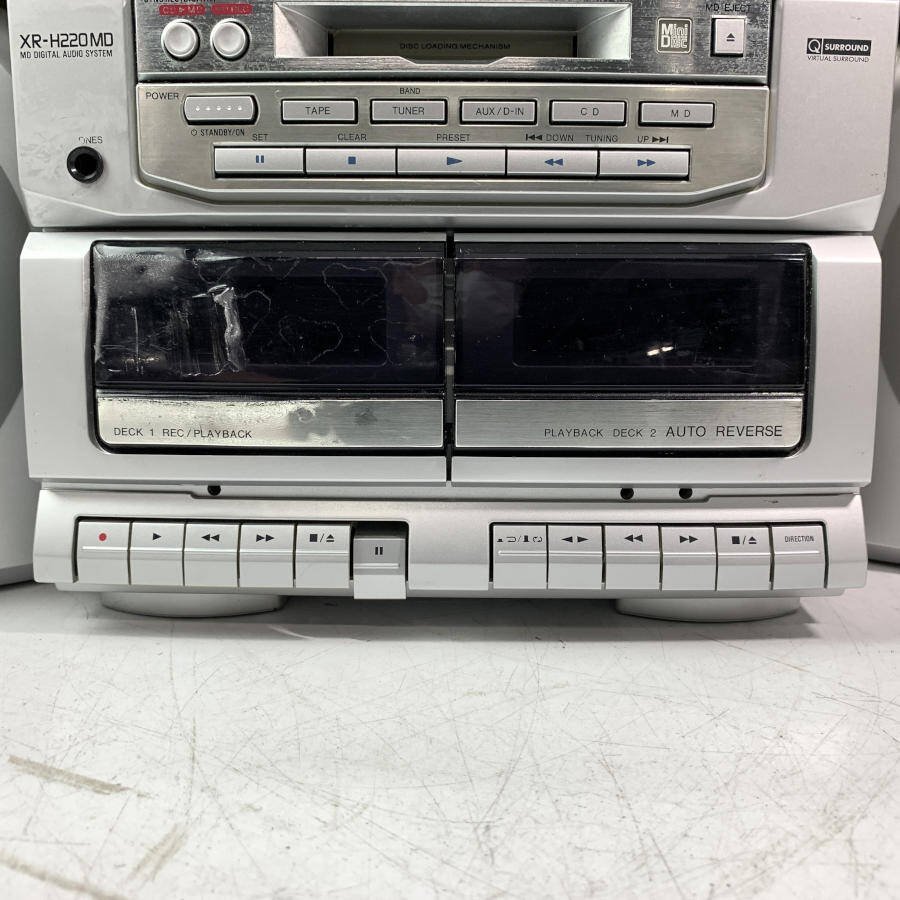

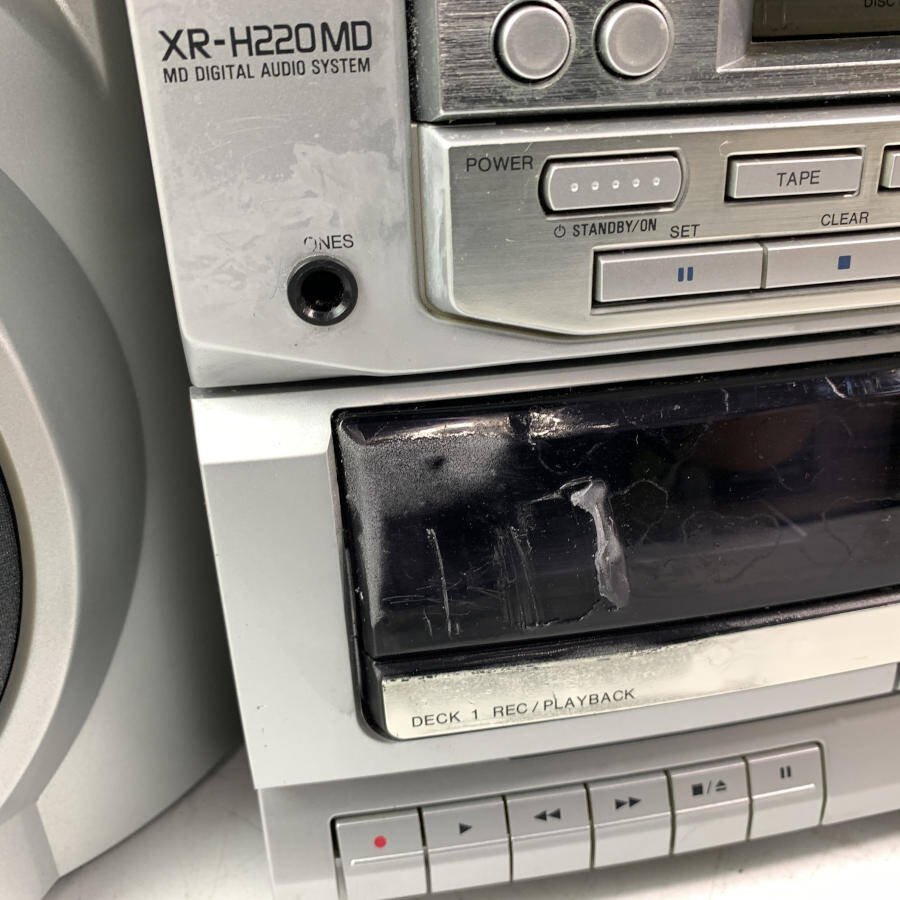

System Model CX-NH2200MD. The main MD/CD unit is XR-H220MD.
Main features

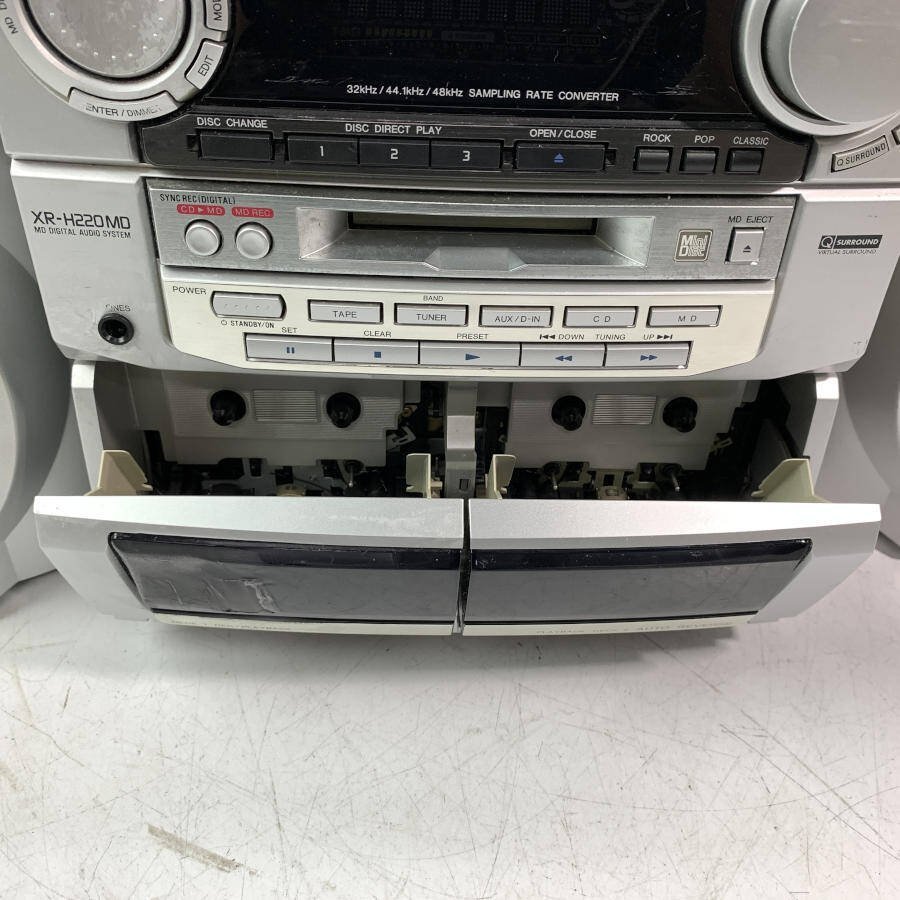

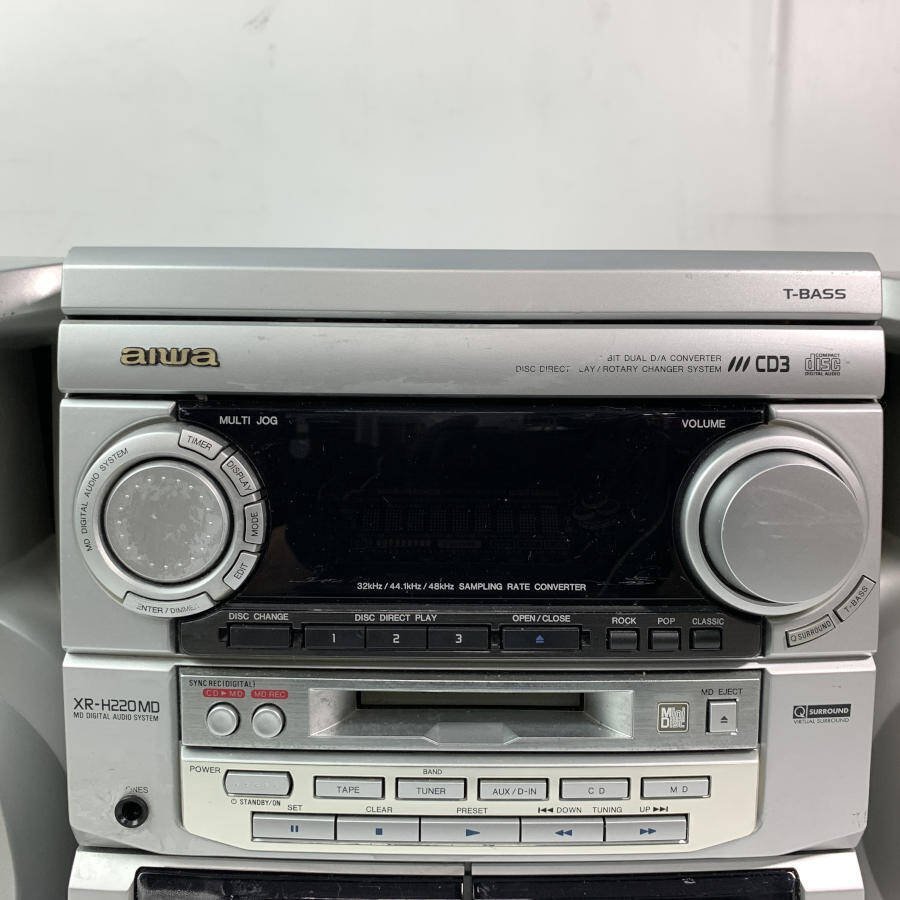

- * Sampling rate converter for digital recording from BS/CS digital broadcasts and DAT, to MD. The sampling rate converter automatically converts 32kHz/48kHz sampling frequencies to 44.1kHz. This allows high-quality digital MD recording from external equipment such as BS/CS digital tuners and DAT, in addition to CDs.
- * Flexible editing/recording – Multi MD functions
- (1) Easy character input with jog dial (up to 50 numeric, alphabetic, and kana characters can be input for each program)
- (2) Monaural extended recording mode, allows recording up to 160 minutes on an 80-minute MD.
- (3) Double-speed playback function ensures more efficient, quick program selection.
- (4) Displays available MD recording time.
- (5) All programs/one program direct recording from CD to MD
- (6) MD 30-program playback, random playback
- (7) 20 bit A/D, D/A converter ensures high-quality sound.
- * Single hit recording function automatically records one track from a selected CD (up to 3), onto an MD.
- * Virtual surround QSURROUND, an upgraded version of QSOUND, reproduces greater natural stereophonic surround effects.
- * Three-disc auto CD changer
- (1) Disc change function allows the user to change two CDs while another one plays.
- (2) CD continuous playback allows programmable/repeat playback of three CDs.
- (3) Disc direct function lets the listener quickly select a favorite CD from those in the changer.
- (4) CD edit function makes it simple to select a favorite program to edit to a tape (AI program).
- Other: CD 30 program function and CD synchronized recording function.
- * Dual cassette decks (record/playback one way + playback auto reverse)
- * CD 20 music calendar
- * Timer (Everyday on timer, sleep)
- * Music genre position (rock, pop, classic)
- * "T-Bass" ensures powerful low-range sound reproduction.
- * CD optical digital output terminal
- * Audio input terminal
- * FM stereo (wide)/AM stereo 2-band synthesized tuner (32 programs can be preset)
- * Silver color
Content adapted from: Aiwa Press Release Aiwa Press Release (MiniDisc Wiki mirror)
Manuals
Repair
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Manual | |
|---|---|
| Region | Japan |
