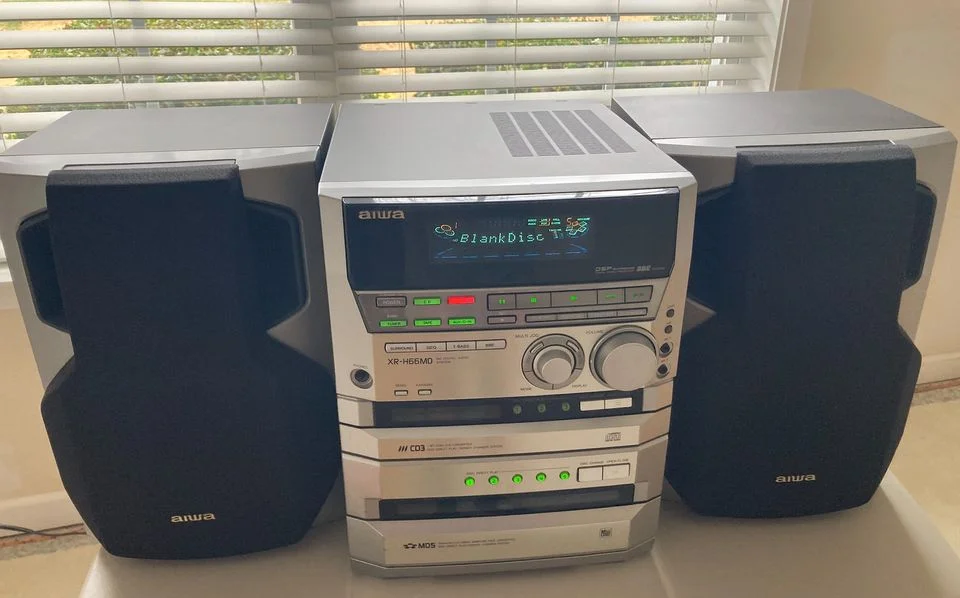

Aiwa XR-H66MD
| Name | XR-H66MD |
|---|---|
| Manufacturer | Aiwa |
| Released | 1998/02 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes - 88-108MHz |
| Dimensions | W 260 x H 338 x D 344 mm (main body) - W 236 x H 338 x D 260 mm (speaker) |
| Weight | 9.5kg (main body) - 3.4Kg (speakers each) |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | No |
| Voltage | 100 |
| Power cable | AC |
| Price (launch) | $700 |
| ¥79 800 | |
| - | |

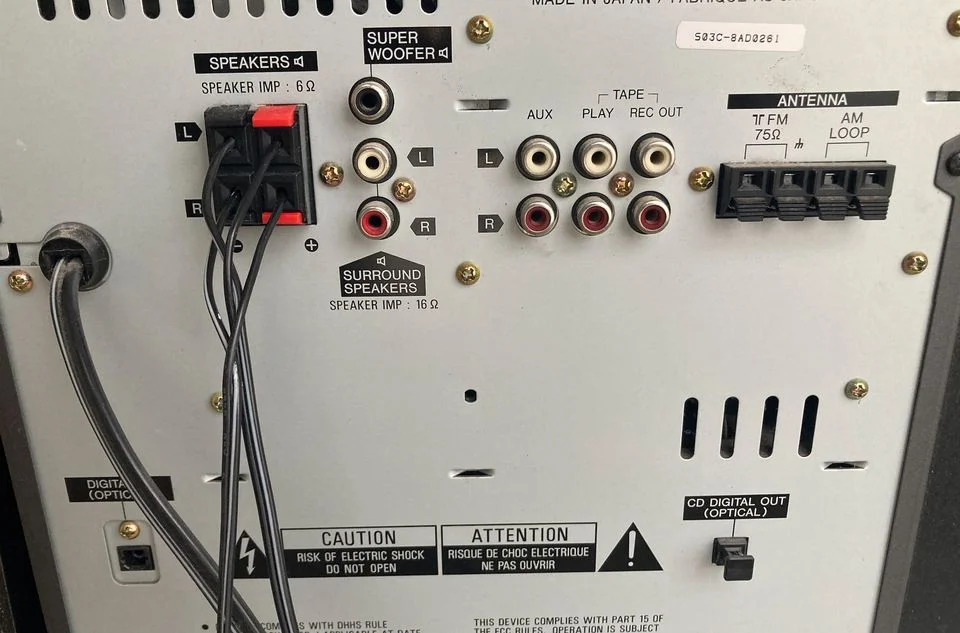

| Inputs | 1/4 inch microphone, RCA in, Digital optical (TOSLINK), CD, Tape deck |
| Outputs | 3.5mm headphone, Digital optical (TOSLINK), Speaker amplifier, Tape deck |
| Control | Not recorded |
Features
5 MD changer drawer
3 CD changer drawer
Loading CD/MD while playing
Karaoke
AM/FM Radio
Recording MD Functions
CD Sync to MD
All 3 CD to 3 MD sync
From Radio or AUX
Specs: Amp: 60 watts per channel.
Content adapted from: Aiwa Press Release Aiwa Press Release (MiniDisc Wiki mirror) Minidisc.org Page, Aiwa product page (Japanese, Archived)
Manuals
Repair
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email..
Additional specifications and references
| Web Md | No (not NetMD) |
|---|---|
| Manual | User manual |
| Region | Japan |
