Device

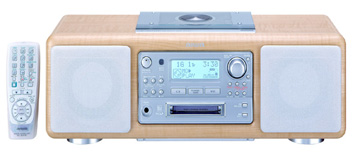

Aiwa CSD-NS5MD

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-01-01

Manufacturer
Aiwa
Model / source grouping
CSD-NS5MD
Device type
boombox
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

No directly linked document has been identified for this record. Search the manual library or consult the source below.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Aiwa CSD-NS5MD”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name CSD-NS5MD
Manufacturer Aiwa
Released 2001/07
Device type boombox
Recorder Recorder
MDLP Yes
NetMD No
Hi-MD No
Radio Yes
Dimensions 482 x 168 x 231mm
Weight 5.9kg
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage Not recorded
Power cable Not recorded
Price (launch) Not recorded
¥45 000
-
Inputs CD, Radio recording
Outputs 3.5mm headphone, Built-in speaker
Control Not recorded

Features: Understated, KLH-like good looks. MDLP and group function support. 2X CD→MD dubbing. Virtual QSURROUND for 4 channel effects with 2 speakers. 3-way timer (record/playback/sleep). FM synthesized tuner. Music "genre" eq settings ("ROCK/POP/JAZZ"). T-Bass (bass boost?) function. Auto-loudness function. Constructed of MDF. (Aiwa: Medium-Density Fiberboard (MDF): This manmade material is composed of super-fine fibers that are bonded through heat and an adhesive agent under intense pressure. It offers high rigidity and uniform density, making it the optimum material for speaker cabinets as it does not distort the sound and reduces resonance of the cabinet itself. )

Notes: (A footnote on the page hints at one incompatibility of the group function: An MD recorded with the MD group function may not play back if the tracks have been edited with audio equipment not compatible with the MD group function.)

Specs: Amp: 10W+10W, Speakers: 100mm cone. World band tuner (FM: 76-108MHz, AM:530-1719kHz 9/10kHz step)

Content adapted from: Minidisc.org page, Aiwa press release (Archived) Aiwa Product Page Aiwa Product Page (MiniDisc Wiki mirror)

Manuals

Repair

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references
Manual
RegionJapan
