| Name | AM-C80 / AM-F72 / AM-F75 / AM-F80 |
|---|---|
| Manufacturer | Aiwa |
| Released | 1999/10 |
| Device type | portable |
| Recorder | Recorder |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | Not recorded |
| Dimensions | 78.8 x 86.8 x 18.8 |
| Weight | 163g |
| ATRAC ver | Not recorded |
| Battery | Not recorded LIB-902 |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 4.5 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥37 800 | |
| - | |
| Inputs | 3.5mm line in (optical multi), 3.5mm microphone |
| Outputs | 3.5mm line out (analog-only), 3.5mm headphone |
| Control | Not recorded |
Max output: 10mW + 10mW @ 16 ohms
Optical Pickup: KMS-280A
ATRAC IC: CXD2660GA
Content adapted from: Aiwa Press Release Aiwa Press Release (MiniDisc Wiki mirror)
Manuals
Awia AM-C80 Revised Service Manual (some pages poorly scanned)
Repair

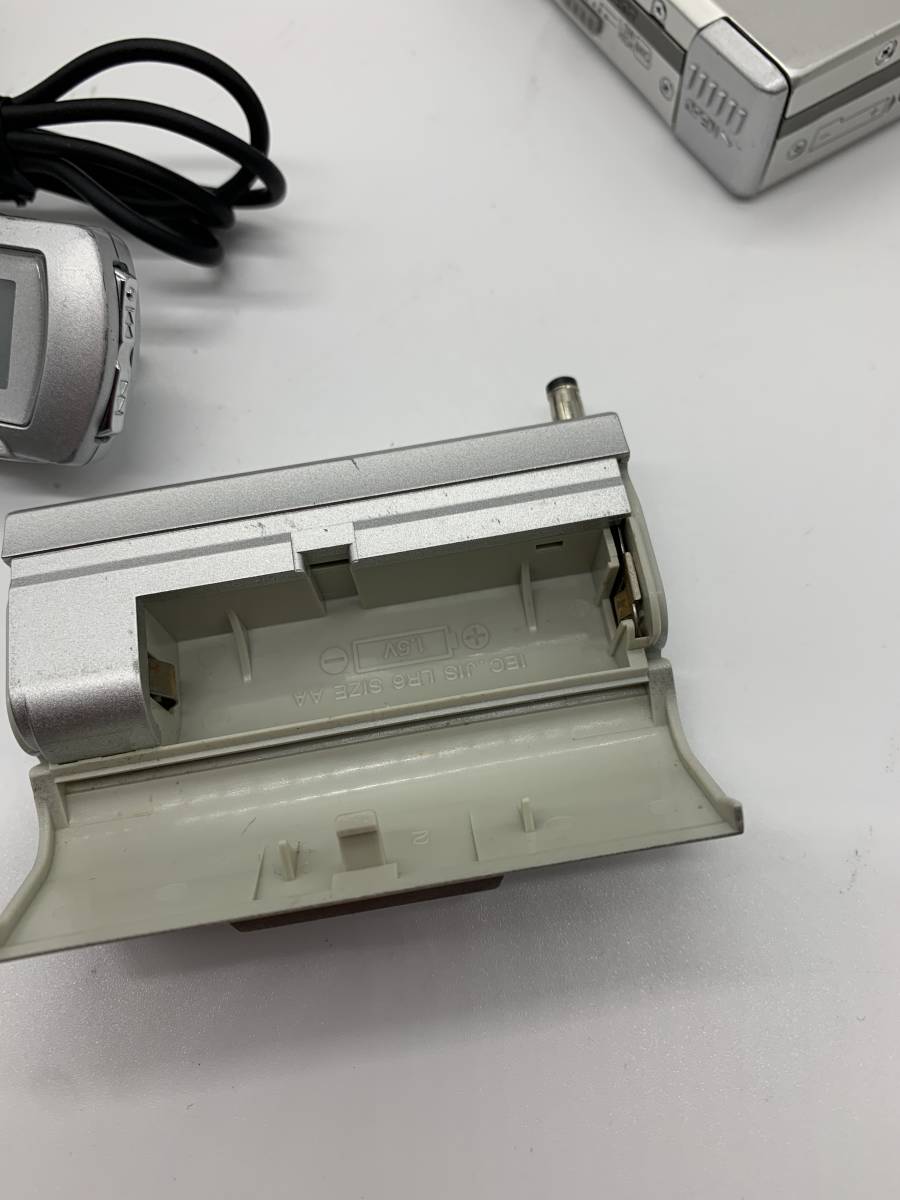

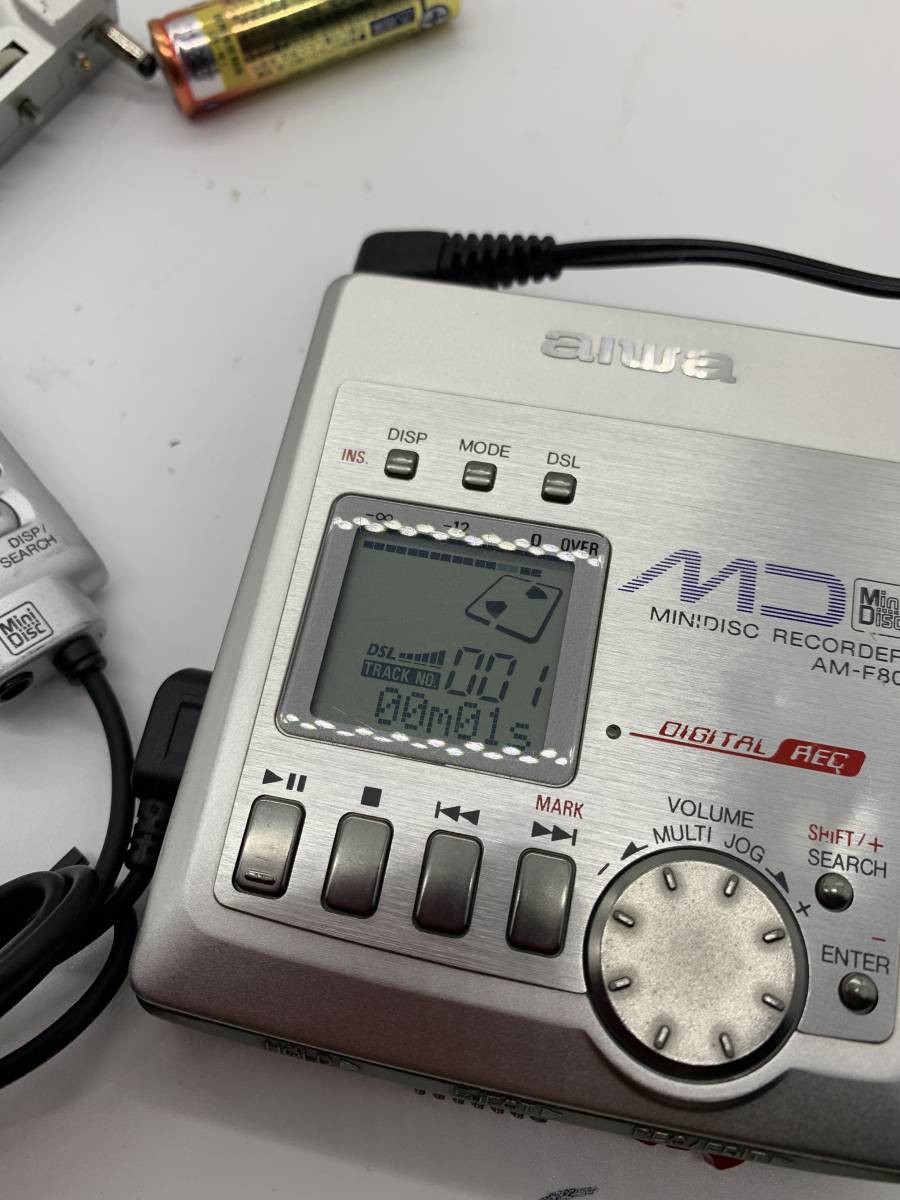

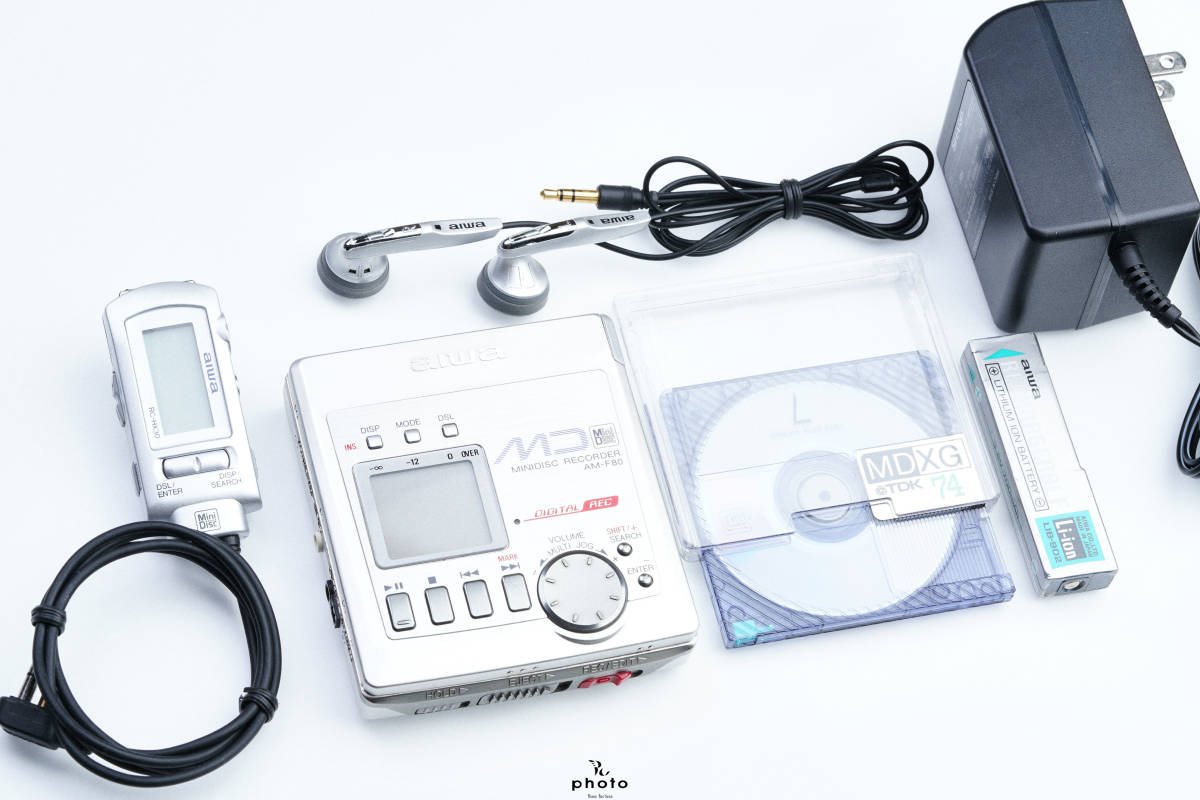

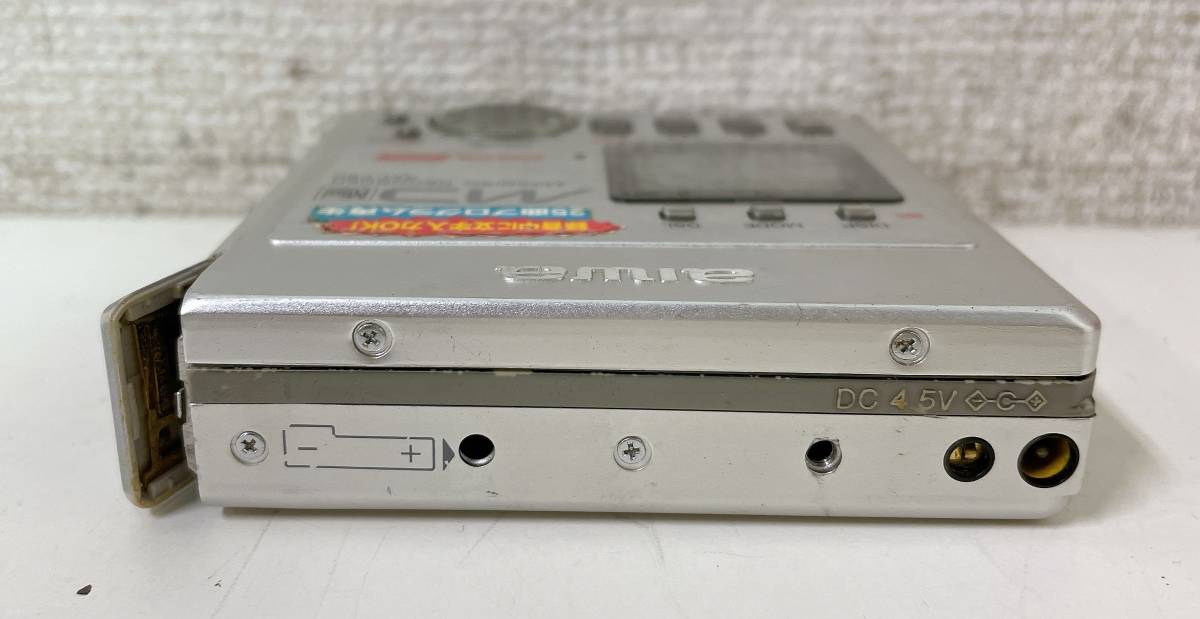

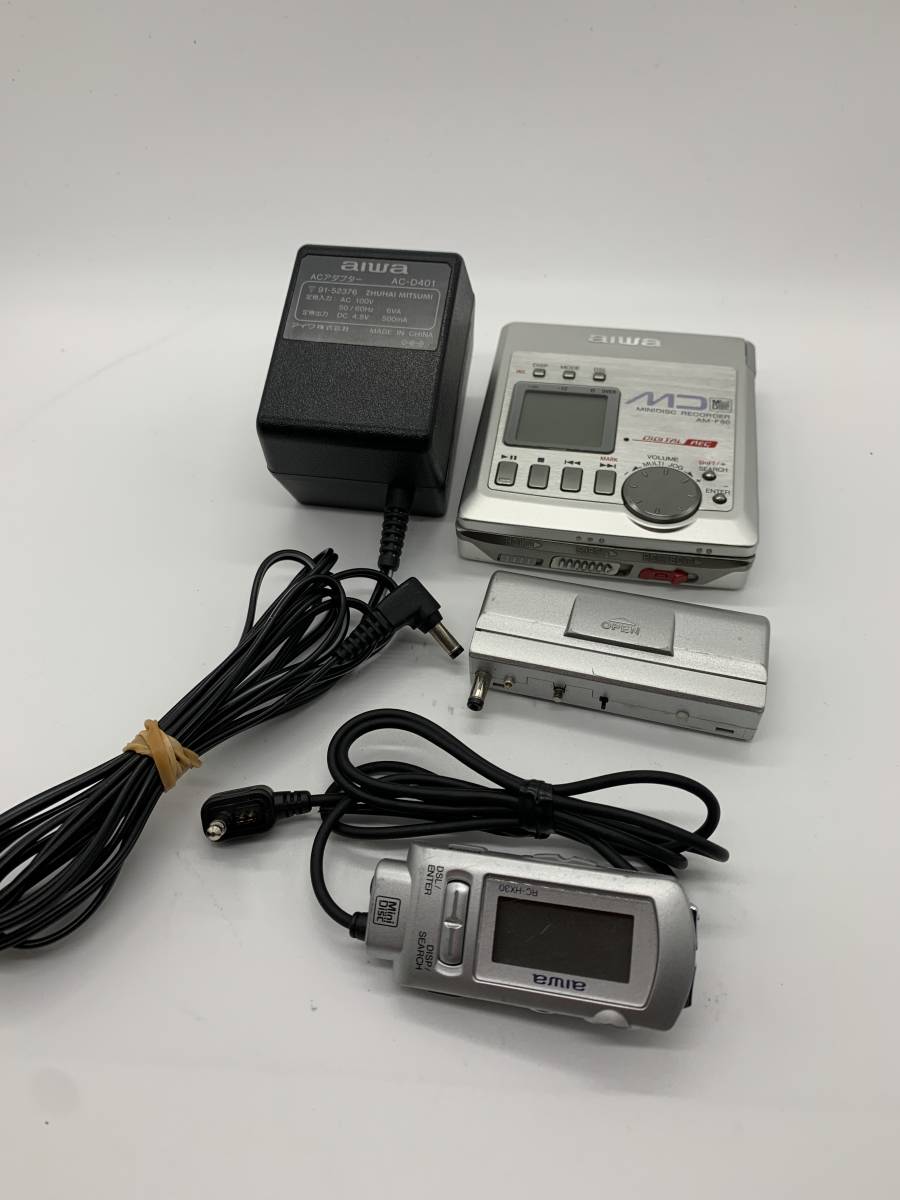

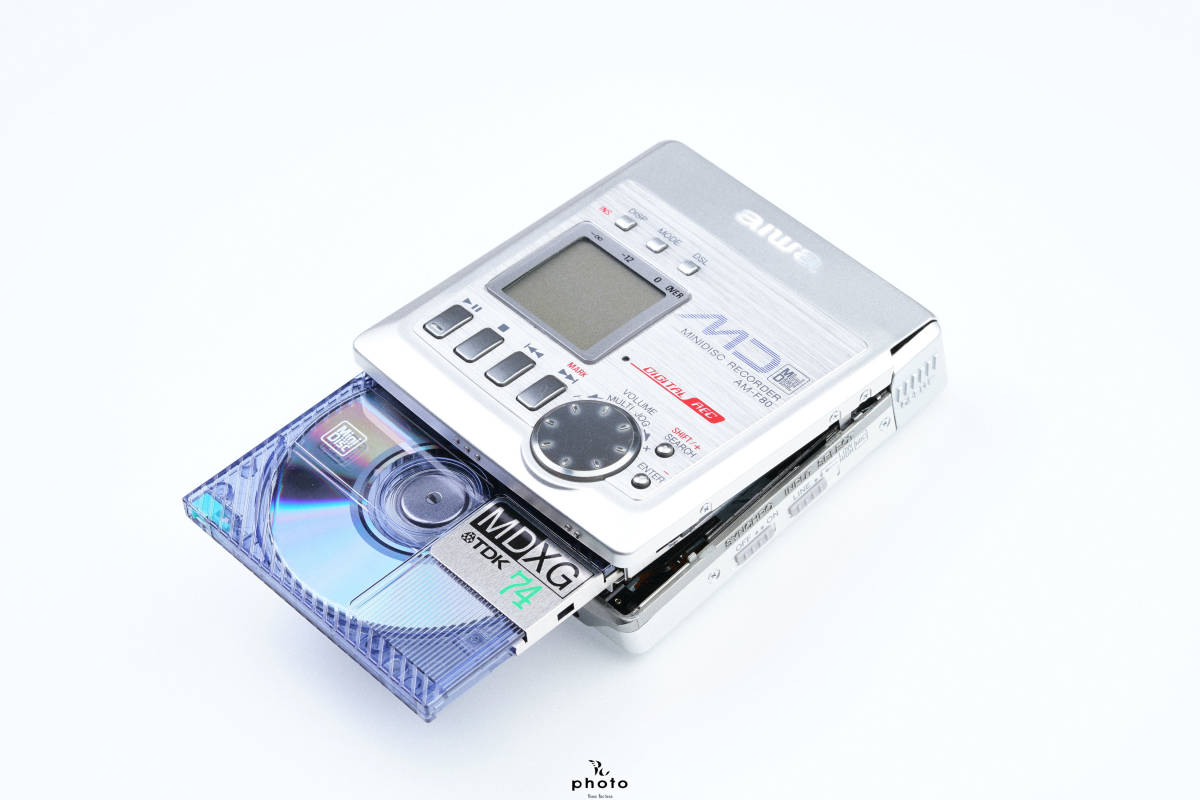

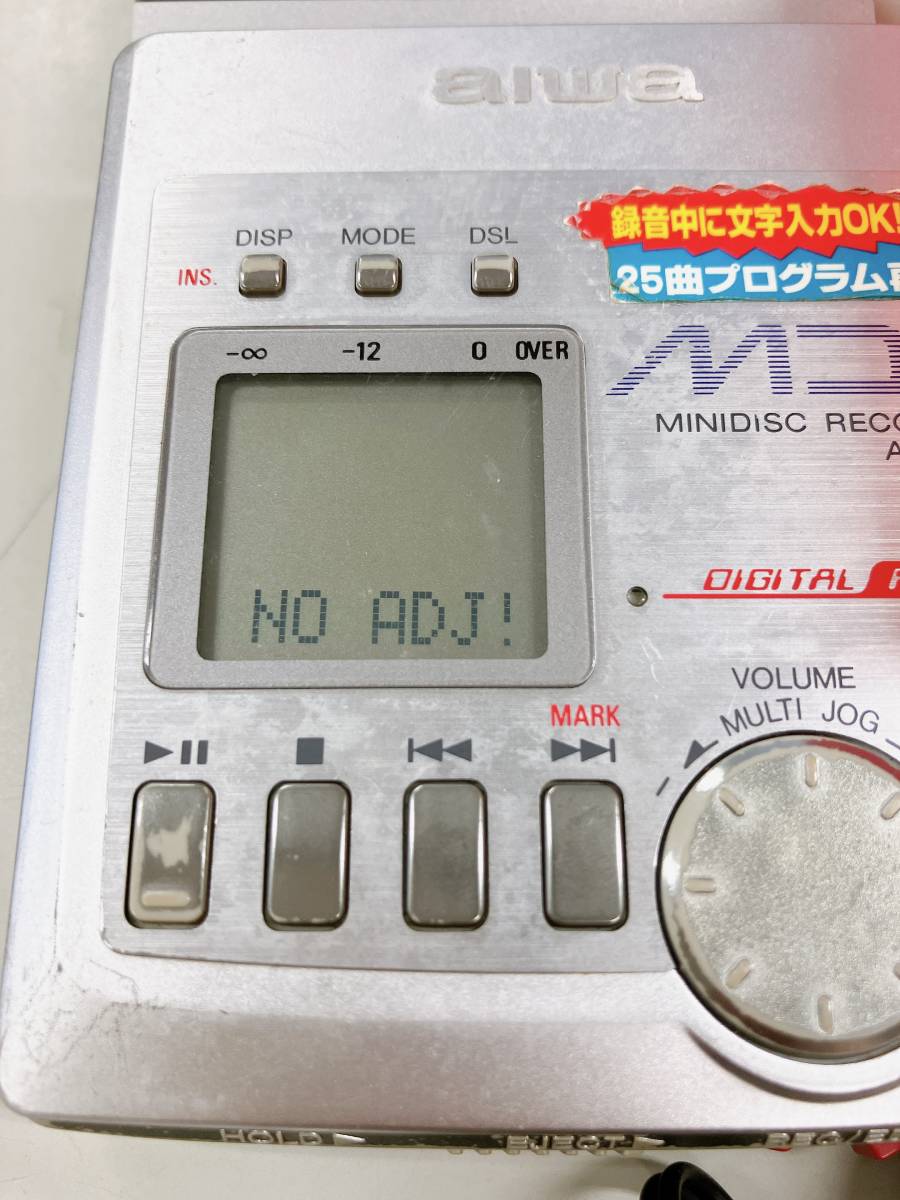

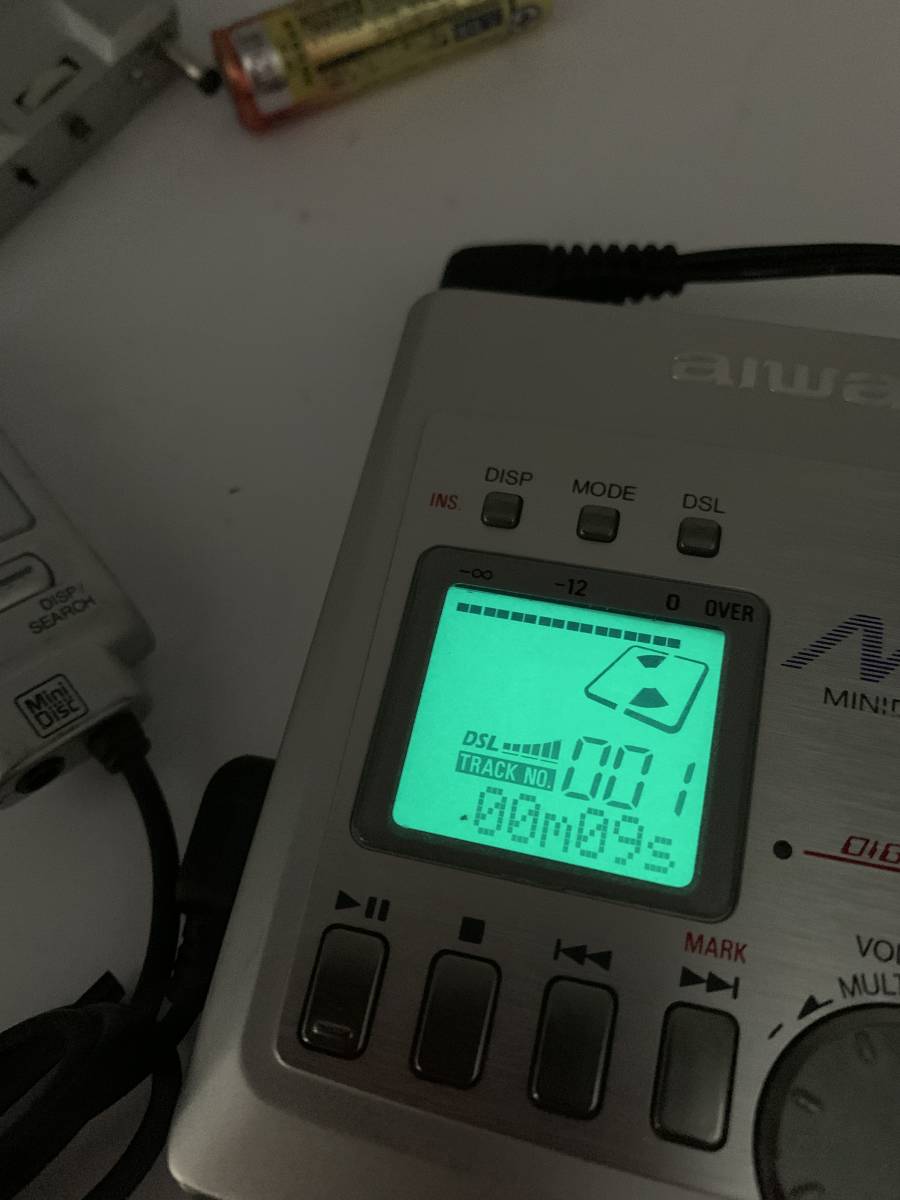

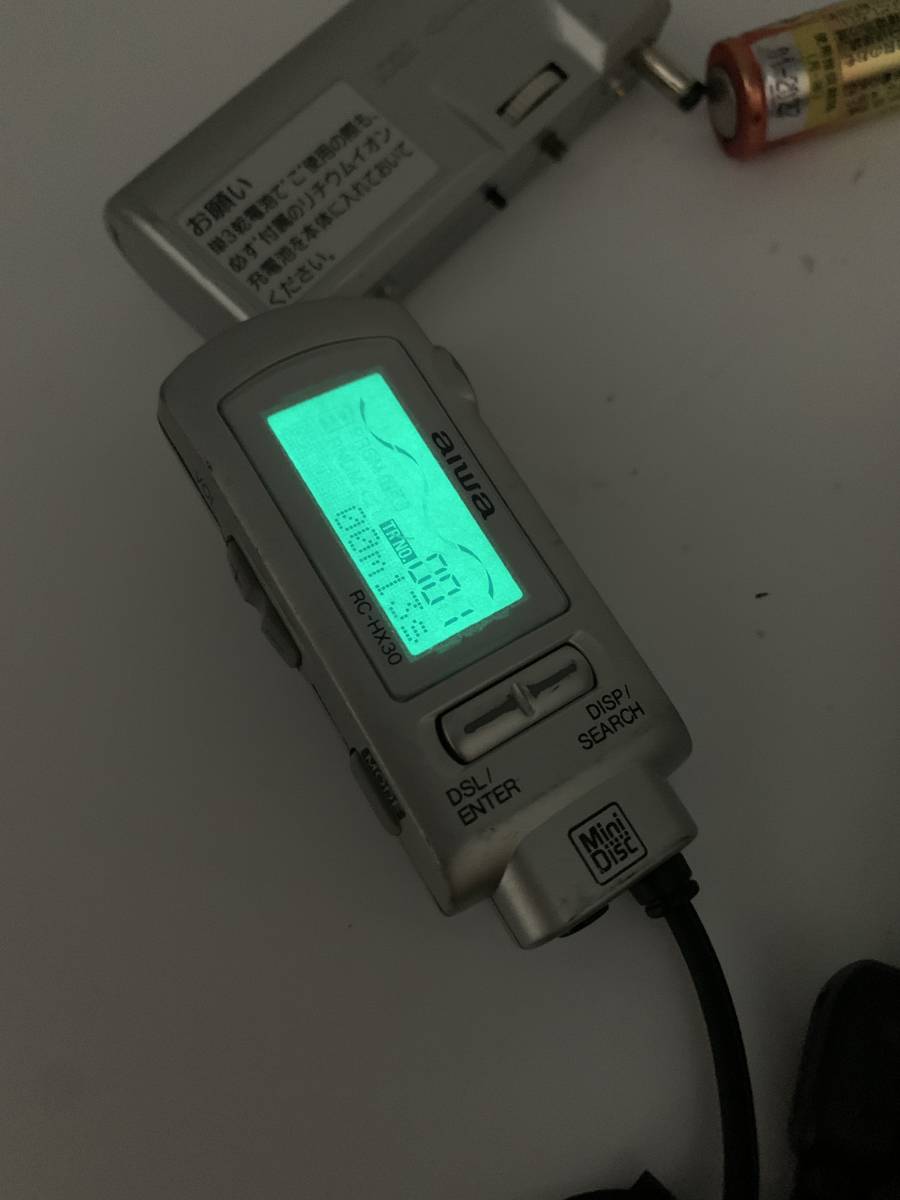

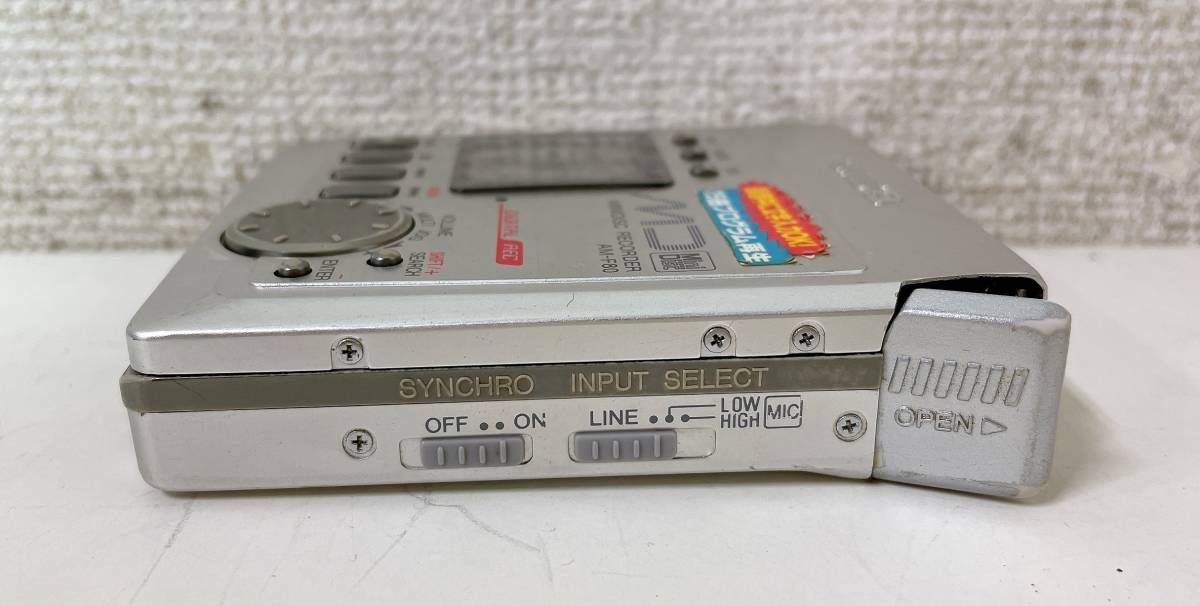

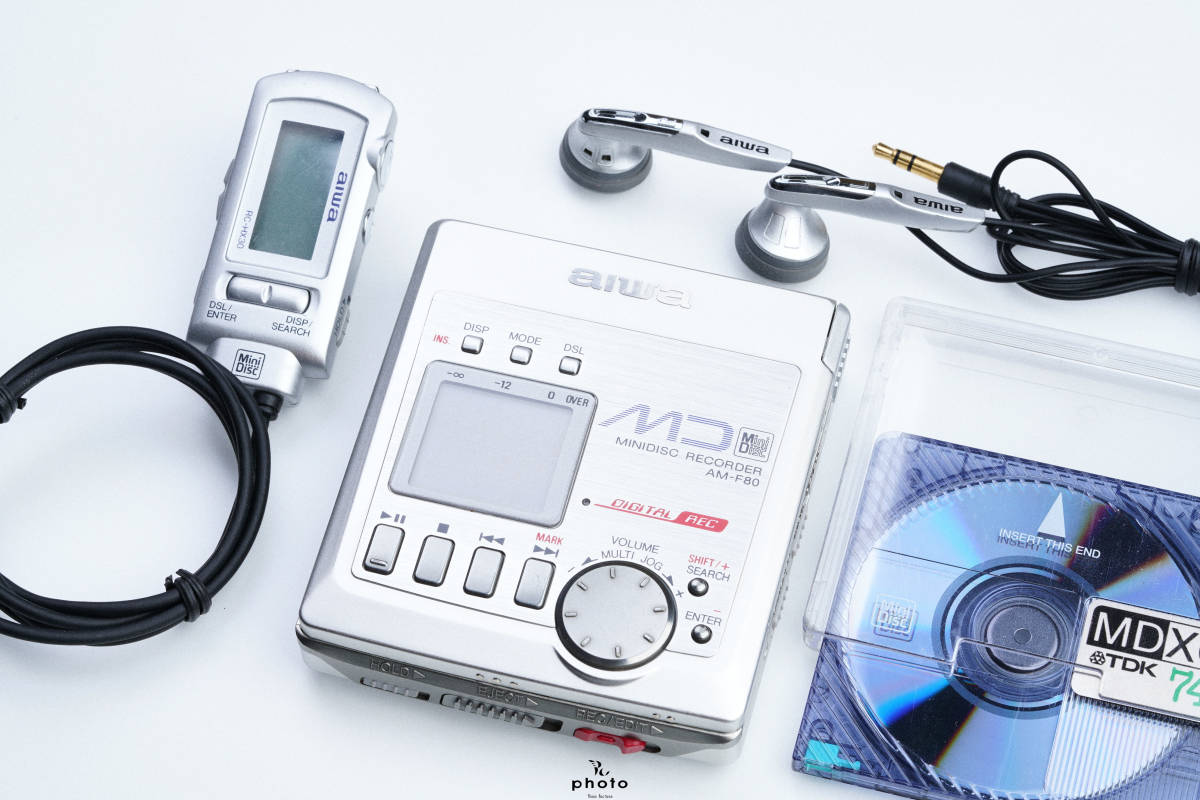

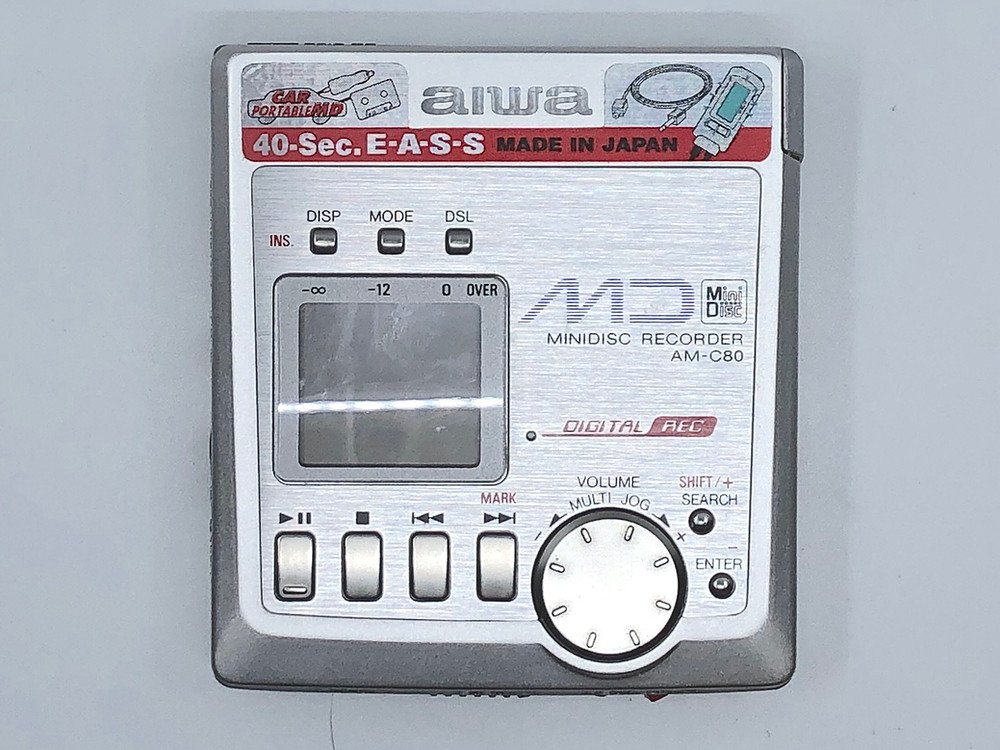

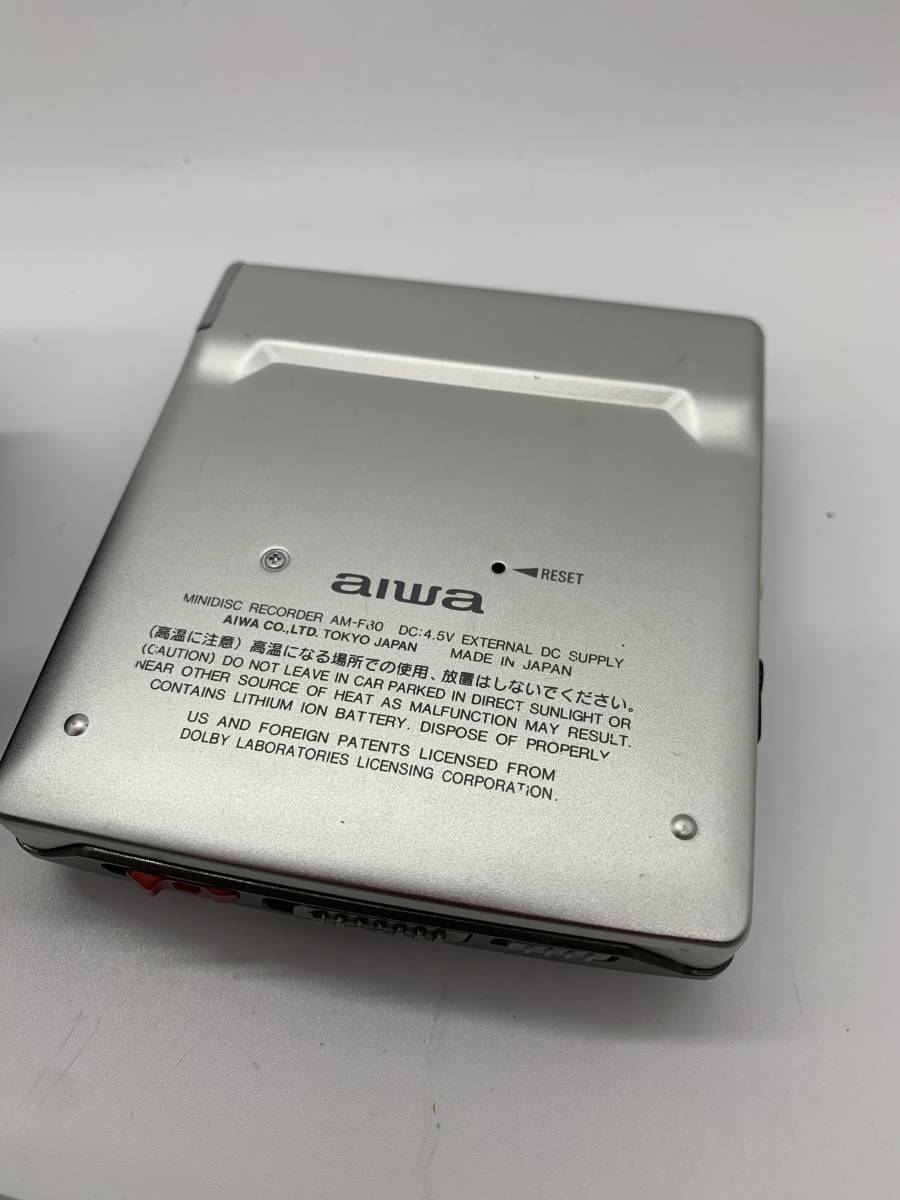

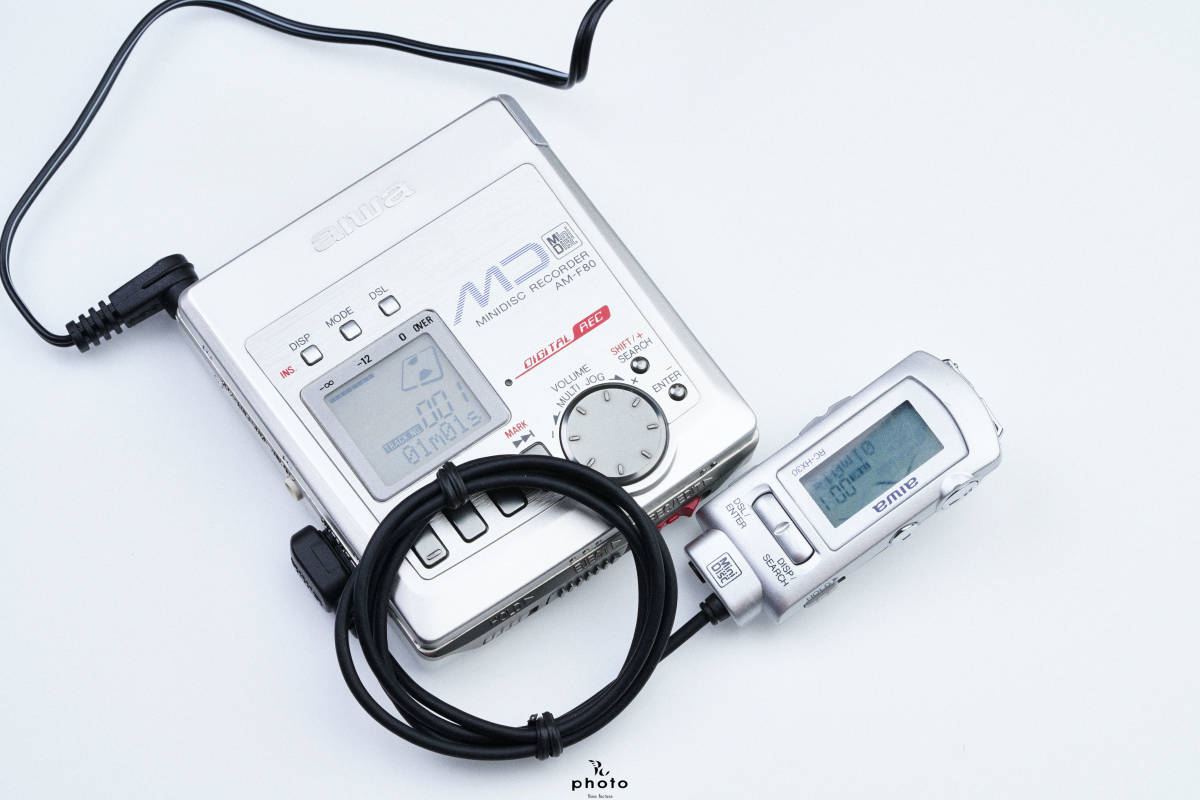

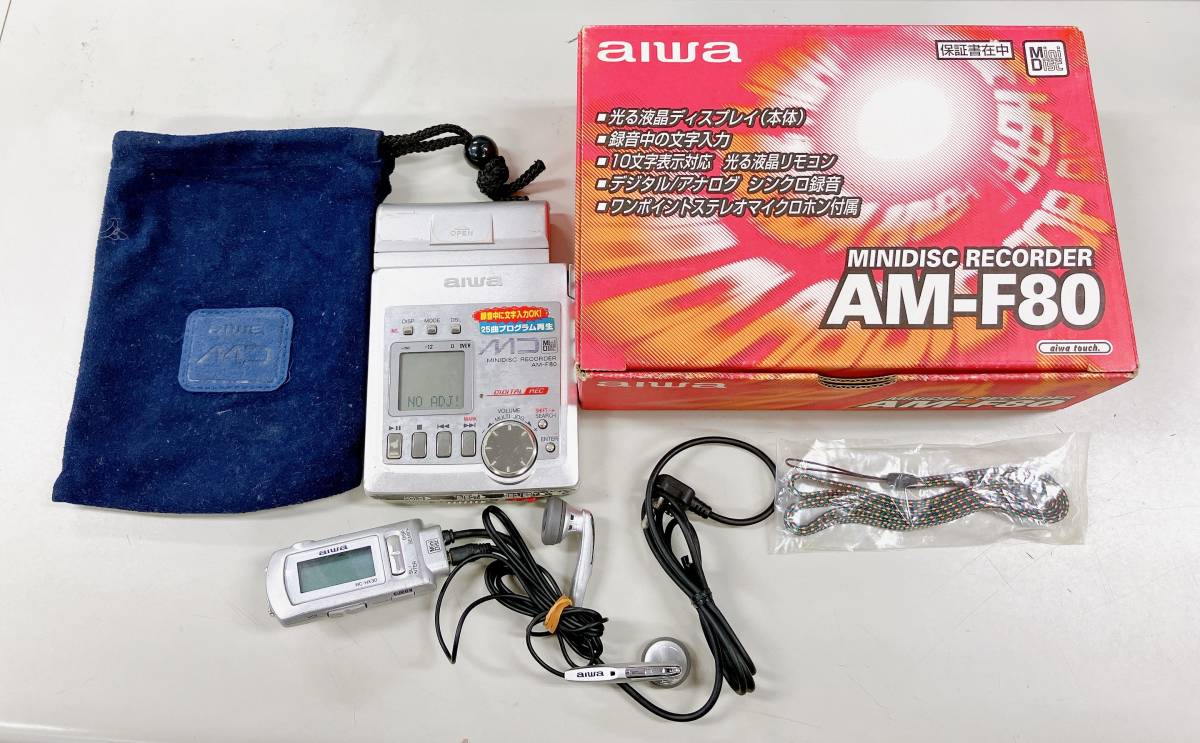

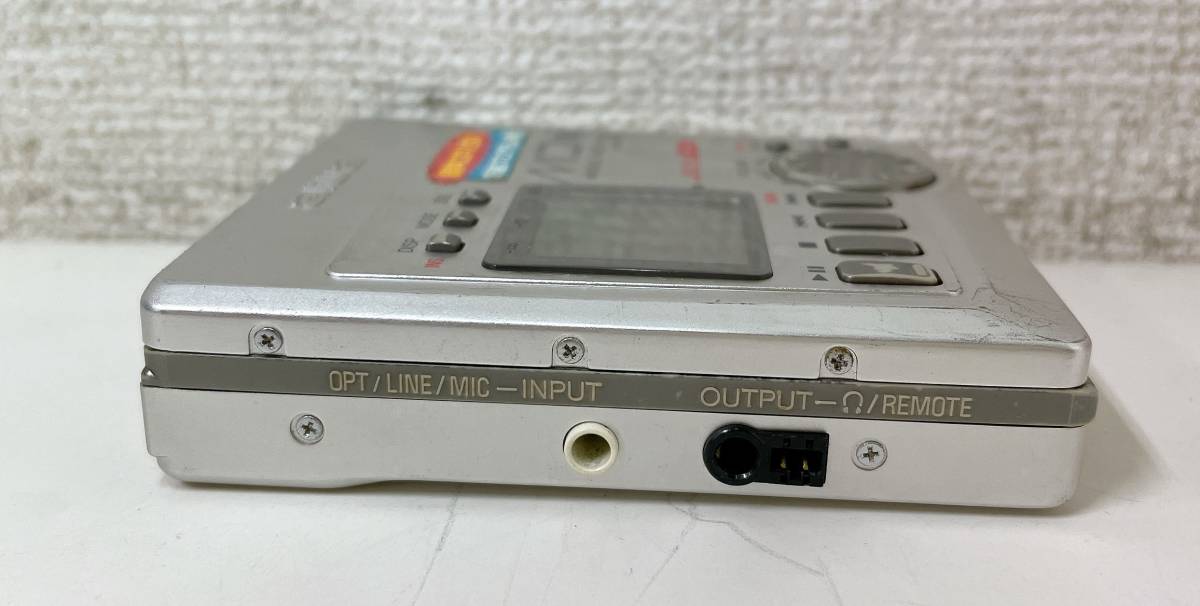

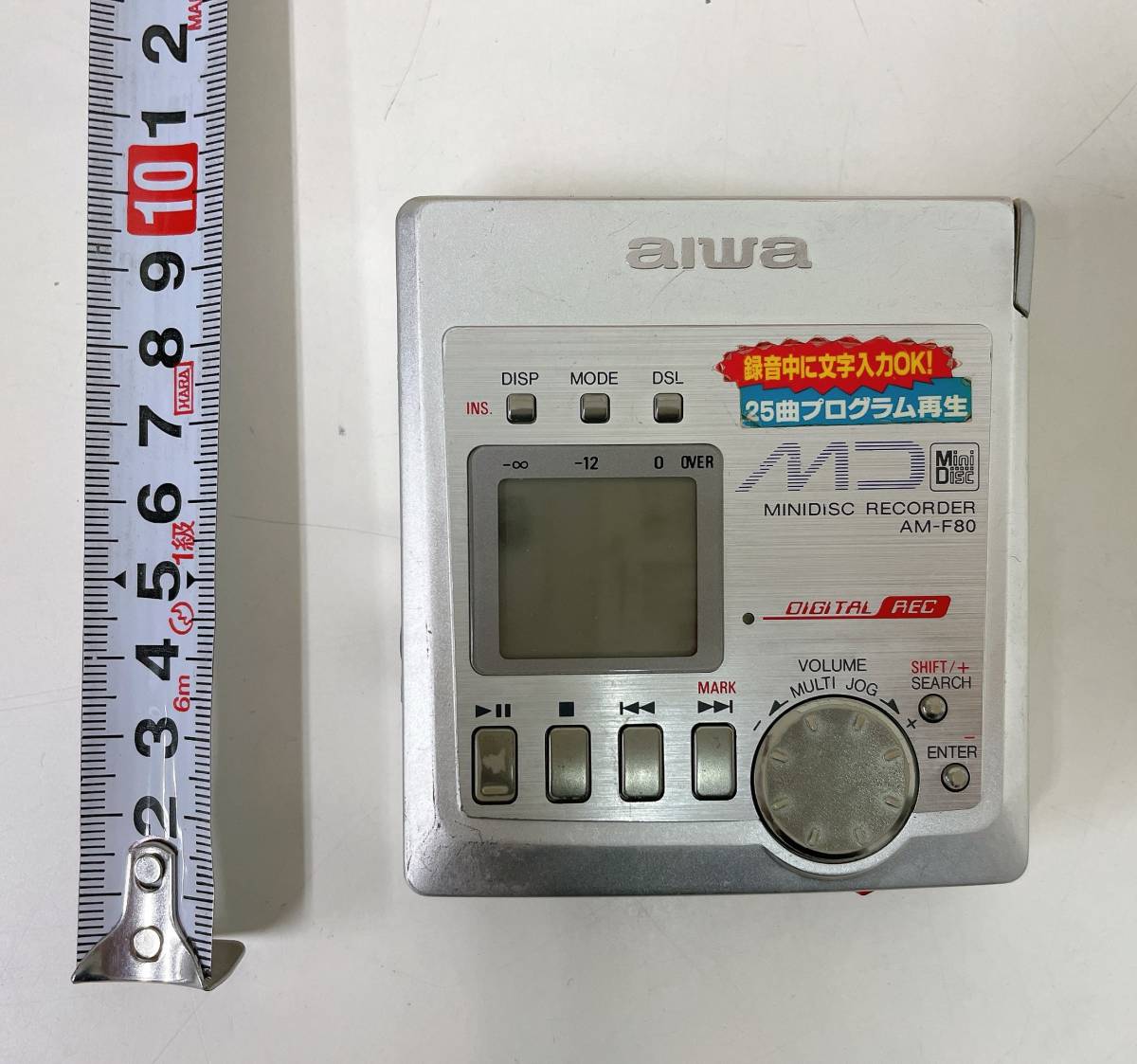

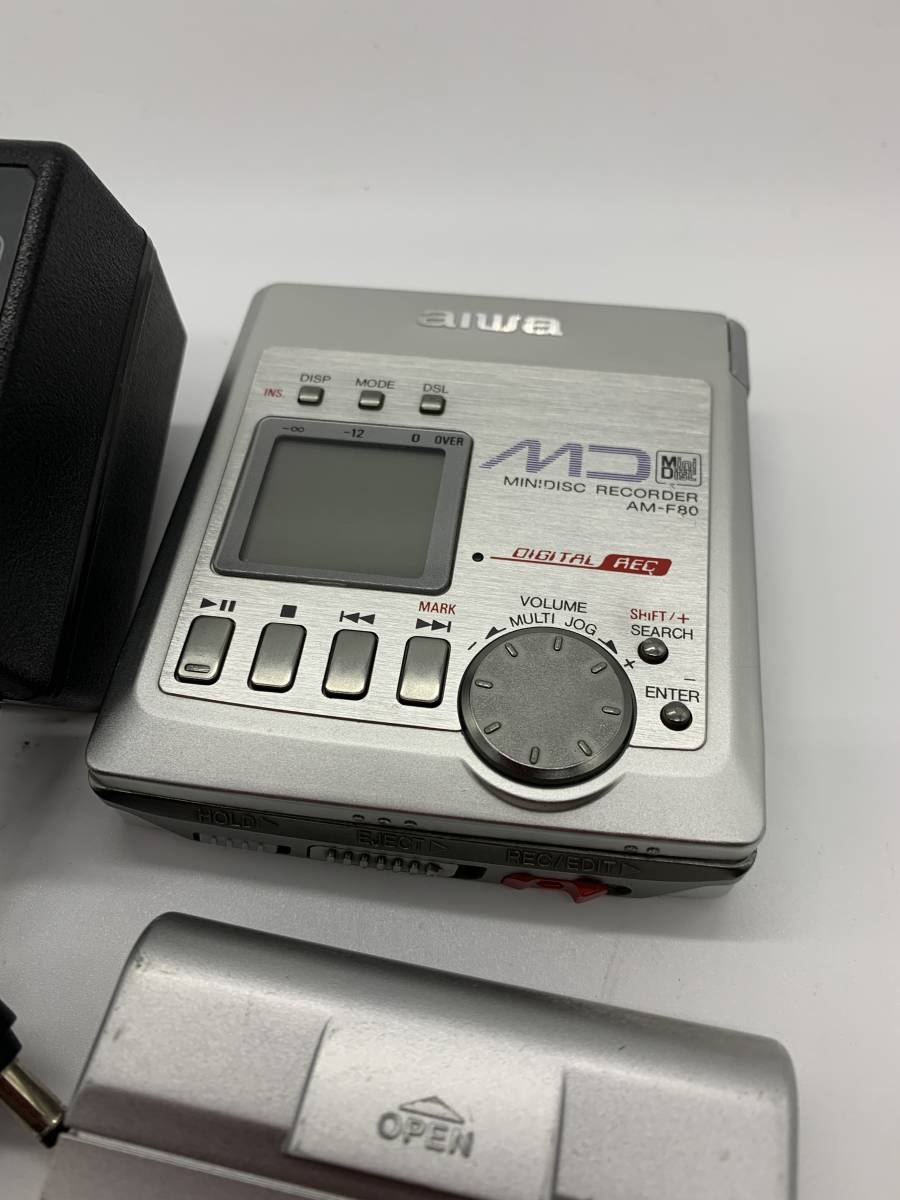

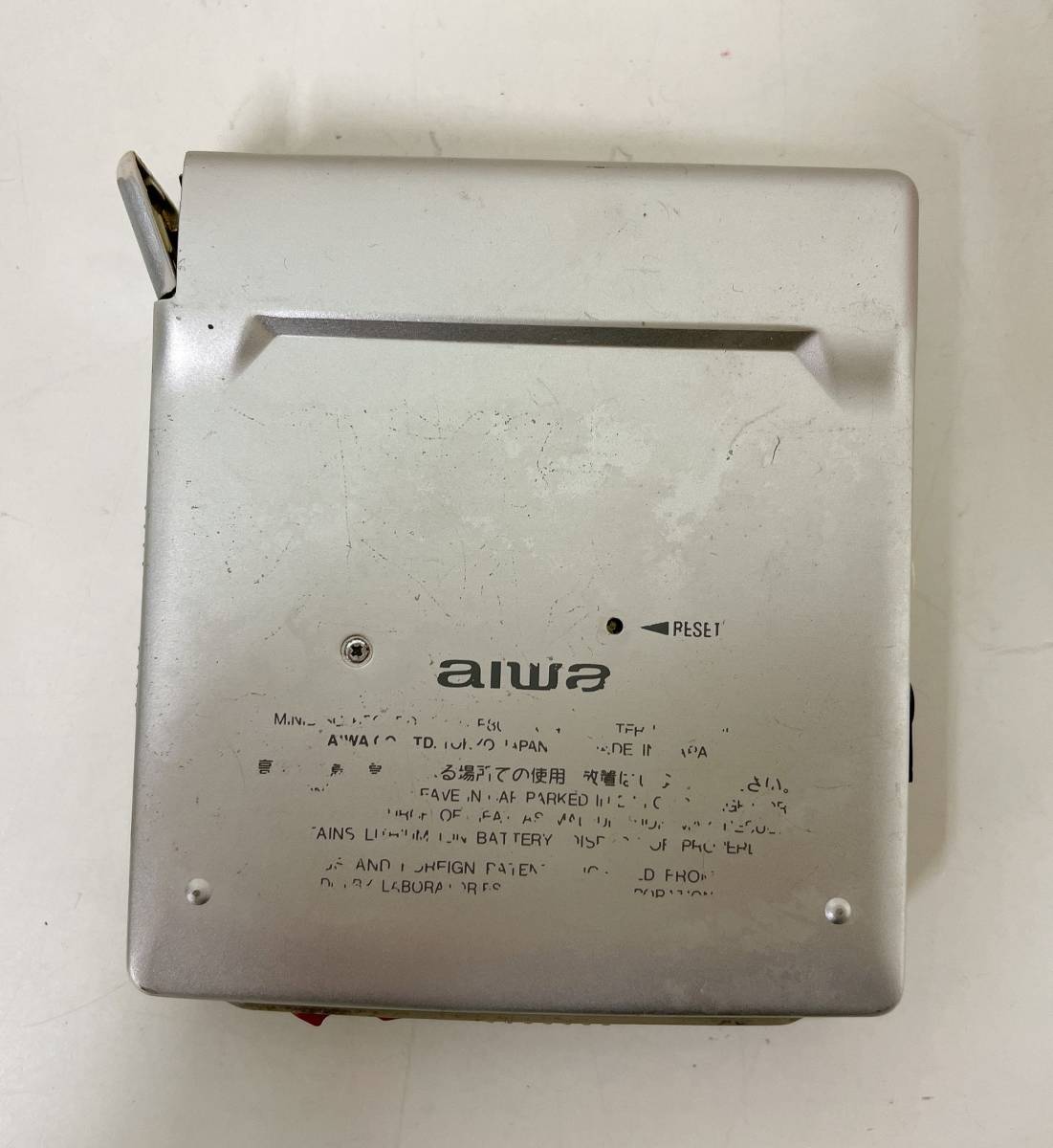

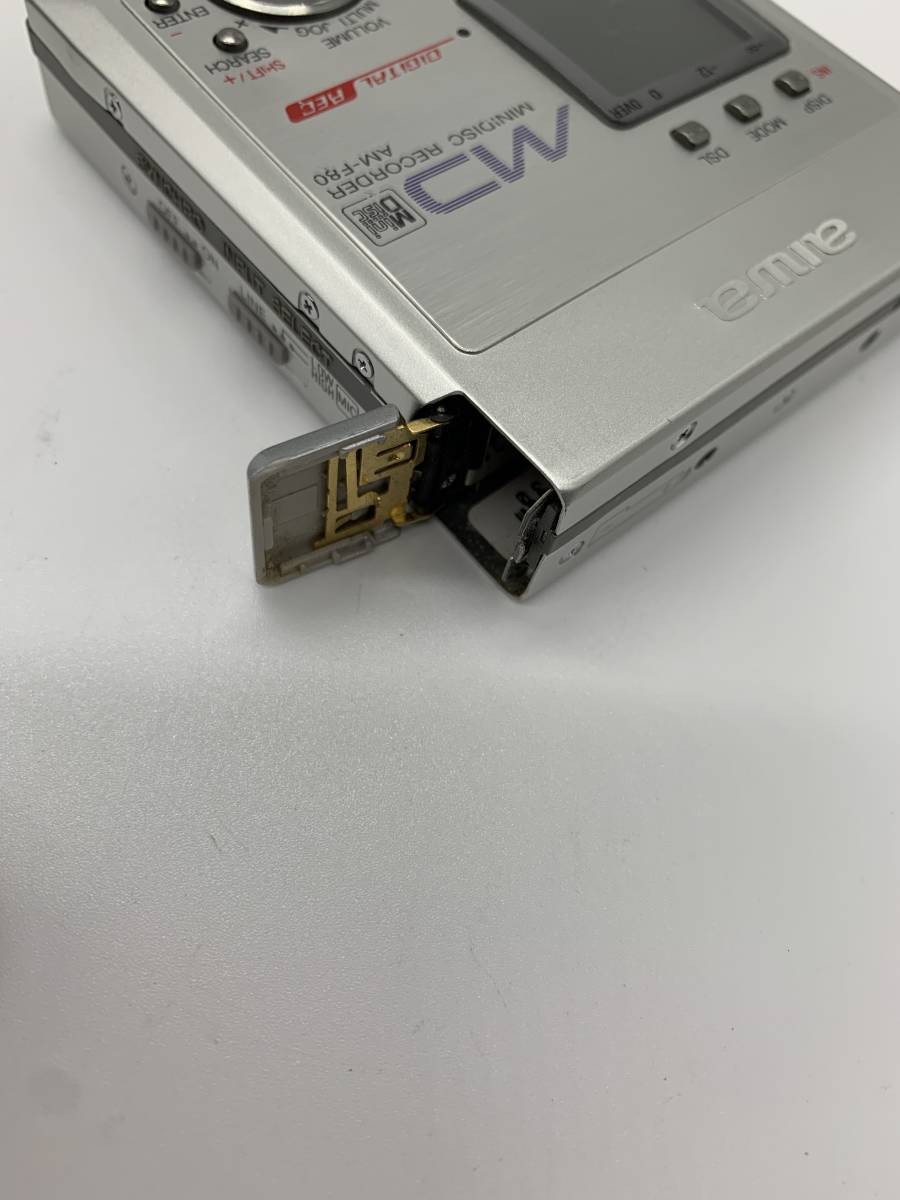

Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Web Md | No (not NetMD) |
|---|---|
| Manual | User manual, Service manual, other |
| Region | Japan |
