| Name | AM-CL33 |
|---|---|
| Manufacturer | Aiwa |
| Released | 2000/07 |
| Device type | portable |
| Recorder | Player |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 80(W) x 82.8(D) x 20.4(H) mm |
| Weight | 110g |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | 1xAA |
| Voltage | 1.2, 1.5, 100 |
| Power cable | AC |
| Price (launch) | Not recorded |
| ¥25 800 | |
| - | |
| Inputs | Not recorded |
| Outputs | 3.5mm headphone |
| Control | Not recorded |

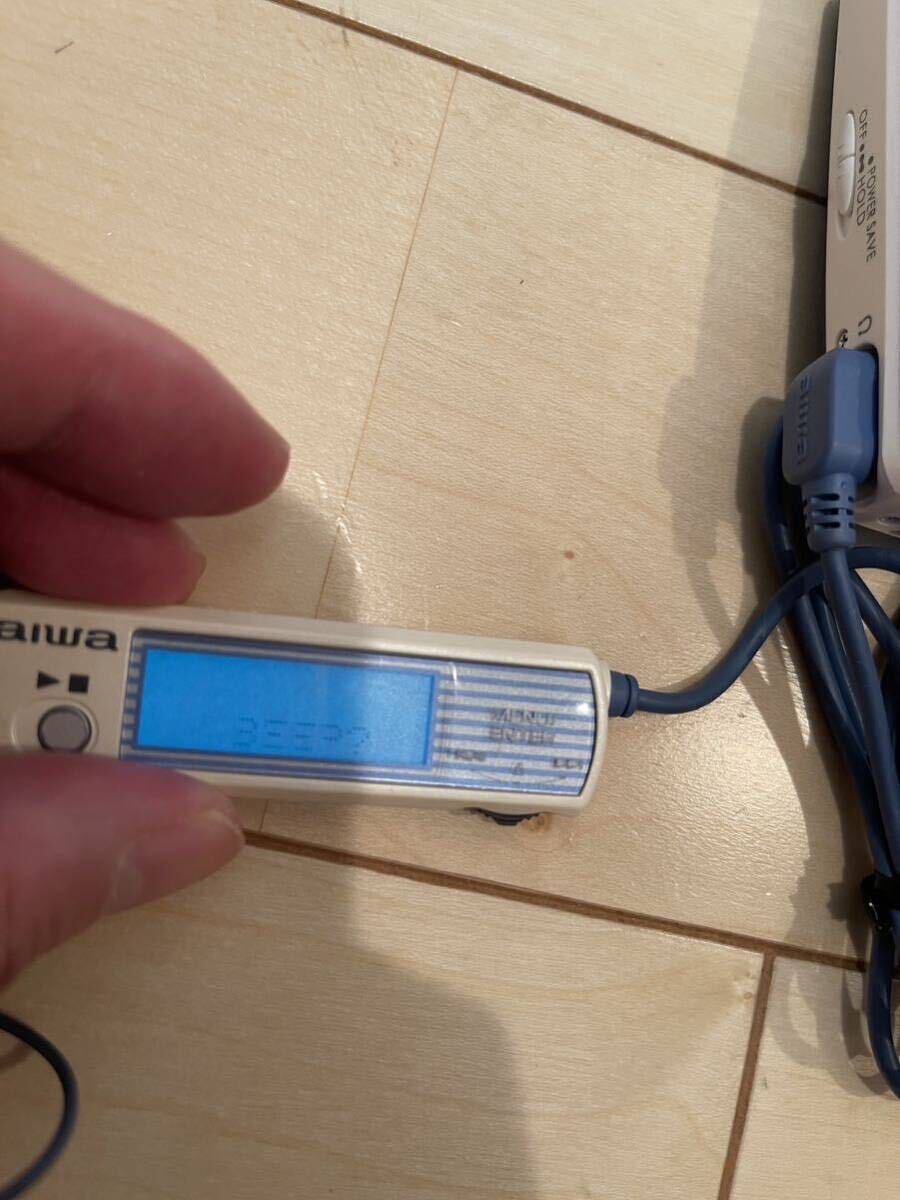

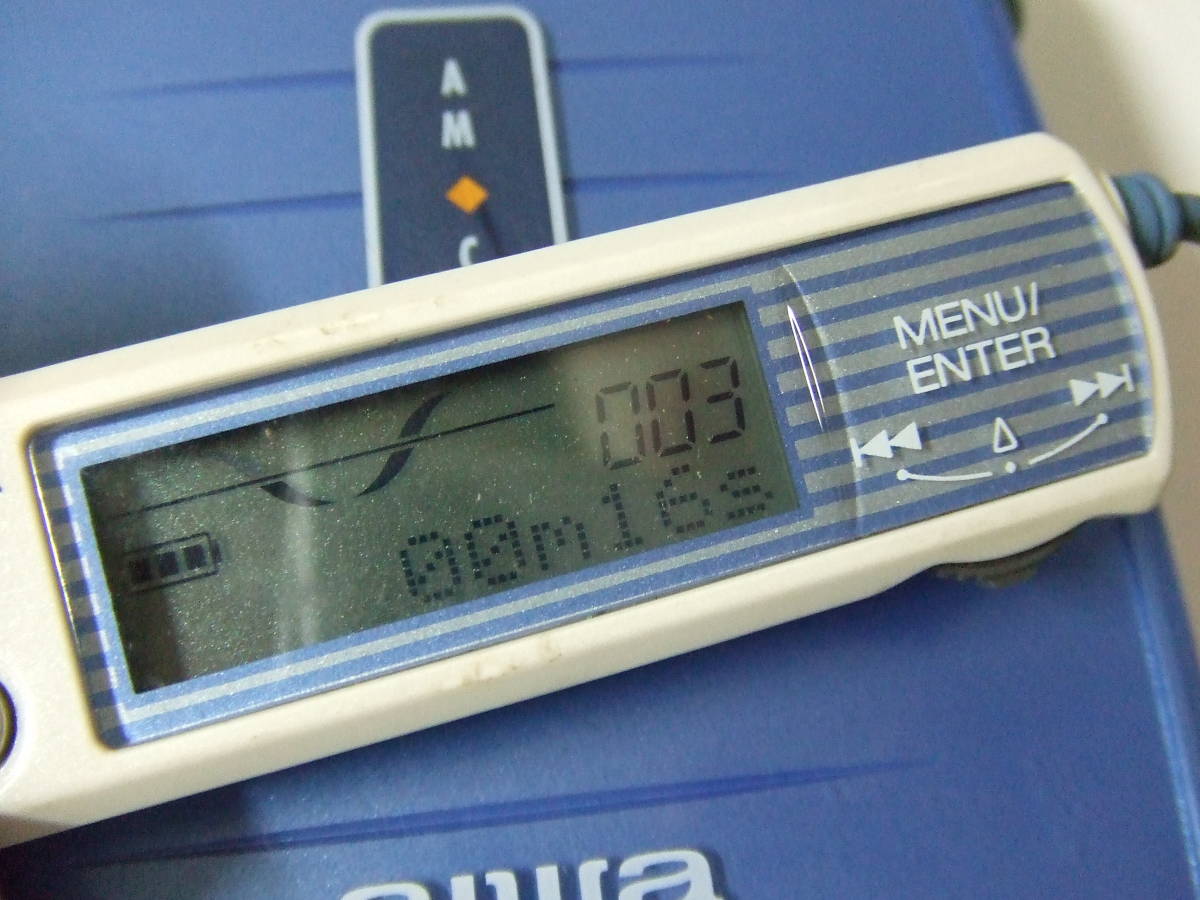

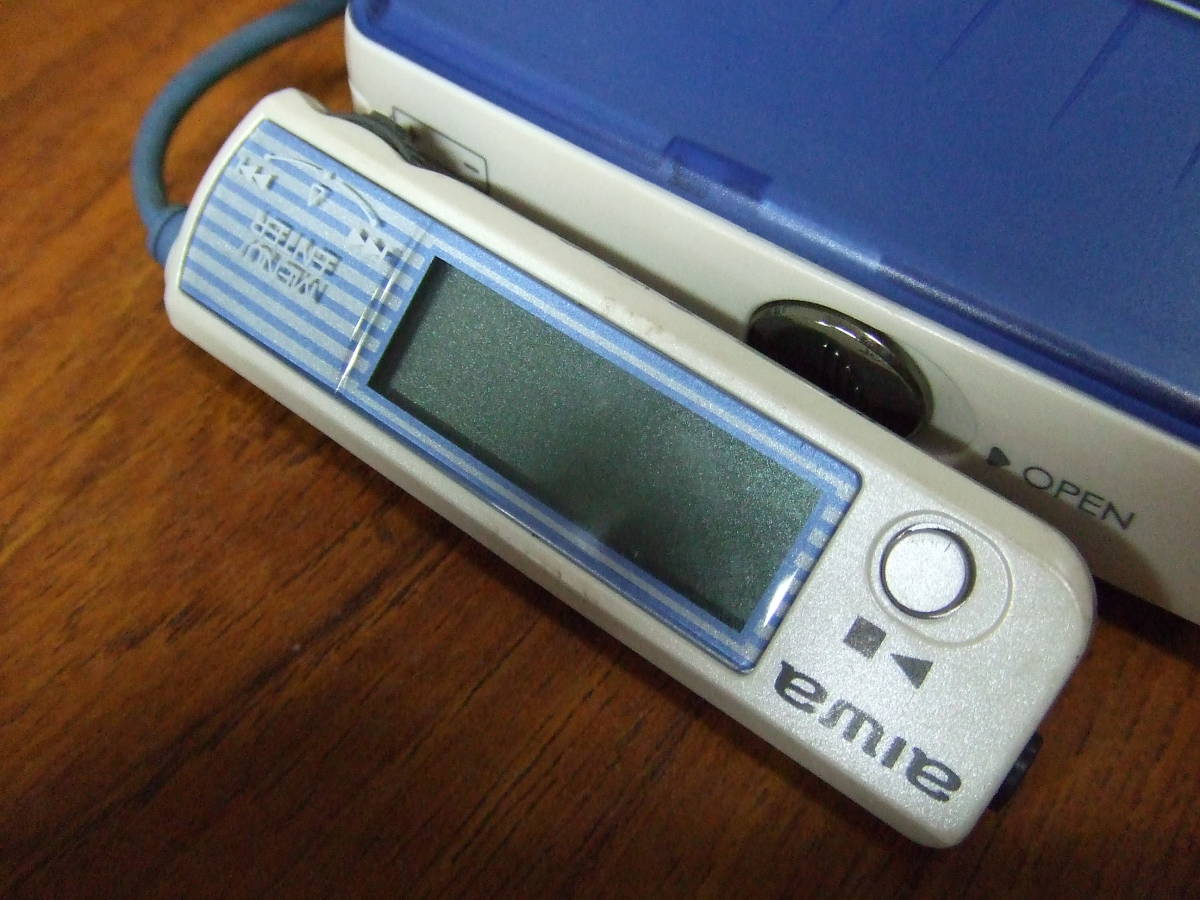

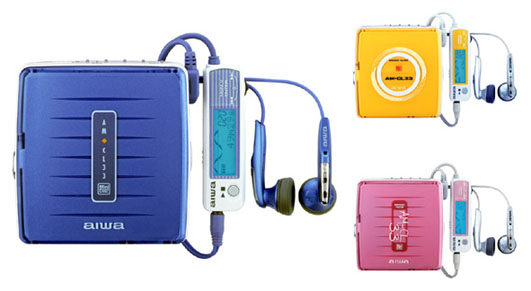

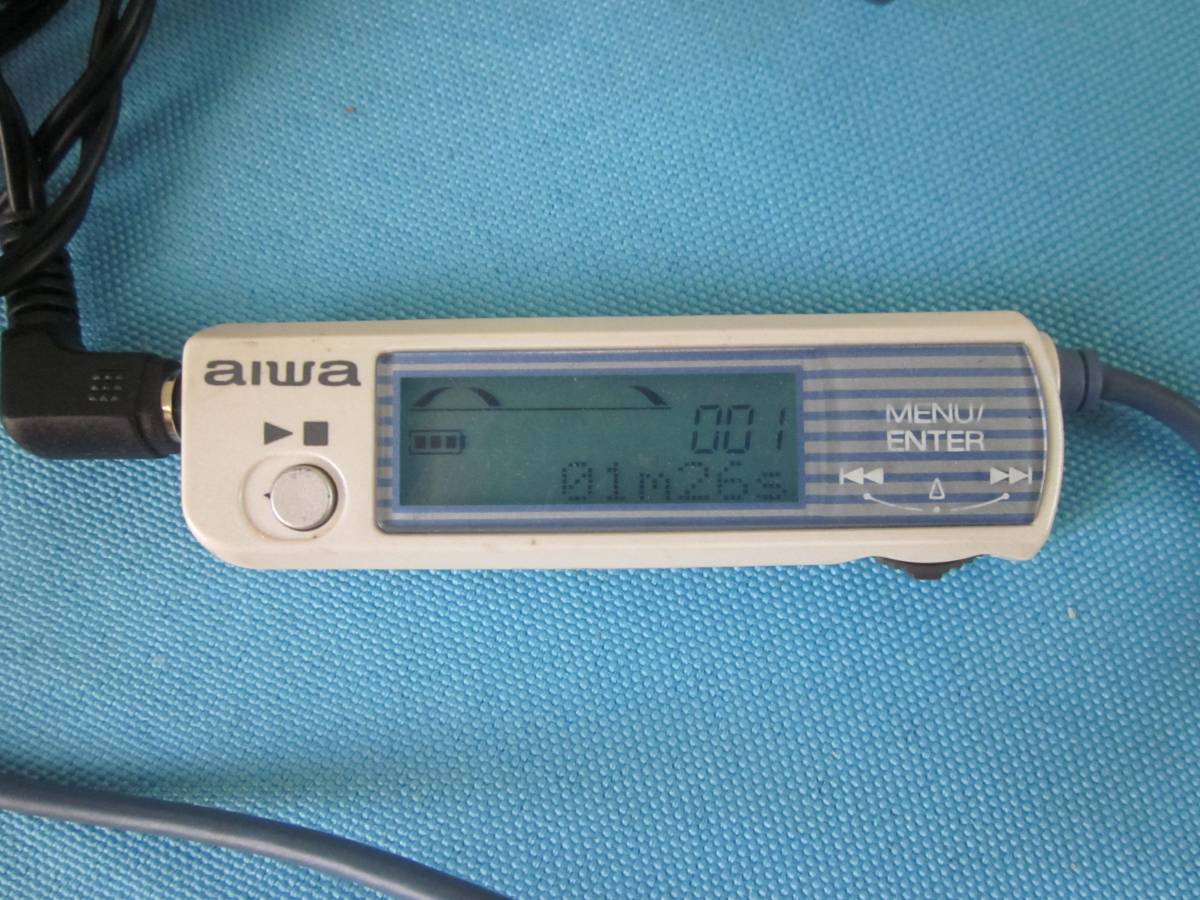

Features: Available in three colors, power save feature allows unit to run for an extended period of time, backlit LCD remote control, alarm function, 40-second skip protection, three step base boost.
Battery Life:
Play Recharge
20 hr 70 min - NiMH
35 hr - AA x 1
60 hr - Both
Note: No Mains pin on the case, battery charger required to charge.
Maximum output level 8 mW + 8 mW (16 Ω) Battery charger part# RB-M02 K (AC 240 V, 50 Hz)
Optical Block: KMS-330A
Content adapted from: Minidisc.org page, Just-MD page Aiwa Press Release Aiwa Press Release (MiniDisc Wiki mirror)
Manuals
Repair
(repair links go here)

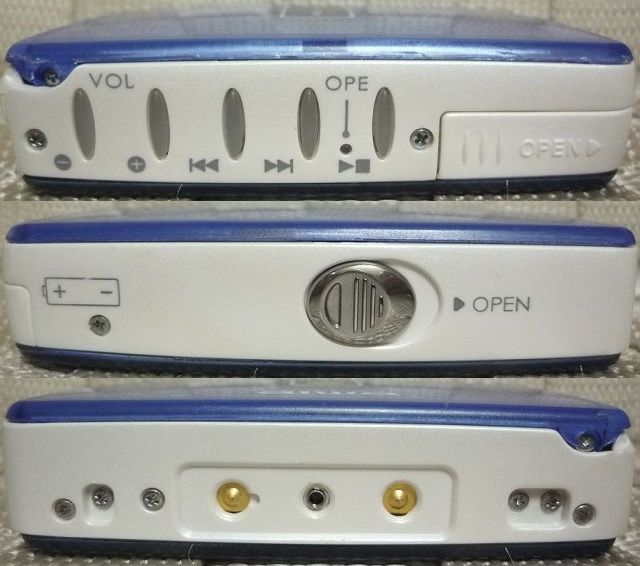

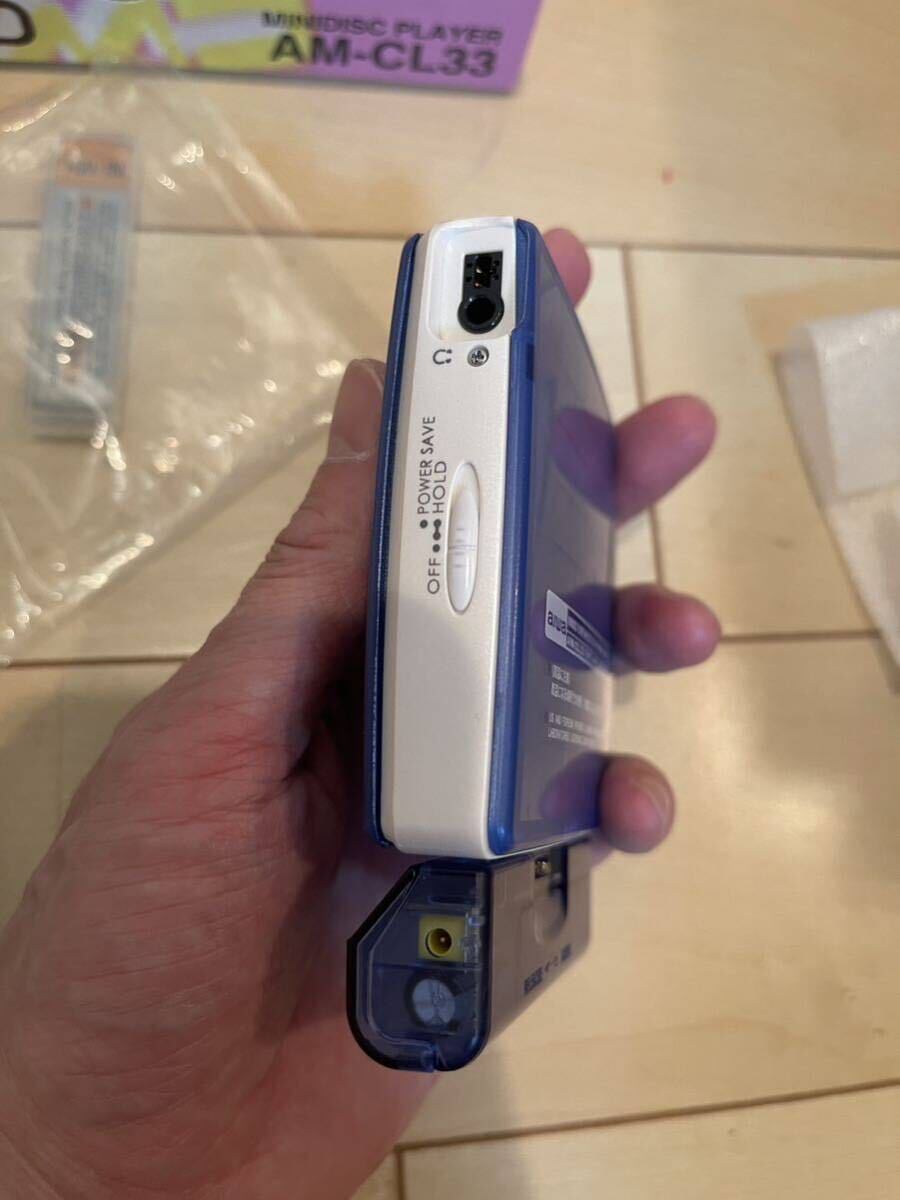

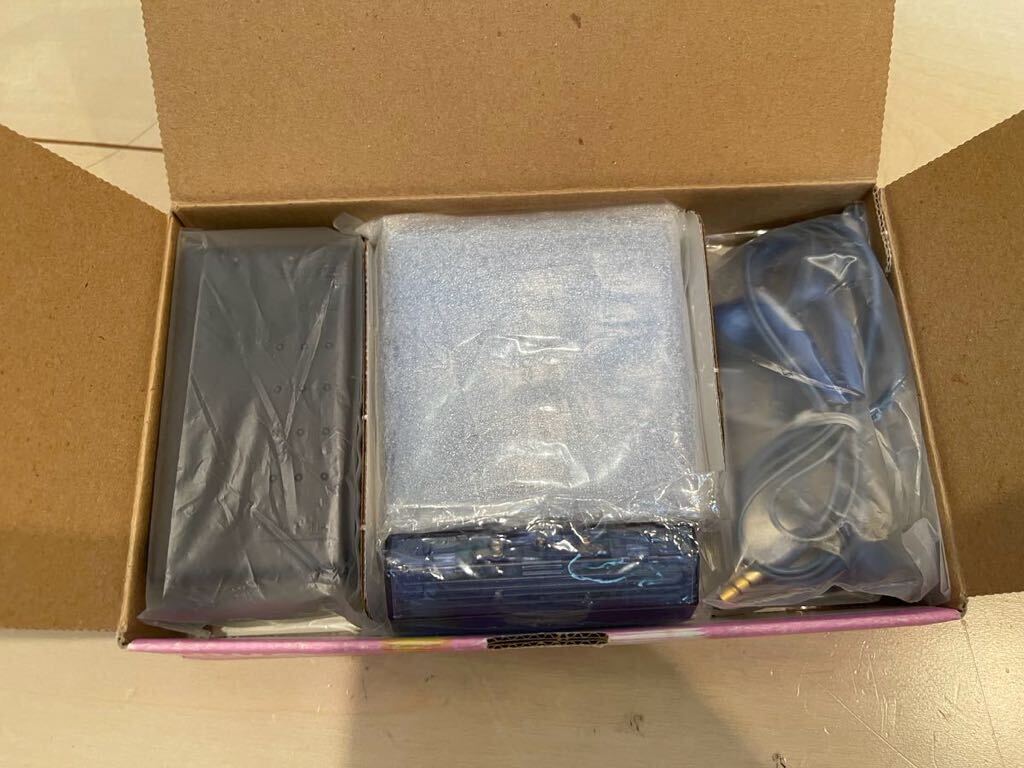

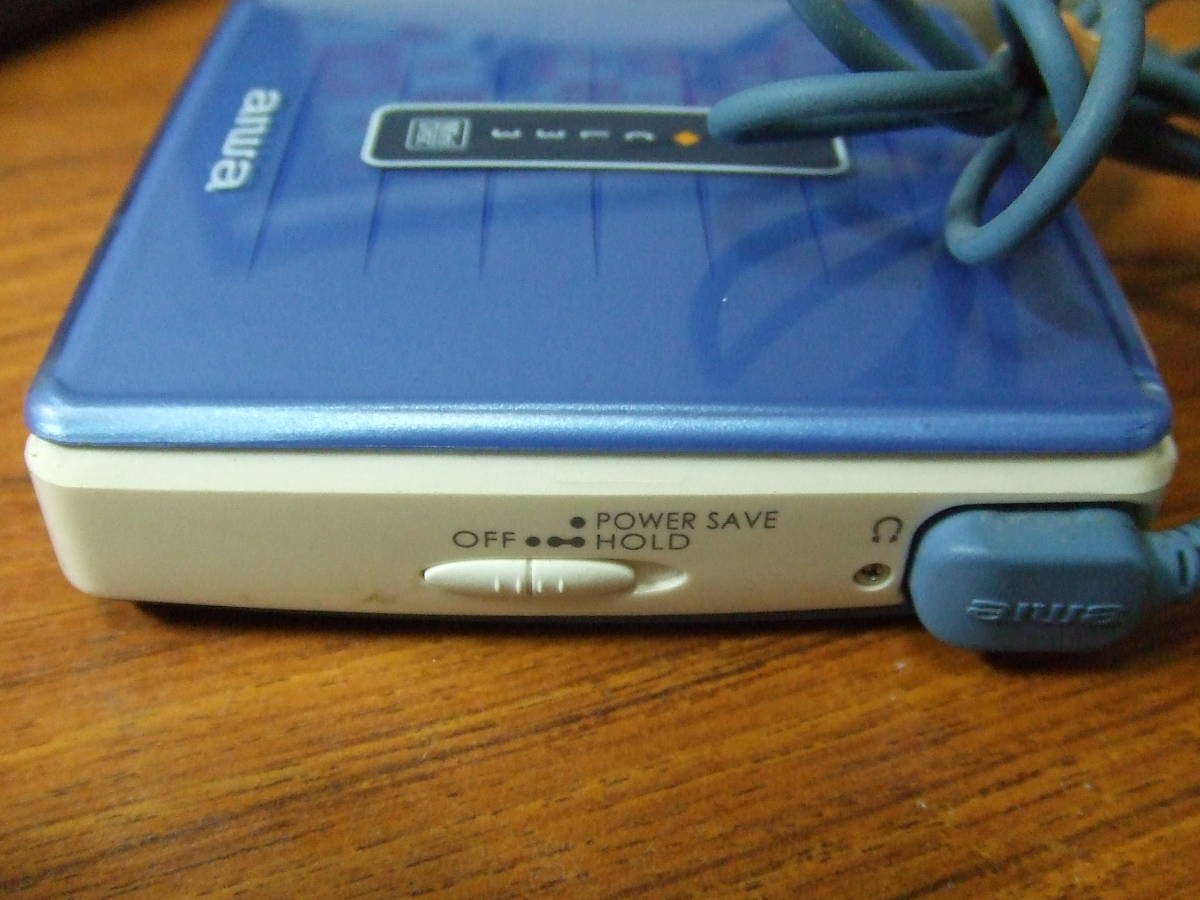

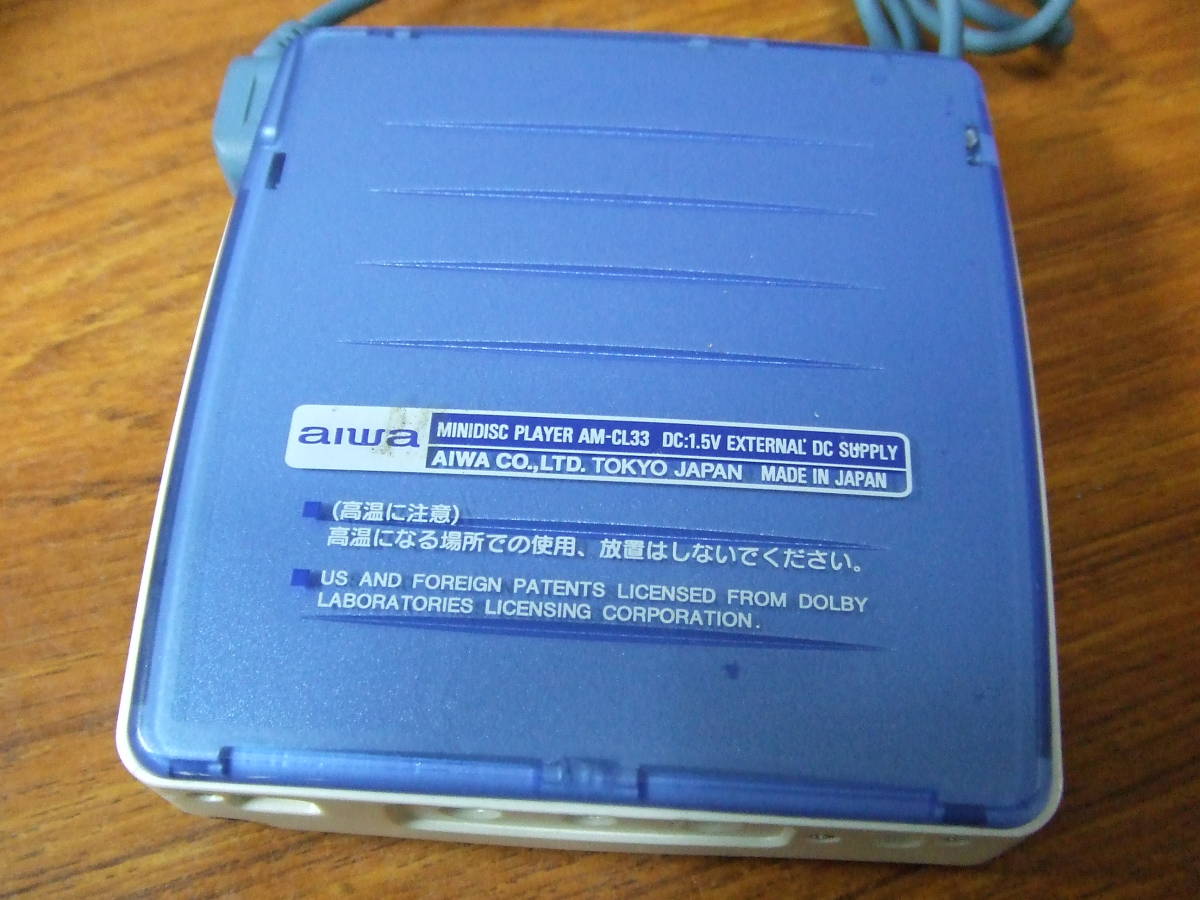

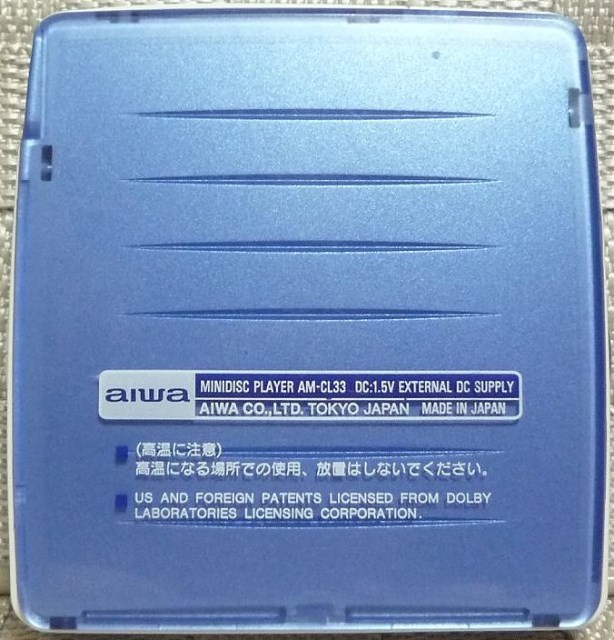

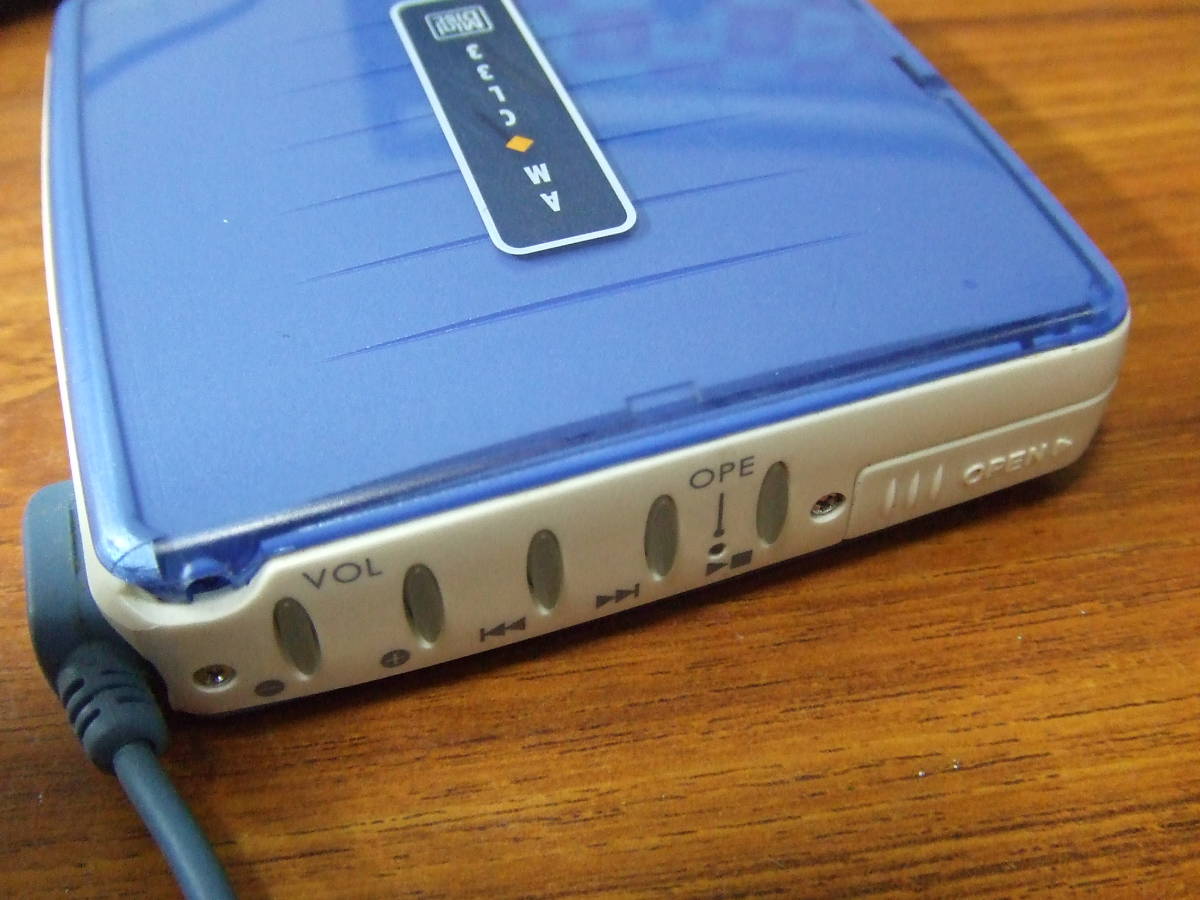

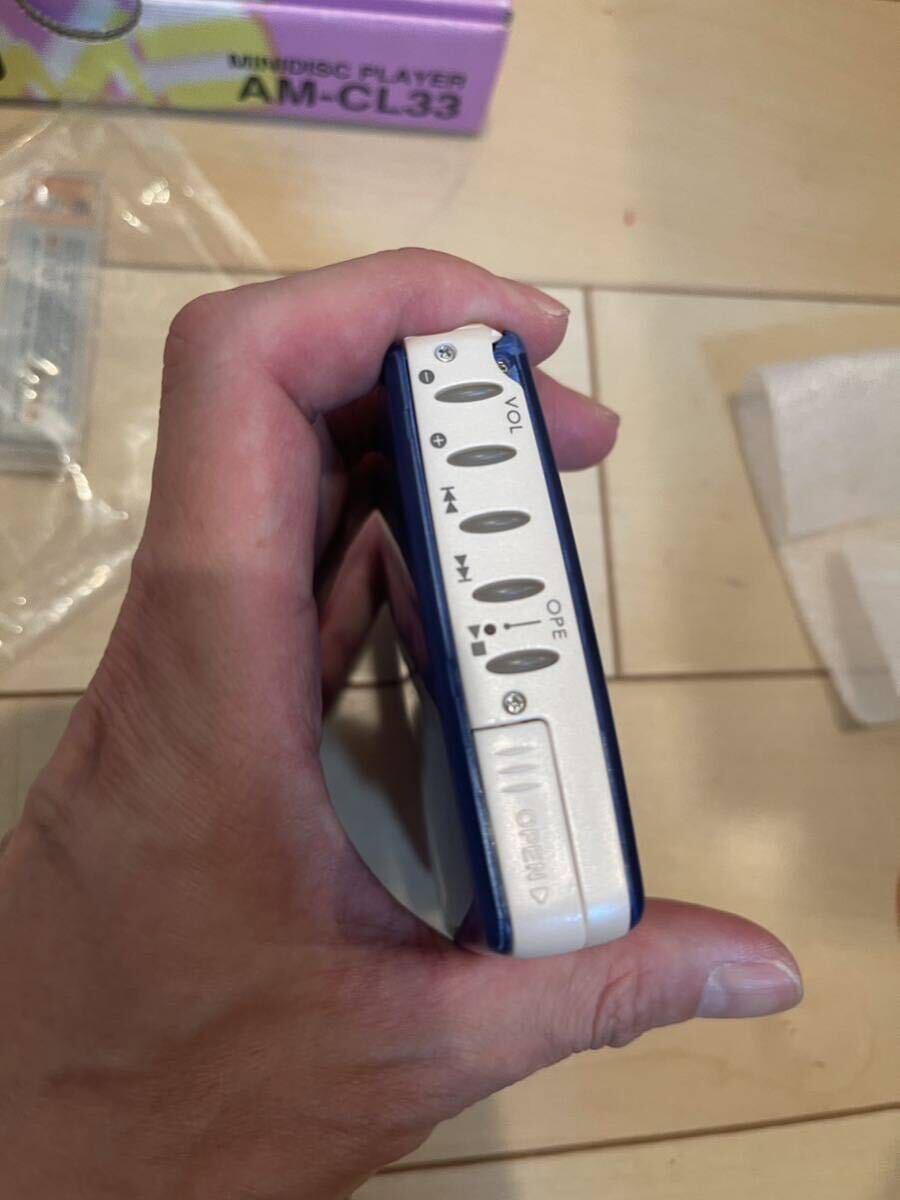

Photos
Have photos or data to add? Edit the page! We do not accept contributions via email..
Additional specifications and references
| Remote Page | |
|---|---|
| Pickup | kms-330a |
| Manual | Service manual |
| Region | Japan |
