| Name | AM-HX150 |
|---|---|
| Manufacturer | Aiwa |
| Released | 2001/06 |
| Device type | portable |
| Recorder | Player |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 71.1W x 12.6H x 77.2D mm |
| Weight | 56g (81g w/batt) |
| ATRAC ver | Not recorded |
| Battery | Not recorded "Gumstick" |
| Battery notes | Not recorded |
| Sidecar (depr) | 1xAA |
| Voltage | 100 |
| Power cable | Center positive |
| Price (launch) | Not recorded |
| ¥29 800 | |
| - | |
| Inputs | N/A |
| Outputs | 3.5mm headphone |
| Control | Not recorded |

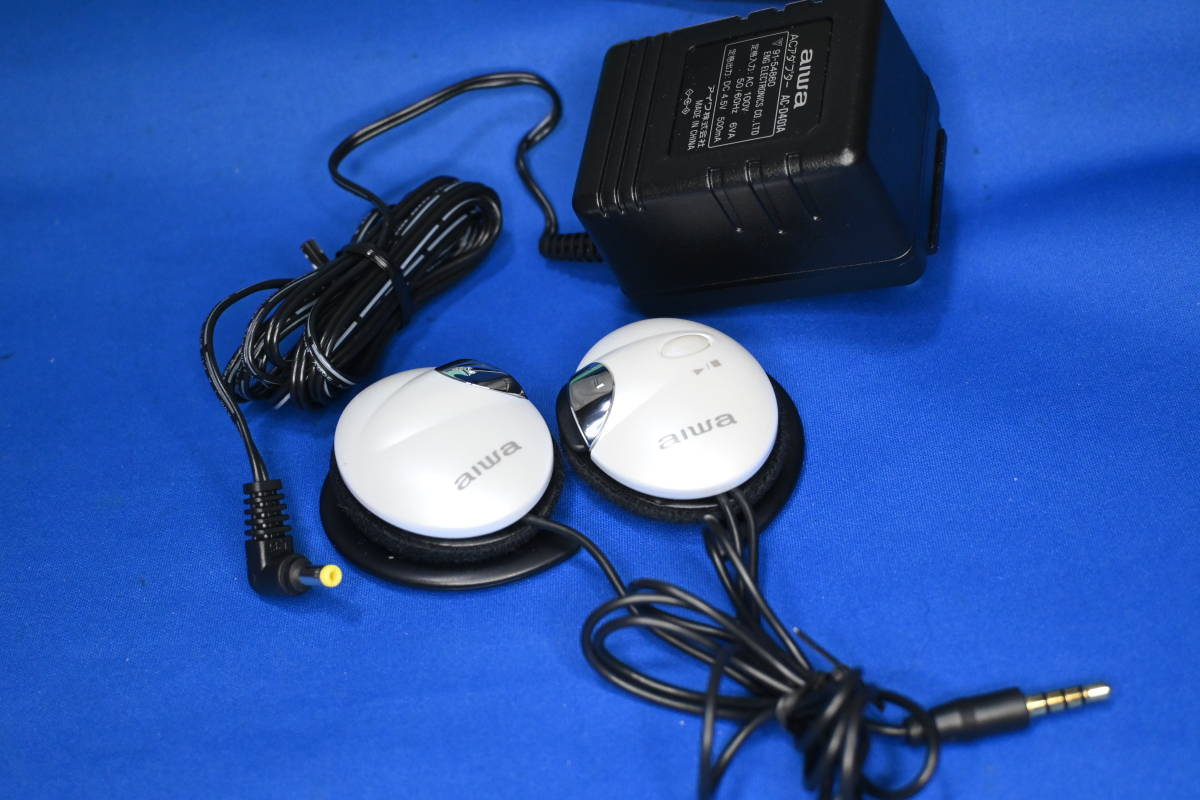

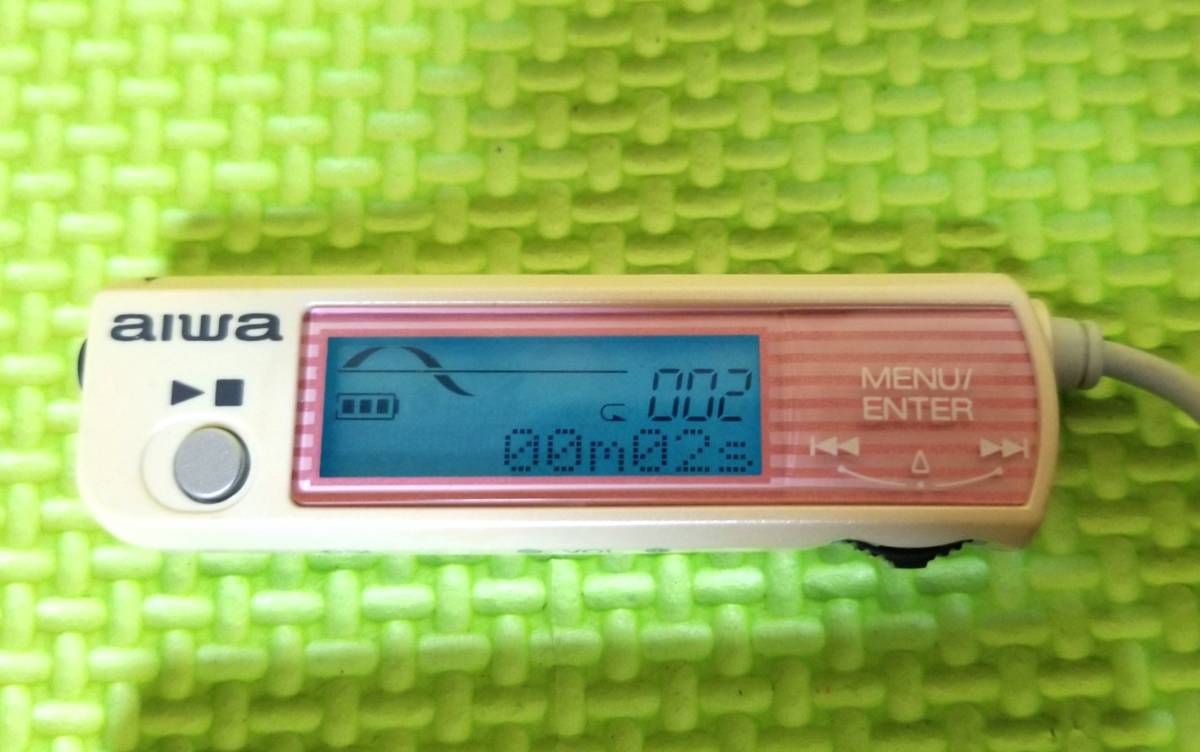

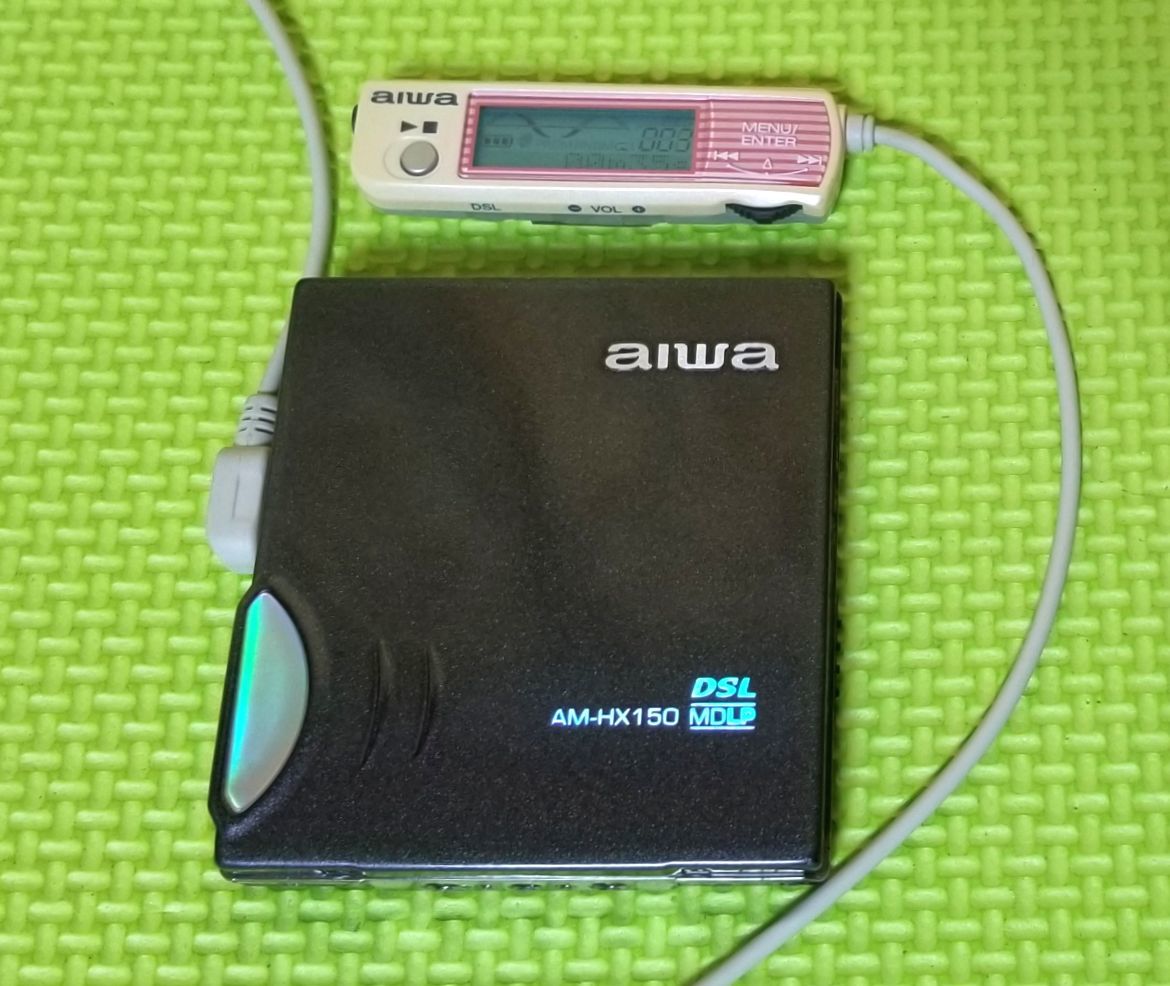

Features: Smallest and lightest portable MD player as of May 2001. MDLP compatible. Includes clip-type headphones that wrap behind one's ears, with pause and play buttons located on the headphone housing. 40-second anti-shock protection (160 seconds in LP4 mode), unit is recharged by being placed in recharging stand, sentence repeat function, LCD can be disabled to extend battery life, backlit LCD remote control.

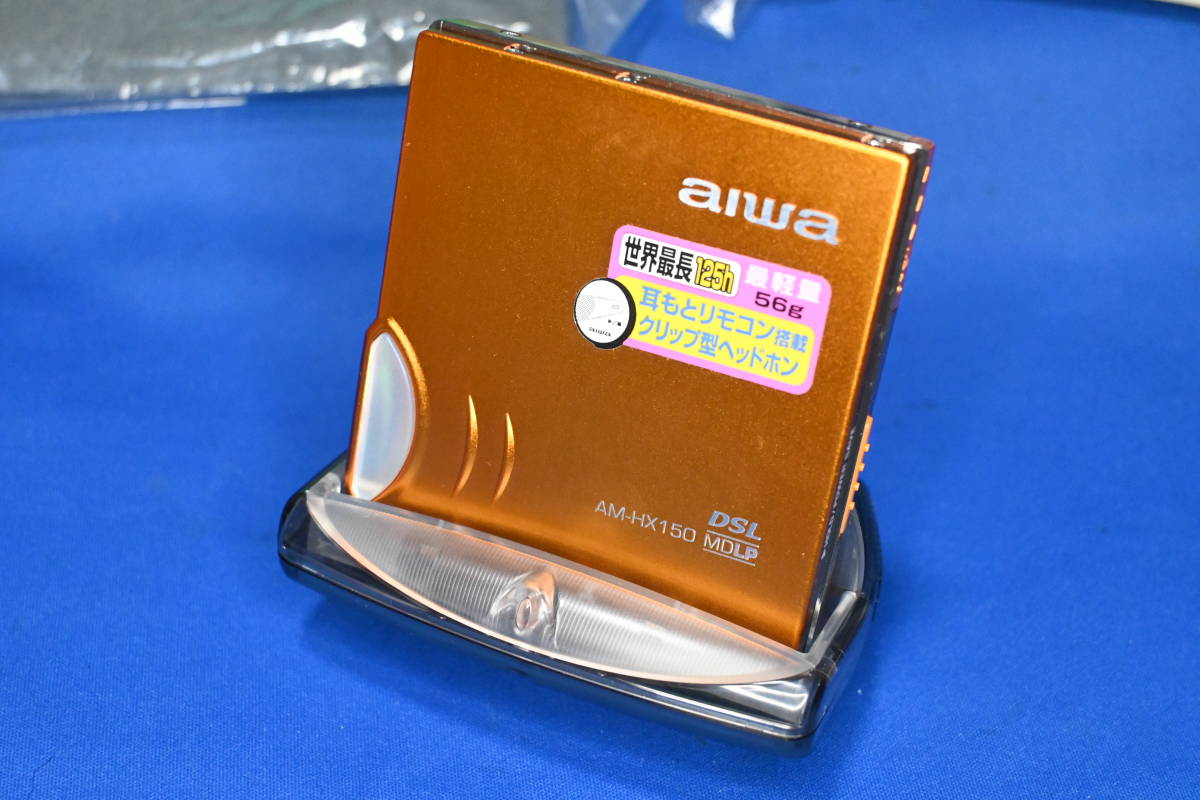

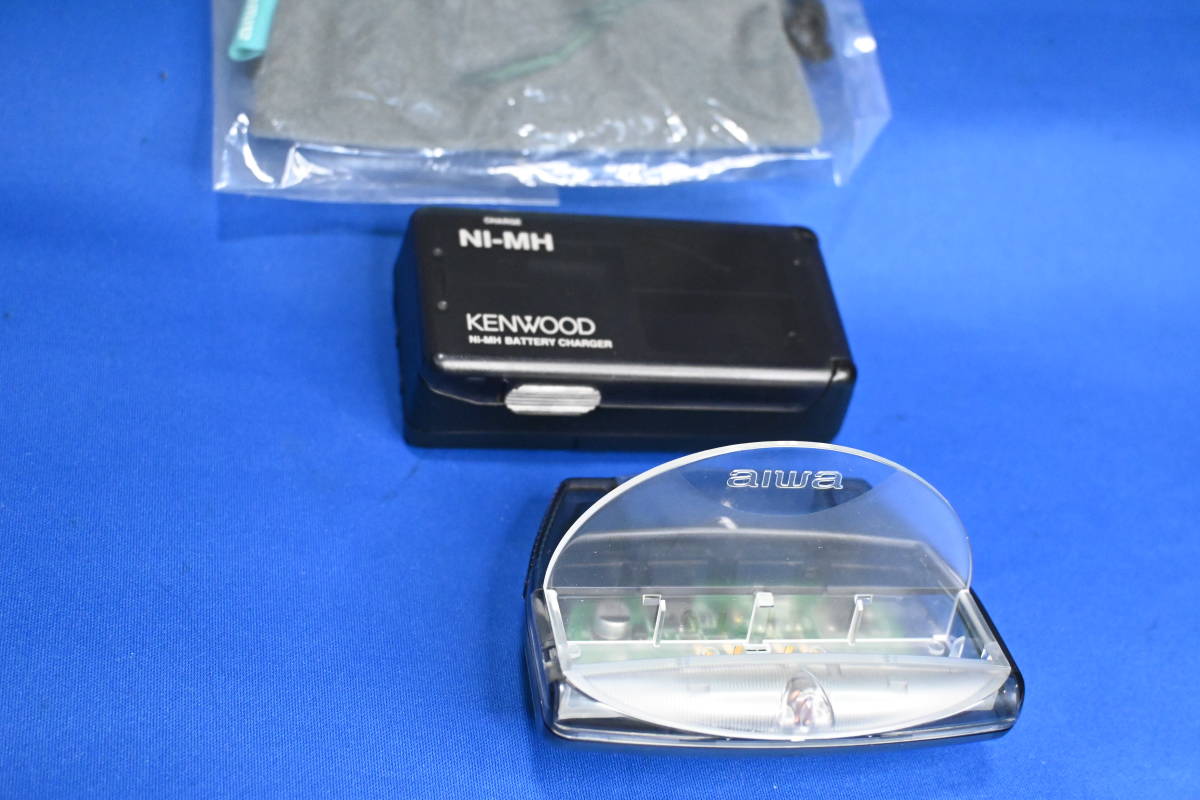

Charges through dock only.
Specs: 8mW x 2 output. Times listed are for SP/LP2/LP4 modes.
ATRAC IC: Sanyo LC896431
Content adapted from: Minidisc.org, Aiwa Press Release
Manuals
Aiwa AM-HX150 Service Manual (Only 1 page of circuit diagrams, may be missing info)

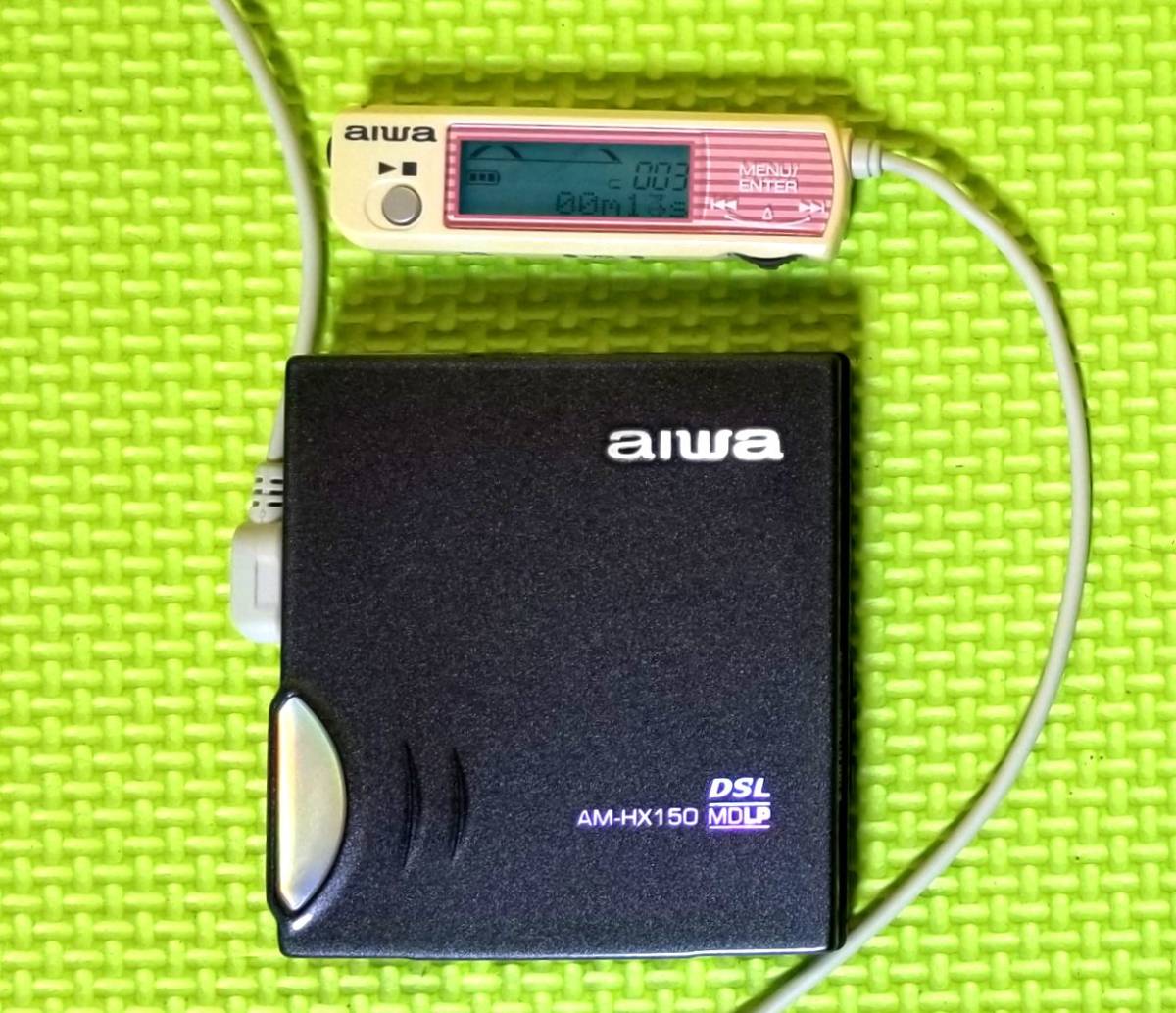

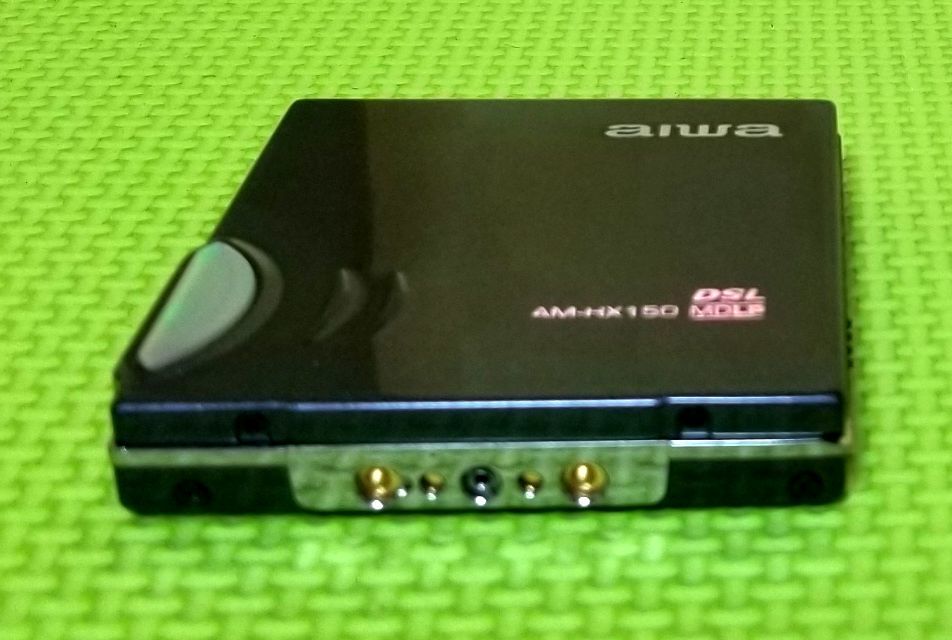

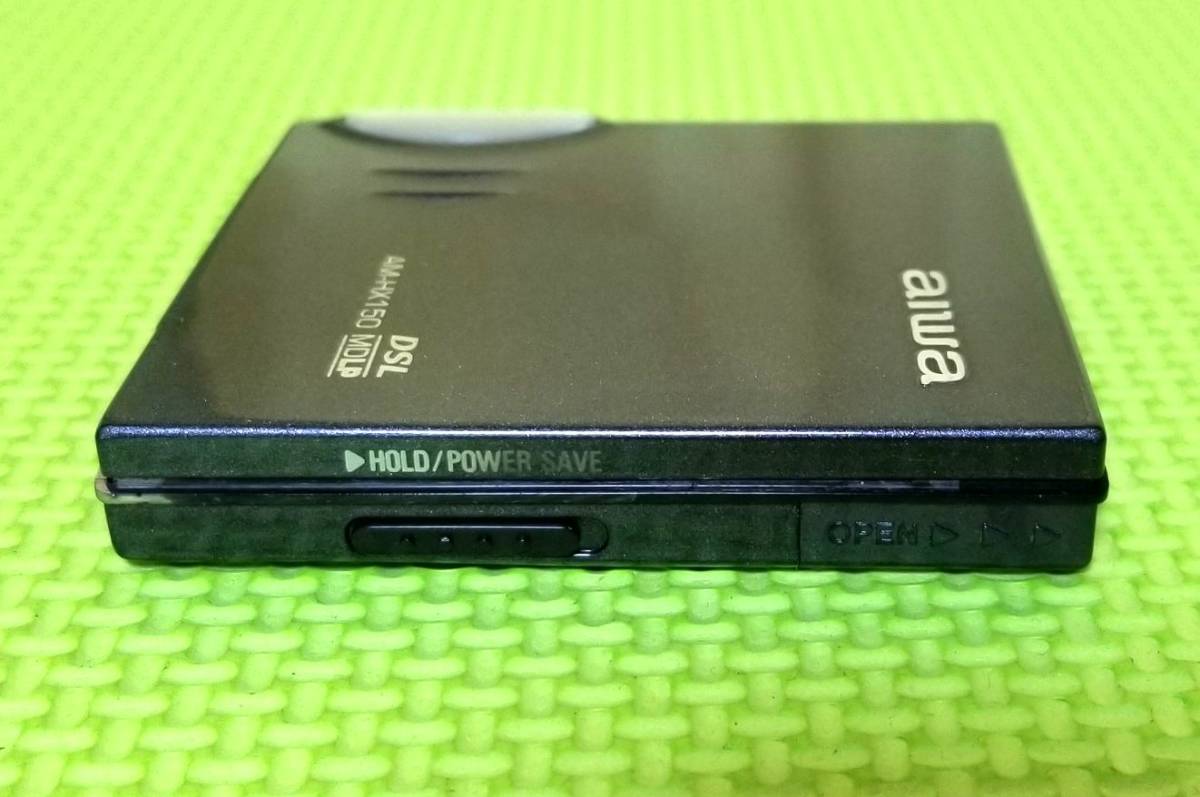

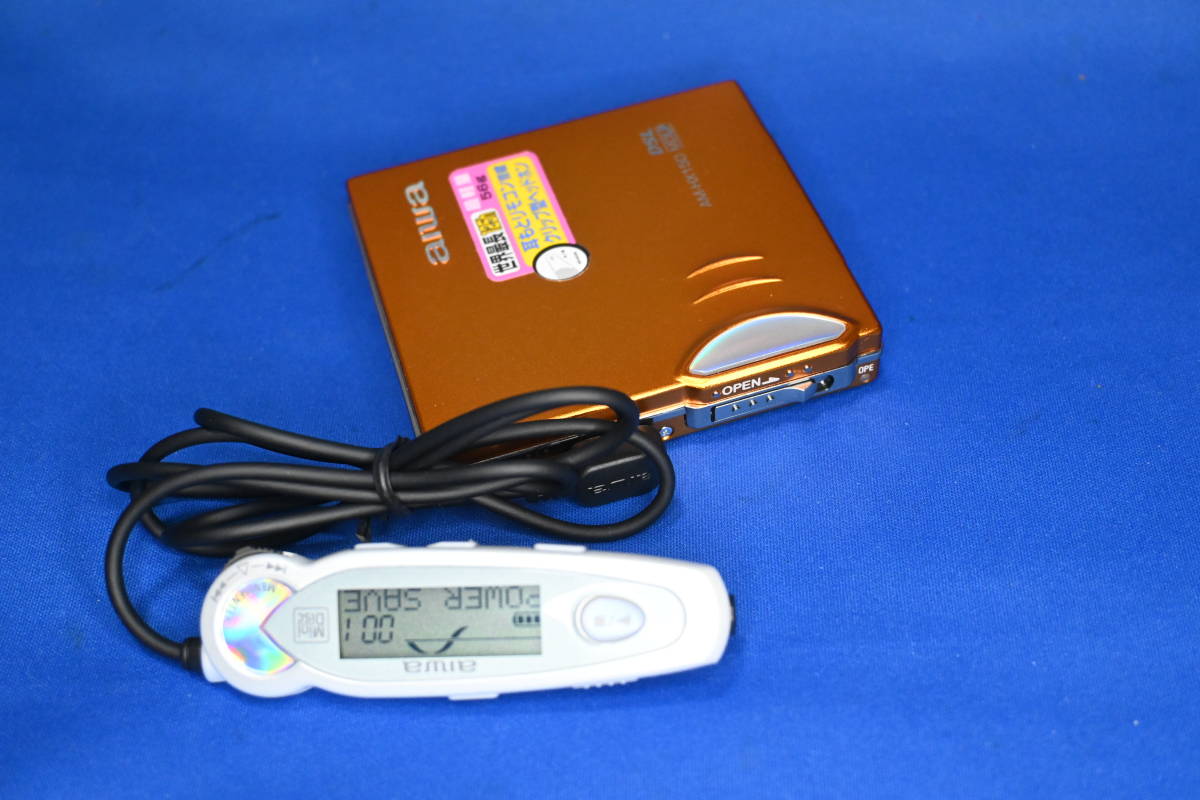

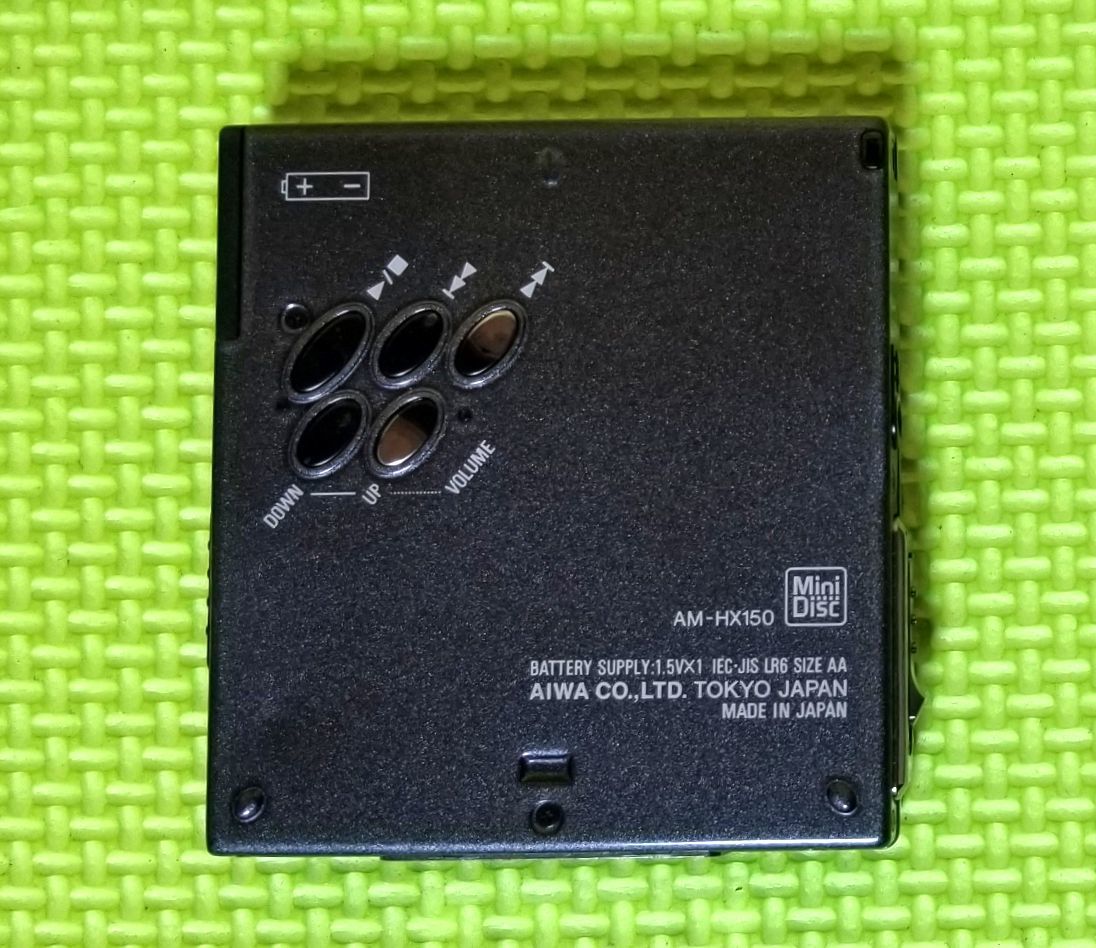

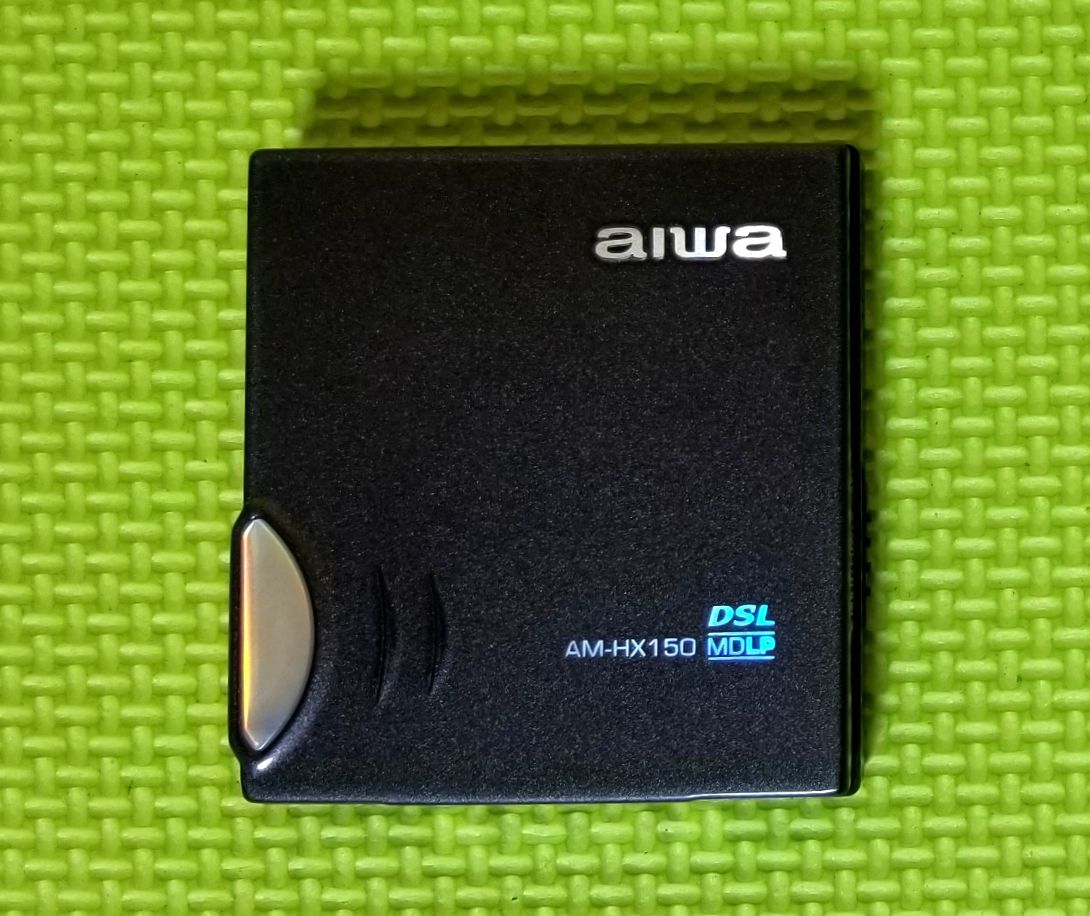

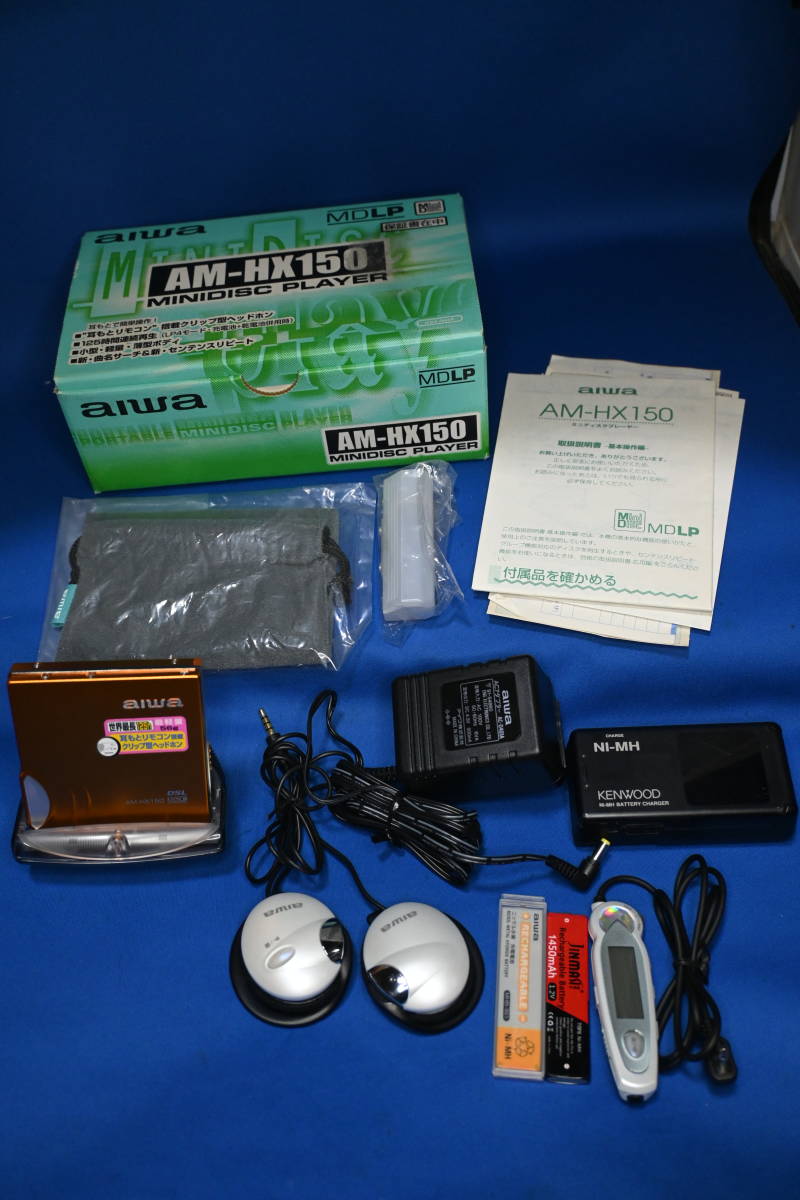

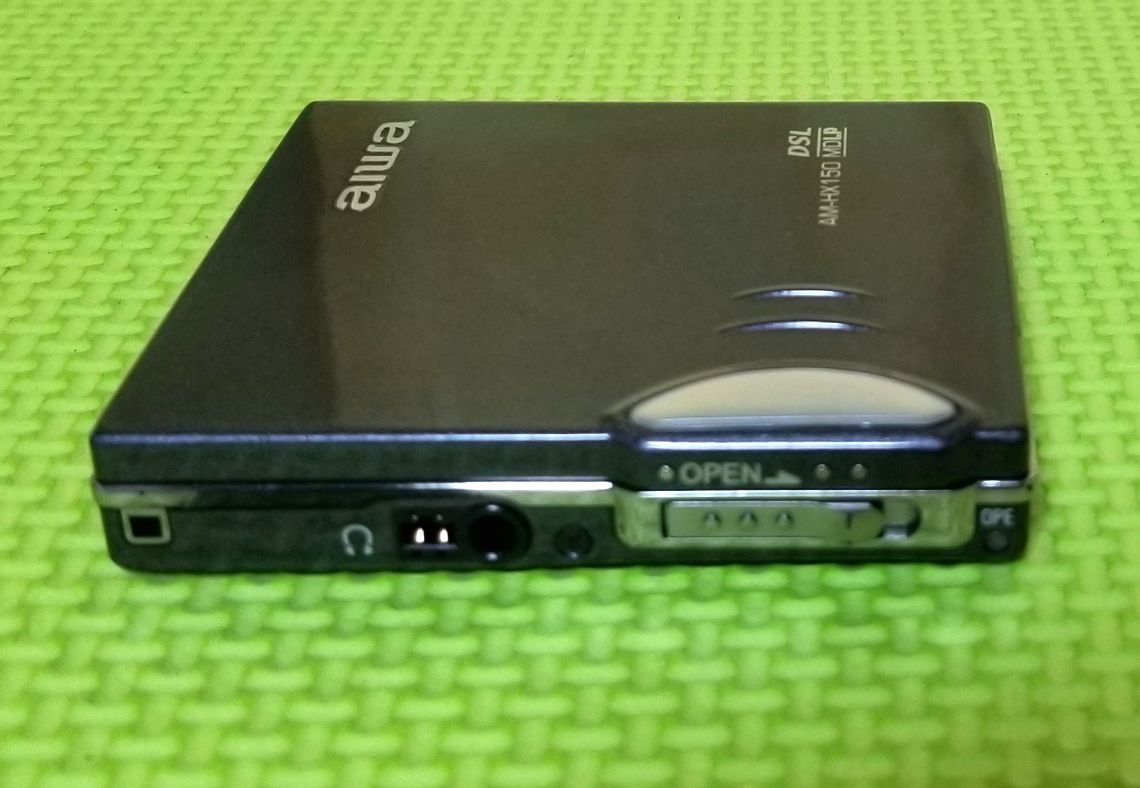

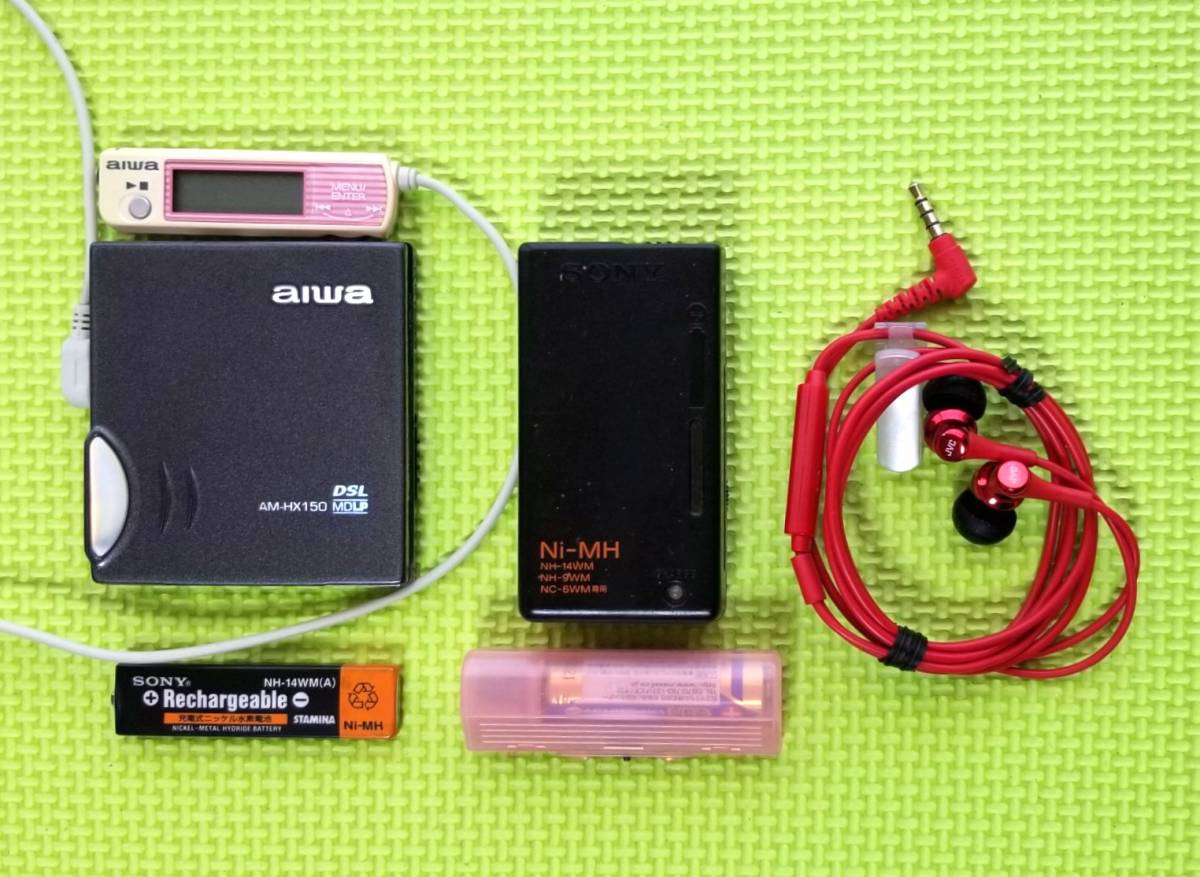

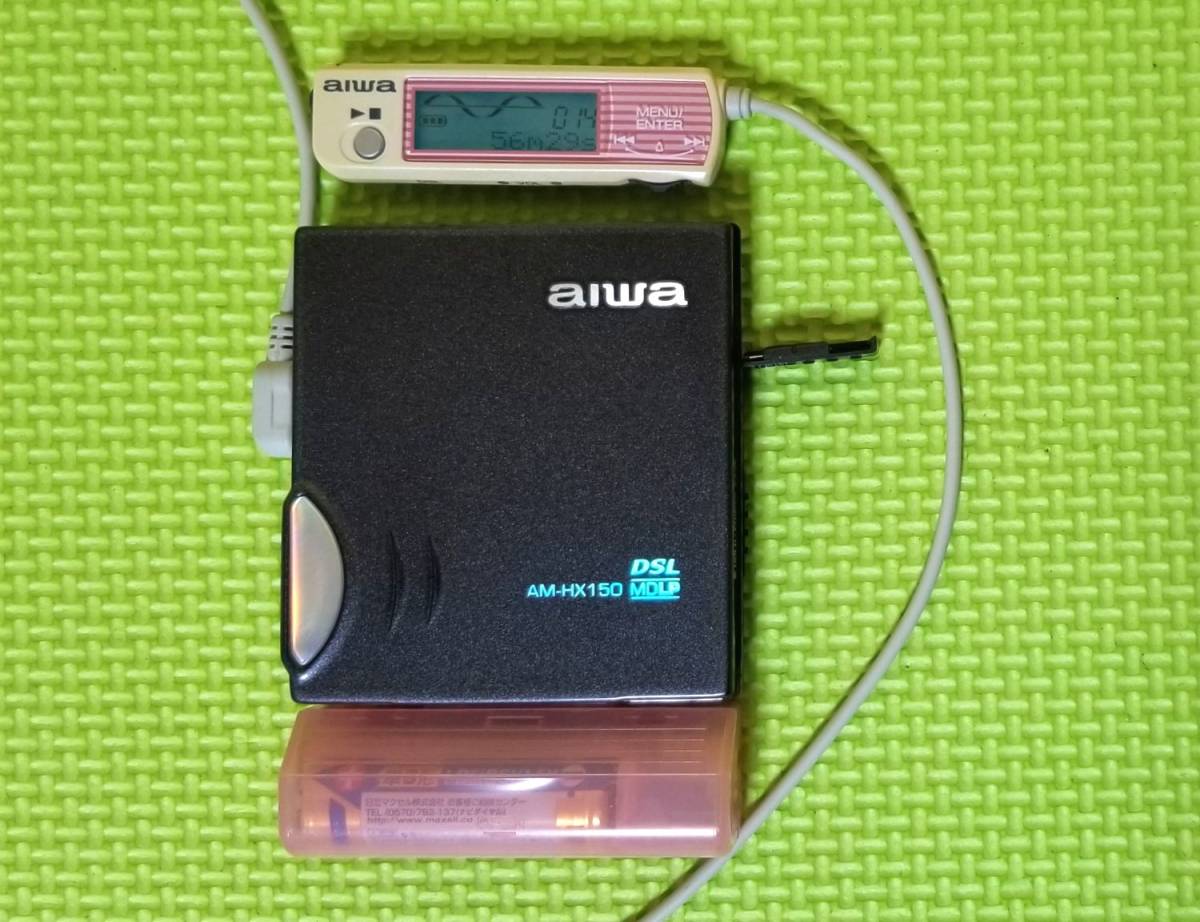

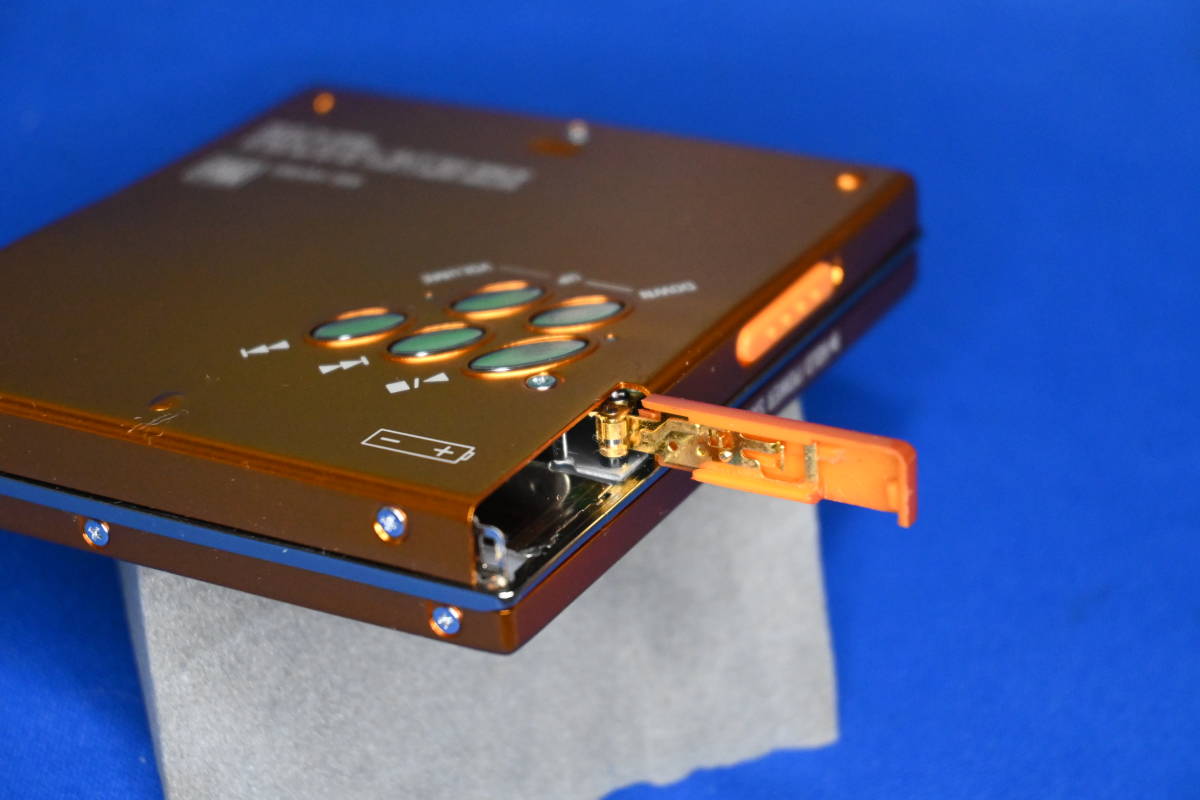

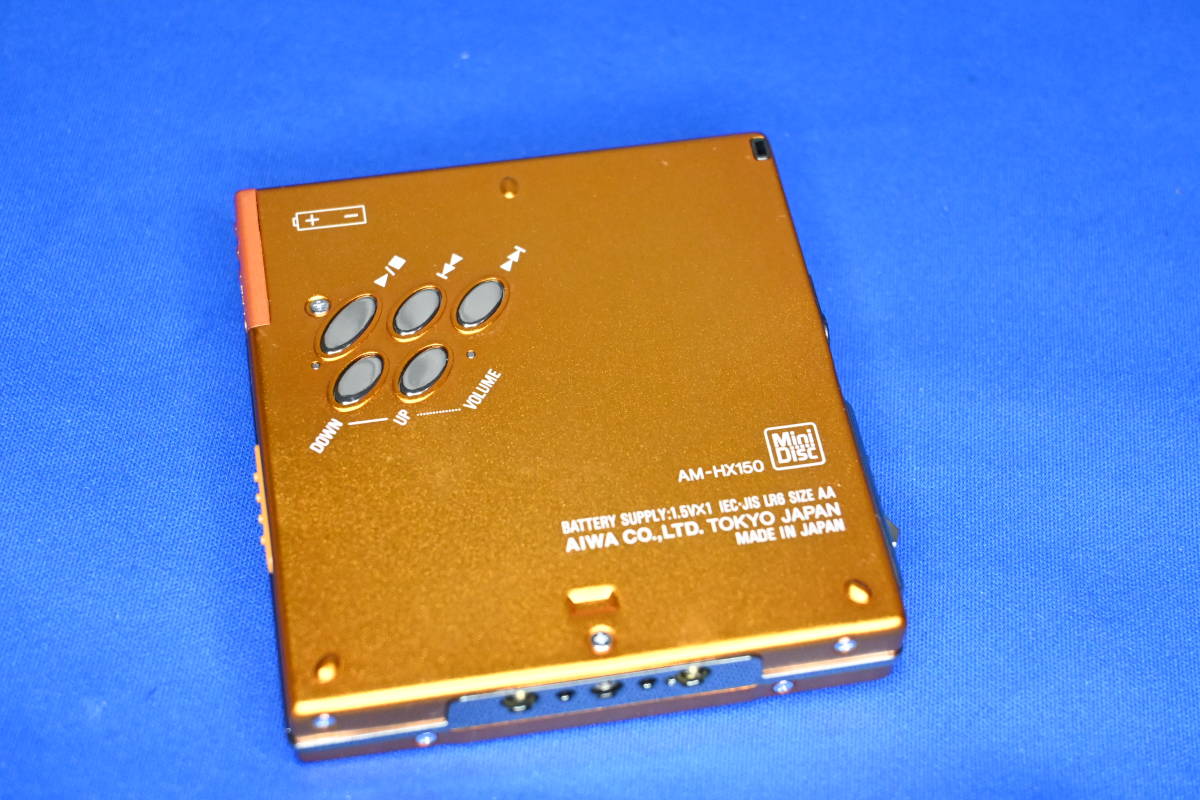

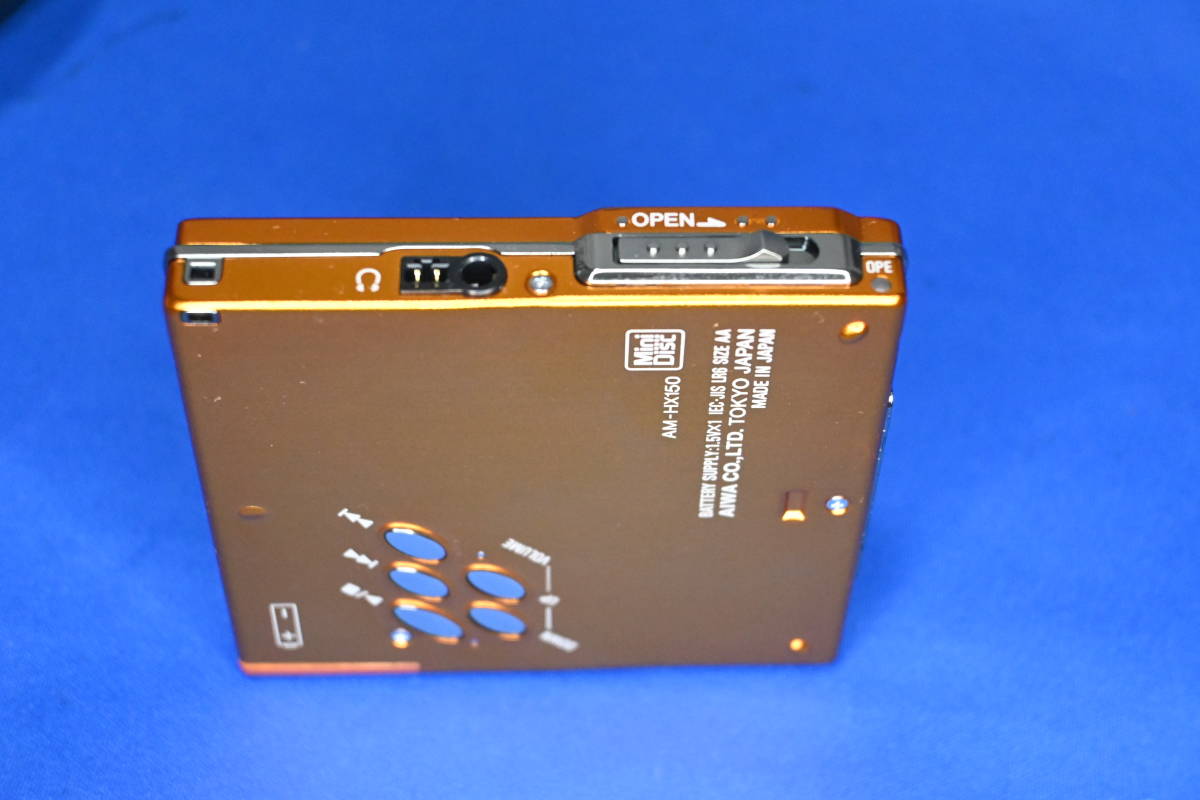

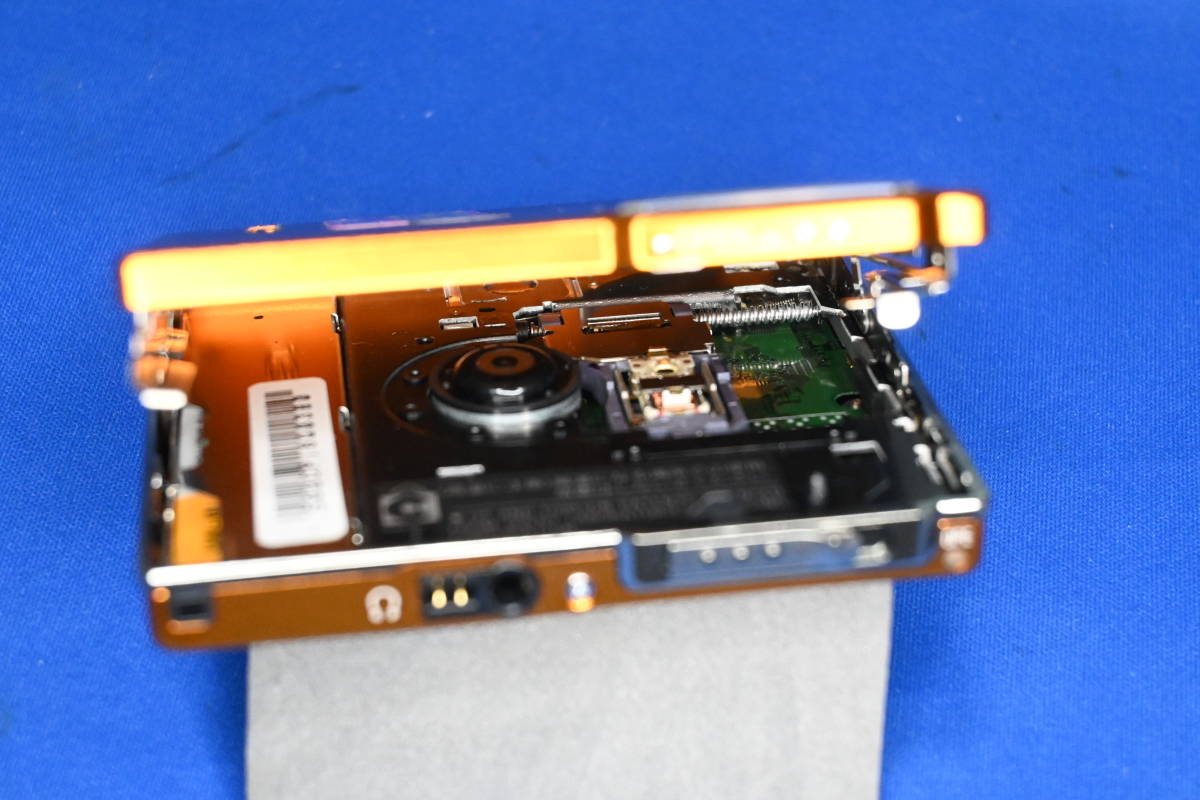

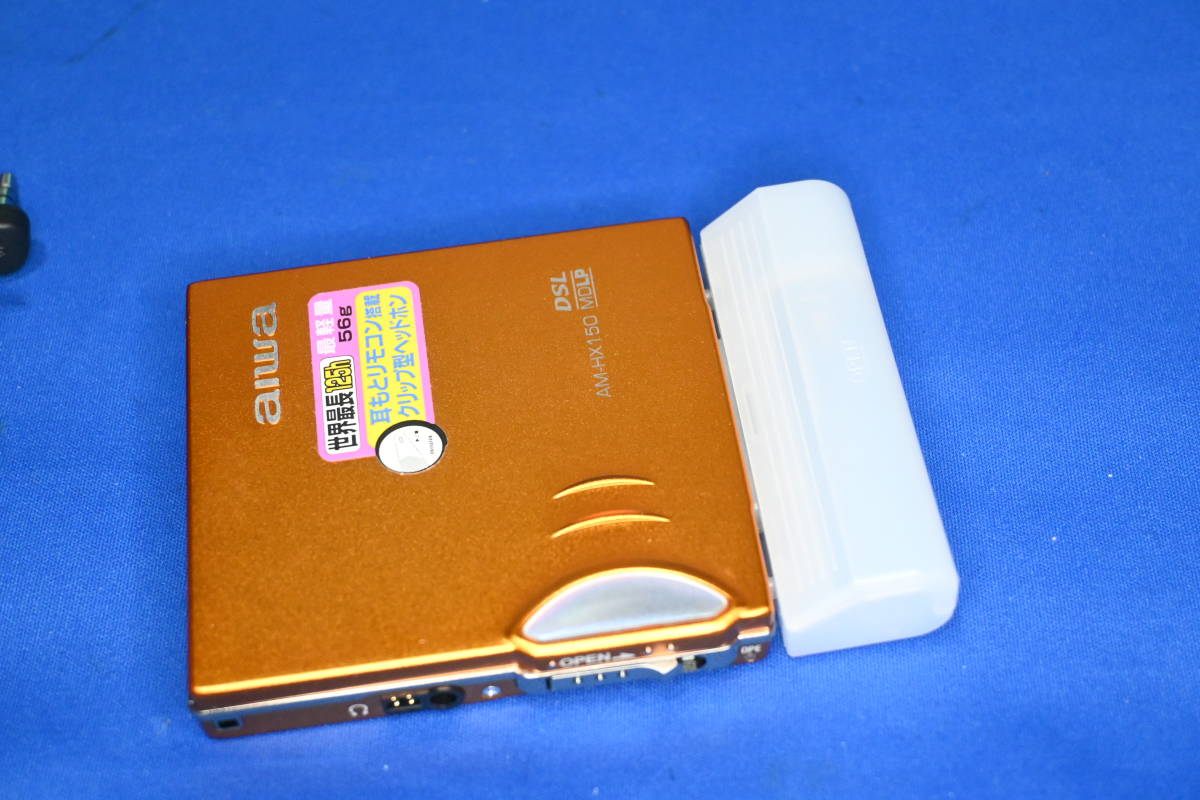

Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Manual | Service manual |
|---|---|
| Region | Japan |
