Aiwa AM-HX200

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-01-01

Manufacturer
Aiwa
Model / source grouping
AM-HX200
Device type
portable
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

No directly linked document has been identified for this record. Search the manual library or consult the source below.

Accessories & internal parts

Source-referenced components. Check conditions before substituting parts.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Aiwa AM-HX200”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name AM-HX200
Manufacturer Aiwa
Released 2001/03
Device type portable
Recorder Player
MDLP Yes
NetMD No
Hi-MD No
Radio No
Dimensions 72.2W x 78.3D x 13.9Hmm
Weight 84g (109g w/batt)
ATRAC ver Type-R
Battery Not recorded "Gumstick"
Battery notes Not recorded

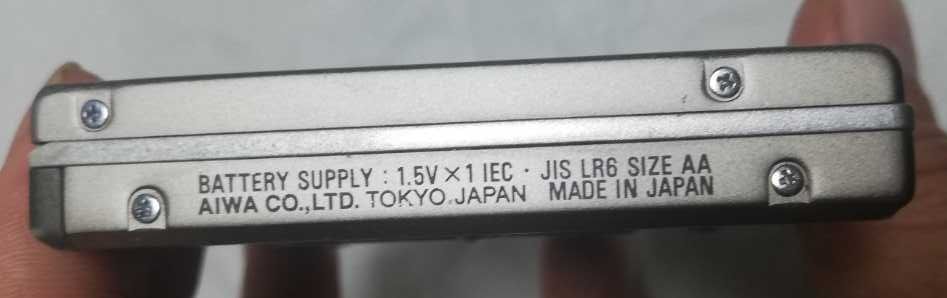

Sidecar (depr) 1xAA
Voltage 1.2, 1.5, 100
Power cable AC
Price (launch) Not recorded
¥34 000
-
Inputs Not recorded

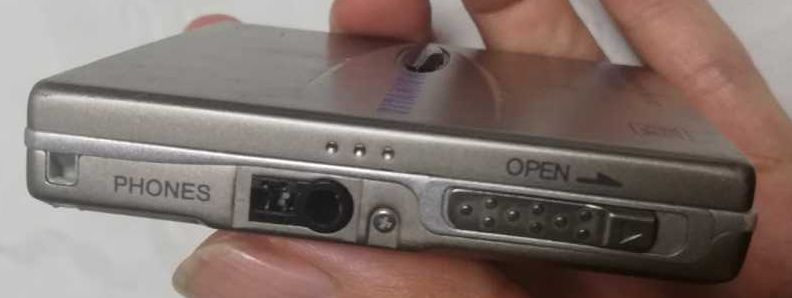

Outputs 3.5mm headphone
Control Not recorded

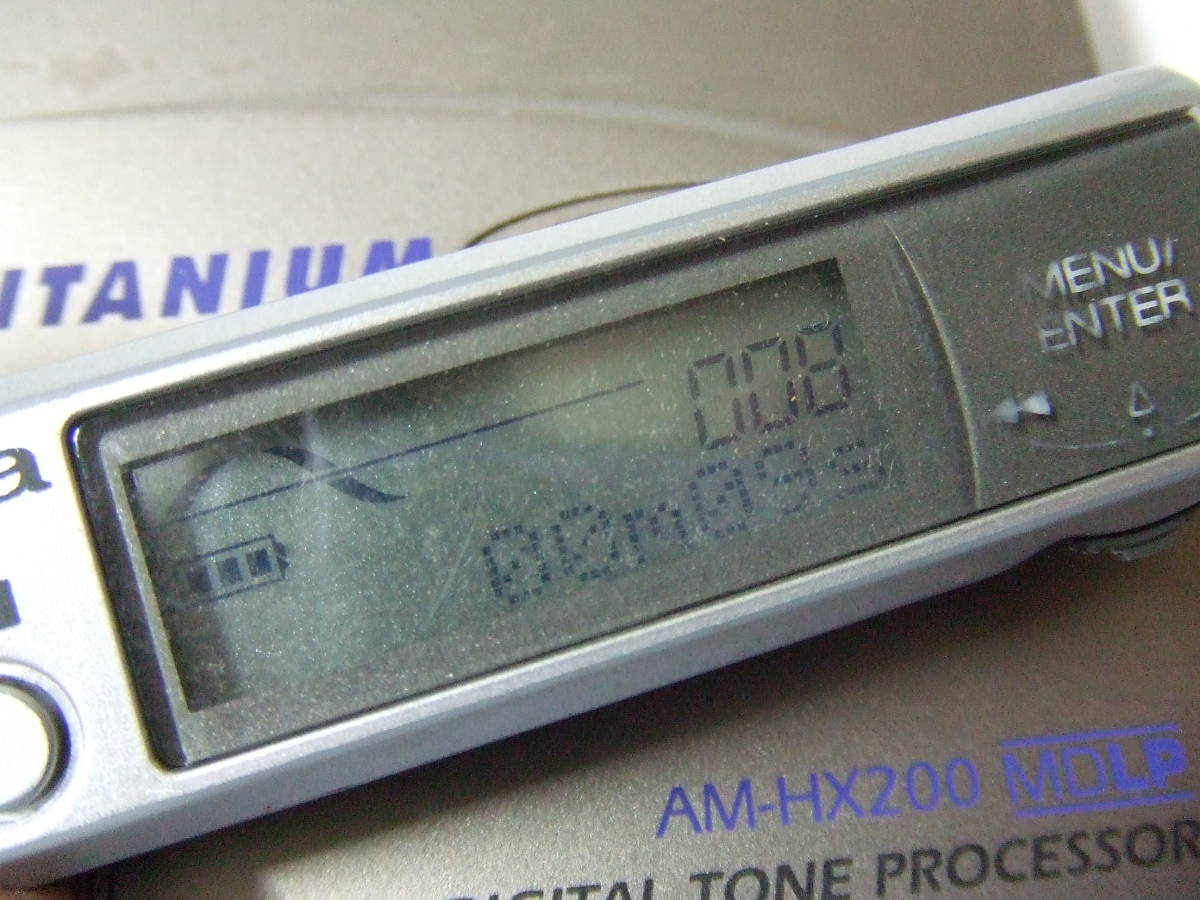

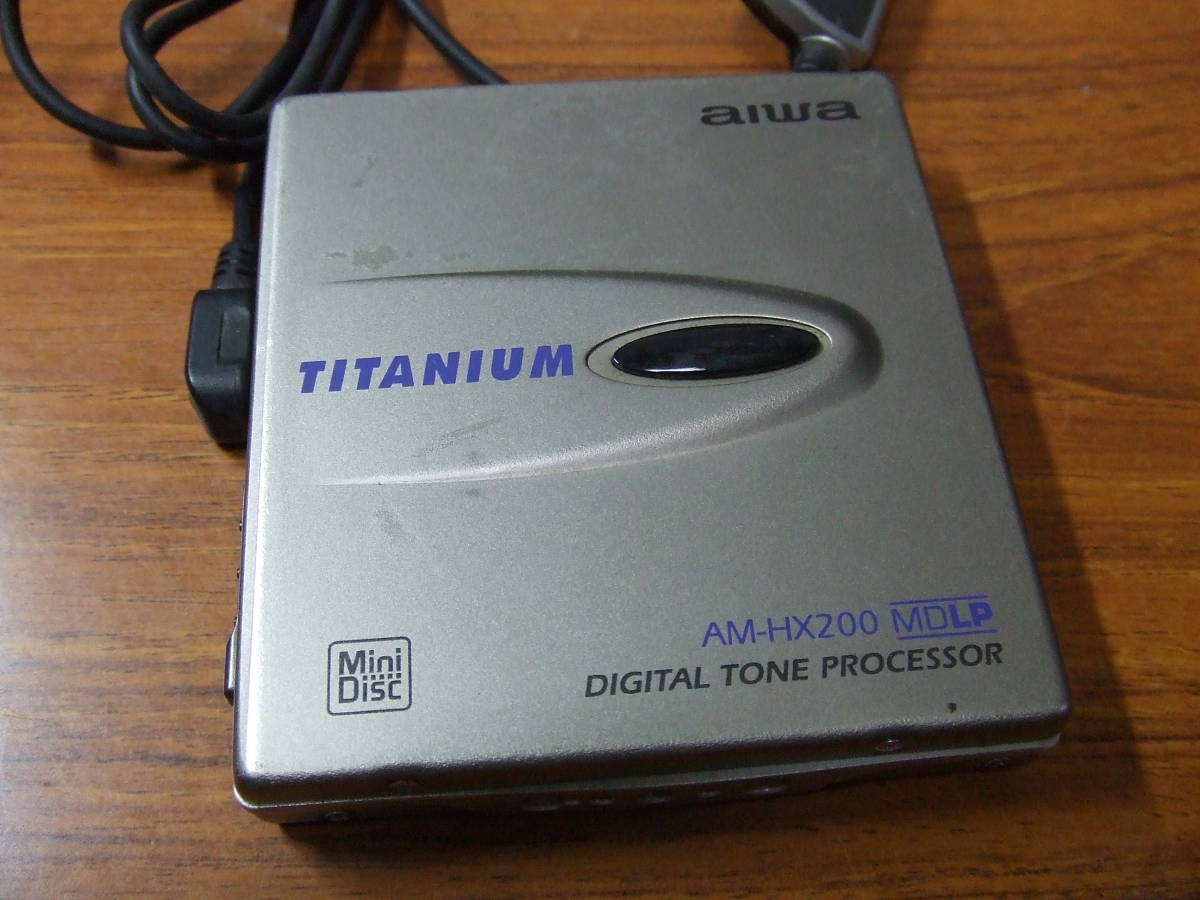

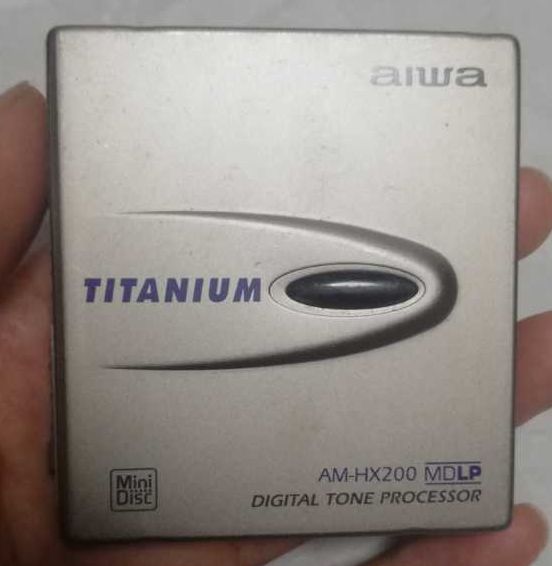

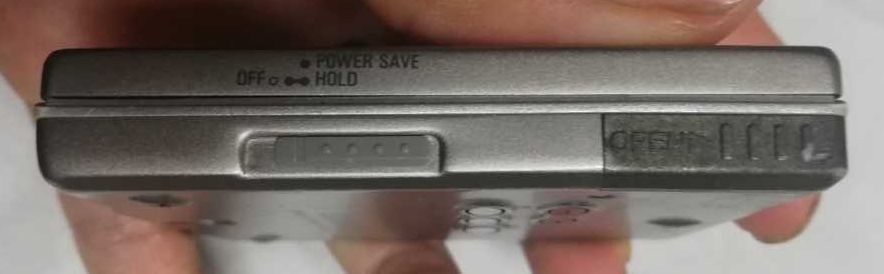

Features: MDLP support. All-titanium body (first for Japanese market) with double the rigidity of aluminium. Sentence repeat function (to assist language learning): using any 0.5-second silence as an identifier, unit will repeat the "sentence" 9 times. "Digital tone processor" allows for bass/treble adjustment (-6 to +6). Alarm function (settable from 1 to 180 minutes), 25 track program play, power save mode ("PS"), as on previous Aiwa players. 10 chararcter backlight multi-jog remote. Track select during playback has been updated: when viewing the track list during playback, the tracks are displayed in sorted order (Japanese titles sorted in Japanese character sort order).

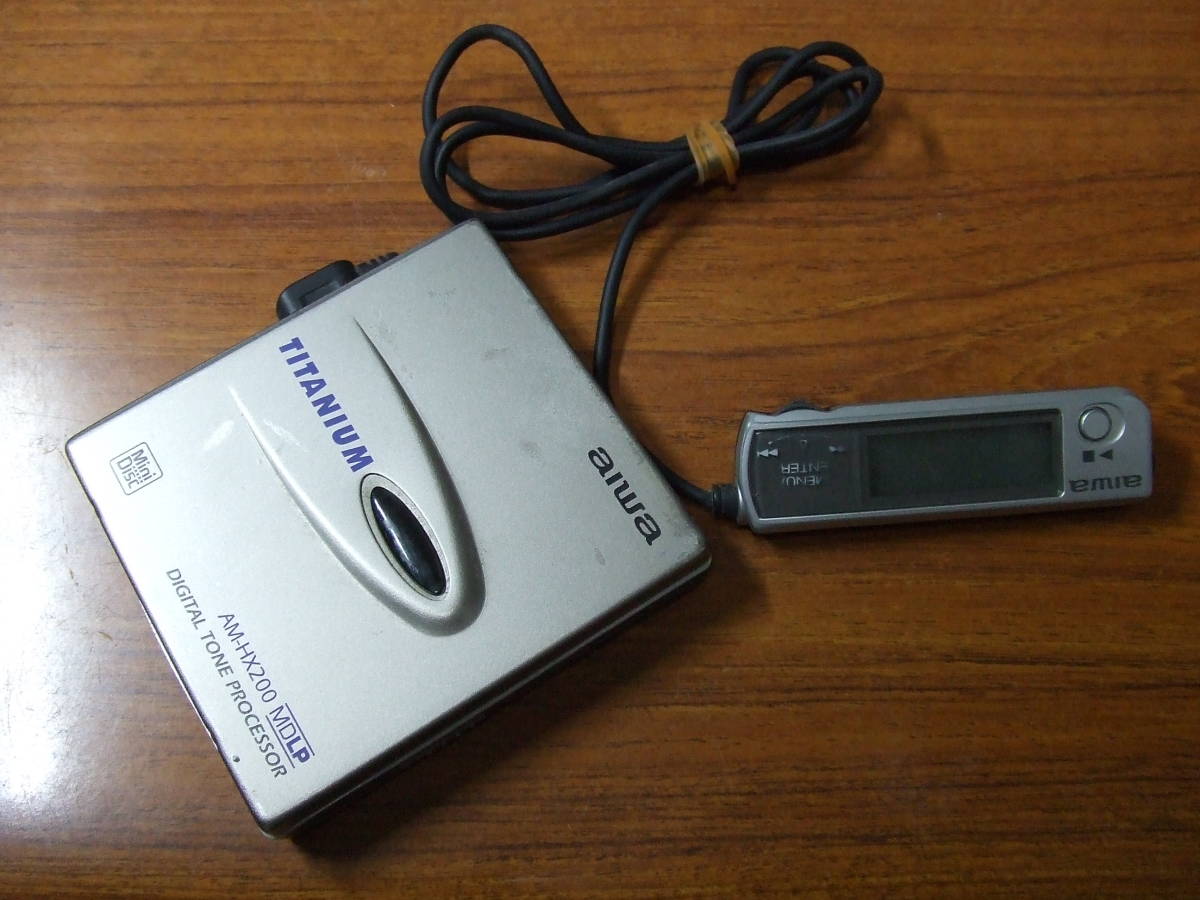

Accessories included: LCD remote control, stereo headphones, battery charger stand, AC adapter, nickel-hydrogen rechargeable battery, battery case, carrying case, clip for remote control unit, rechargeable battery carrying case.

Specs: 8mW+8mW headphone output. 20-20,000Hz, +-1dB (with 10 ohm load). 1 bit DAC.

Battery Life Play Recharge
NiMH 18/21/22 hr
PS mode 25/32/38 hr 70 minutes
AA x 1 28/31/33 hr
PS mode 36/50/60 hr
Both PS mode 68/87/100 hr

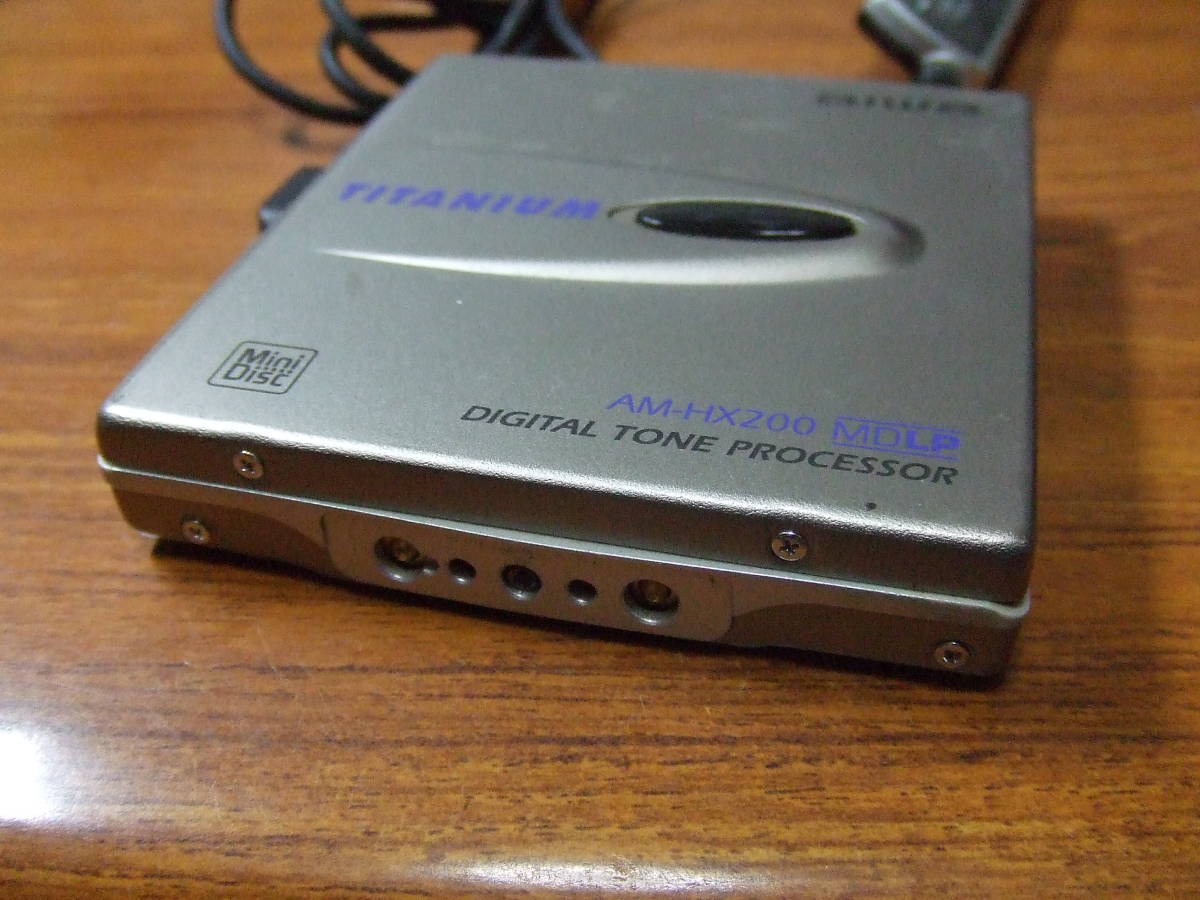

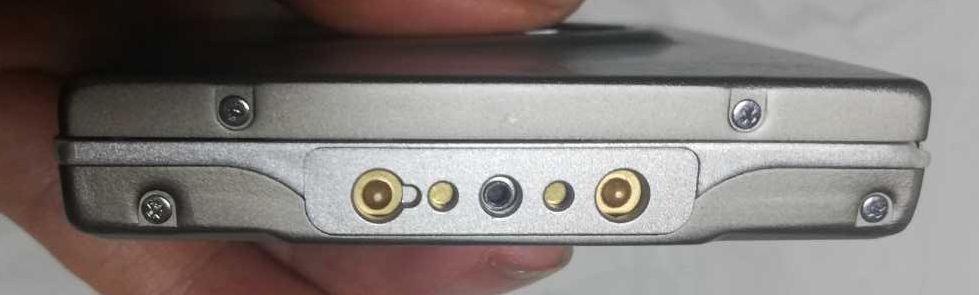

Only charges through supplied dock.

Content adapted from: AM-HX200 Minidisc.org page Aiwa English Press Release Aiwa English Press Release (MiniDisc Wiki mirror)

Manuals

None Found.

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references
Web MdNo (not NetMD)
Manual
RegionJapan
