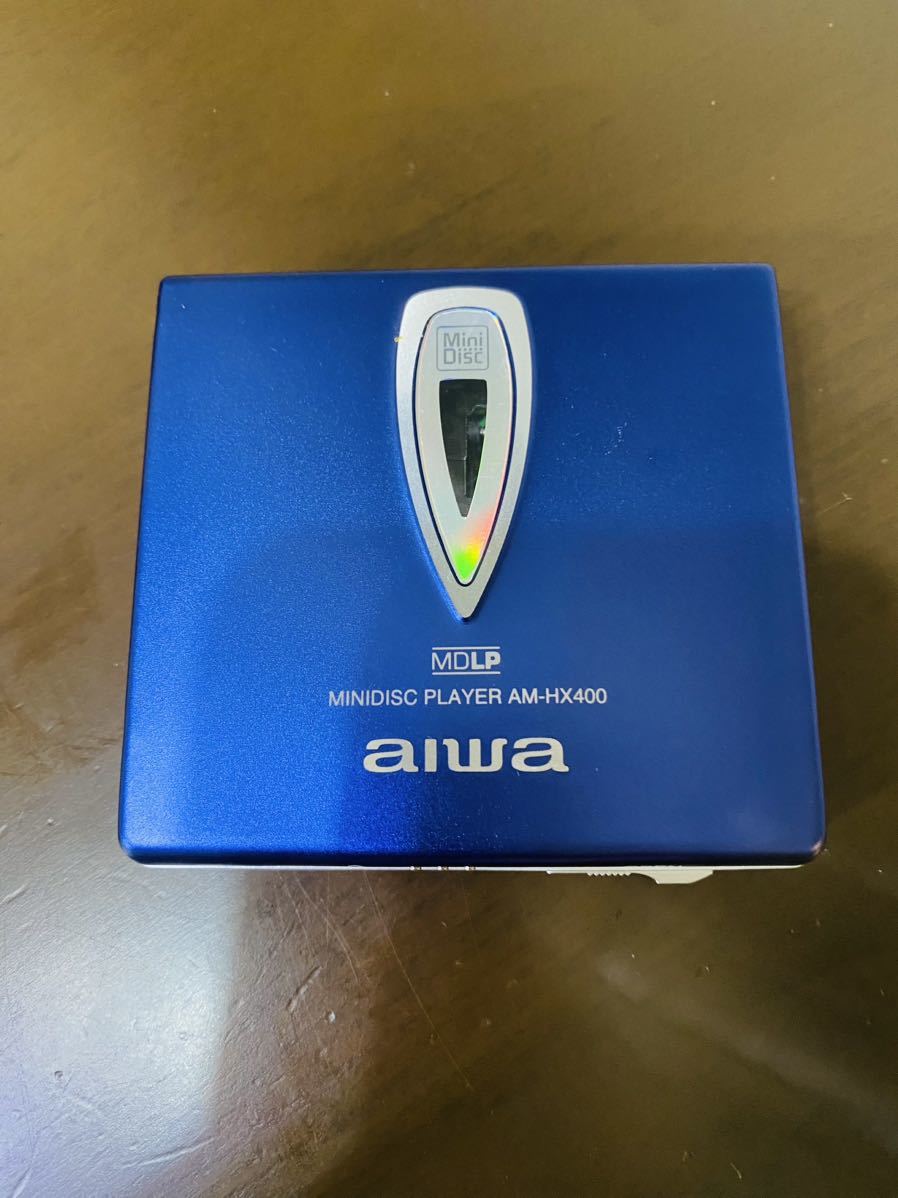

Aiwa AM-HX400

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-01-01

Manufacturer
Aiwa
Model / source grouping
AM-HX400
Device type
portable
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

No directly linked document has been identified for this record. Search the manual library or consult the source below.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Aiwa AM-HX400”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name AM-HX400
Manufacturer Aiwa
Released 2001/12
Device type portable
Recorder Player
MDLP Yes
NetMD No
Hi-MD No
Radio No
Dimensions 77.9 x 73.4 x 13.8mm
Weight 89g (inc. batt)
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded

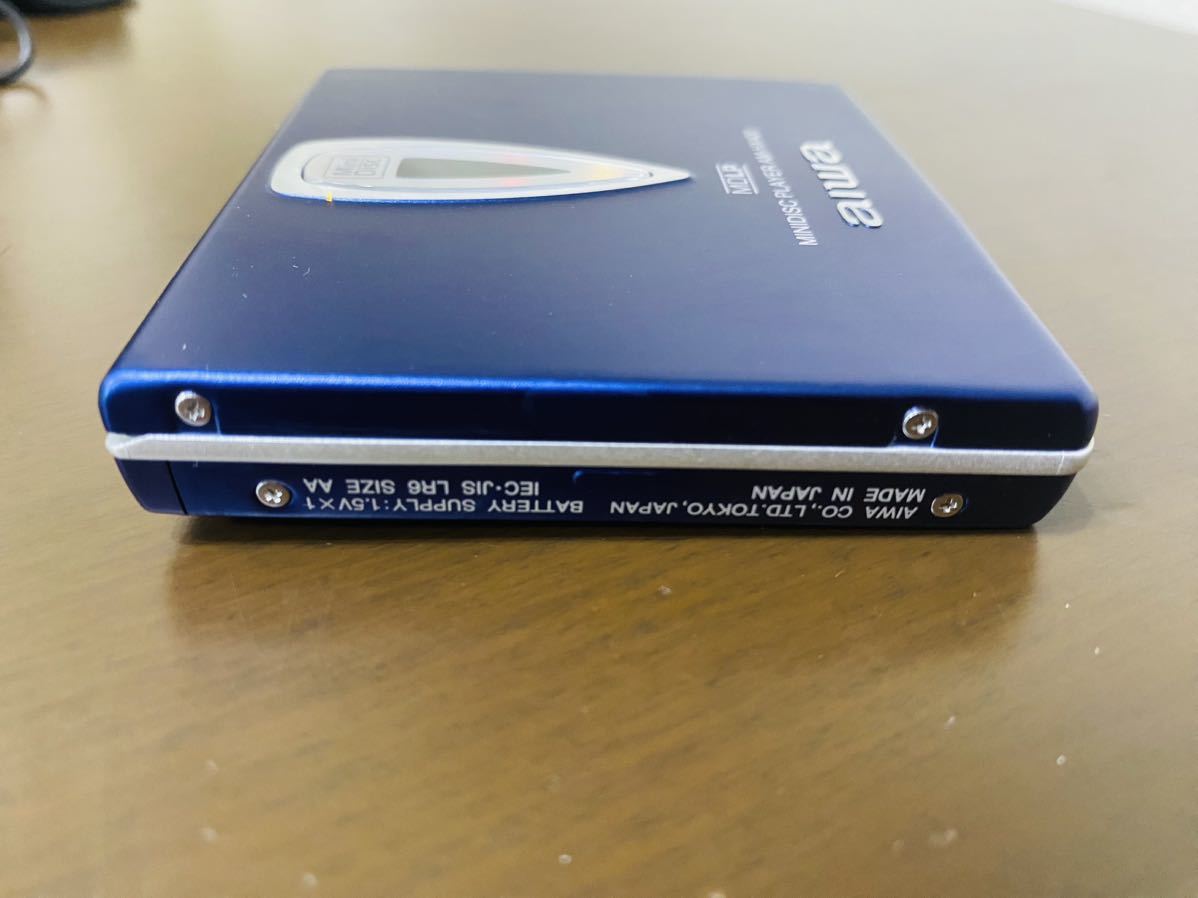

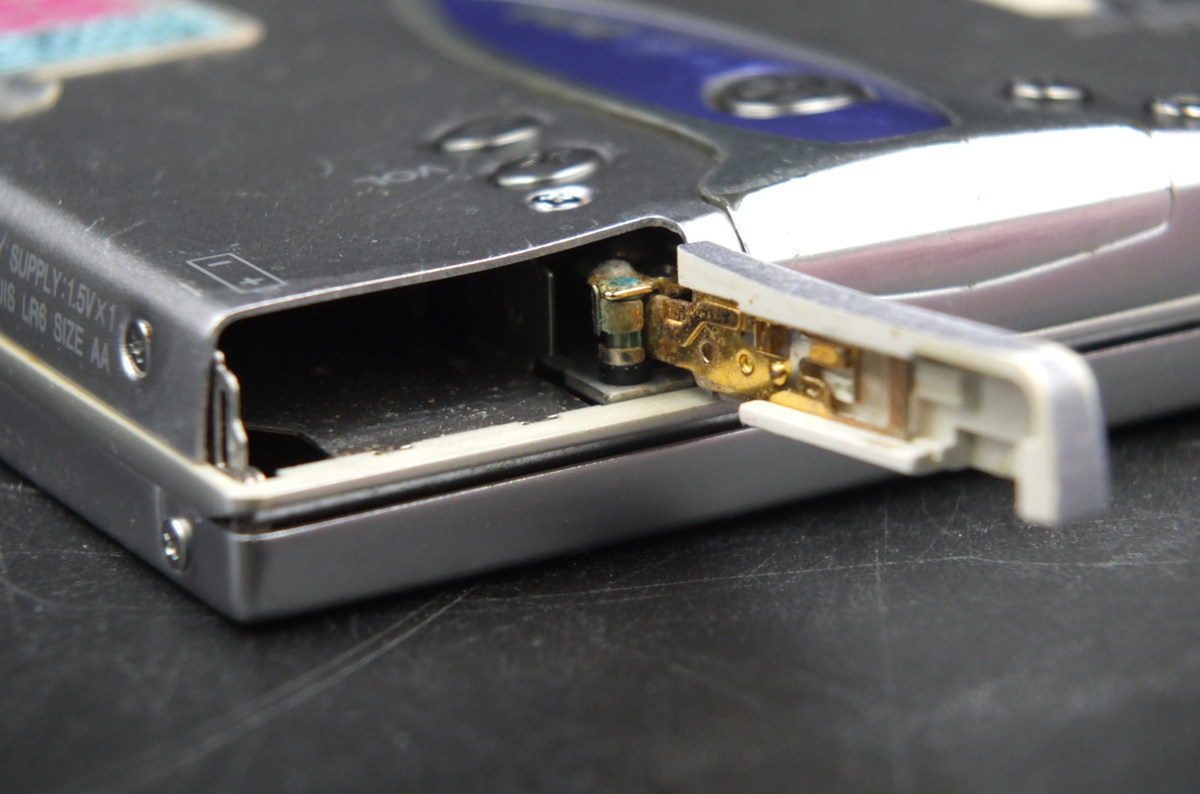

Voltage 1.2, 1.5
Power cable Not recorded
Price (launch) Not recorded
¥26 500
-
Inputs N/A

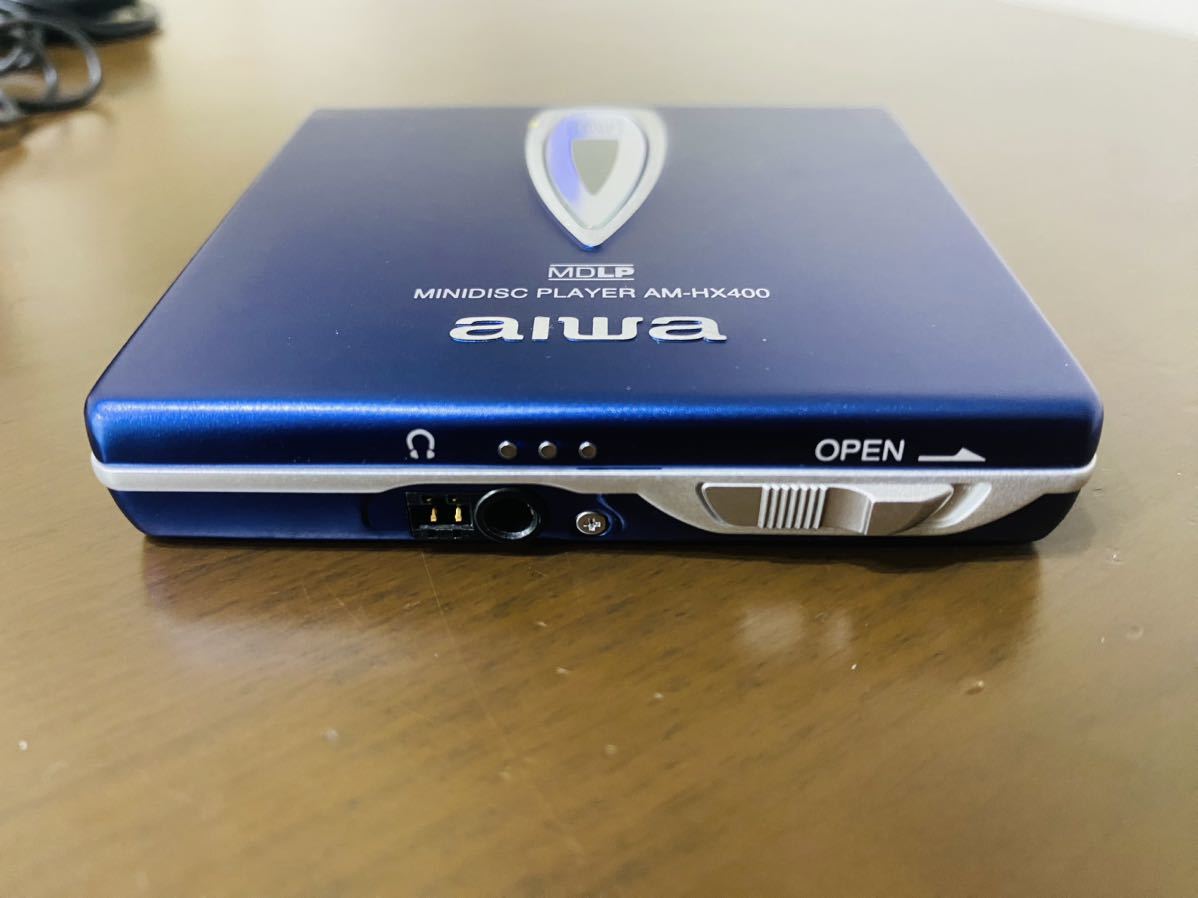

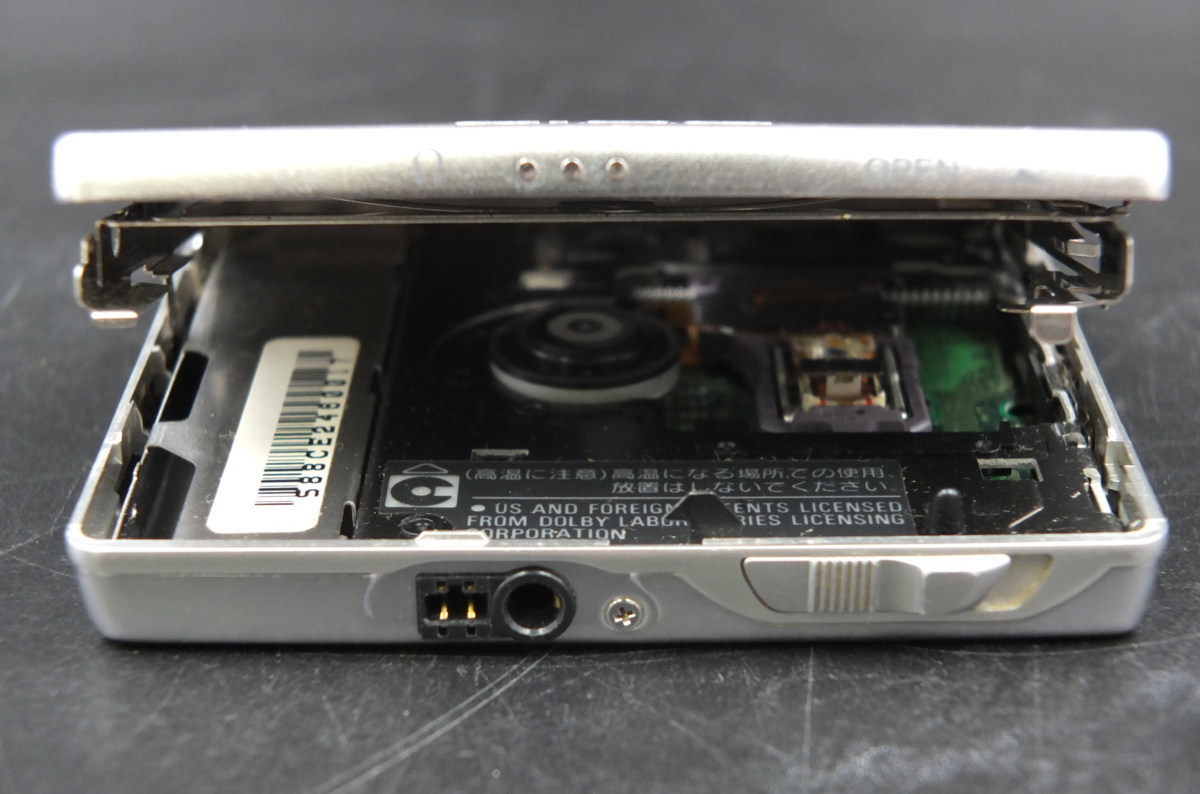

Outputs 3.5mm headphone
Control Not recorded

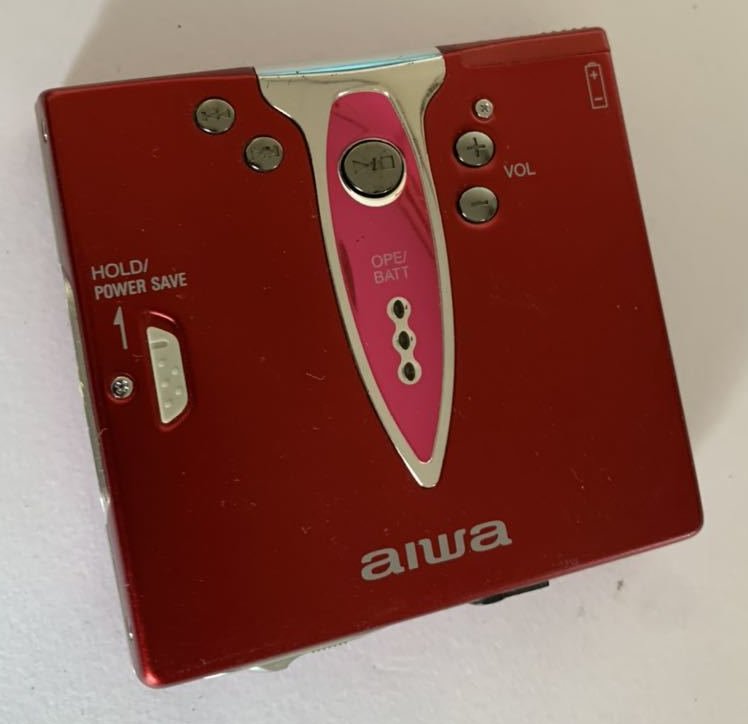

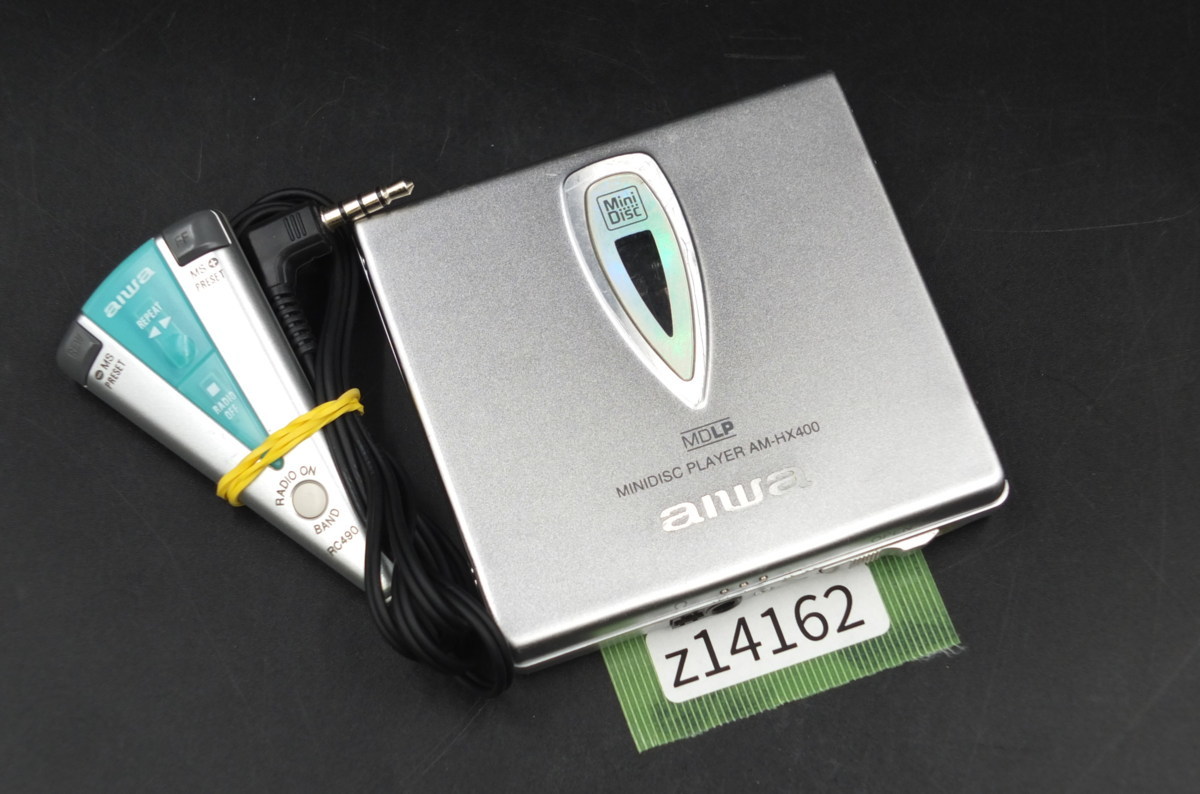

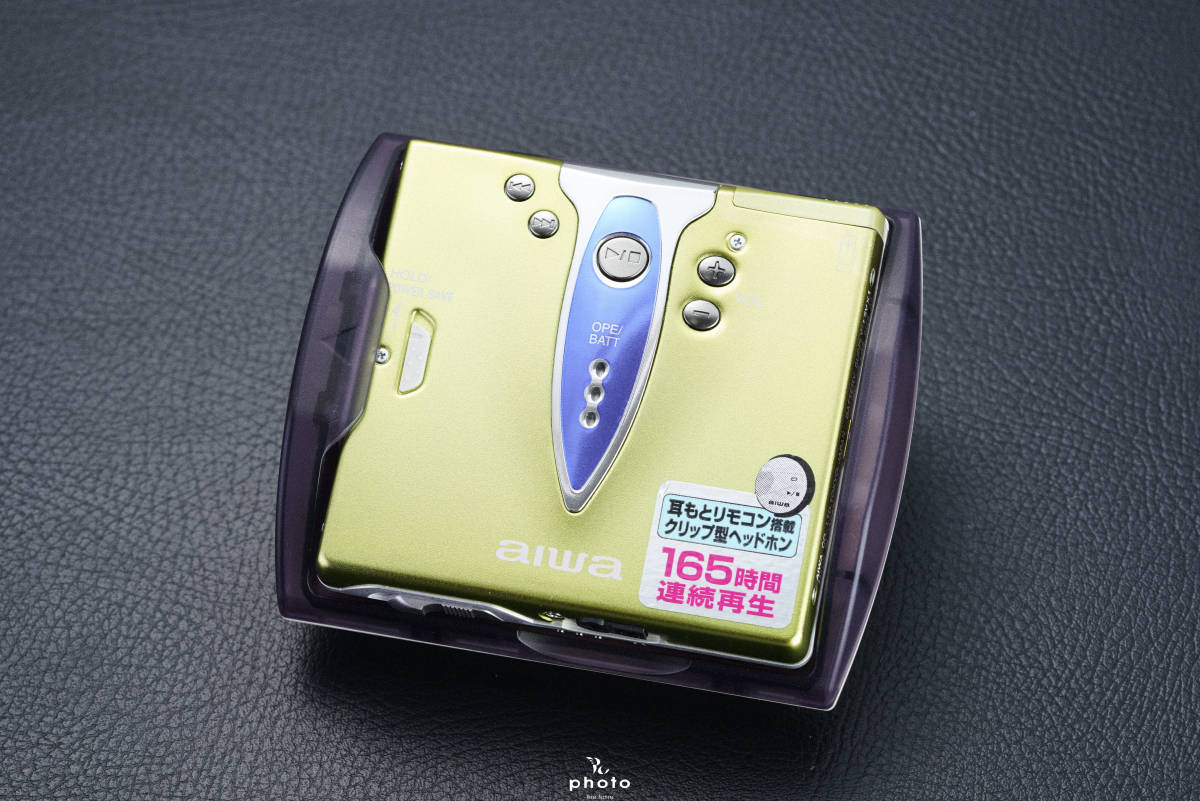

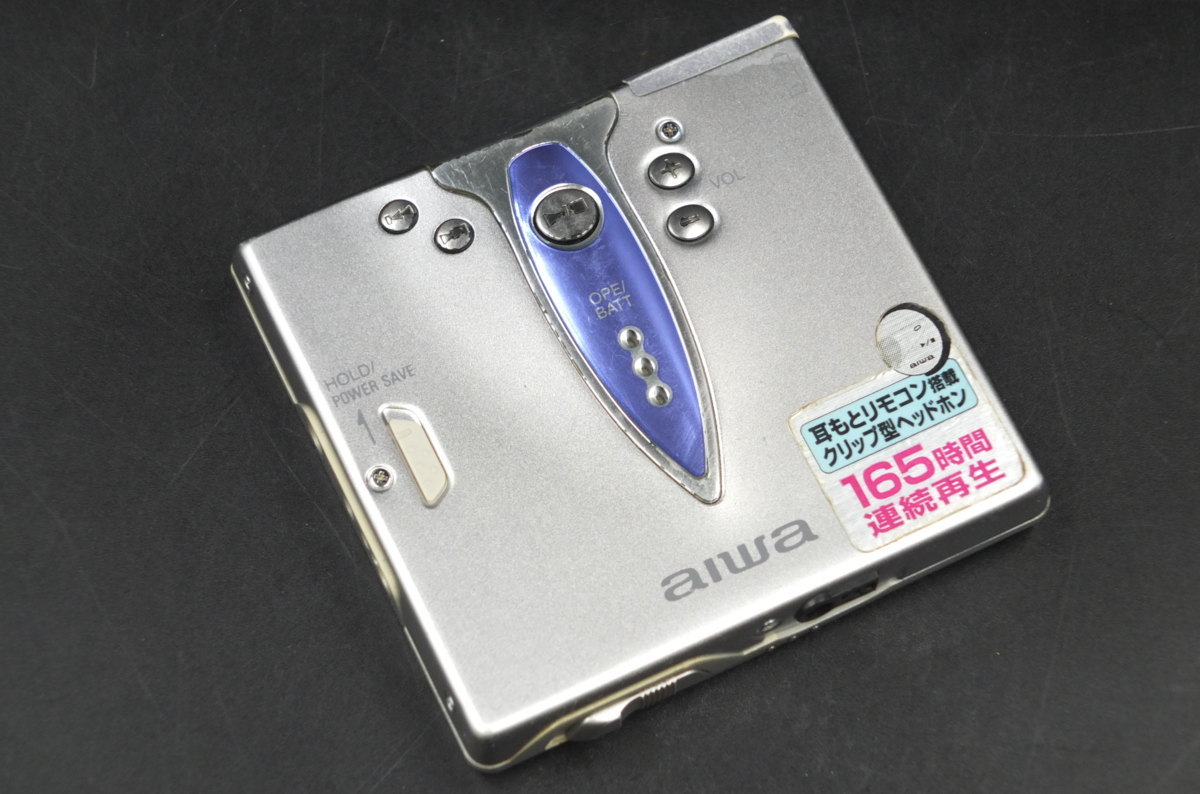

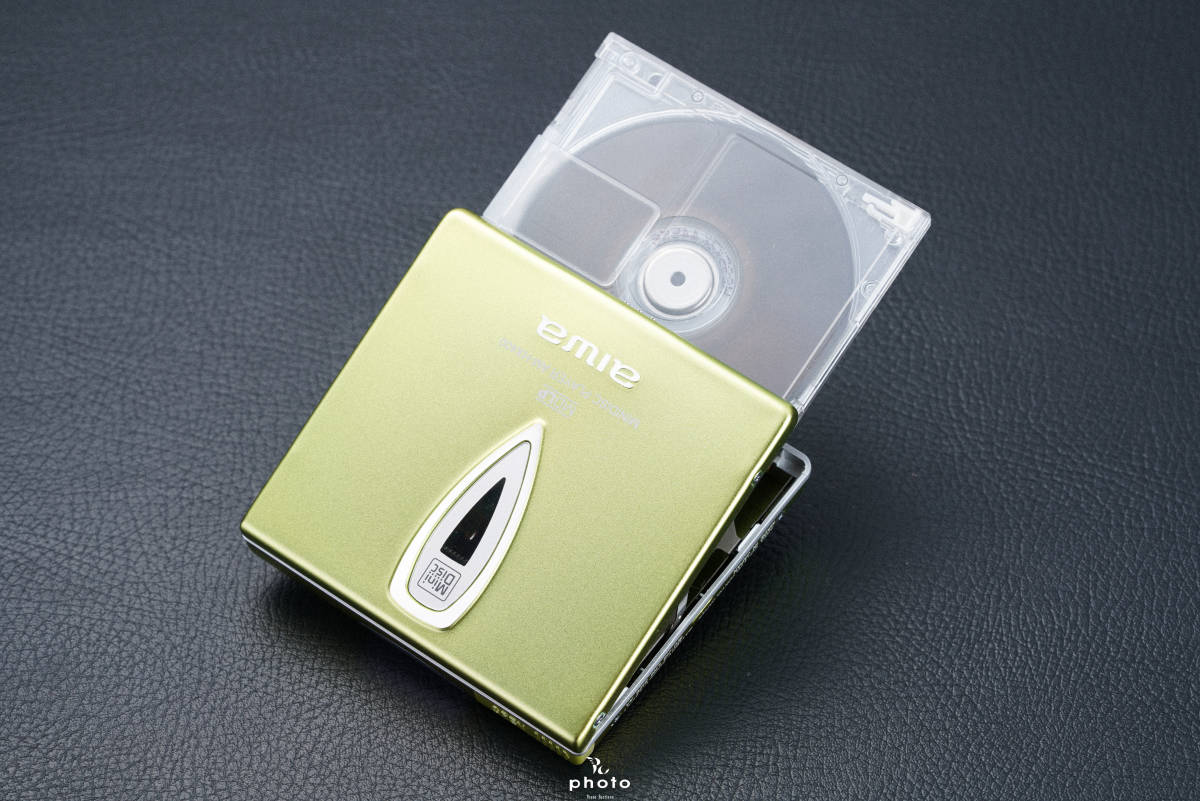

Available in Silver, Blue, Green and Red

Features: Playback starts in approximately 0.6 seconds after start (unit achieves this short time by reading and storing the music data in the main unit's memory when the disc is first inserted, retained whether the power is turned on or off).

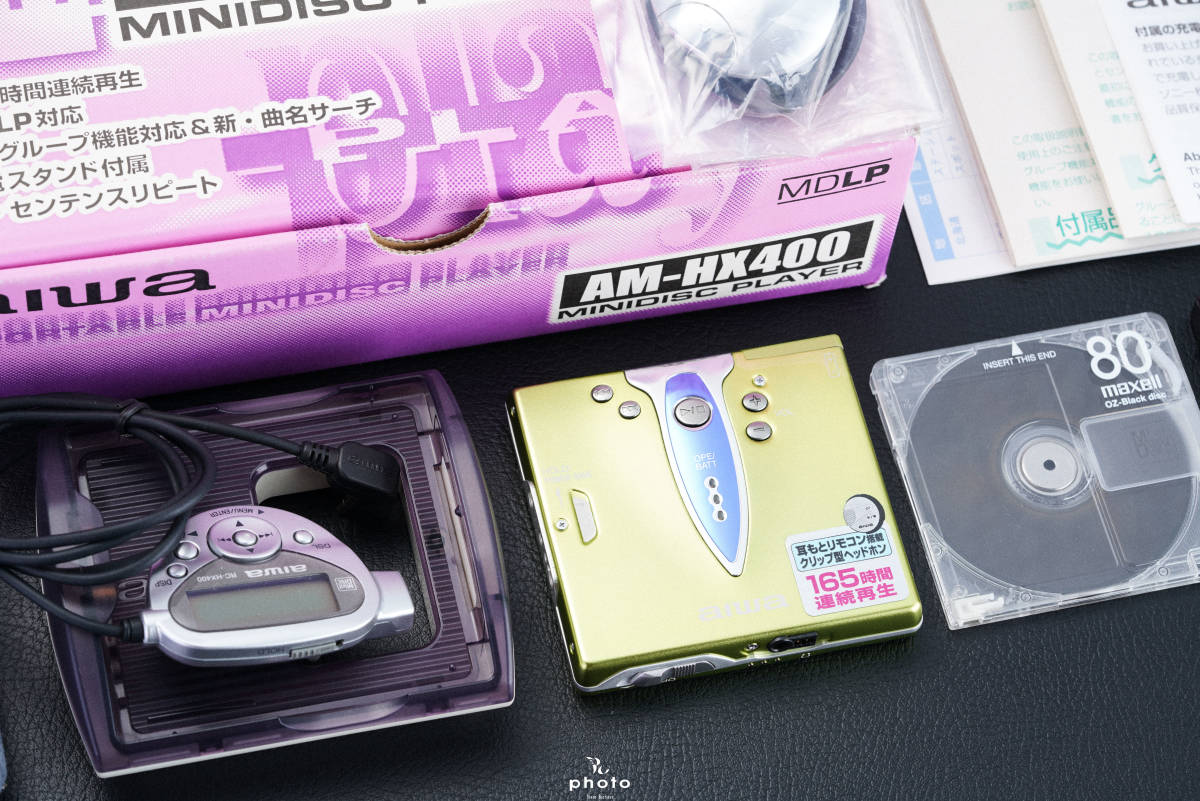

MDLP long-time playback mode, MD Group function compatible, battery charger stand, program search function that automatically lists the names in Japanese kana and alphanumeric order (allowing users to view the titles on the remote control unit's LCD panel and select a favorite song), sentence repeat function, 25-track programming, 40-second/80-second (LP2)/160-second (LP4) skip-preventing memory.

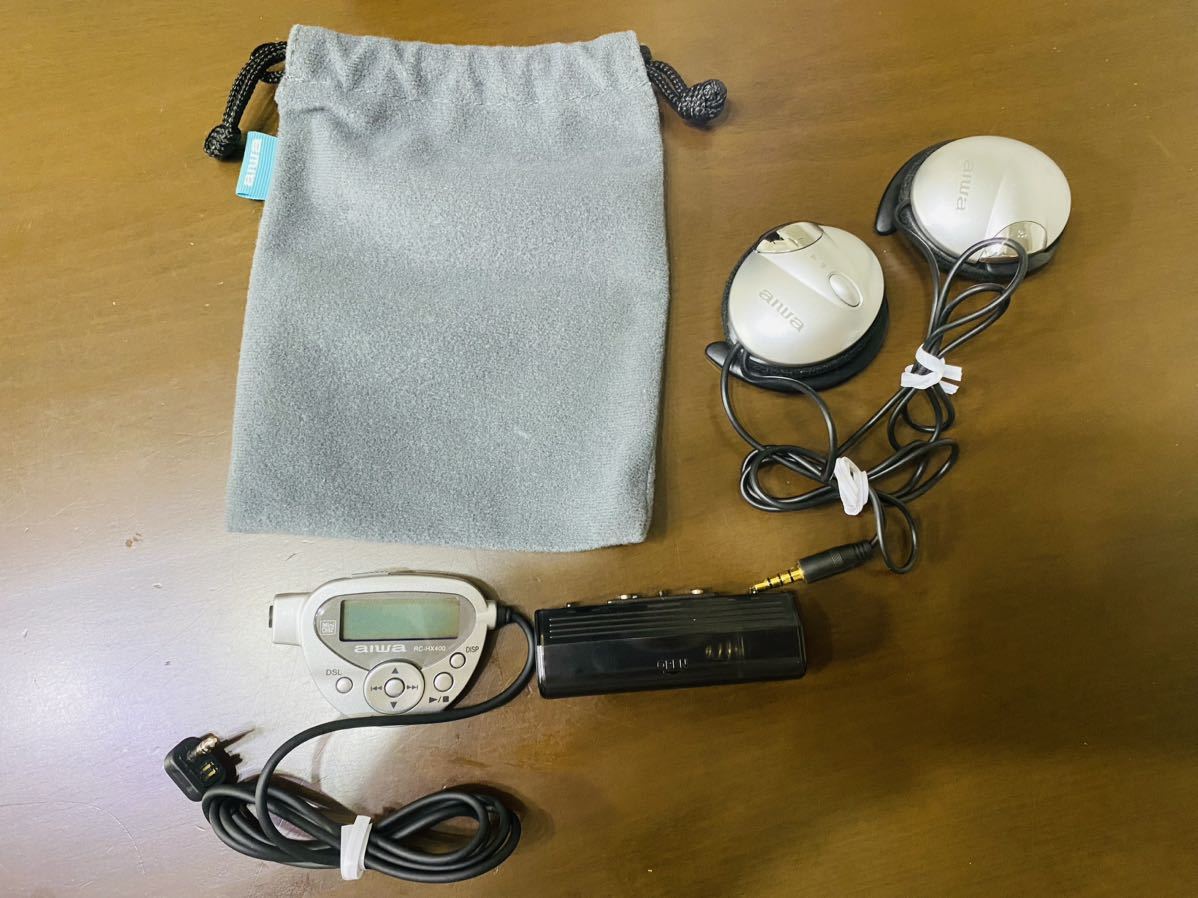

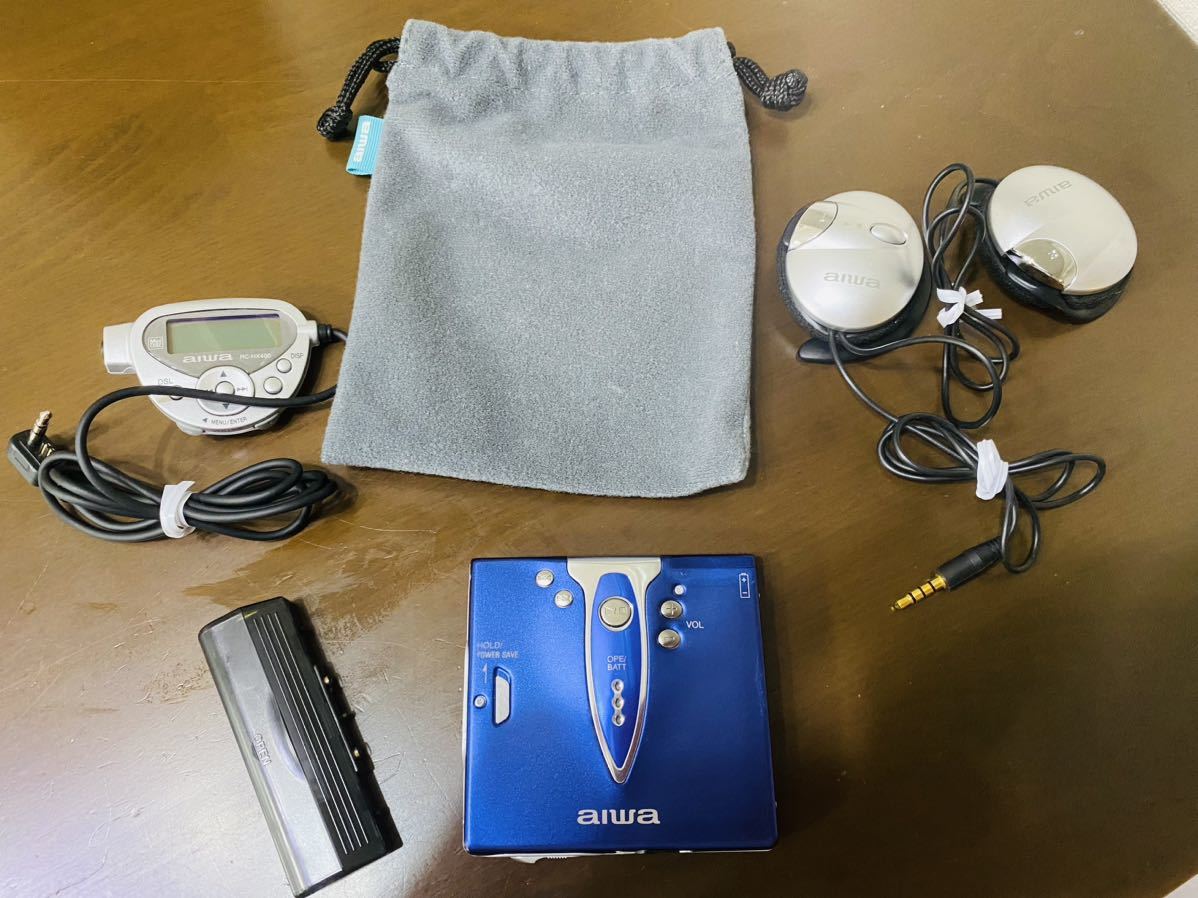

The included factory "clip on" headphones had a 4-pole TRRS plug to allow for play/pause controls via a small oval-shaped button on the side of the right headphone.

Specs: 3.8mW+3.8mW output.

Content adapted from: Aiwa Press Release Aiwa Press Release (MiniDisc Wiki mirror) Aiwa Product Page Aiwa Product Page (MiniDisc Wiki mirror) Minidisc.org page, T-Station page (Archived) av.watch Phileweb

Manuals

Repair

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references
Manual
RegionJapan
