Aiwa AM-NX1

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-01-01

Manufacturer
Aiwa
Model / source grouping
AM-NX1
Device type
portable
MDLP modes
Yes
NetMD interface
Yes
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Related guides & software

Source links; check each guide’s applicability.

Accessories & internal parts

Source-referenced components. Check conditions before substituting parts.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Aiwa AM-NX1”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name AM-NX1
Manufacturer Aiwa
Released 2003/03
Device type portable
Recorder Recorder
MDLP Yes
NetMD Yes
Hi-MD No
Radio No
Dimensions 80.3 x 74.2 x 17.9mm
Weight 85g (w/batt)
ATRAC ver Type-S
Battery Not recorded "Gumstick"
Battery notes Not recorded
Sidecar (depr) 1xAA
Voltage 3
Power cable Center positive
Price (launch) Not recorded
¥30 000
-
Inputs Not recorded
Outputs 3.5mm headphone
Control USB Mini-B

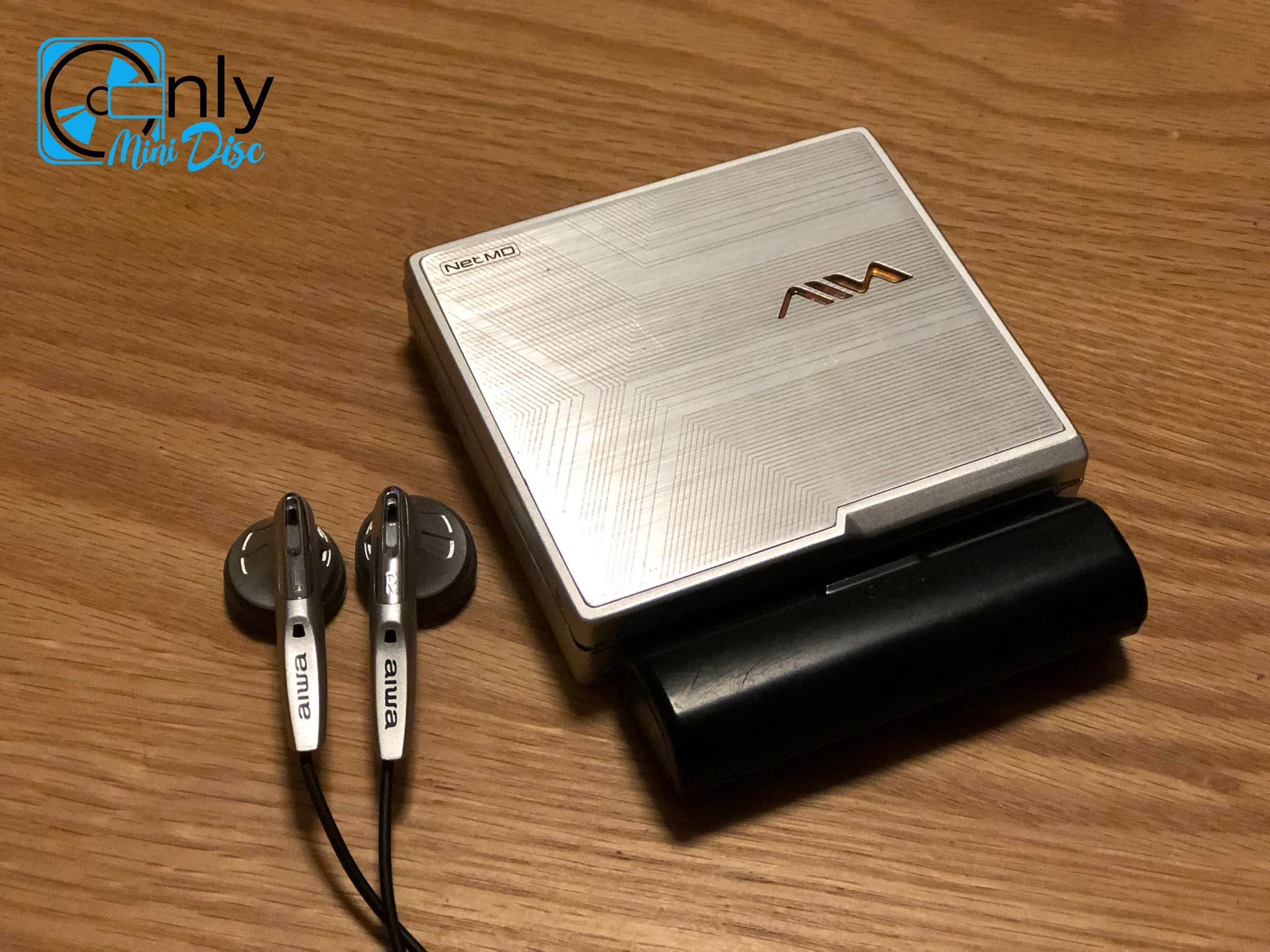

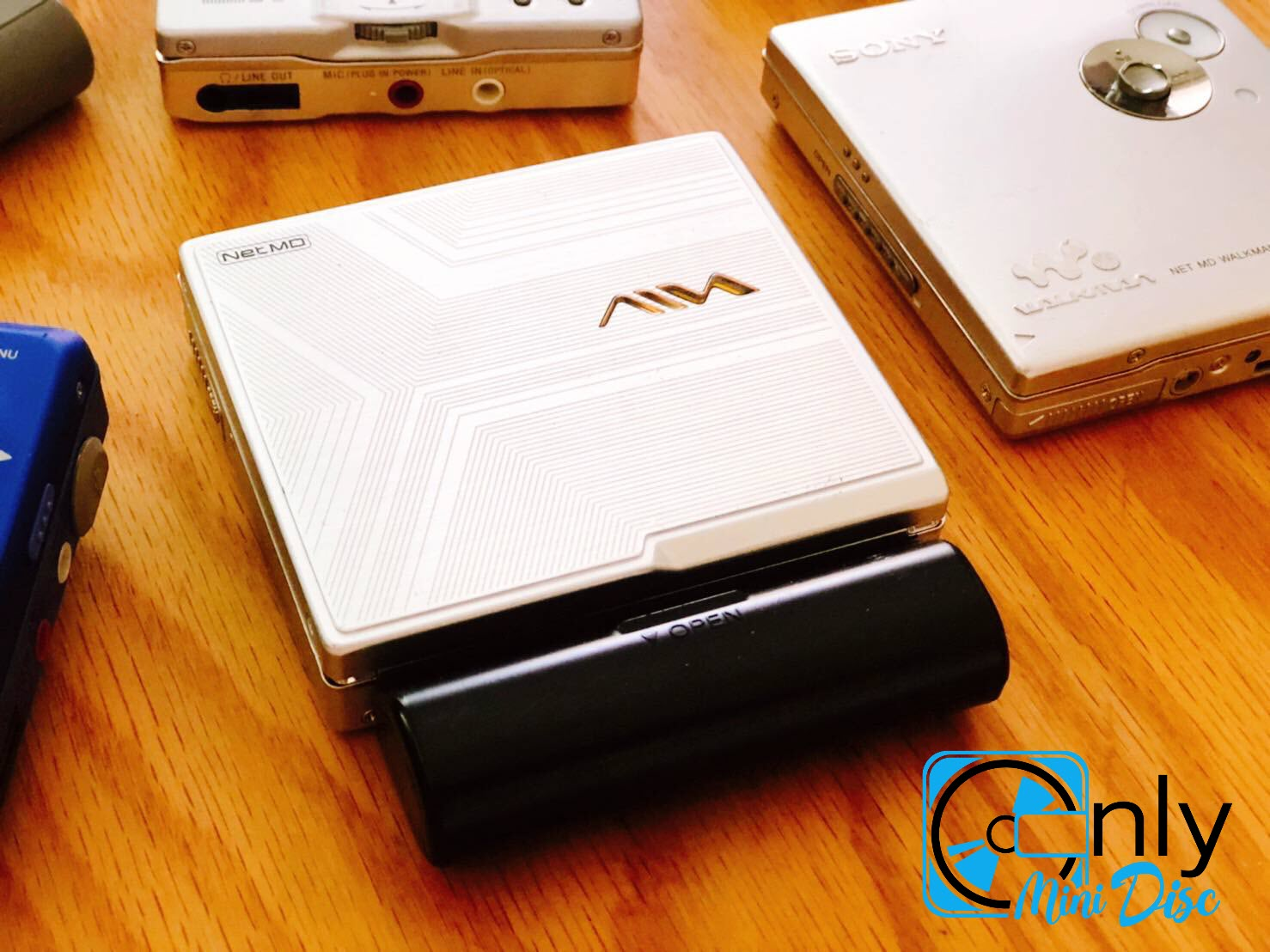

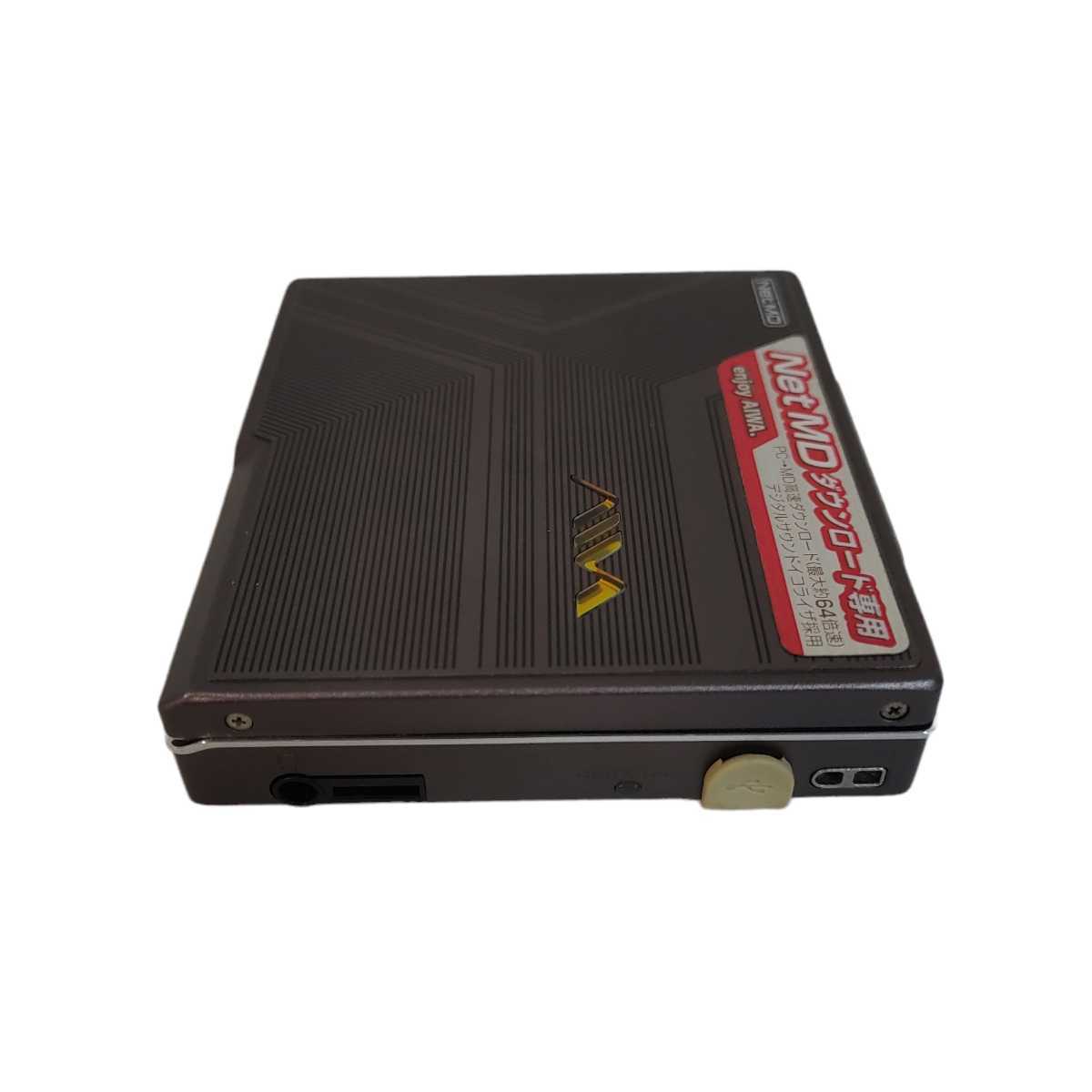

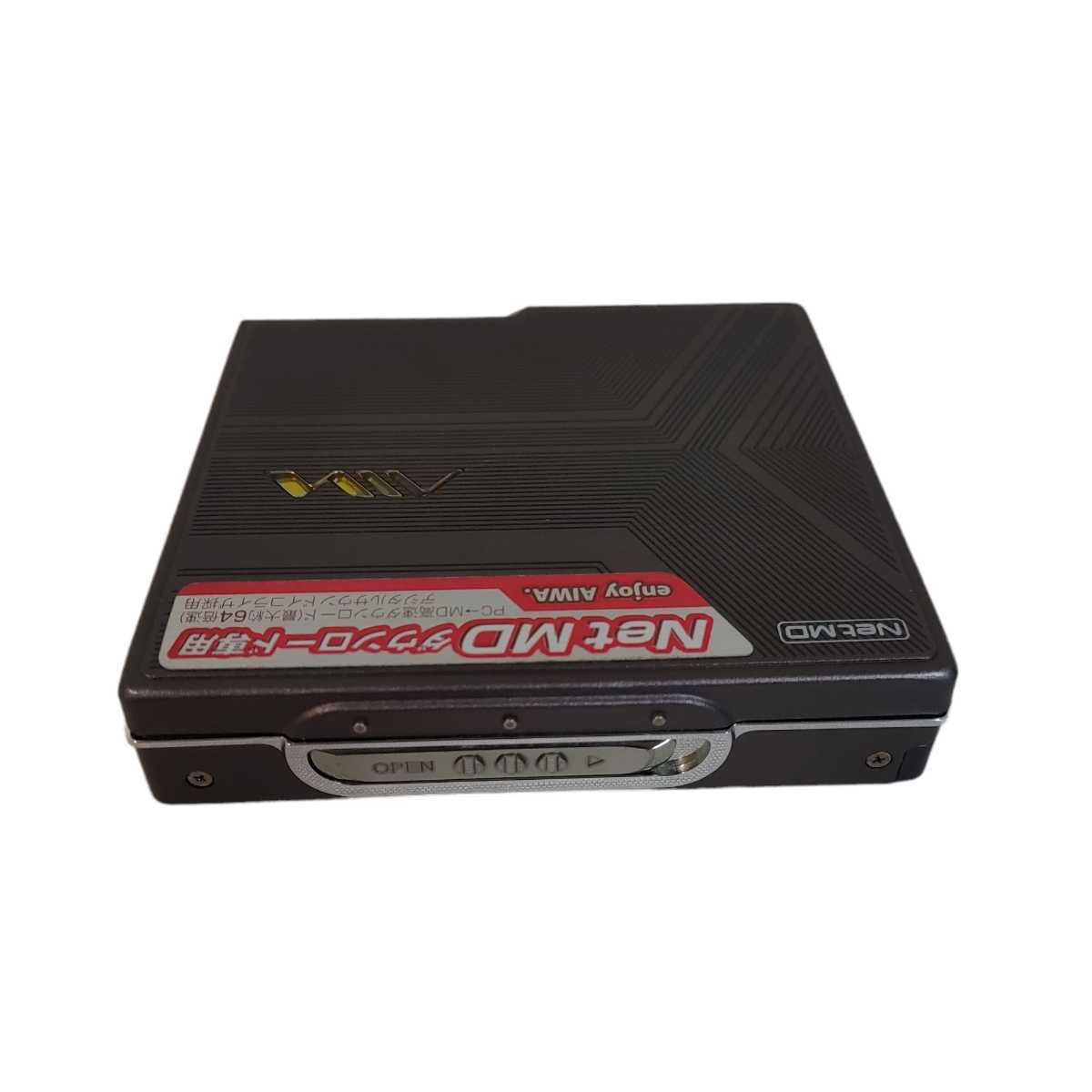

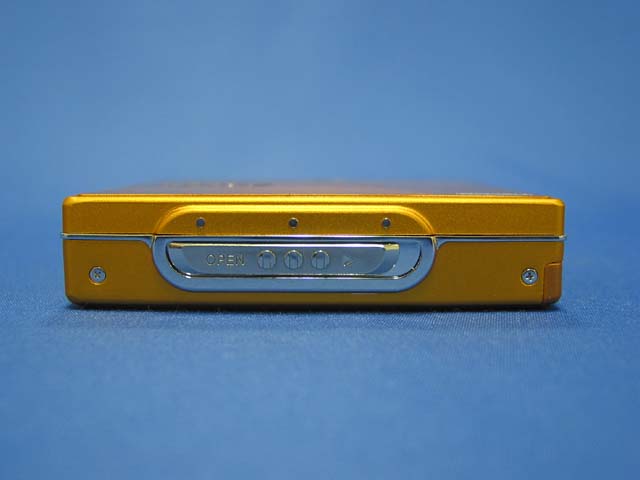

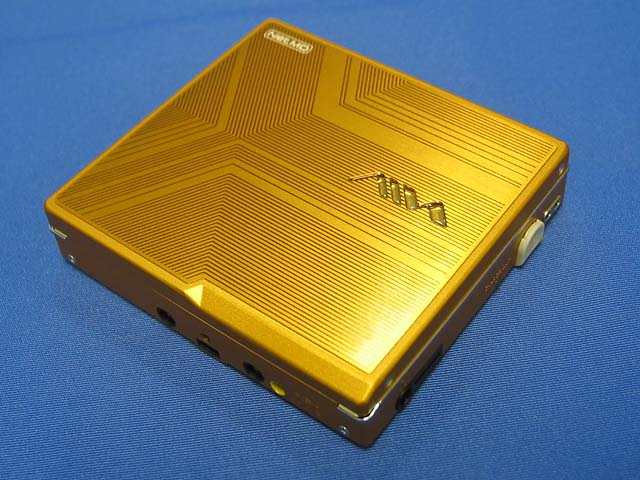

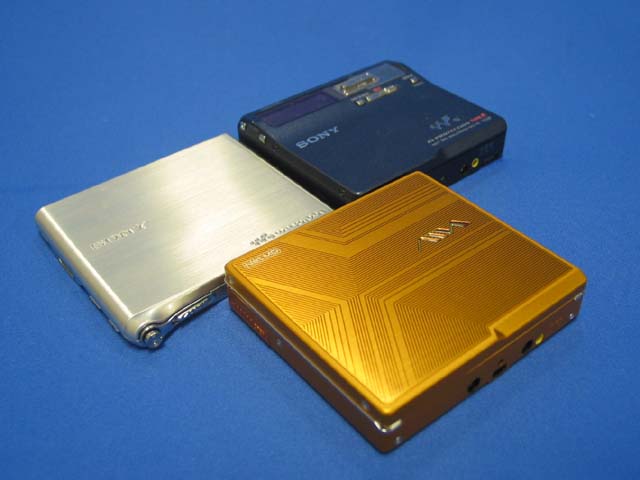

Offered in Silver, Orange and Black. Portable recorder, only has netMD as a recording source. Can charge off both the dock and directly through the DC input on the device.

Shipped with quite a few Sony branded accessories (sidecar, charger), I wonder if this is just a repackaged Sony design?

Features:

  • 64X NetMD downloading (LP4 mode).
  • ATRAC DSP Type-S (however, unit's ATRAC chip is not used for LP mode encoding).
  • No audio input jacks! Records only from PC.

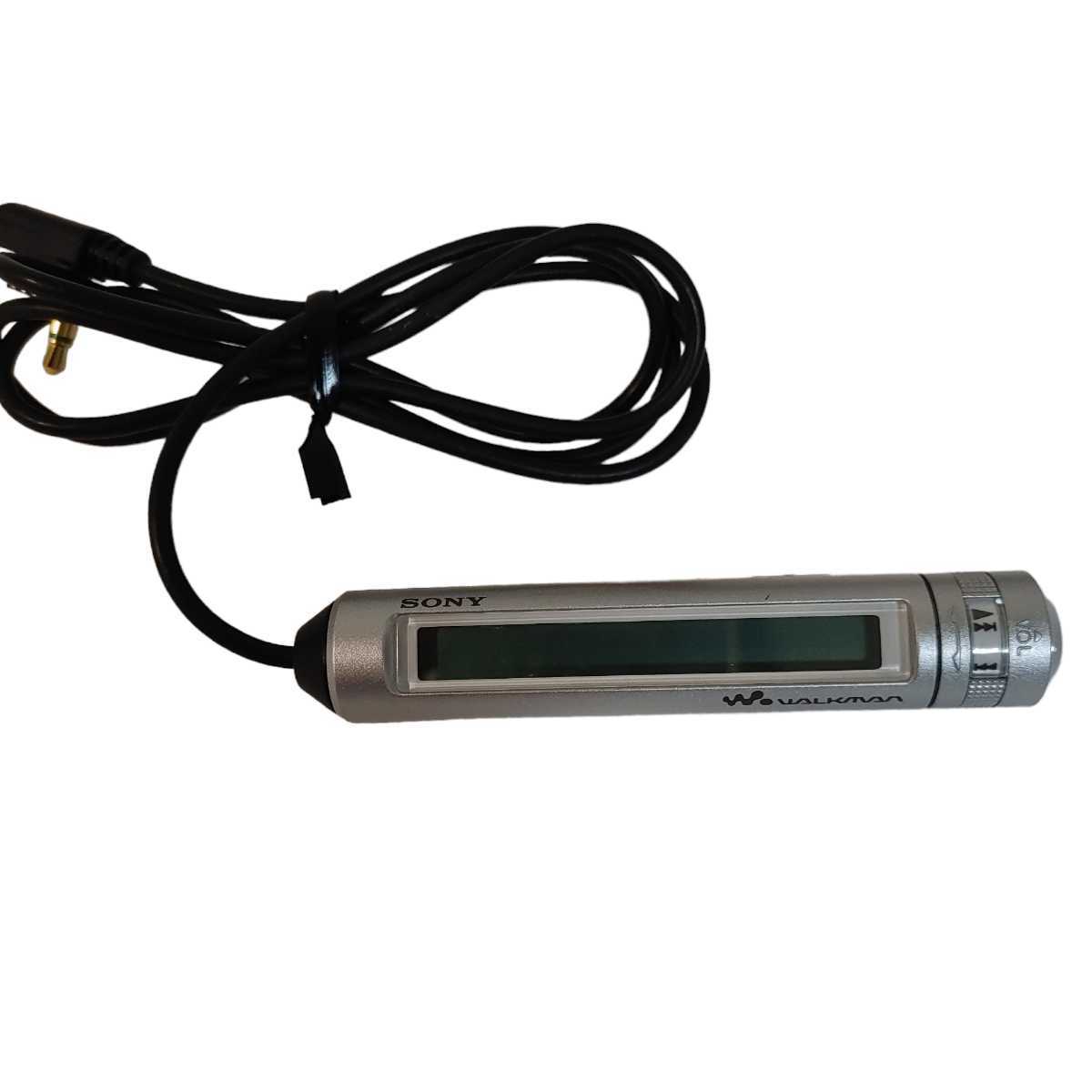

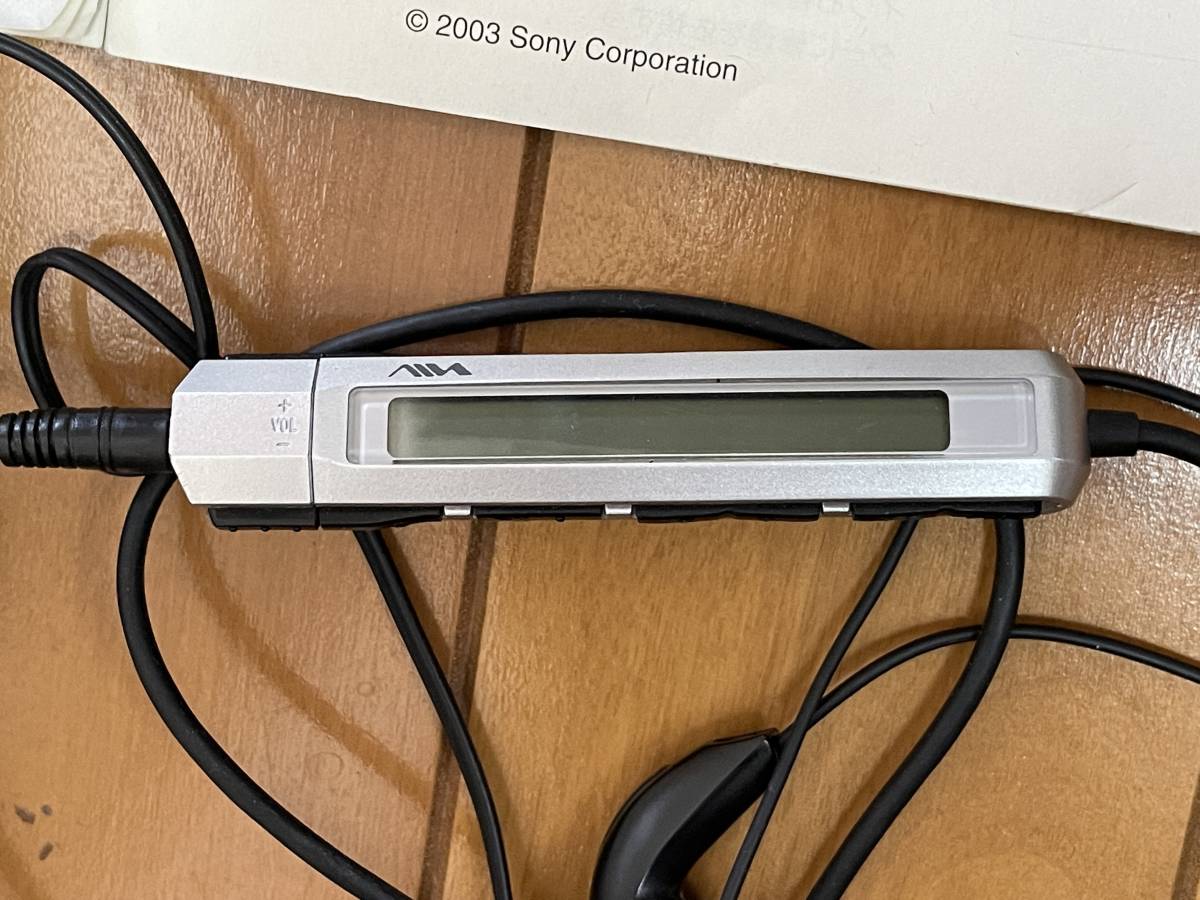

  • Kanji capable backlit LCD remote.
  • "Virtual Sound" DSP digital sound equalizer
  • E.A.S.S. GP anti-shock system recovers disc data readout within 0.3 seconds by quickly refocusing, repositioning the optical pickup, and rereading missed data.

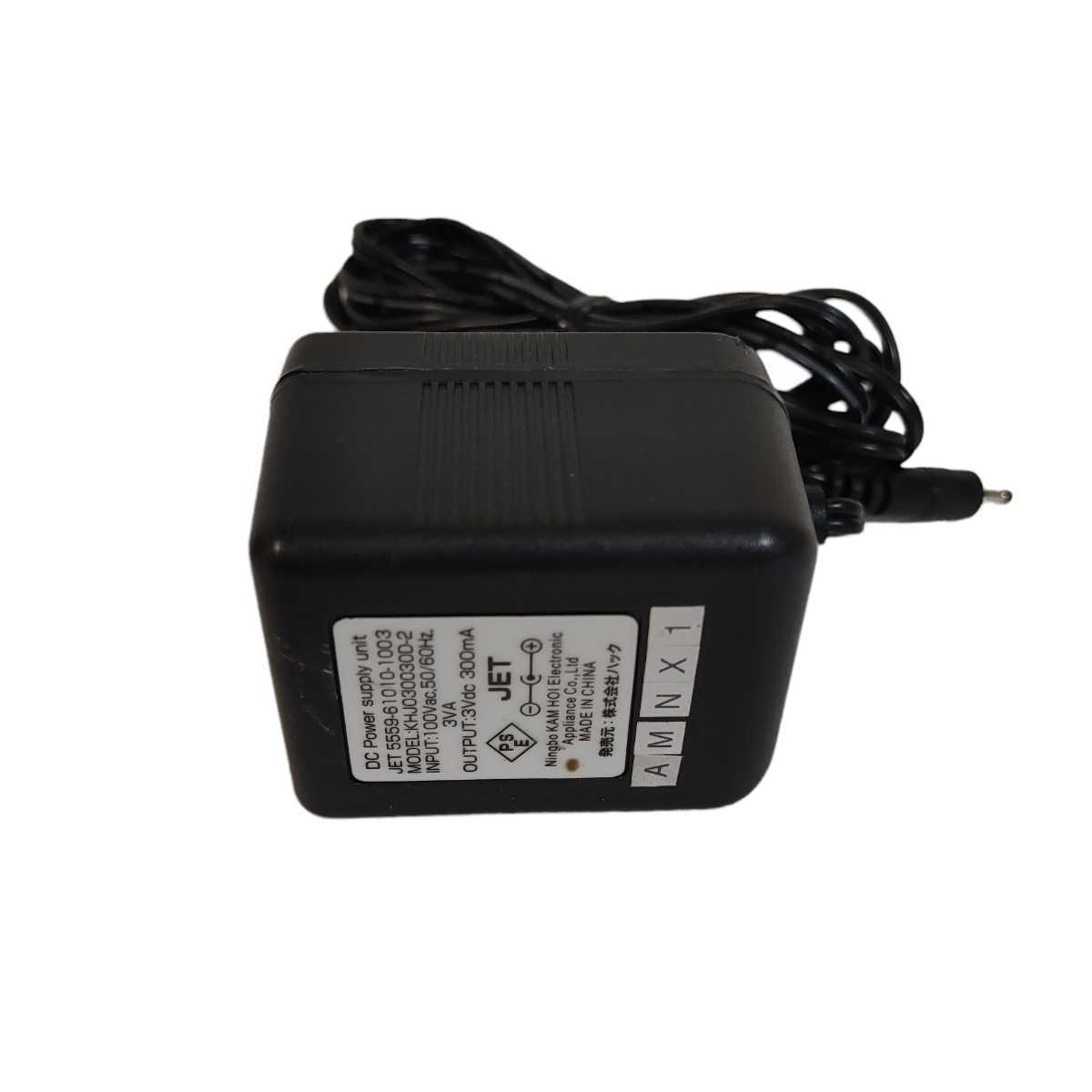

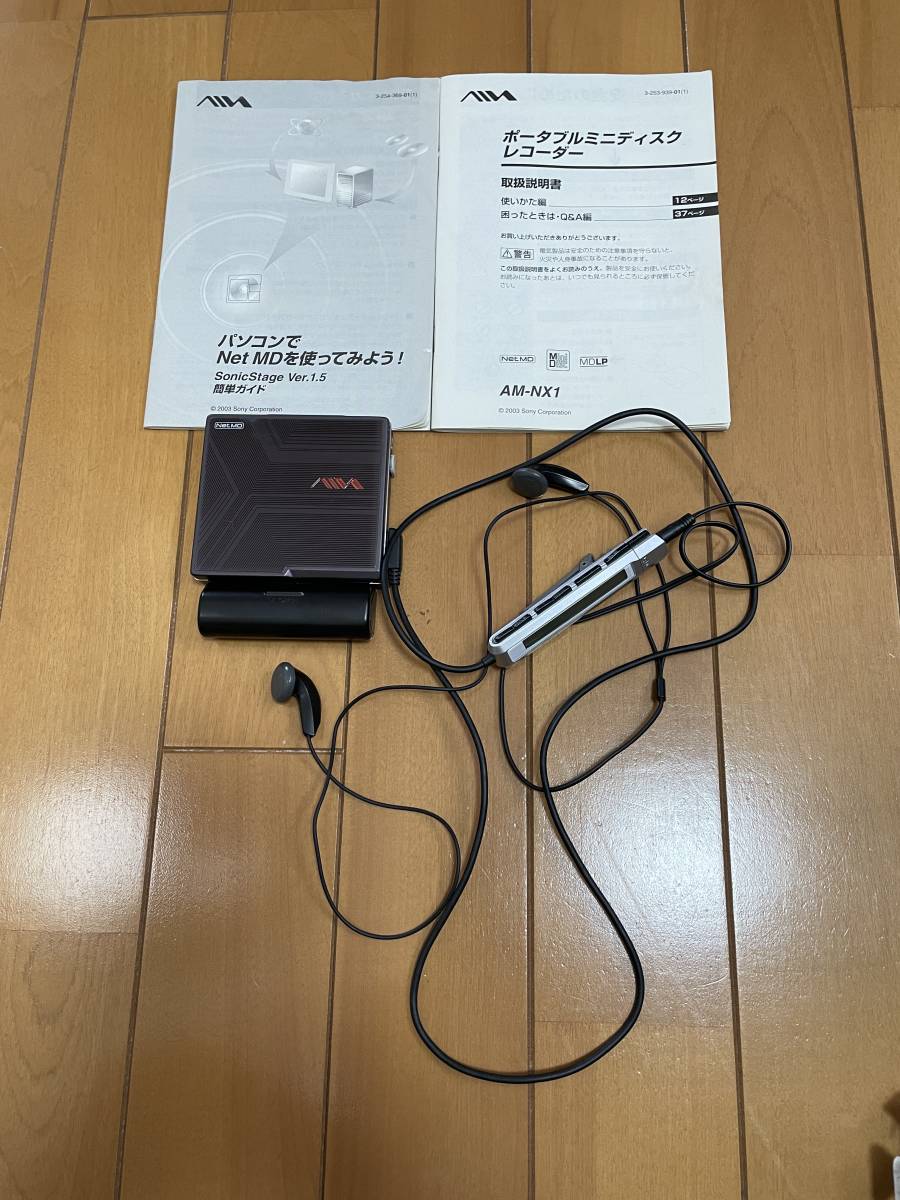

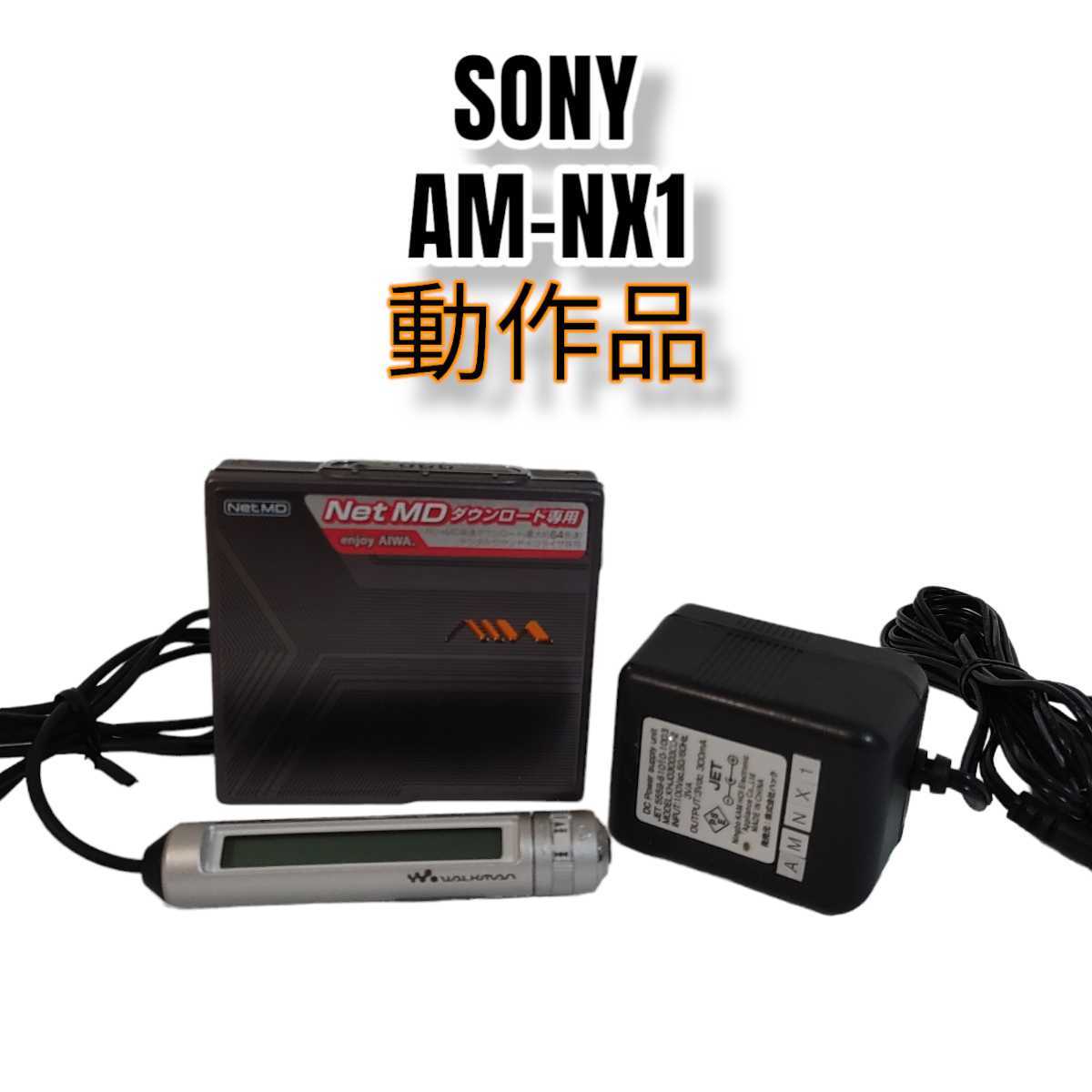

Included Accessories: Backlit LCD remote, Charging stand, AC adapter, NiMH cell, SonicStage V1.5 CD, AA cell case, carrying pouch, USB cable

Specs: Headphone amp: 5mW+5mW into 16 ohms

Battery Life Play Recharge NiMH 31/38/45 hr 3.5 hr AA x 1 47/57/69 hr Both 80/95/114 hr

Content adapted from: Sony Press Release Aiwa Product Page Aiwa Product Page (MiniDisc Wiki mirror) AV.Watch News AV.Watch News (MiniDisc Wiki mirror) Minidisc.org page

Manuals

AM-NX1 User Manual

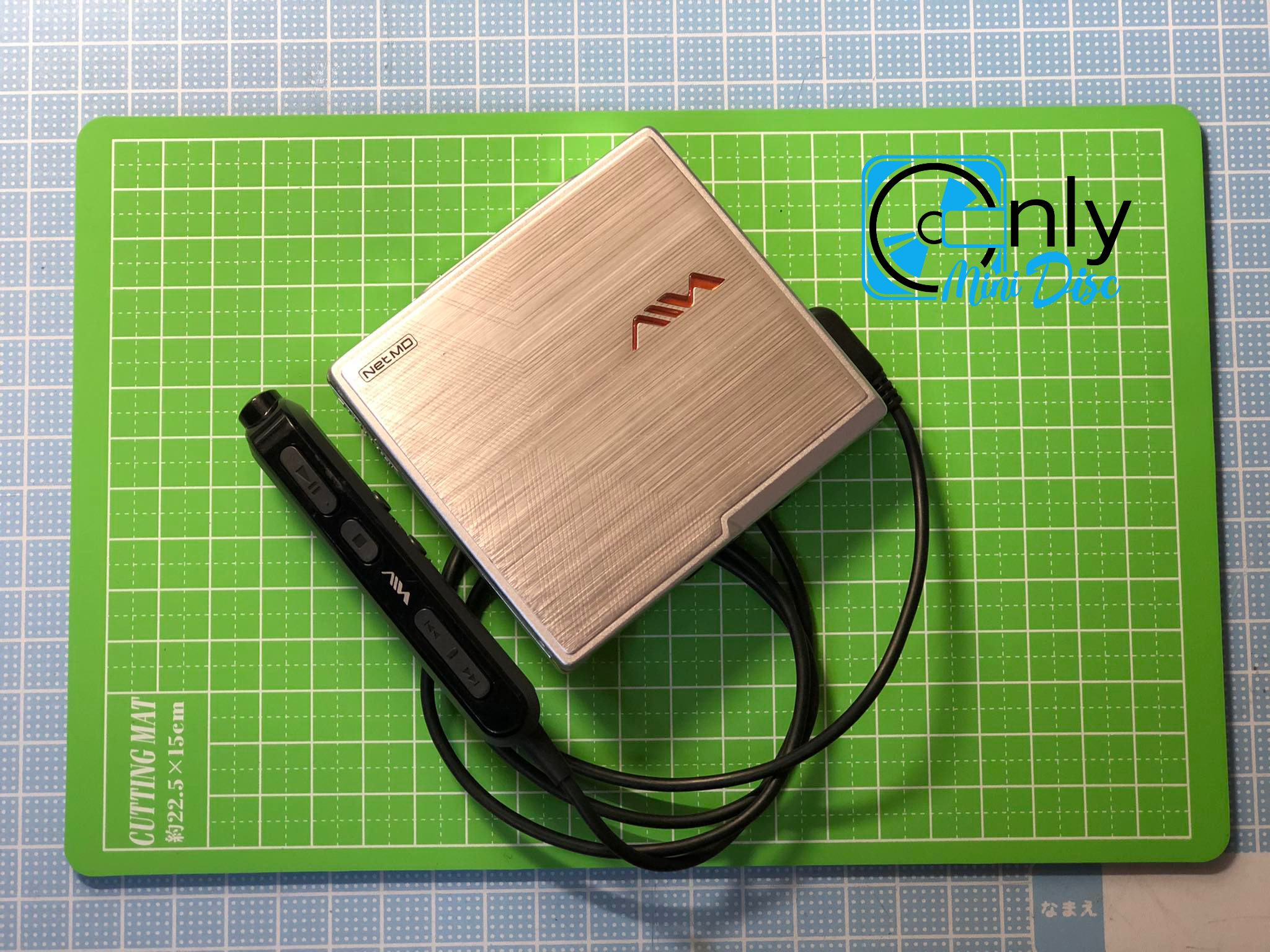

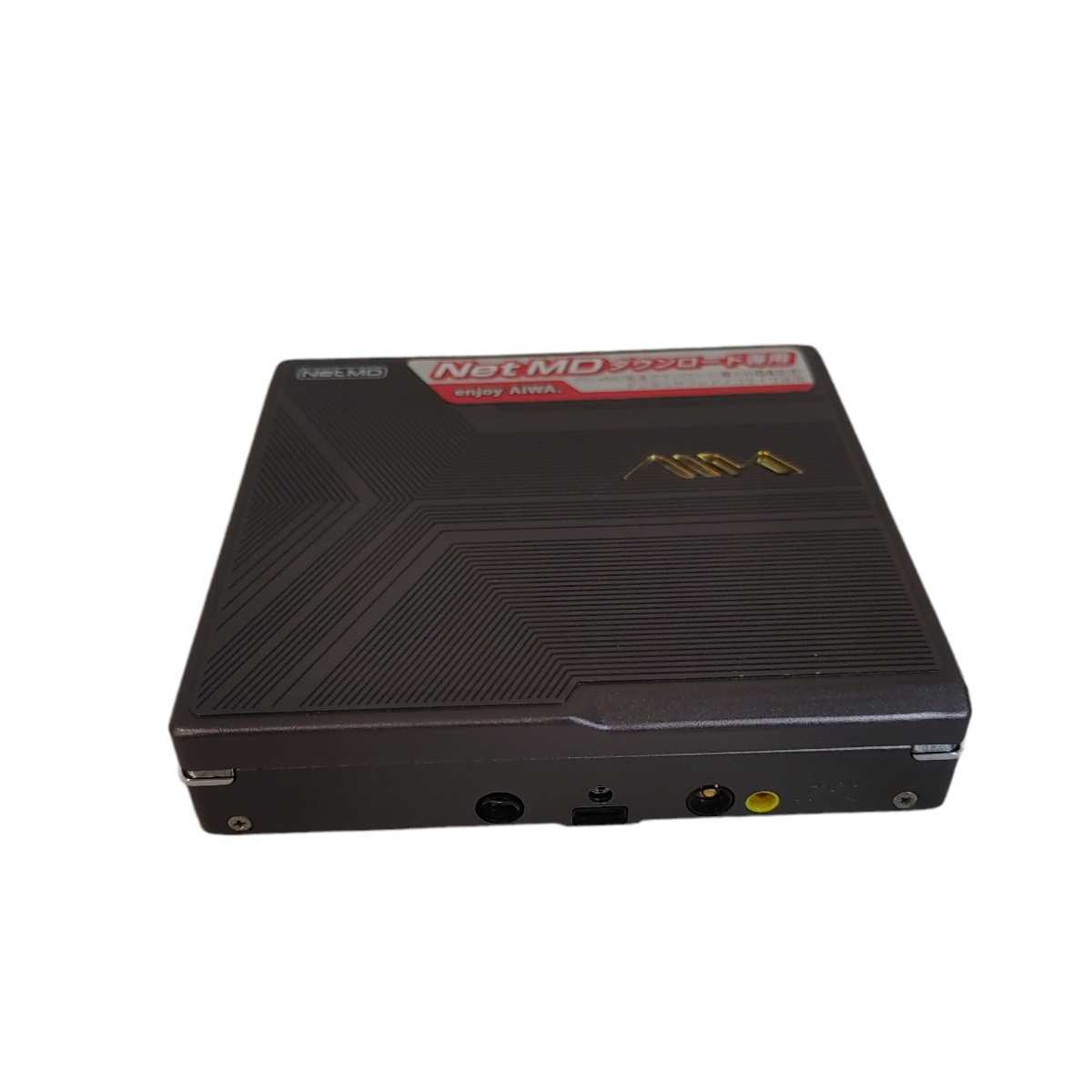

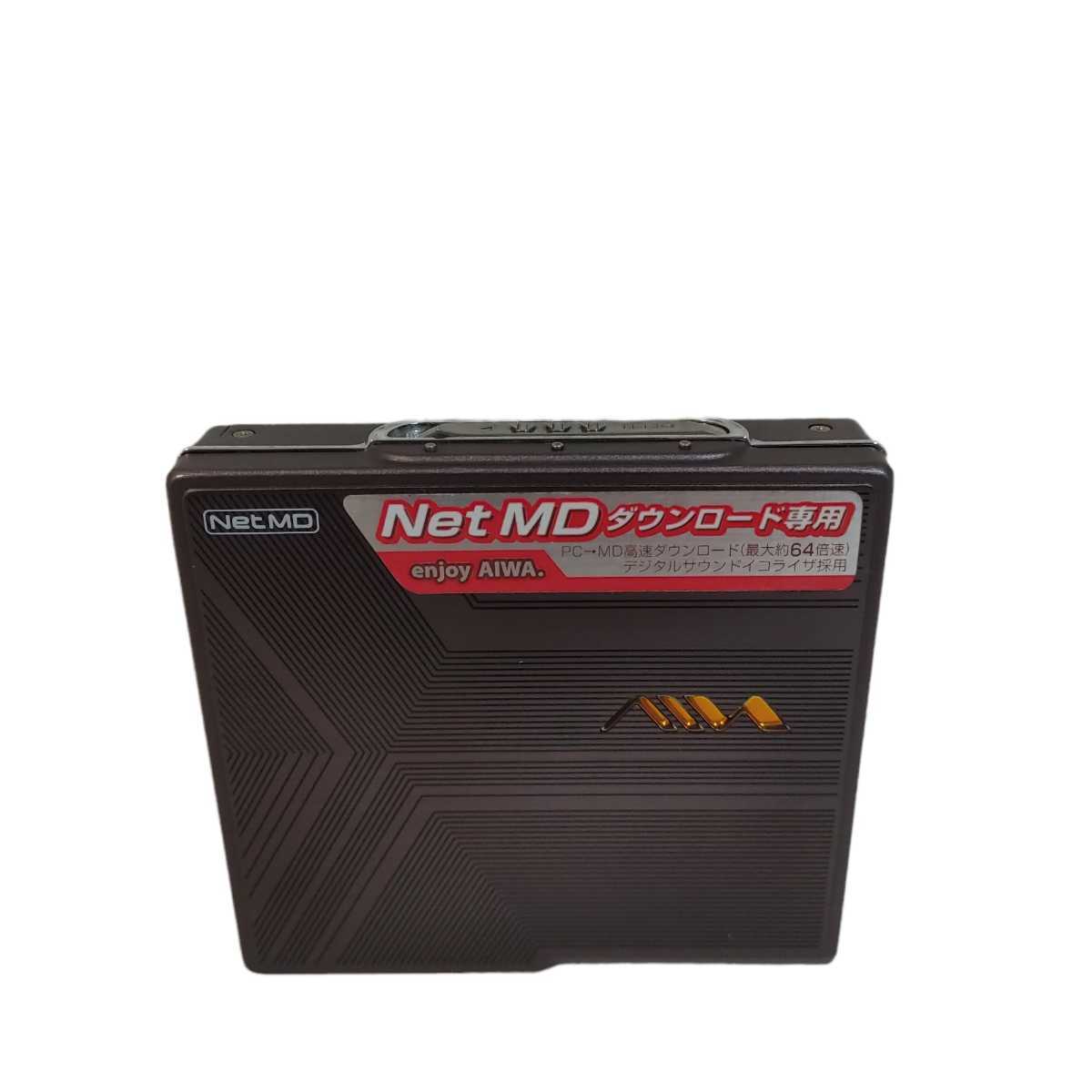

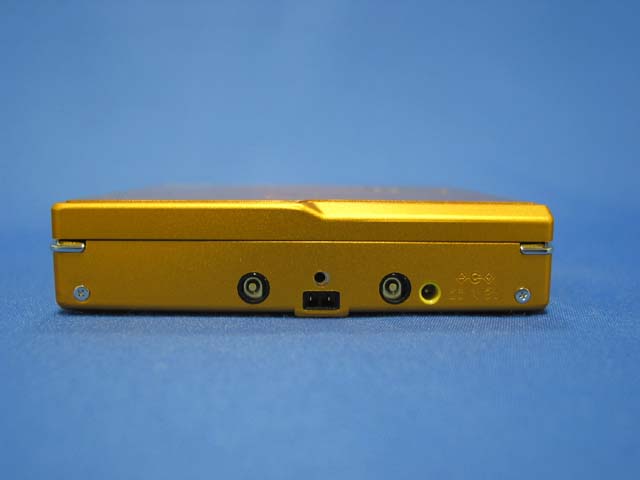

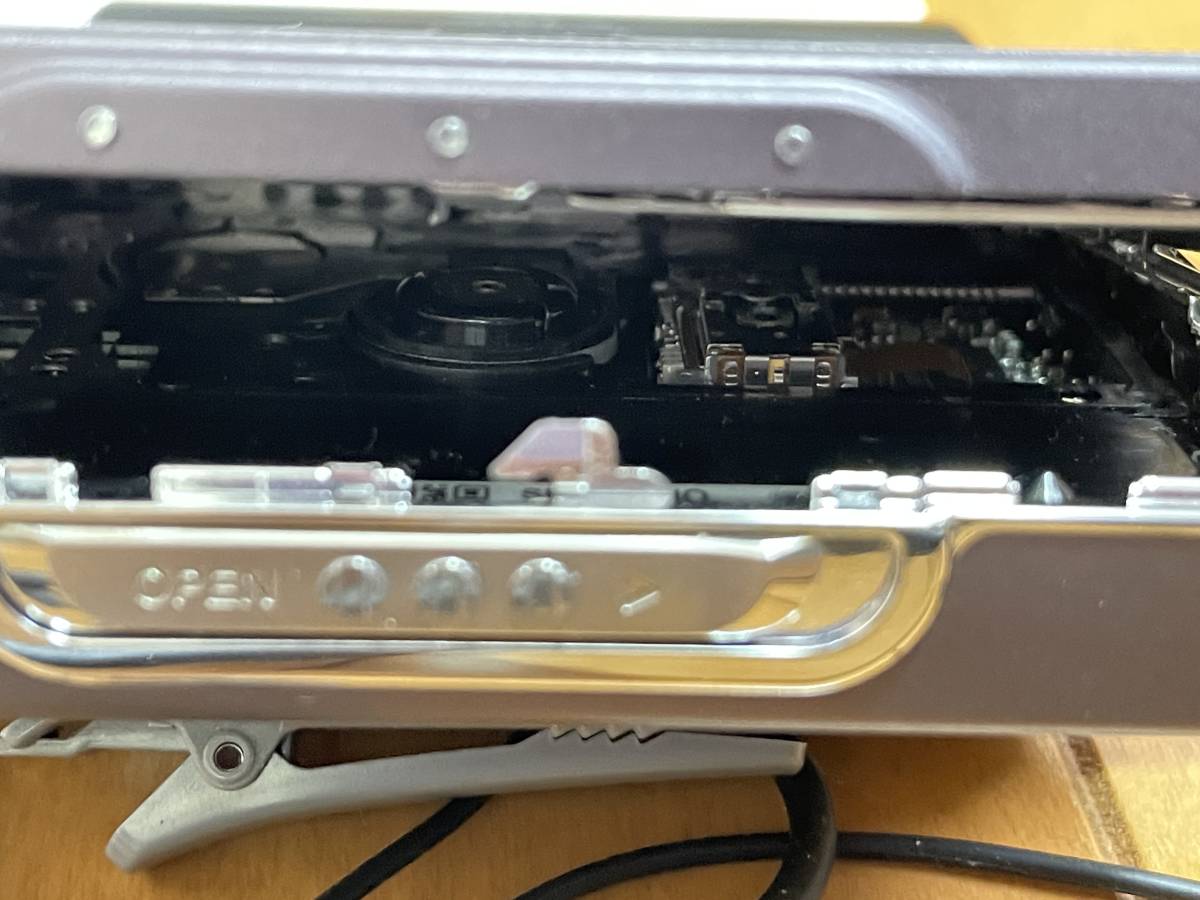

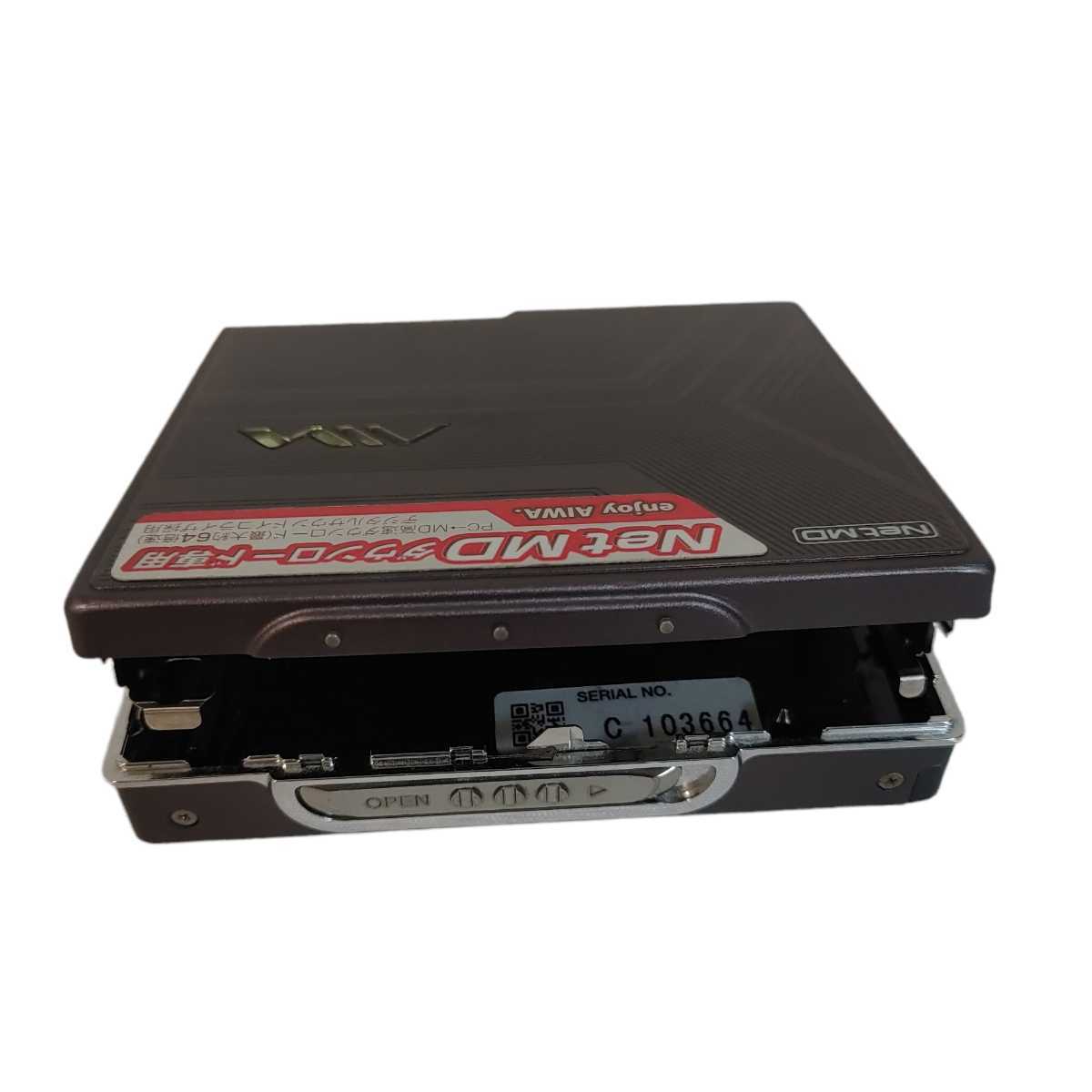

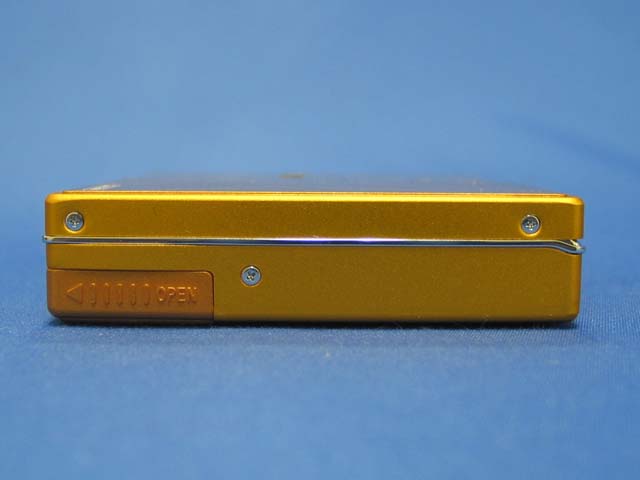

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references
Web MdSupported (Type-S exploits)
ManualUser manual
RegionJapan
