Aiwa AM-R10

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-01-01

Manufacturer
Aiwa
Model / source grouping
AM-R10
Device type
portable
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

No directly linked document has been identified for this record. Search the manual library or consult the source below.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Aiwa AM-R10”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name AM-R10
Manufacturer Aiwa
Released 1998/08
Device type portable
Recorder Player
MDLP No
NetMD No
Hi-MD No
Radio Yes
Dimensions 80.9W x 97.8H x 26.4D
Weight 225g (255g with battery)
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded

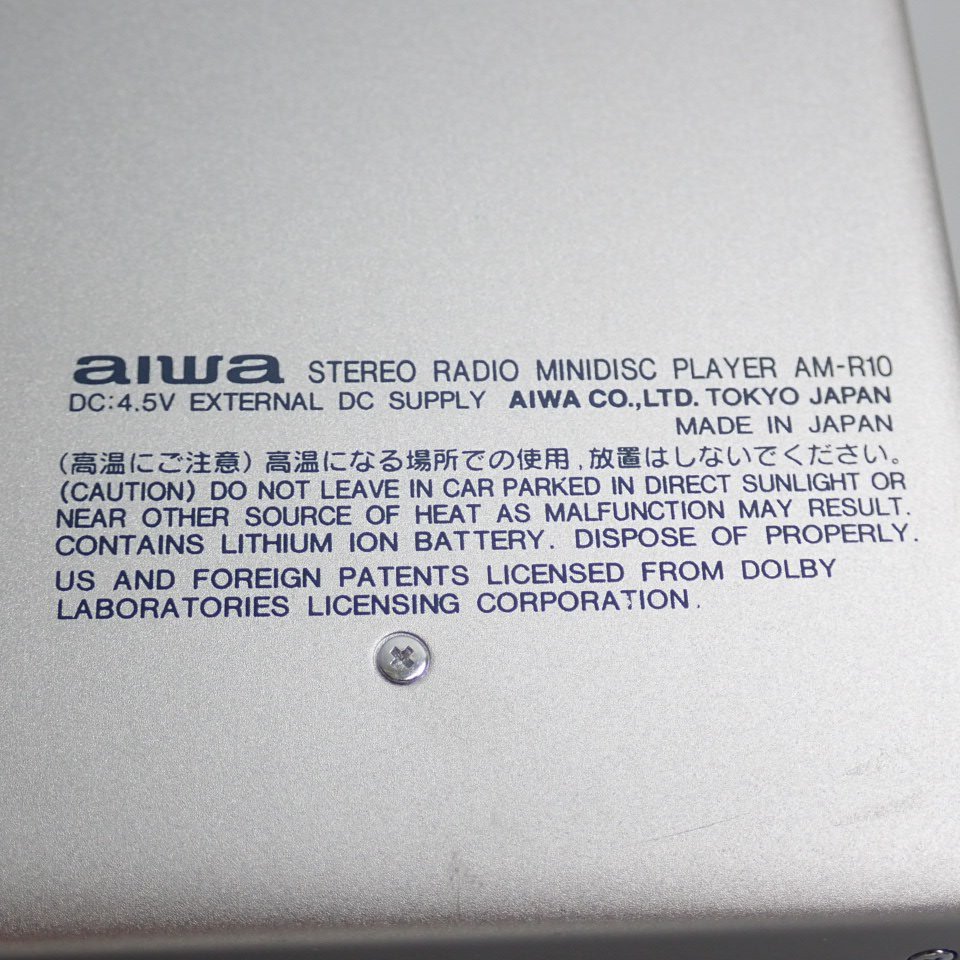

Voltage 3.6, 4.5
Power cable Not recorded
Price (launch) Not recorded
¥34 800
-
Inputs Not recorded
Outputs Not recorded
Control Not recorded

Main Features

  • Monaural playback mode

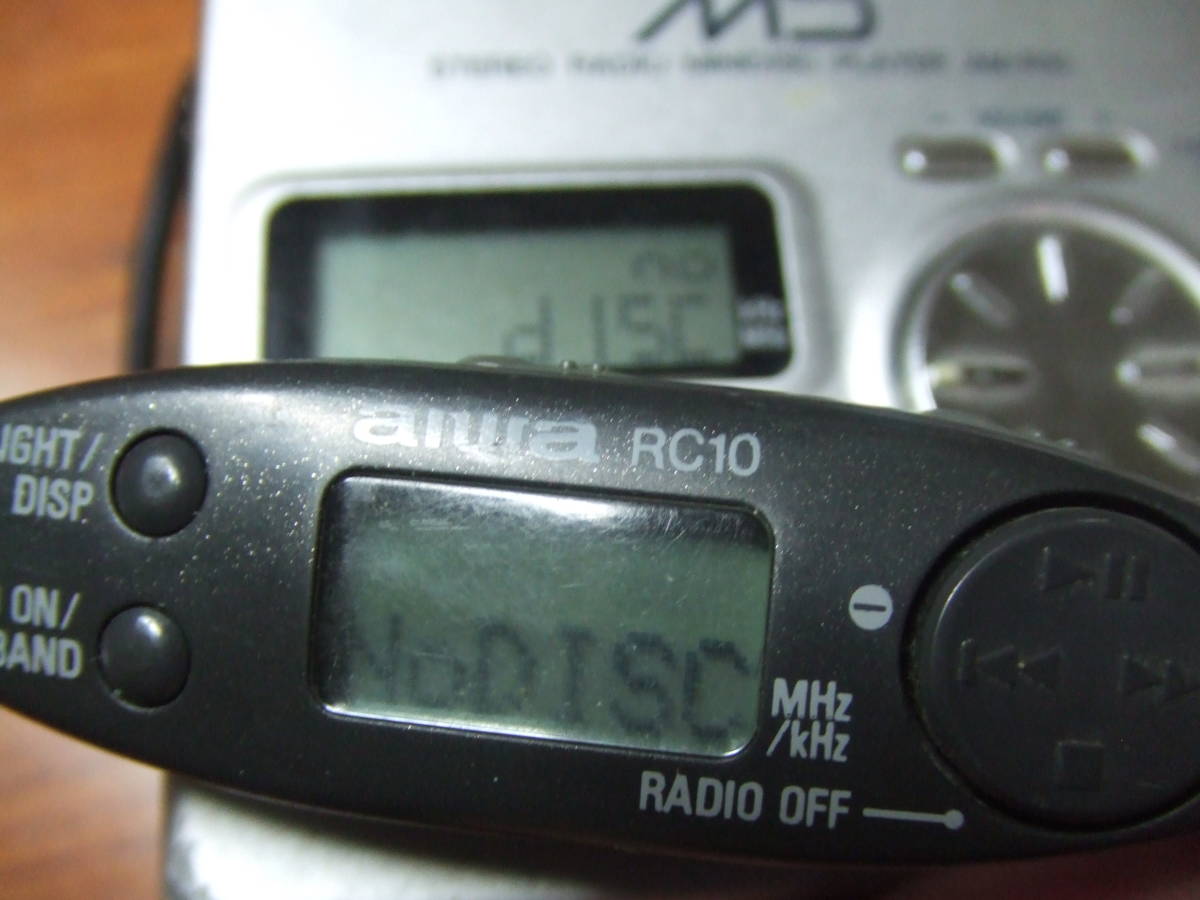

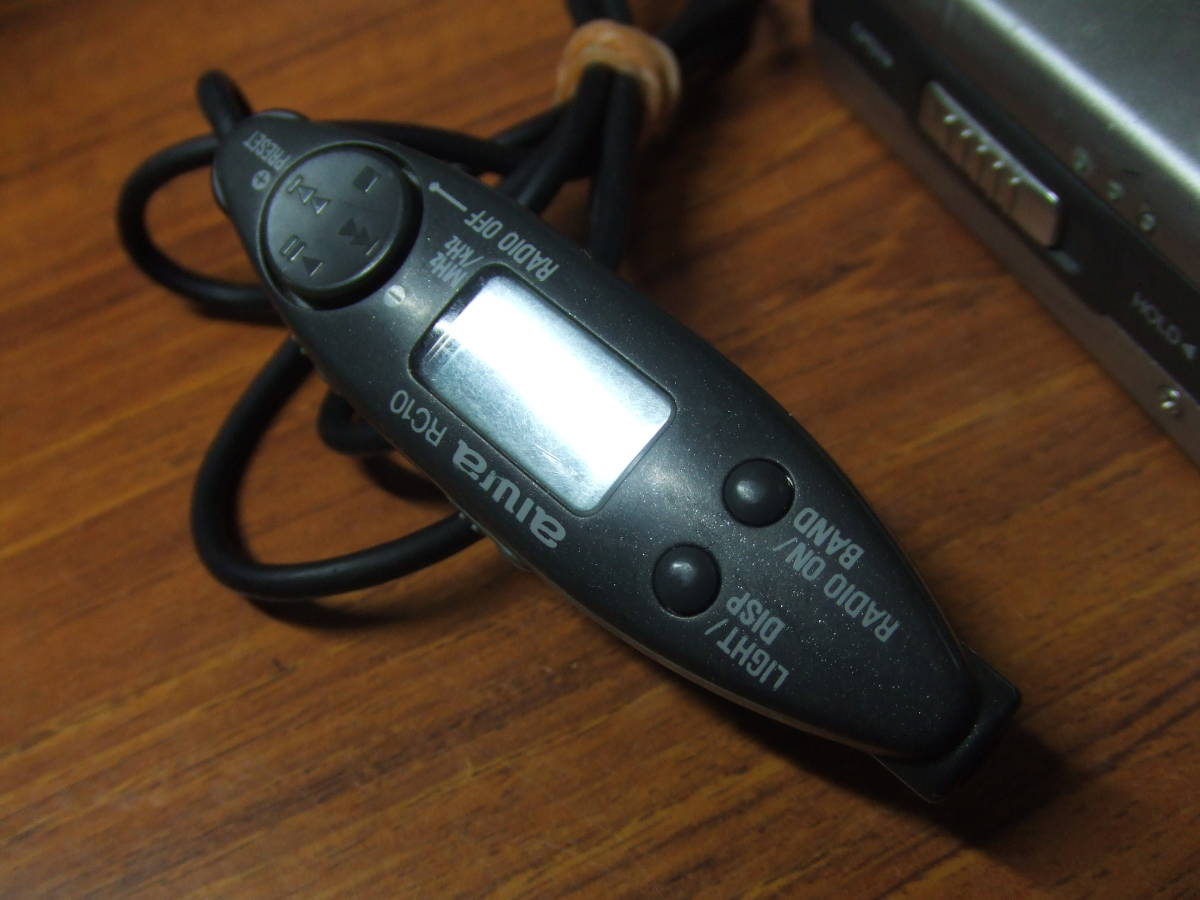

  • Backlit LCD remote control unit
  • The LCD display on the remote control unit makes it easy to monitor MD and tuner operation, and is easy to read even in the dark.

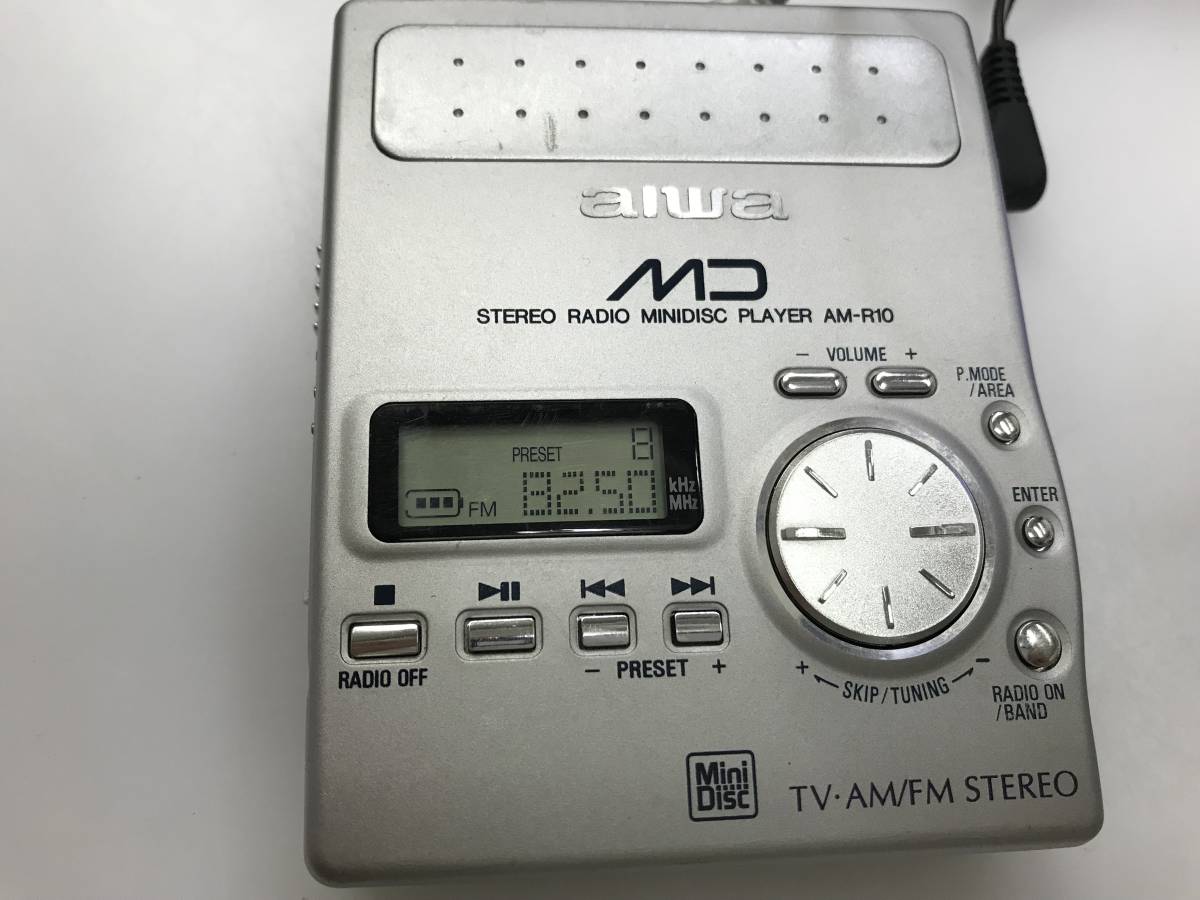

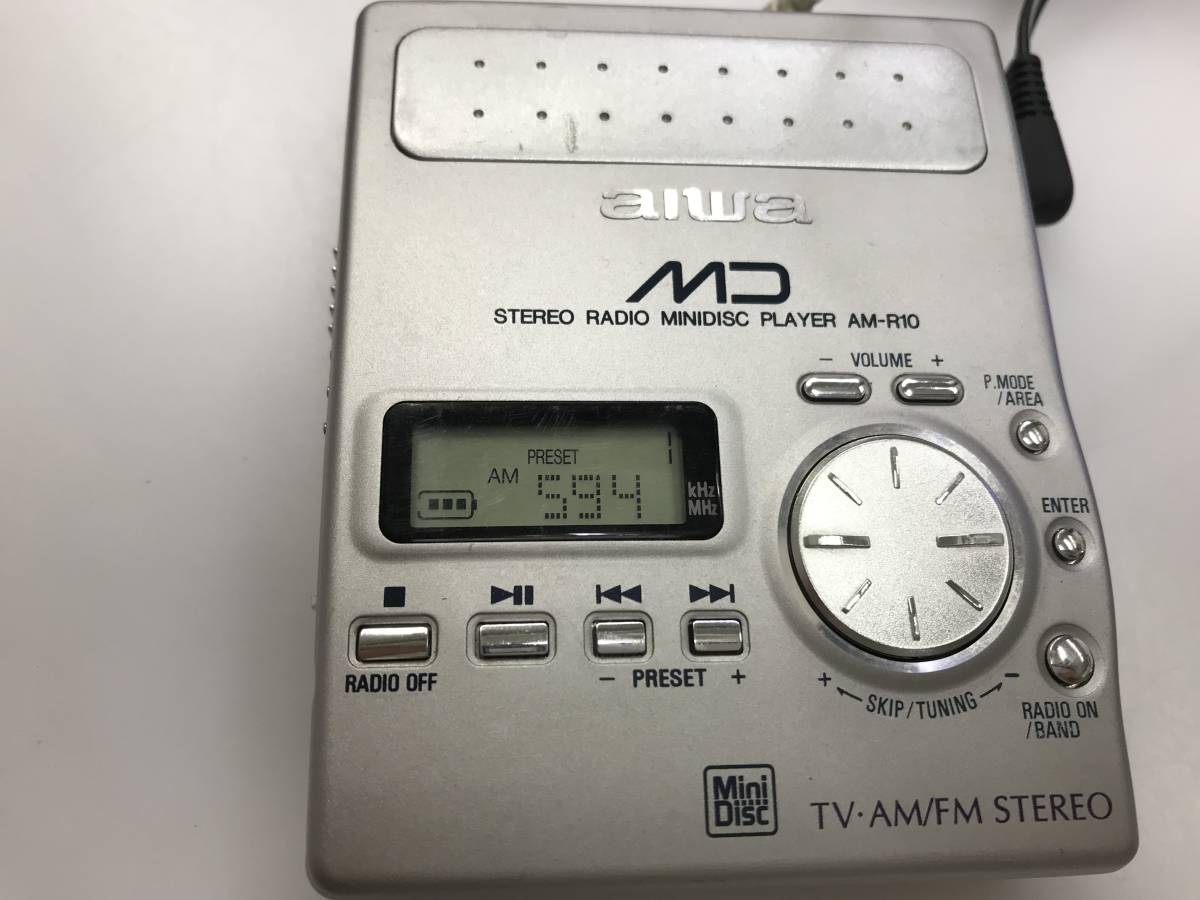

  • 3-band (TV/FM/AM) worldwide synthesized tuner and one-point auto area
  • Stations in 43 areas and JR shinkansen bullet trains nationwide are pre-programmed. One-point auto area makes it simple to tune in local stations as you travel.

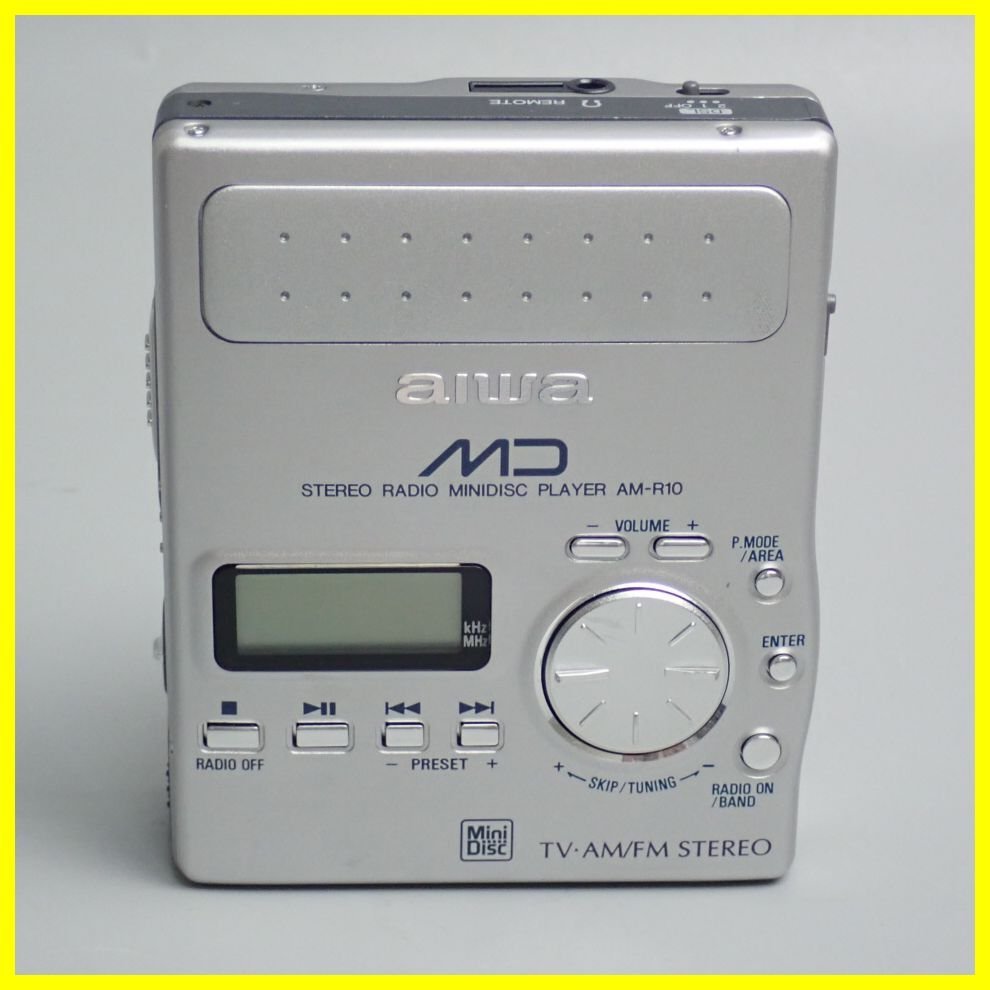

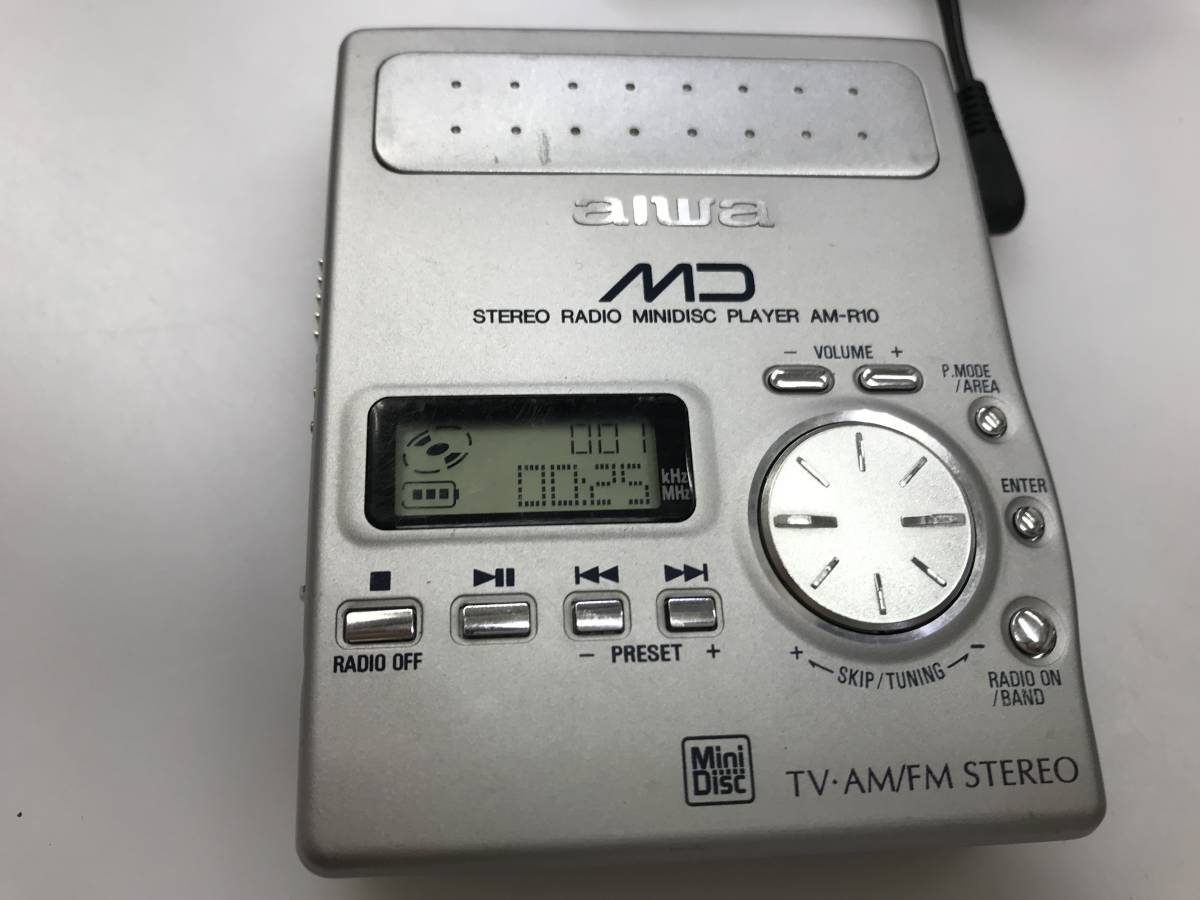

  • Large shuttle dial for easy operation
  • The shuttle dial makes it easy to skip MD tracks or select a radio station.
  • MDs recorded in monaural mode, can be played back.
  • Double-speed playback function
  • 7-hour continuous playback on a single charge
  • Perfect-fit headphones
  • Silicon rubber air cushions on ear caps ensure a tighter seal with the ear for enhanced bass reproduction.
  • Aiwa's unique Dynamic Super Linear Bass (DSL) (2 steps)
  • Repeat (one program/all programs)/random playback
  • 3-step battery level indicators on both main unit and remote control confirm remaining battery life.
  • Silver body color

headphone output: 10mW + 10mW

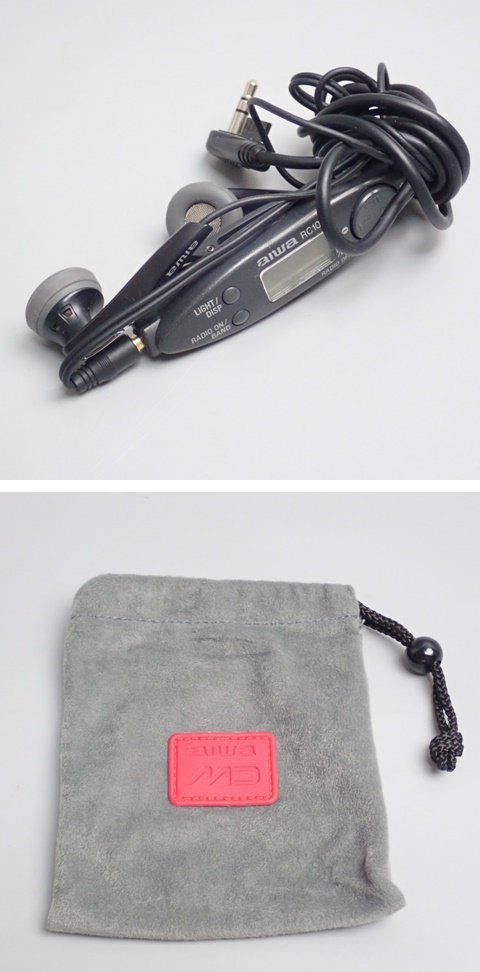

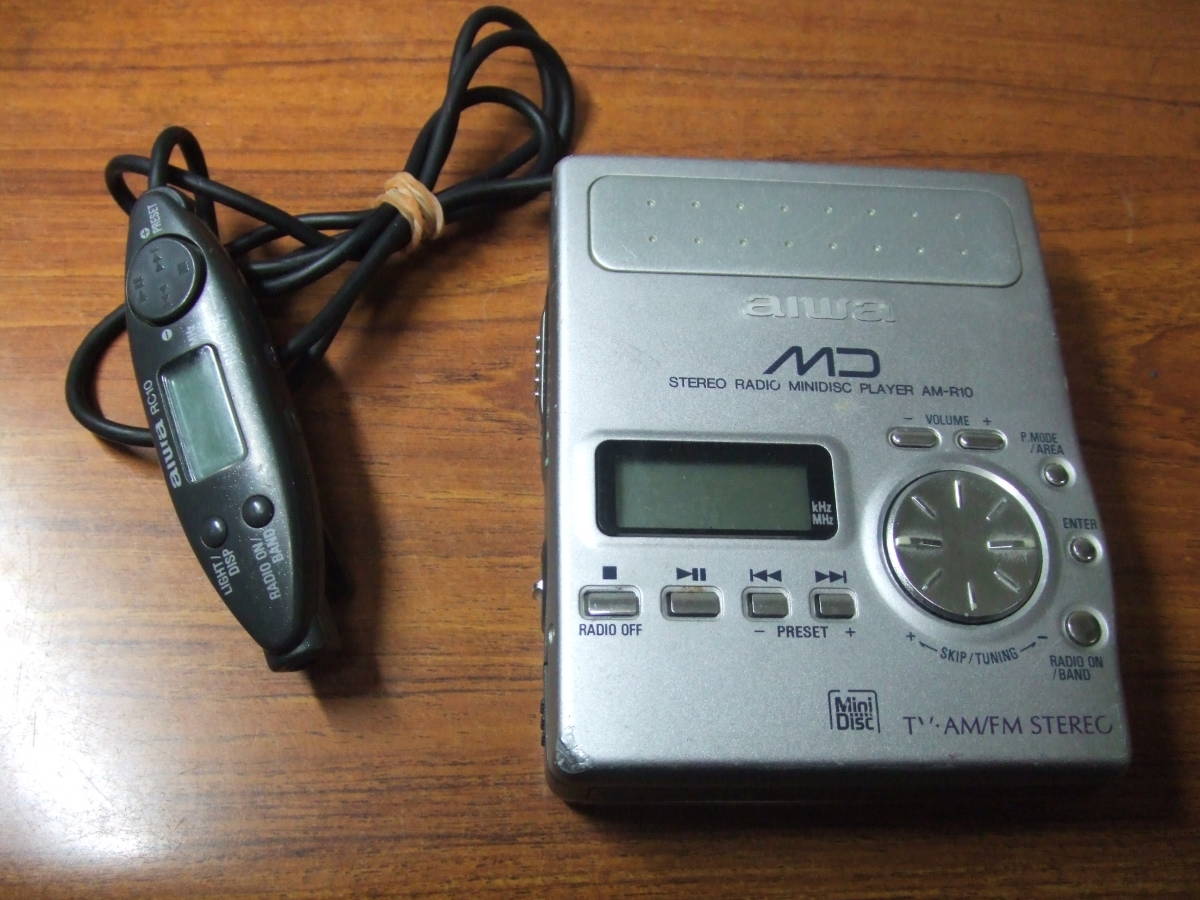

Shipped with RC10 remote.
