Alpine MDA-W700JB

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-07-14

Manufacturer
Alpine
Model / source grouping
MDA-W700JB
Device type
auto
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Alpine MDA-W700JB”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name MDA-W700JB
Manufacturer Alpine
Released 1999/10
Device type auto
Recorder Player
MDLP No
NetMD No
Hi-MD No
Radio Yes - 76-90Mhz
Dimensions 2-Din W 178 × H 100 × D 155 mm
Weight 2500
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 12
Power cable Not recorded
Price (launch) Not recorded
¥79 800
-
Inputs CD
Outputs Speaker amplifier
Control Not recorded

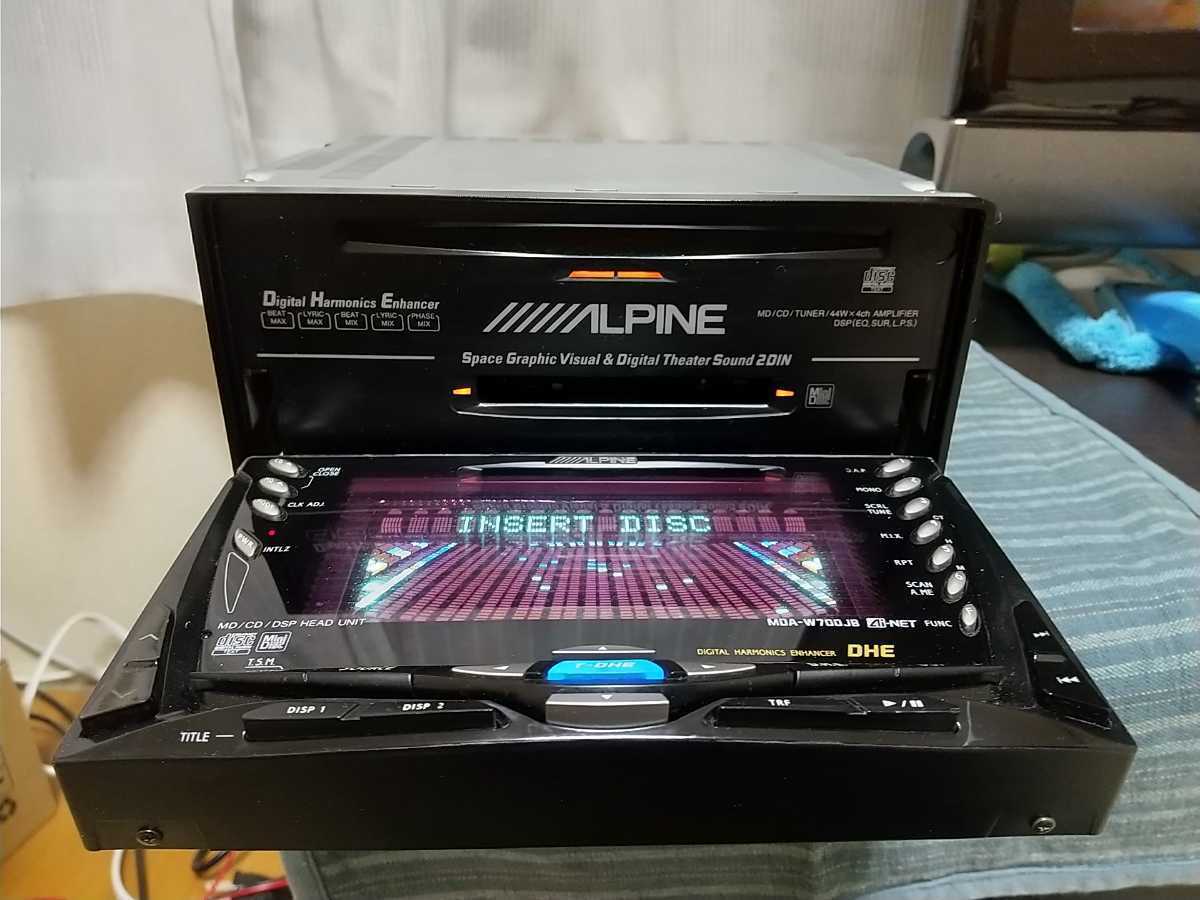

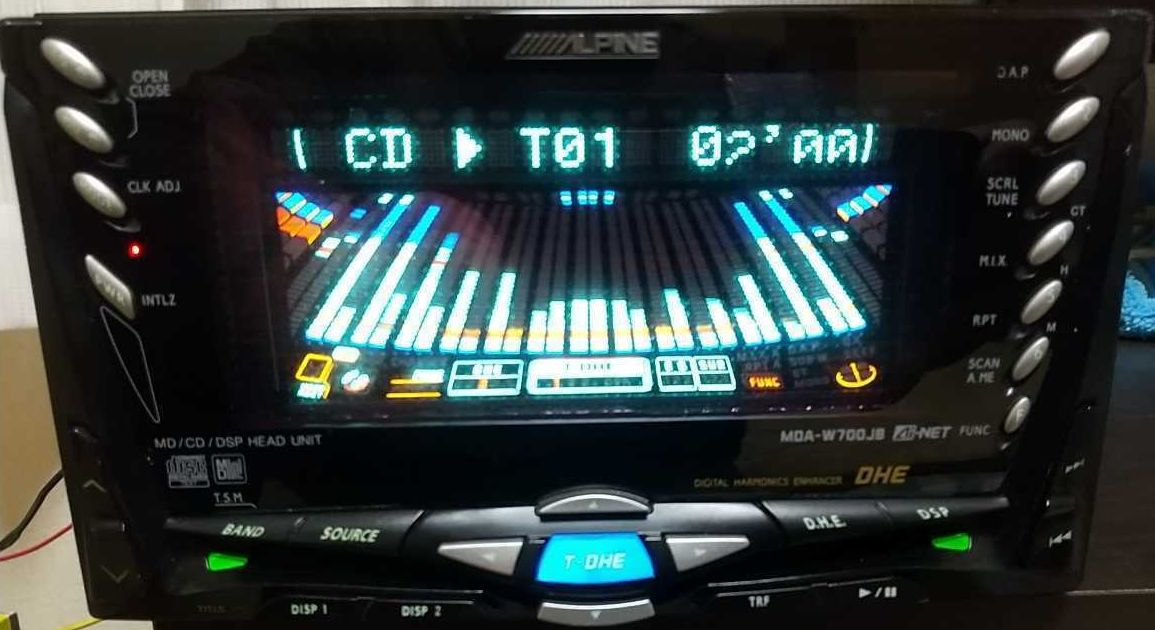

Alpine MDA-W700JB. Seems to be a color variant of the MDA-W700J. Should share the new CD pickup and MD mechanism with the MDA-W779JB

MD/CD player with:

  • MD/CD kanji title display
  • T-DHE (Theatre Sound DHE)
  • DSP
  • 7 Band EQ (…63Hz/160Hz/400Hz/1kHz/2.5kHz/6.3kHz/16kHz（each± 10dB）)
  • Equipped with “Glide Wing”, an advanced and smart display action
  • DHE (Digital Harmonics Enhancer) - uses a unique digital technology to revive the harmonics (overtones) that are lost when recording onto an MD, realizing music playback that is closer to the original sound

Technical Specs:

  • MD S/N: 105dB. Dynamic Range: 90dB.
  • CD S/N: 105dB. Dynamic Range: 93dB. Channel Separation: 86dB.
  • 44W × 4ch amplifier

Content adapted from: Alpine announcement/press release Alpine announcement/press release (MiniDisc Wiki mirror) Alpine MDA-W700JB owners manual page

Manuals

Alpine MDA-W700JB Owners Manual JP.pdf

Alpine MDA-W700JB Installation Manual

Repair

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
Web MdNo (not NetMD)
ManualUser manual
RegionJapan
