| Name | MDW-1 |
|---|---|
| Manufacturer | Bose |
| Released | 1999/11 |
| Device type | deck |
| Recorder | Recorder |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 286 x 107.5 x 370mm |
| Weight | 4.7kg |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | No |
| Voltage | 100 |
| Power cable | AC |
| Price (launch) | Not recorded |
| ¥74 800 | |
| - | |

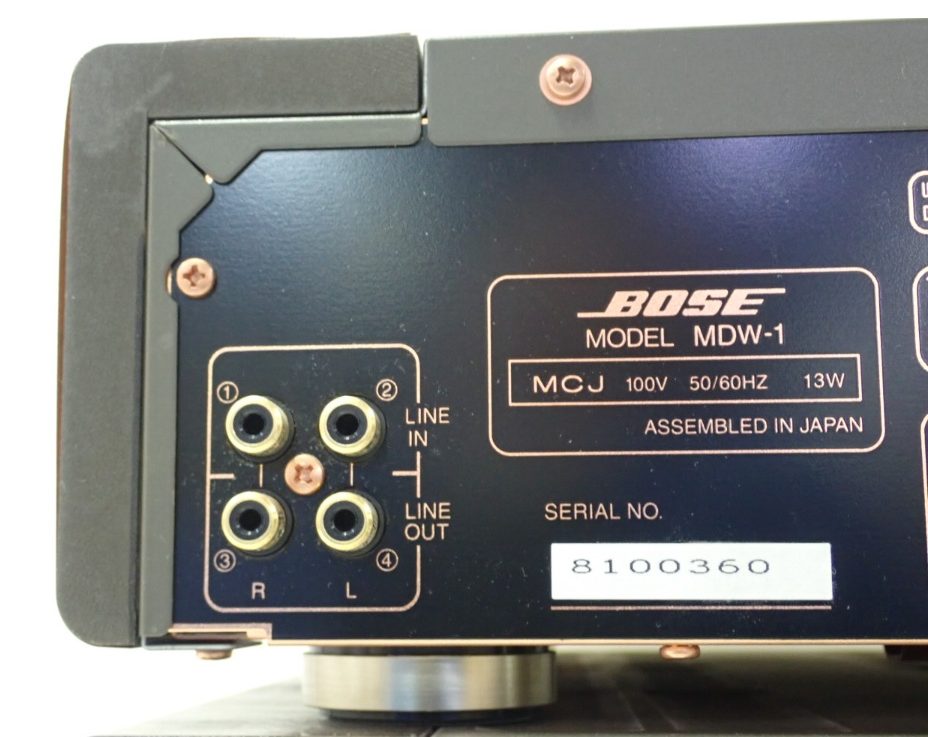

| Inputs | RCA in, Digital optical (TOSLINK) |
| Outputs | 1/4 inch headphone, RCA out, Digital optical (TOSLINK) |
| Control | Not recorded |

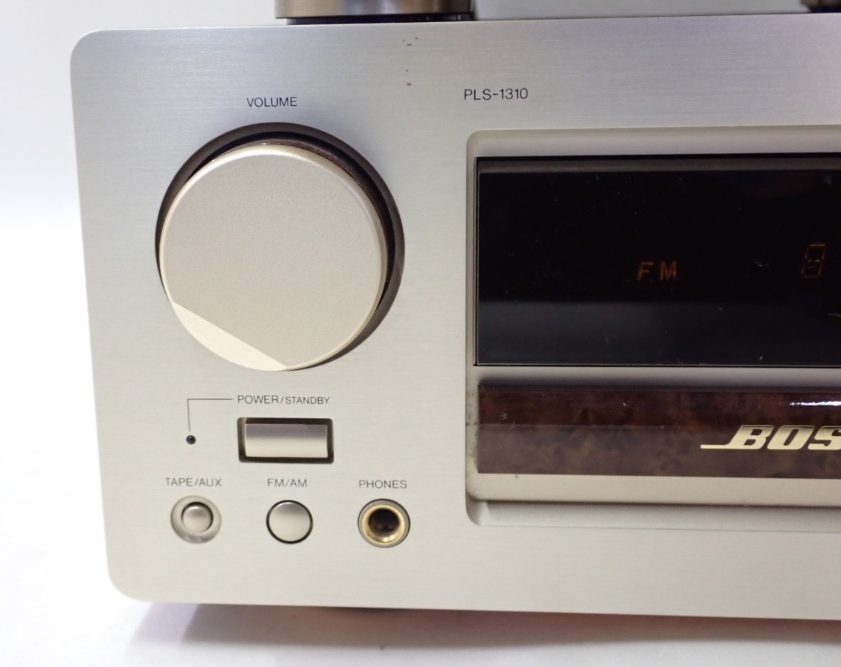

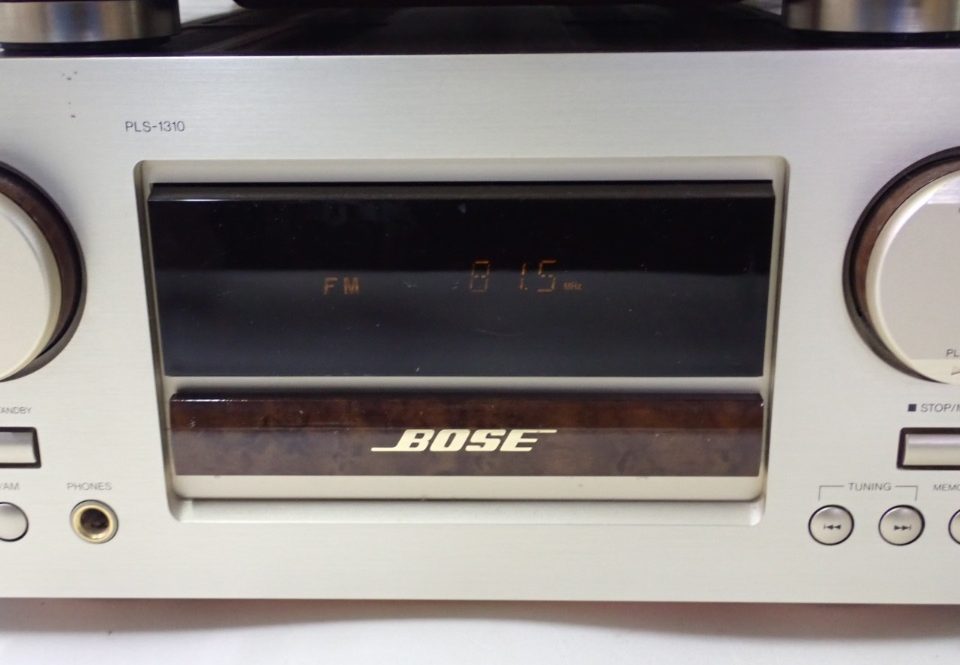

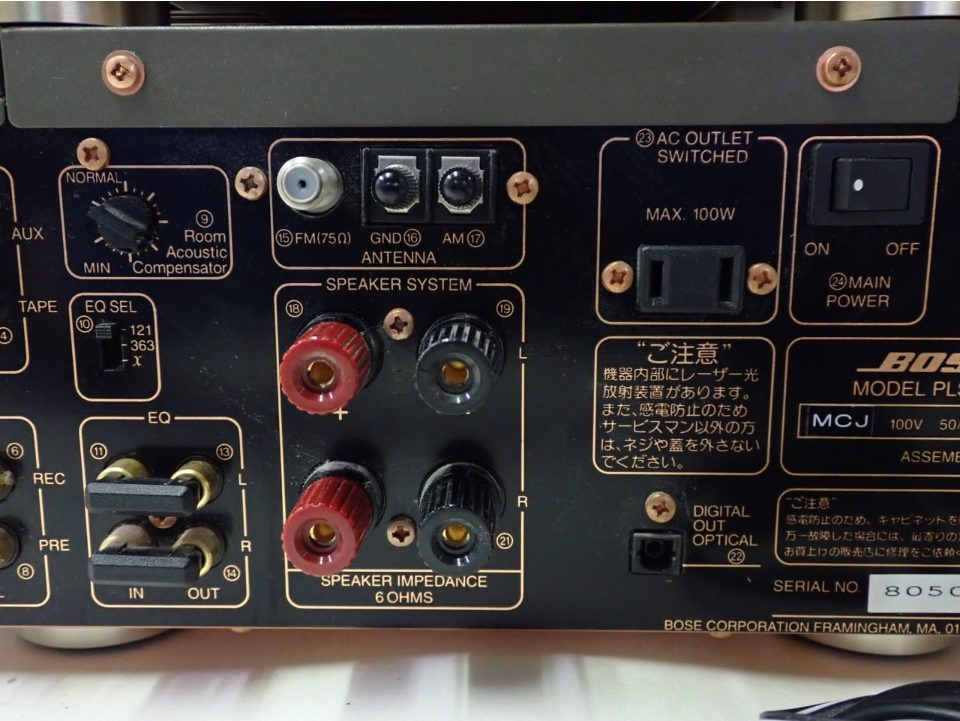

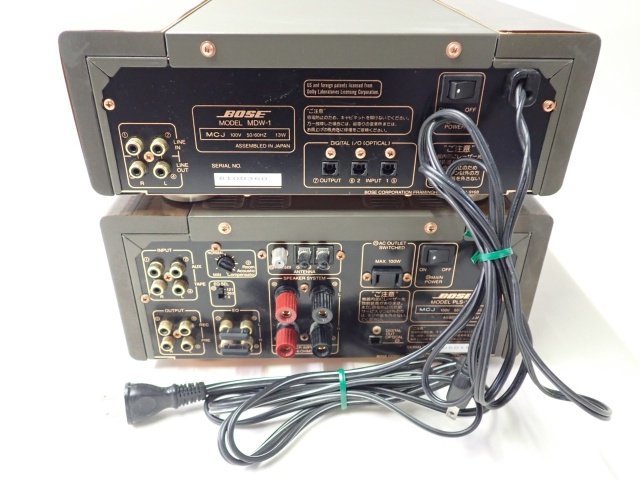

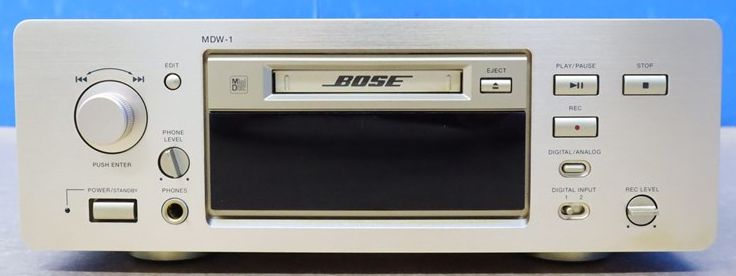

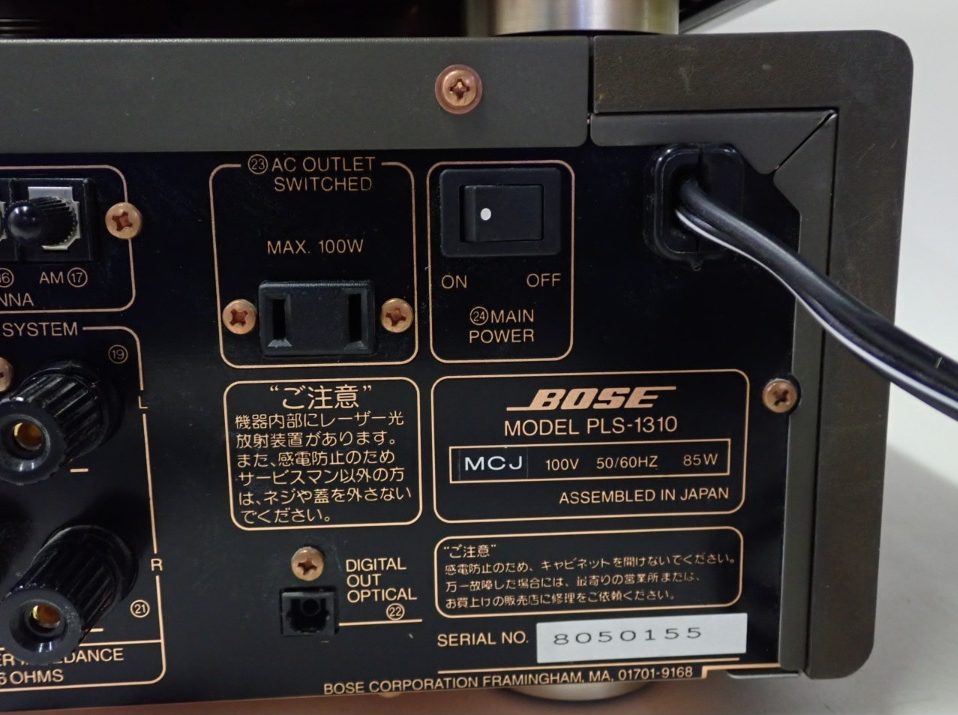

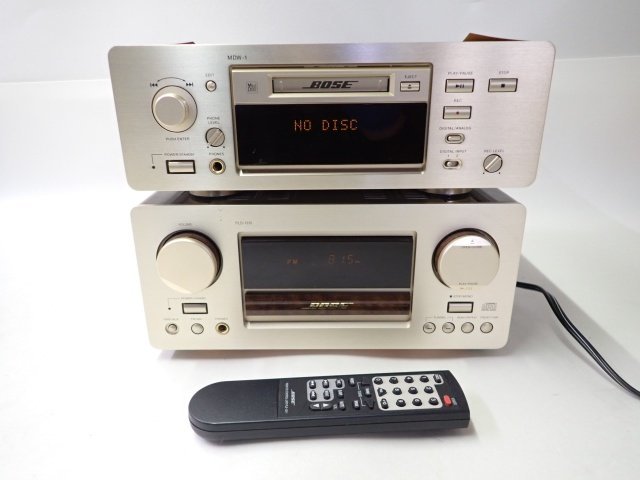

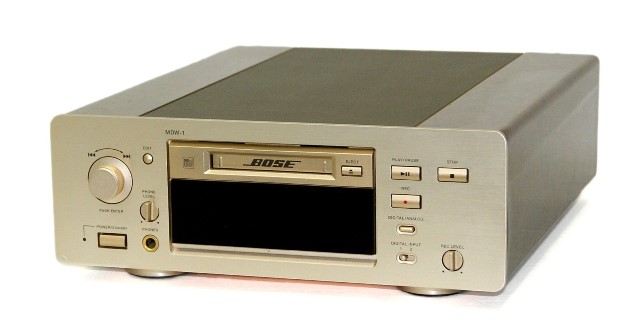

The MDW-1 was designed to work with the Bose PLS-1310 CD/AMP while providing the minimum necessary functions of an MD deck.

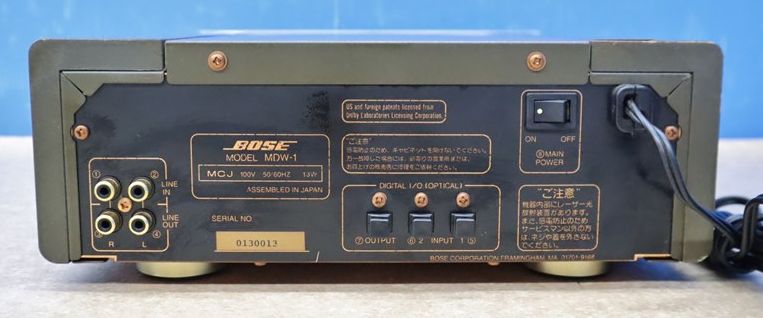

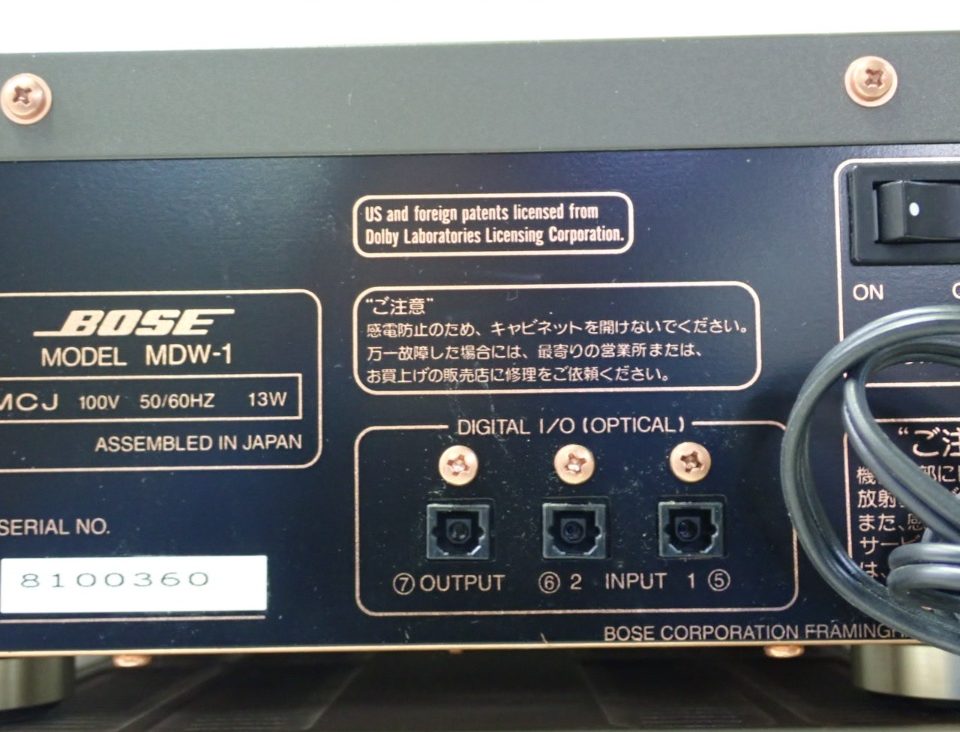

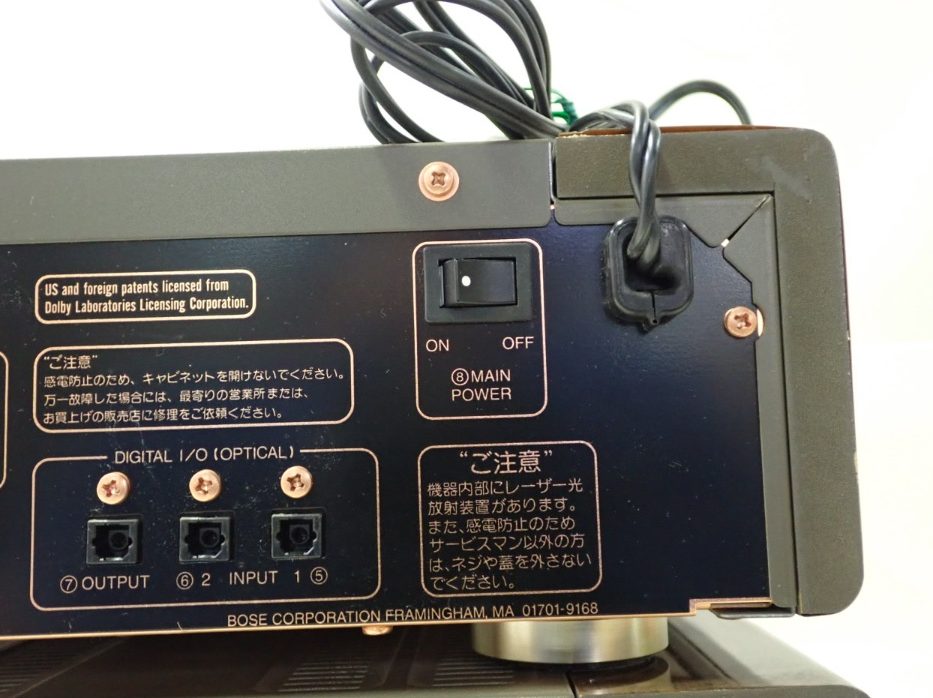

Two optical digital inputs are provided on the rear panel, and 20-bit Delta-Sigma conversion D/A and A/D converters are used for recording and playback with minimal distortion and noise. The design is consistent with that of the Westboro series, making it easy to adapt to the same series (WBS-1EX, WBS-3EX, WBS-5EX, PLS-1310), and the basic functions of MD decks, such as sampling rate converter, song editing, and title input, are also enhanced.

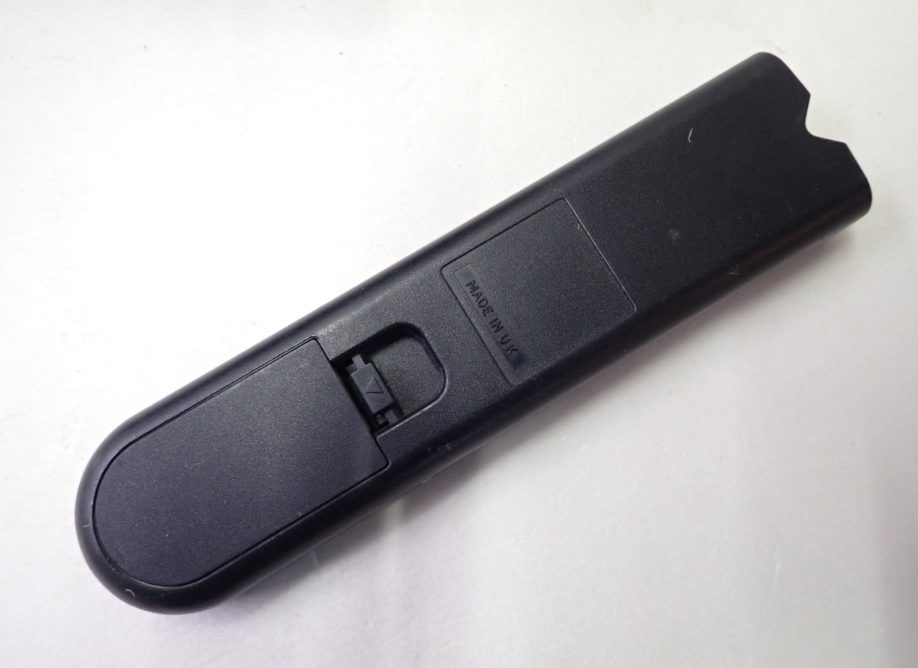

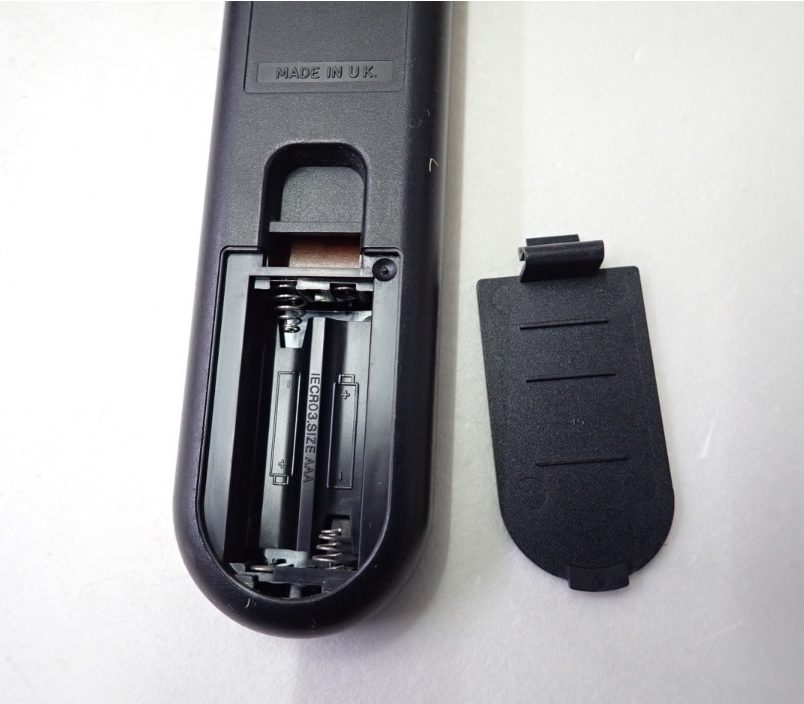

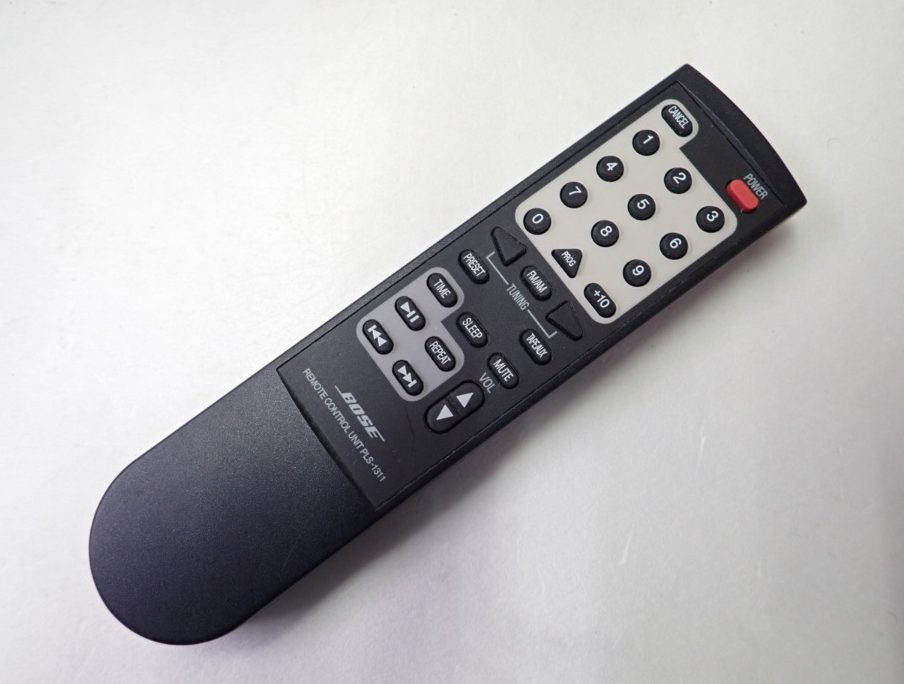

Remote: pls-1311
Content adapted from: Minidisc.org page and ASCII24 product page (Japanese, Archived) ASCII24 product page (Japanese, Archived) (MiniDisc Wiki mirror)
Manuals
Repair

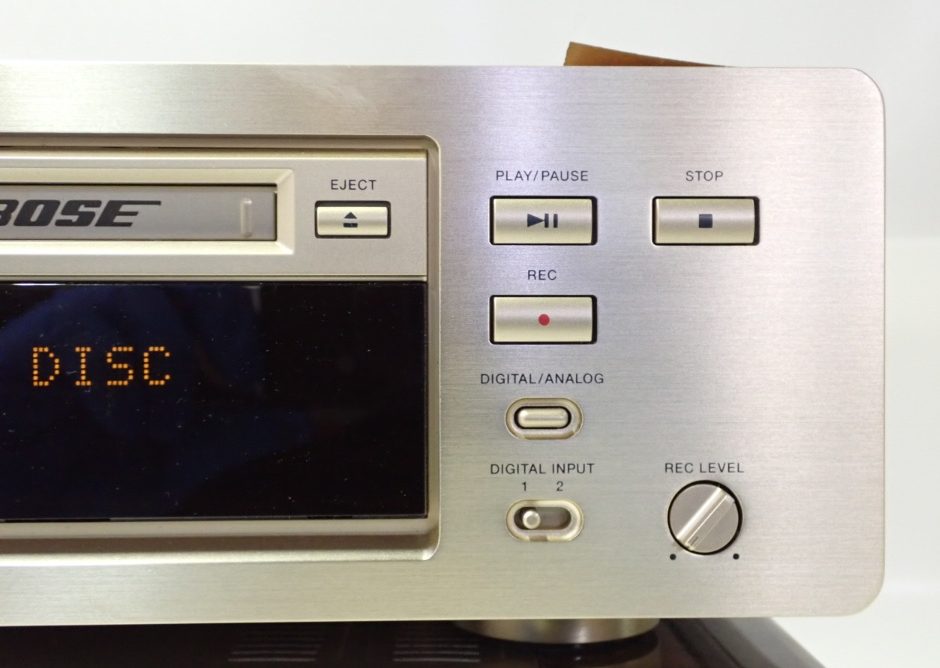

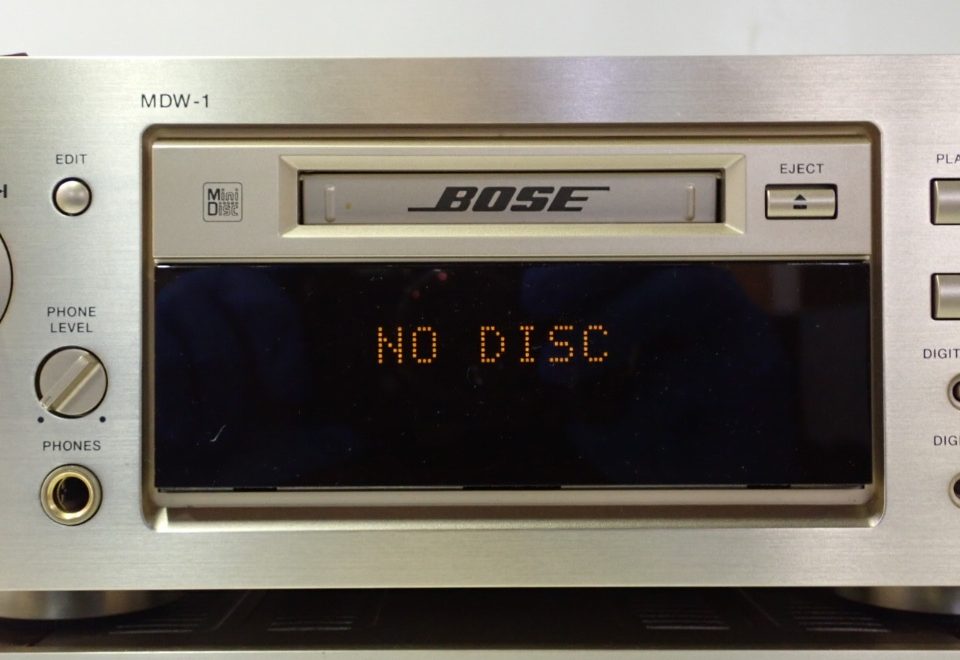

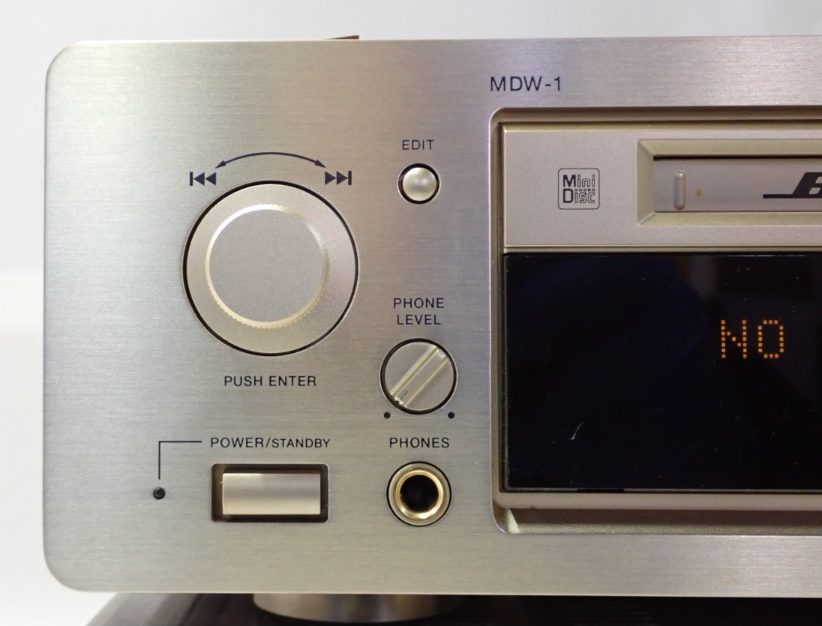

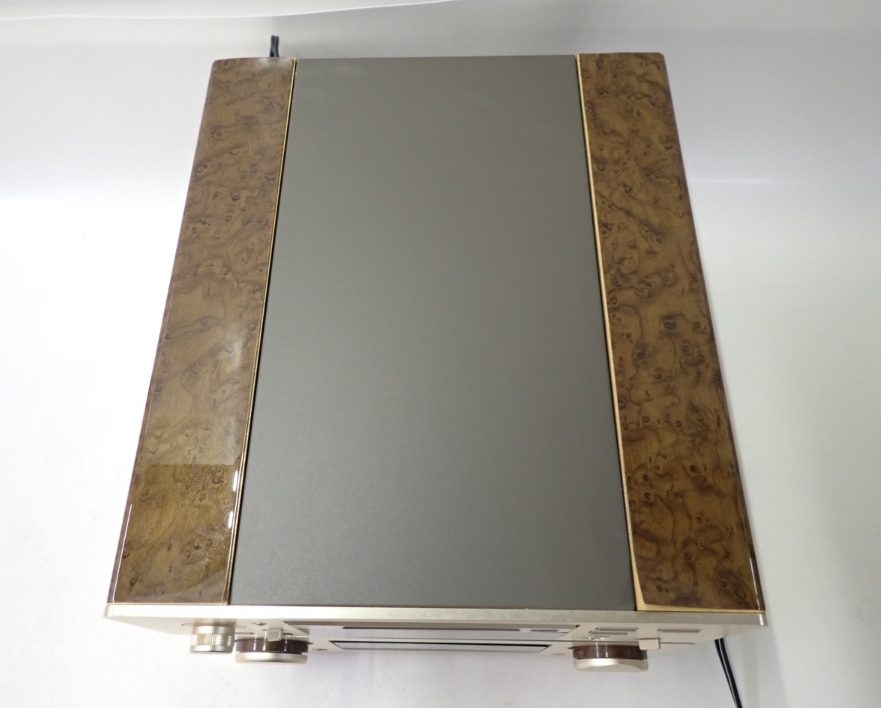

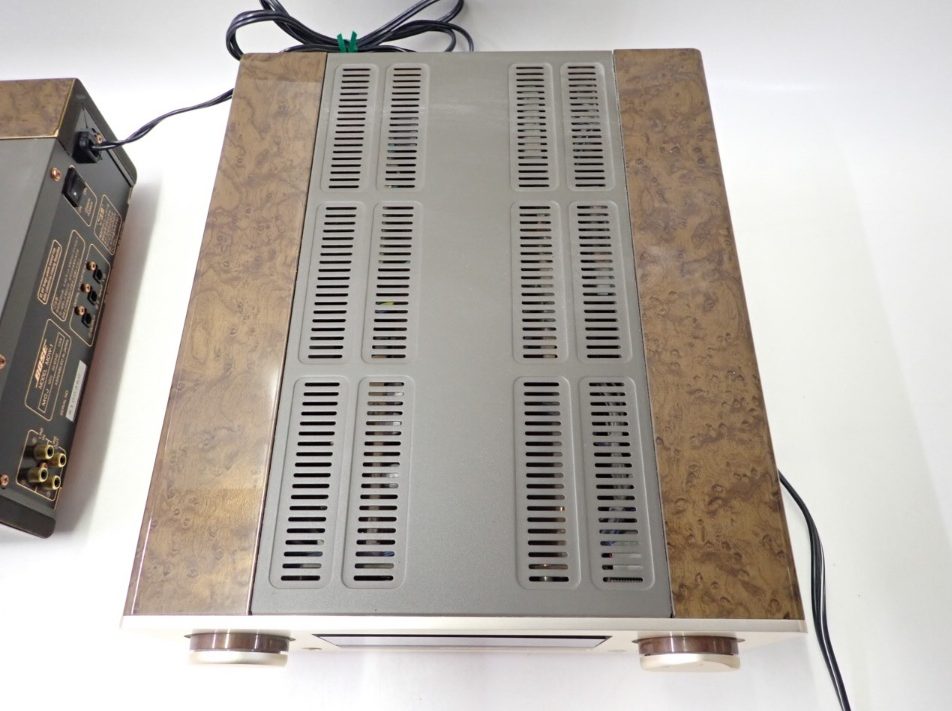

Photos
Have photos or data to add? Edit the page! We do not accept contributions via email..
Additional specifications and references
| Scms | Yes |
|---|---|
| Manual | |
| Region | Japan |
