| Name | MDH-505 |
|---|---|
| Manufacturer | Casio |
| Released | 1999/06 |
| Device type | boombox |
| Recorder | Recorder |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 463 x 197 x 275mm |
| Weight | 6300 |
| ATRAC ver | Not recorded |
| Battery | Not recorded D cells |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| Not recorded | |
| - | |
| Inputs | 3.5mm line in (analog-only), CD, Radio recording, Tape deck |
| Outputs | 3.5mm headphone, Tape deck, Built-in speaker |
| Control | Not recorded |
Features: Alarm clock, synchronized dubbing between various media types, MD/CD/Cassette/Radio all controllable via remote, will input both Katakana and alphanumeric characters, includes all standard MD editing capabilities, simulated "Surround" sound feature, both headphone and line in are located on the front
Remote: RE-23J
Content adapted from: Minidisc.org page, Casio product page (Japanese, Archived) Spec page Spec page (MiniDisc Wiki mirror)
Manuals
Repair

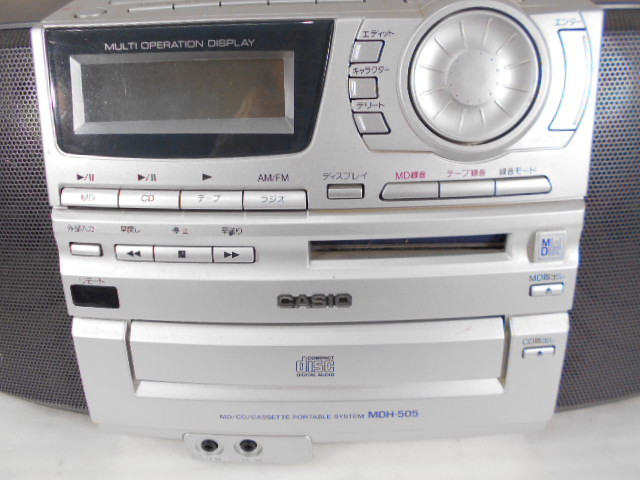

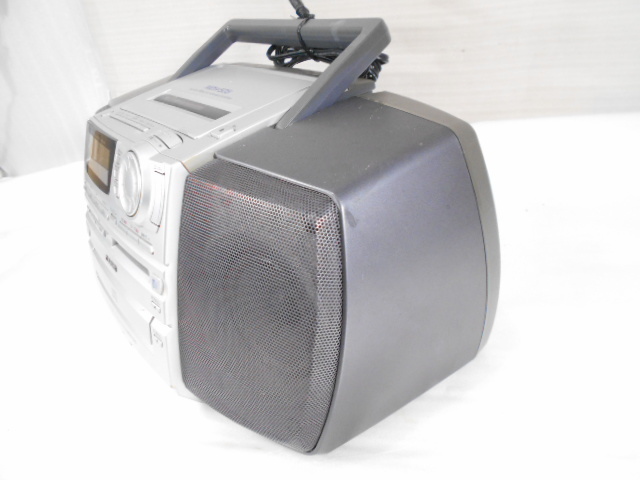

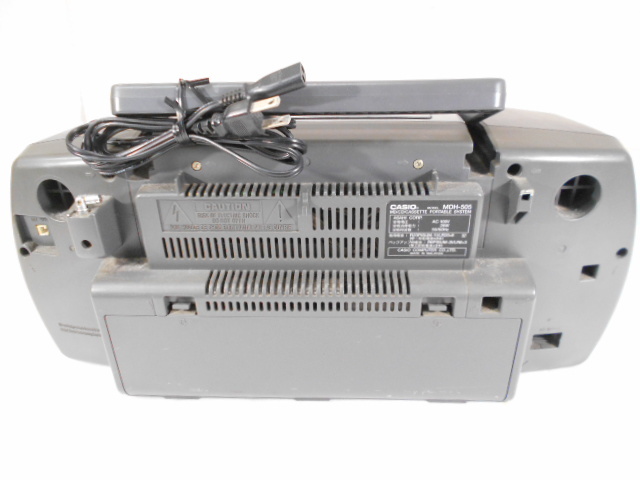

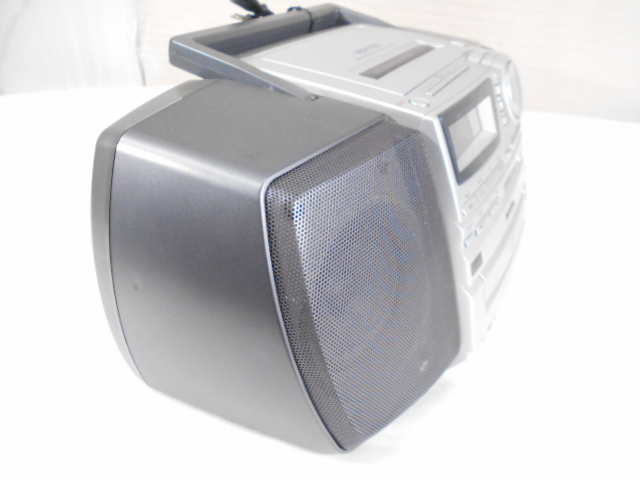

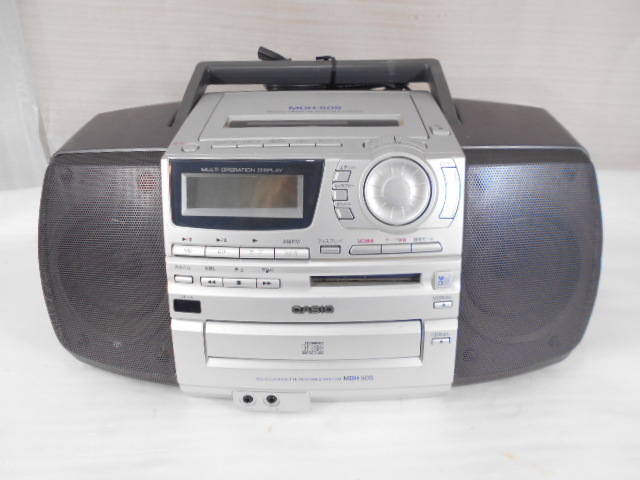

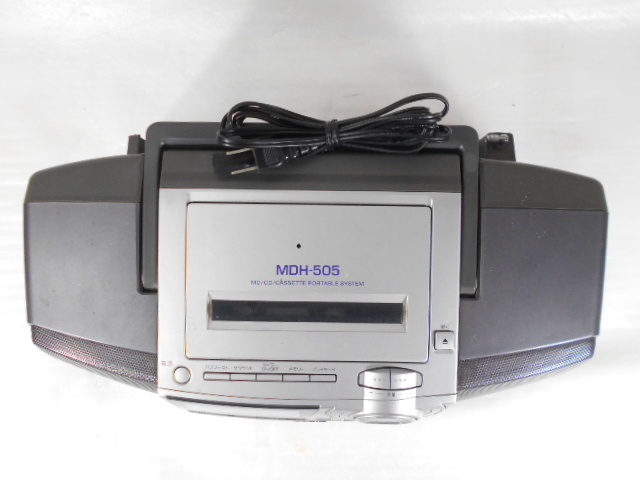

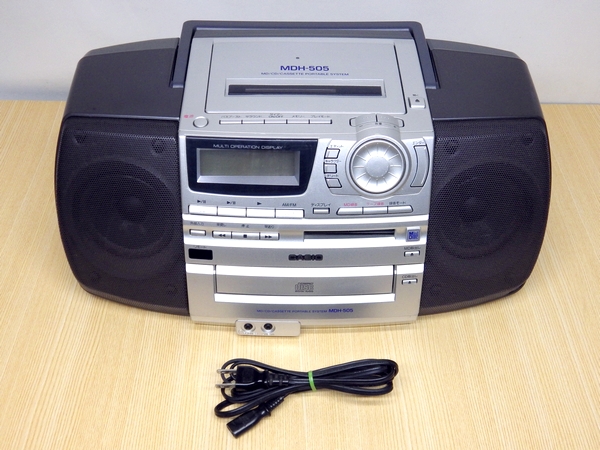

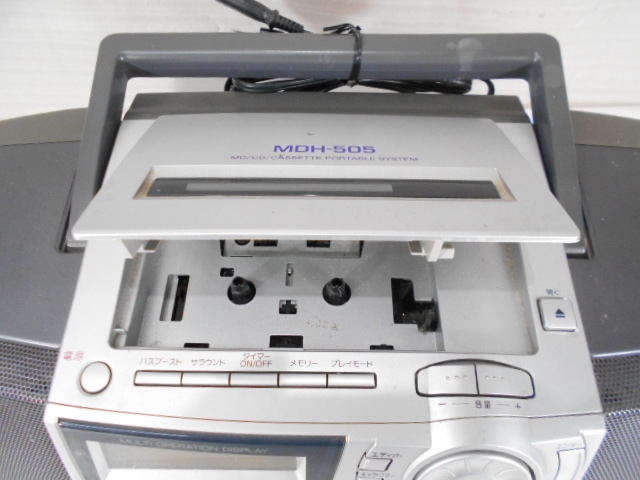

Photos

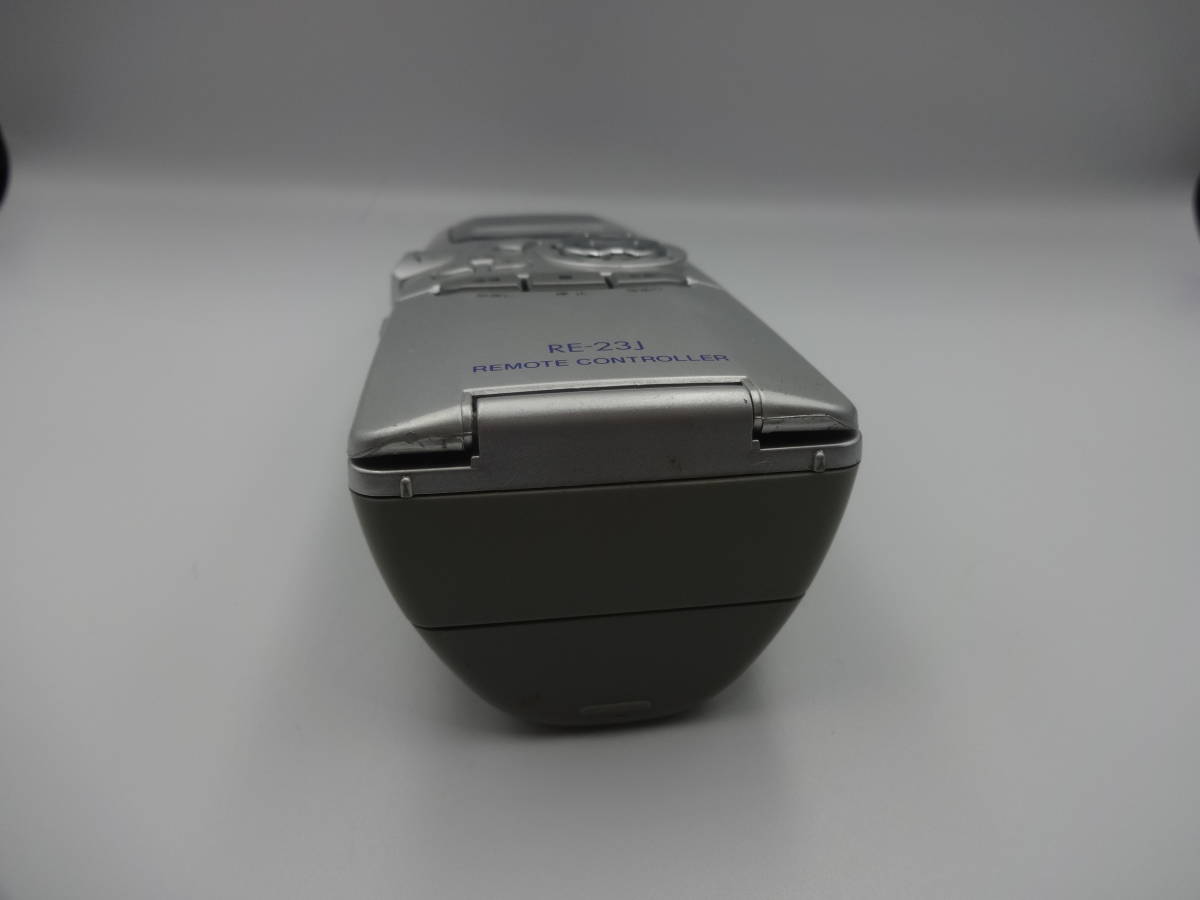

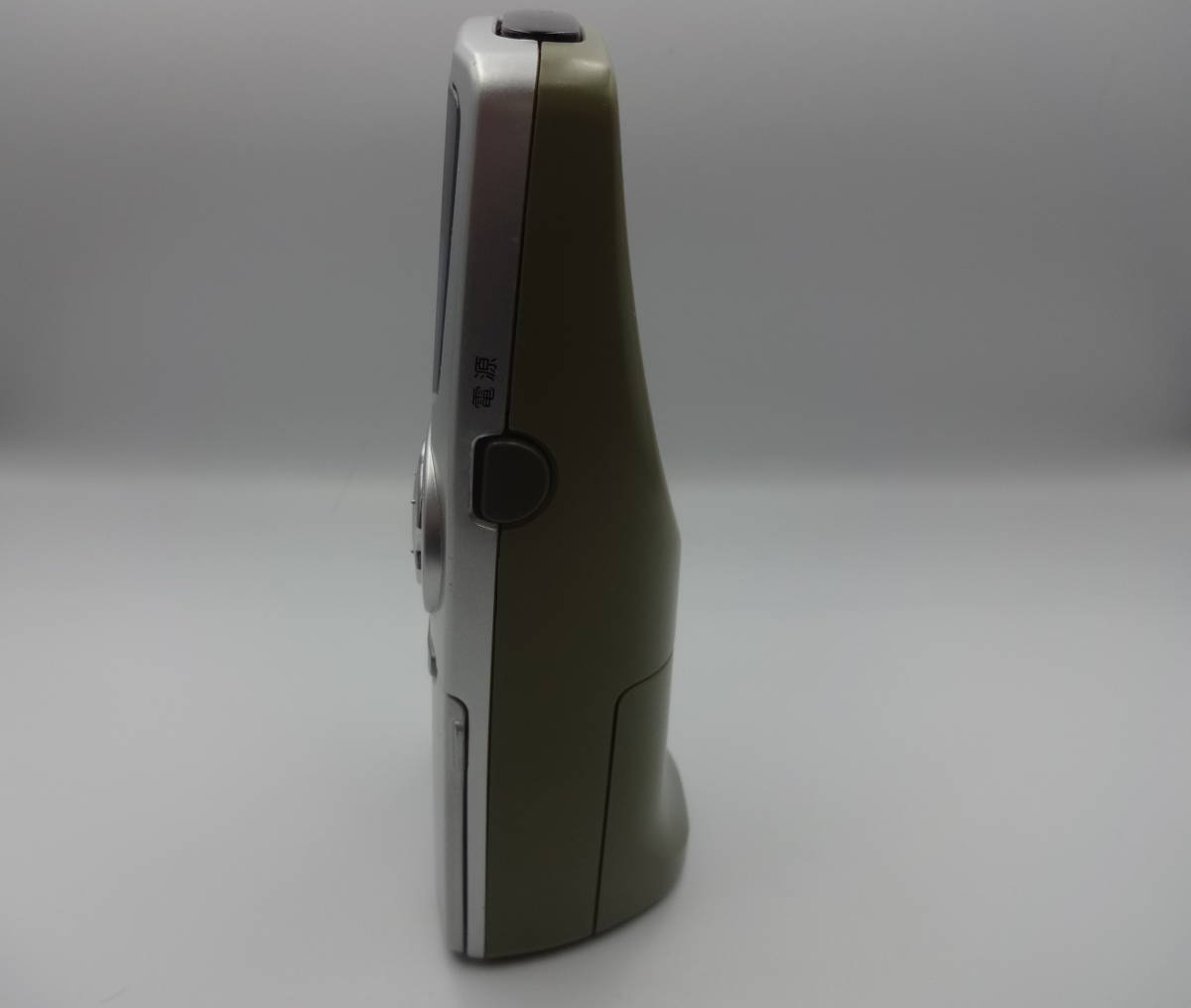

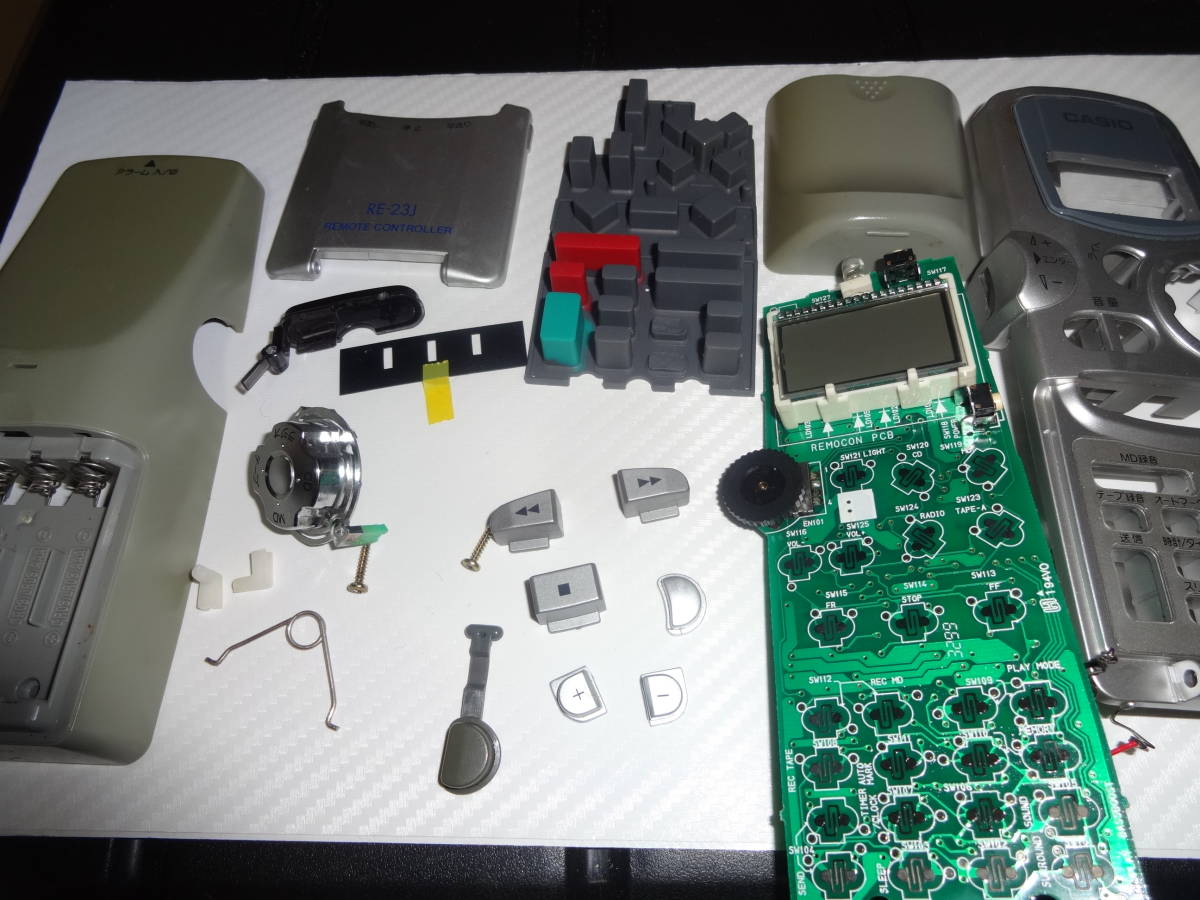

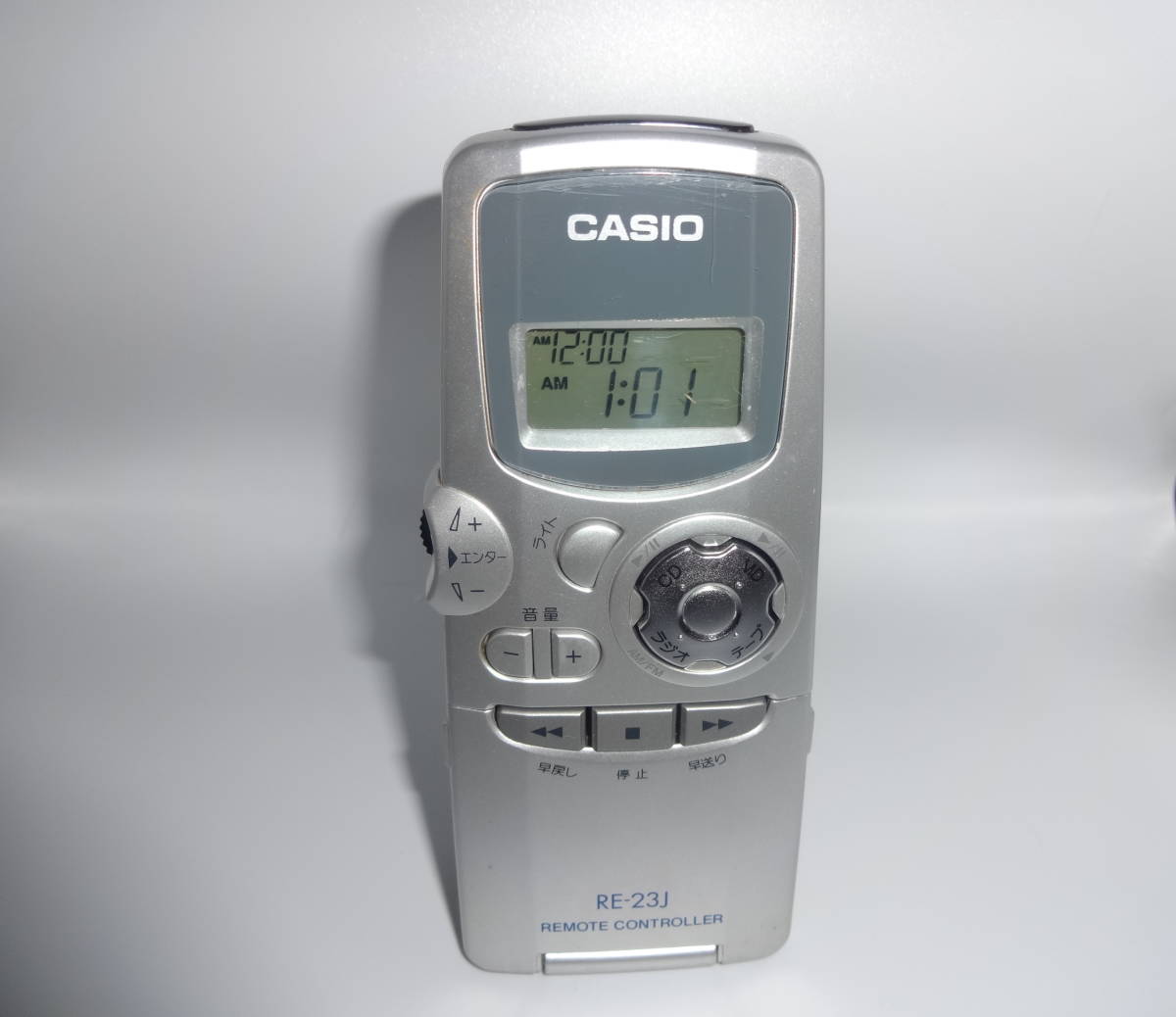

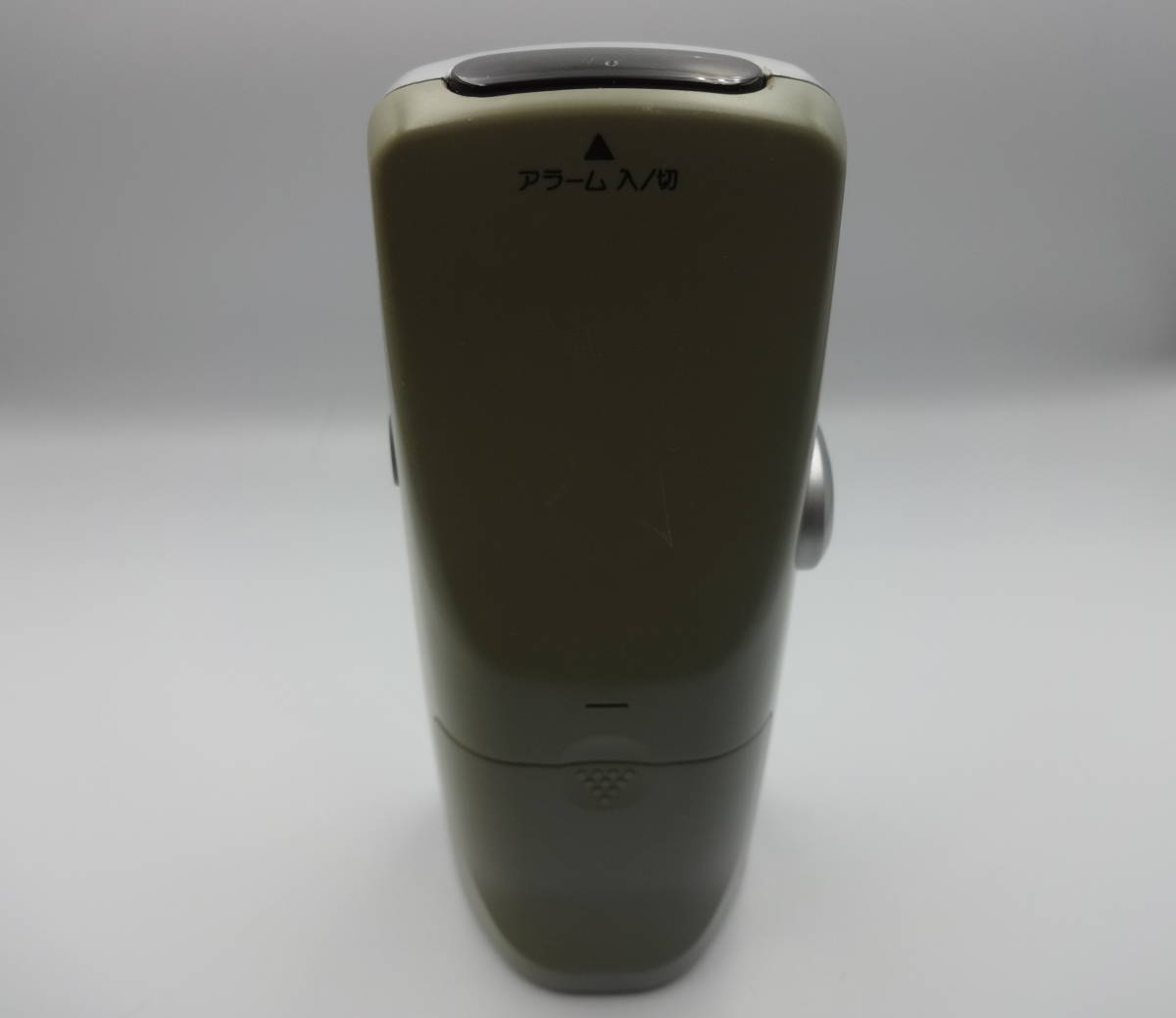

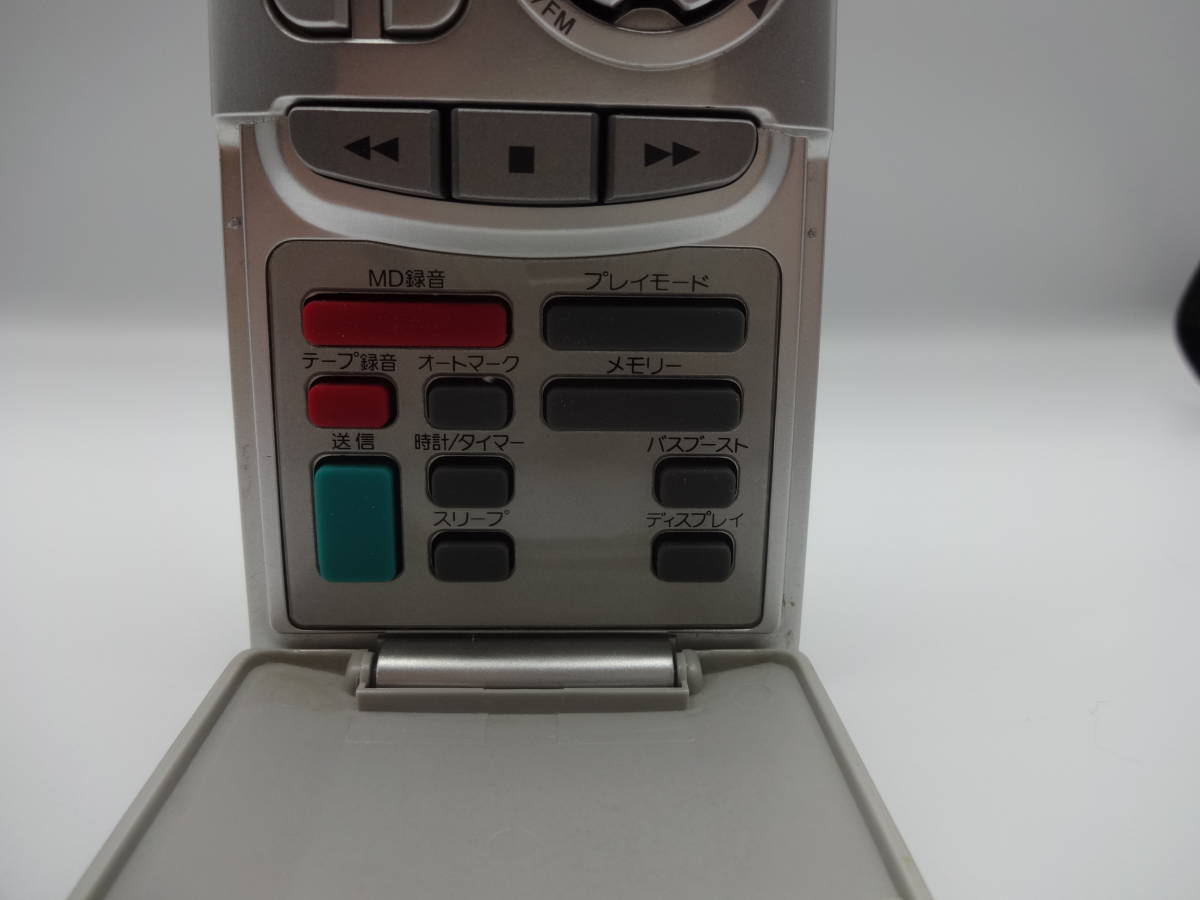

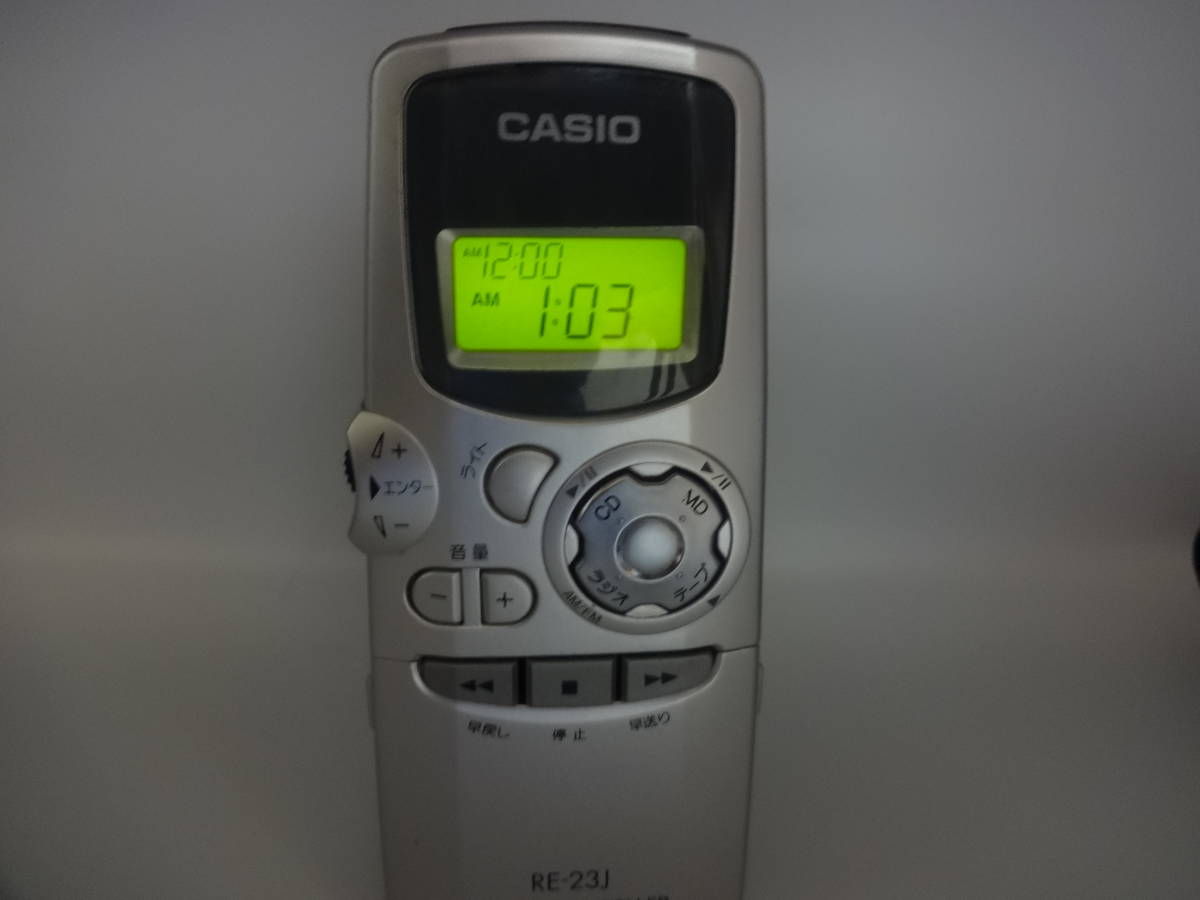

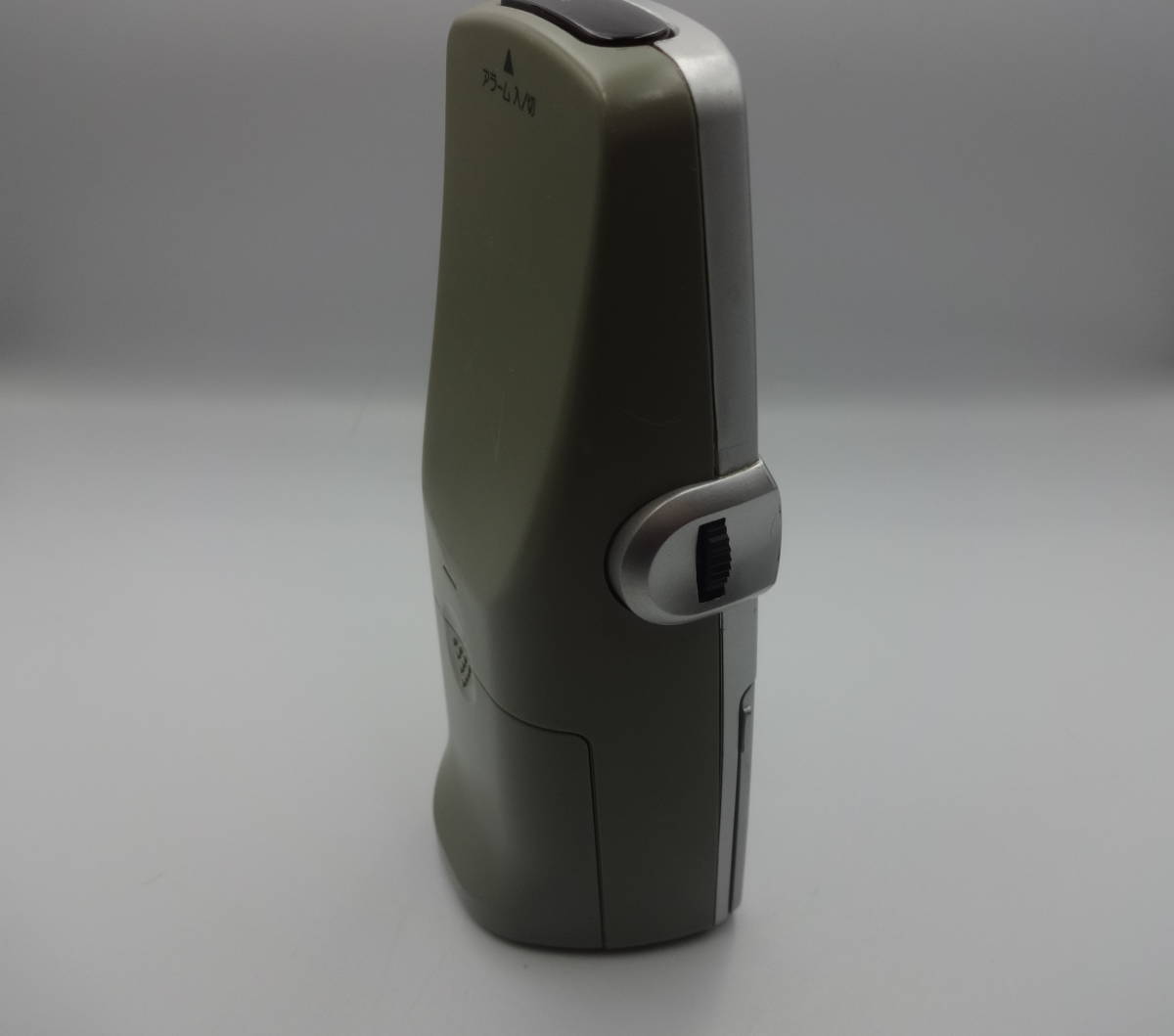

RE-23J Remote:
Have photos or data to add? Edit the page! We do not accept contributions via email..
Additional specifications and references
| Web Md | No (not NetMD) |
|---|---|
| Region | Japan |
