| Name | MDH-507 |
|---|---|
| Manufacturer | Casio |
| Released | 2000/06 |
| Device type | boombox |
| Recorder | Recorder |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 463×197×265mm |
| Weight | 6.3kg |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 100 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| Not recorded | |
| - | |
| Inputs | 3.5mm line in (analog-only), CD, Radio recording, Tape deck |
| Outputs | 3.5mm headphone, Tape deck |
| Control | Not recorded |

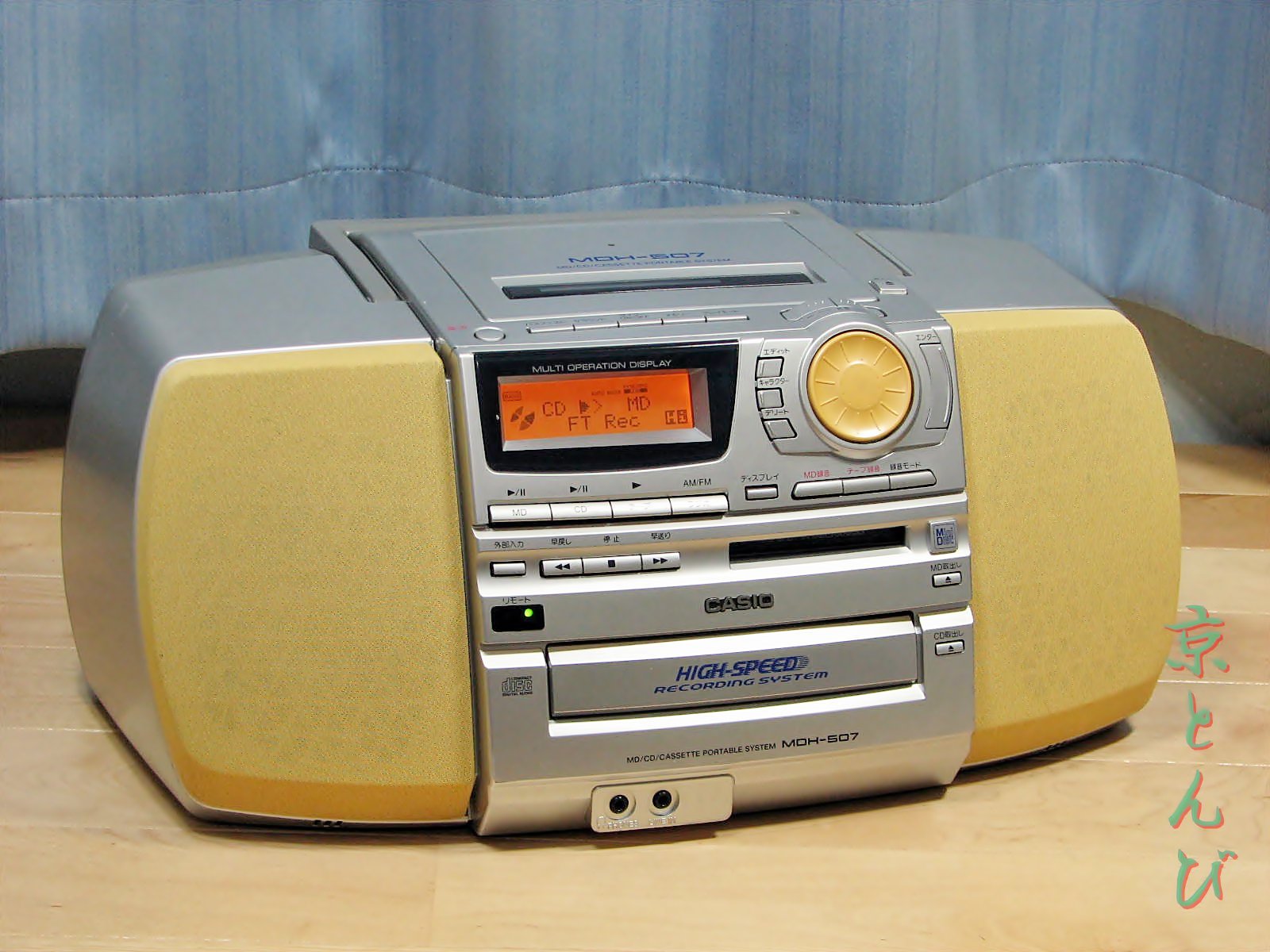

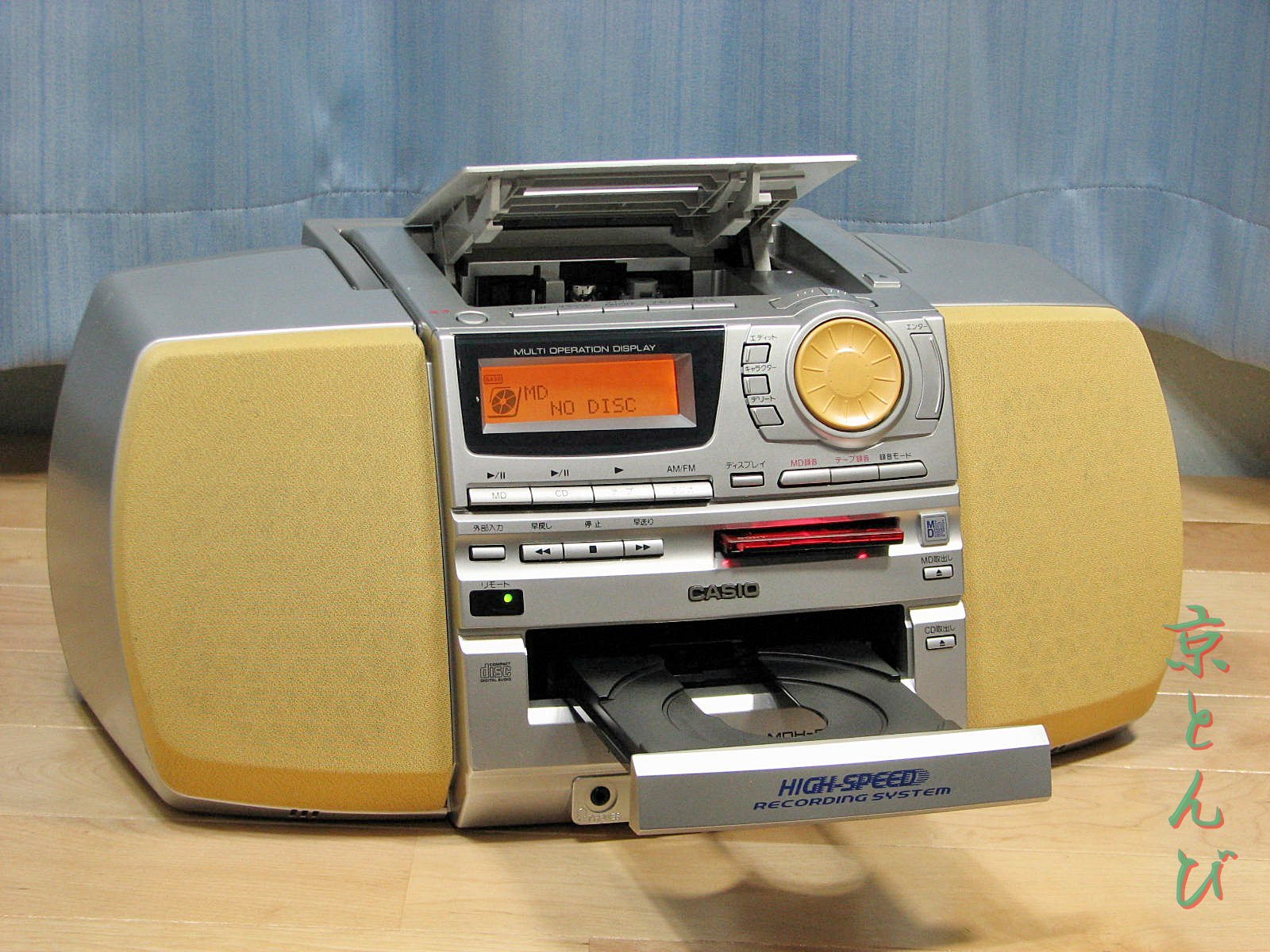

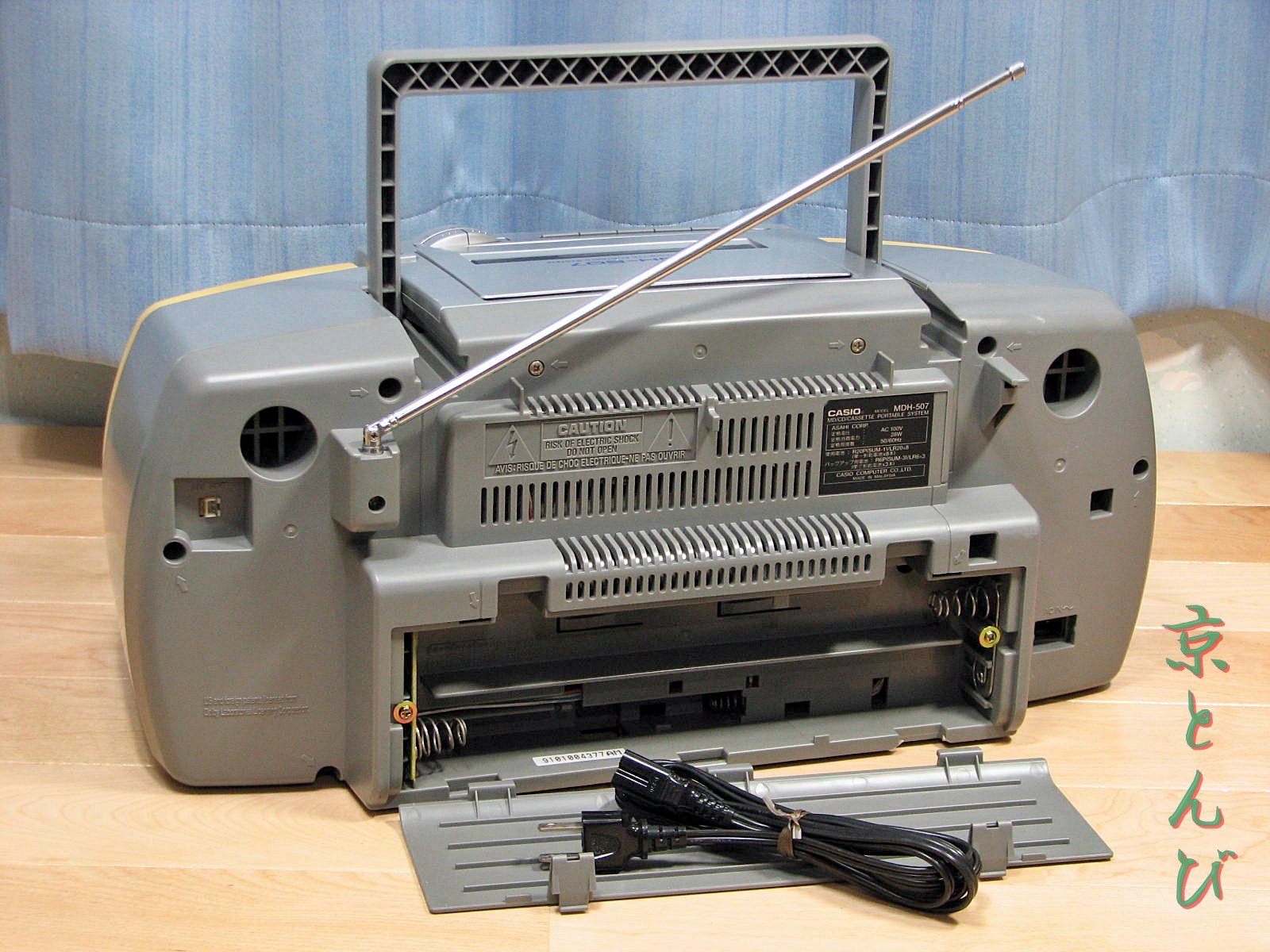

Casio MDH-507. Offered in Icy blue (BE) and Warm Yellow (YW)
Supports katakana characters.
The MD unit has a unique layout. The MD optical pickup is "SONY KMS-260B" and the ATRAC IC is "Panasonic MN66614R4C1"
When using alkaline batteries LR20: Approx. 11 hours during continuous MD playback
Release date approximated from time it appears on casio's website on archive.org.
Content adapted from: rakuten blog Casio Product Page Casio Product Page (MiniDisc Wiki mirror) Casio Spec page Casio Spec page (MiniDisc Wiki mirror)
Manuals
Repair
Photos
Item was present in Casio's December 2000 catalog:
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Web Md | No (not NetMD) |
|---|---|
| Manual | |
| Region | Japan |
