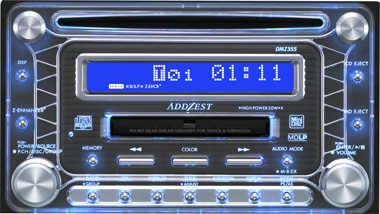

Clarion DMZ355

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-01-01

Manufacturer
Clarion
Model / source grouping
DMZ355
Device type
auto
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Clarion DMZ355”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name DMZ355
Manufacturer Clarion
Released 2005/05
Device type auto
Recorder Player
MDLP Yes
NetMD No
Hi-MD No
Radio Yes
Dimensions 178 (W) x 100 (H) x 184.5 (D) mm
Weight 2200
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 12
Power cable Not recorded
Price (launch) Not recorded
¥39 900
-
Inputs CD
Outputs Not recorded
Control Not recorded

"728 color variable color" linked with audio key illumination Adopted "728 color variable color" that gives off rich colors. It also works with audio key illumination to create an interior space that suits your taste.

Rotary volume control By adopting a large rotary volume, comfortable and reliable operation has been realized.

DSP From a total of 5 types of basic patterns, STADIUM, HALL, CLUB, CHURCH, and L-ROOM, you can select the sound field and presence that suits your music genre and taste.

Z Enhancer Plus In addition to being able to select from three equalizing patterns (B-BOOST / IMPACT / EXCITE) according to the music genre, it is equipped with a 2BAND parametric equalizer function that allows fine adjustment of sound quality by freely setting the gain-Q of each pattern. ..

iPod connection possible * Connection is possible with the EA1251AA (CeNET iPod interface box) scheduled to be released in October. Rating

MD player part

  • Frequency range: 20Hz-20kHz (± 2dB)
  • SN ratio: 90dB
  • Dynamic range: 85dB

CD player section

  • Frequency range: 5Hz-20kHz (± 1dB)
  • SN ratio: 100dB
  • Dynamic range: 95dB

AUX section

  • Input sensitivity: (at 2V output)
  • HIGH: 650mV
  • MID: 1.3V
  • LOW: 2.0V

Audio part

  • Rated output: 17W x 4 (20Hz-20kHz, 1%, 4Ω)
  • Maximum output: 50W x 4 (EIAJ)
  • Compatible impedance: 4Ω (4Ω to 8Ω)
  • Lineout output level: 1.8V (CD1kHz)
  • Current consumption: 3.0A (at 1W)
  • Fuse rating: 15A / 3A

Content adapted from: av.watch Clarion DMZ355 Press Release

Manuals

Clarion DMZ355 User Manual JP

Repair

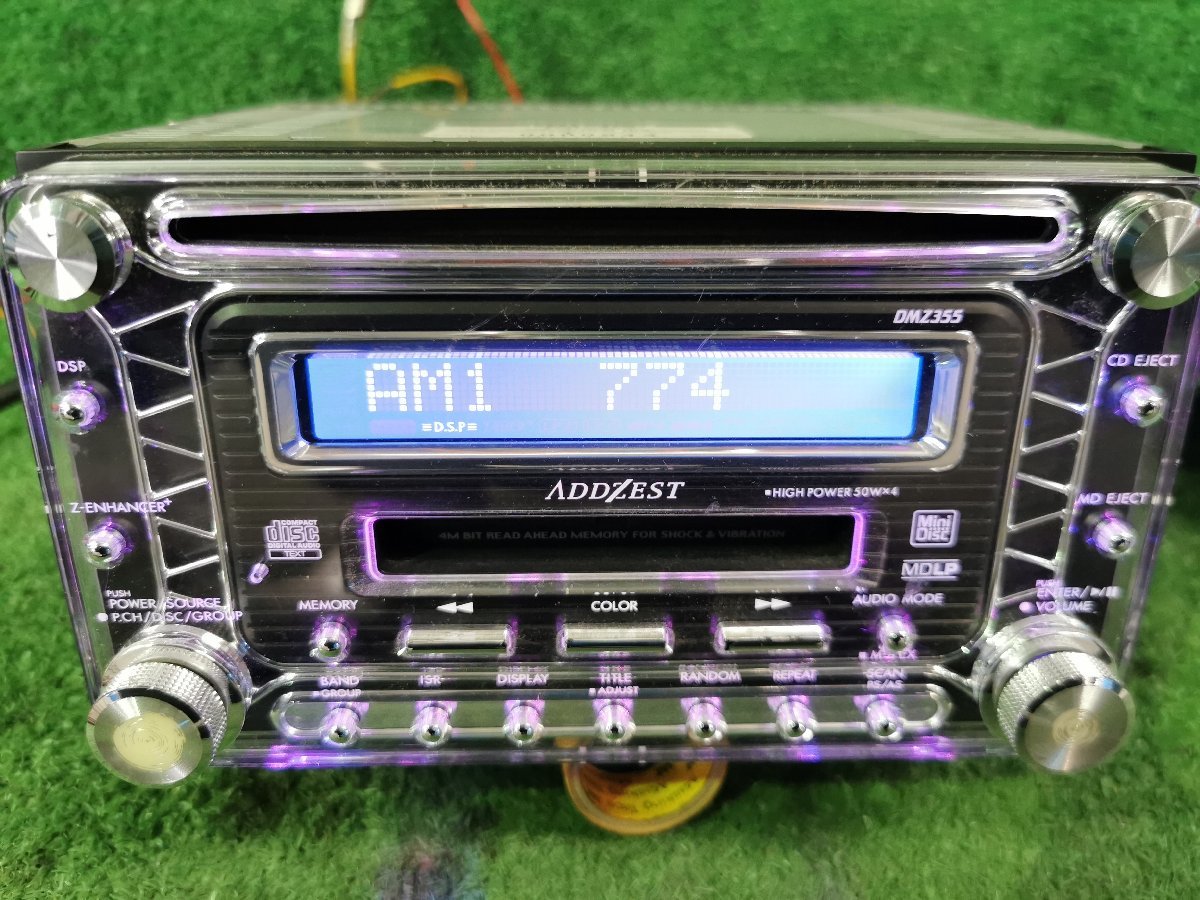

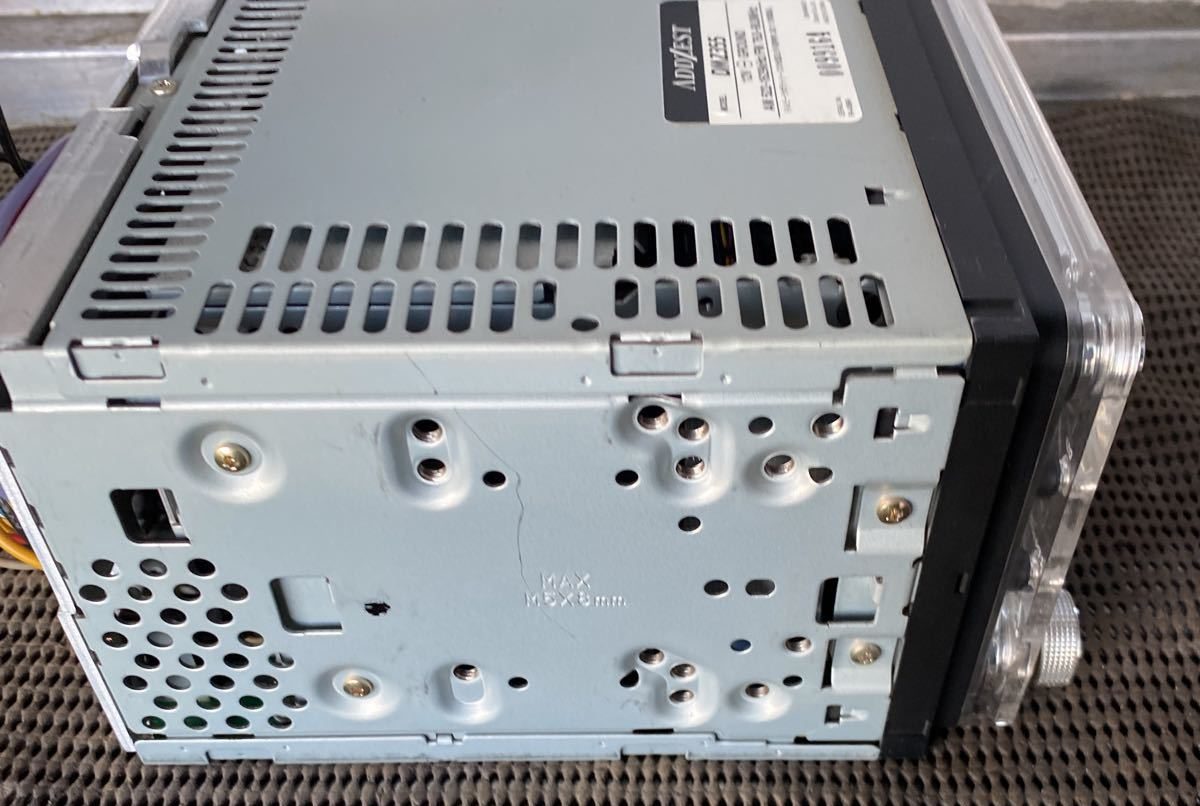

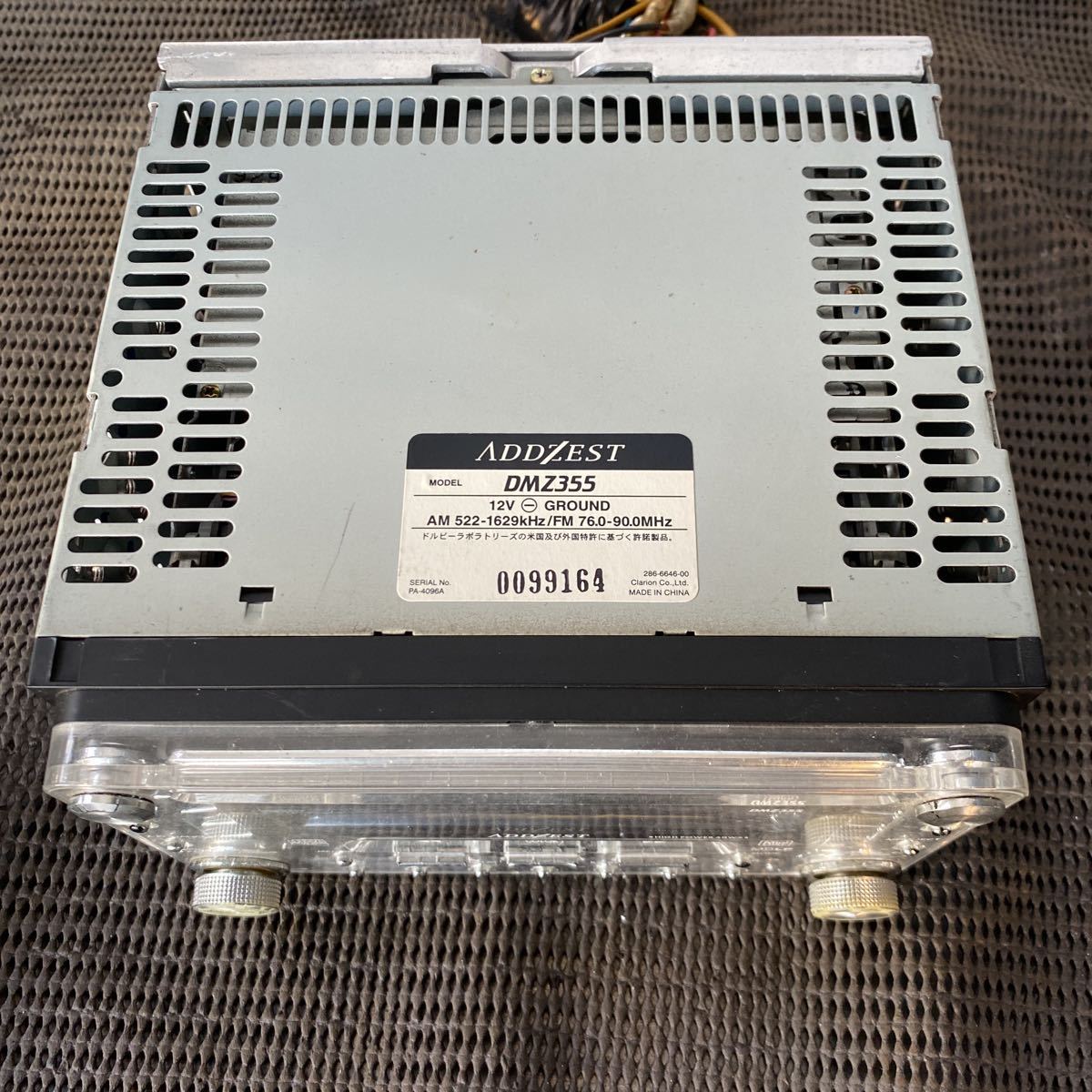

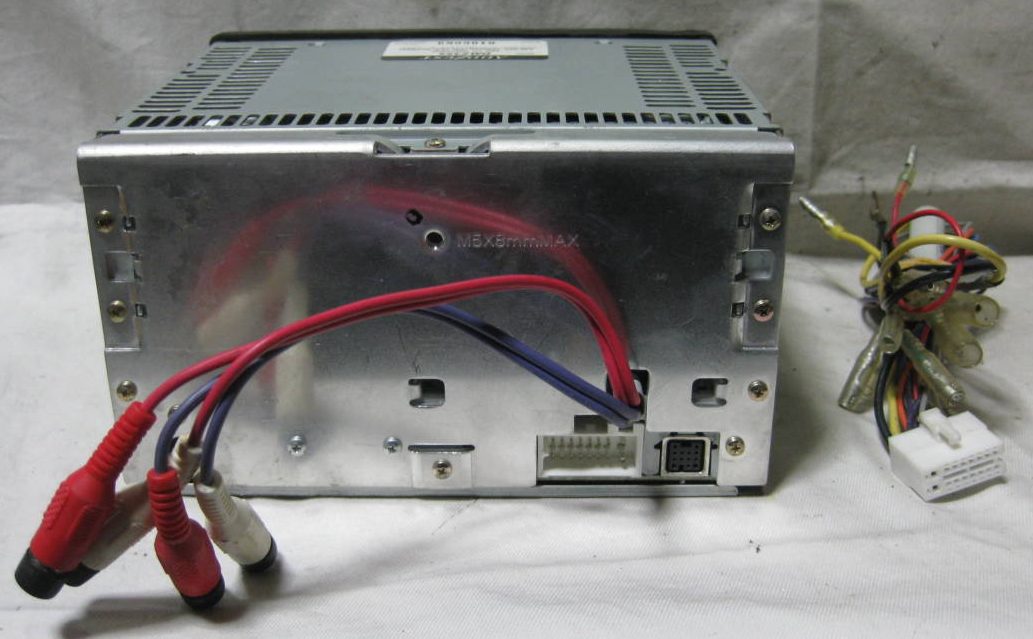

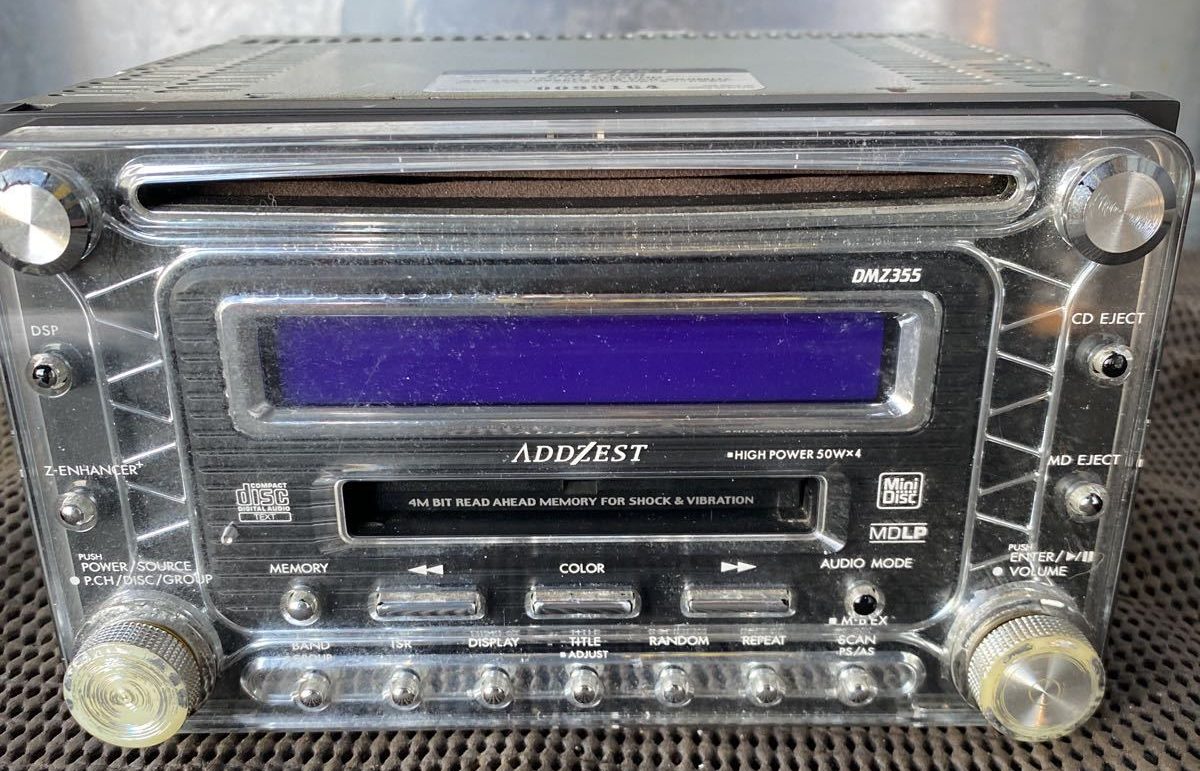

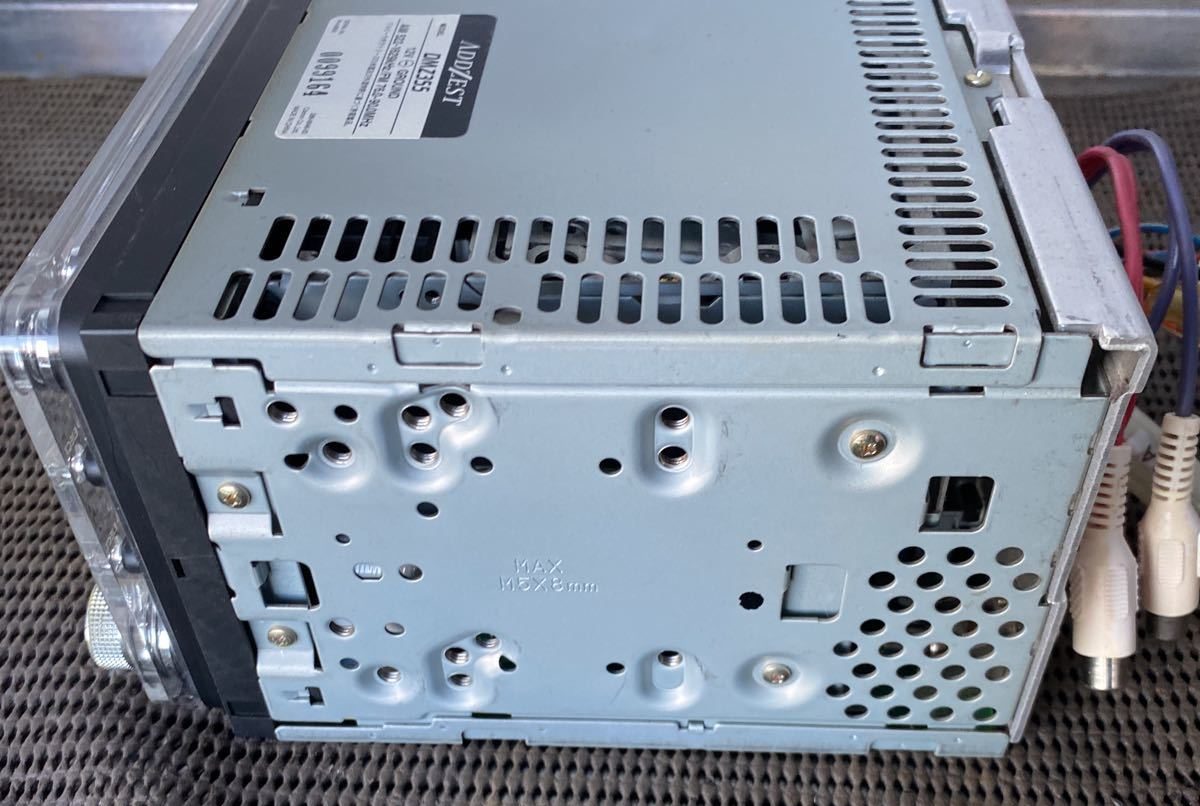

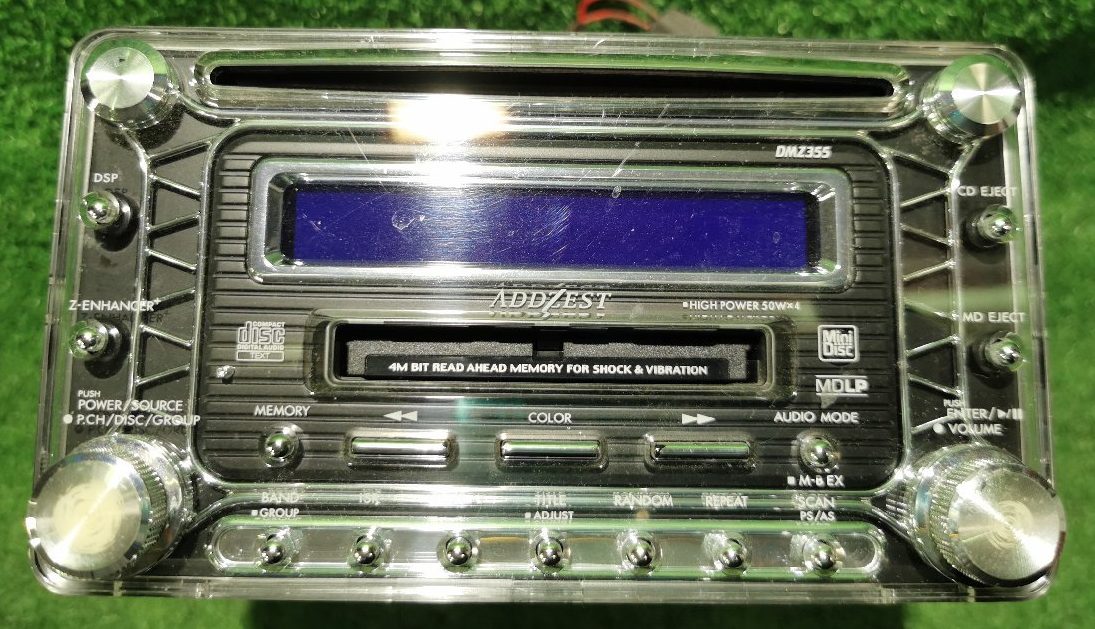

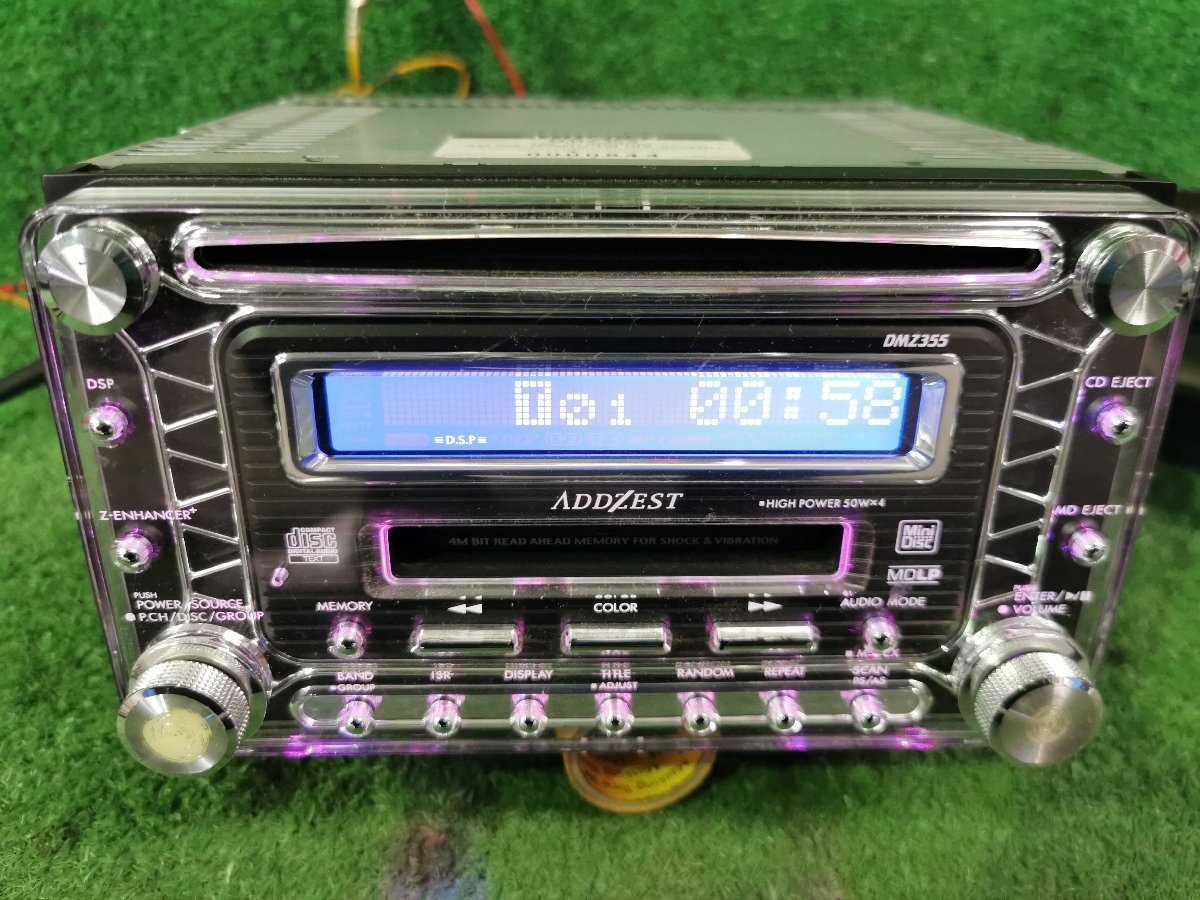

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
Web MdNo (not NetMD)
ManualUser manual
RegionJapan
