Adapted from “Clarion DMZ536TN”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.
| Name | DMZ536TN |
|---|---|
| Manufacturer | Clarion |
| Released | 2003/03 |
| Device type | auto |
| Recorder | Not recorded |
| MDLP | Yes |
| NetMD | Not recorded |
| Hi-MD | Not recorded |
| Radio | Yes |
| Dimensions | 178 (W) x 100 (H) x 179.5 (D) mm |
| Weight | 2100 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥45 000 | |
| - | |
| Inputs | CD |
| Outputs | Not recorded |
| Control | Not recorded |

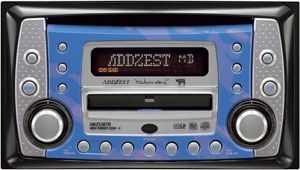

Clarion Co. , Ltd. will release the CD / MD 2DIN center unit "DMZ536TN" in collaboration with the acoustic unit " choro azul " in early March. The price is an open price, and a limited release of 3,000 units. The estimated retail price is expected to be around 45,000 yen.

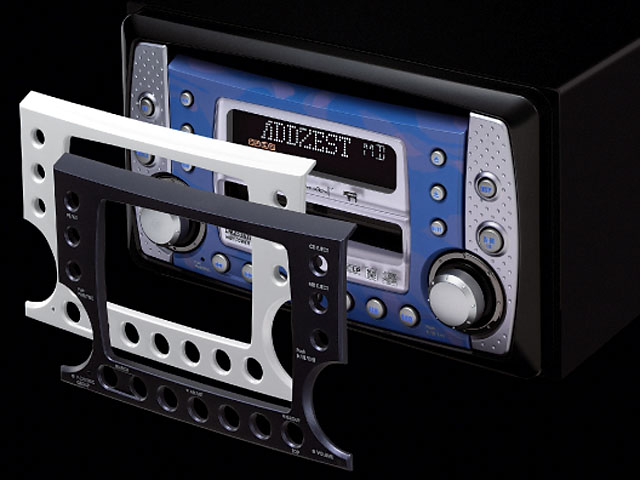

Dress face panel mechanism DMZ536TN is a center unit based on "DMZ535LP" released in October 2002. The face panel has been changed to a "dress face panel mechanism" with a dress-up function, and the main face panel has been changed to a collaboration design with choro azul. Designed by RADIO (Yoshinobu Tajima). Other specifications are the same as DMZ535LP.
The amplifier output is 50W x 4ch. It is equipped with 5 patterns of DSF (digital sound field) such as "STADIUM", "HALL", and "CLUB", and a parametric EQ with 7 bands and 4 presets. It supports playback of CD-R / RW and MDLP. In addition to being equipped with an AM / FM tuner, it also supports Ce NET and mobile link.
cholo azul is an irregular trio by Yukiko Hayashi (vocals), Naoki Osawa (guitar), and Tetsuya Ieiri (percussion). Debuted in June 2002 with the 1st album "choro azul" from the chordiary label. The 2nd album "2-do is" will be released on March 5th.
To commemorate the release, a music talk program with DMZ536TN as the key concept will be broadcast on the CS broadcasting station "SPACE SHOWER TV". The first broadcast will be from 20:30 to 21:00 on March 20, and repeat broadcasts are scheduled for March 22, 24, 25, and 26.
Content adapted from: Clarion DMZ536TN
Manuals
Repair
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Manual | User manual |
|---|---|
| Region | Japan |
