| Name | DMZ545LP |
|---|---|
| Manufacturer | Clarion |
| Released | 2004/06 |
| Device type | auto |
| Recorder | Player |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 178 (W) x 100 (H) x 184.5 (D) mm |
| Weight | 2200 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥49 350 | |
| - | |
| Inputs | RCA in, CD |
| Outputs | Speaker amplifier |
| Control | Not recorded |

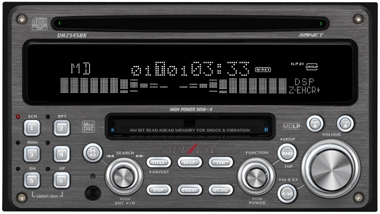

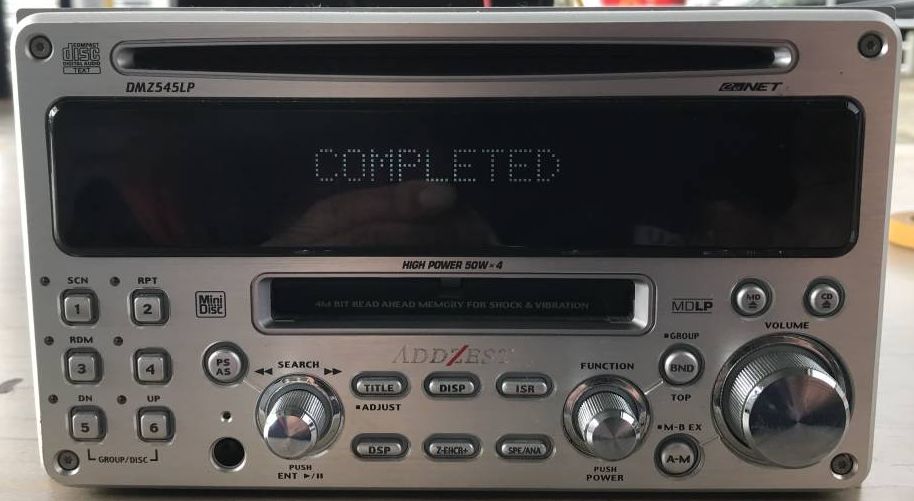

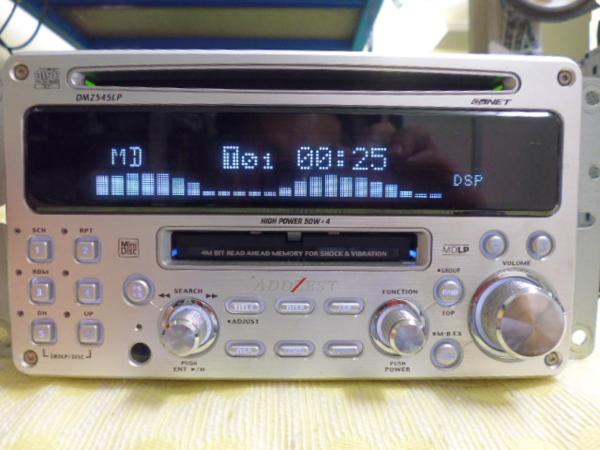

Clarion ADDZEST DMZ545LP - Silver face, DMZ545BK - Black face
MD player part Frequency characteristic: 20Hz-20kHz (± 2dB)
SN ratio: 90dB
Rated output:
17W x 4 (20Hz-20kHz, 1%, 4Ω)
Maximum output:
50W x 4 (EIAJ)
Compatible impedance: 4Ω (4Ω-8Ω)
Lineout output level: 1.8V (CD1kHz)
Content adapted from: Clarion Press Release
Manuals
Video

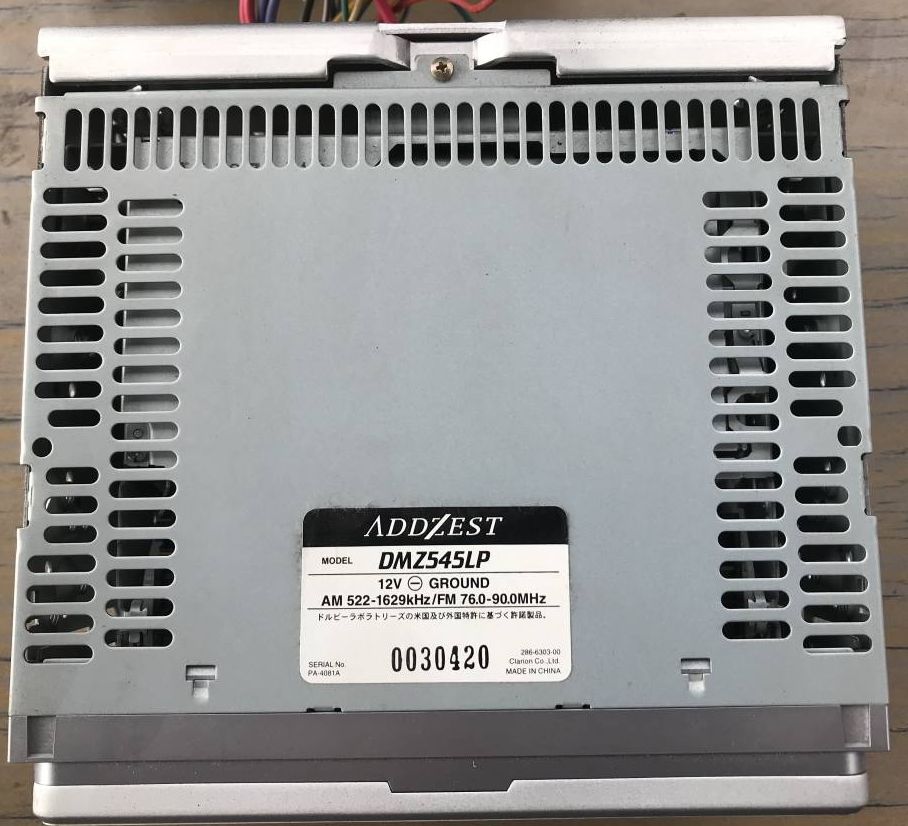

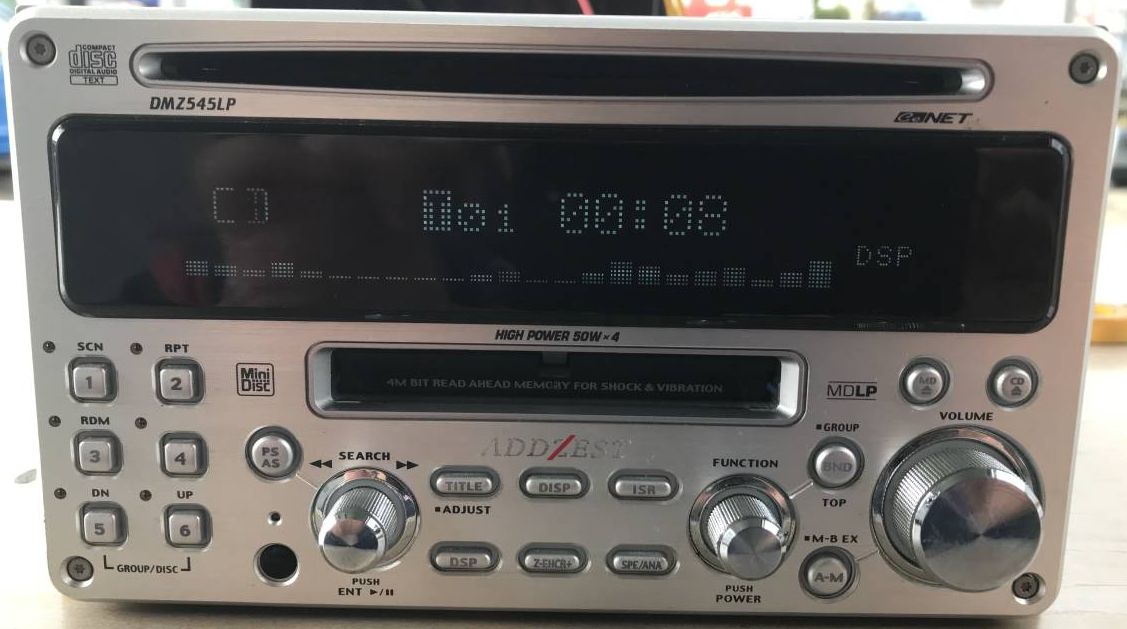

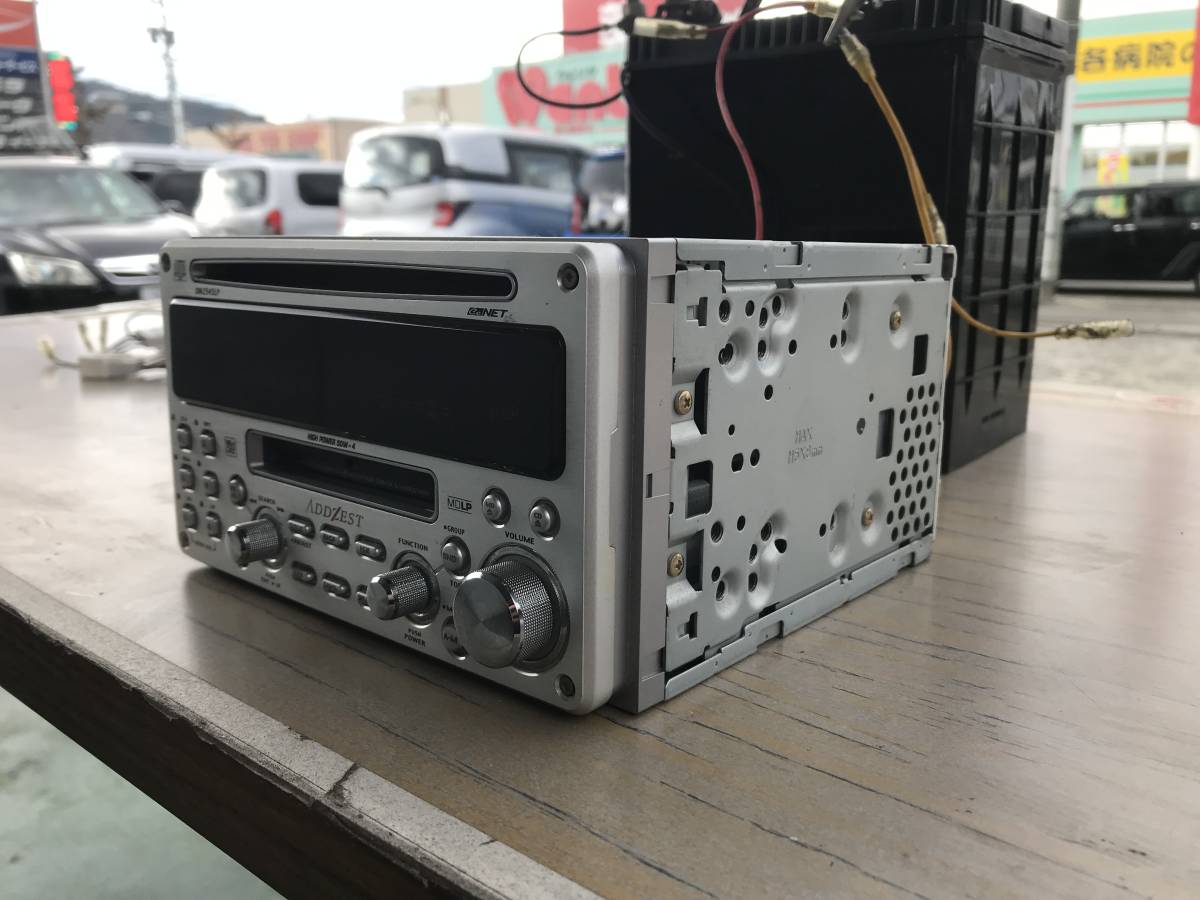

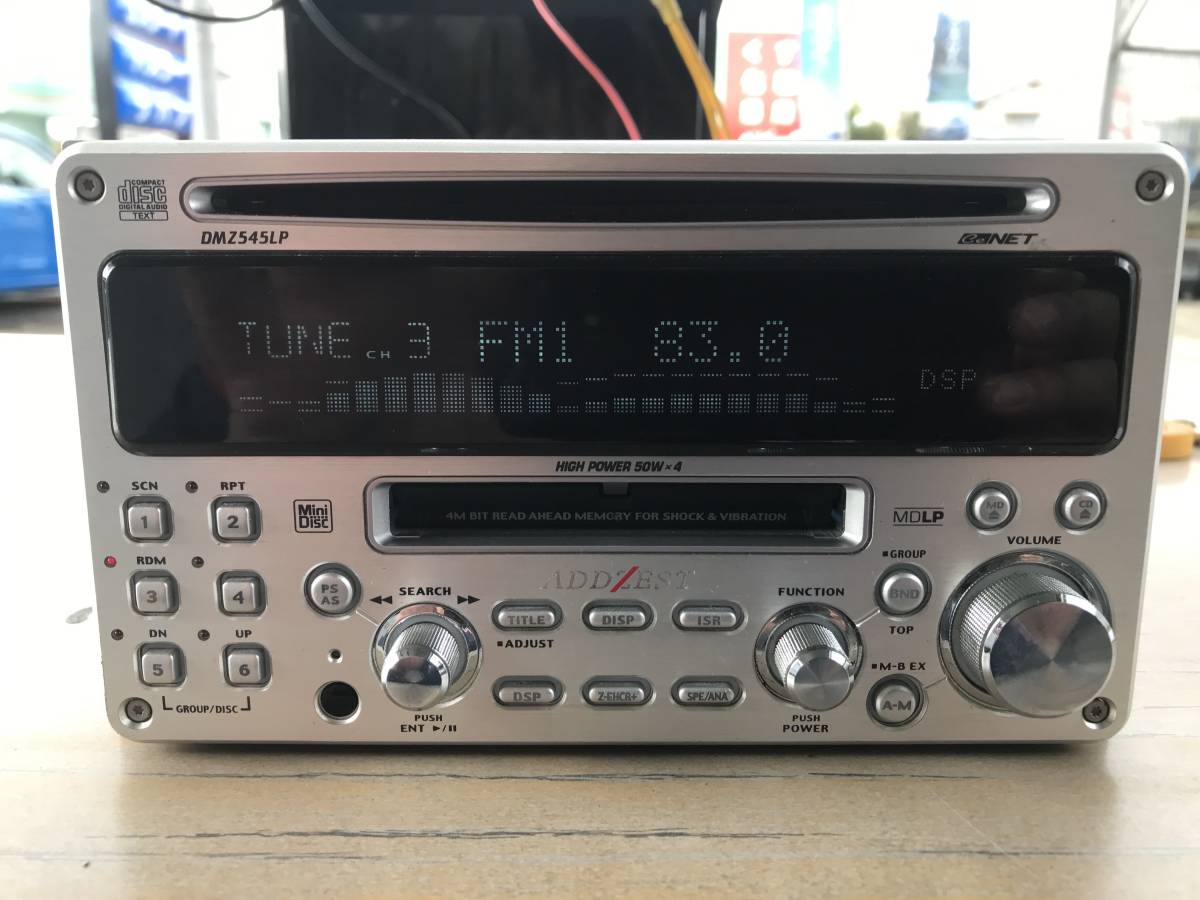

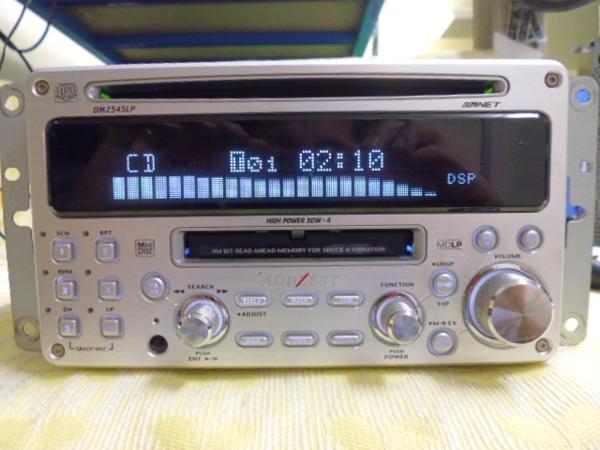

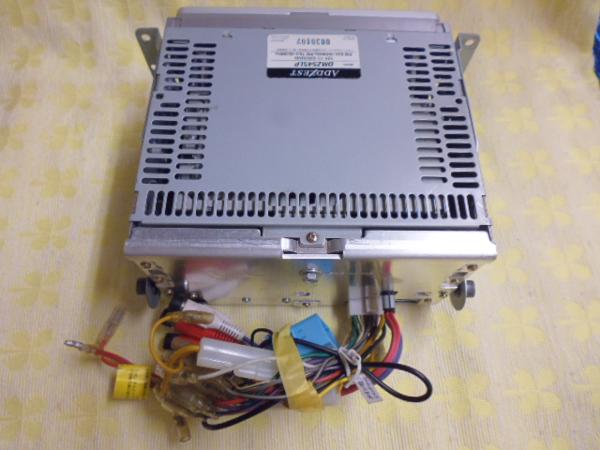

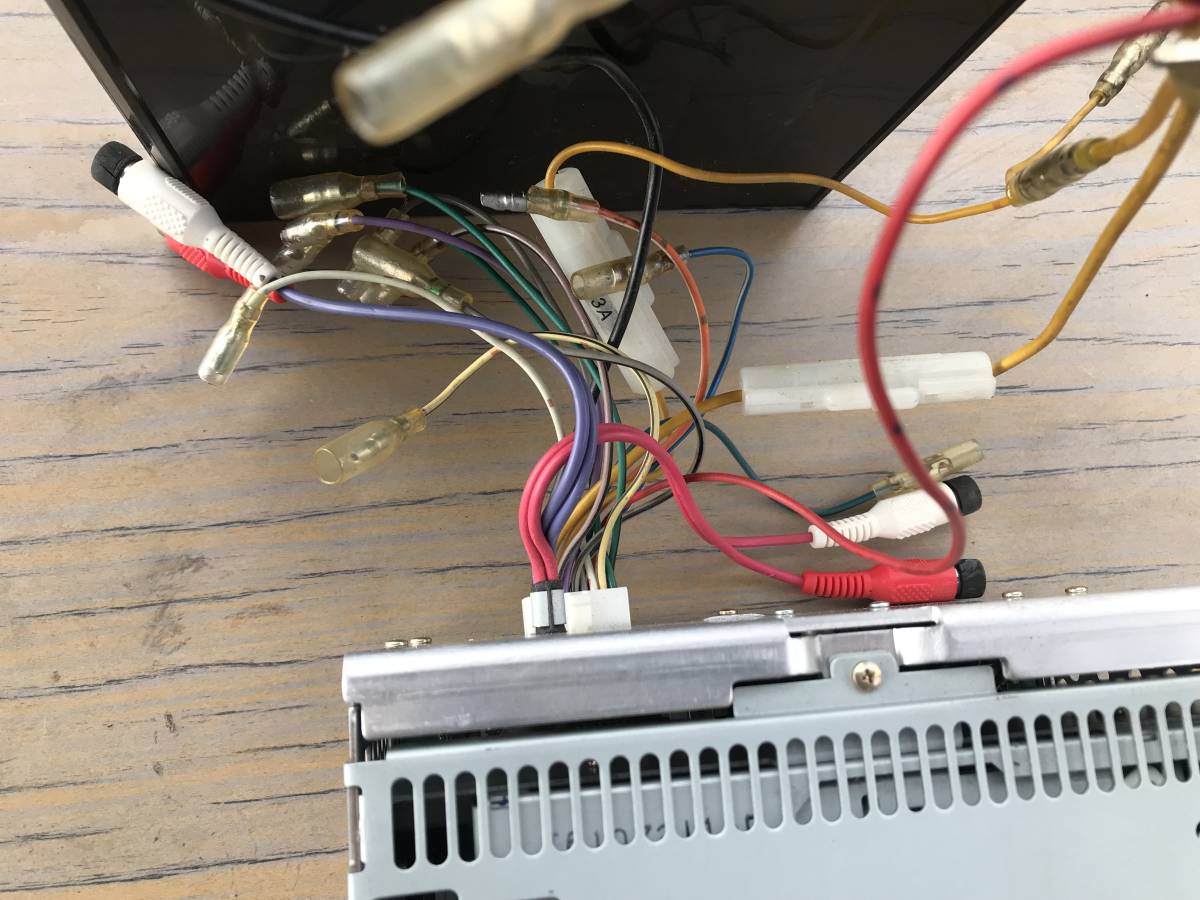

Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Web Md | No (not NetMD) |
|---|---|
| Export | No |
| Manual | User manual |
| Region | Japan |
