| Name | DMZ616LP |
|---|---|
| Manufacturer | Clarion |
| Released | 2001/12 |
| Device type | auto |
| Recorder | Player |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 178 x 179.5 x 100 mm |
| Weight | 2100 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 100 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥63 000 | |
| - | |
| Inputs | CD |
| Outputs | Not recorded |
| Control | Not recorded |

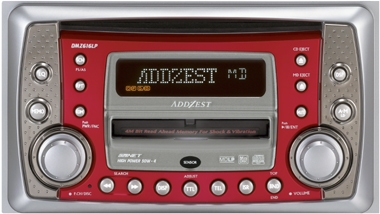

Clarion DMZ616LP
- CD frequency characteristics: 10Hz to 20kHz (± 1dB)
- CD part SN ratio: 100dB
- CD section dynamic range: 95 dB
- CD section high distortion factor: 0.01%
- MD frequency characteristics: 20Hz to 20kHz
- MD part SN ratio: 90dB
- MD part dynamic range: 85dB
- MD part high distortion: 0.01% (1kHz)
- Rated output of amplifier: 18W x 4 (20Hz-20kHz, 1%, 4Ω)
- Maximum output of amplifier: 50W x 4 (JEITA)
- External dimensions (width x depth x height): 178 x 179.5 x 100 mm
- Mass: 2.1kg
Content adapted from: Clarion DMZ616LP response.jp
Manuals
Repair
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Web Md | No |
|---|---|
| Manual | User manual |
| Region | Japan |
