| Name | DMZ635LP |
|---|---|
| Manufacturer | Clarion |
| Released | 2003/06 |
| Device type | auto |
| Recorder | Player |
| MDLP | Yes |
| NetMD | Not recorded |
| Hi-MD | Not recorded |
| Radio | Yes |
| Dimensions | 178 (W) x 100 (H) x 184.5 |
| Weight | 2200 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥55 125 | |
| - | |
| Inputs | CD |
| Outputs | Not recorded |
| Control | Not recorded |

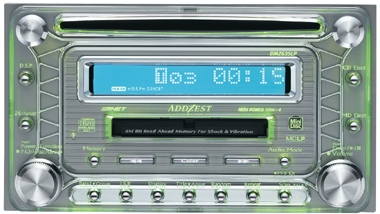

Clarion ADDZEST DMZ635LP
MD player part Frequency characteristic 20Hz-20kHz (± 2dB)
SN ratio 90dB
Dynamic range 85dB
Audio part Rated output 17W x 4 (20Hz-20kHz, 1%, 4Ω)
Maximum output 50W x 4 (EIAJ)
Compatible speaker impedance 50W x 4 (EIAJ)
Lineout output level 1.8V (CD1kHz)
AUX section Input sensitivity (at 2V output)
- LOW: 650mV
- MID: 1.3V
- HIGH: 2.0V
Content adapted from: Clarion ADDZEST DMZ635LP
Manuals
Repair
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Manual | User manual |
|---|---|
| Region | Japan |
