| Name | DMZ725LP |
|---|---|
| Manufacturer | Clarion |
| Released | 2002/05 |
| Device type | auto |
| Recorder | Player |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | Not recorded |
| Radio | Yes - 76-90Mhz |
| Dimensions | 178 (W) x 100 (H) x 185 (D) mm |
| Weight | 2.8kg |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥77 175 | |
| - | |
| Inputs | 3.5mm line in (analog-only), CD |
| Outputs | Not recorded |
| Control | Not recorded |

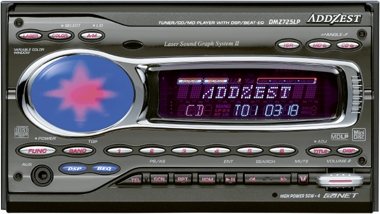

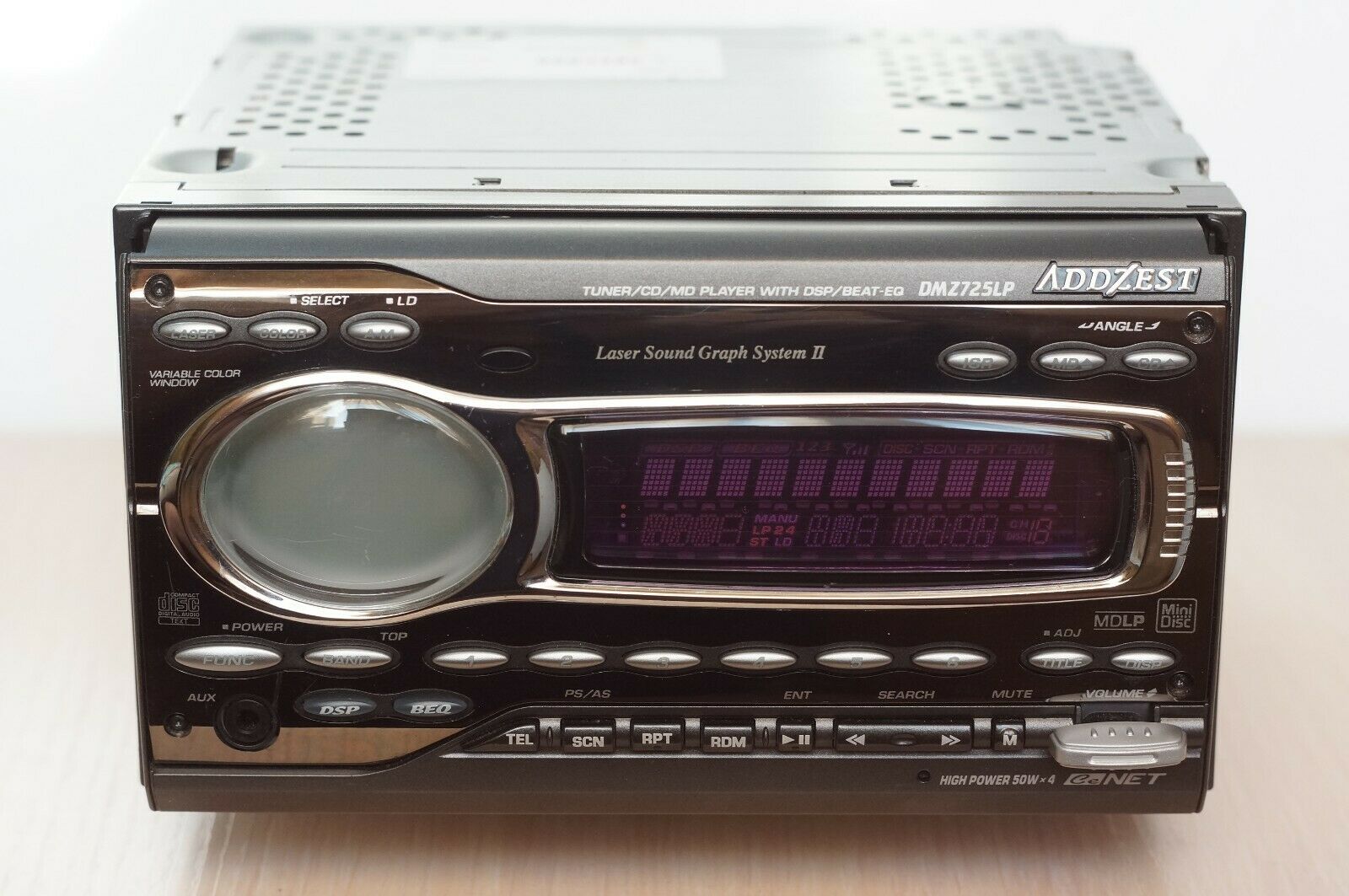

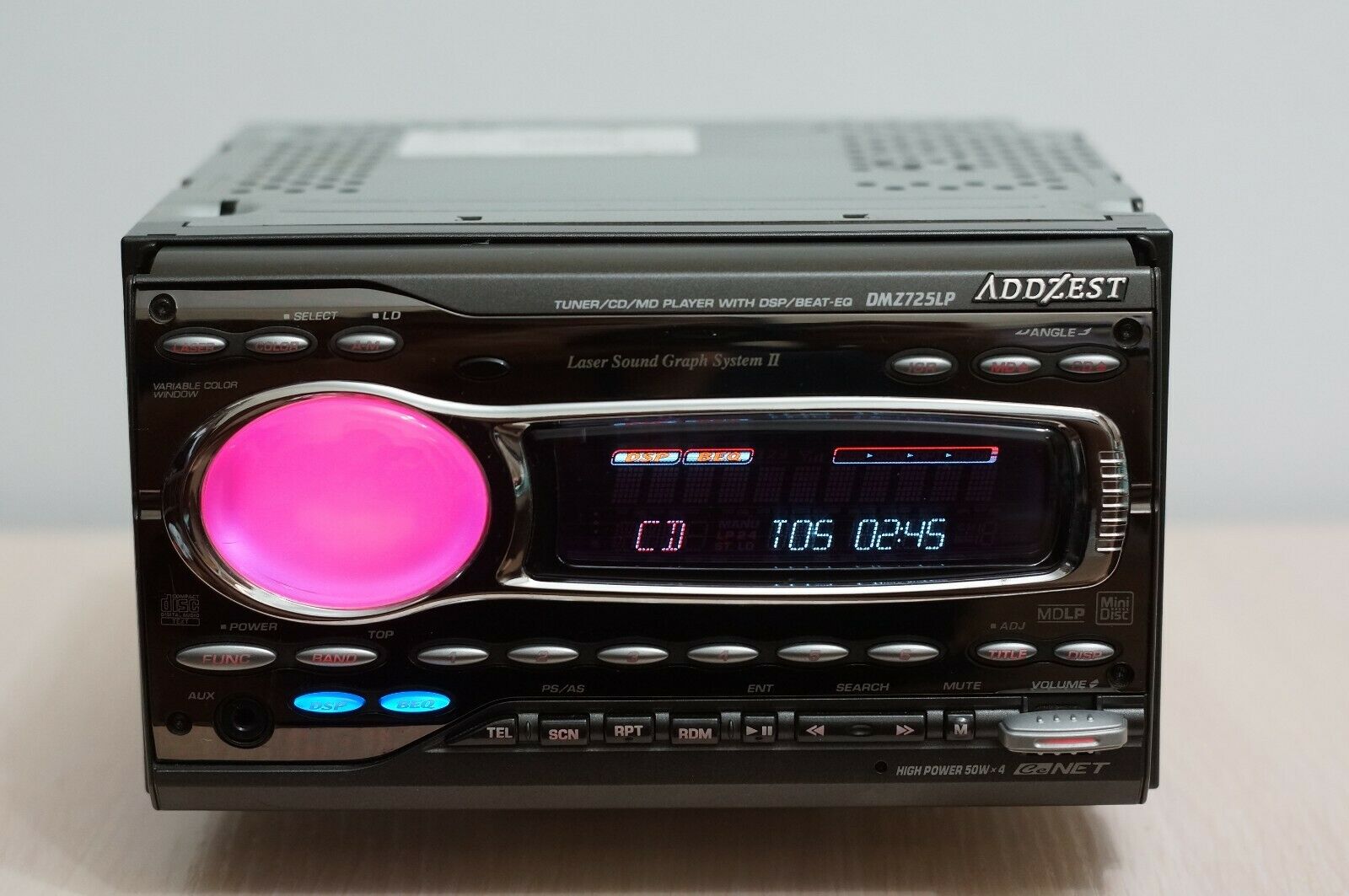

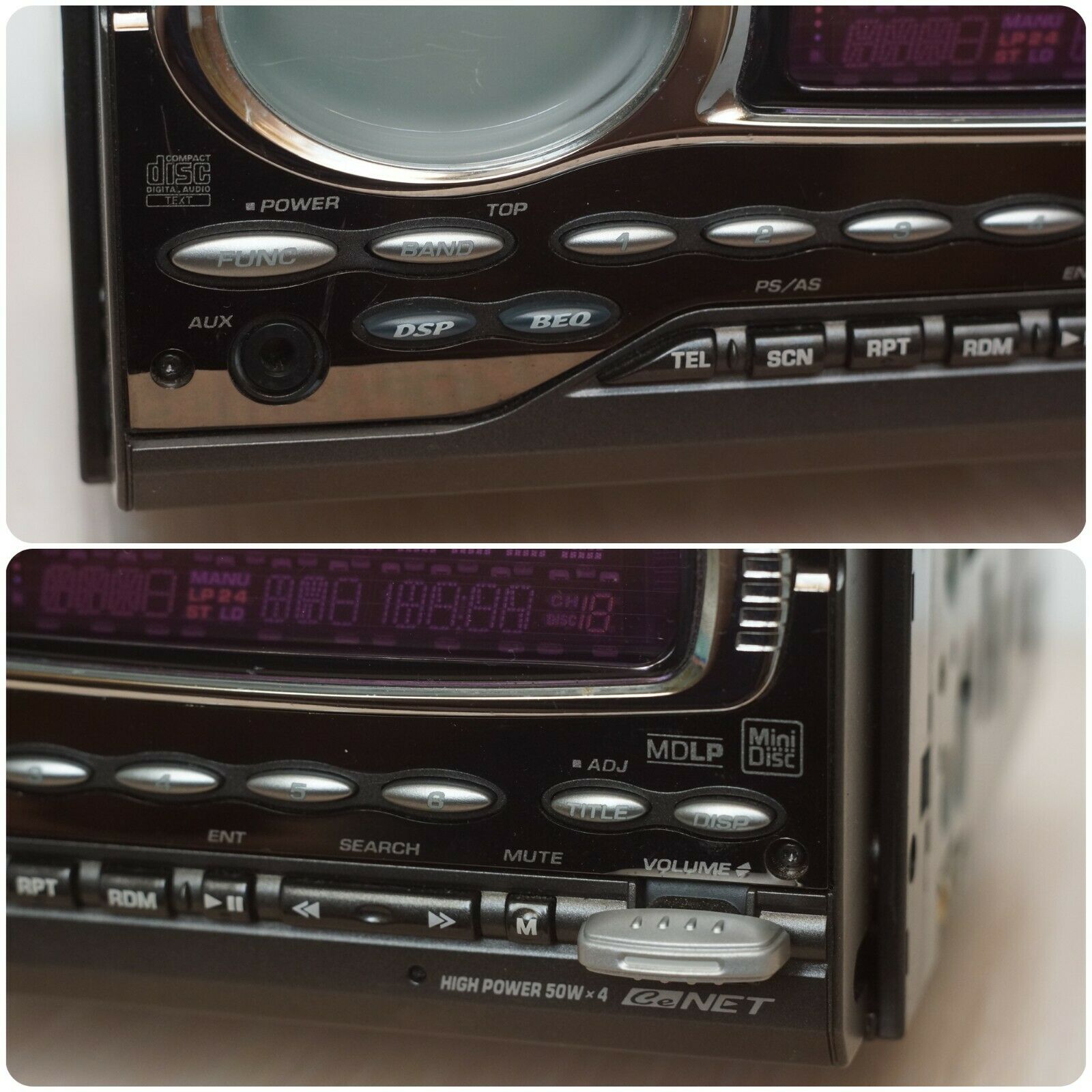

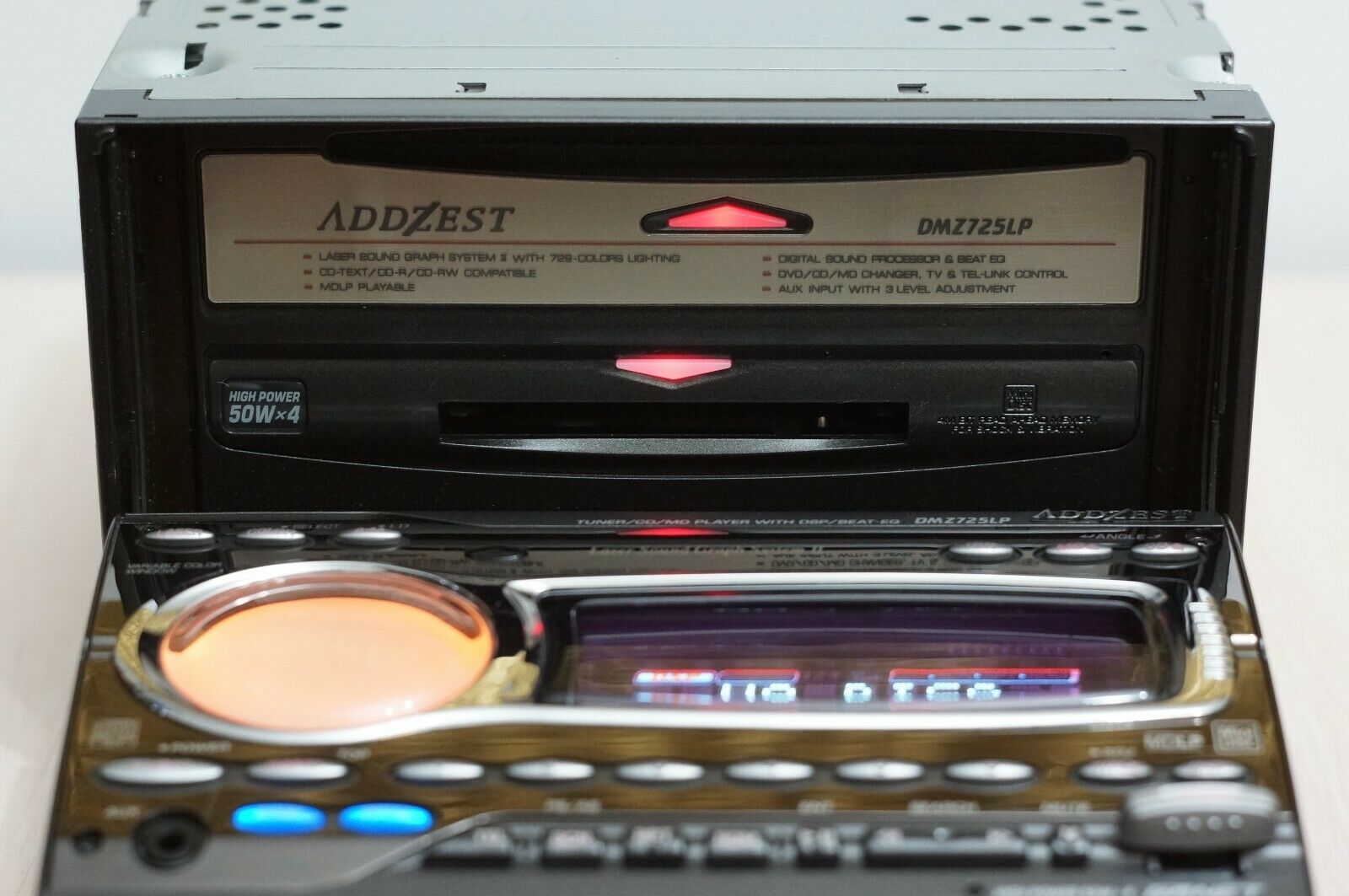

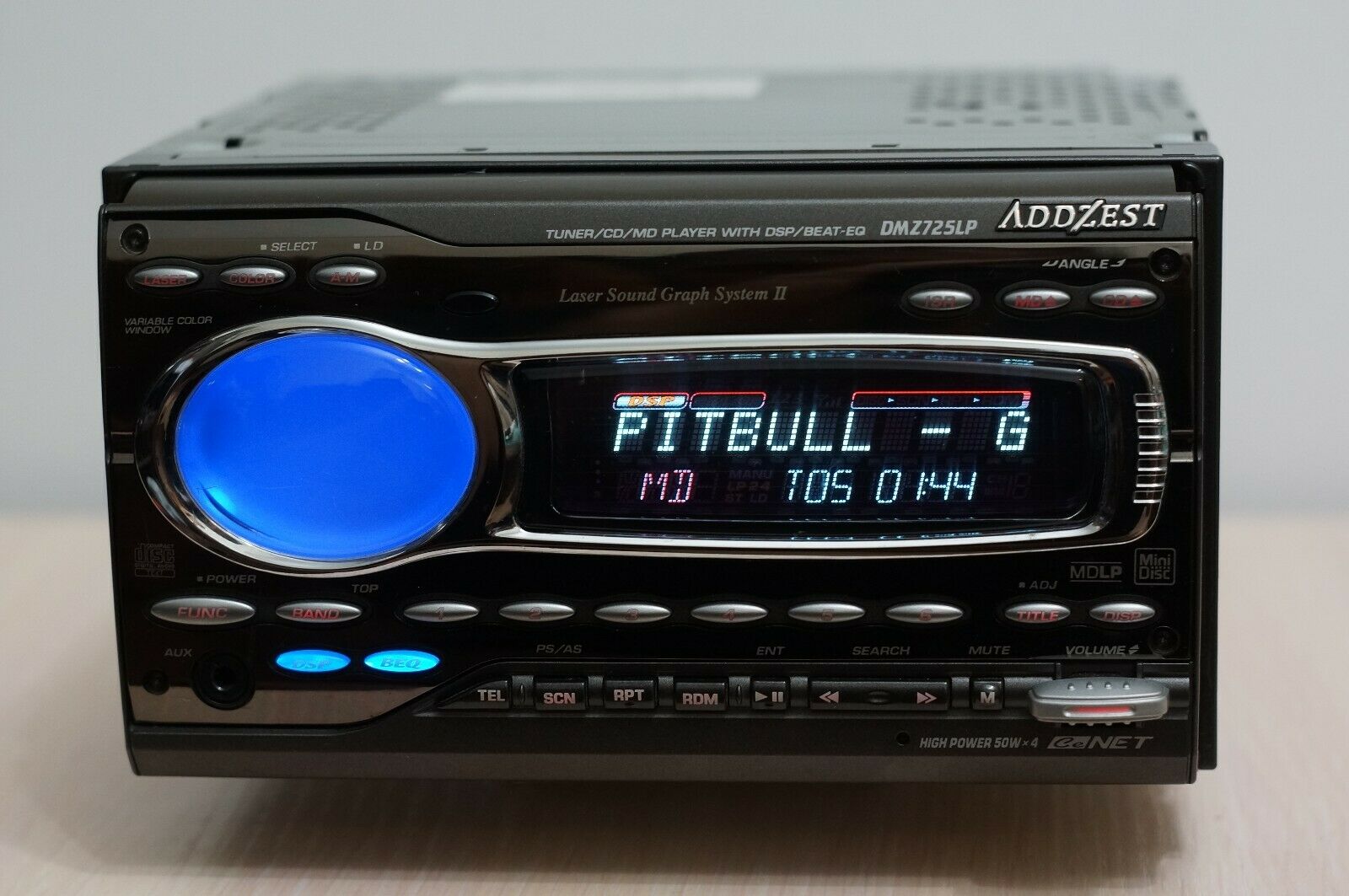

Clarion DMZ725LP
MD player part Frequency characteristic 20Hz-20kHz (± 2dB) SN ratio 90dB Dynamic range 92dB
Audio part Rated output 18W x 4 (20Hz-20kHz, 1%, 4Ω) Maximum output 50W x 4 (EIAJ) Compatible Speaker
Impedance 4Ω (4Ω to 8Ω) Lineout output level 4V (CD1kHz)
