| Name | DMZ735LP |
|---|---|
| Manufacturer | Clarion |
| Released | 2003/07 |
| Device type | auto |
| Recorder | Not recorded |
| MDLP | Yes |
| NetMD | Not recorded |
| Hi-MD | Not recorded |
| Radio | Yes |
| Dimensions | 178 (W) x 100 (H) x 185 (D) mm |
| Weight | 3100 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥71 400 | |
| - | |
| Inputs | 3.5mm line in (analog-only), RCA in, CD |
| Outputs | Not recorded |
| Control | Not recorded |

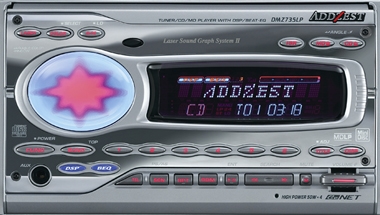

Clarion DMZ735LP
MD player part Frequency characteristic 20Hz-20kHz (± 2dB)
SN ratio 90dB
Dynamic range 82dB
CD player section Frequency characteristic 5Hz-20kHz (± 1dB)
SN ratio 100dB
Dynamic range 92dB
Audio part Rated output
18W x 4 (20Hz-20kHz, 1%, 4Ω)
Maximum output 50W x 4 (JEITA)
Compatible speaker impedance 4Ω (4Ω to 8Ω)
Lineout output level 1.8V (CD1kHz)
AUX section
- Input sensitivity (at 1.8V output)
- LOW: 1V
- MID: 650mV
- HIGH: 330mV
Content adapted from: Clarion Press Release
Manuals
Repair

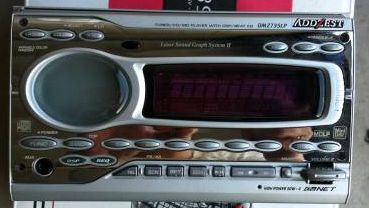

Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Manual | |
|---|---|
| Region | Japan |
