| Name | DMZ815MP |
|---|---|
| Manufacturer | Clarion |
| Released | 2001/06 |
| Device type | auto |
| Recorder | Player |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 178(W) × 100(H)×185(D)mm |
| Weight | 3300 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥84 000 | |
| - | |
| Inputs | CD, Built-in mic |
| Outputs | Not recorded |
| Control | Not recorded |

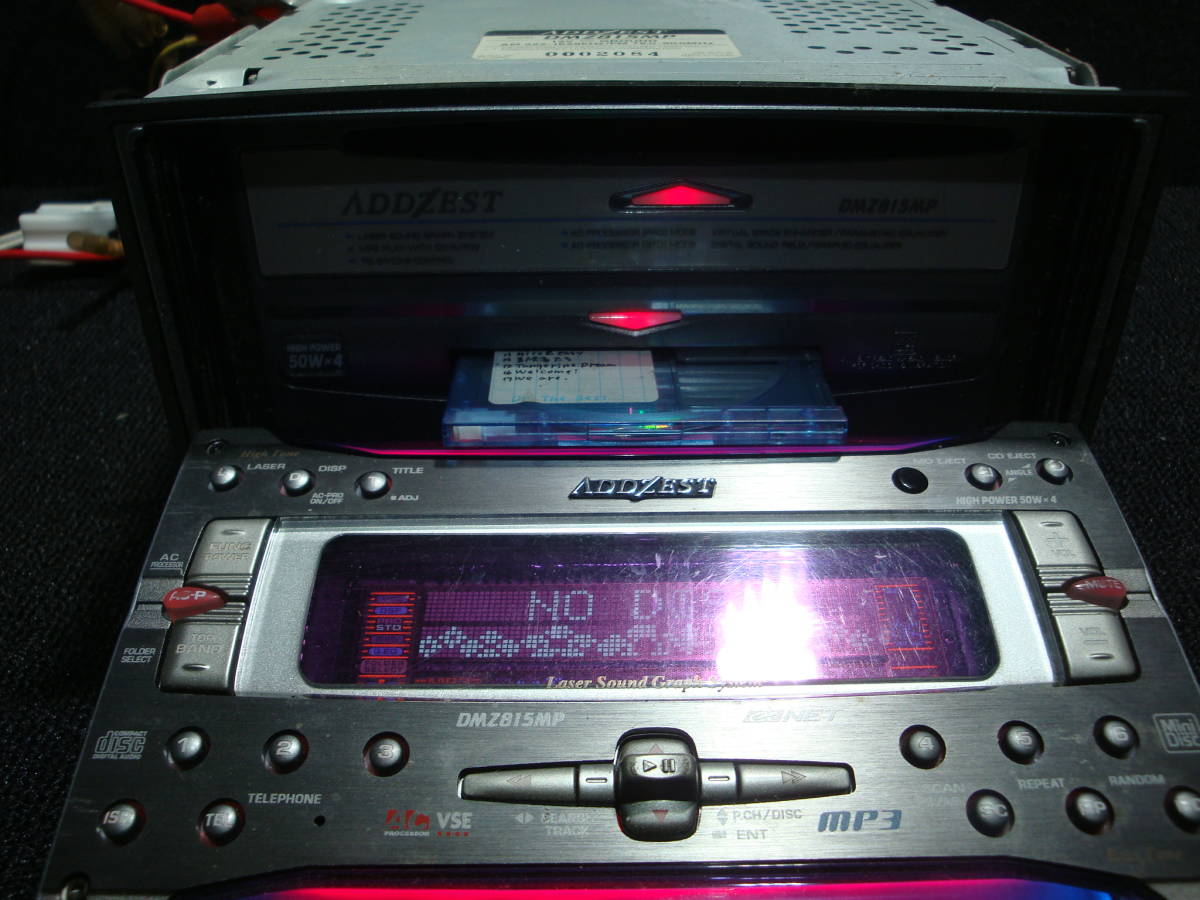

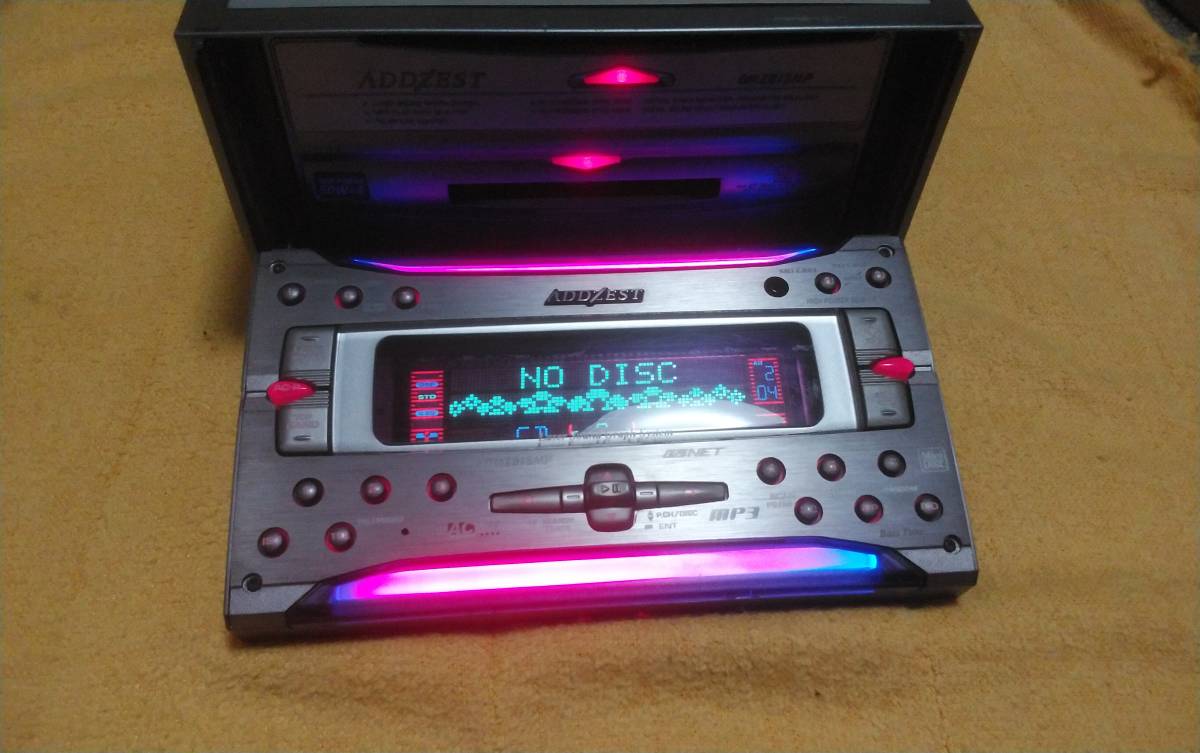

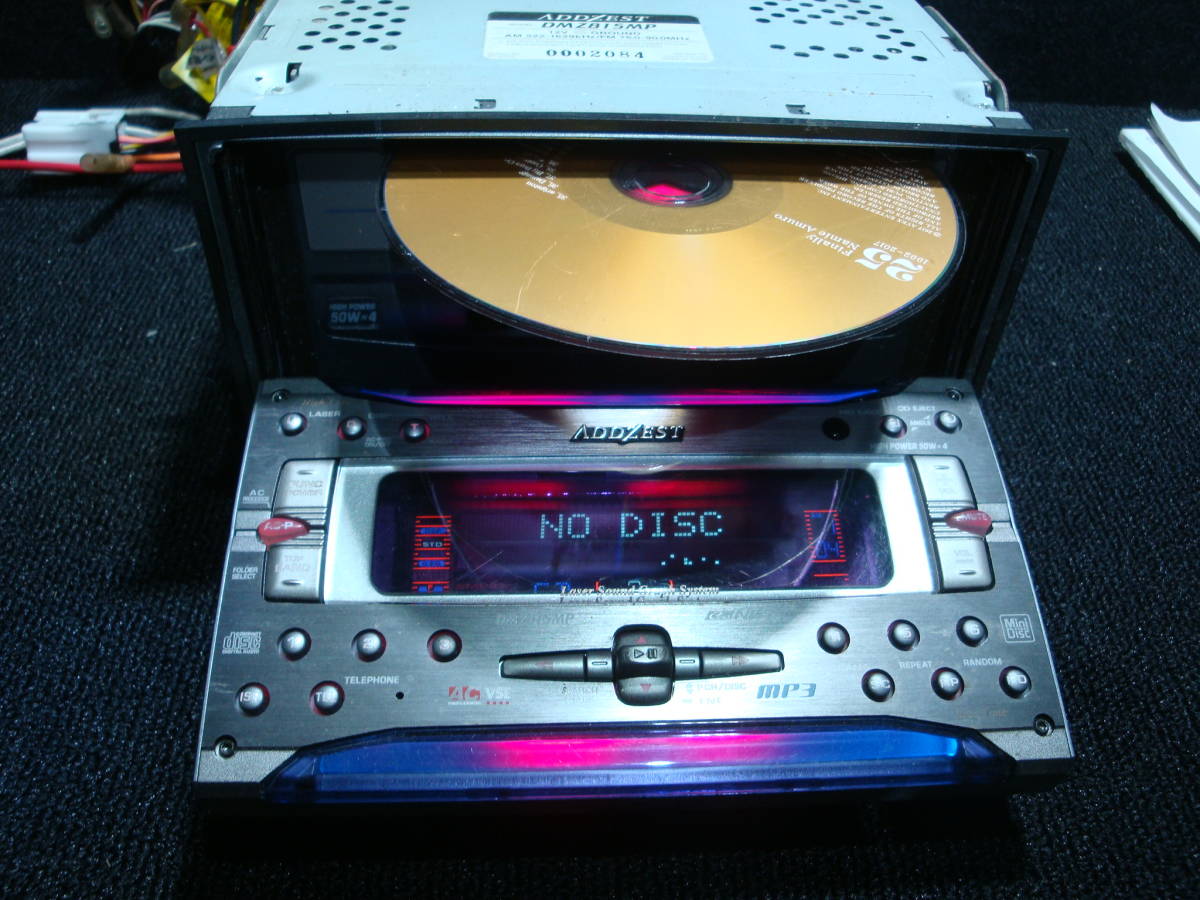

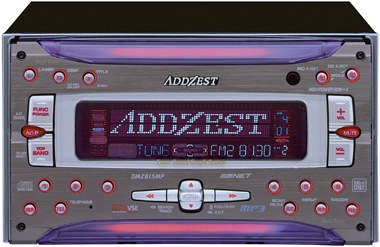

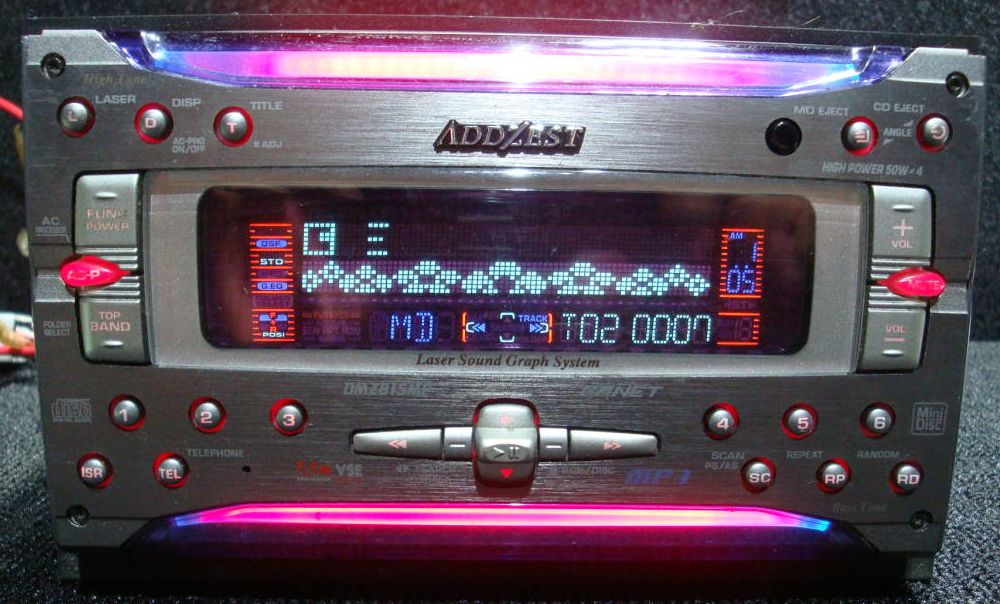

The DMZ815MP has a built-in AM/FM radio tuner, CD deck, and MD deck in a 2DIN size, and has an MP3 playback function. In addition to being equipped with a Beat EQ function, high-quality audio playback is possible by adopting a 24-bit DAC. Equipped with "Laser Sound Graphic", the top and bottom of the front panel vividly emit light according to the music being played. It also has a control function for an optional CD changer, MD changer, TV tuner, and mobile phone connection unit.
Rated output is 17W x 4, maximum output is 50W x 4.
Content adapted from: ascii.jp Kakaku.com registration date
Manuals
Repair
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Web Md | No |
|---|---|
| Manual | User manual |
| Region | Japan |
