| Name | DMZ846MP |
|---|---|
| Manufacturer | Clarion |
| Released | 2004/11 |
| Device type | auto |
| Recorder | Player |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 178 (W) x 100 (H) x 180.5 (D) mm |
| Weight | 2200 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥66 150 | |
| - | |
| Inputs | 3.5mm line in (analog-only), CD |
| Outputs | Not recorded |
| Control | Not recorded |

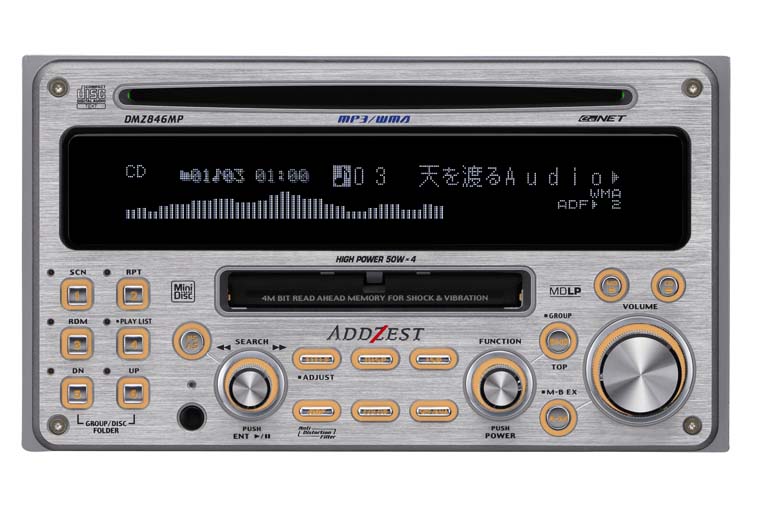

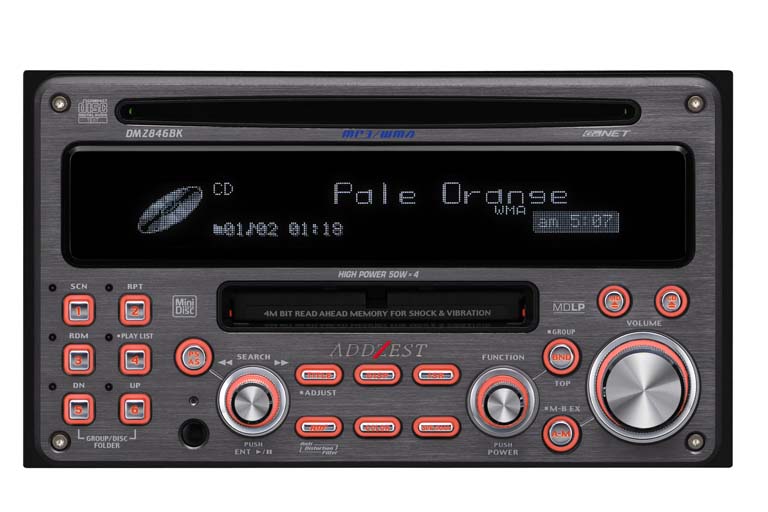

DMZ846MP (Silver) DMZ846BK (Black)
- SN ratio: 90dB
- Dynamic range: 85dB
- MD player part Frequency characteristic: 20Hz-20kHz (± 2dB)
- Audio part Rated output 17W x 4 (20Hz-20kHz, 1%, 4Ω)
- Maximum output 50W x 4 (EIAJ)
- Compatible impedance 4Ω (4Ω-8Ω)
- Lineout output level 1.8V (CD1kHz)
AUX section
Input sensitivity (at 2V output)
LOW: 2.0 V MID: 1.3V HIGH: 650mV
Content adapted from: Clarion News Addzest press release Addzest press release (MiniDisc Wiki mirror) av.watch Winner of the G-Mark good design award 2004
Manuals
Repair

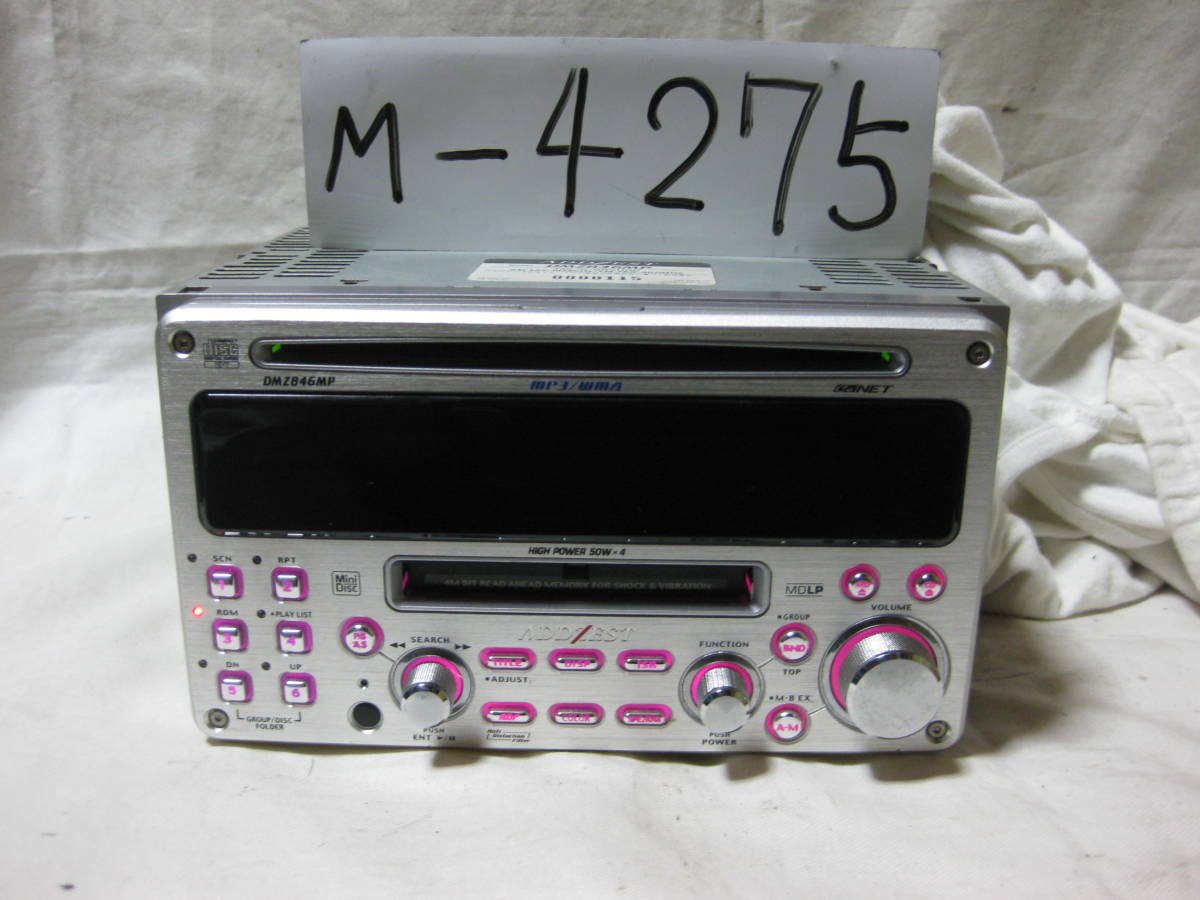

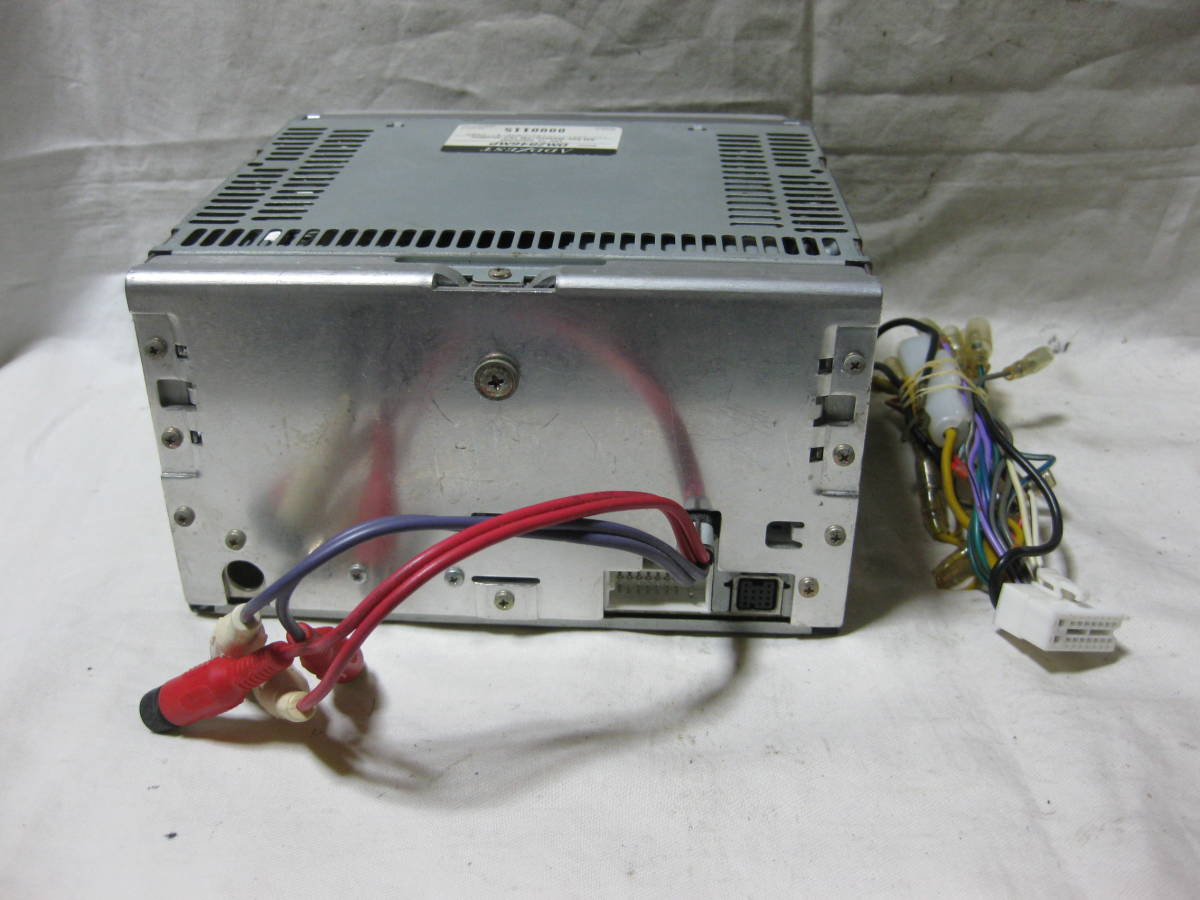

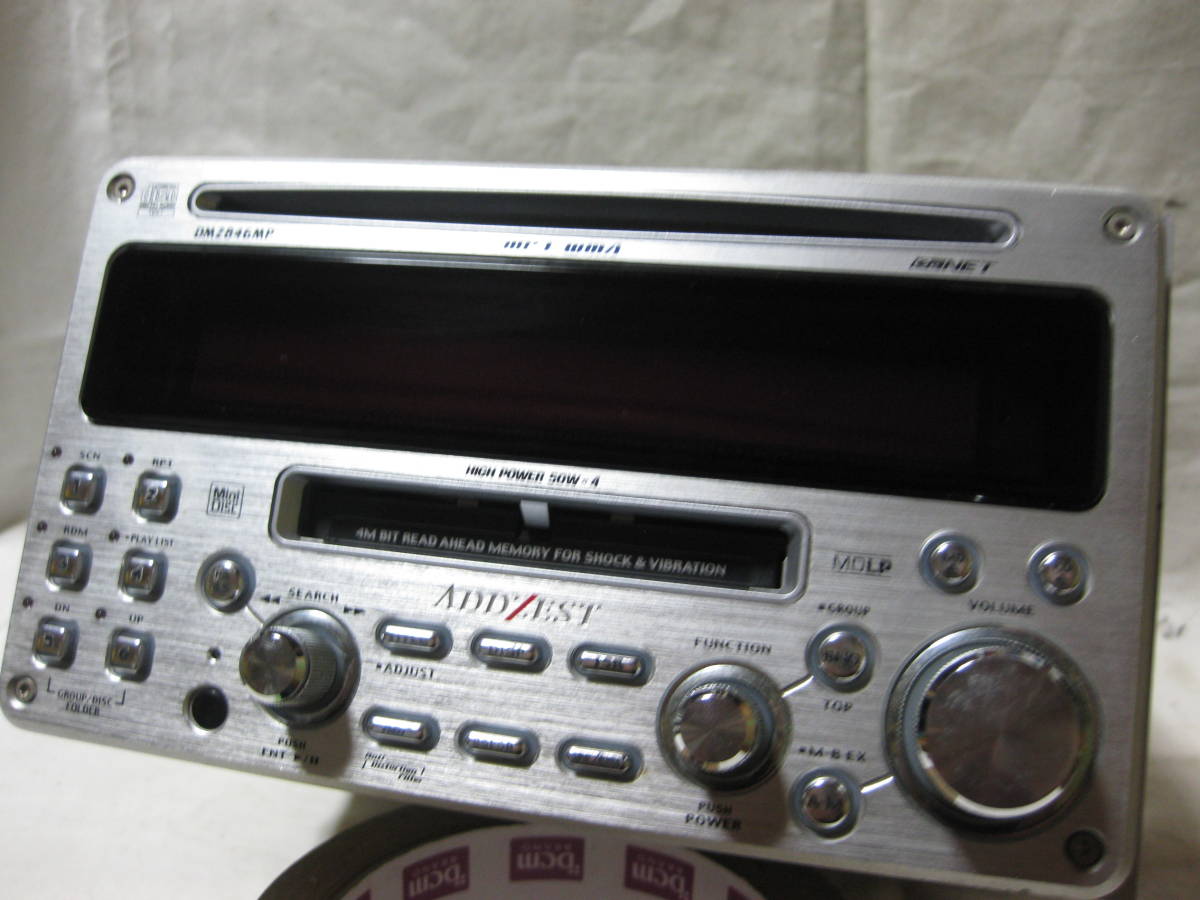

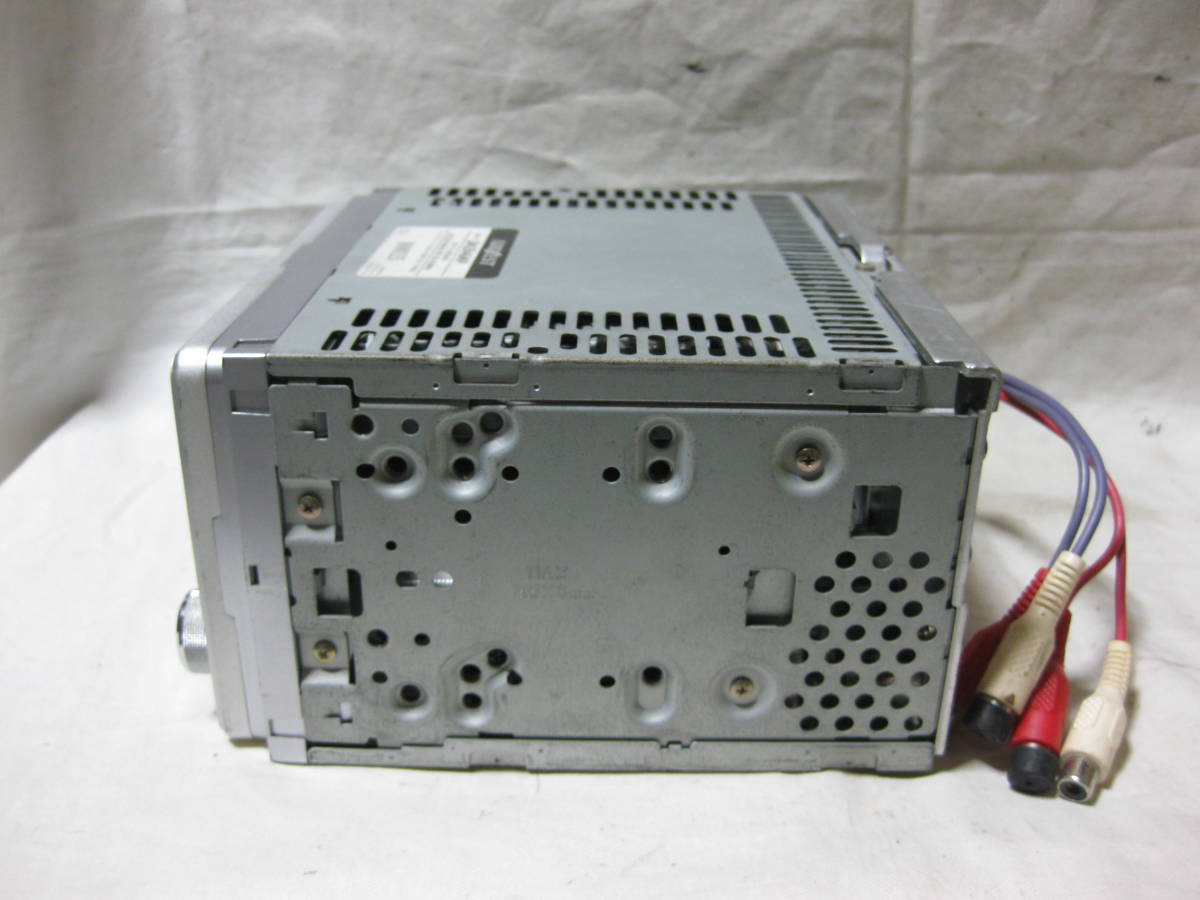

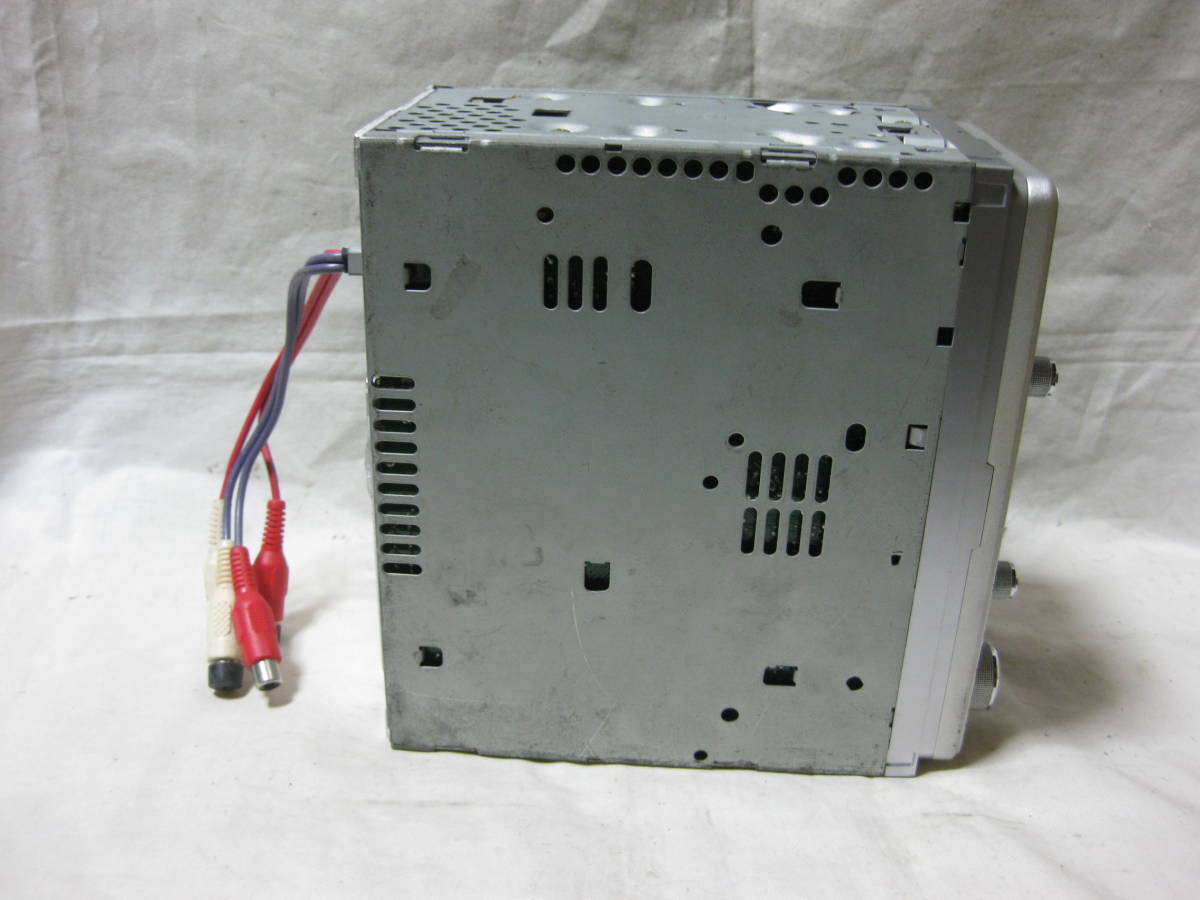

Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Web Md | No (not NetMD) |
|---|---|
| Manual | |
| Region | Japan |
