| Name | MAX625 |
|---|---|
| Manufacturer | Clarion |
| Released | 2002/06 |
| Device type | auto |
| Recorder | Not recorded |
| MDLP | Yes |
| NetMD | Not recorded |
| Hi-MD | Not recorded |
| Radio | Yes |
| Dimensions | 178 (W) x 100 (H) x 184 (D) mm |
| Weight | 3200 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥163 800 | |
| - | |
| Inputs | RCA in, CD |
| Outputs | Not recorded |
| Control | Not recorded |

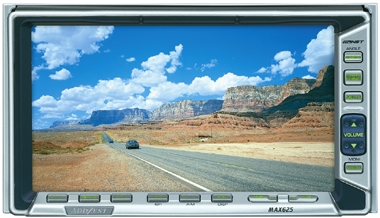

Clarion Addzest MAX625 LCD monitor Screen dimensions 6.5 type Width 153mm Height 79mm Diagonal 165mm Drive system TFT active matrix drive system Number of pixels 280,800 pixels (1200 x 234)
MD player part Frequency characteristic 20Hz-20kHz (± 2dB) SN ratio 90dB (JEITA) Dynamic range 85dB Output level 2.0V (10kΩ)
Audio part Rated output 17W x 4 (20Hz-20kHz, 1%, 4Ω) Maximum output 40W x 4 (JEITA) Compatible Speaker Impedance 4Ω (4Ω to 8Ω)
Content adapted from: Clarion Addzest MAX625
Manuals
Repair
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Manual | User manual |
|---|---|
| Region | Japan |
