Clarion MAX940HD

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-01-01

Manufacturer
Clarion
Model / source grouping
MAX940HD
Device type
auto
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

No directly linked document has been identified for this record. Search the manual library or consult the source below.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Clarion MAX940HD”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name MAX940HD
Manufacturer Clarion
Released 2004/06
Device type auto
Recorder Player
MDLP Yes
NetMD No
Hi-MD No
Radio Yes
Dimensions 172 (W) x 100 (H) x 184 (D) mm
Weight 3600
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 12
Power cable Not recorded
Price (launch) Not recorded
¥275 100
-
Inputs CD
Outputs Not recorded
Control Not recorded

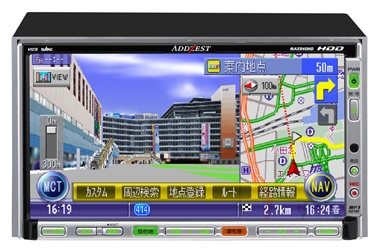

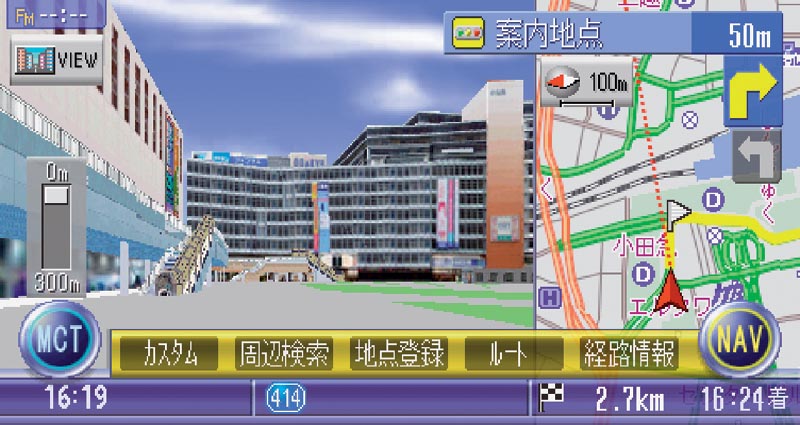

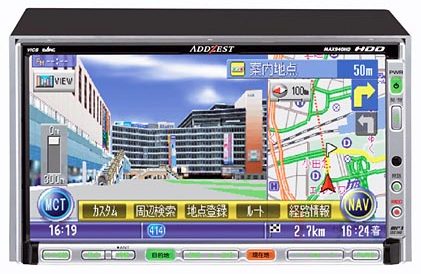

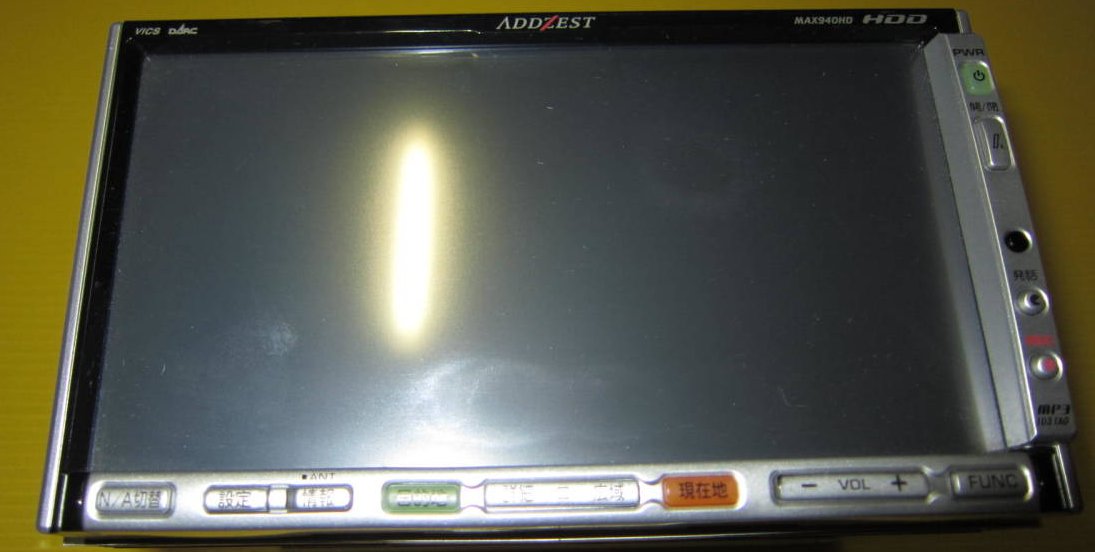

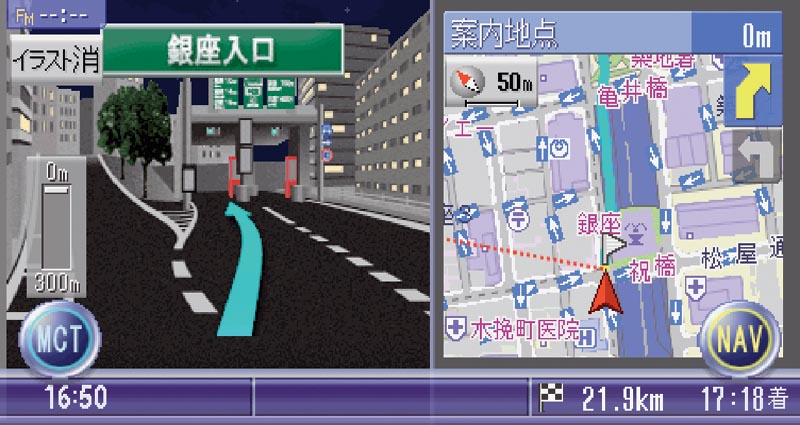

7 inch TFT LCD touchscreen. Size: (156.24 x 82.36 mm) - Resolution (1440 x 234)

Supports DVD Video, CD, MD, Memory Stick, HDD, FM/AM playback.

Built in 20GB HDD supports ripping CD's using it's "music catcher" function. CDDB info can be updated to keep artist/track info available. While many music catcher devices support importing MD tracks to the built in Hard Drive, this unit apparently does not support that functionality according to av.watch.

DSP - 5 modes EQ - 10 bands

MD player:

  • Frequency characteristic: 20Hz-20kHz (EIAJ)
  • SN ratio: 90dB (EIAJ)
  • Dynamic range: 85dB or more
  • Total harmonic distortion: 0.04% (1kHz)

Audio Rated output: 16W x 4 (10%, 4Ω)
Maximum output: 43W x 4 (EIAJ)

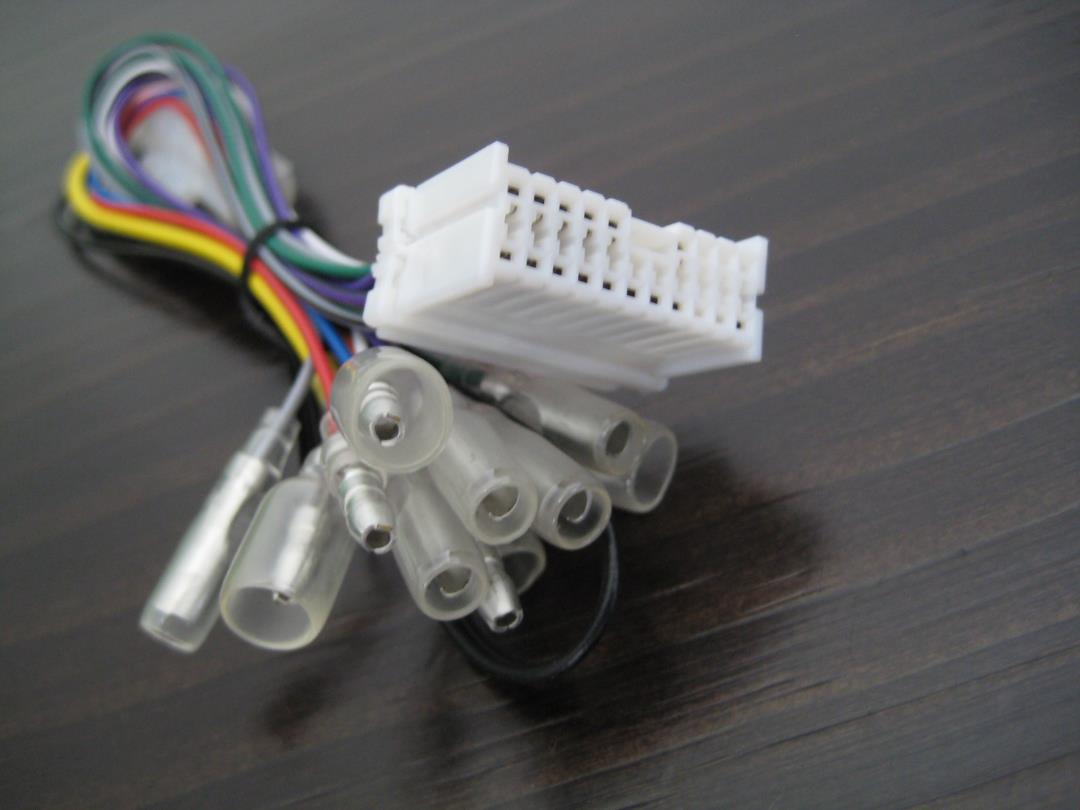

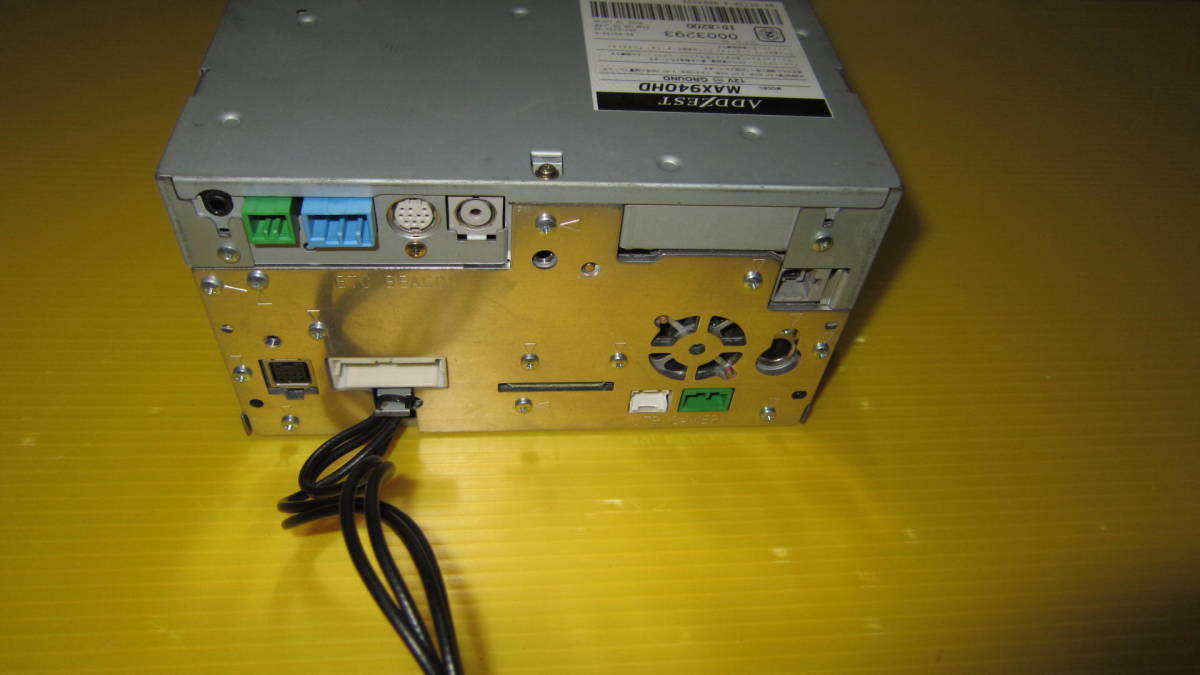

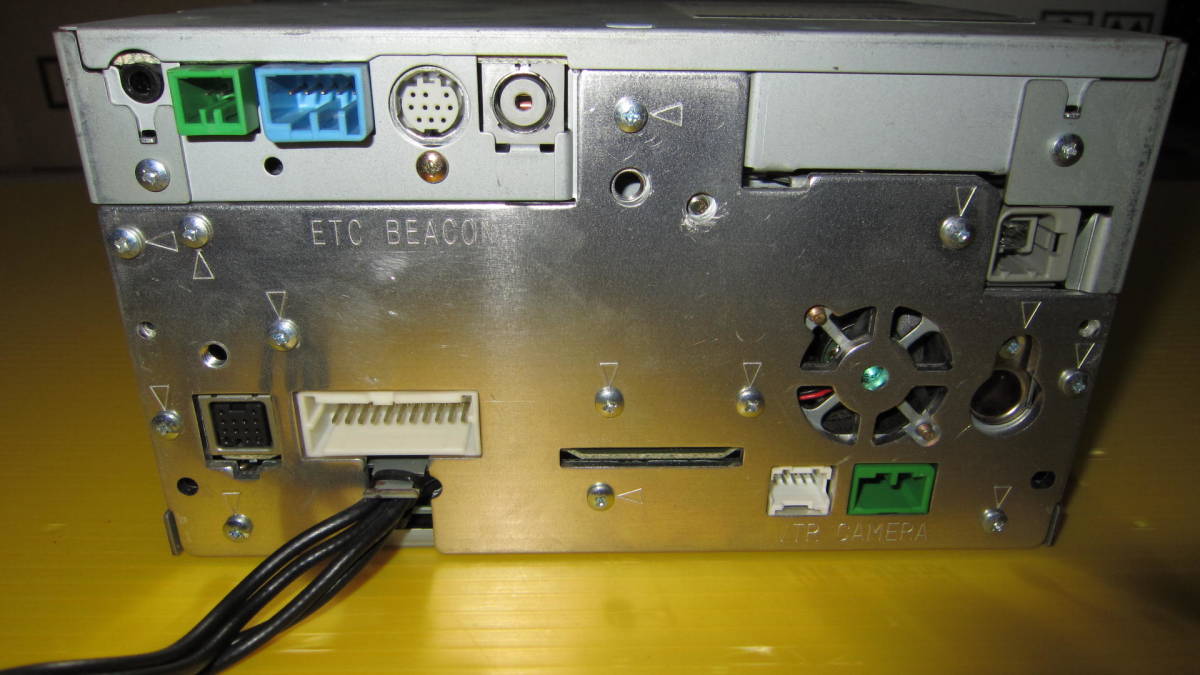

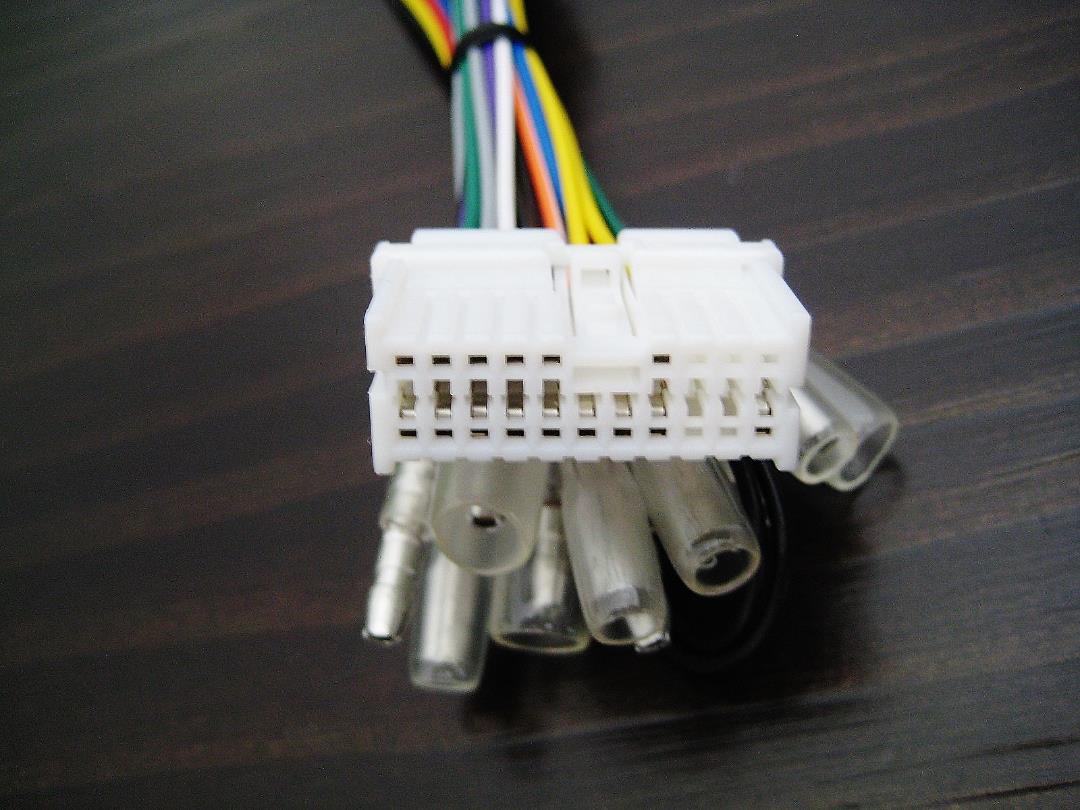

This unit uses a different style of wire harness than the successor MAX950HD unit. From contacting Clarion support in the USA apparently the specs for the wire harness and the manuals for this unit were lost in some kind of fire, no PDF's have been found online and even Clarions Japan support site has nothing on it.

Content adapted from: Clarion Press Release av.watch

Manuals

Repair

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
ScmsYes
Web MdNo (not NetMD)
ExportYes
Manual
RegionJapan
