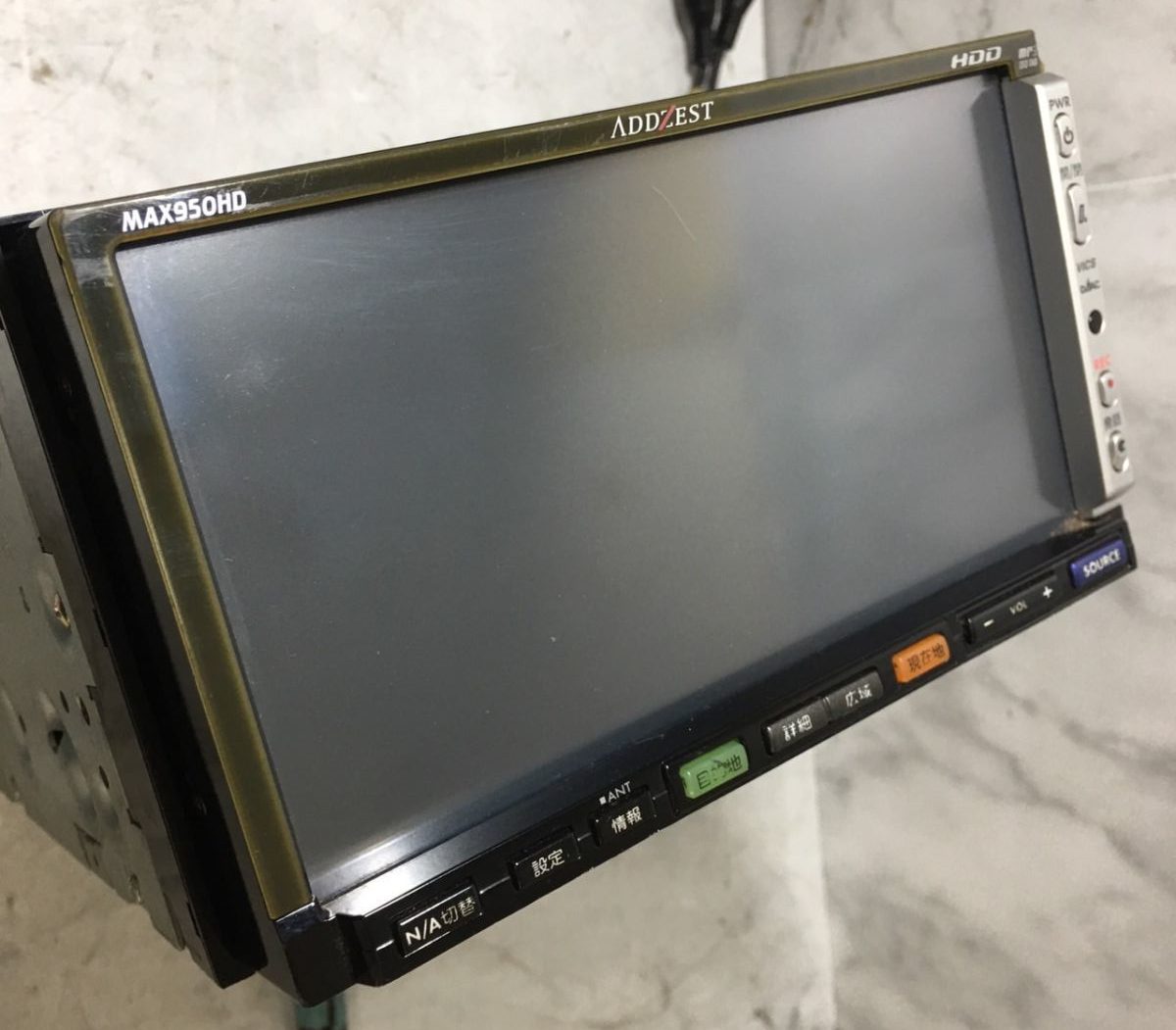

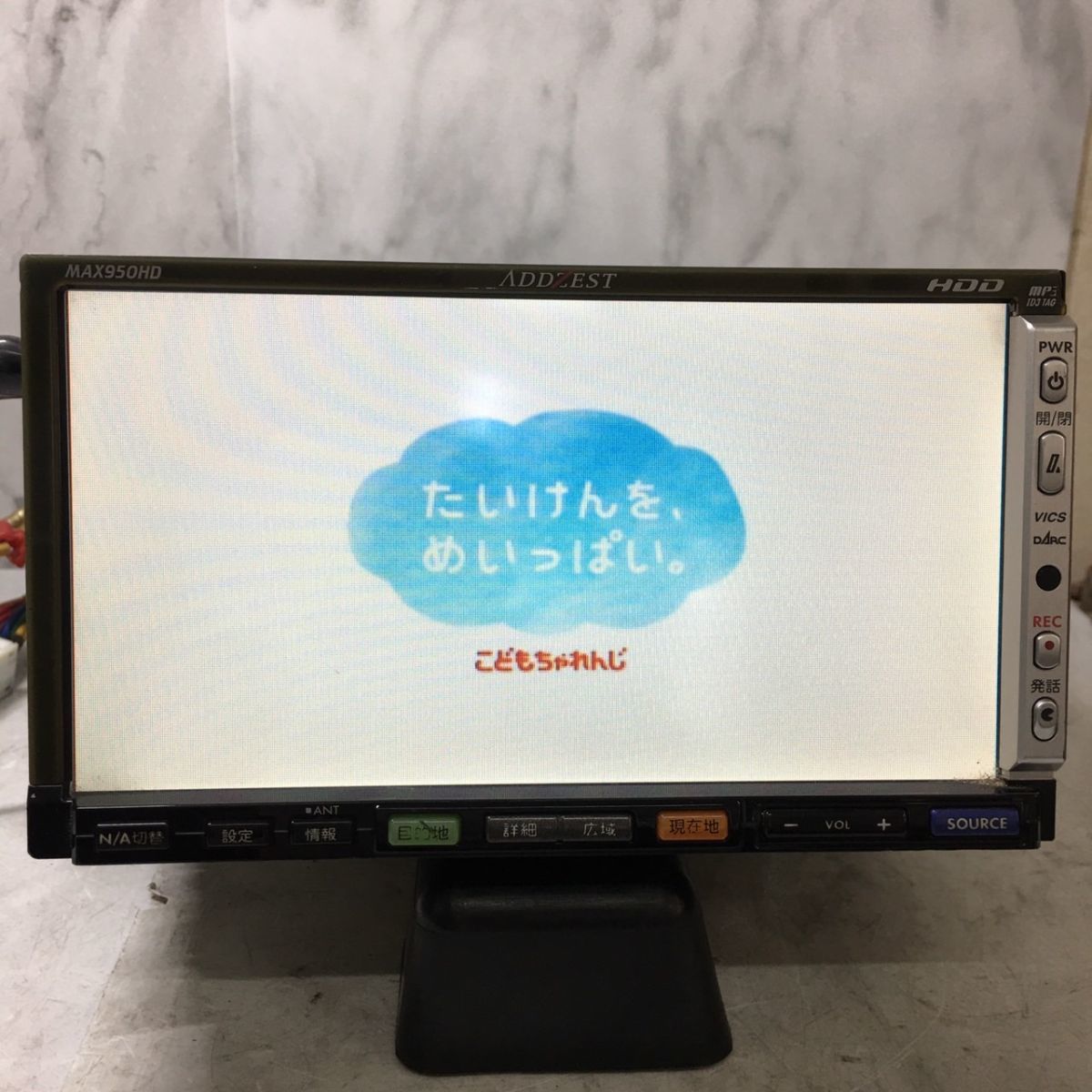

Clarion MAX950HD

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Clarion MAX950HD”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.

Name	MAX950HD
Manufacturer	Clarion
Released	2005/06
Device type	auto
Recorder	Player
MDLP	Yes
NetMD	No
Hi-MD	No
Radio	Yes
Dimensions	172 (W) x 100 (H) x 184 (D) mm
Weight	3600
ATRAC ver	Not recorded
Battery	Not recorded Not recorded
Battery notes	Not recorded
Sidecar (depr)	Not recorded
Voltage	12
Power cable	Not recorded
Price (launch)	$2 385
Price (launch)	¥275 100
-
Inputs	CD
Outputs	Not recorded
Control	Not recorded

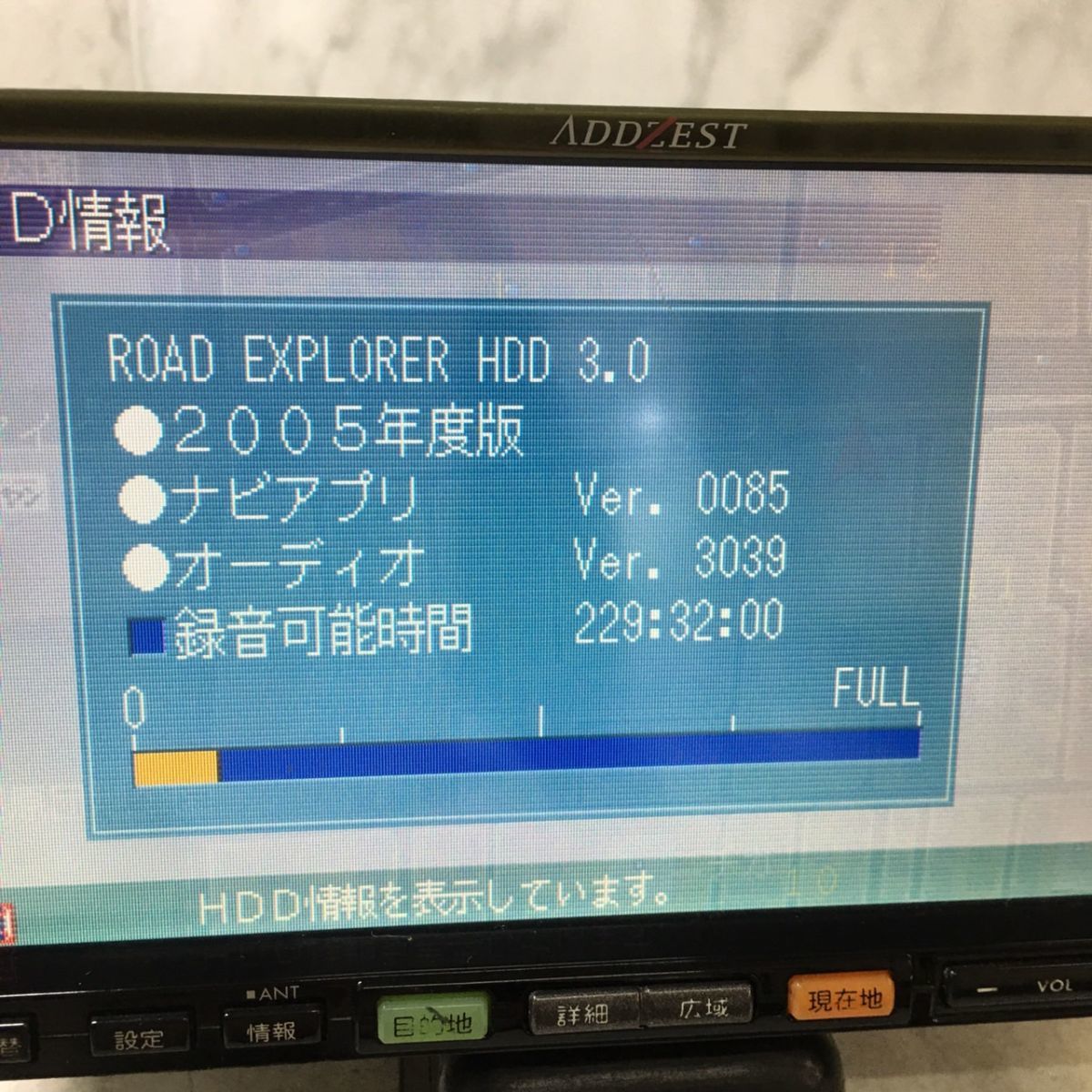

The Music Catcher function allows the user to record up to 4,000 songs from CD to the 30GB hard disk at 4x to 7x speed. In addition, the "music catcher function" allows recording from radio, TV, MD to the built-in HDD with the analog recording function.

Supports: DVD Video, DVD-Audio, CD, MP3 CD, MD, Memory Stick (MP3), AM / FM, TV.

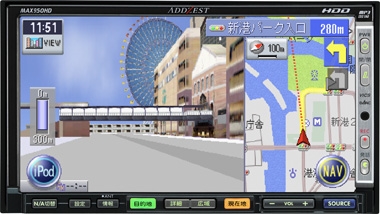

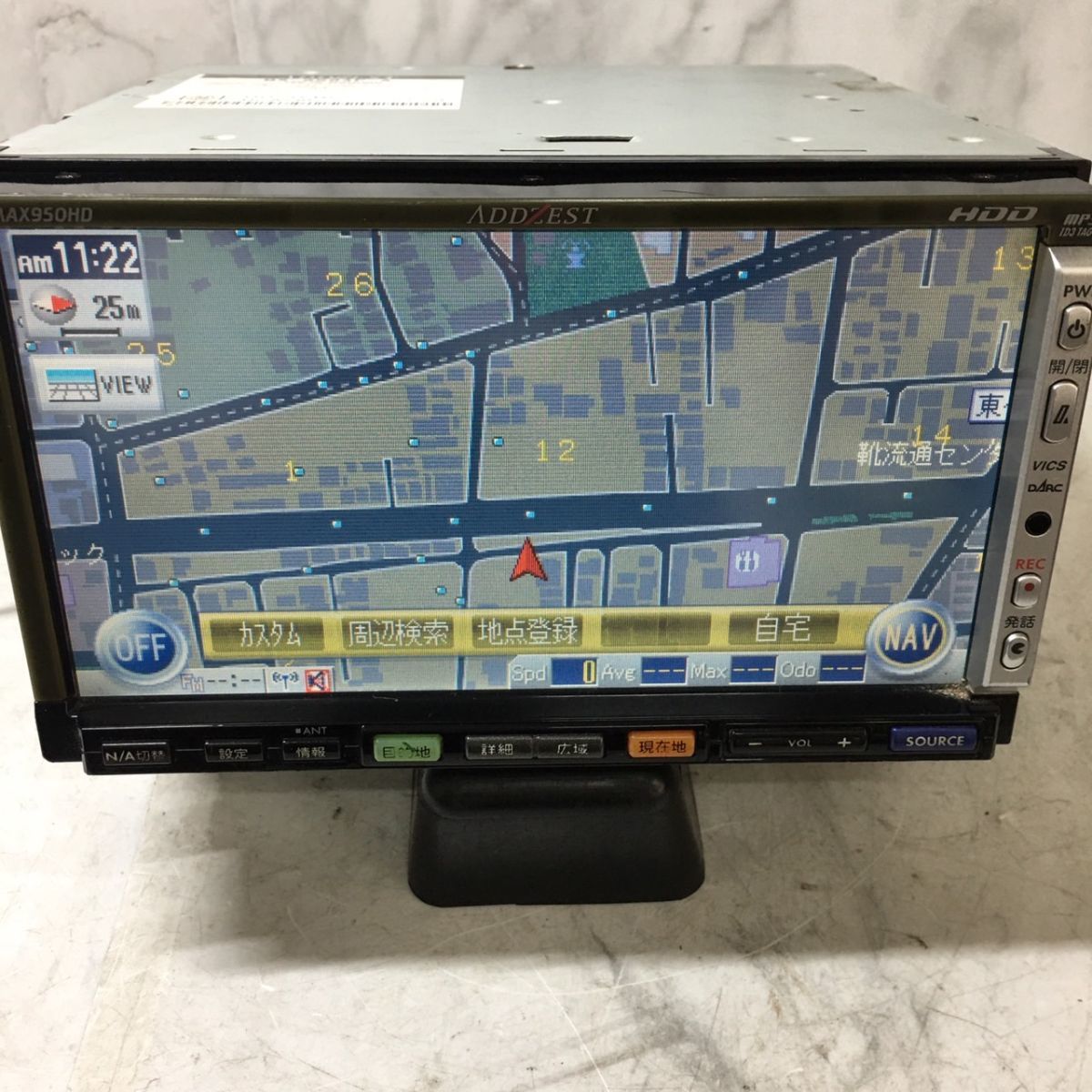

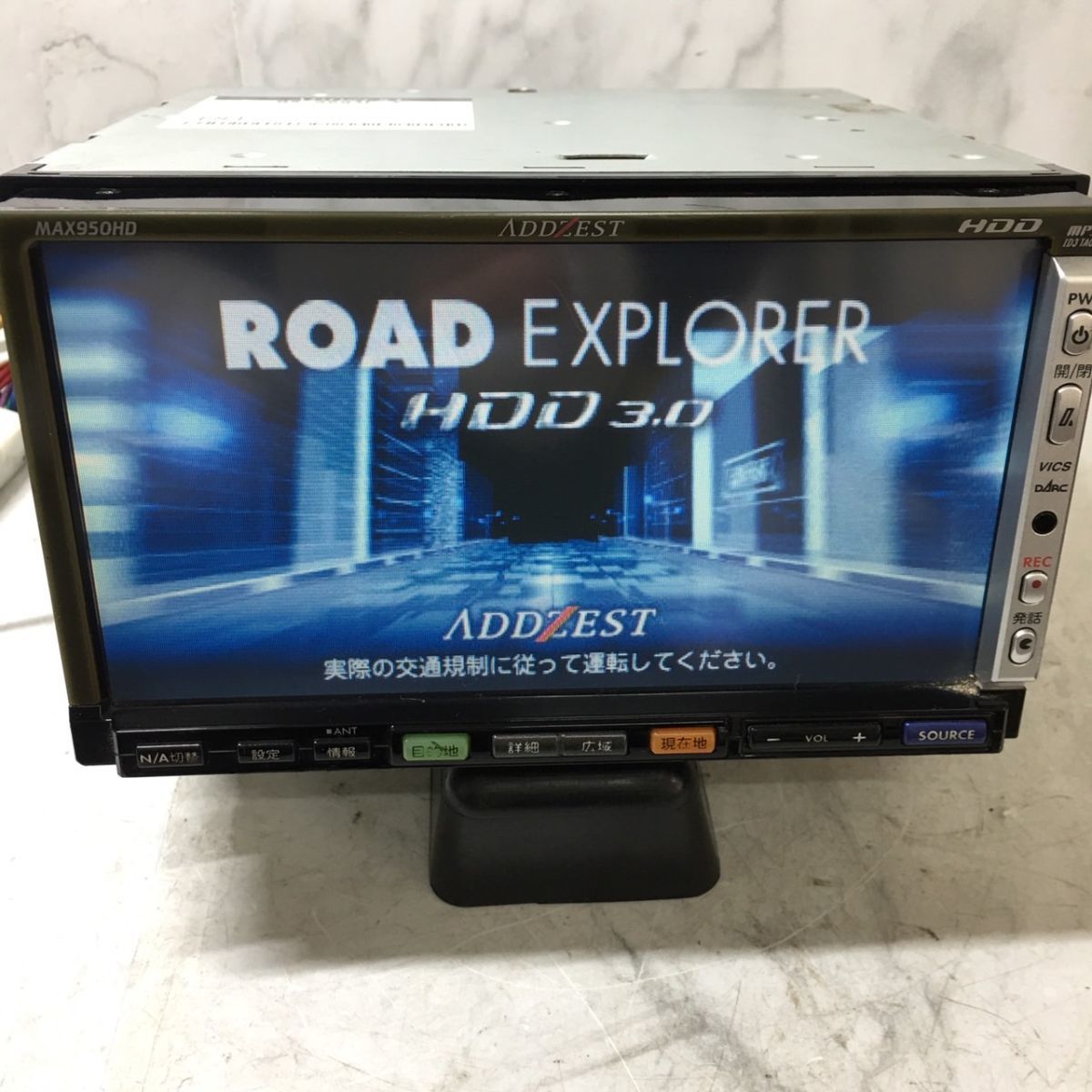

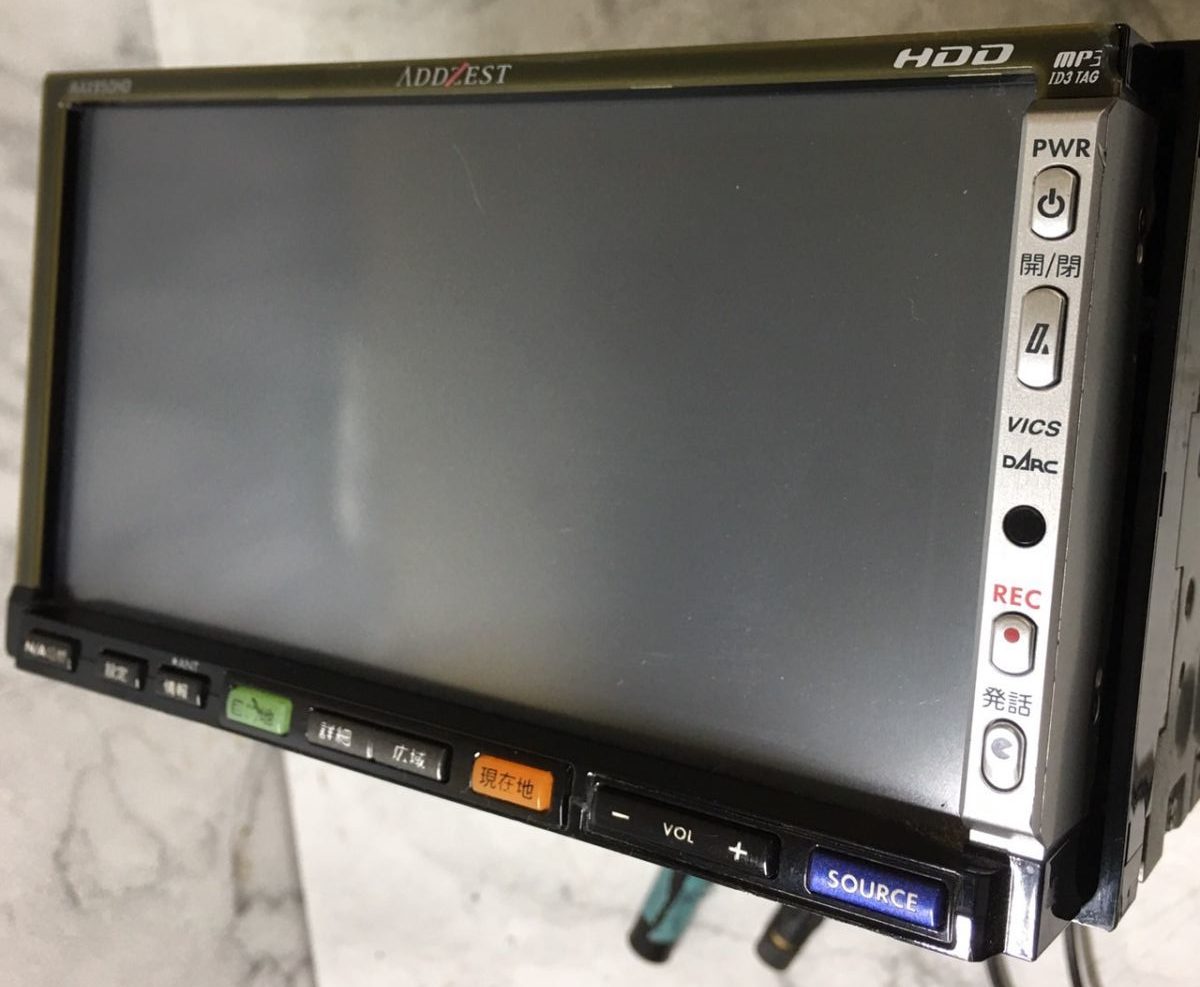

Screen: 7-inch TFT Touch panel (480 x 234). It also supports a 2nd screen, the "rear seat 2 zone" which can display a separate video to the front screen.

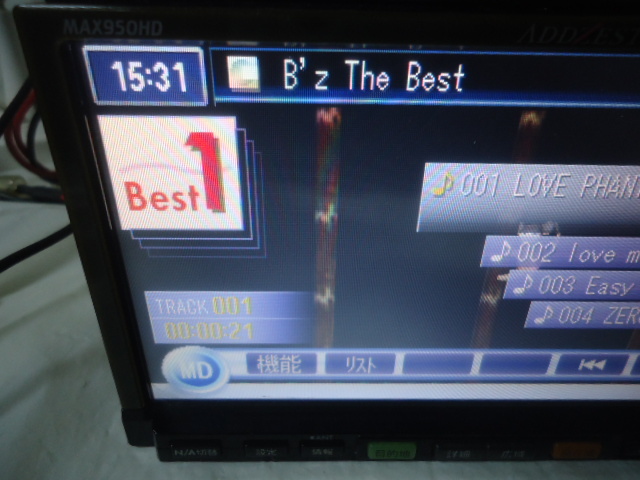

MD player section
Frequency characteristic: 20Hz-20kHz (EIAJ)
SN ratio: 90dB (EIAJ)
Dynamic range: 85dB or more
Total harmonic distortion: 0.04% (1kHz)

Audio part: Rated output: 16W x 4 (10%, 4Ω) Maximum output: 50W x 4 (EIAJ)

Power-supply voltage: DC14.4V - Negative grounding Current consumption: Approximately 4.2A (at 1W output)

Accessories:

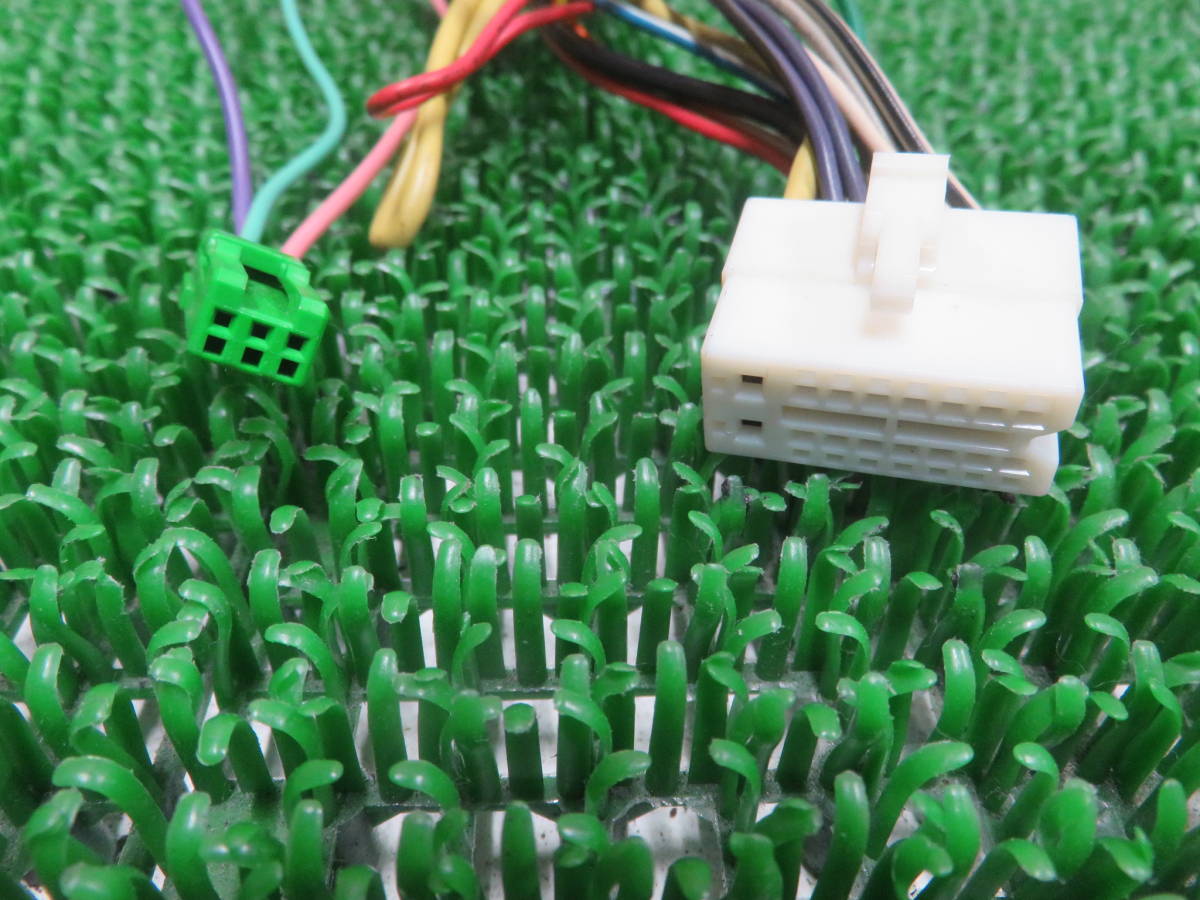

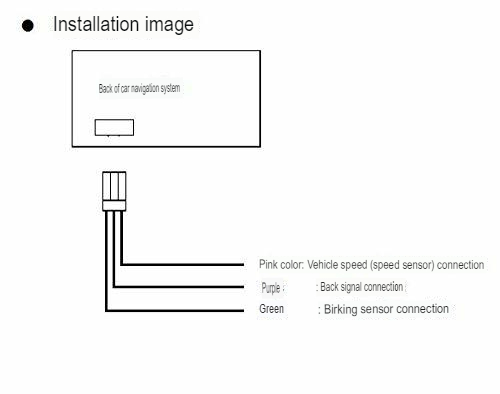

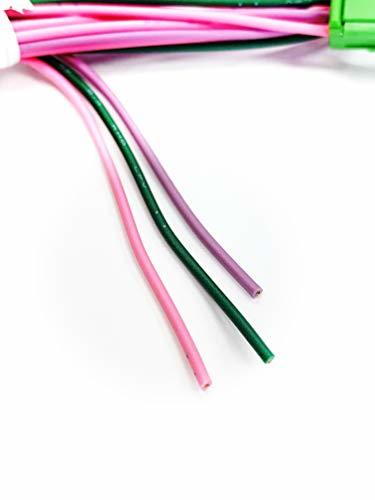

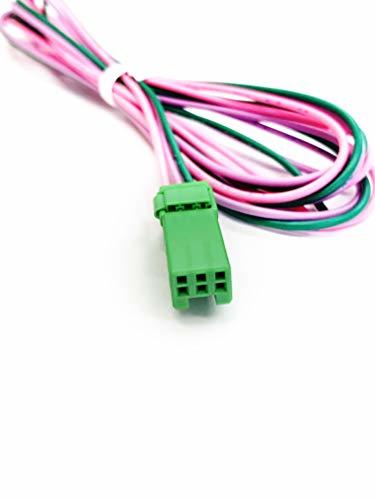

Parking brake / VSS cable: CSBP-01-3P
Rearview Camera: CCA-644-500
iPod: EA1250A / EM-1280U - Supported iPods are 3rd generation or later, and iPod mini/photo.

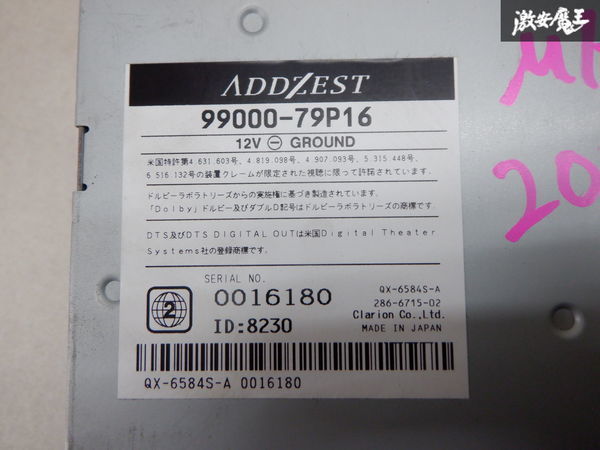

The part# 99000-79P16 is on some of them, probably a Suziku part#.

Content adapted from: Clarion News Release av.watch
