| Name | MAX960HD |
|---|---|
| Manufacturer | Clarion |
| Released | 2006/06 |
| Device type | auto |
| Recorder | Player |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 178 (W) x 100 (H) x 185.3 (D) (mounting dimension 160 (D)) mm |
| Weight | 3700 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | $2 350 |
| ¥273 000 | |
| - | |
| Inputs | 3.5mm line in (analog-only), CD, Radio recording |
| Outputs | Not recorded |
| Control | Not recorded |
Support for iPod Video. When playing video content, the operation must be performed from the iPod side, but you can enjoy the video on the large screen of the navigation system.

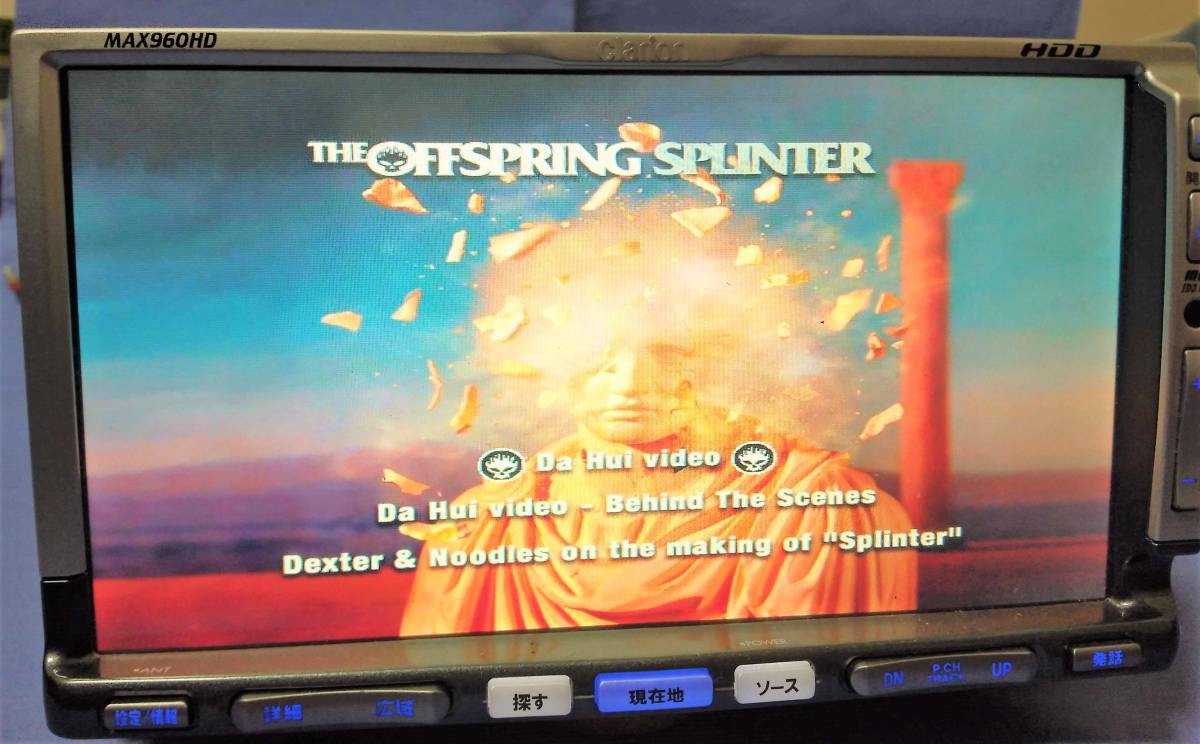

The navigation unit has a built-in 5.1ch surround processor, and you can enjoy DVD video with powerful sound. It is also possible to play DVD Audio (24bit), which can record sound with even higher sound quality than music CDs.

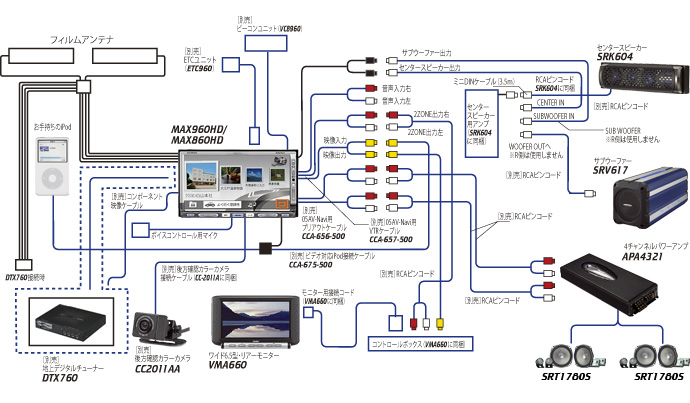

When the rear monitor is installed, "2ZONE Rear Entertainment", which allows you to watch different contents in the front and rear seats, was also adopted in this model. He also does the trick of listening to music ripped to the HDD in the front seats and enjoying DVD videos in the back seats.

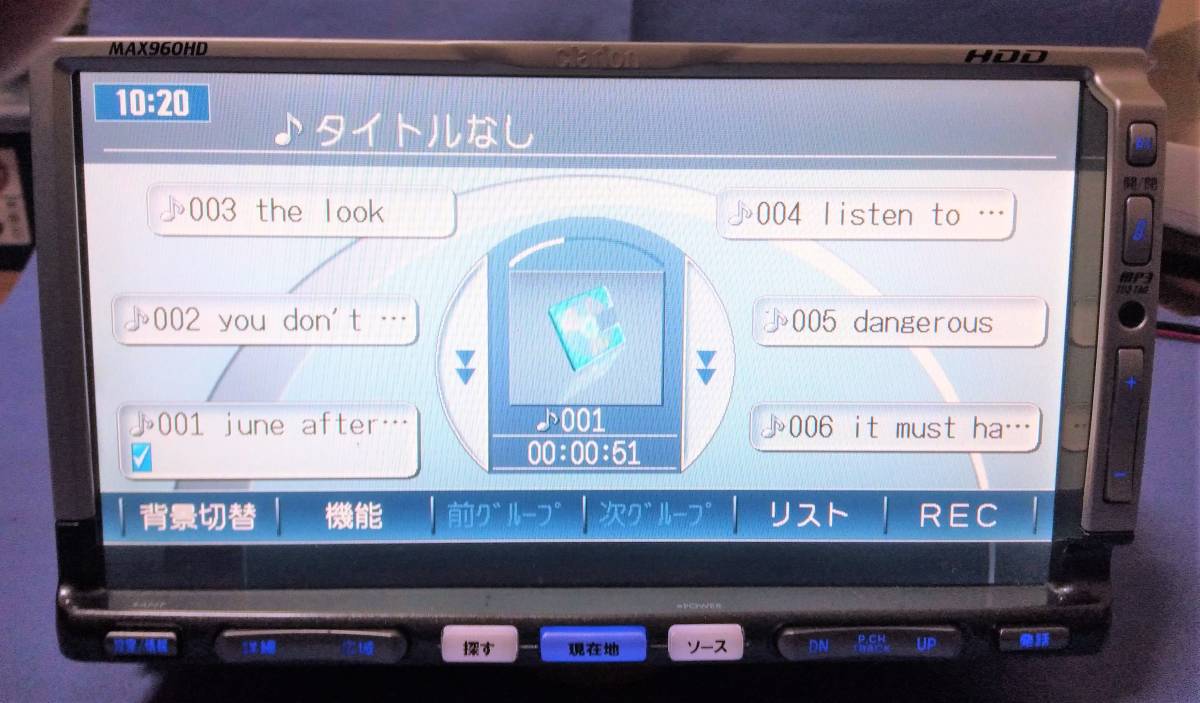

<LCD monitor unit>
- Screen dimensions 7 type
- Drive system TFT active matrix drive system
- Number of pixels 1,152,000 pixels
- Touch panel method Film / glass resistance film method
<CD / DVD player section>
- Frequency characteristic 20Hz-20kHz
- SN ratio 90dB
- Total harmonic distortion 0.02% (1kHz)
<MD player section>
- Frequency characteristic 20Hz-20kH
- SN ratio 90dB or more
- Total harmonic distortion 0.02% (1kHz)
Product code QX-6602A-A
Content adapted from: Clarion MAX960HD Engadget news av.watch press release Clarion press release Clarion press release (MiniDisc Wiki mirror) response.jp article
Manuals
Repair
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Export | Yes |
|---|---|
| Manual | User manual, other |
| Region | Japan |
