| Name | MAX9750DT |
|---|---|
| Manufacturer | Clarion |
| Released | 2007/11 |
| Device type | auto |
| Recorder | Player |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Not recorded |
| Dimensions | 178 (W) x 100 (H) x 184 (mounting dimensions (D)) |
| Weight | 3700 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥330 750 | |
| - | |
| Inputs | CD |
| Outputs | Speaker amplifier |
| Control | Not recorded |

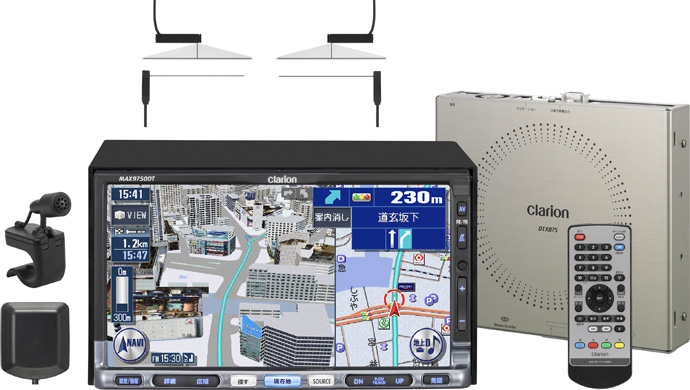

Clarion MAX9750DT Is the terrestrial digital tuners version of the "MAX9700DT" Product code UA-190A-01
MD Frequency characteristic: 20Hz-20kHz
SN ratio: 90dB or more
Total harmonic distortion: 0.02% (1kHz)
<Audio section>
Rated output 17W x 4 (10%, 4Ω)
Maximum output 50W x 4

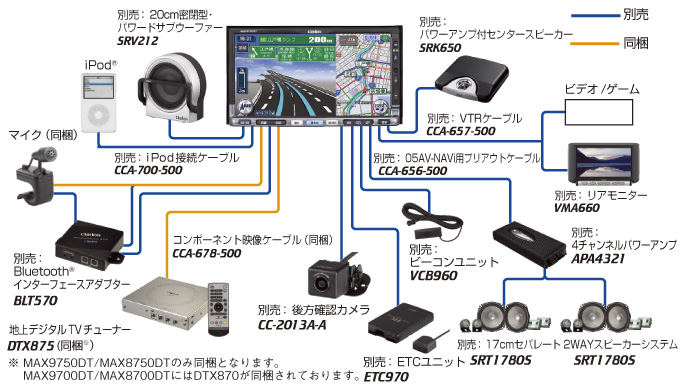

Optional Bluetooth module: BLT570（EA-1316A-A）
Content adapted from: Clarion MAX9750DT Clarion Press Release AV.Watch News Clarion 2007 Catalog
