| Name | MDS740Z |
|---|---|
| Manufacturer | Clarion |
| Released | Not recorded |
| Device type | auto |
| Recorder | Player |
| MDLP | Not recorded |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 1-Din |
| Weight | Not recorded |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| Not recorded | |
| - | |
| Inputs | Not recorded |
| Outputs | Not recorded |
| Control | Not recorded |

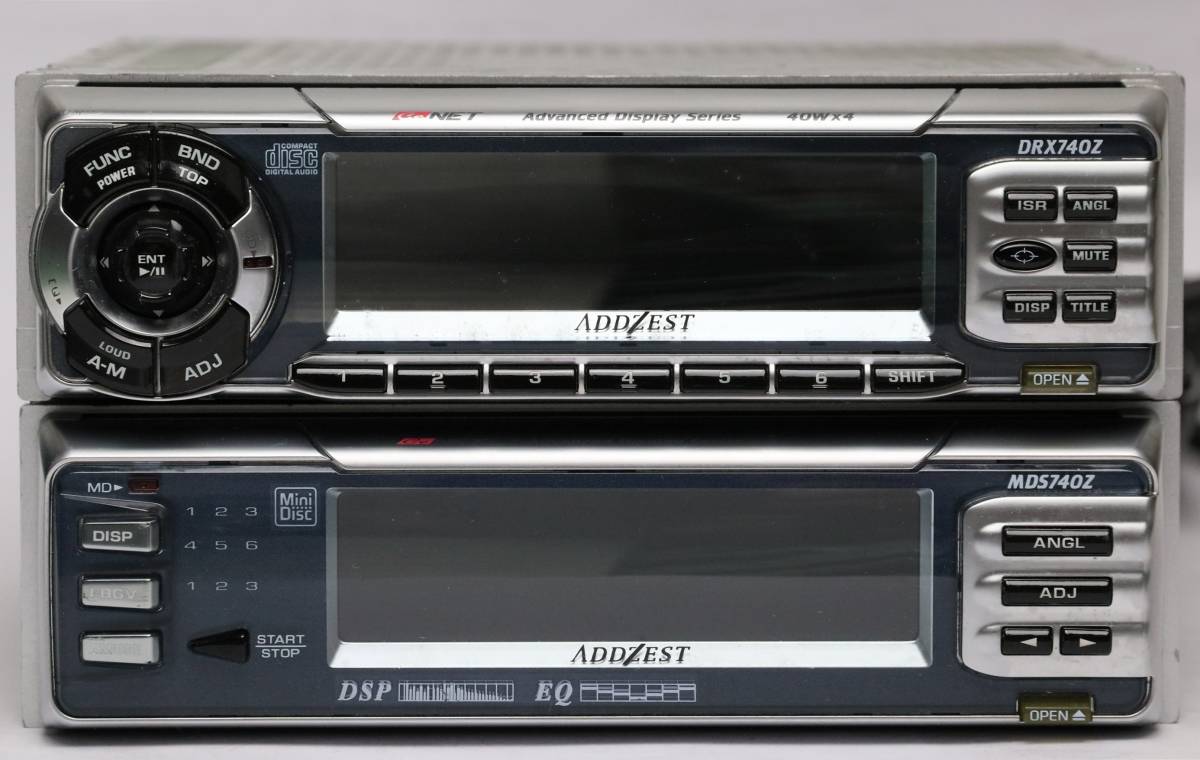

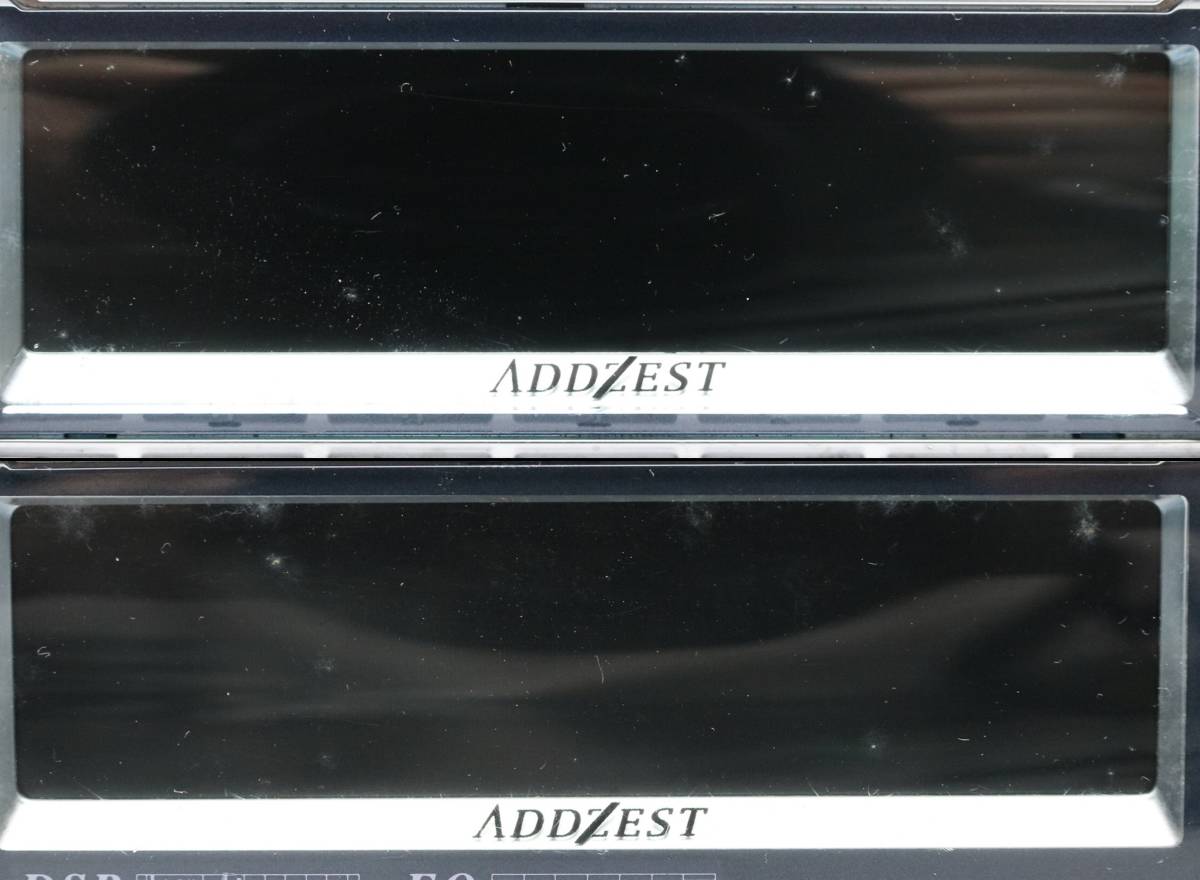

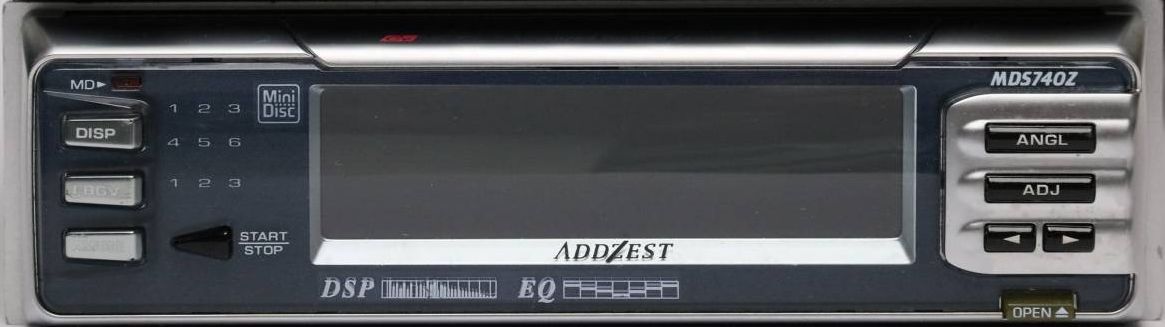

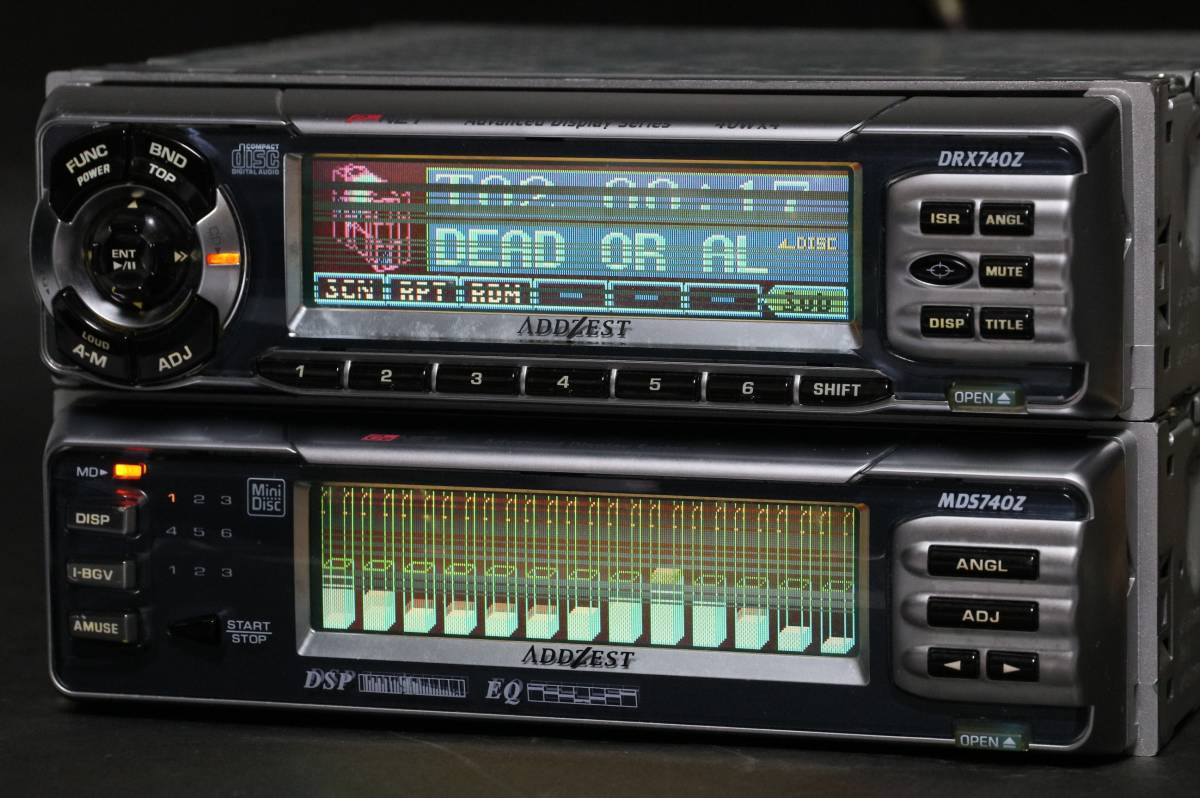

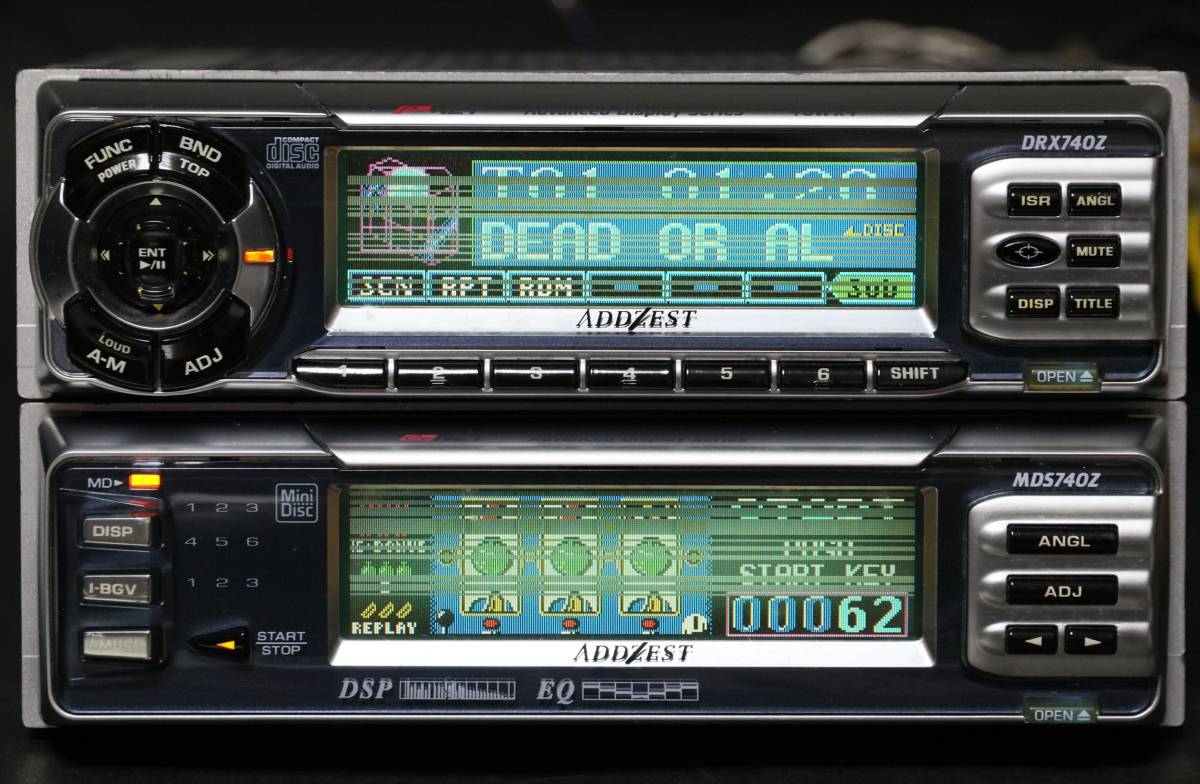

CeNET Accessory MD unit for Clarion Addzest systems. Equipped with LCD screen for visualization.
[MD Player Section]
- Frequency 20Hz - 20kHz ±2dB
- SN Ratio 90dB
- Separation 85dB
- High Frequency Distortion 0.01%
- Output Level 2V
[DSP/Graphic Equalizer Section]
- A/D Conversion 20-bit Linear, 64x Oversampling
- D/A Conversion 1-bit ΔΣ system, 8 times oversampling
- DSP BASIC 5 modes
- G.EQ 7 band
- BASIC 6 modes
- USER 6 modes
- Seat position 5 modes
- Compressor Normal 2 modes + vocal cut Subwoofer
- Voltage gain +12dB
- LPF Fc 50Hz/
- 80Hz/120Hz LPF SLOPE 12dB/ Oct

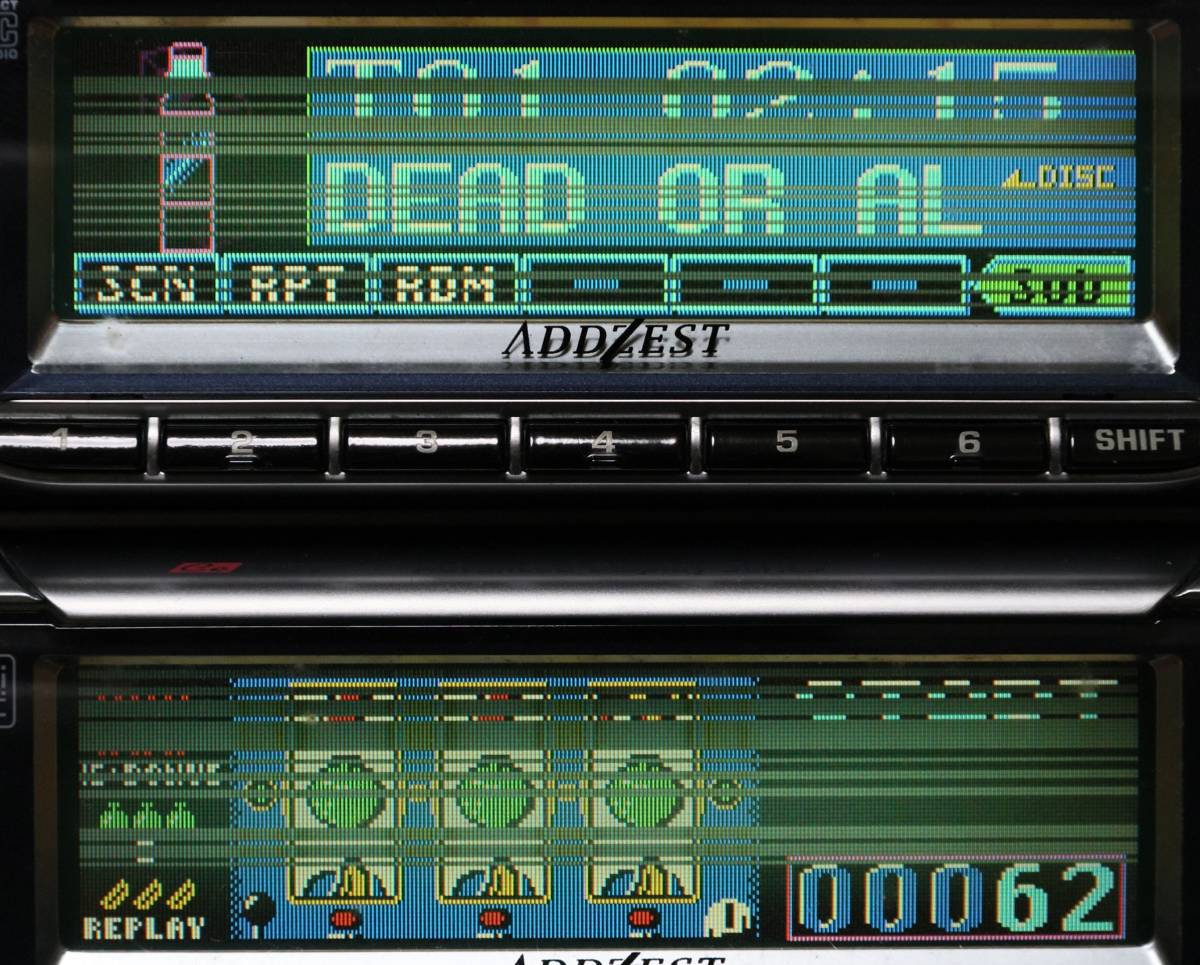

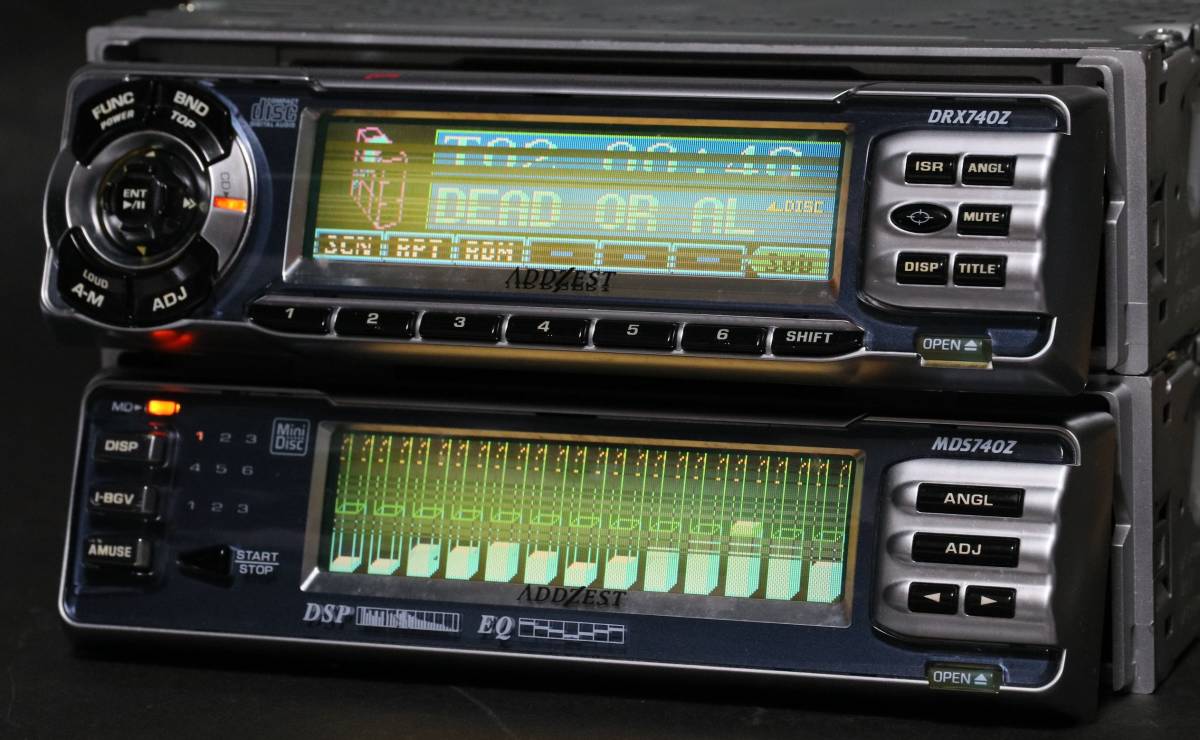

- spectrum analyzer 13 bands 6 patterns
- I-BGV 3 patterns
Content adapted from: kurenaino-neko.catfood.jp
Manuals
Repair
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email..
Additional specifications and references
| Web Md | No |
|---|---|
| Manual | other |
| Region | Japan |
