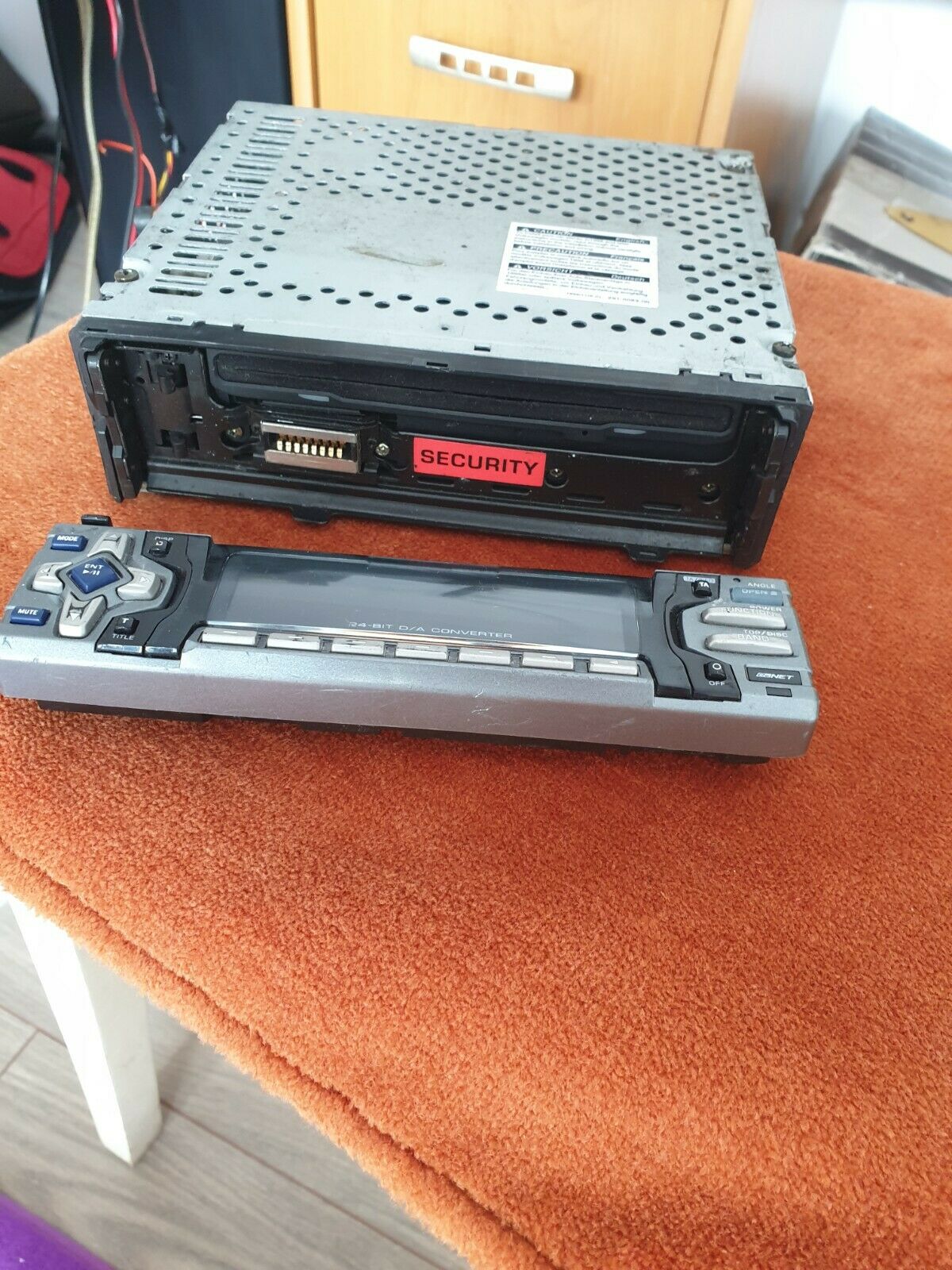

Clarion MRX960Z

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-01-04

Manufacturer
Clarion
Model / source grouping
MRX960Z
Device type
auto
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Clarion MRX960Z”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name MRX960Z
Manufacturer Clarion
Released Not recorded
Device type auto
Recorder Player
MDLP No
NetMD No
Hi-MD No
Radio Yes
Dimensions 1-DIN 178(W) x 50(H) x 180(D)mm
Weight 1.8kg
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 12
Power cable Not recorded
Price (launch) Not recorded
Not recorded
-
Inputs Not recorded

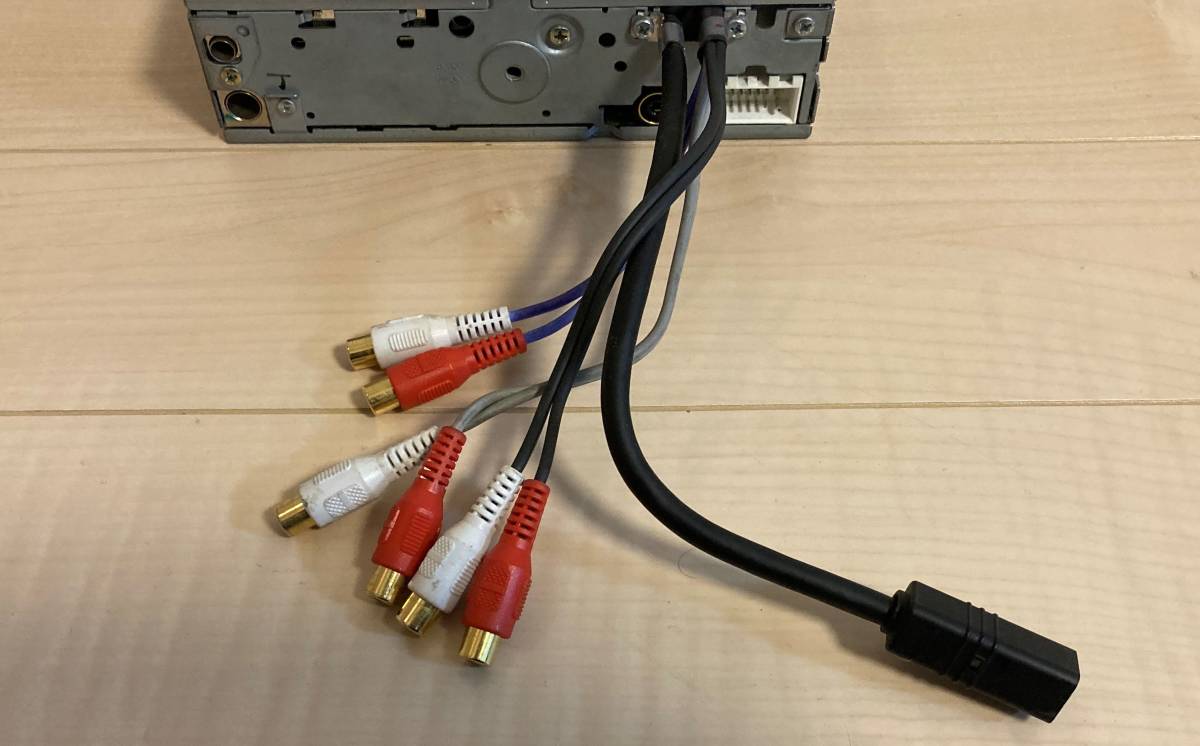

Outputs Speaker amplifier
Control Not recorded

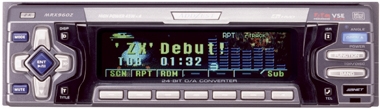

Clarion MRX960Z

MD recorded in monaural mode can not be played back. (Page 41 of the manual, page 22 in pdf form)

  • Frequency characteristics: 20 to 20kHz ± 2dB
  • SN ratio: 110dB (EIAJ)
  • Dynamic range: 96 dB (EIAJ)
  • Harmonic distortion rate: 0.009% (1kHz)

Content adapted from:

Manuals

Clarion MRX960Z

Video

Watch the referenced video on YouTube

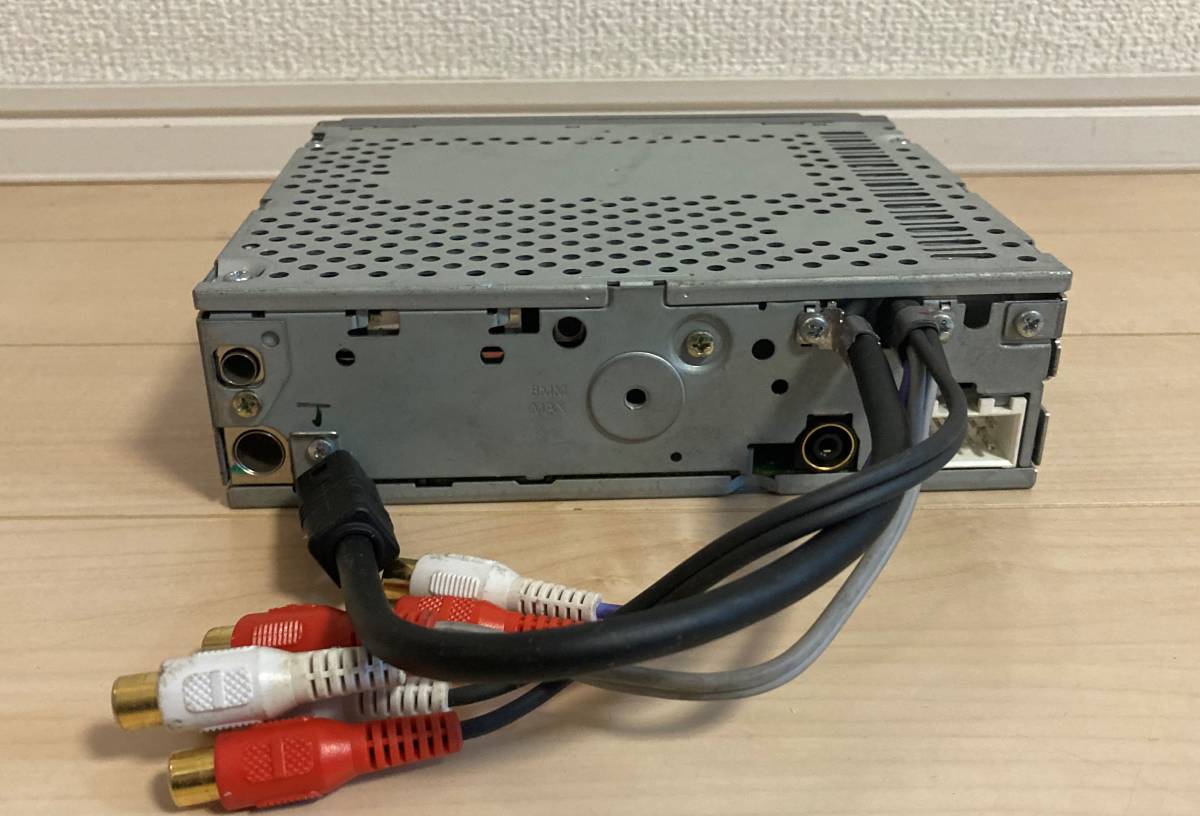

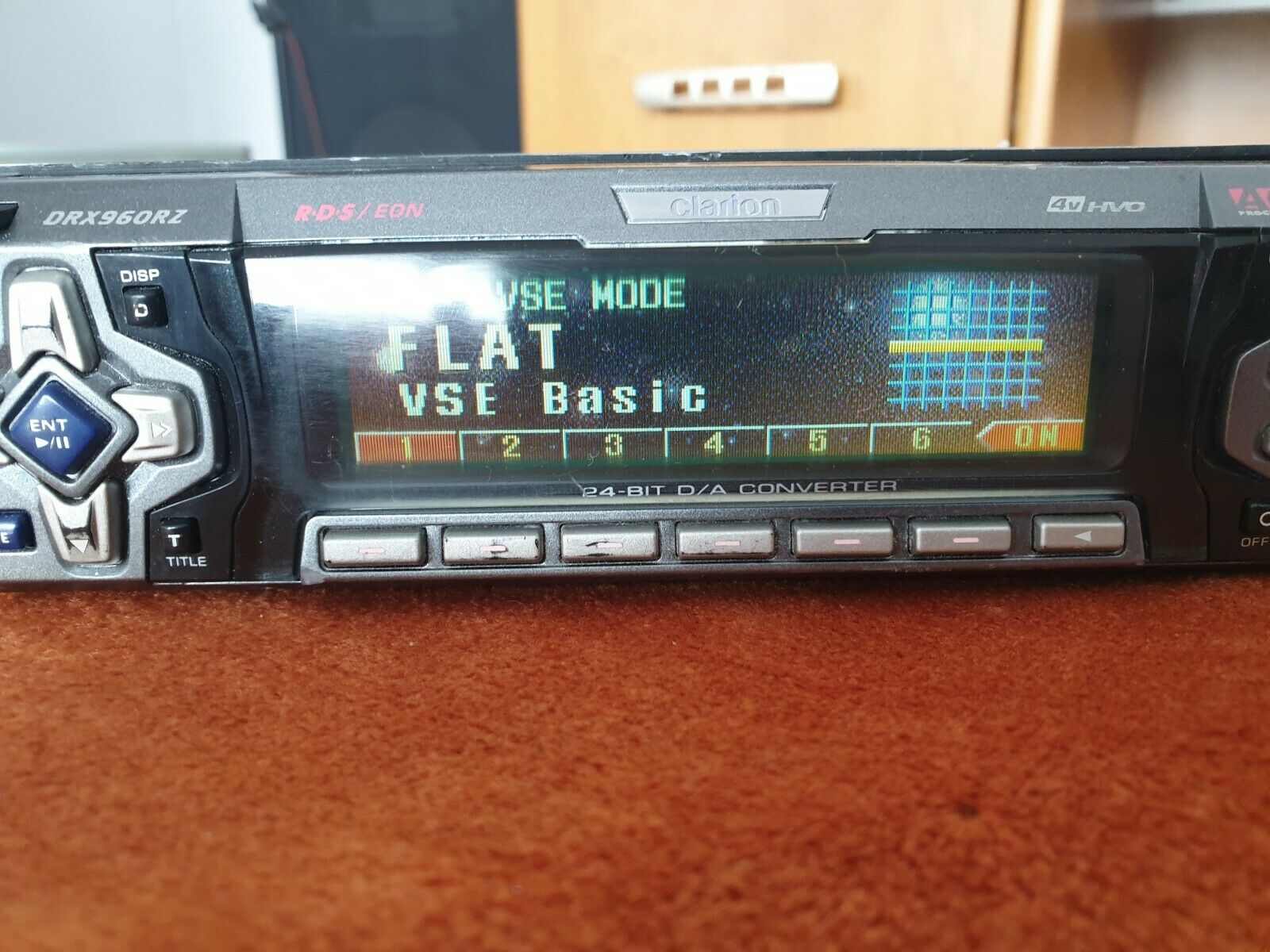

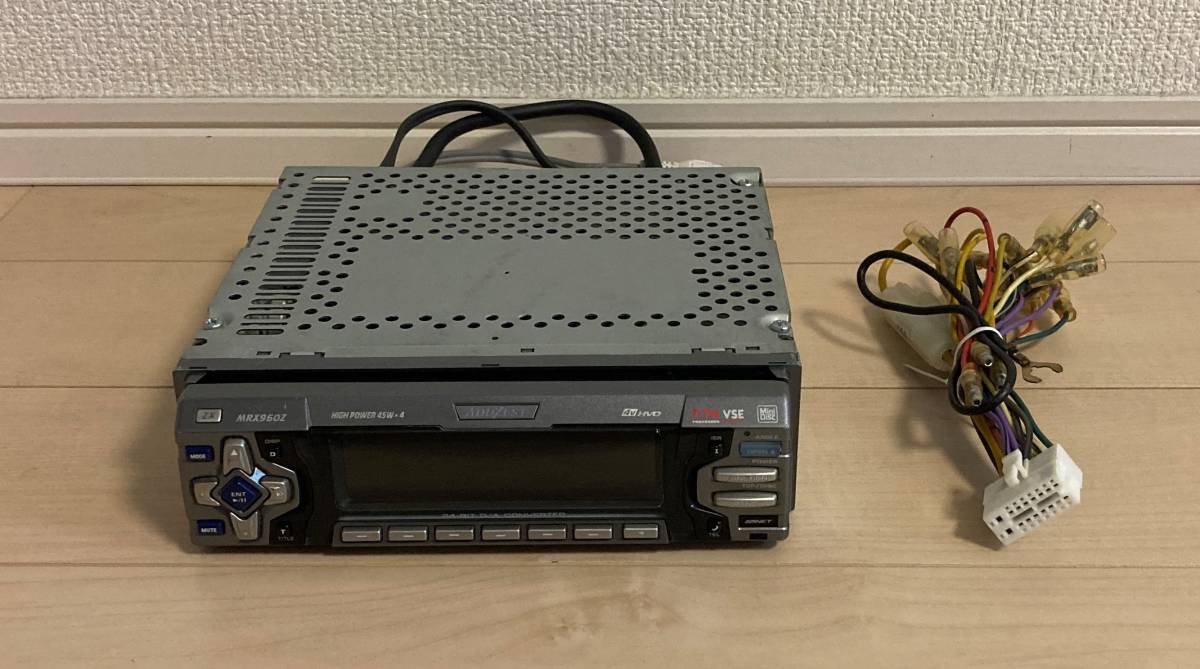

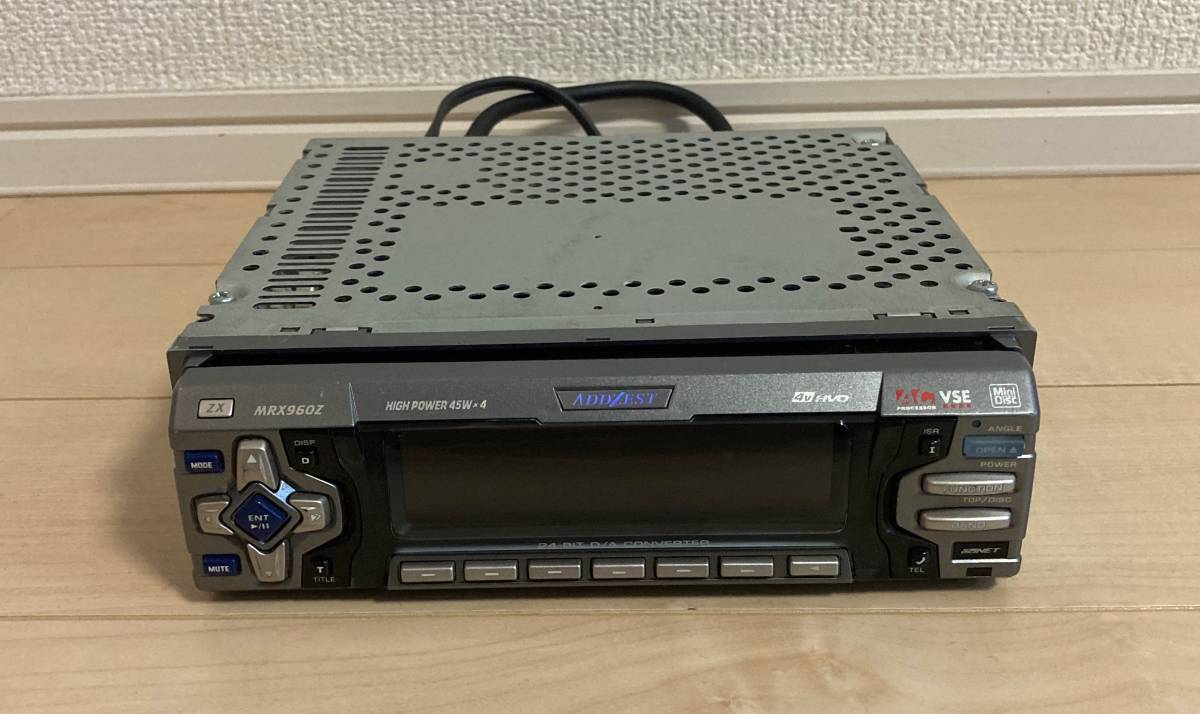

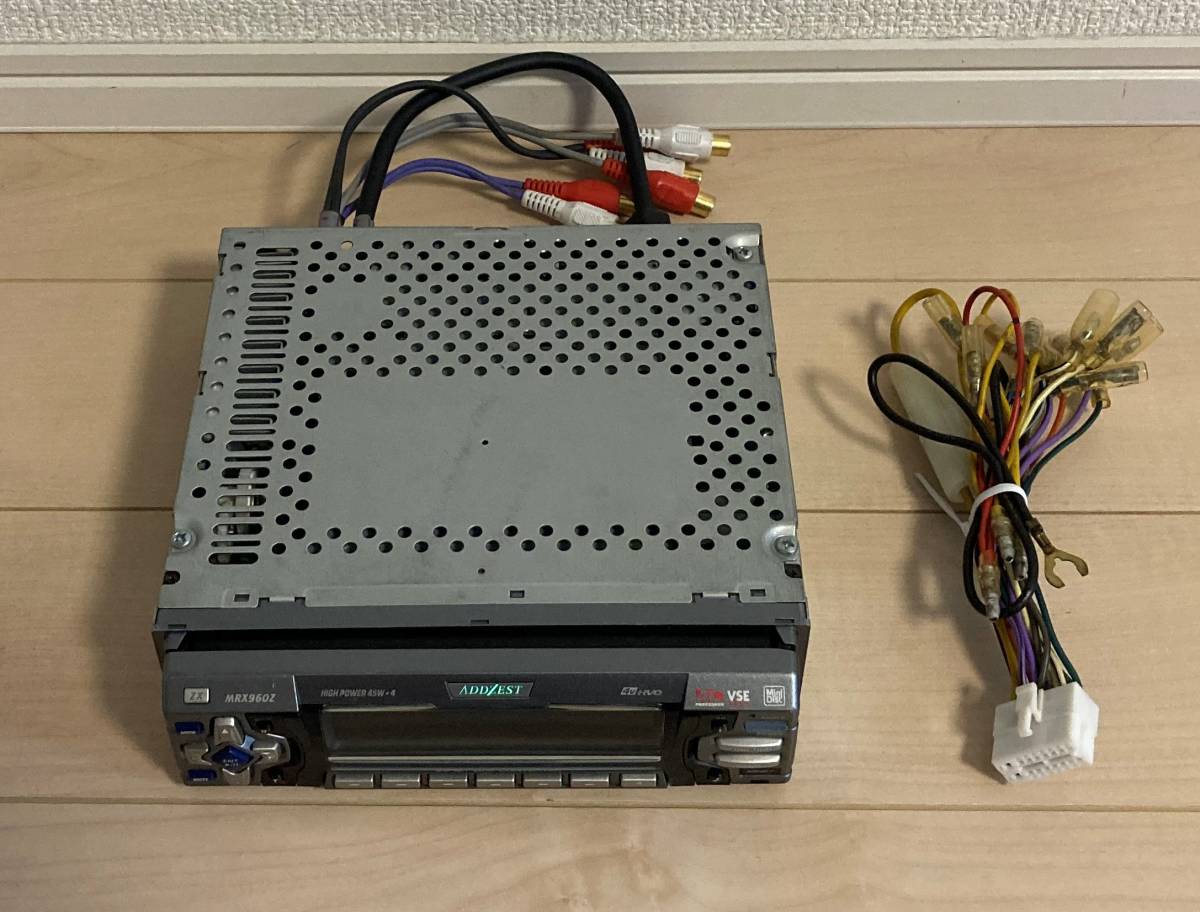

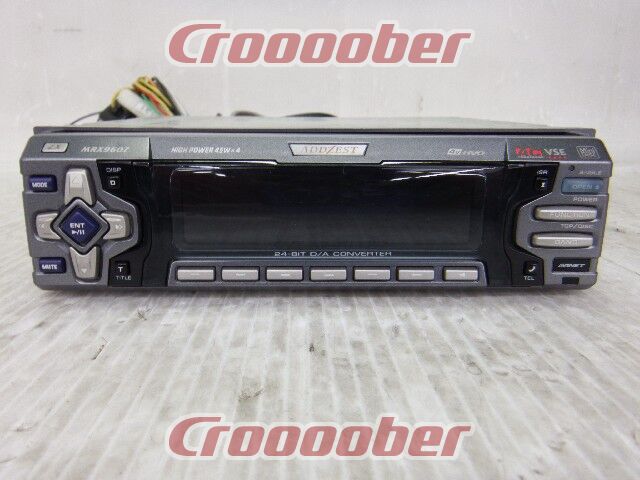

Photos

High Quality photos at sonixelectronics

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
Web MdNo (not NetMD)
ManualUser manual
RegionJapan
