| Name | MSZ745LP |
|---|---|
| Manufacturer | Clarion |
| Released | 2004/03 |
| Device type | auto |
| Recorder | Player |
| MDLP | Yes |
| NetMD | Not recorded |
| Hi-MD | Not recorded |
| Radio | Not recorded |
| Dimensions | 178 (W) x 50 (H) x 172 (D) |
| Weight | 1400 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥33 075 | |
| - | |
| Inputs | Not recorded |
| Outputs | Not recorded |
| Control | Not recorded |

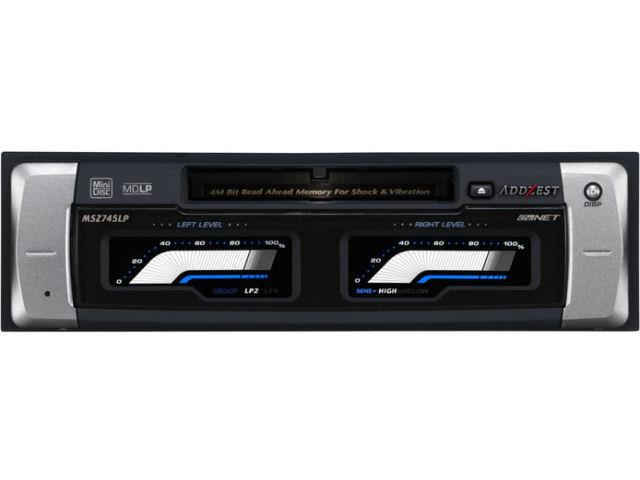

MD deck with spectrum analyzer
□ 3-step adjustment RCA autoput meter
MD player part Frequency characteristic 20Hz-20kHz (± 2dB)
- SN ratio 93dB
- Dynamic range 85dB
- Harmonic distortion factor 0.01% (1KHz)
Common part
- Power supply voltage: DC14.4V
- Grounding method: Negative grounding
- Current consumption: 1.2A
AV.Web News AV.Web News (MiniDisc Wiki mirror)
Content adapted from: Clarion Press Release
Manuals
Clarion 2005 Catalog vol.2 (page 12)
Repair

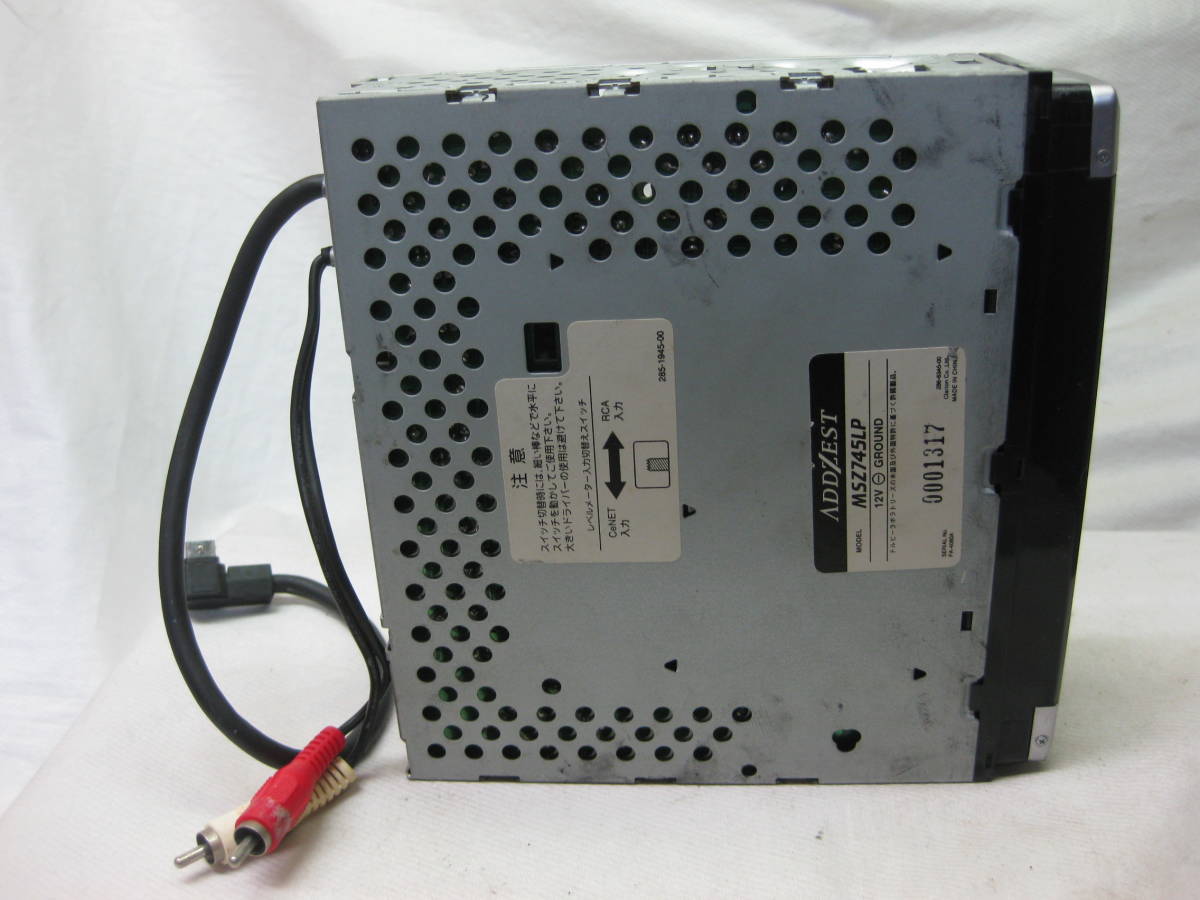

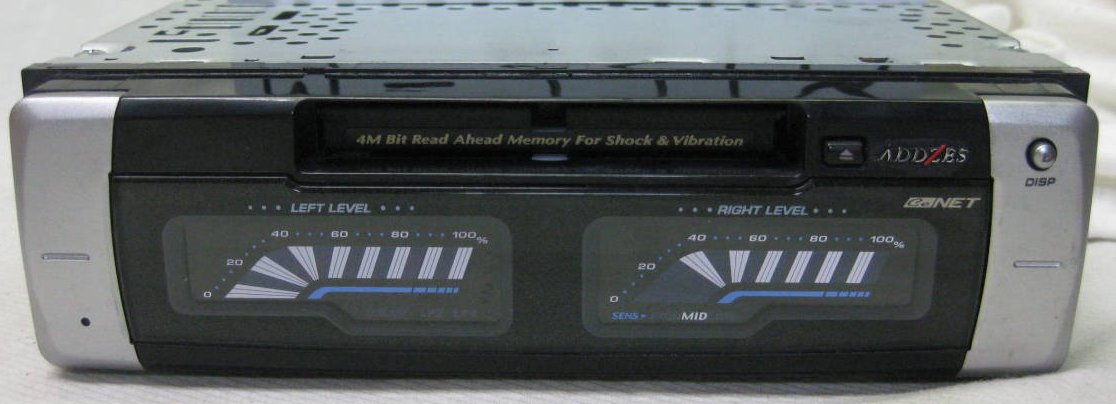

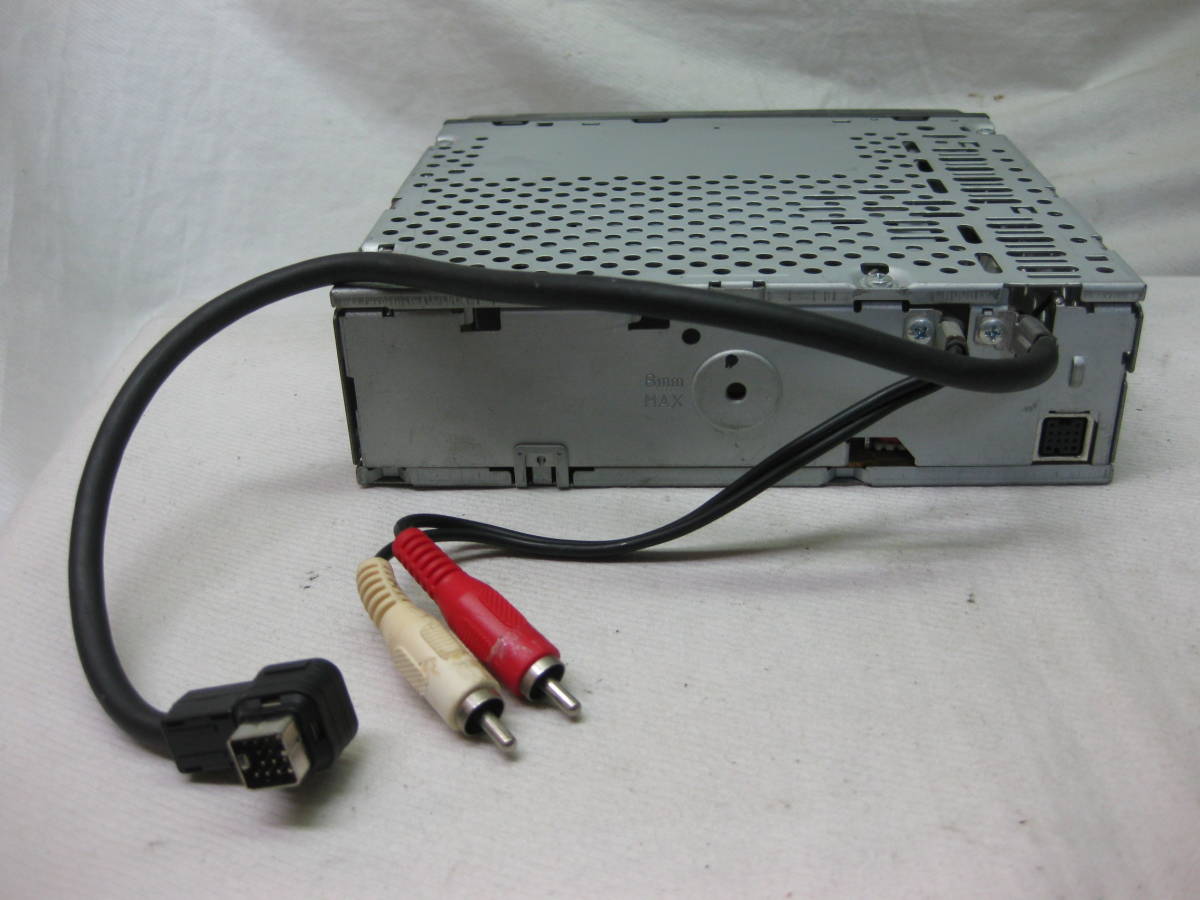

Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Manual | User manual |
|---|---|
| Region | Japan |
