| Name | MSZ765 |
|---|---|
| Manufacturer | Clarion |
| Released | Not recorded |
| Device type | auto |
| Recorder | Not recorded |
| MDLP | Yes |
| NetMD | Not recorded |
| Hi-MD | Not recorded |
| Radio | Yes |
| Dimensions | 178 (W) x 50 (H) x 172 (D) mm [Mounting dimensions: 155 (D) mm] |
| Weight | 1400 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥33 075 | |
| - | |
| Inputs | Not recorded |
| Outputs | Not recorded |
| Control | Not recorded |

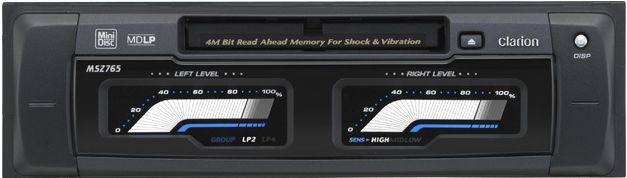

Product code PA-4080A-B MD deck with spectrum analyzer
A discerning one that allows you to fully enjoy the MD collection. MDLP playback & NetMD support that allows you to enjoy free playback The recording time of MD (80 minutes) can be extended up to 4 times, and it corresponds to MDLP mode that can be played for a long time. In addition, it is equipped with an MD group search function that can be played back in group units such as artist names and albums, which is convenient when recording a large number of songs in MDLP mode. You can also play MDs recorded on PCs and NetMD format devices.

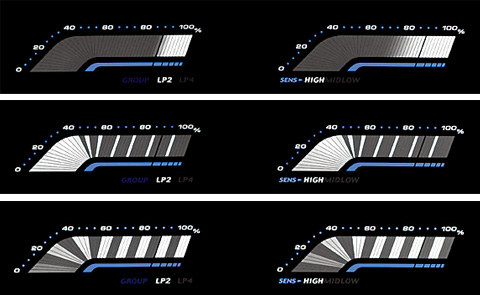

5 pattern level meter display with beautiful interlocking of sound and light
Enlarged image
Equipped with an RCA compatible 2ch level meter that beautifully expresses the dynamic movement of music with five light patterns. It tunes to the signal level of the left and right channels and changes instantly.
Other Features "3-step automatic adjustment RCA power output meter that automatically adjusts the sensitivity according to different output levels * This unit does not operate by itself. Be sure to connect with a CeNET compatible receiver that can be connected.
* Kana and Chinese characters for MD titles are not supported. * HI-MD is not supported.
[MD player section] Frequency characteristic 20Hz-20kHz ± 2dB SN ratio 93dB Dynamic range 85dB [Common part] Power-supply voltage DC14.4V Grounding method Negative grounding Current consumption 1.2A External dimensions 178 (W) x 50 (H) x 172 (D) mm [Mounting dimensions: 155 (D) mm] mass 1.4kg
Content adapted from: Clarion MSZ765
Manuals
Repair
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Manual | |
|---|---|
| Region | Japan |
