| Name | MXZ435LP |
|---|---|
| Manufacturer | Clarion |
| Released | 2003/02 |
| Device type | auto |
| Recorder | Player |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 178 (W) x 50 (H) x 173 (D) mm |
| Weight | 1500 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| Not recorded | |
| - | |
| Inputs | Not recorded |
| Outputs | Not recorded |
| Control | Not recorded |
Clarion Addzest MXZ435LP
MD player part Frequency characteristic 20Hz-20kHz ± 2dB
- SN ratio 90dB
- Dynamic range 85dB
- Harmonic distortion factor 0.01%
- Audio part Rated output 18W x 4 (20Hz-20kHz, 1%, 4Ω)
- Maximum output 52W x 4
- Tone control
BASS ± 15dB (60Hz / 100Hz / 200Hz)
TREBLE ± 12dB (10kHz / 15kHz)
Compatible Speaker Impedance 4Ω (4-8Ω)
Magna Base EX ± 10dB (50Hz)
Lineout output level 1.8V (CD1kHz)
Content adapted from: Clarion Addzest MXZ435LP Press Release
Manuals
Repair

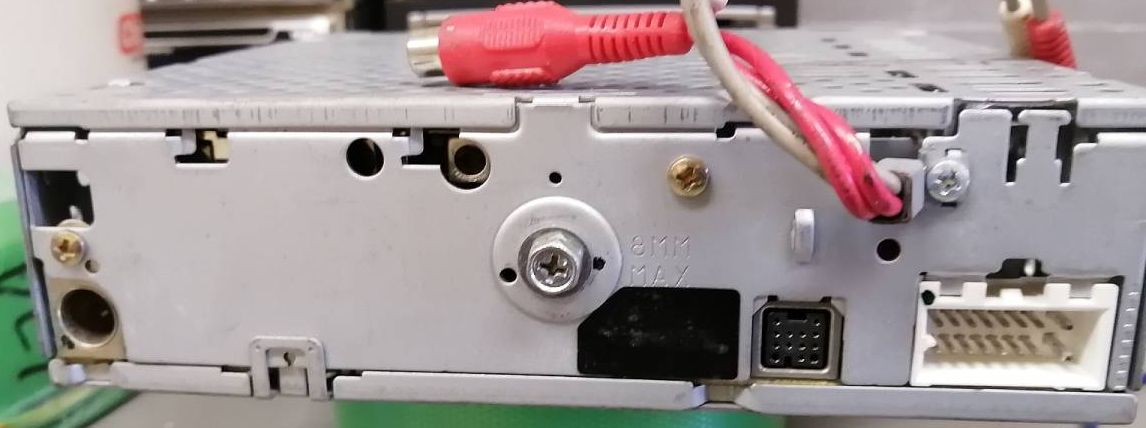

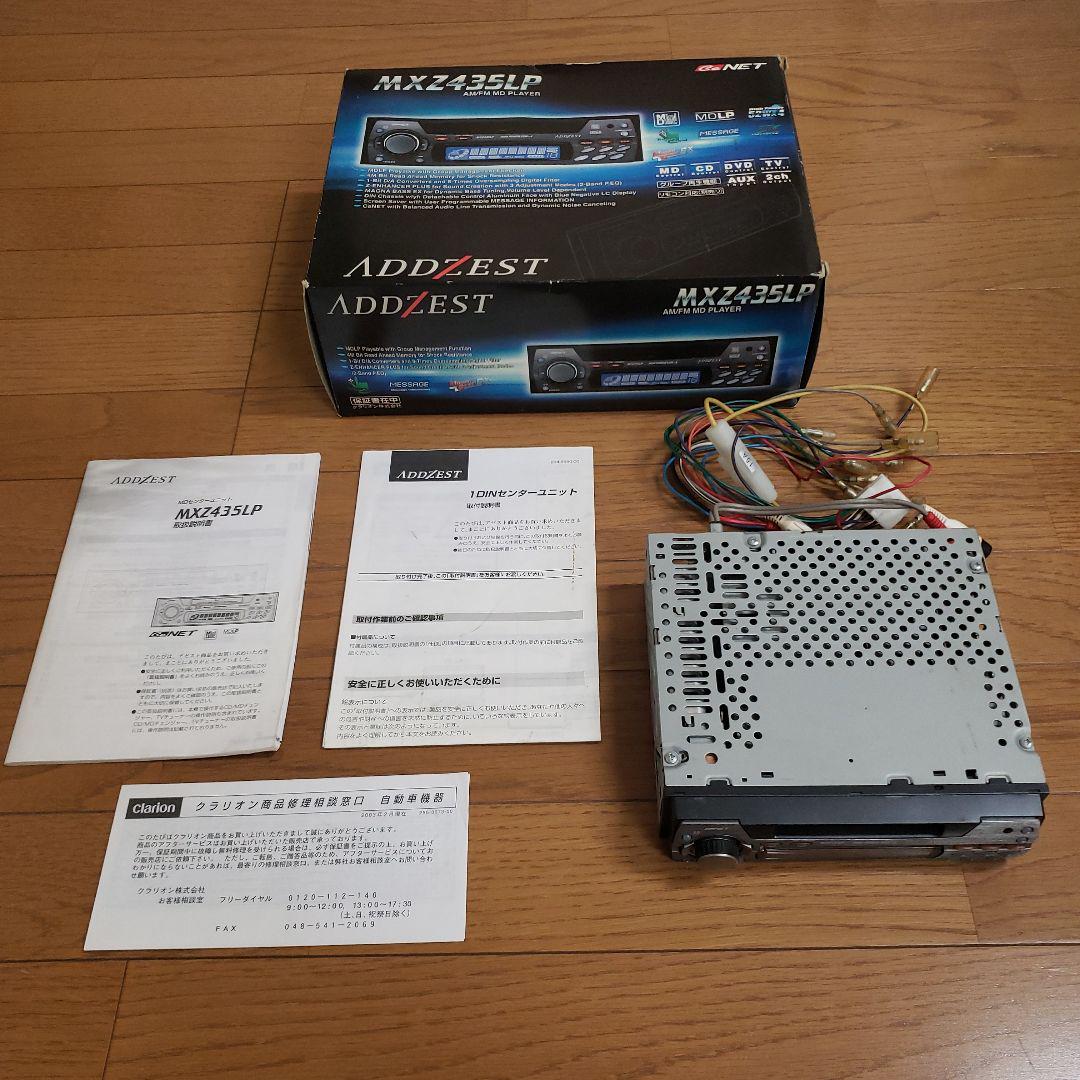

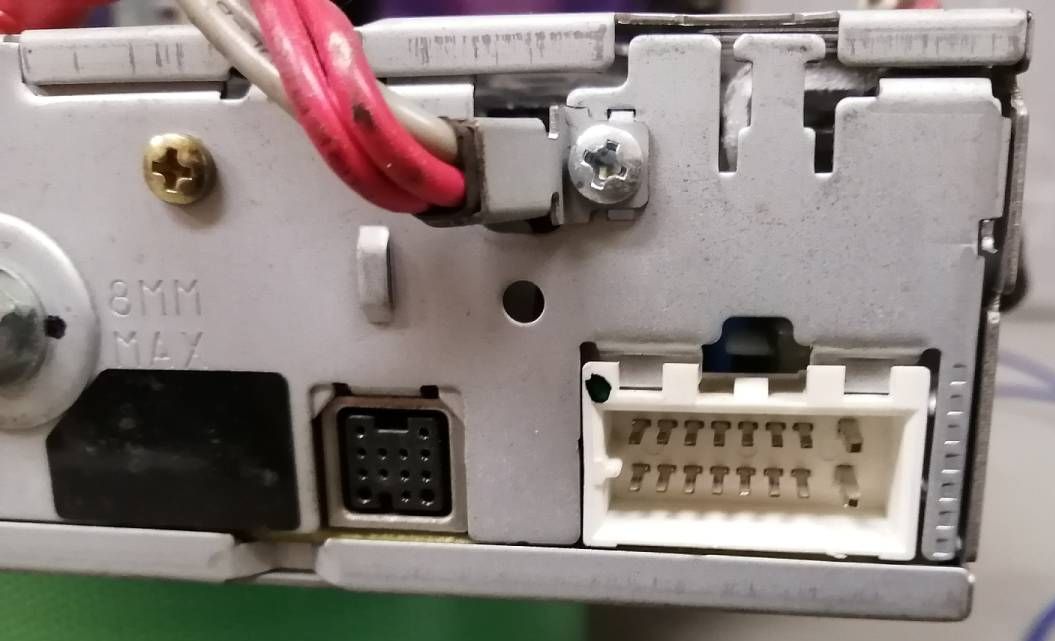

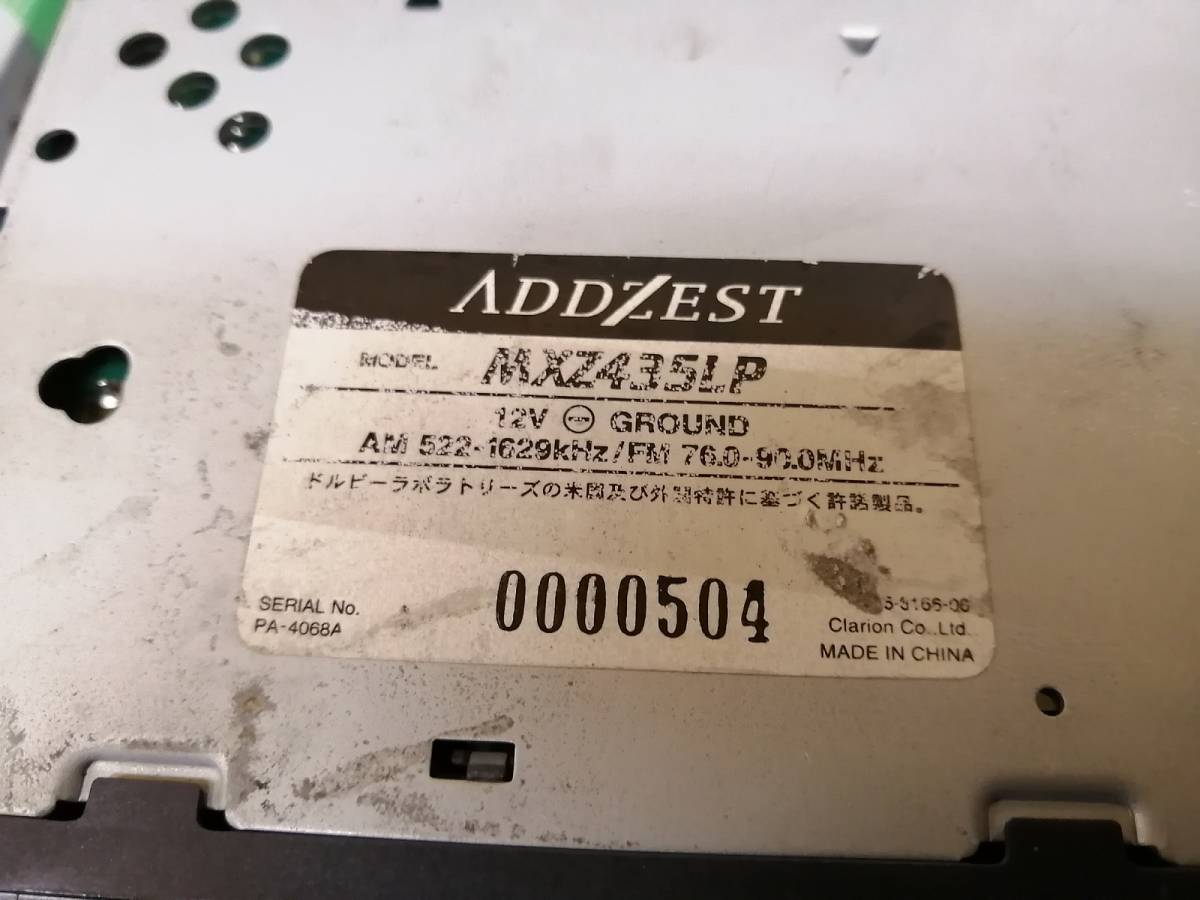

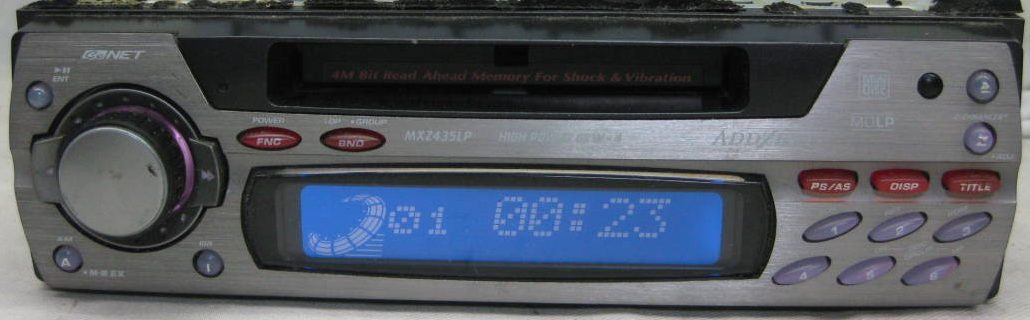

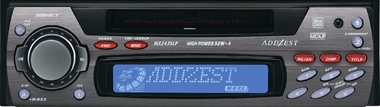

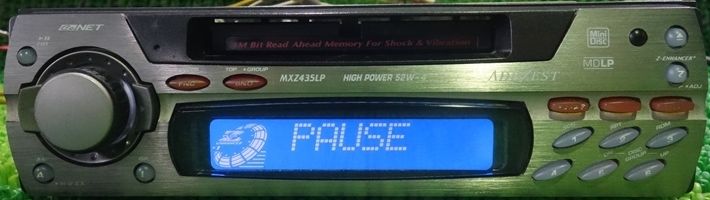

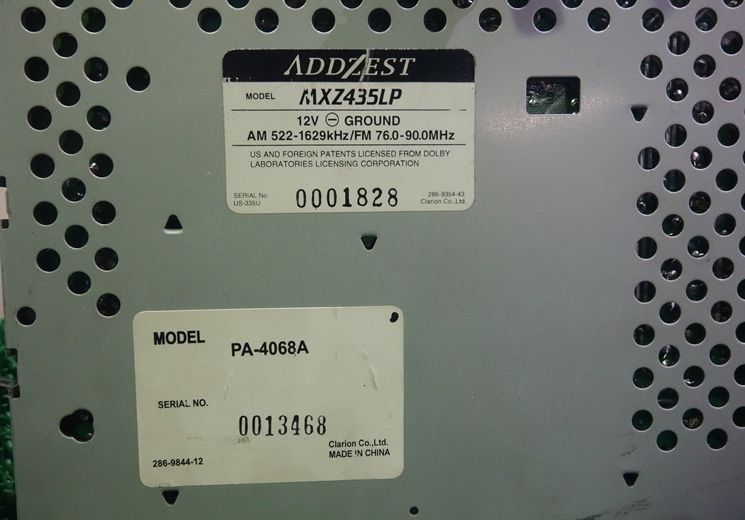

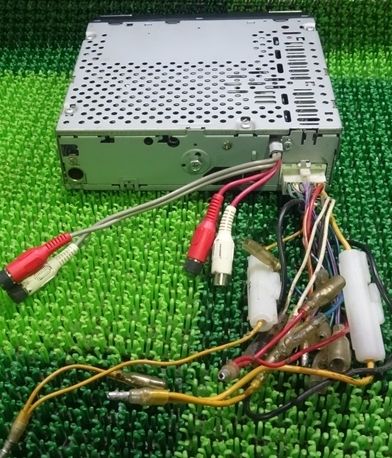

Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Manual | User manual |
|---|---|
| Region | Japan |
