Denon D-MS3

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-08-19

Manufacturer
Denon
Model / source grouping
D-MS3
Device type
bookshelf
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Accessories & internal parts

Source-referenced components. Check conditions before substituting parts.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Denon D-MS3”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name D-MS3
Manufacturer Denon
Released 2002/07
Device type bookshelf
Recorder Recorder
MDLP Yes
NetMD No
Hi-MD No
Radio Not recorded
Dimensions 21x15x35.3 cm (base unit only)
Weight 7.6 kg (base unit only)
ATRAC ver Type-S
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) No
Voltage 100
Power cable AC
Price (launch) Not recorded
¥70 000
-
Inputs RCA in, Digital optical (TOSLINK), CD, Radio recording
Outputs 3.5mm headphone, RCA out, Digital optical (TOSLINK), Speaker amplifier
Control USB Type-B

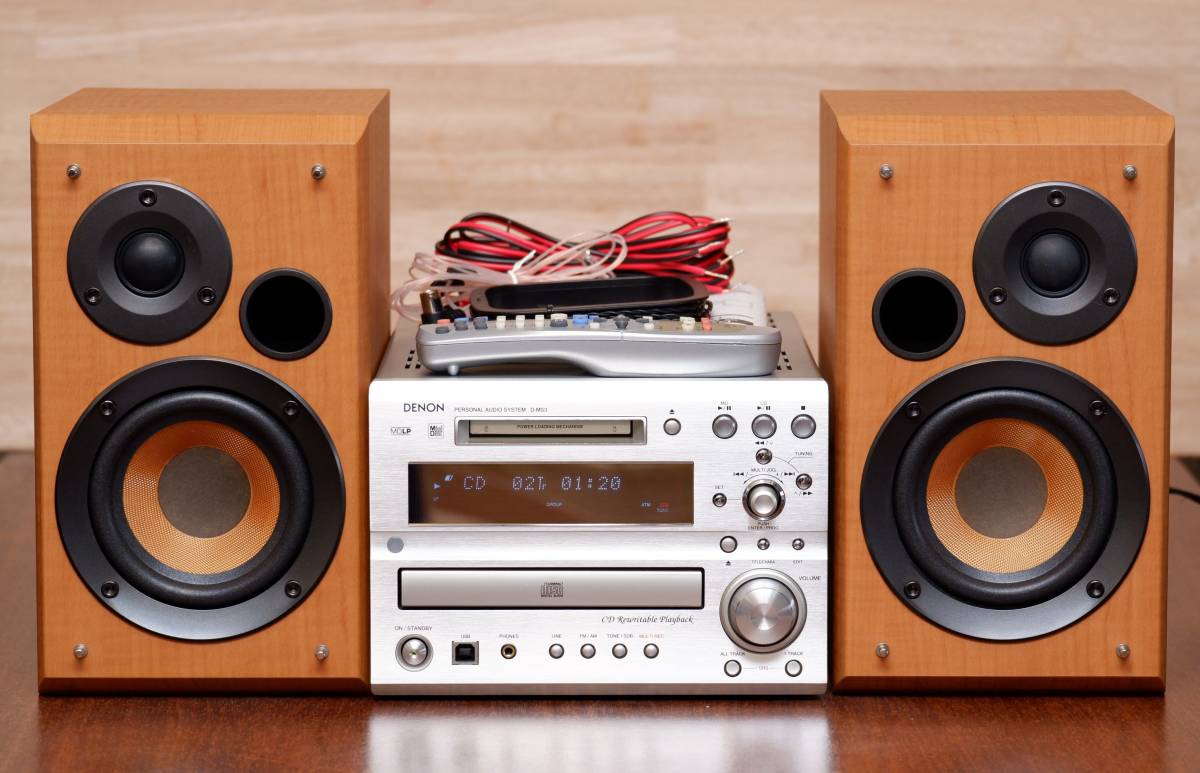

Japan-exclusive bookshelf system. System unit is internally model USR-MS3 and bundled speakers are USC-MS3, with the D-MS3 designation referring to both the base unit and speakers.

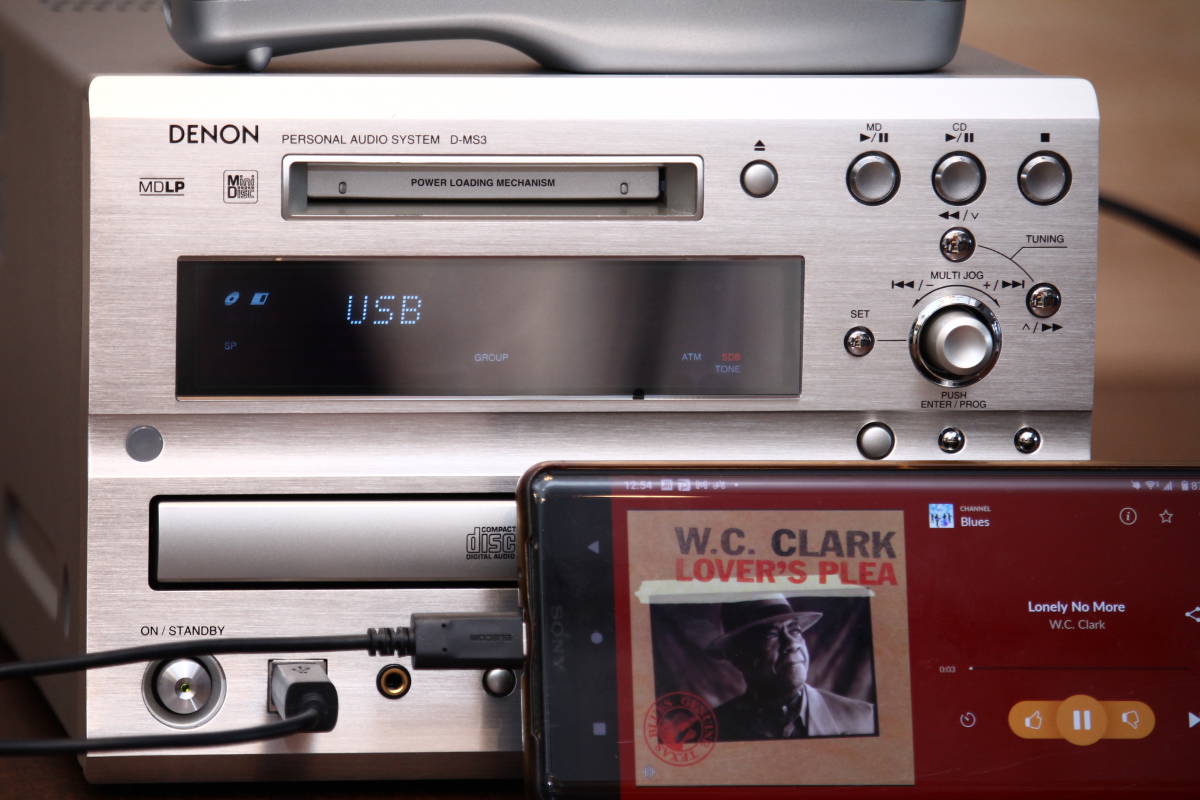

The USB port does not support NetMD, and is instead used to listen to PC audio through the system. The system cannot record USB audio.

Advertises support for CD-RW discs. Supports worldwide FM bands, a rarity for many Japan-exclusive units. Dubs CD→MD at 4X.

Dimensions in datapage are only for the base unit, not including the speakers.

MD MECHA: KPJ MGM-07102K
Optical Pickup: KMS-262E - Denon part# (9GT 2501 23)
ATRAC IC: CXD2664R

Press release with more info (JP, Archive) Press release with more info (JP, Archive) (MiniDisc Wiki mirror) av.watch

Manuals

User Manual (Japanese)

Service Manual (Japanese)

Repair

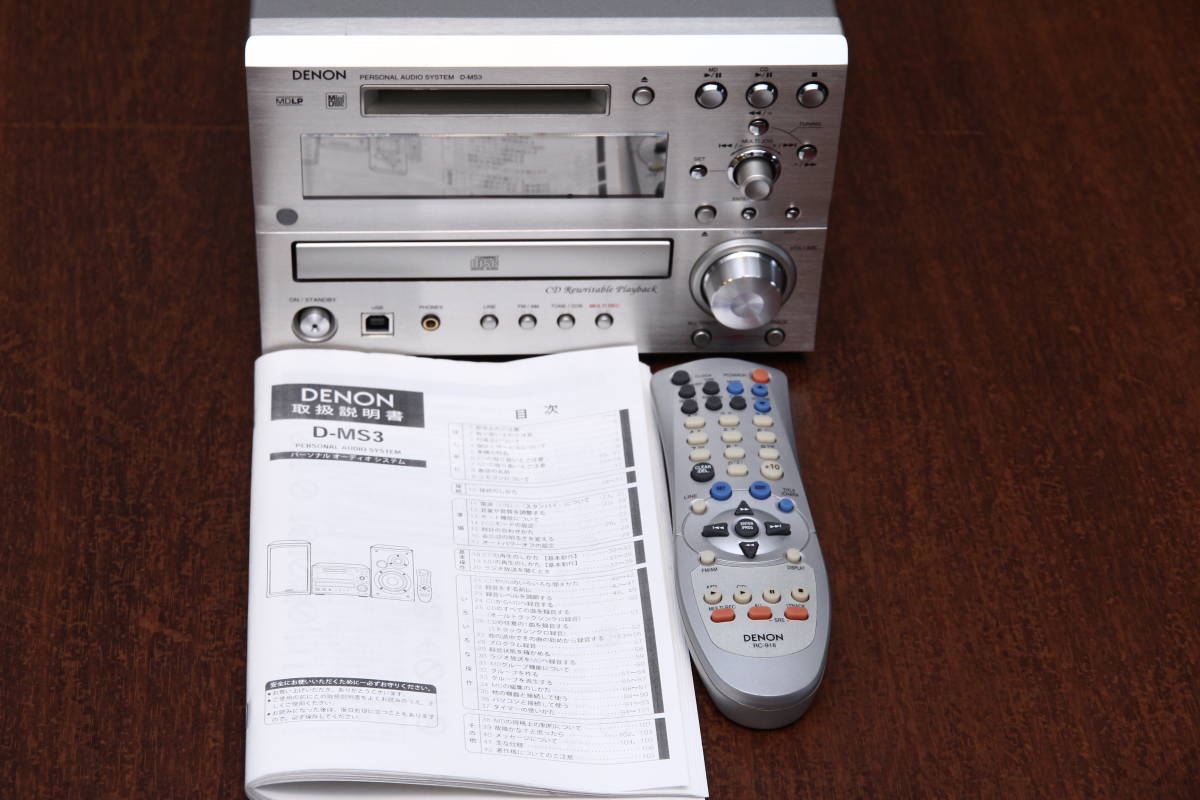

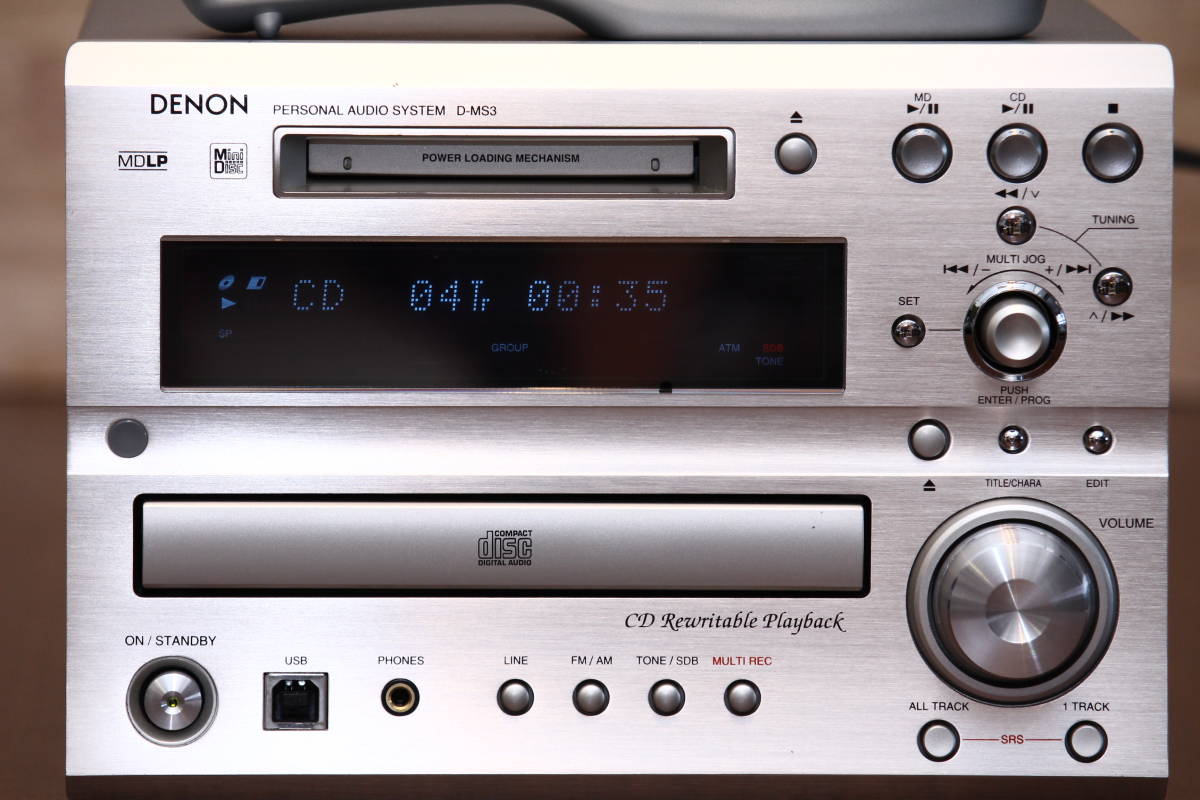

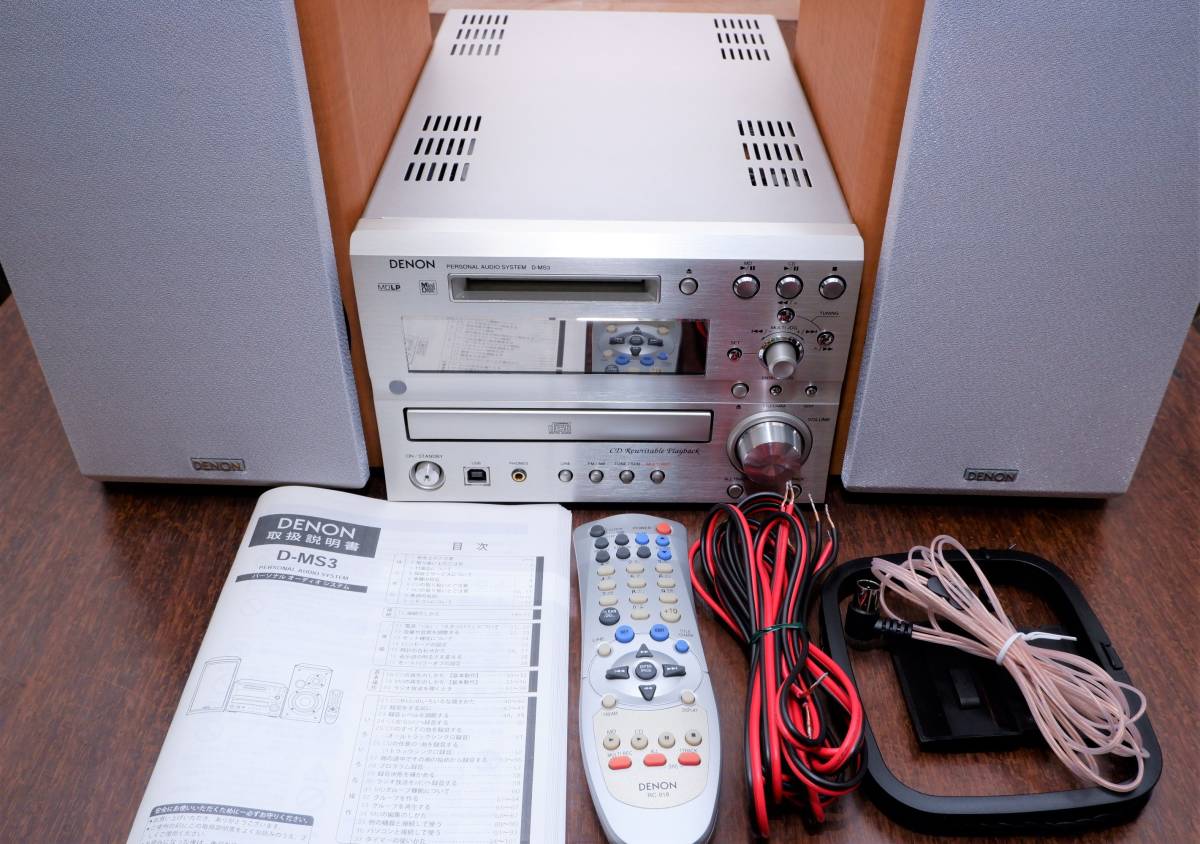

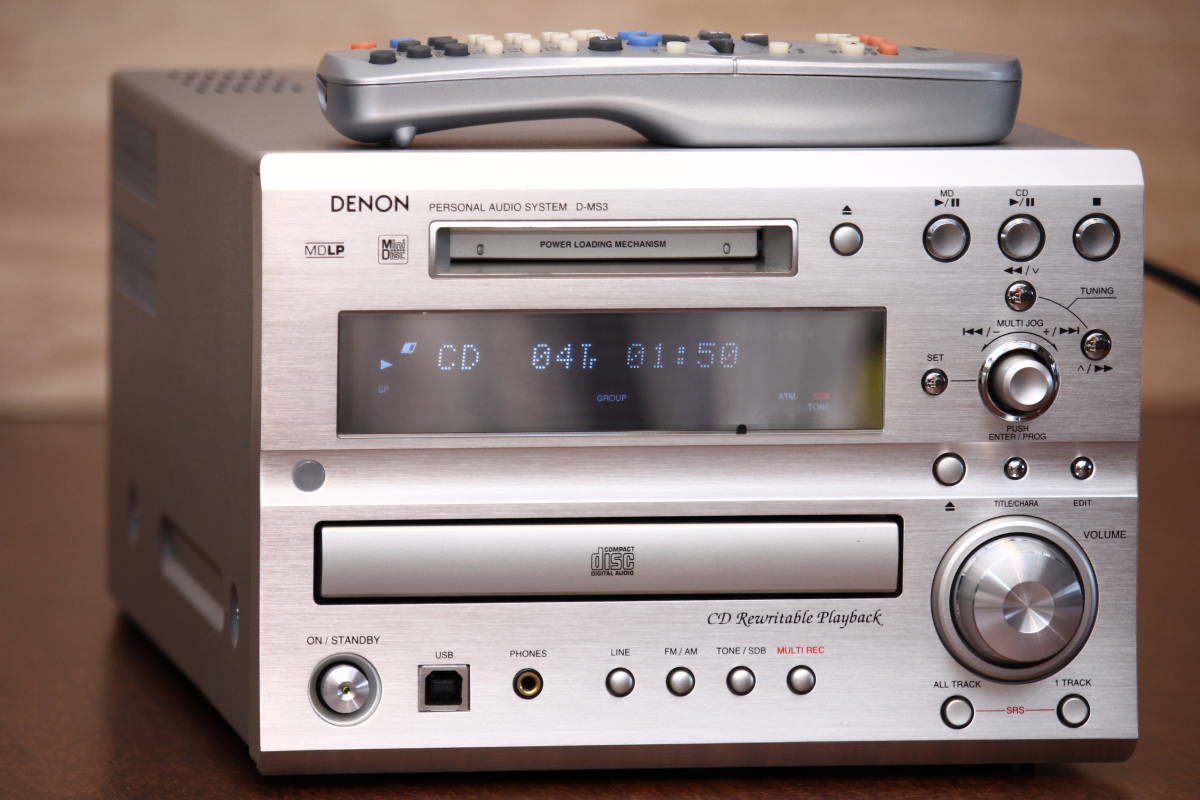

Photos

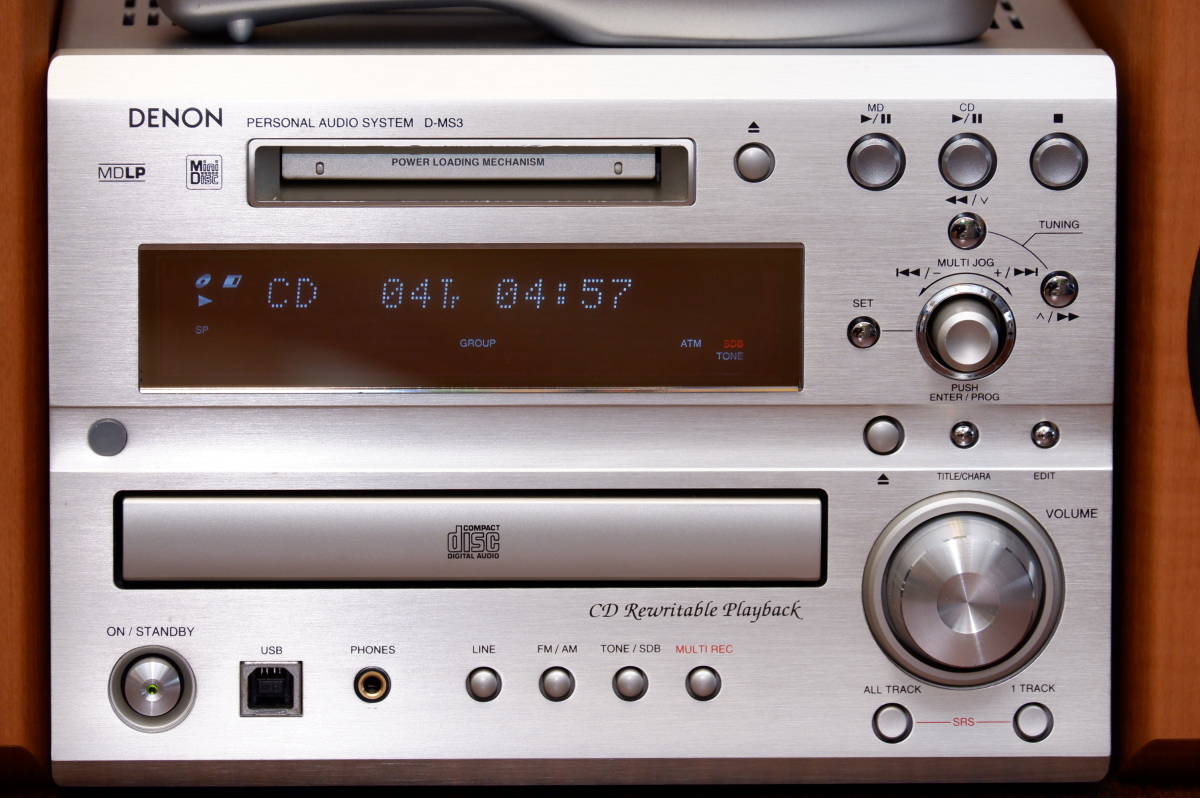

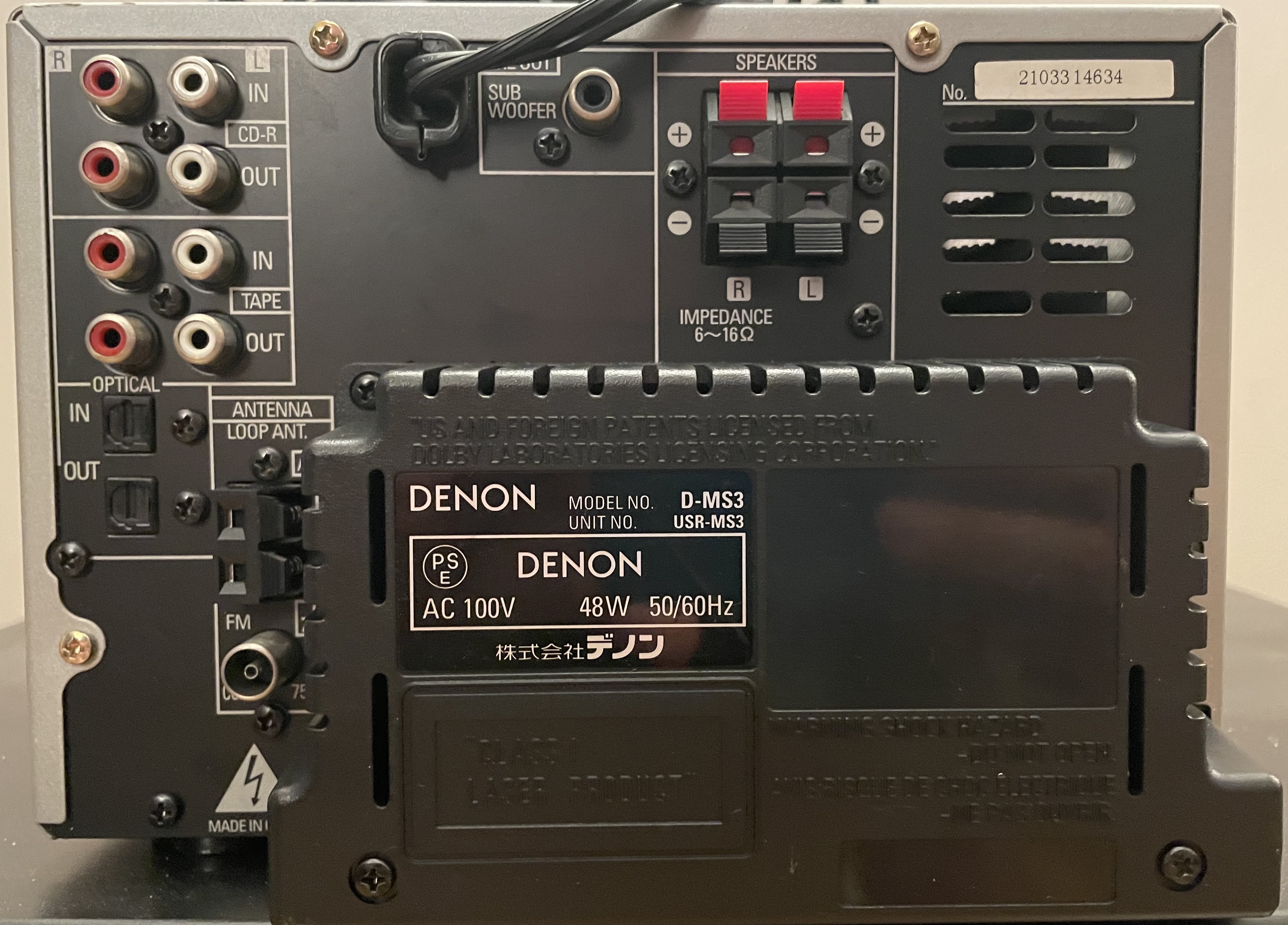

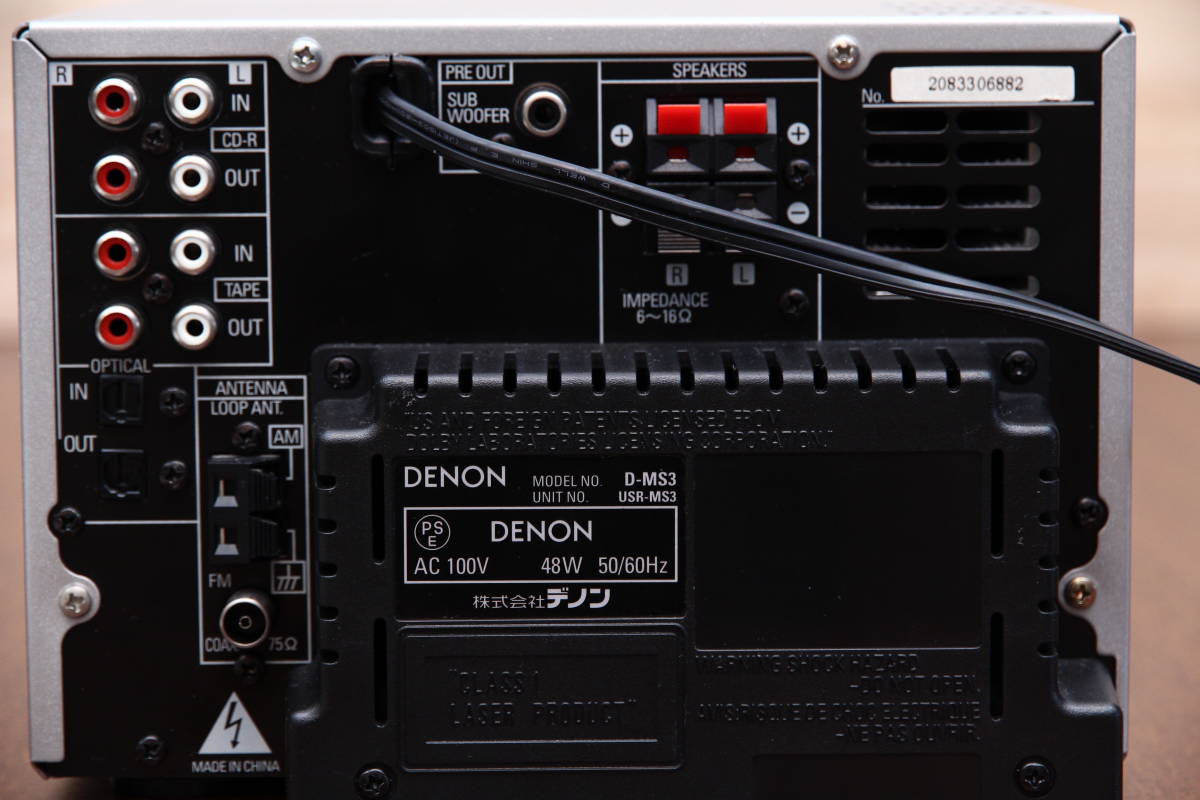

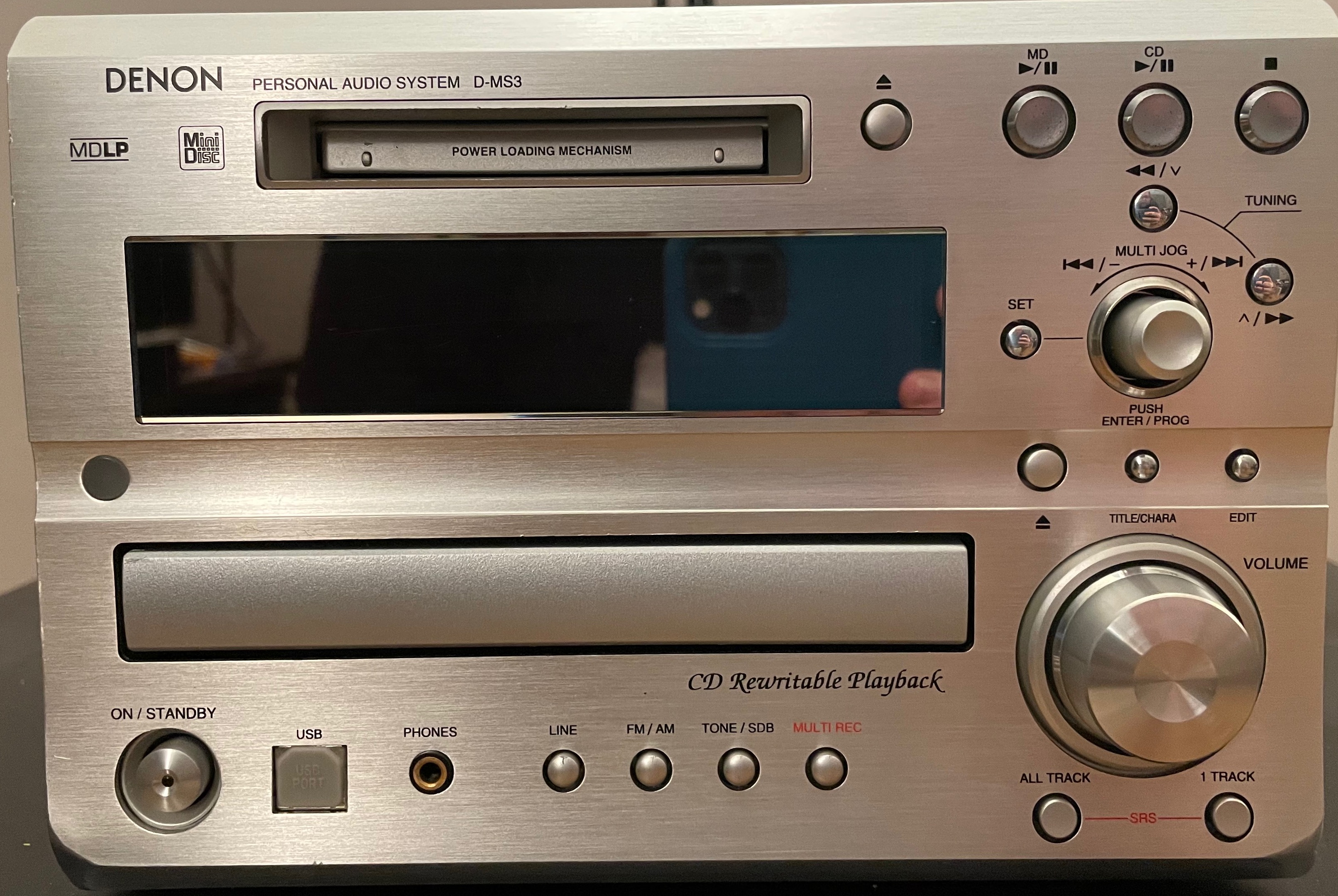

Front Image Rear Image

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references
ScmsYes
Remote Page
Atrac IcCXD2664R
ManualUser manual, Service manual
RegionJapan
