| Name | DMD-7.5L |
|---|---|
| Manufacturer | Denon |
| Released | 1998/01 |
| Device type | deck |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | Width 250 x Height 98 x Depth 314 mm |
| Weight | 3500 |
| ATRAC ver | Not recorded |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥70 000 | |
| - | |
| Inputs | RCA in, Digital optical (TOSLINK) |
| Outputs | RCA out, Digital optical (TOSLINK) |
| Control | Not recorded |
MD deck of PRESTA series equipped with ΛS.LC.
The multi-bit system ΛS.LC (lambda super linear converter) is carried in the D / A conversion part, and the zero cross distortion which occurs in principle at the time of D / A conversion is eliminated, and an excellent D / A conversion is realized.
The sampling rate converter is carried and it supports not only 44.1kHz of MD and CD but also 32kHz / 48kHz such as BS broadcasting and DAT. Digital recording with suppressed deterioration of sound quality is possible.
It supports katakana character input, and you can enter the disc name and song name. The display can display up to 14 characters at a time, and the rest are scrolled.
You can edit the contents of the recorded disc, such as splitting one song or connecting two songs.
It is equipped with functions such as program playback, random playback, and repeat playback of all songs / song.

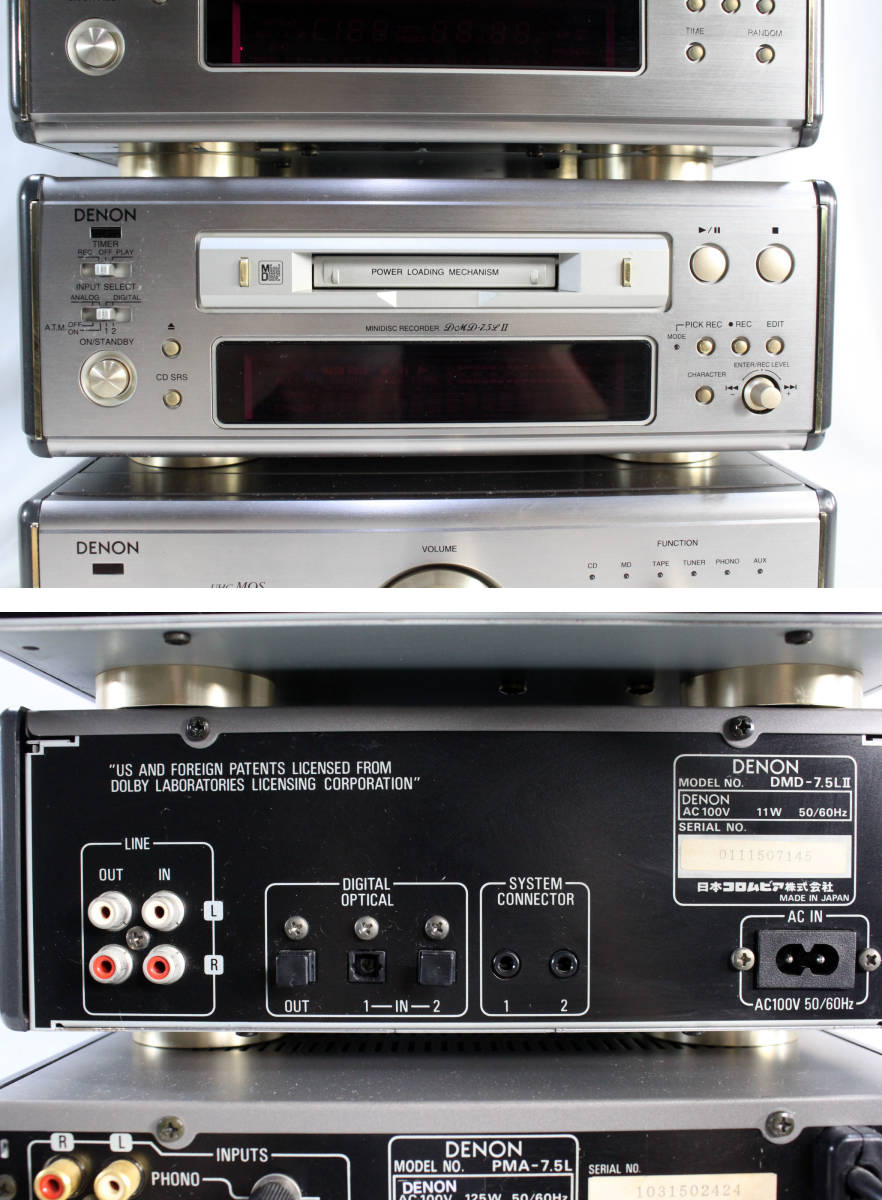

The digital input terminal of 2 optical systems and the output terminal of 1 optical system are carried.
The digital servo is adopted.

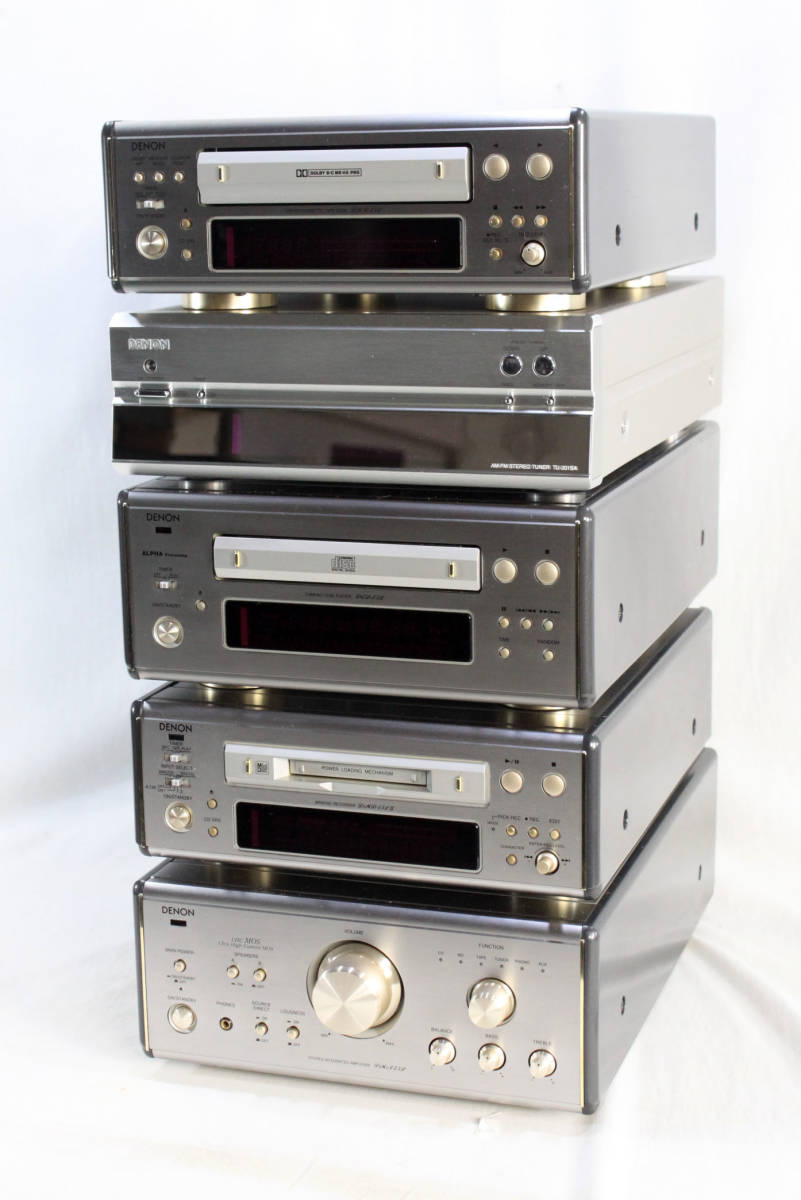

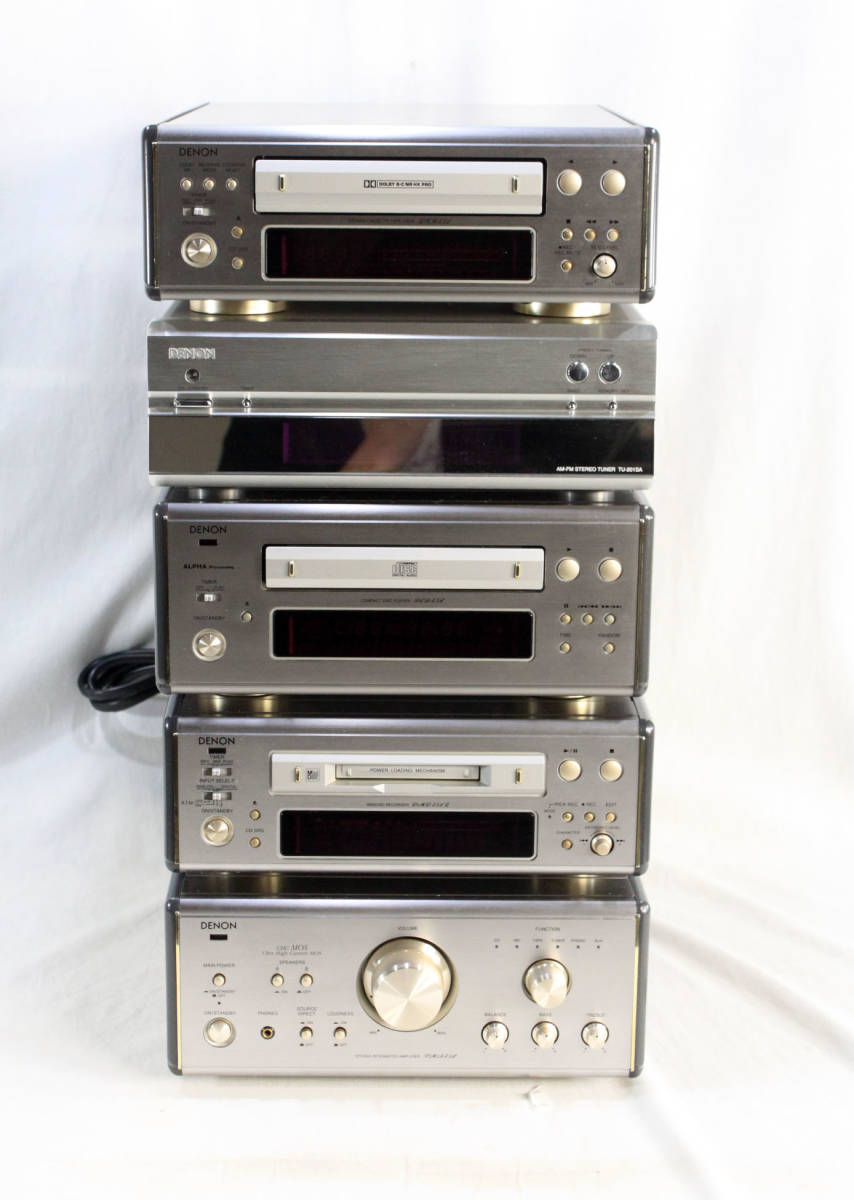

Equipped with system functions, easy operation is possible by connecting to the PRESTA-7.5L / 6.5L series.
