| Name | AVN5502C |
|---|---|
| Manufacturer | Eclipse |
| Released | 2002/07 |
| Device type | auto |
| Recorder | Player |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 178 (W) x 100 (H) x 162 (D) mm |
| Weight | 3100 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥168 000 | |
| - | |
| Inputs | CD |
| Outputs | Not recorded |
| Control | Not recorded |

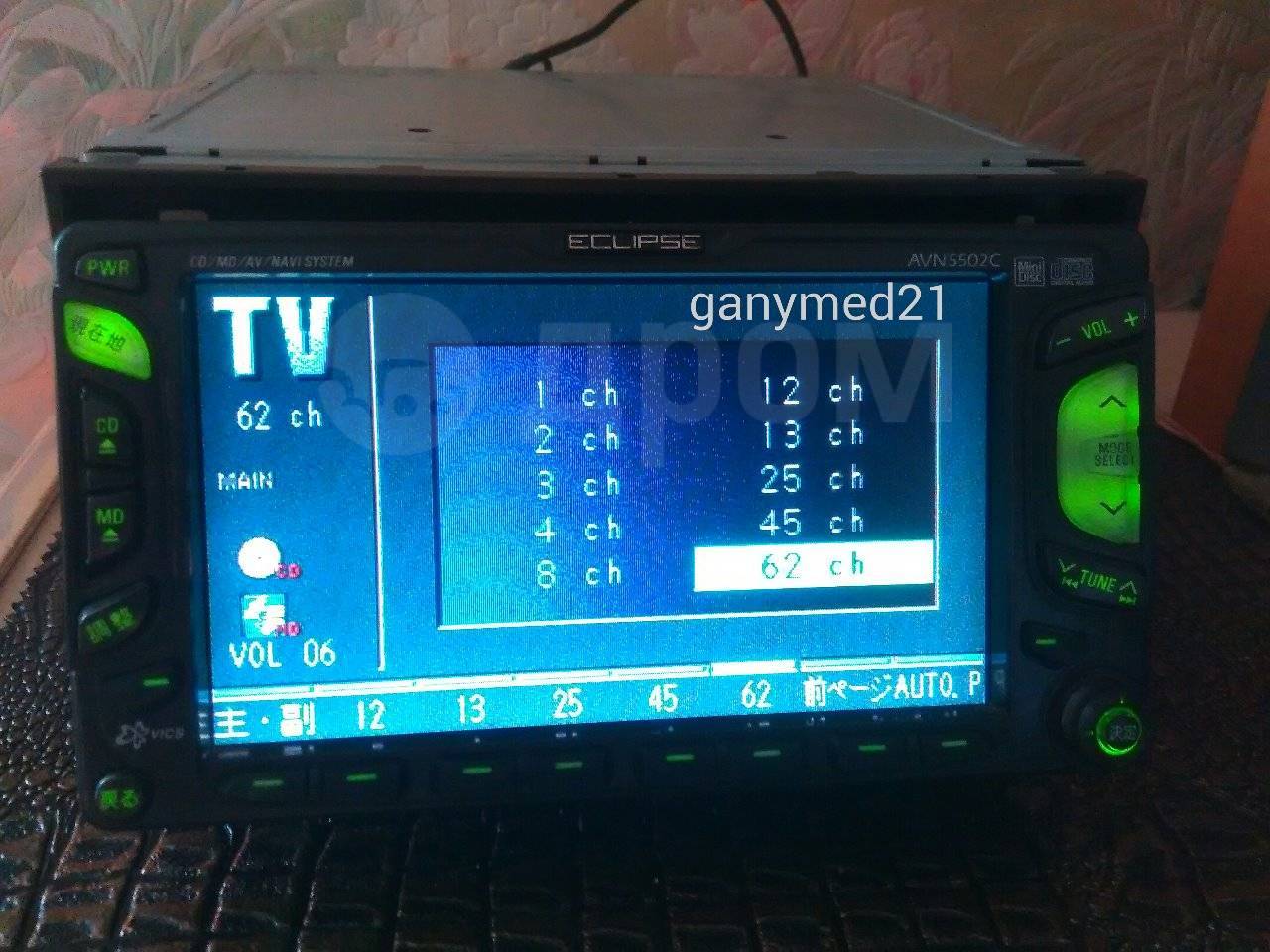

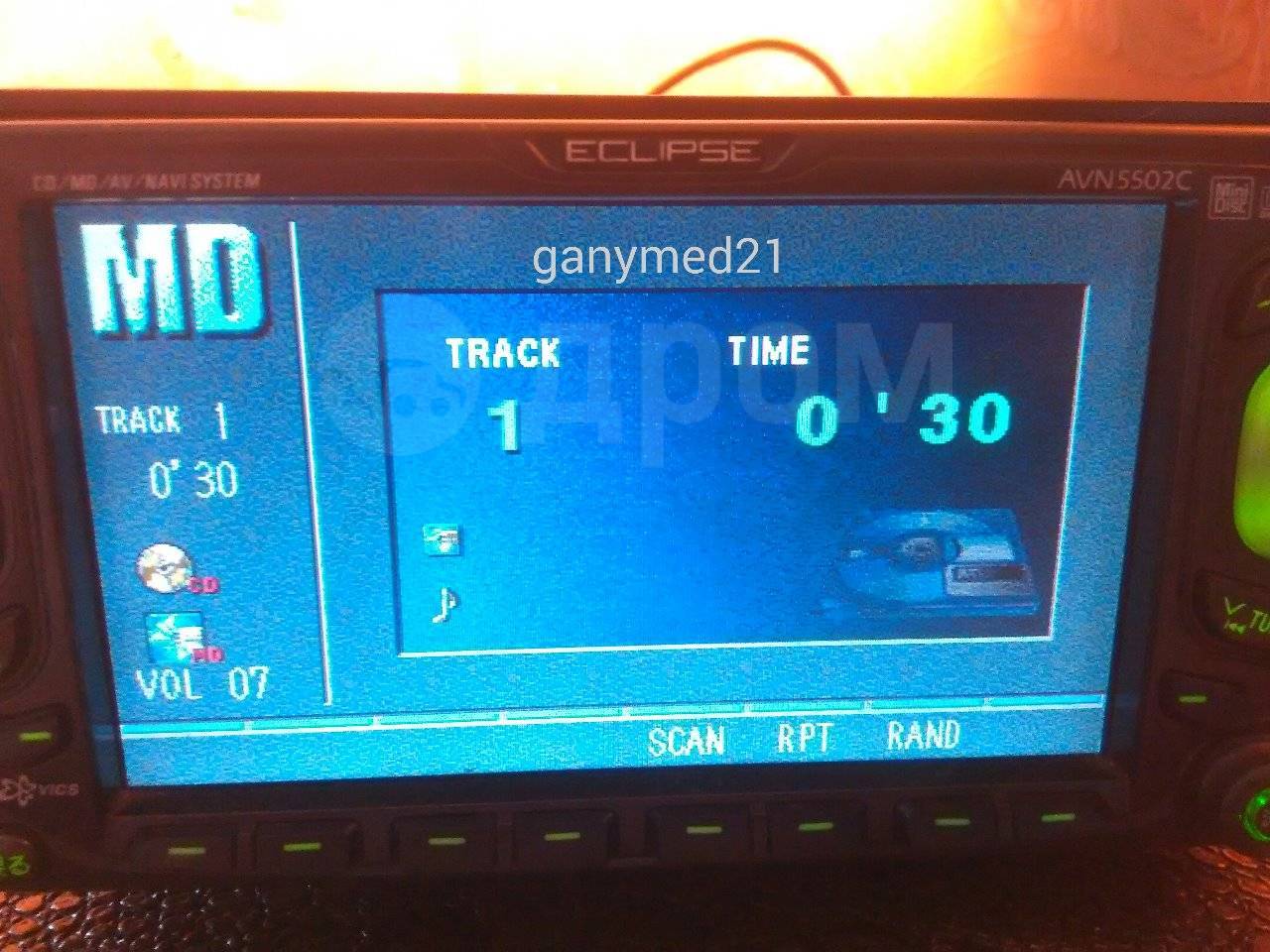

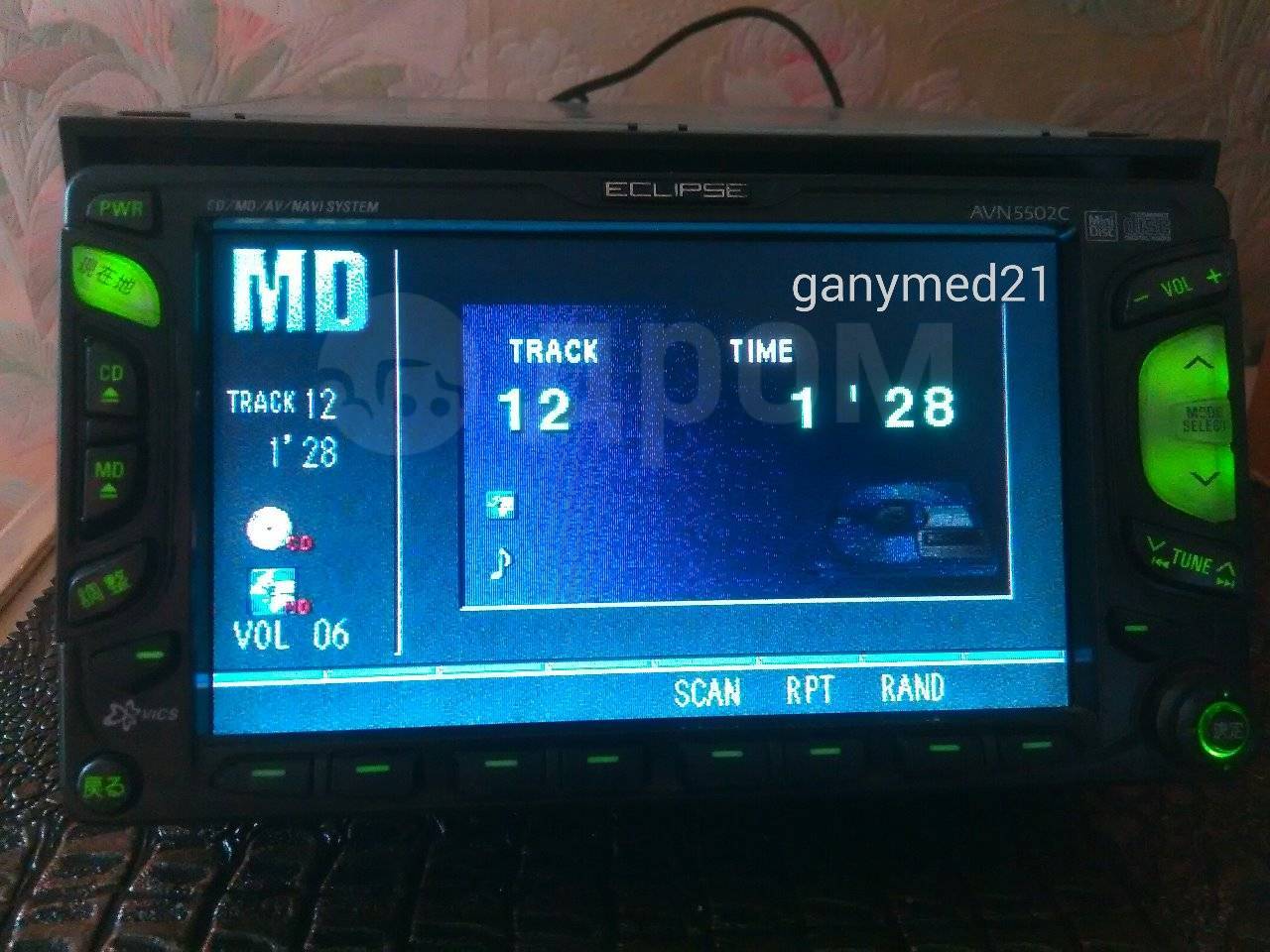

Eclipse AVN5502C
● Supported media: CD navigation, CD, MD, TV, AM / FM, FM multiplexing, FM -VICS ● Attachment: GPS antenna, national map CD-ROM, film TV antenna

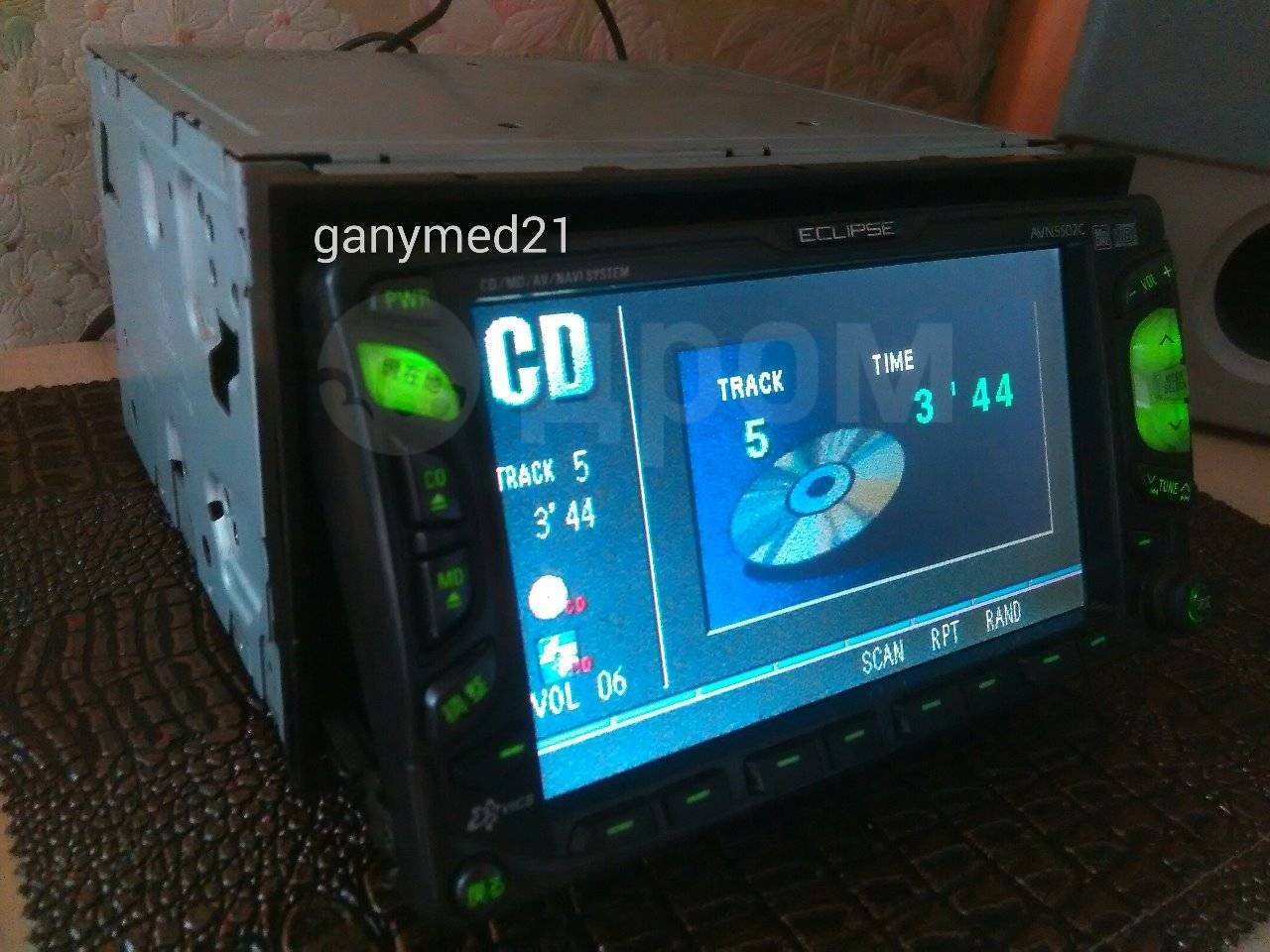

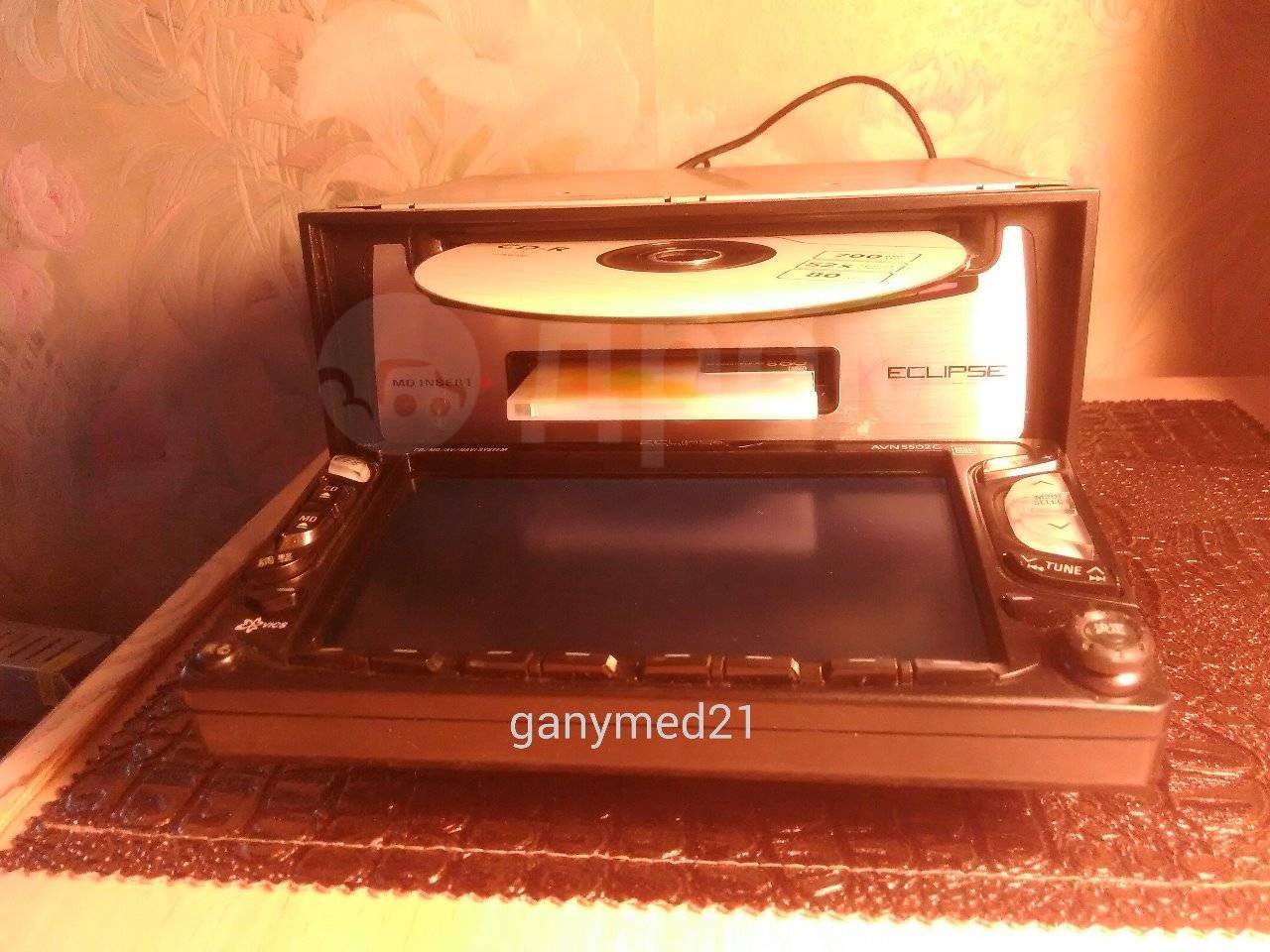

■ In addition to navigation, you can also listen to music CDs on the CD-ROM navigation and CD / MD Simply AVN CD decks.
■ Designed for ease of use "Mode select button" The frequently used mode select button is designed to be large and easy to use. You can select the source while checking in the large menu window.
■ "10-key commander" that allows you to enter characters directly The 10-key commander that allows you to easily enter characters and numbers such as destinations is adopted. With the function keys linked to "A line" to "Wa line" displayed at the bottom of the screen, you can select characters in the sub window with a single button without using the cursor.
■ "Film TV antenna" to be pasted in the window Two compact film antennas to be pasted in the windshield are adopted. It does not get in the way even when washing a car or in a multi-storey car park, and there is no need so water leakage and rust can be avoided.
■ Can be connected to a CD autochanger (sold separately: E7707NAC, E5509CDC) or MD changer (sold separately: E3308MDC )
■ Back-eye camera "BEC102" 29,800 yen (excluding tax)
● Compatible models: AVN8802D, AVN7702D, AVN5502D (29,800 yen)
Content adapted from: Denso-Ten Press Release
Manuals
Repair

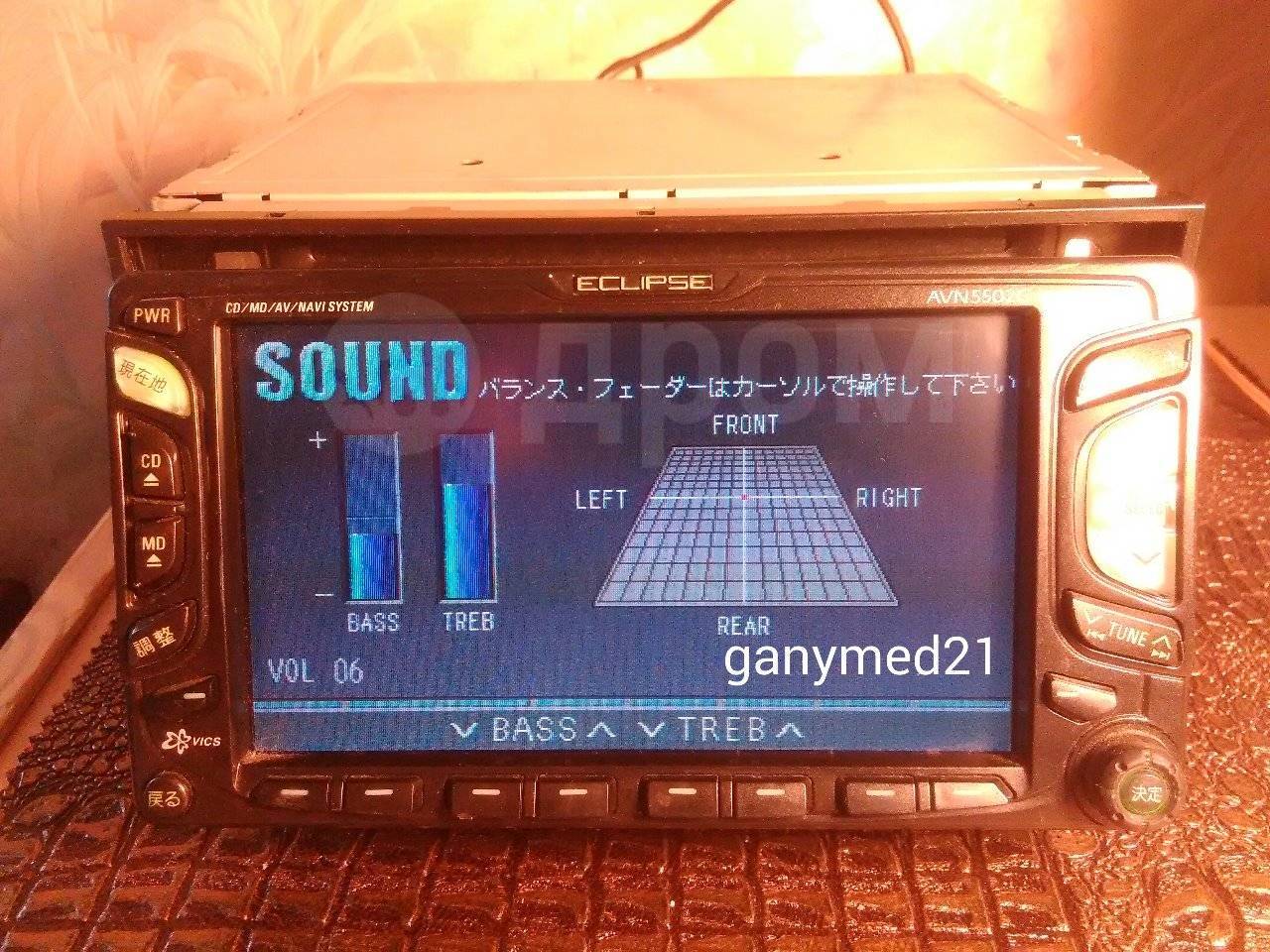

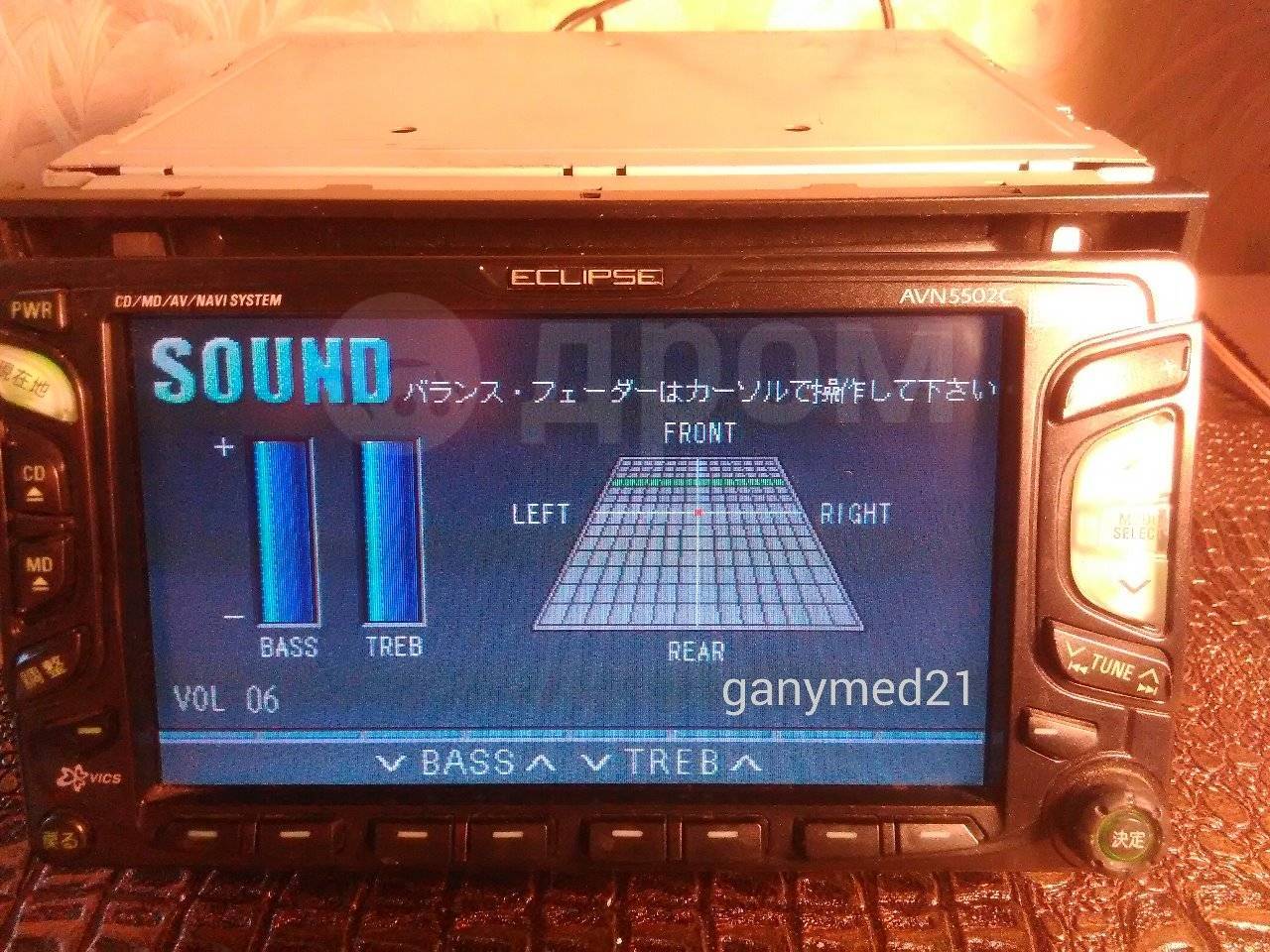

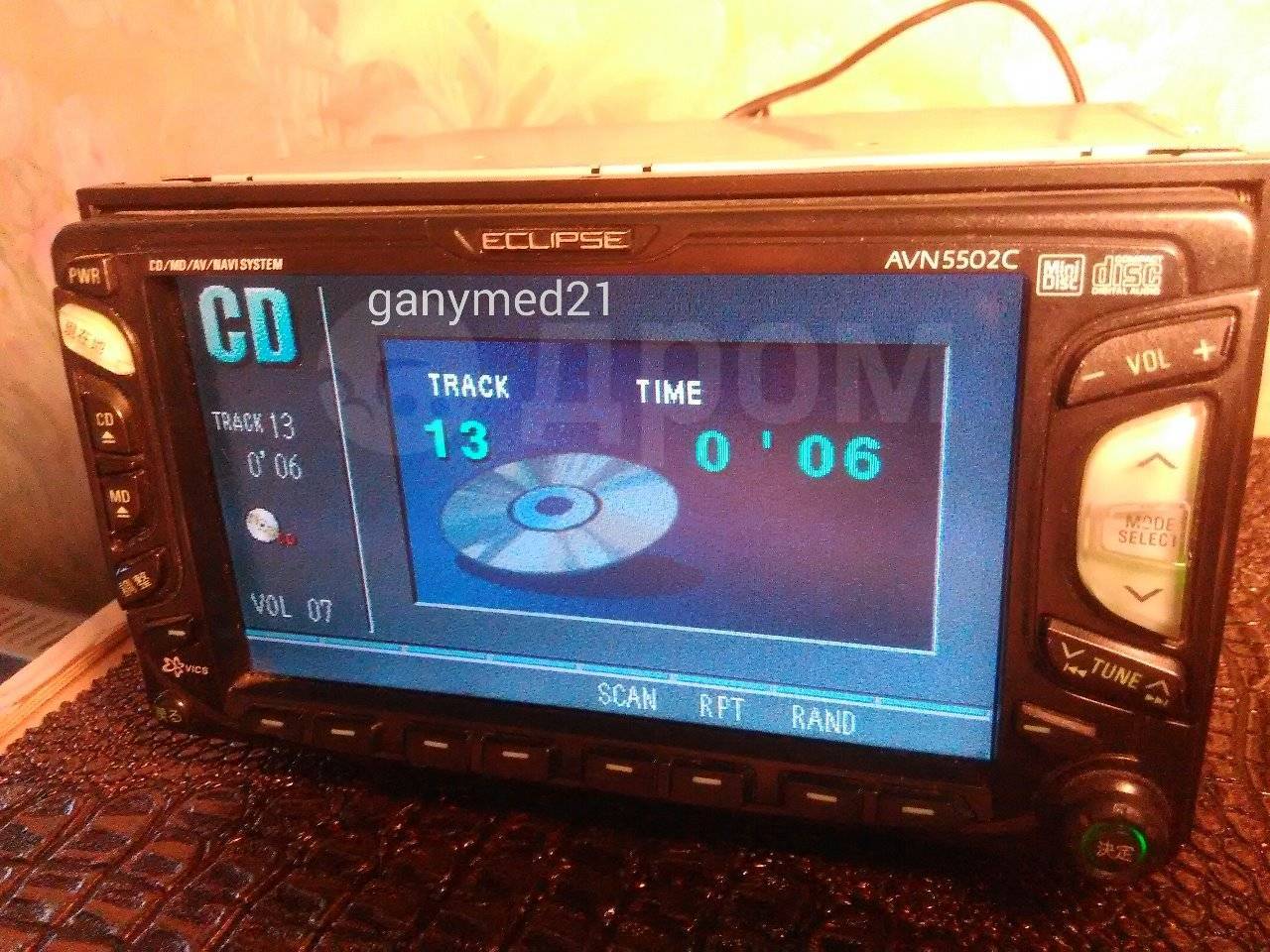

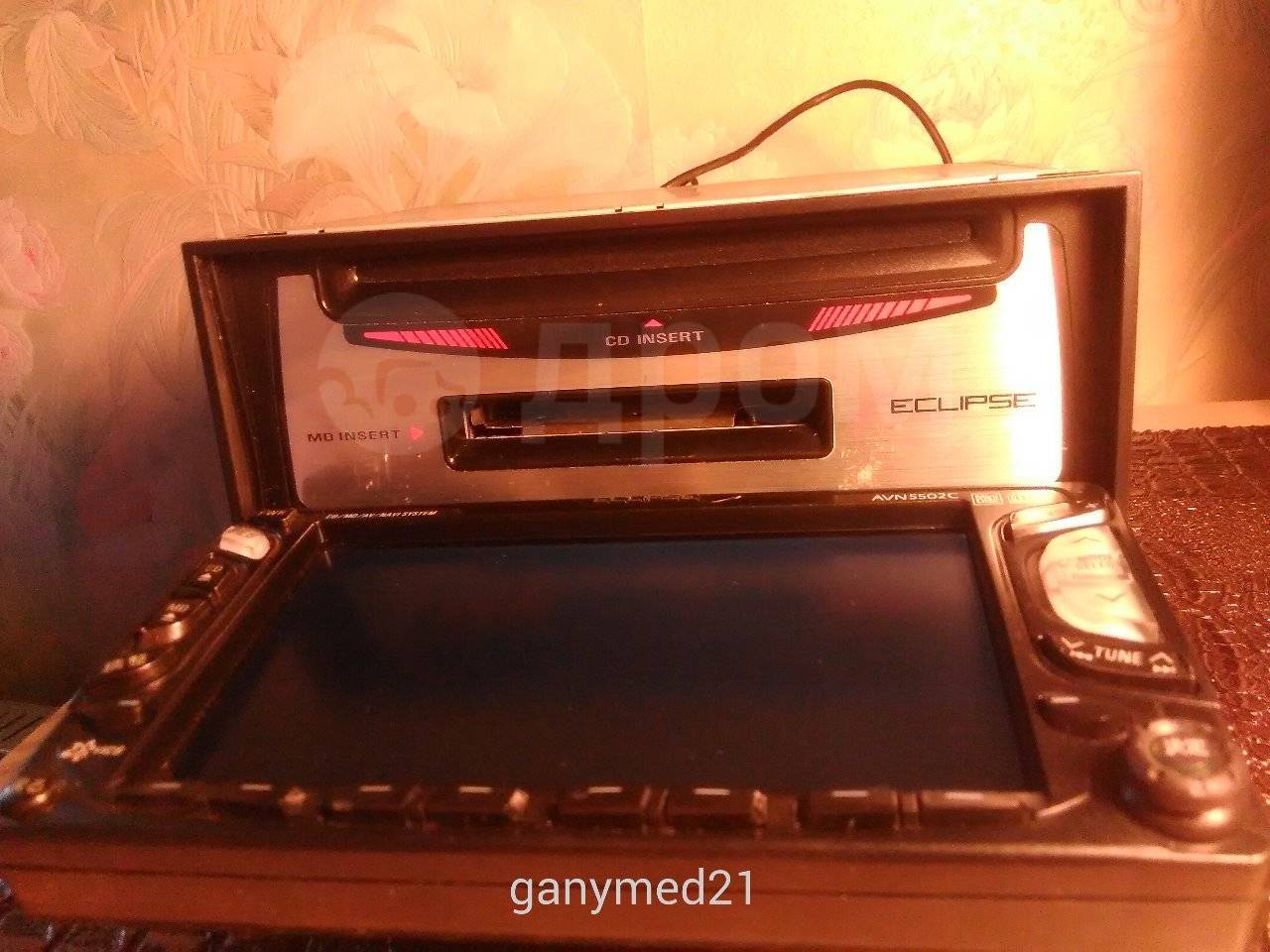

Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Manual | User manual |
|---|---|
| Region | Japan |
