| Name | AVN5504D |
|---|---|
| Manufacturer | Eclipse |
| Released | 2004/07 |
| Device type | auto |
| Recorder | Player |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 180 (W) x 100 (H) x 165 (D) mm |
| Weight | 3600 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥241 500 | |
| - | |
| Inputs | CD |
| Outputs | Not recorded |
| Control | Not recorded |

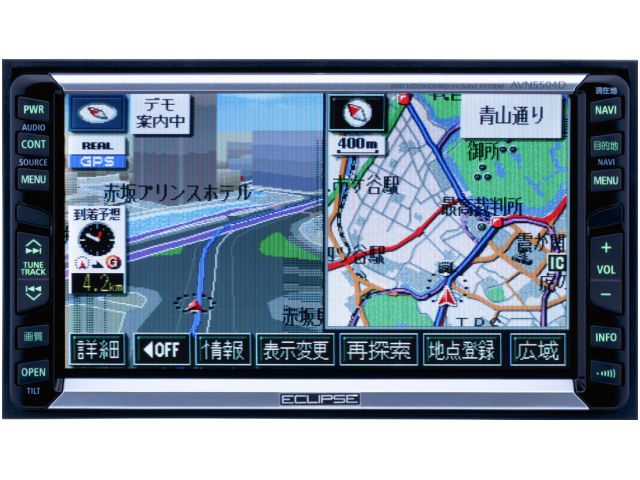

Eclipse AVN5504D
● Included: TV / GPS integrated film antenna, national map DVD-ROM

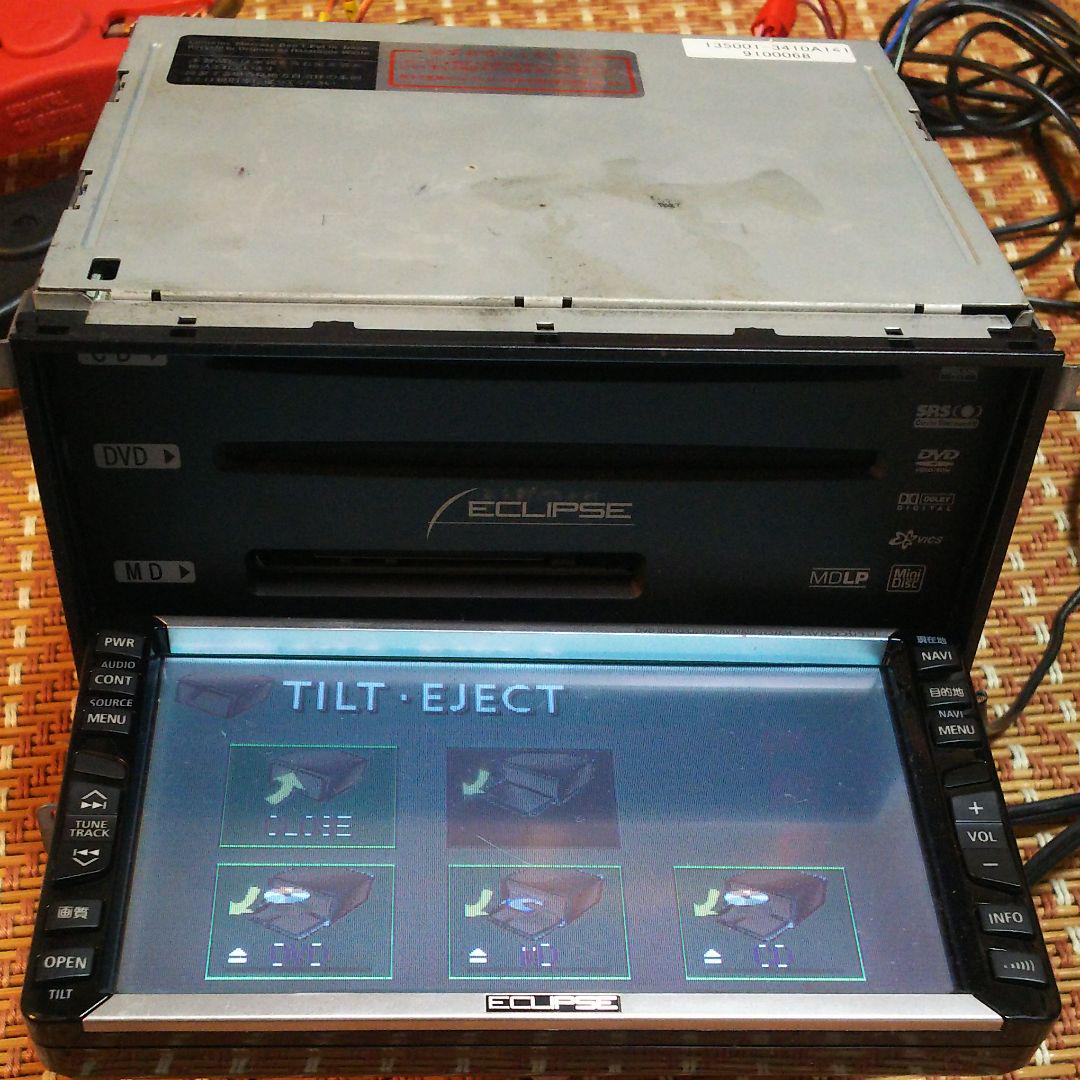

■ 3-deck AVN with DVD, CD, and MD decks
The DVD deck which can play a DVD video is carried. It supports playback of various media such as DVD video, CD, and MD.
■ Equipped with "Circle Surround II" that realizes surround equivalent to 5.1ch with 4 speakers
Achieves 5.1ch-equivalent surround with 4 speakers without a center speaker or subwoofer. You can enjoy music sources such as DVD videos and CDs in 5.1ch surround without adding speakers.
■ Built-in FM-VICS, and by expanding the reception band of the TV antenna to the FM band, traffic information can always be received even while receiving FM / AM broadcasts
■ World's first "TV / GPS integrated film antenna" Included
■ High-contrast design of black and silver expresses a stylish image
■ Adopts "real icon" using concrete illustrations of each function on the buttons of the touch panel
■ "50W x 4" high power amplifier Equipped (* "AVN4404D" is equipped with MOS-FET 50W x 4)
■ Adopts a "touch panel" that allows navigation and audio to be operated by simply touching the screen
■ Supports a "10-key remote control" that can be operated from the rear seats ( (Sold separately: RMC101)
■ Supports 3 media / 3 levels by connecting the separately sold 2 media VICS unit "VIX104"
■ Can be connected to CD autochanger (sold separately: E5502CDC, E7707NAC), MD autochanger (sold separately: E3308MDC)
■ "Back eye" "Camera" can be connected (sold separately: BEC104)
■ "ETC" can be connected (sold separately: ETC104)
Content adapted from: Denso-Ten Press Release kakaku.com
Manuals
Repair
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Manual | User manual |
|---|---|
| Region | Japan |
