Eclipse AVN7703D

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-01-01

Manufacturer
Eclipse
Model / source grouping
AVN7703D
Device type
auto
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Eclipse AVN7703D”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name AVN7703D
Manufacturer Eclipse
Released 2003/07
Device type auto
Recorder Player
MDLP Yes
NetMD No
Hi-MD No
Radio Yes
Dimensions 180 (W) x 100 (H) x 165 (D) mm
Weight 3700
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 12
Power cable Not recorded
Price (launch) Not recorded
¥275 000
-
Inputs CD
Outputs Not recorded
Control Not recorded

<Navigation function>

* "Hyper Virtual Town Map" that reproduces the 3D building of the city map of 1,149 areas in transparent display * "Scroll direction display" that displays place names in four directions, north, south, east, and west from the center of the map * "Easy View Text" that changes the font size according to the sense of distance and makes the information easier to read * "Administrative district painting" that changes the background color of the map according to the scale for each city, ward, town, and village * Achieves 3 media / 3 level support by connecting the built-in FM-VICS and 2 media VICS unit (sold separately: VIX103 for AVN7703D only, VIX102 for other models)

<Audio function>

Can be connected to a CD autochanger (sold separately: E5502CDC, E7707NAC) and MD autochanger (sold separately: E3308MDC) Equipped with "50W x 4" high power amplifier

<Others>

Rear seat monitor (E805RM) Compatible with "10-key remote control" that can be operated from the rear seat (sold separately: RMC101) Includes "Film TV Antenna" "Back eye camera" can be connected (sold separately: BEC103) "ETC" connection possible (sold separately: ETC101)

Content adapted from: Denso-Ten Press Release

Manuals

Eclipse AVN7703D Audio Manual JP

Eclipse AVN7703D Quick Manual JP

Repair

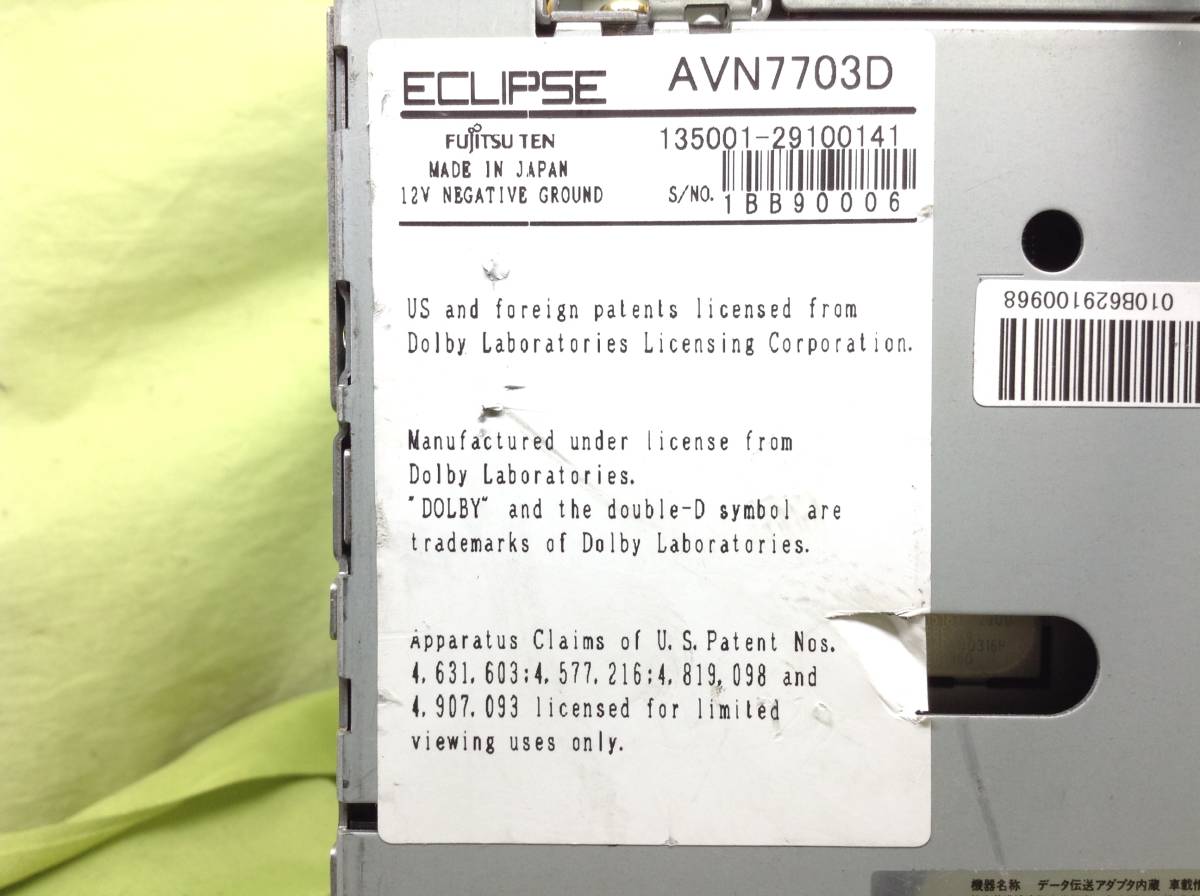

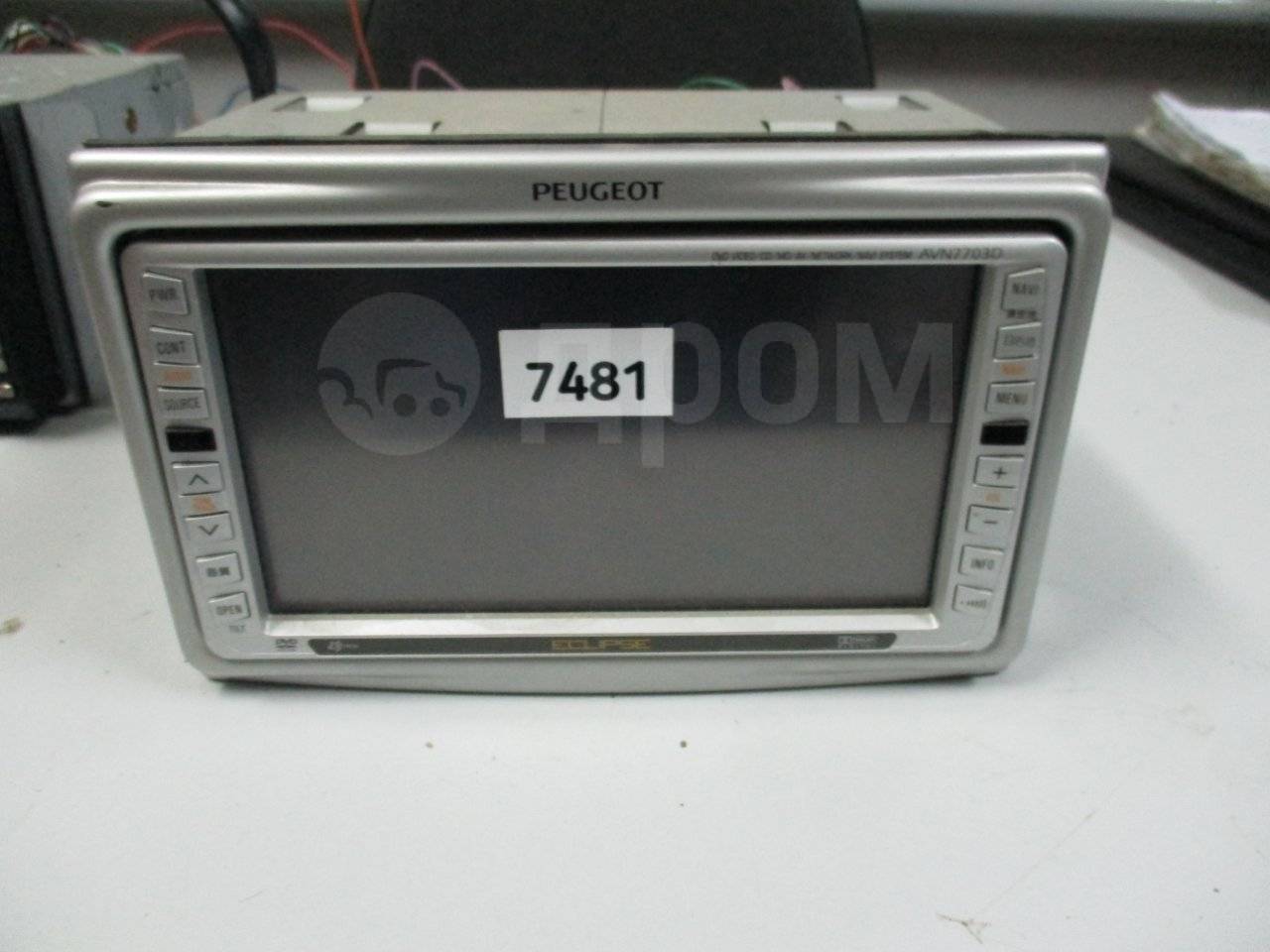

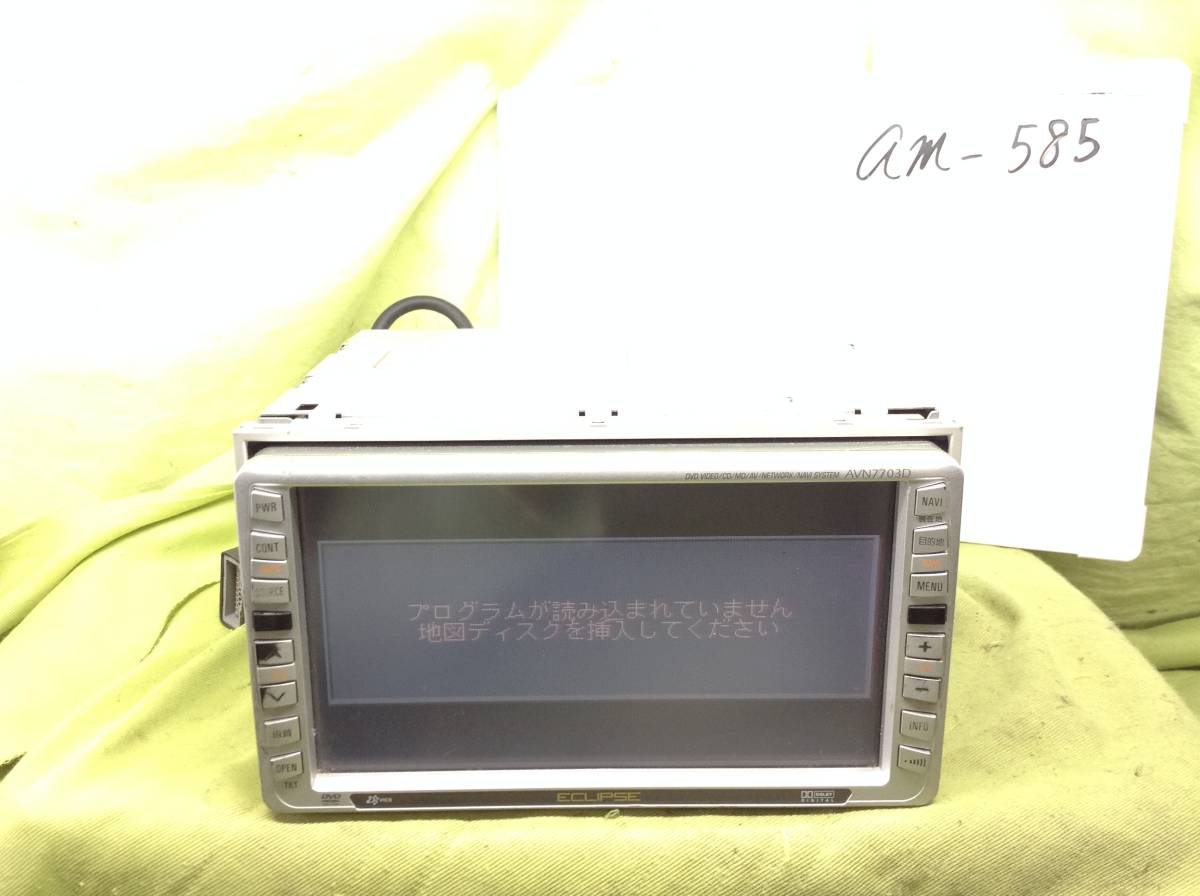

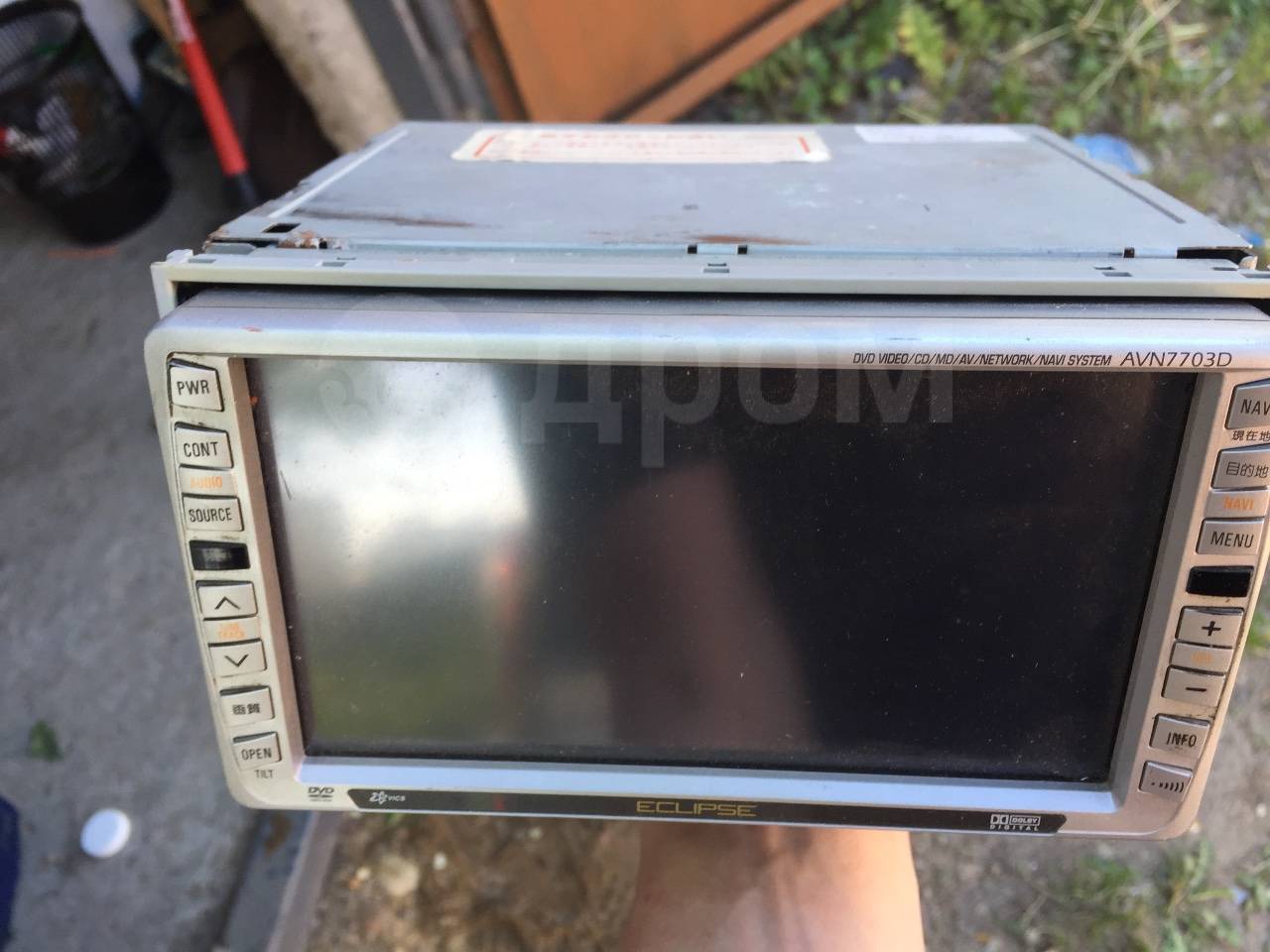

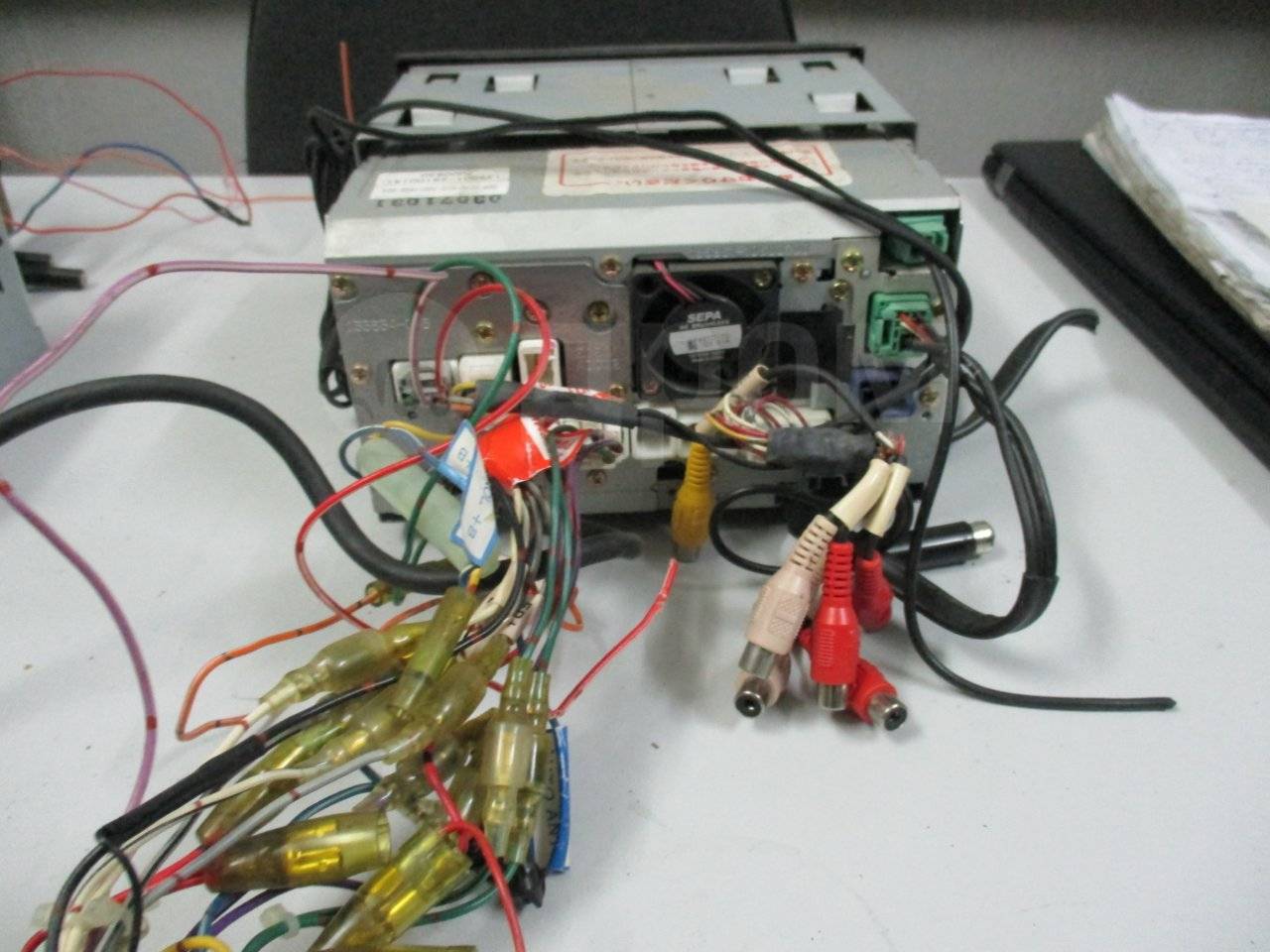

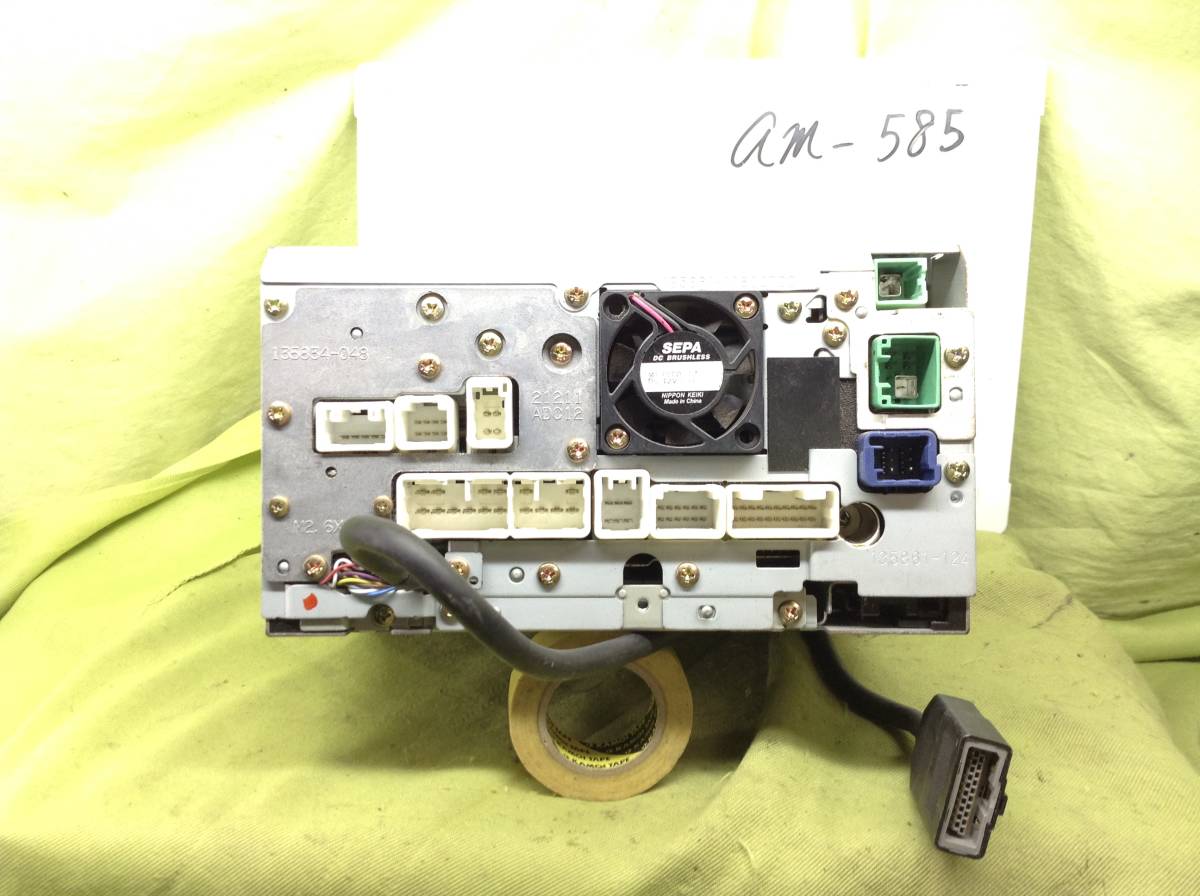

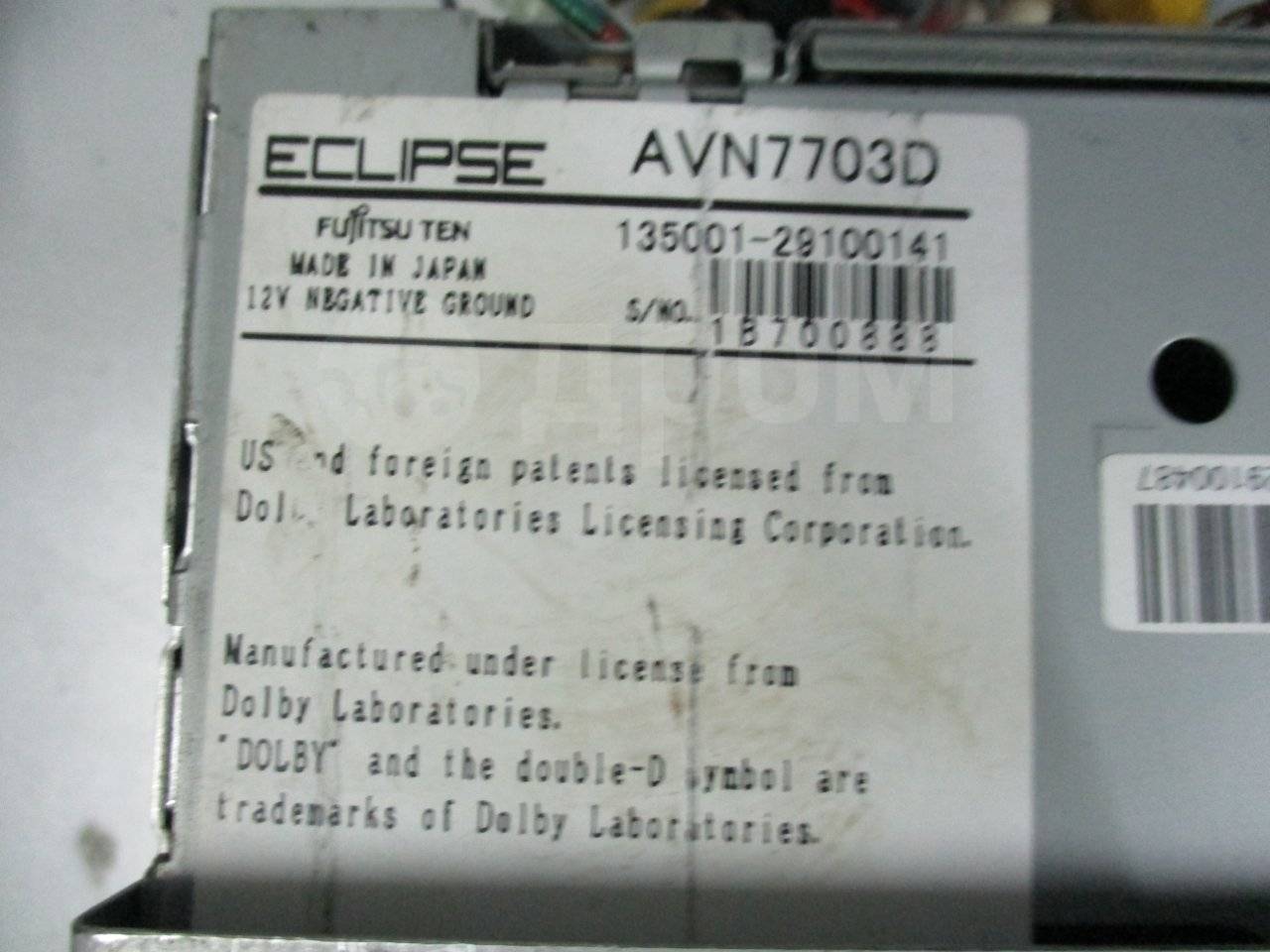

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
ManualUser manual, other
RegionJapan
