Device

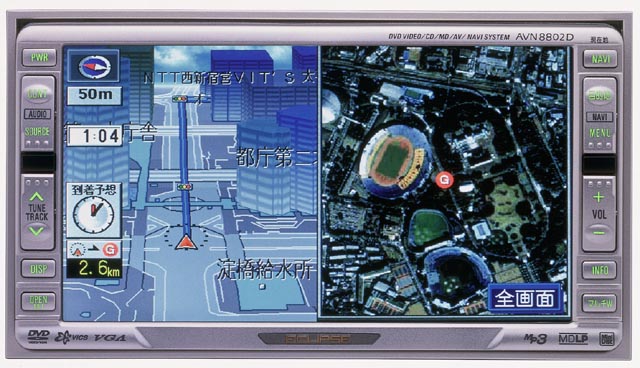

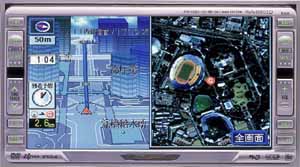

Eclipse AVN8802D

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-07-08

Manufacturer
Eclipse
Model / source grouping
AVN8802D
Device type
auto
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Eclipse AVN8802D”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name AVN8802D
Manufacturer Eclipse
Released 2002/11
Device type auto
Recorder Player
MDLP Yes
NetMD No
Hi-MD No
Radio Not recorded
Dimensions 180 (W) x 100 (H) x 165 (D) mm
Weight 3600
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 12
Power cable Not recorded
Price (launch) Not recorded
¥340 000
-
Inputs CD
Outputs Not recorded
Control Not recorded

One of Fujitsu-Ten's first car audio products to use lead free solder.

  • Full DVD navigation function
  • DVD video compatible, equipped with DVD / CD / MD3 deck
  • Adopted "VGA display" that realizes high-definition display
  • For the first time on the market, satellite images of 8 areas nationwide and navigation are linked
  • The "multi-window" function allows you to select, display, and operate the screen you want to see even while the navigation is displayed.
  • (Note) The TV, DVD video, and VTR that are running are audio only.
  • Display 8 TV stations at once with the "multi-channel view" function
  • Easy operation by touching the screen directly with the "touch control" function
  • Compatible with CD-R / RW and MP3
  • (Note) CD-R / RW may not be playable due to disc characteristics, scratches, dirt, or deterioration.
  • CD-R / RW that has not been finalized cannot be played.
  • Supports MDLP

Content adapted from: Denso-Ten Press Release av.watch

Manuals

Eclipse AVN8802D User Manual JP

Repair

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
ManualUser manual
RegionJapan
