| Name | E1102MDT |
|---|---|
| Manufacturer | Eclipse |
| Released | 2002/04 |
| Device type | auto |
| Recorder | Player |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 178 (W) x 50 (H) x 157 (D) mm |
| Weight | 1200 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥31 000 | |
| - | |
| Inputs | 3.5mm line in (analog-only) |
| Outputs | Not recorded |
| Control | Not recorded |

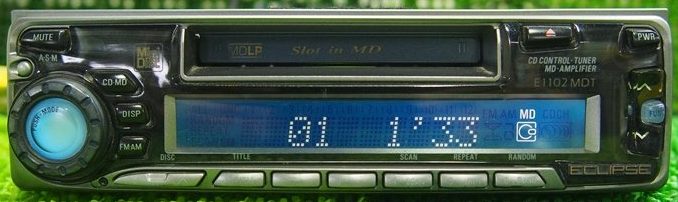

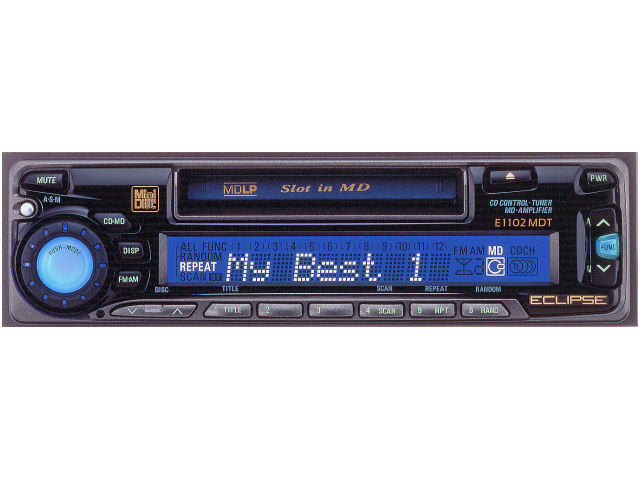

Eclipse E1102MDT.
Max power output: 35W x 4ch
4Ω impedance
12A Maximum consumption current
Content adapted from: Denso Press Release av.watch kakaku.com
Manuals
Repair
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Manual | User manual, other |
|---|---|
| Region | Japan |
