Device

Eclipse E3302CMT

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-01-01

Manufacturer
Eclipse
Model / source grouping
E3302CMT
Device type
auto
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Eclipse E3302CMT”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name E3302CMT
Manufacturer Eclipse
Released 2002/04
Device type auto
Recorder Player
MDLP Yes
NetMD No
Hi-MD No
Radio Yes
Dimensions 178 x 155 x 50 mm
Weight 2200
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 12
Power cable Not recorded
Price (launch) Not recorded
¥50 000
-
Inputs CD
Outputs Not recorded
Control Not recorded

Eclipse E3302CMT / E3302CMT BK. Eclipse is Fujitsu Ten's commercial brand name.

  • "AUX terminal" to which a portable media player can be connected
  • Compatible with CD-R / RW
  • 5-mode DSP and 6-mode 9-band equalizer
  • 50W x 4 amplifier

Automatically mute audio when receiving a call from a mobile phone, "Hands-free call" support The auto incoming function of the mobile phone automatically mutes the audio when an incoming call arrives, enabling hands-free calling.

  • (Note) The separately sold hands-free kit "E301HF" is required.

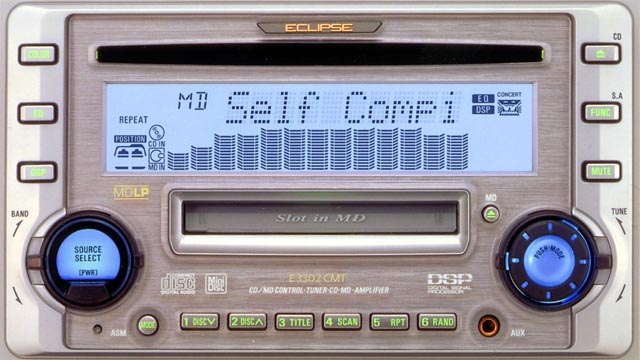

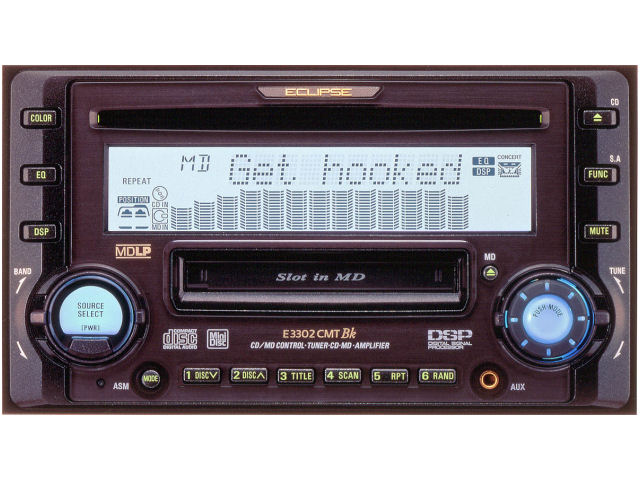

"Variable color display" (E3302CMT, E3302CMT Bk) that allows you to enjoy about 2 million color variations Approximately 2 million colors by arbitrarily combining the three primary colors RGB (Red, Green, Blue) of light with 126 steps of brightness Realized variations. Based on the preset 7 colors of light blue (blue), violet (purple), rose (red), orange (orange), light yellow (yellow), mint green (green), and aqua (light blue), you can do it yourself. You can set your favorite color.

Content adapted from: Denso-Ten Press Release AV.Watch

Manuals

Eclipse E3302CMT User Manual JP

Repair

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
ManualUser manual
RegionJapan
