| Name | E3305CMT |
|---|---|
| Manufacturer | Eclipse |
| Released | 2005/04 |
| Device type | auto |
| Recorder | Player |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 178 (W) x 100 (H) x 160 (D) mm |
| Weight | 2200 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥48 300 | |
| - | |
| Inputs | CD |
| Outputs | Not recorded |
| Control | Not recorded |

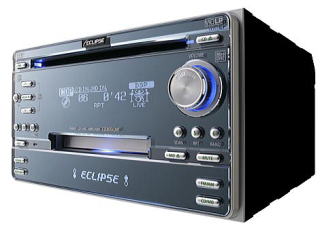

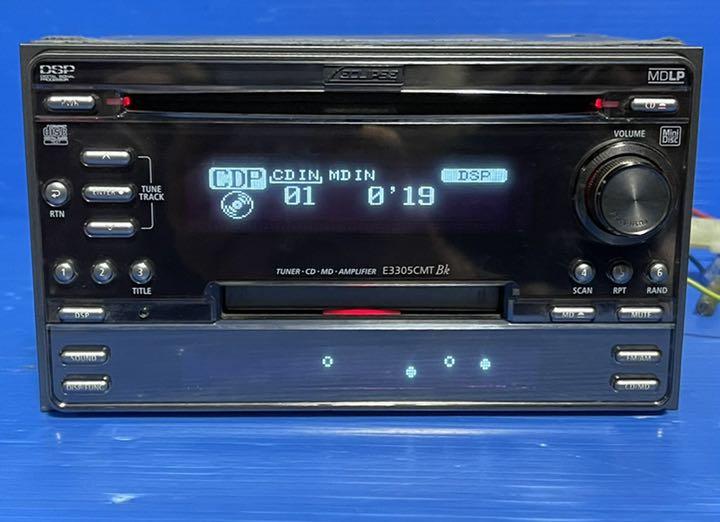

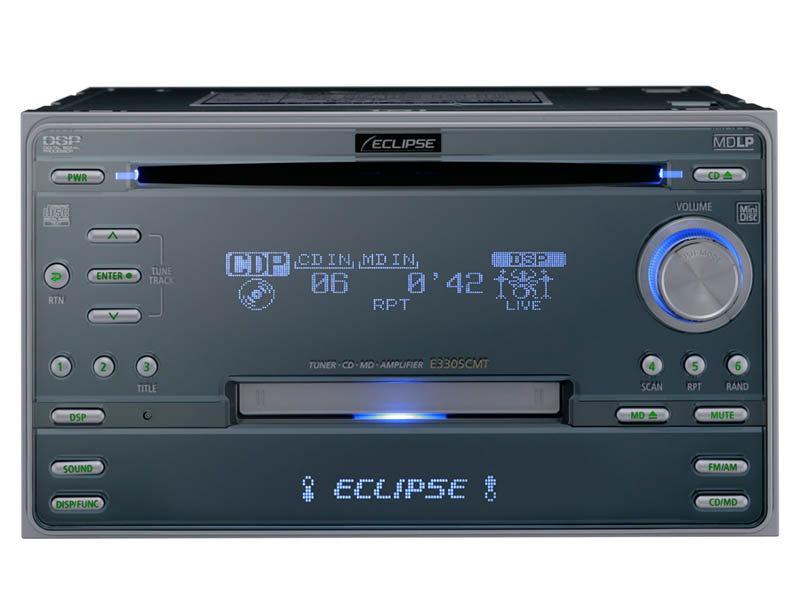

Eclipse E3305CMT (Ocean Mirror) / E3305CMT Bk (Sapphire Black)
The "E3305CMT" to be released this time has renewed the design so far and adopted an unprecedented "luxury and simple" design. By adopting the "flat face" of acrylic panel with deep luster and transparency on the entire face of the car audio, it is designed to make you feel stylish simplicity, cleanliness, transparency and unity. There are two face colors, "Ocean Mirror" and "Sapphire Black", to match the various interior colors of the interior of the car these days.
In addition, the "dual VF display" with two display units displays audio-related information on the upper "information display" and displays animations that enhance the enjoyment of the drive on the lower "graphical display". As a result, visibility and entertainment have been improved.
The 1DIN car audio "E3305CDT" can be matched with the interior by adopting "5 pattern illumination" that can customize the display color so that it can correspond to the illumination peculiar to imported cars.
In terms of sound quality, we have followed the conventional commitment to sound and realized "faithful reproduction of the original sound" by the best balance of the device. In addition, all models of this model are equipped with "MOS-FET 50W x 4 power amplifier IC" and "high voltage output" functions, and "E3305CMT" is equipped with "direct in DSP" to achieve the highest quality in its class. It has been realized.
Content adapted from: Eclipse Press Release Eclipse Press Release (MiniDisc Wiki mirror) av.watch
Manuals
Video

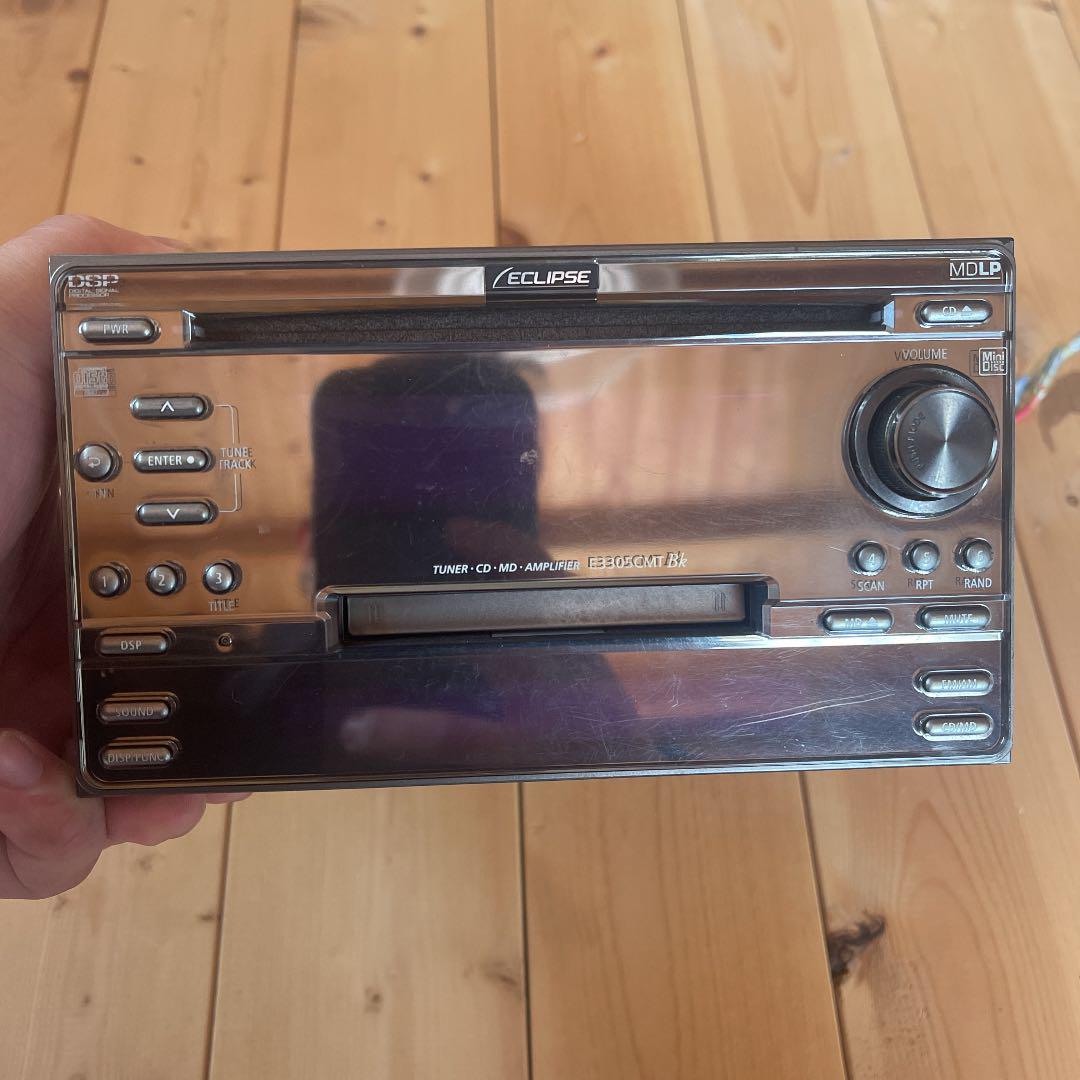

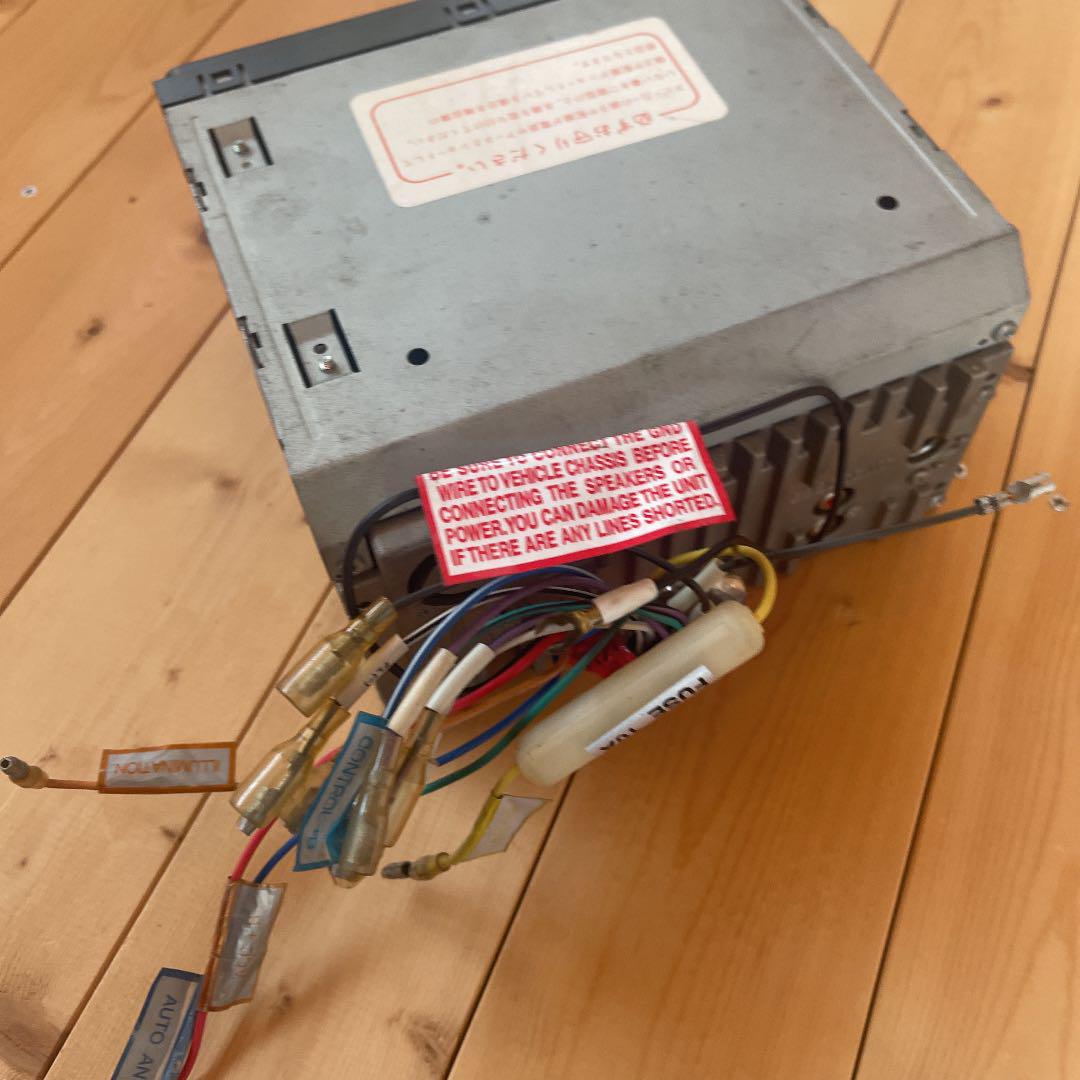

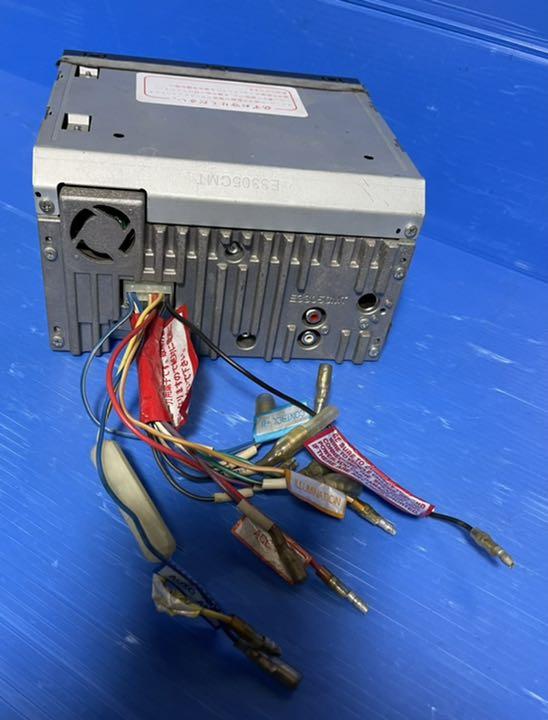

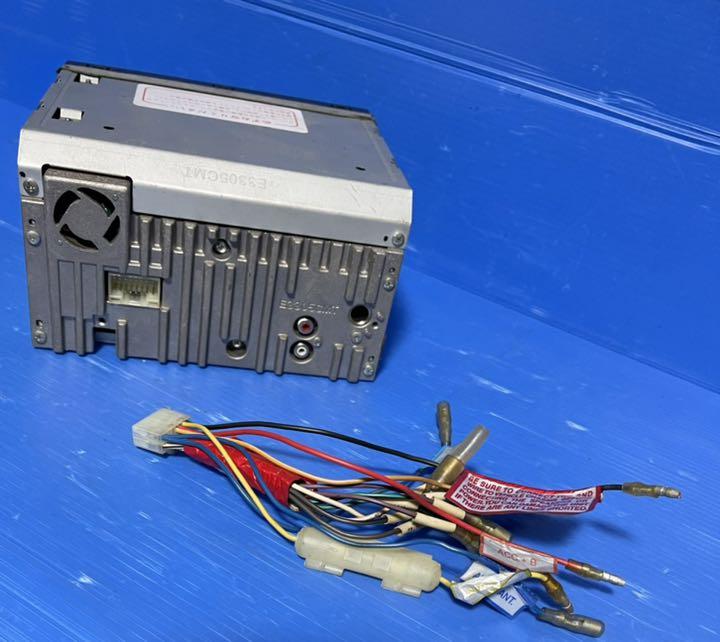

Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Manual | User manual |
|---|---|
| Region | Japan |
