Eclipse E5504CMT

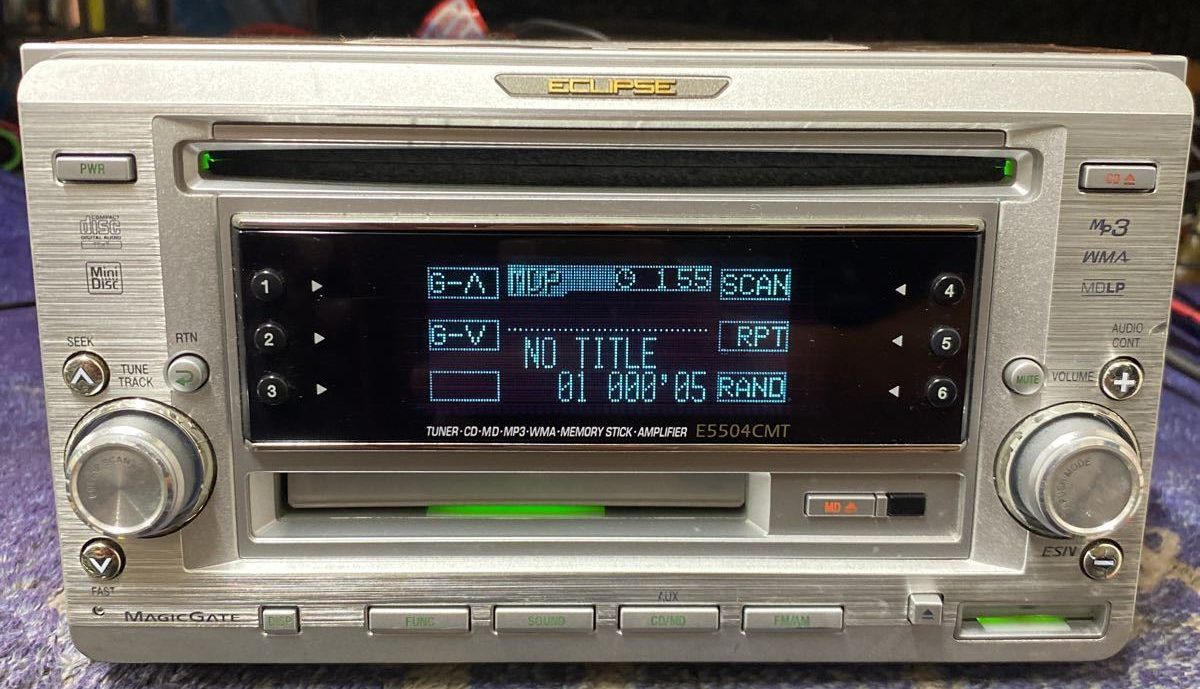

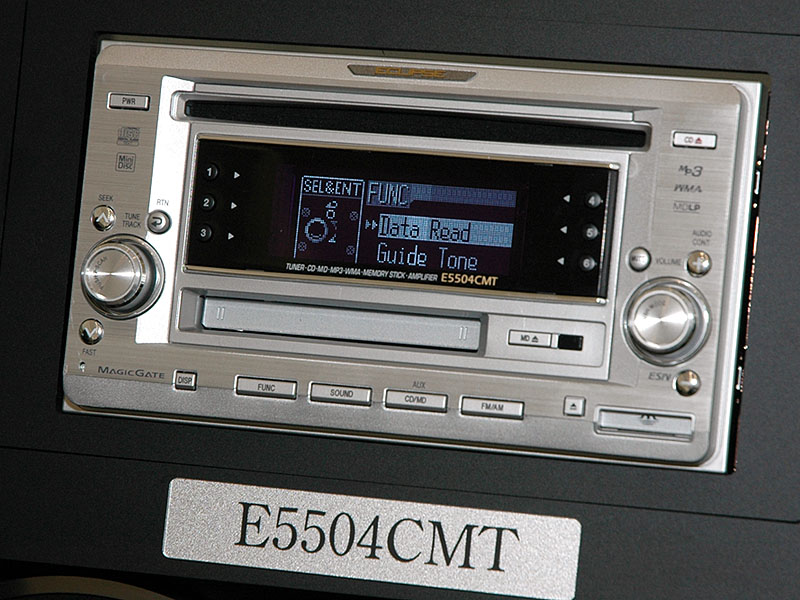

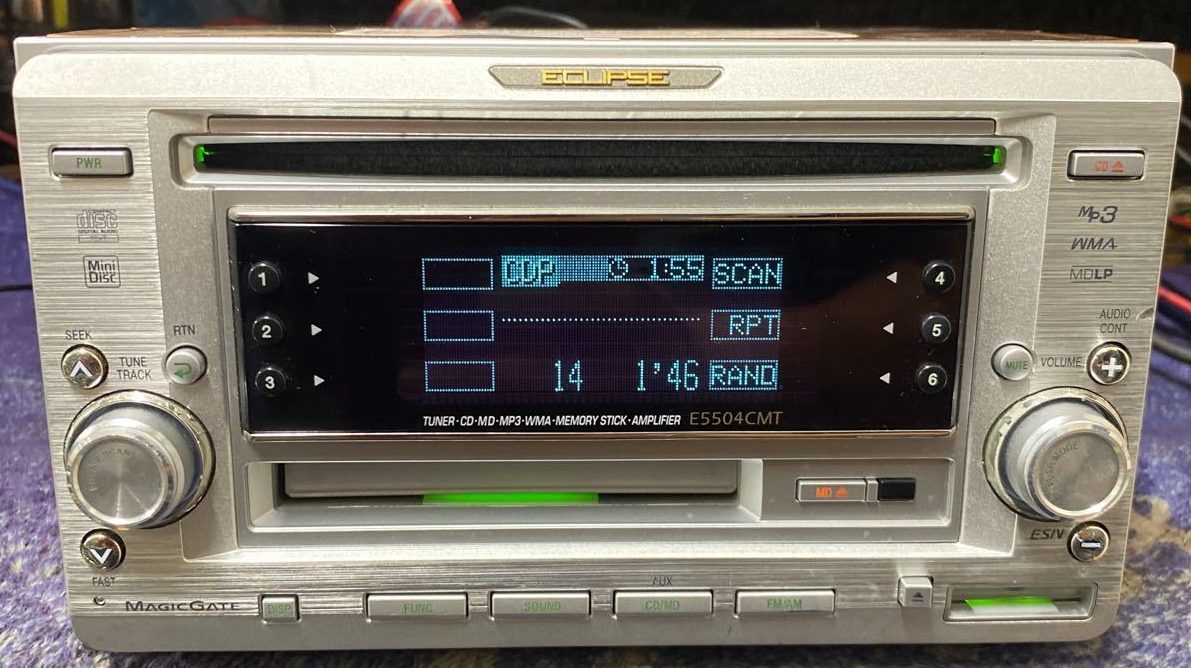

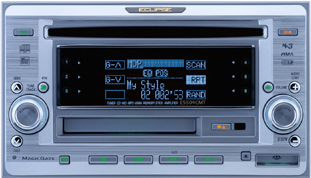

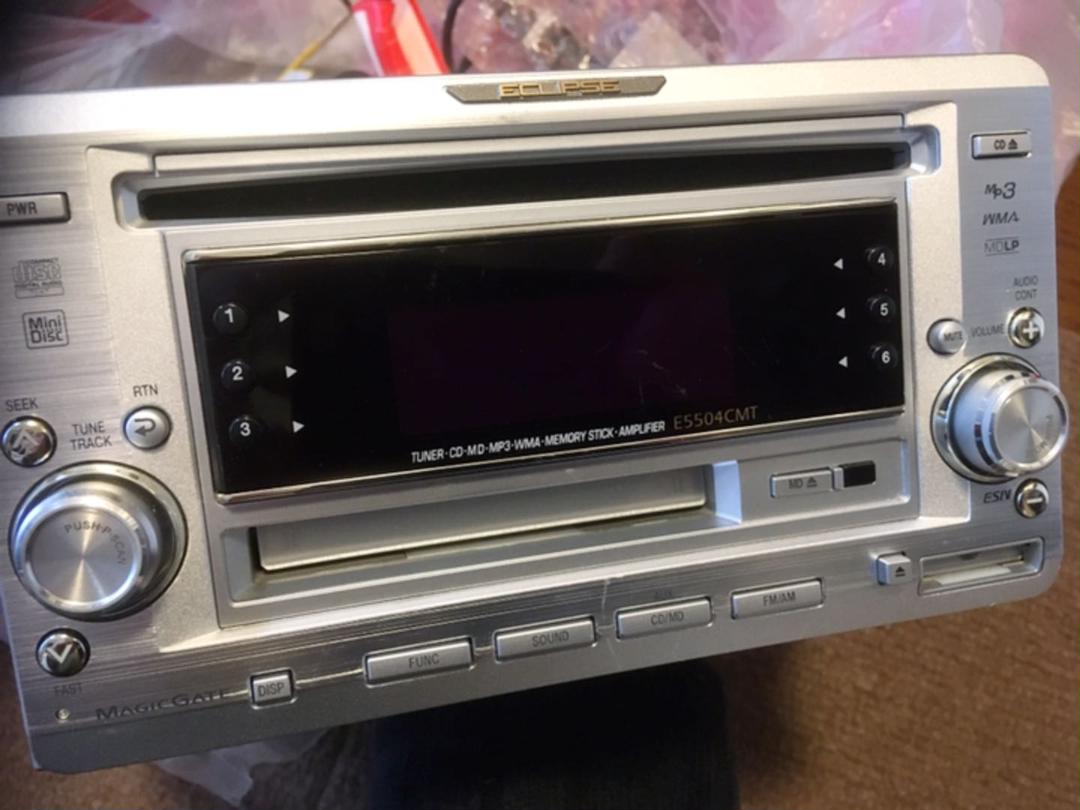

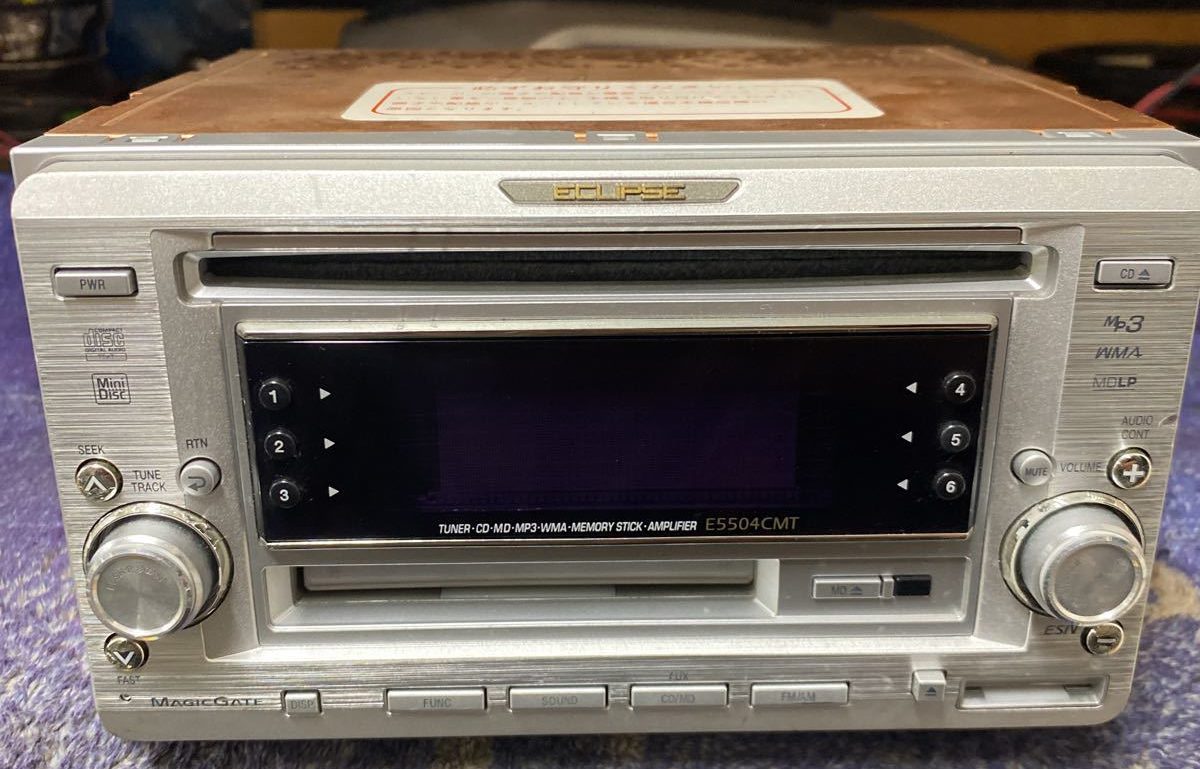

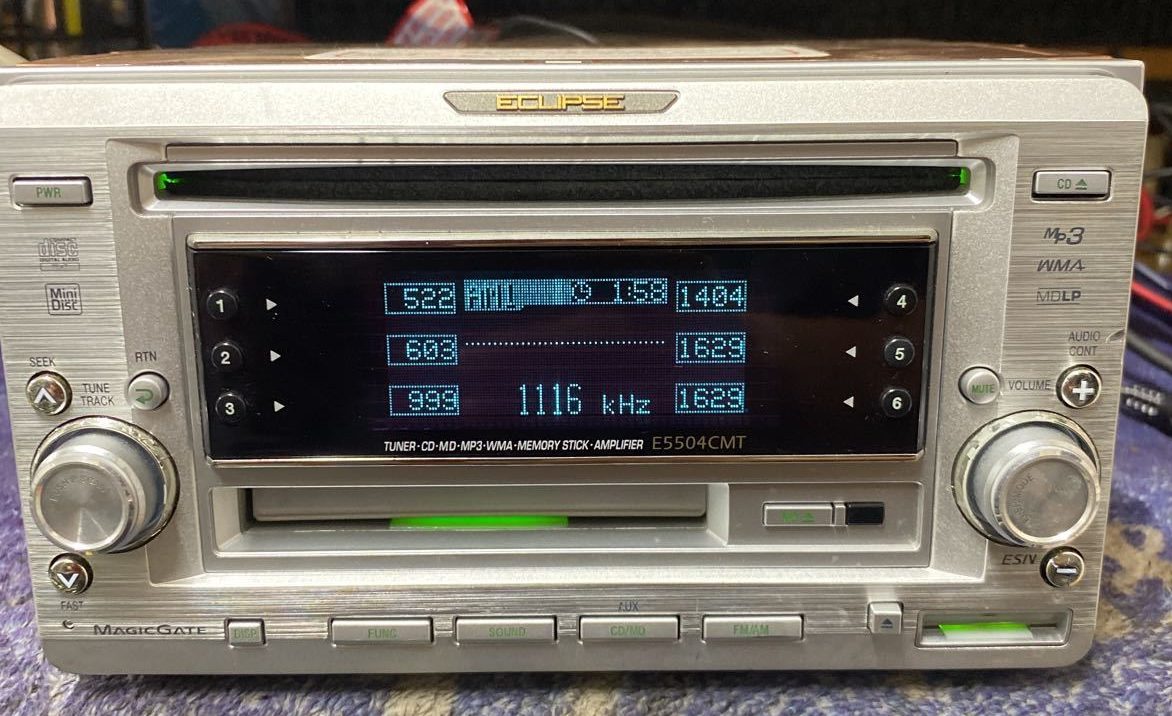

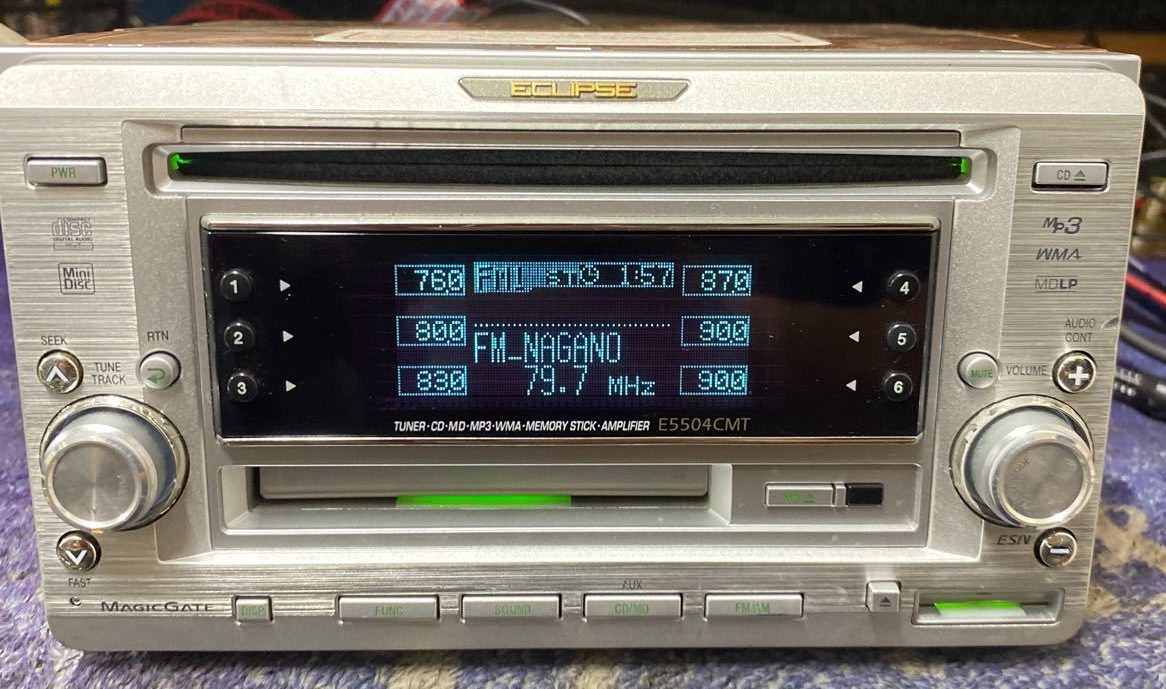

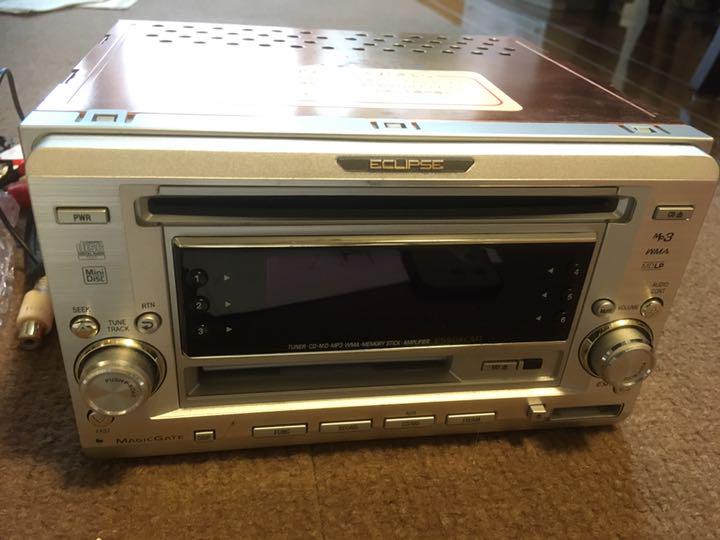

Multi-control CD / MD / MS main unit "E5504CMT" [Photo attached] 79,800 yen (tax included)

● Included: 32MB MagicGate Memory Stick

■ Sound quality correction service "Audio Customization" by Eclipse dedicated server "E-iSERV" You can easily adjust the acoustic characteristics (time alignment / crossover / parametric equalizer) that are indispensable for faithfully reproducing the original sound in the vehicle interior using a personal computer. In particular, the parametric equalizer can be automatically adjusted by the following procedure, so advanced settings are possible without the need for specialized knowledge or skilled ears. Measure the frequency characteristics of your car using the included measurement microphone Download measurement data to your computer using a memory stick Access E-iSERV from the Internet and transfer measurement data After performing automatic adjustment with E-iSERV, it can be corrected in detail on the computer screen and to your liking. 　　 Transfer correction data to "E5504CMT" using Memory Stick

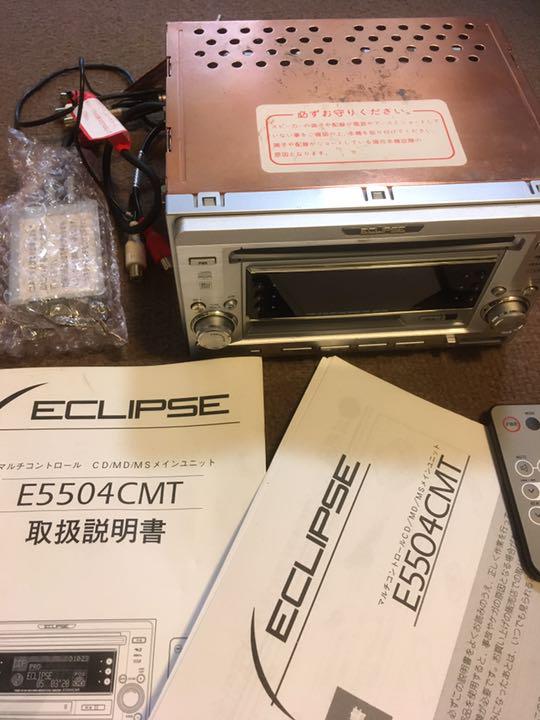

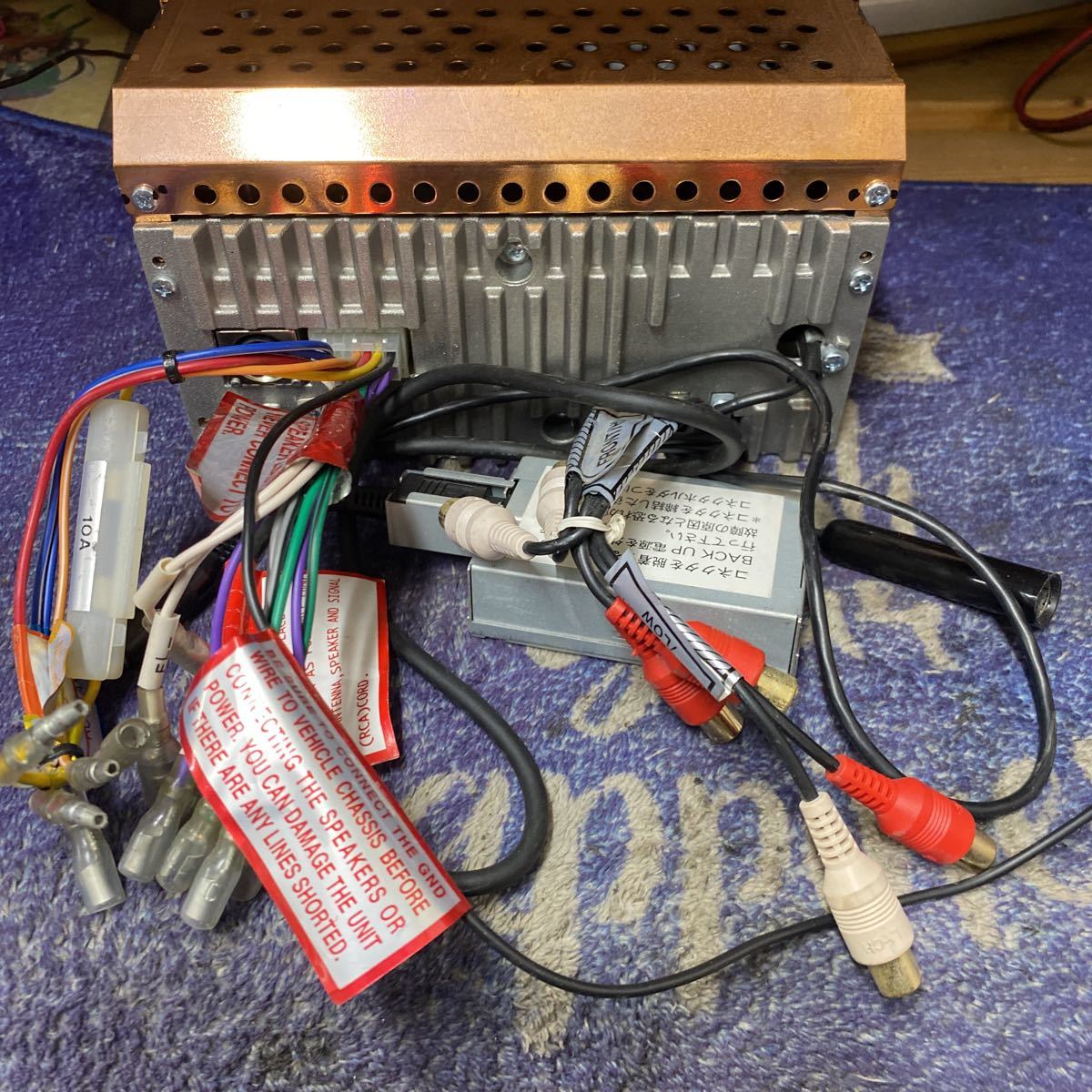

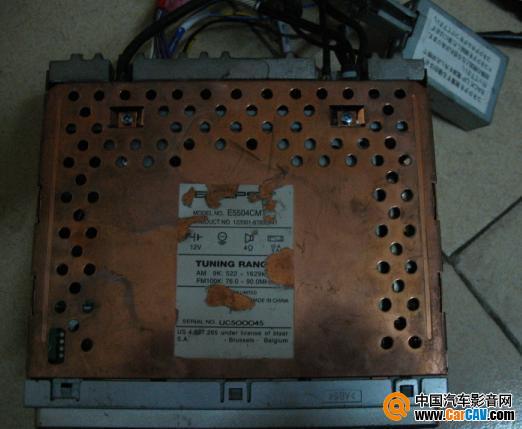

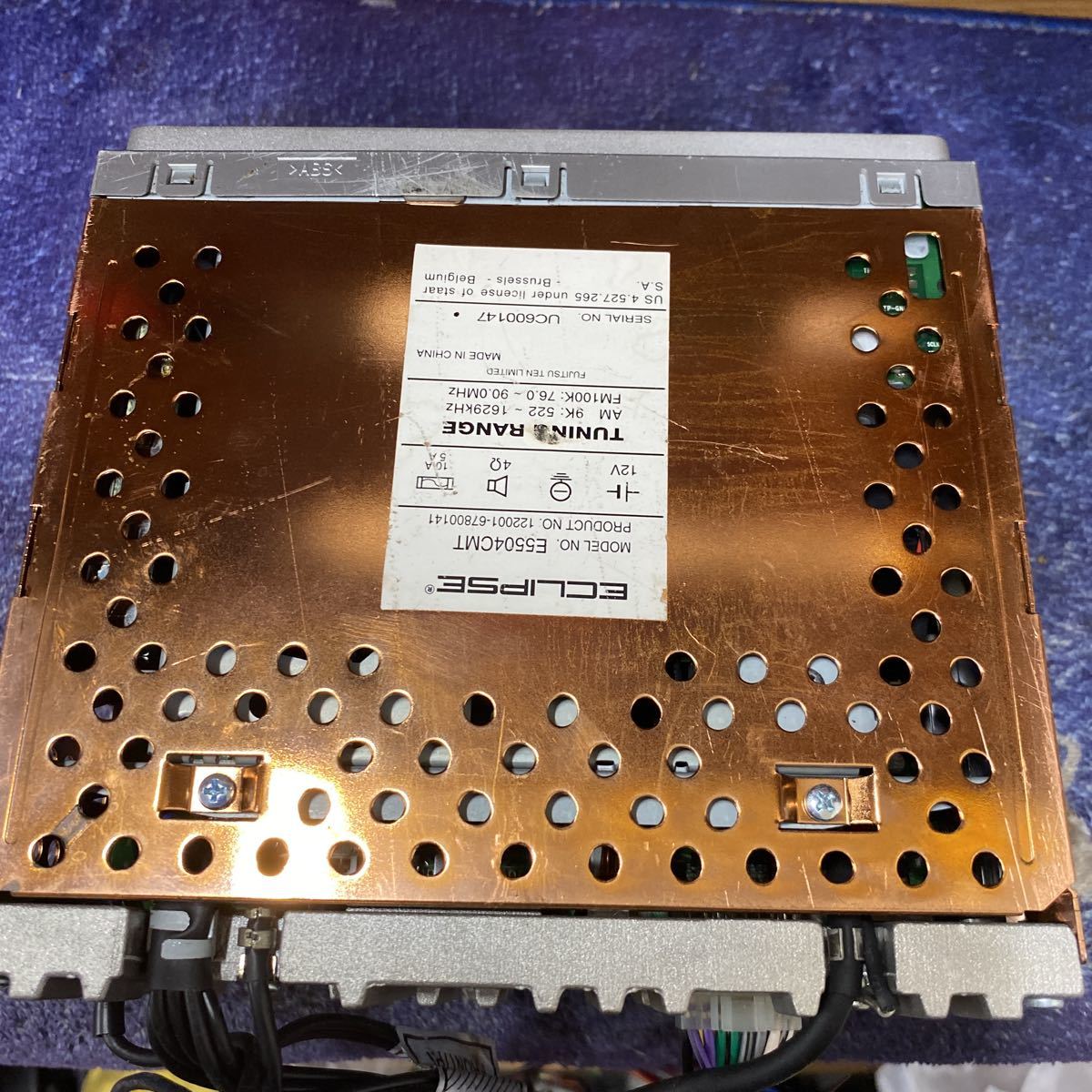

■ Uses a copper-plated chassis that suppresses the effects of noise The chassis is copper-plated and a clear coat is applied to prevent oxidation, minimizing the effects of noise generated during driving.

■ Compatible with 3WAY system You can connect tweeters, midranges, and subwoofers, and adjust their time alignment, crossover, and parametric equalizer.

■ Equipped with "time alignment" that corrects the arrival time of sound from each speaker Corrects the sound arrival time and phase shift due to the difference in the distance between the speaker and the listening point.

■ Equipped with "Crossover" that eliminates the overlap of sounds from speakers with different bands Eliminates the overlap of sounds that occur when speakers with different playback bands, such as 2-way and 3-way, are combined.

■ Equipped with "parametric equalizer" that corrects the acoustic characteristics in the vehicle interior The frequency point can be selected from 63Hz to 16kHz, and the Q (sharpness) and gain (dB) can be adjusted. Subtle acoustic adjustments not possible with the graphic equalizer are possible. 　

■ Recording and playback on Memory Stick is possible for up to 256 minutes You can play the music recorded on the MagicGate Memory Stick, and you can record from a CD to the MagicGate Memory Stick for up to 256 minutes. (When using a 128MB memory stick) 　

■ Equipped with a "multi-harmonizer" that reproduces compressed sound sources with high sound quality When playing a compressed sound source such as MP3, WMA, ATRAC3, the original sound quality and volume are reproduced by complementing the sound components lost during compression.

■ Adopting "Motion Picture" to create the interior of the car Taking advantage of the clear display of the high-brightness full-dot VF display, 3 patterns of video are played to create the interior of the vehicle according to the atmosphere of the drive or song. 　

■ Equipped with "operation assist function" to help complicated settings When making various settings, the light of the operation target button blinks, and you can immediately see the button used for the adjustment operation. In addition, the function name is displayed on the full dot VF, making complicated settings easy.

■ Equipped with "ESN" function that automatically locks the start when removed from the car If the audio unit is removed from the car due to theft, etc. and the connection with the battery is disconnected, the activation lock is automatically applied and the system cannot be used. To unlock, you need a memory stick with a password set in advance or a CD registered in the main unit. You can select "when the battery is disconnected" or "when the accessory power is off" for the startup lock.

---

Content adapted from: Denso-Ten Press Release av.watch denso-ten product history (page 32)

Eclipse E5504CMT Instruction Manual JP

Eclipse E5504CMT Installation Manual JP
